Computational Methods for Management and Economics Carla Gomes. Module 10a Integer Programming Models. (slides adapted from Hillier and Hillier’s and Orlin’s). Divisibility
E N D
Computational Methods forManagement and EconomicsCarla Gomes Module 10a Integer Programming Models (slides adapted from Hillier and Hillier’s and Orlin’s)
Divisibility Decision variables in an LP model are allowed to have any values, including noninteger values, that satisfy the functional and nonnegativity constraints. i.e., activities can be run at fractional levels. What to do when divisibility assumption violated: realm of integer programming!!!

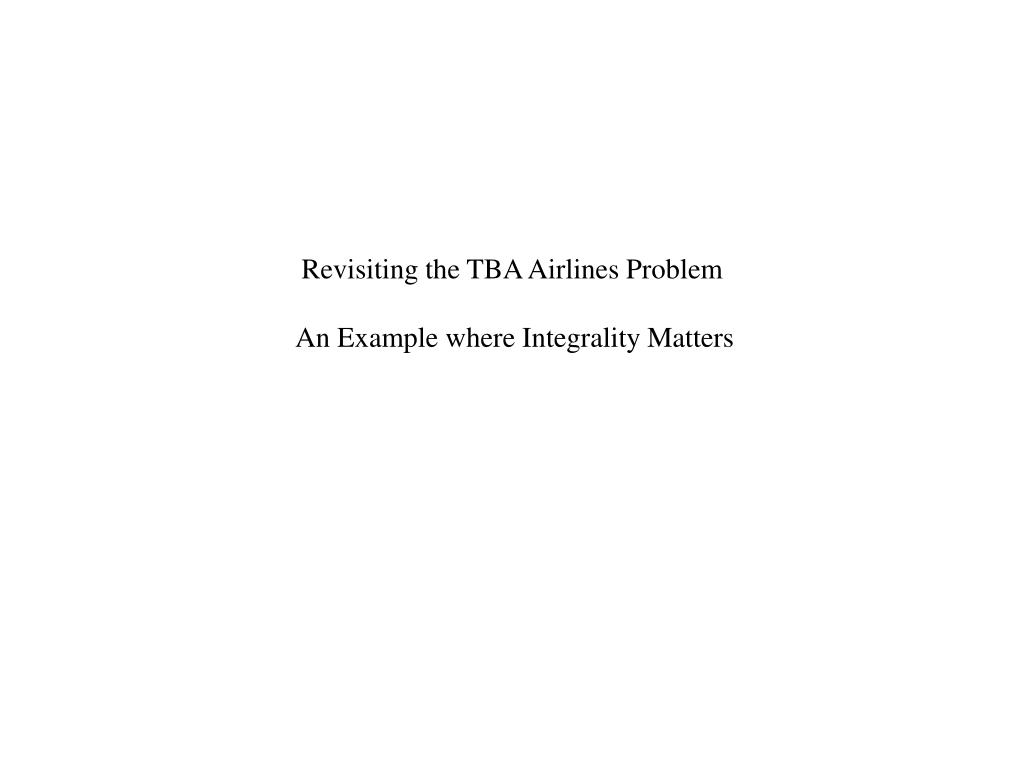

Revisiting the TBA Airlines Problem An Example where Integrality Matters

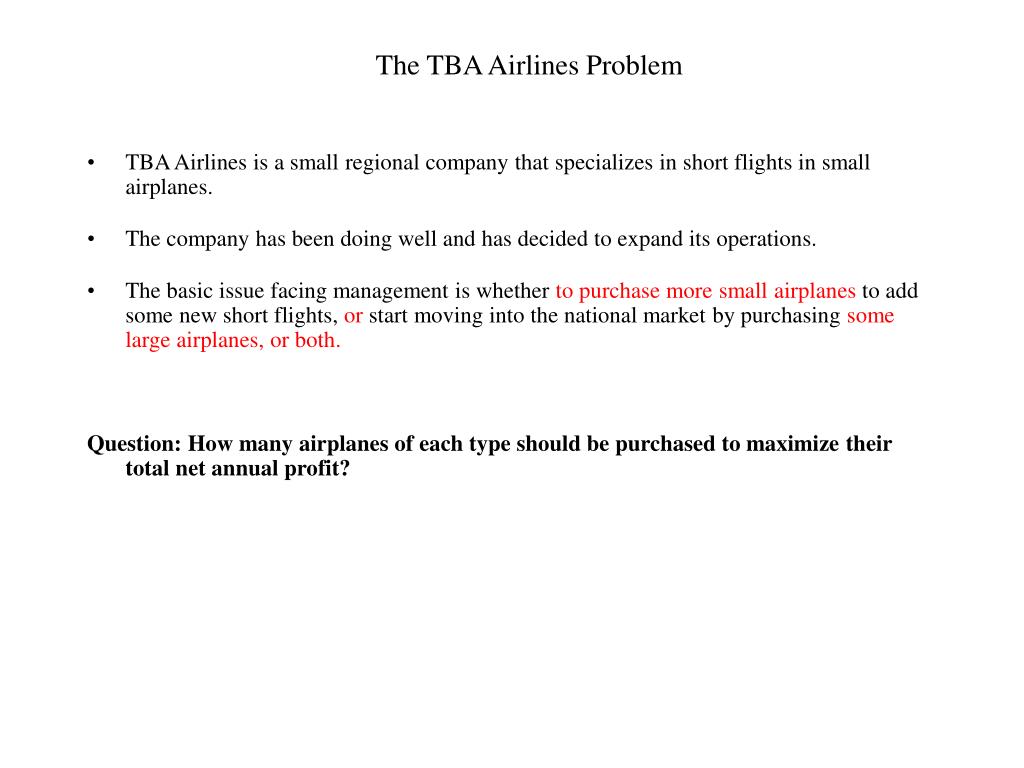

The TBA Airlines Problem • TBA Airlines is a small regional company that specializes in short flights in small airplanes. • The company has been doing well and has decided to expand its operations. • The basic issue facing management is whether to purchase more small airplanes to add some new short flights, or start moving into the national market by purchasing some large airplanes, or both. Question: How many airplanes of each type should be purchased to maximize their total net annual profit?

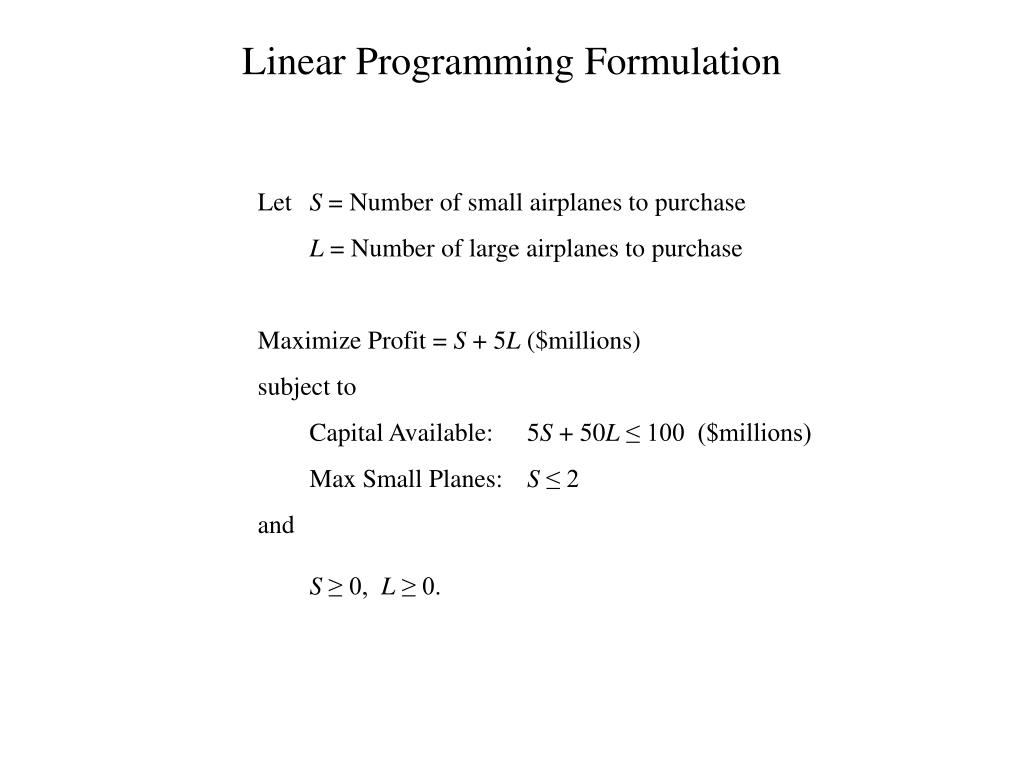

Linear Programming Formulation Let S = Number of small airplanes to purchaseL = Number of large airplanes to purchaseMaximize Profit = S + 5L ($millions)subject to Capital Available: 5S + 50L ≤ 100 ($millions) Max Small Planes: S ≤ 2and S ≥ 0, L ≥ 0.
Violates Divisibility Assumption of LP • Divisibility Assumption of Linear Programming: Decision variables in a linear programming model are allowed to have any values, including fractional values, that satisfy the functional and nonnegativity constraints. Thus, these variables are not restricted to just integer values. • Since the number of airplanes purchased by TBA must have an integer value, the divisibility assumption is violated.
Integer Programming Formulation Let S = Number of small airplanes to purchaseL = Number of large airplanes to purchaseMaximize Profit = S + 5L ($millions)subject to Capital Available: 5S + 50L ≤ 100 ($millions) Max Small Planes: S ≤ 2and S ≥ 0, L ≥ 0S, L are integers.

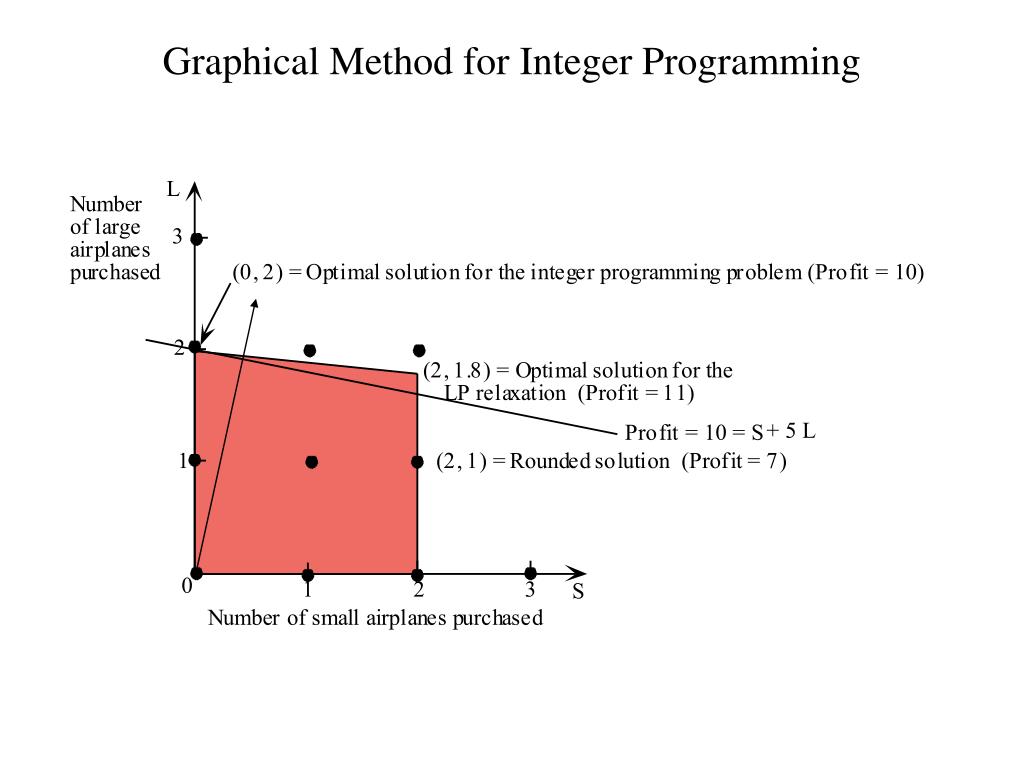

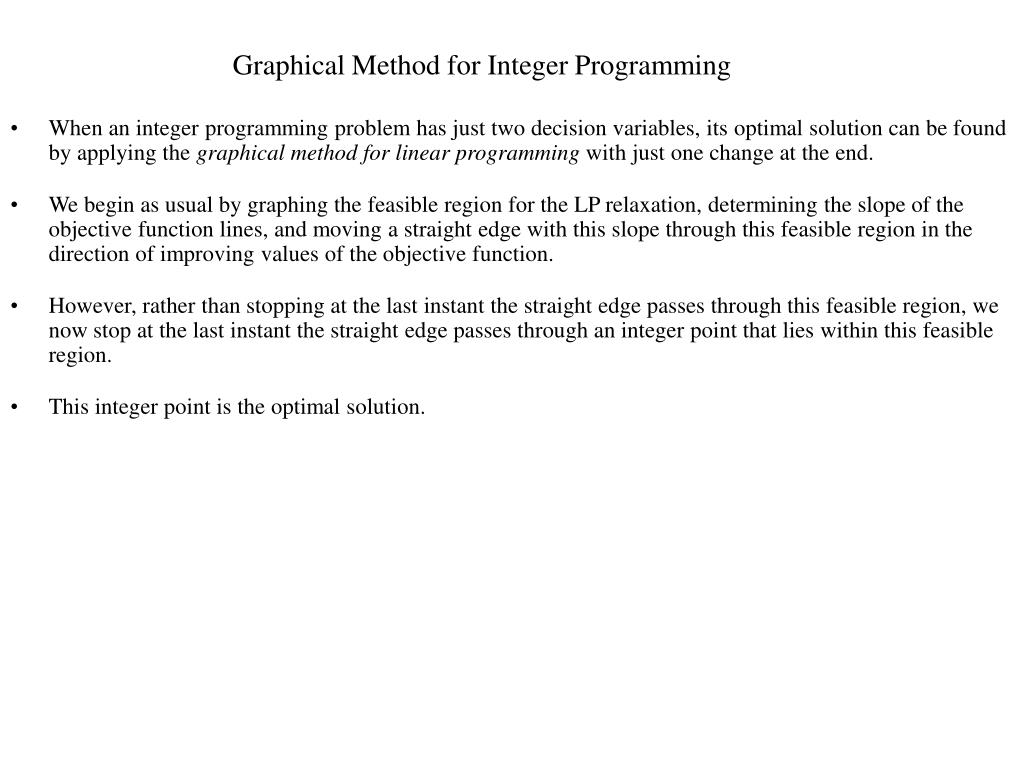

Graphical Method for Integer Programming • When an integer programming problem has just two decision variables, its optimal solution can be found by applying the graphical method for linear programming with just one change at the end. • We begin as usual by graphing the feasible region for the LP relaxation, determining the slope of the objective function lines, and moving a straight edge with this slope through this feasible region in the direction of improving values of the objective function. • However, rather than stopping at the last instant the straight edge passes through this feasible region, we now stop at the last instant the straight edge passes through an integer point that lies within this feasible region. • This integer point is the optimal solution.

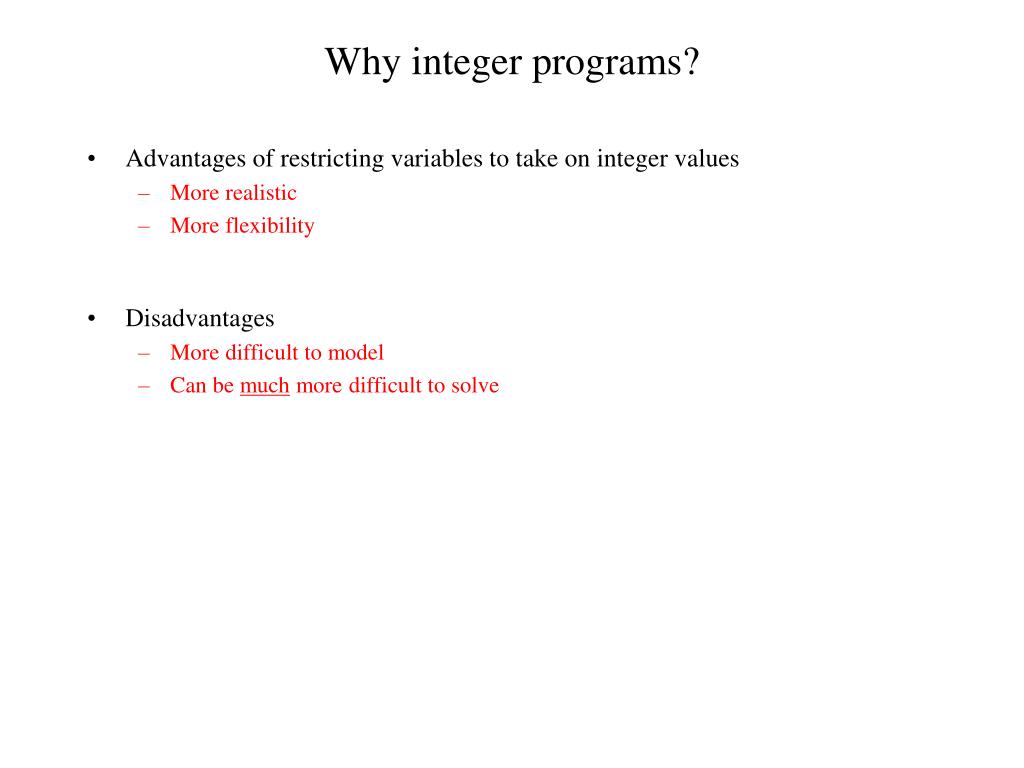

Why integer programs? • Advantages of restricting variables to take on integer values • More realistic • More flexibility • Disadvantages • More difficult to model • Can be much more difficult to solve

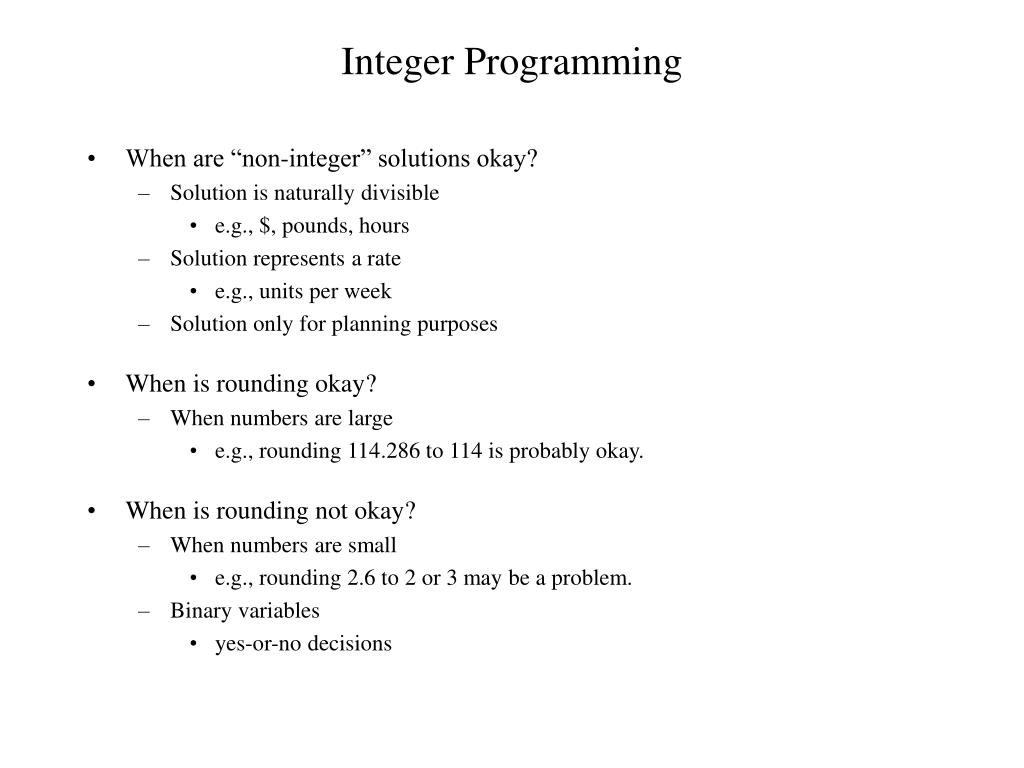

Integer Programming • When are “non-integer” solutions okay? • Solution is naturally divisible • e.g., $, pounds, hours • Solution represents a rate • e.g., units per week • Solution only for planning purposes • When is rounding okay? • When numbers are large • e.g., rounding 114.286 to 114 is probably okay. • When is rounding not okay? • When numbers are small • e.g., rounding 2.6 to 2 or 3 may be a problem. • Binary variables • yes-or-no decisions

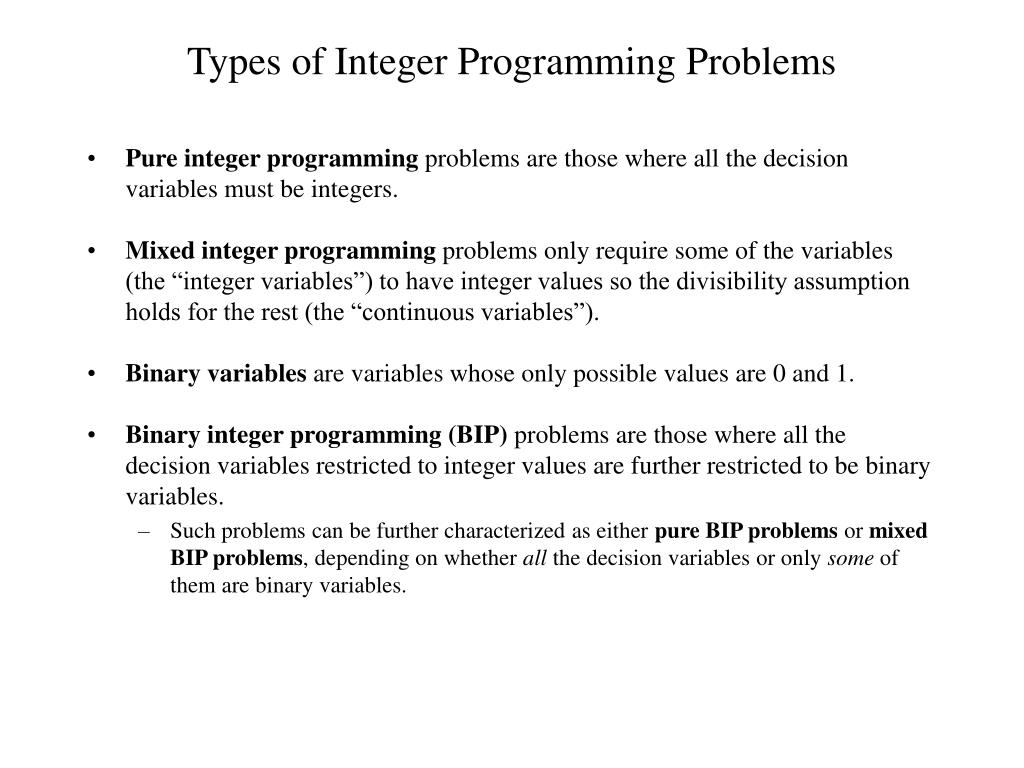

Types of Integer Programming Problems • Pure integer programming problems are those where all the decision variables must be integers. • Mixed integer programming problems only require some of the variables (the “integer variables”) to have integer values so the divisibility assumption holds for the rest (the “continuous variables”). • Binary variables are variables whose only possible values are 0 and 1. • Binary integer programming(BIP) problems are those where all the decision variables restricted to integer values are further restricted to be binary variables. • Such problems can be further characterized as either pure BIP problems or mixed BIP problems, depending on whether all the decision variables or only some of them are binary variables.

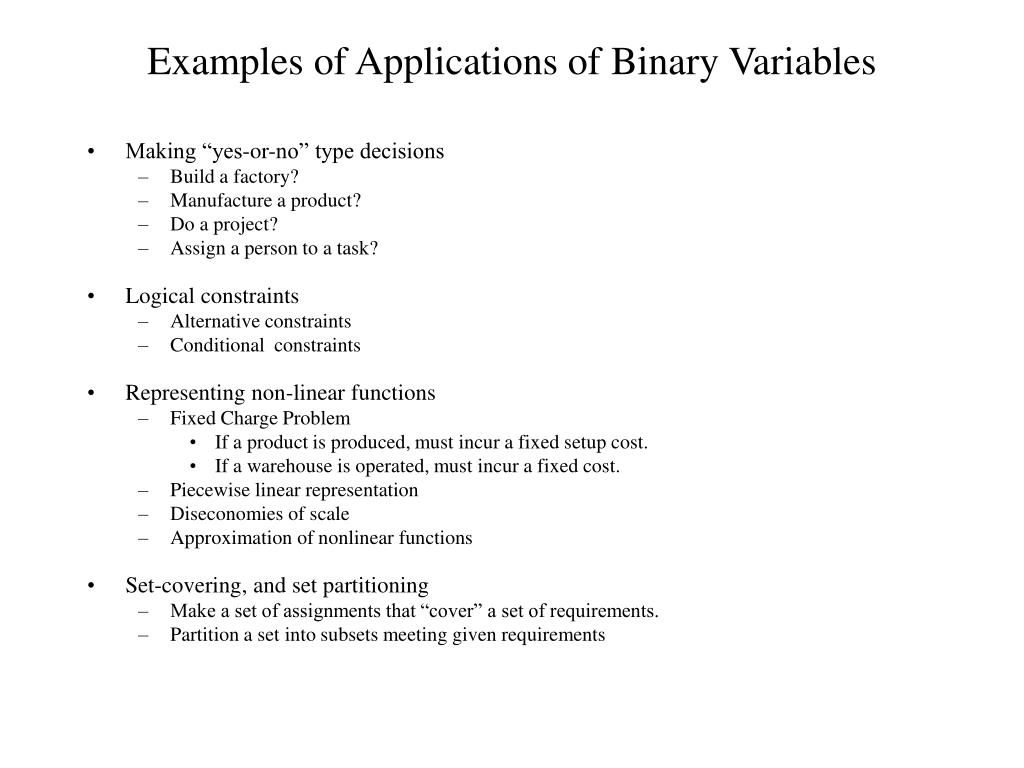

Examples of Applications of Binary Variables • Making “yes-or-no” type decisions • Build a factory? • Manufacture a product? • Do a project? • Assign a person to a task? • Logical constraints • Alternative constraints • Conditional constraints • Representing non-linear functions • Fixed Charge Problem • If a product is produced, must incur a fixed setup cost. • If a warehouse is operated, must incur a fixed cost. • Piecewise linear representation • Diseconomies of scale • Approximation of nonlinear functions • Set-covering, and set partitioning • Make a set of assignments that “cover” a set of requirements. • Partition a set into subsets meeting given requirements
StockCompany ExampleCapital Budgeting Allocation Problem StockCompany is considering 6 investments. The cash required from each investment as well as the NPV of the investment is given next. The cash available for the investments is $14,000. Stockco wants to maximize its NPV. What is the optimal strategy? An investment can be selected or not. One cannot select a fraction of an investment.

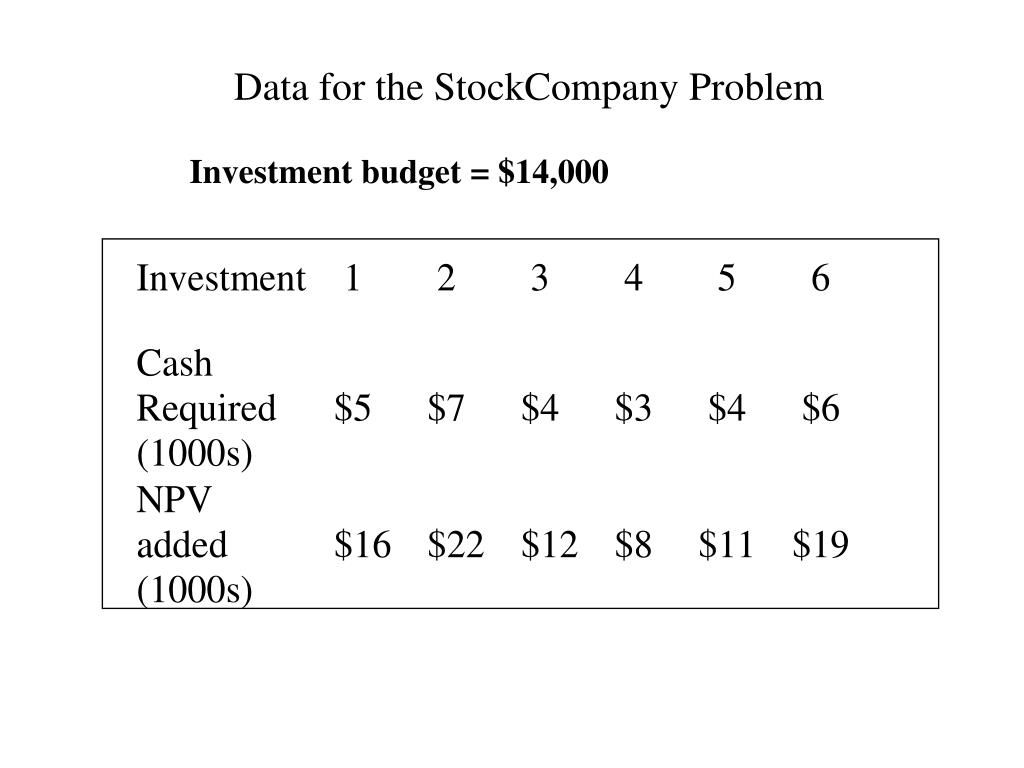

Data for the StockCompany Problem Investment budget = $14,000

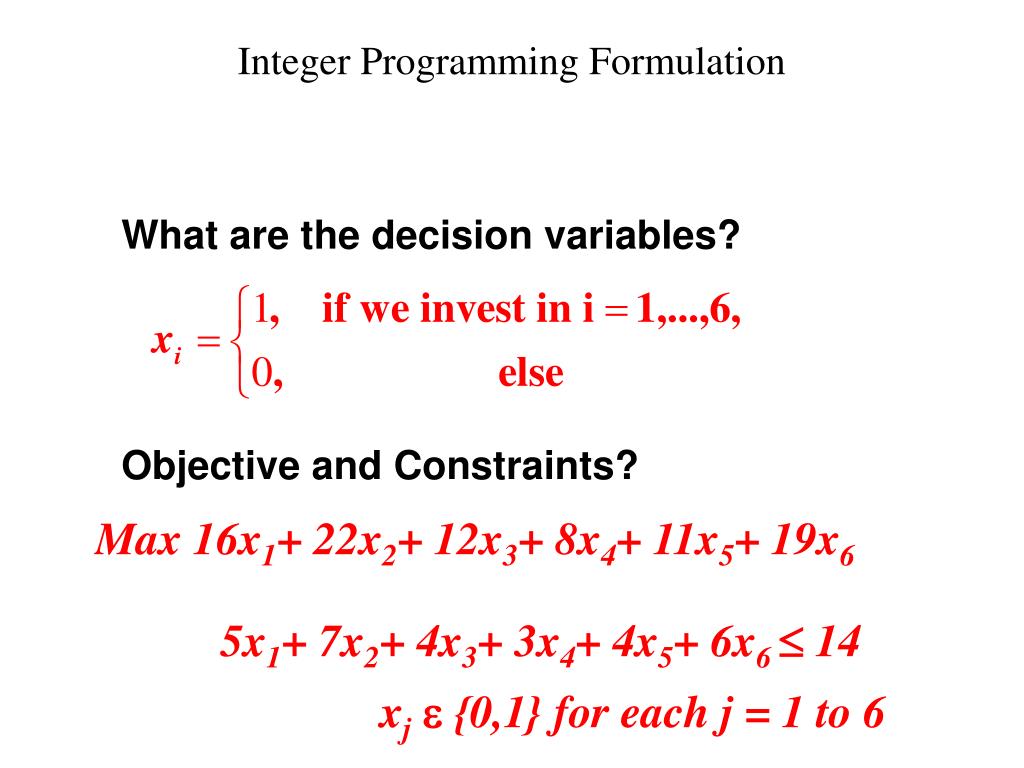

Integer Programming Formulation What are the decision variables? Objective and Constraints? Max 16x1+ 22x2+ 12x3+ 8x4+ 11x5+ 19x6 5x1+ 7x2+ 4x3+ 3x4+ 4x5+ 6x6 14 xje {0,1} for each j = 1 to 6

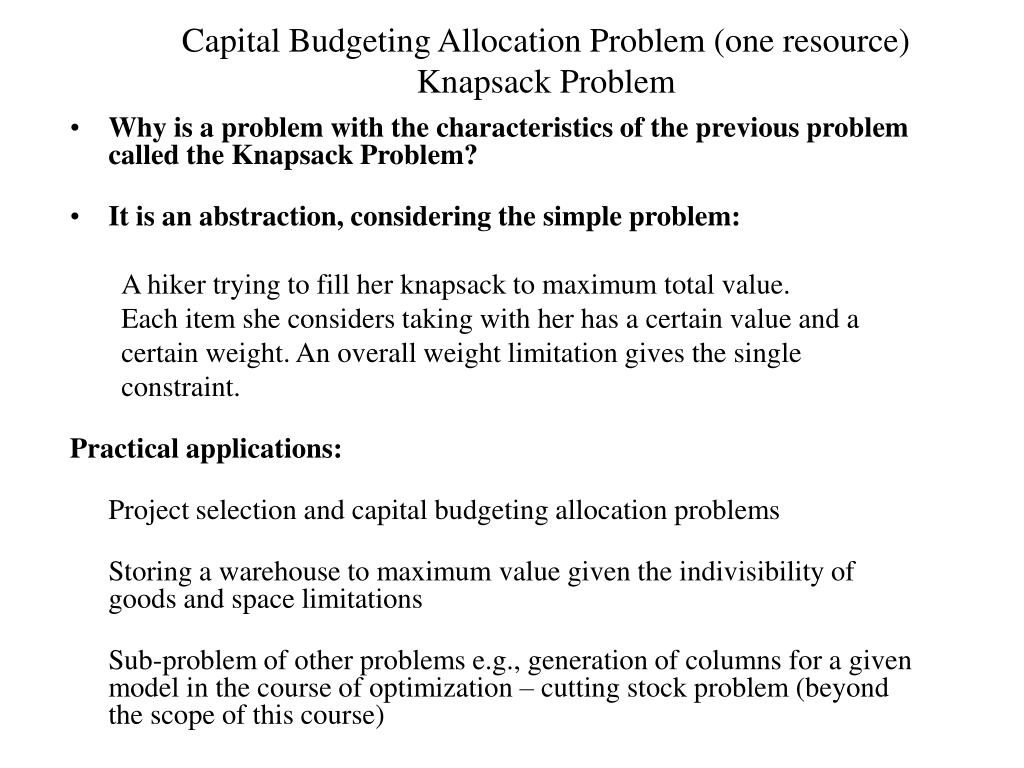

Capital Budgeting Allocation Problem (one resource) Knapsack Problem • Why is a problem with the characteristics of the previous problem called the Knapsack Problem? • It is an abstraction, considering the simple problem: A hiker trying to fill her knapsack to maximum total value. Each item she considers taking with her has a certain value and a certain weight. An overall weight limitation gives the single constraint. Practical applications: Project selection and capital budgeting allocation problems Storing a warehouse to maximum value given the indivisibility of goods and space limitations Sub-problem of other problems e.g., generation of columns for a given model in the course of optimization – cutting stock problem (beyond the scope of this course)
The previous constraints represent “economic indivisibilities”, either a project is selected, or it is not. There is no selecting of a fraction of a project. • Similarly, integer variables can model logical requirements (e.g., if stock 2 is selected, then so is stock 1.)
How to model “logical” constraints • Exactly 3 stocks are selected. • If stock 2 is selected, then so is stock 1. • If stock 1 is selected, then stock 3 is not selected. • Either stock 4 is selected or stock 5 is selected, but not both.

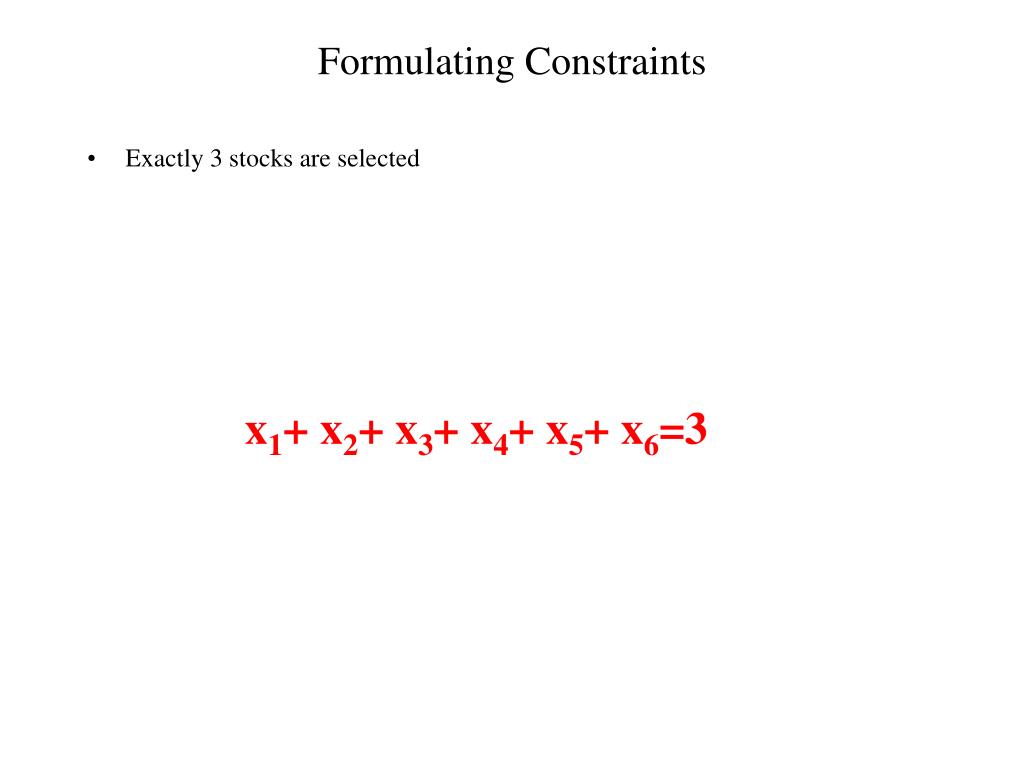

Formulating Constraints • Exactly 3 stocks are selected x1+ x2+ x3+ x4+ x5+ x6=3

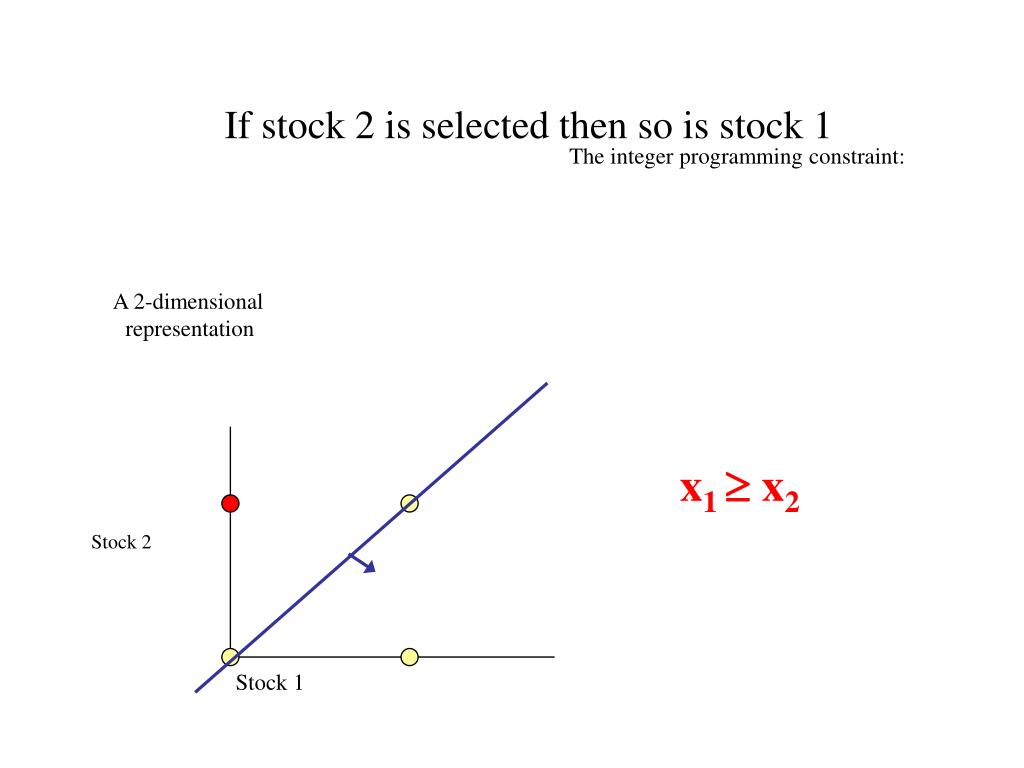

A 2-dimensional representation Stock 2 Stock 1 The integer programming constraint: If stock 2 is selected then so is stock 1 x1 x2
A 2-dimensional representation Stock 3 Stock 1 The integer programming constraint: If stock 1 is selected then stock 3 is not selected x1 + x3 1
A 2-dimensional representation stock 5 stock 4 The integer programming constraint: Either stock 4 is selected or stock 5 is selected, but not both. x4 + x5 = 1

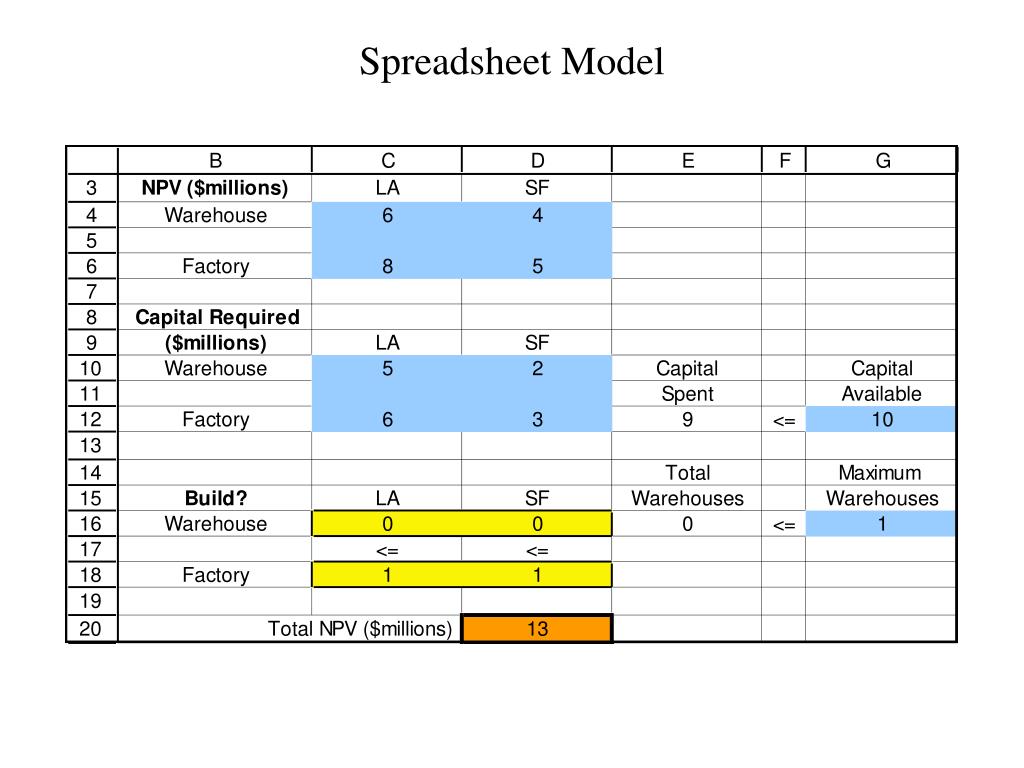

California Manufacturing Company • The California Manufacturing Company is a diversified company with several factories and warehouses throughout California, but none yet in Los Angeles or San Francisco. • A basic issue is whether to build a new factory in Los Angeles or San Francisco, or perhaps even both. • Management is also considering building at most one new warehouse, but will restrict the choice to a city where a new factory is being built. Question: Should the California Manufacturing Company expand with factories and/or warehouses in Los Angeles and/or San Francisco?

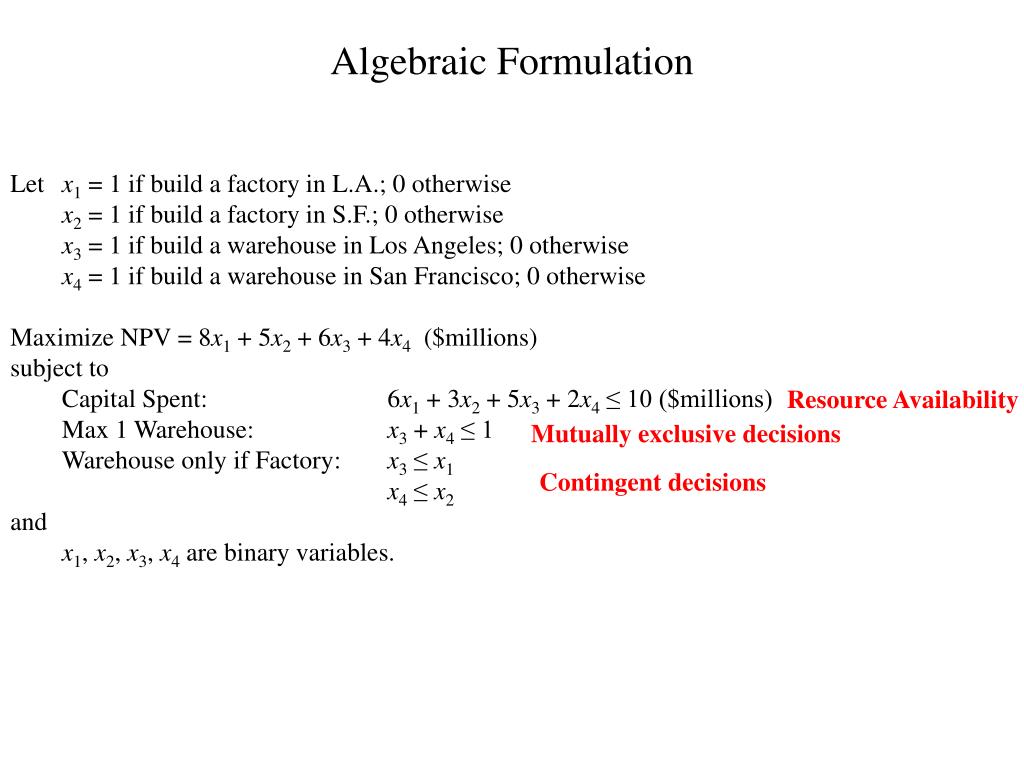

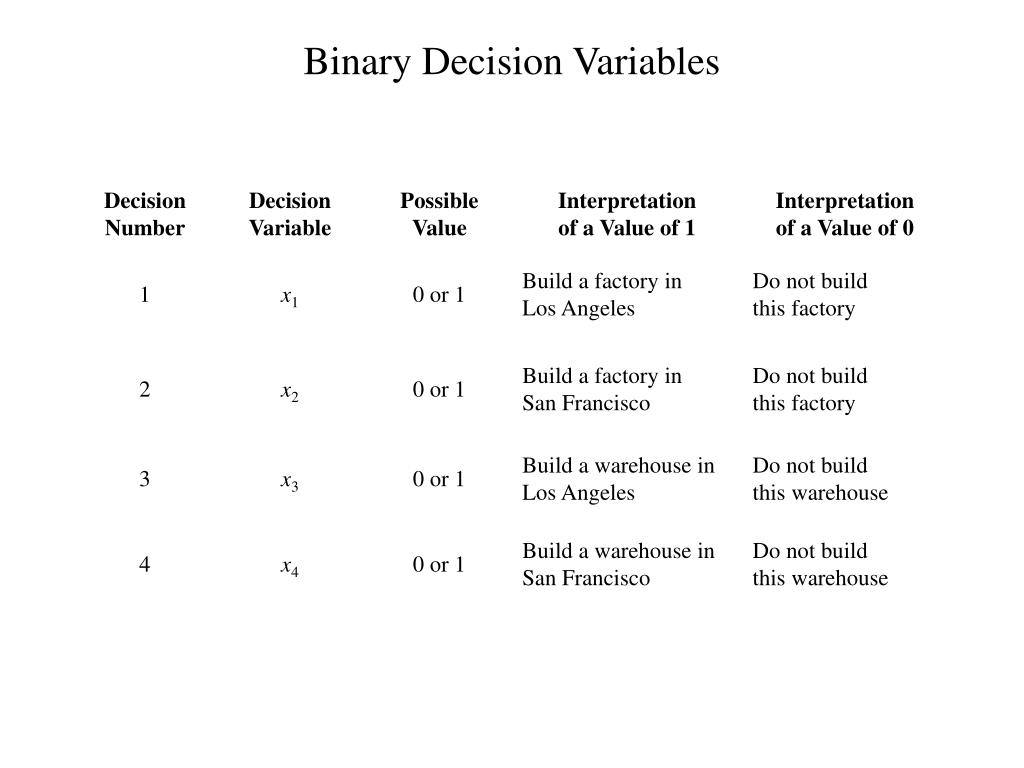

Algebraic Formulation Let x1 = 1 if build a factory in L.A.; 0 otherwisex2 = 1 if build a factory in S.F.; 0 otherwisex3 = 1 if build a warehouse in Los Angeles; 0 otherwisex4 = 1 if build a warehouse in San Francisco; 0 otherwiseMaximize NPV = 8x1 + 5x2 + 6x3 + 4x4 ($millions)subject to Capital Spent: 6x1 + 3x2 + 5x3 + 2x4 ≤ 10 ($millions) Max 1 Warehouse: x3 + x4 ≤ 1 Warehouse only if Factory: x3 ≤ x1x4 ≤ x2andx1, x2, x3, x4 are binary variables. Resource Availability Mutually exclusive decisions Contingent decisions

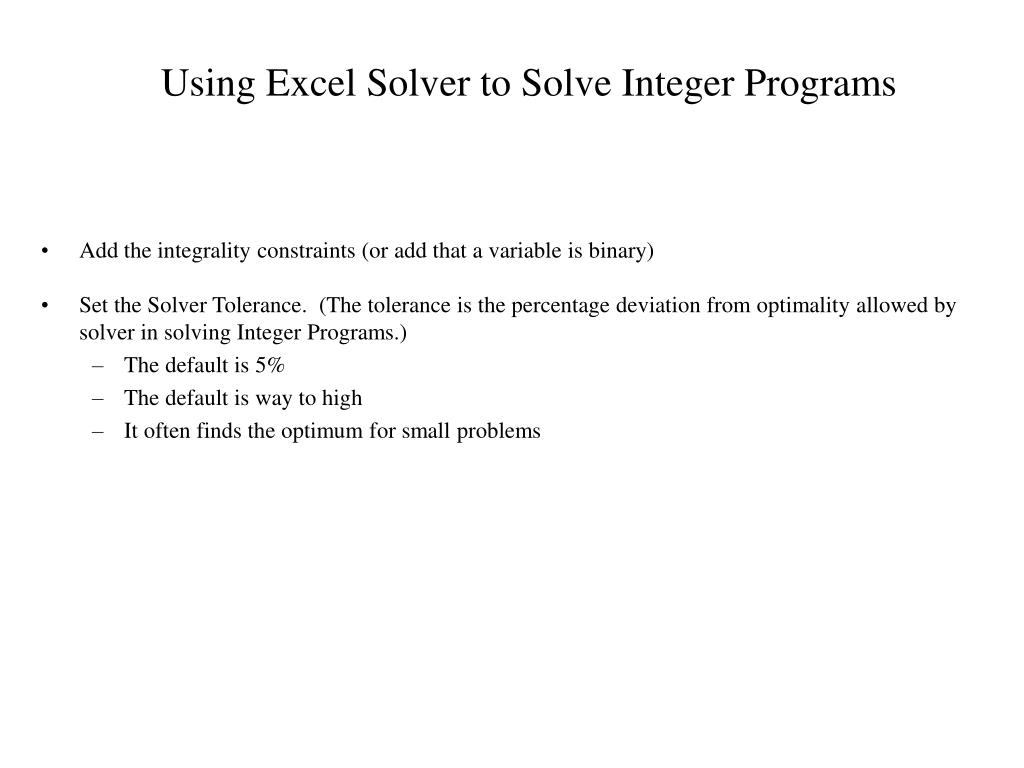

Using Excel Solver to Solve Integer Programs • Add the integrality constraints (or add that a variable is binary) • Set the Solver Tolerance. (The tolerance is the percentage deviation from optimality allowed by solver in solving Integer Programs.) • The default is 5% • The default is way to high • It often finds the optimum for small problems
Mpl Model Max 8x1 + 5x2 + 6x3 + 4x4; subject to 6x1 + 3x2 + 5x3 + 2x4 <= 10; x3 + x4 <= 1; x3 <= x1; x4 <= x2; BINARY x1; x2; x3; x4;
Management’s Conclusion • Management’s initial tentative decision had been to make $10 million of capital available. • With this much capital, the best plan would be to build a factory in both Los Angeles and San Francisco, but no warehouses. • An advantage of this plan is that it only uses $9 million of this capital, which frees up $1 million for other projects. • A heavy penalty (a reduction of $4 million in total net present value) would be paid if the capital made available were to be reduced below $9 million. • Increasing the capital made available by $1 million (to $11 million) would enable a substantial ($4 million) increase in the total net present value. Management decides to do this. • With this much capital available, the best plan is to build a factory in both cities and a warehouse in San Francisco.

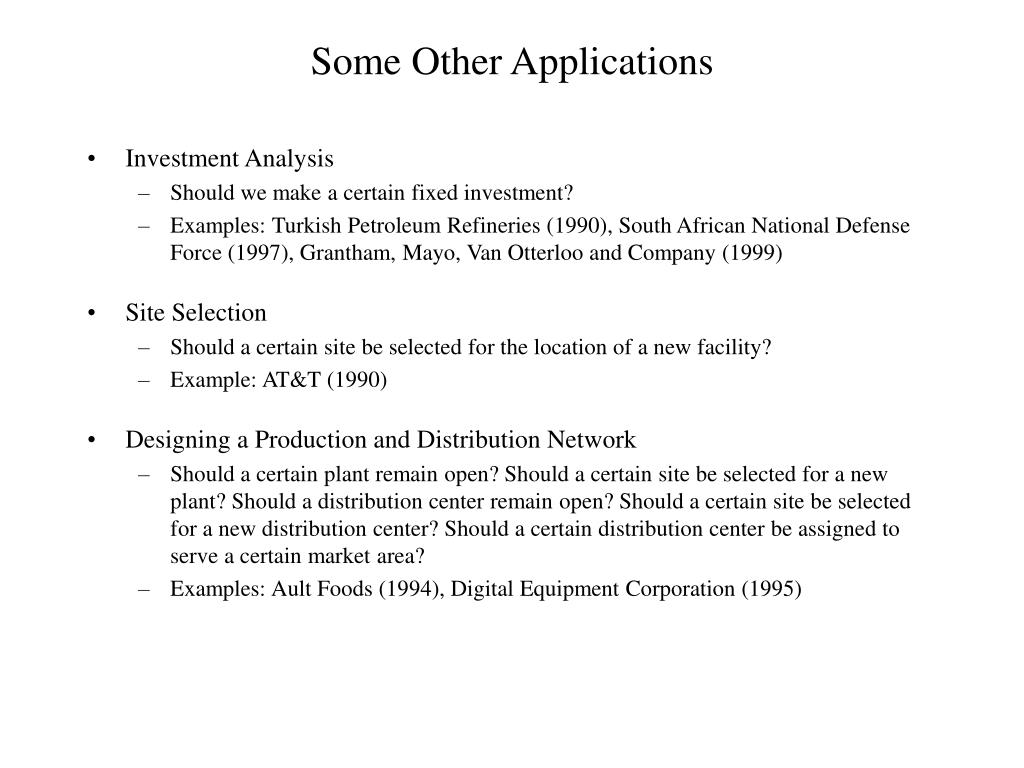

Some Other Applications • Investment Analysis • Should we make a certain fixed investment? • Examples: Turkish Petroleum Refineries (1990), South African National Defense Force (1997), Grantham, Mayo, Van Otterloo and Company (1999) • Site Selection • Should a certain site be selected for the location of a new facility? • Example: AT&T (1990) • Designing a Production and Distribution Network • Should a certain plant remain open? Should a certain site be selected for a new plant? Should a distribution center remain open? Should a certain site be selected for a new distribution center? Should a certain distribution center be assigned to serve a certain market area? • Examples: Ault Foods (1994), Digital Equipment Corporation (1995)
Some Other Applications • Dispatching Shipments • Should a certain route be selected for a truck? Should a certain size truck be used? Should a certain time period for departure be used? • Examples: Quality Stores (1987), Air Products and Chemicals, Inc. (1983), Reynolds Metals Co. (1991), Sears, Roebuck and Company (1999) • Scheduling Interrelated Activities • Should a certain activity begin in a certain time period? • Examples: Texas Stadium (1983), China (1995) • Scheduling Asset Divestitures • Should a certain asset be sold in a certain time period? • Example: Homart Development (1987) • Airline Applications: • Should a certain type of airplane be assigned to a certain flight leg? Should a certain sequence of flight legs be assigned to a crew? • Examples: American Airlines (1989, 1991), Air New Zealand (2001)

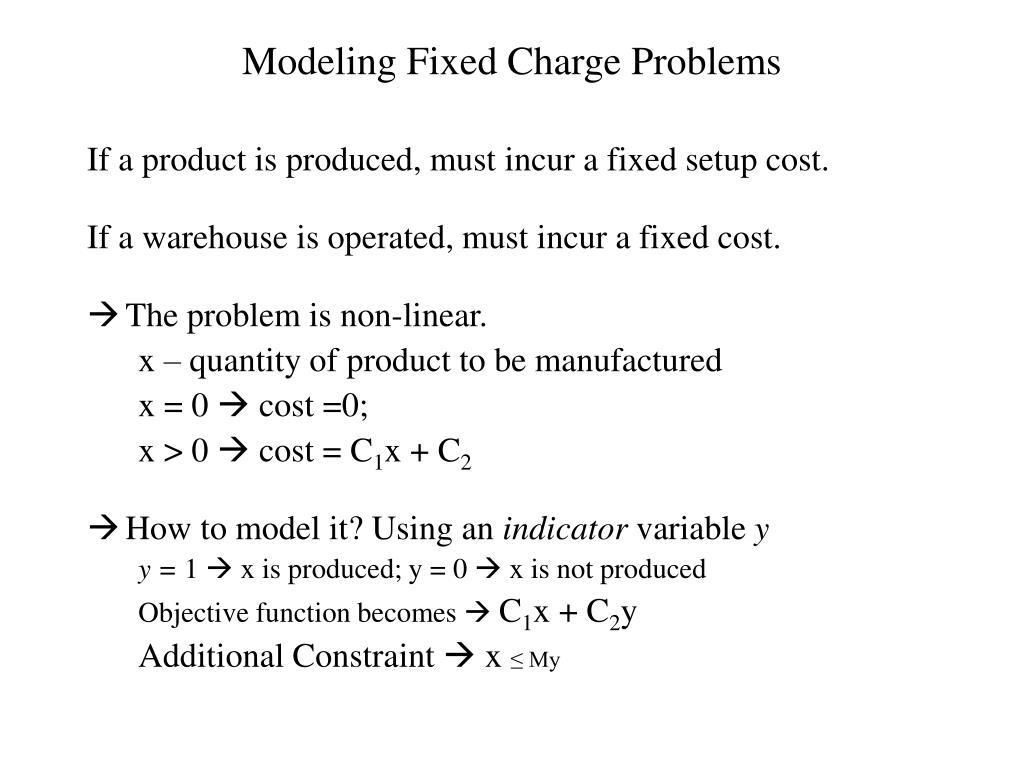

Modeling Fixed Charge Problems If a product is produced, must incur a fixed setup cost. If a warehouse is operated, must incur a fixed cost. • The problem is non-linear. x – quantity of product to be manufactured x = 0 cost =0; x > 0 cost = C1x + C2 • How to model it? Using an indicator variable y y = 1 x is produced; y = 0 x is not produced Objective function becomes C1x + C2y Additional Constraint x ≤ My

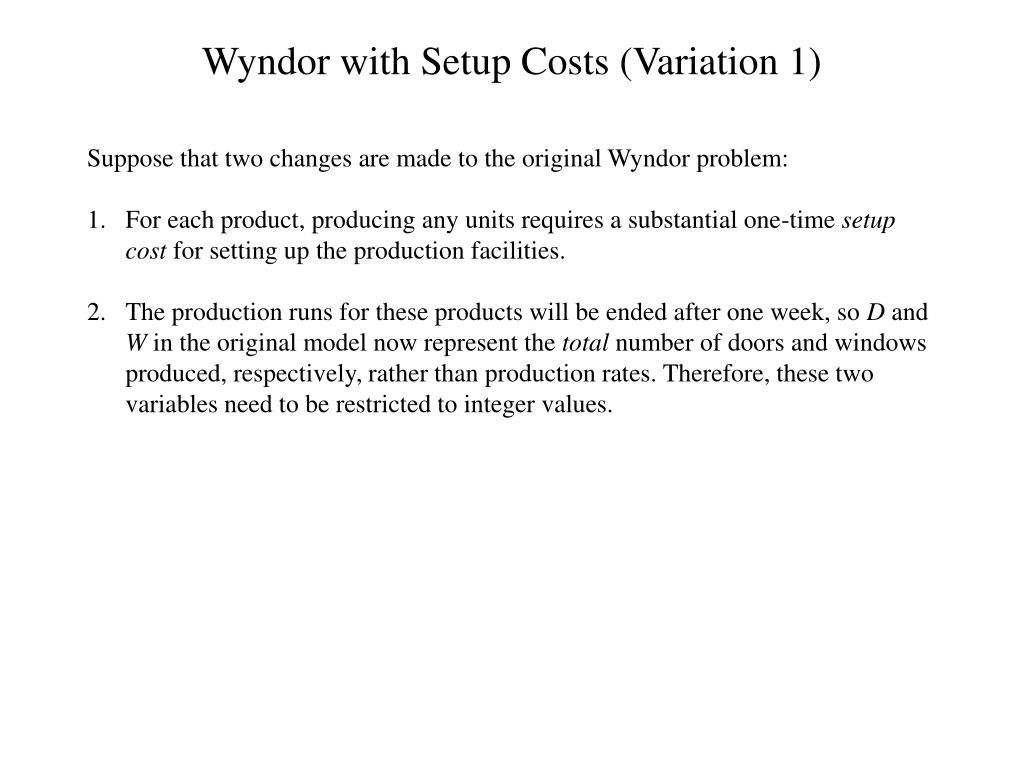

Wyndor with Setup Costs (Variation 1) Suppose that two changes are made to the original Wyndor problem: • For each product, producing any units requires a substantial one-time setup cost for setting up the production facilities. • The production runs for these products will be ended after one week, so D and W in the original model now represent the total number of doors and windows produced, respectively, rather than production rates. Therefore, these two variables need to be restricted to integer values.
Feasible Solutions for Wyndor with Setup Costs Optimal solution

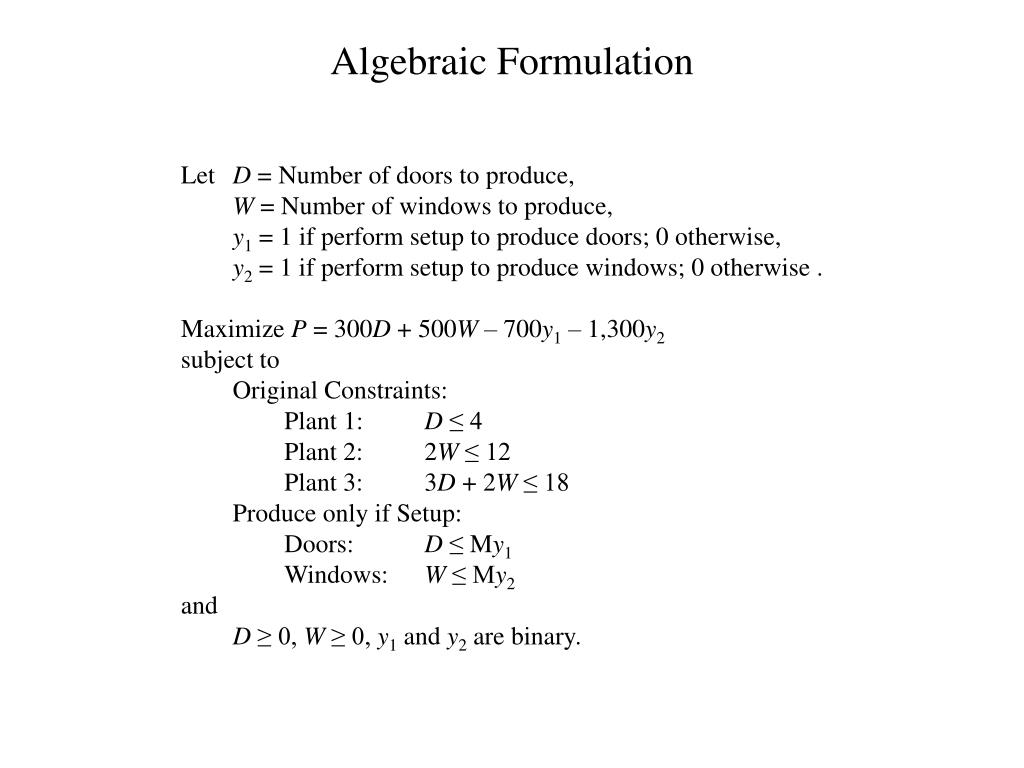

Algebraic Formulation Let D = Number of doors to produce,W = Number of windows to produce,y1 = 1 if perform setup to produce doors; 0 otherwise,y2 = 1 if perform setup to produce windows; 0 otherwise .Maximize P = 300D + 500W – 700y1 – 1,300y2subject to Original Constraints: Plant 1: D ≤ 4 Plant 2: 2W ≤ 12 Plant 3: 3D + 2W ≤ 18 Produce only if Setup: Doors: D ≤ My1 Windows: W ≤ My2andD ≥ 0, W ≥ 0, y1 and y2 are binary.
Wyndor with Mutually Exclusive Products(Variation 2) Suppose that now the only change from the original Wyndor problem is: • The two potential new products (doors and windows) would compete for the same customers. Therefore, management has decided not to produce both of them together. • At most one can be chosen for production, so either D = 0 or W = 0, or both.
Feasible Solution forWyndor with Mutually Exclusive Products(for non-binary variables)

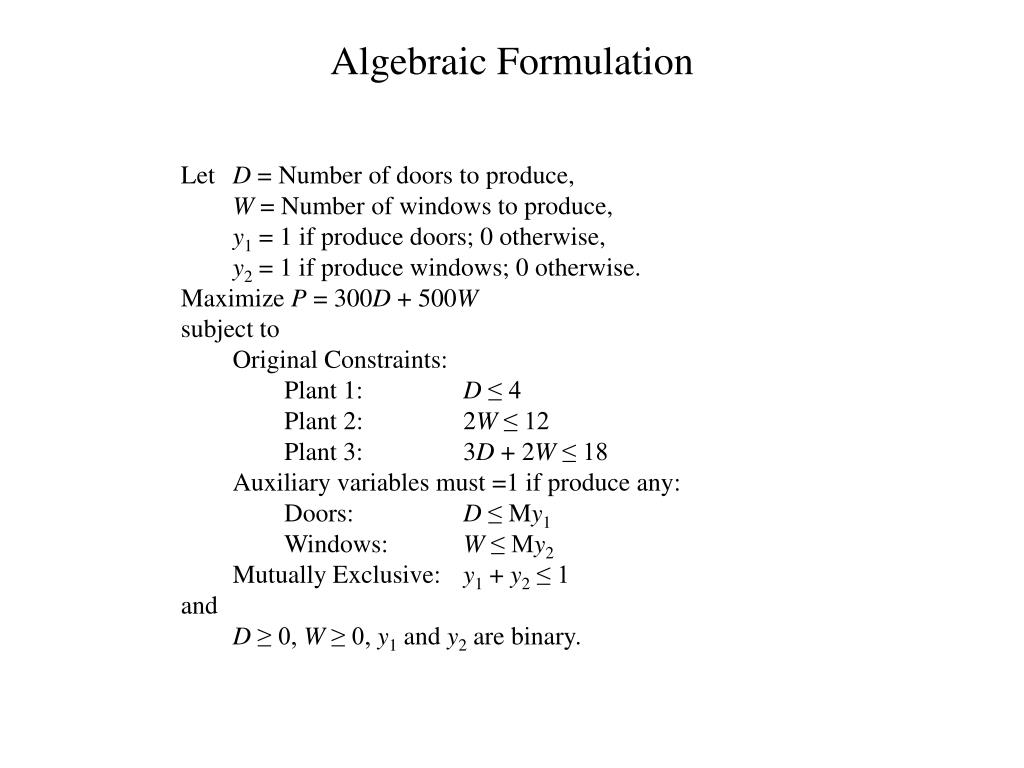

Algebraic Formulation Let D = Number of doors to produce,W = Number of windows to produce,y1 = 1 if produce doors; 0 otherwise,y2 = 1 if produce windows; 0 otherwise.Maximize P = 300D + 500Wsubject to Original Constraints: Plant 1: D ≤ 4 Plant 2: 2W ≤ 12 Plant 3: 3D + 2W ≤ 18 Auxiliary variables must =1 if produce any: Doors: D ≤ My1 Windows: W ≤ My2 Mutually Exclusive: y1 + y2 ≤ 1 andD ≥ 0, W ≥ 0, y1 and y2 are binary.

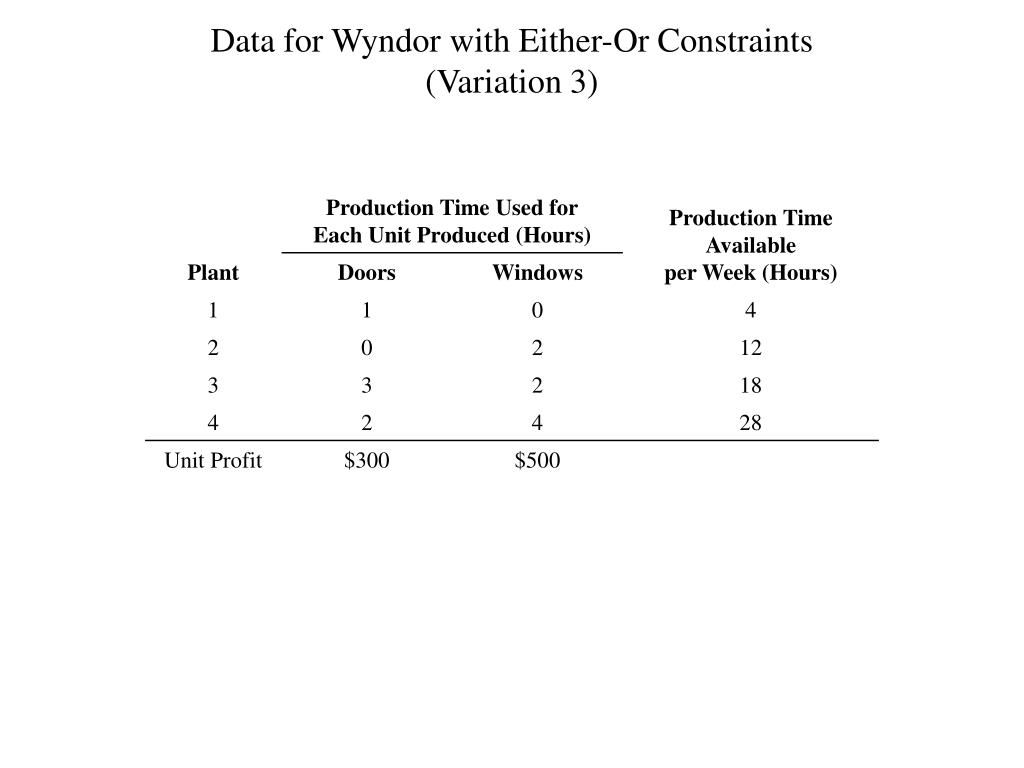

Wyndor with Either-Or Constraints(Variation 3) Suppose that now the only change from the original Wyndor problem is: • The company has just opened a new plant (plant 4) that is similar to plant 3, so the new plant can perform the same operations as plant 3 to help produce the two new products (doors and windows). • However, management wants just one of the plants to be chosen to work on these new products. The plant chosen should be the one that provides the most profitable product mix.
