  1. Projected-shell-model study for the structure oftransfermium nuclei Yang Sun Shanghai Jiao Tong University Beijing, June 9, 2009

  2. The island of stability • What are the next magic numbers, i.e. most stable nuclei? • Predicted neutron magic number: 184 • Predicted proton magic number: 114, 120, 126

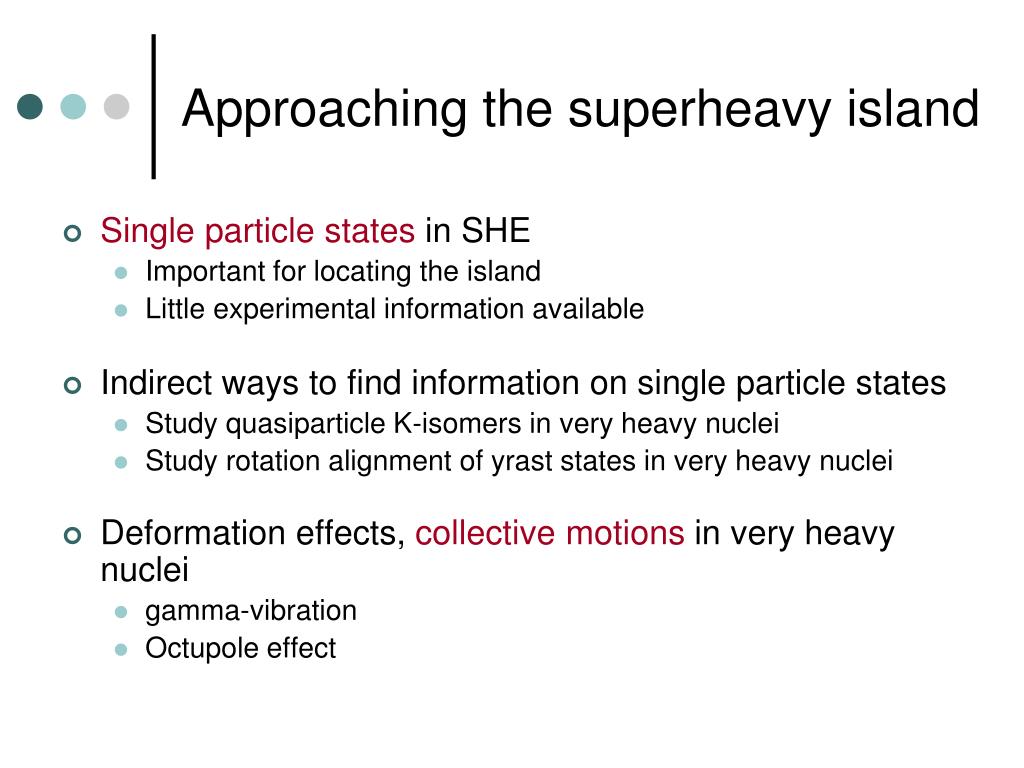

  3. Approaching the superheavy island • Single particle states in SHE • Important for locating the island • Little experimental information available • Indirect ways to find information on single particle states • Study quasiparticle K-isomers in very heavy nuclei • Study rotation alignment of yrast states in very heavy nuclei • Deformation effects, collective motions in very heavy nuclei • gamma-vibration • Octupole effect

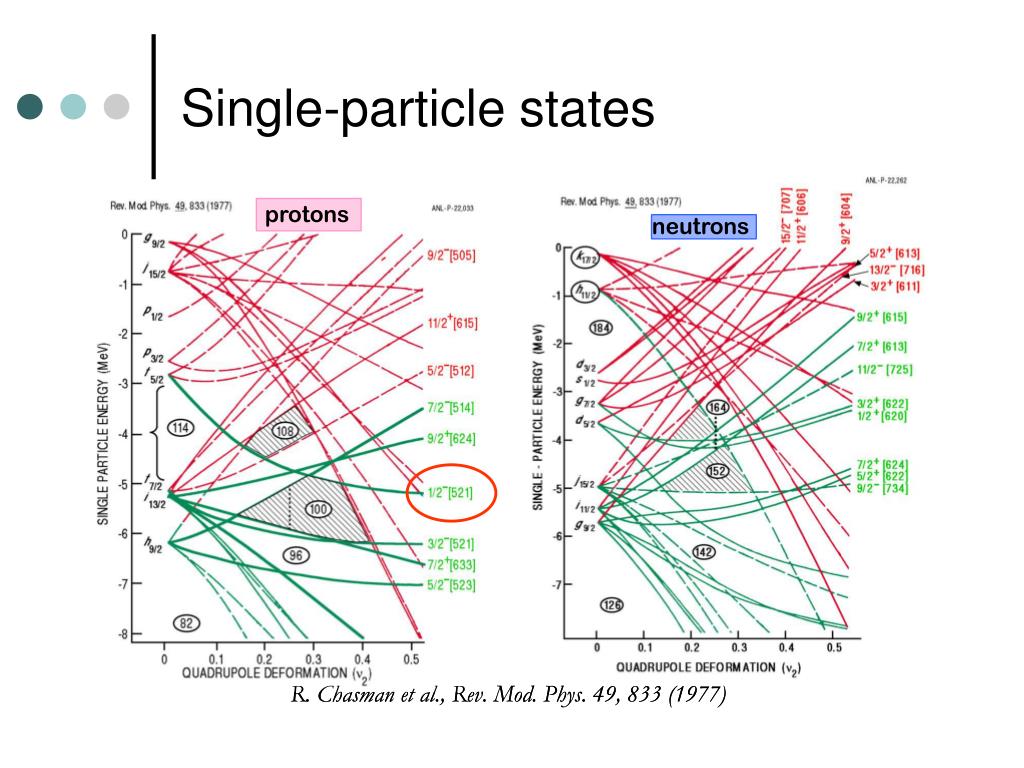

  4. Single-particle states protons neutrons

  5. Nuclear structure models • Shell-model diagonalization method • Most fundamental, quantum mechanical • Growing computer power helps extending applications • A single configuration contains no physics • Huge basis dimension required, severe limit in applications • Mean-field method • Applicable to any size of systems • Fruitful physics around minima of energy surfaces • No configuration mixing • States with broken symmetry, cannot be used to calculate electromagnetic transitions and decay rates

  6. Bridge between shell-model and mean-field method • Projected shell model • Use more physical states (e.g. solutions of a deformed mean-field) and angular momentum projection technique to build shell model basis • Perform configuration mixing (a shell-model concept) • K. Hara, Y. Sun, Int. J. Mod. Phys. E 4 (1995) 637 • The method works in between conventional shell model and mean field method, hopefully take the advantages of both

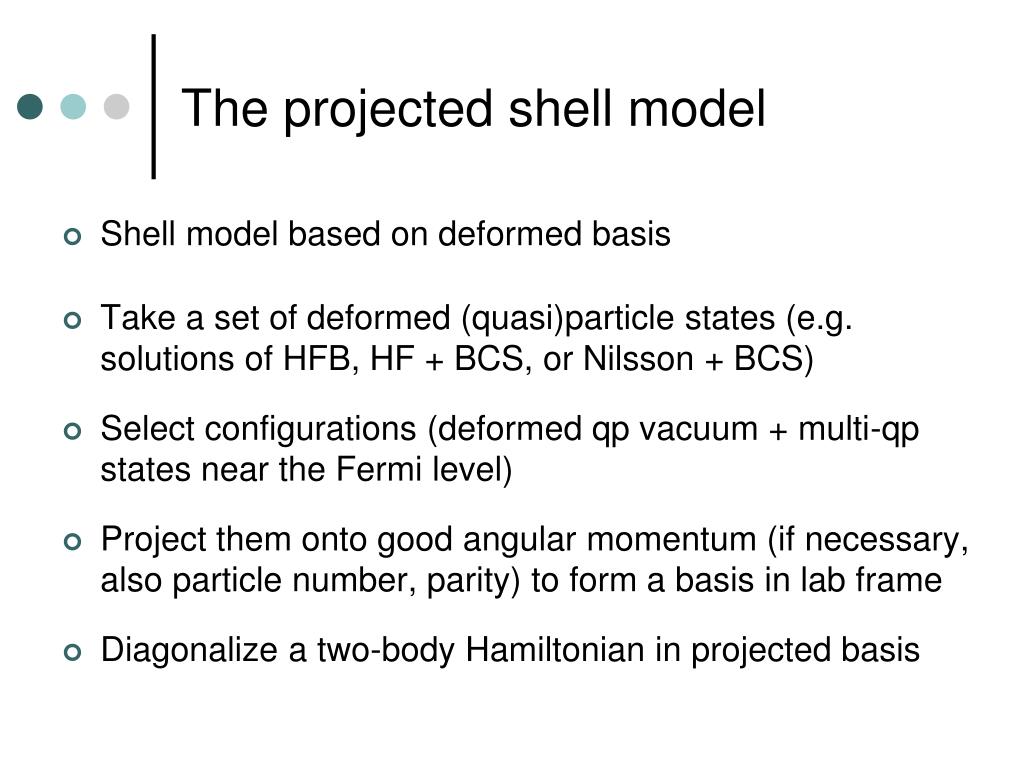

  7. The projected shell model • Shell model based on deformed basis • Take a set of deformed (quasi)particle states (e.g. solutions of HFB, HF + BCS, or Nilsson + BCS) • Select configurations (deformed qp vacuum + multi-qp states near the Fermi level) • Project them onto good angular momentum (if necessary, also particle number, parity) to form a basis in lab frame • Diagonalize a two-body Hamiltonian in projected basis

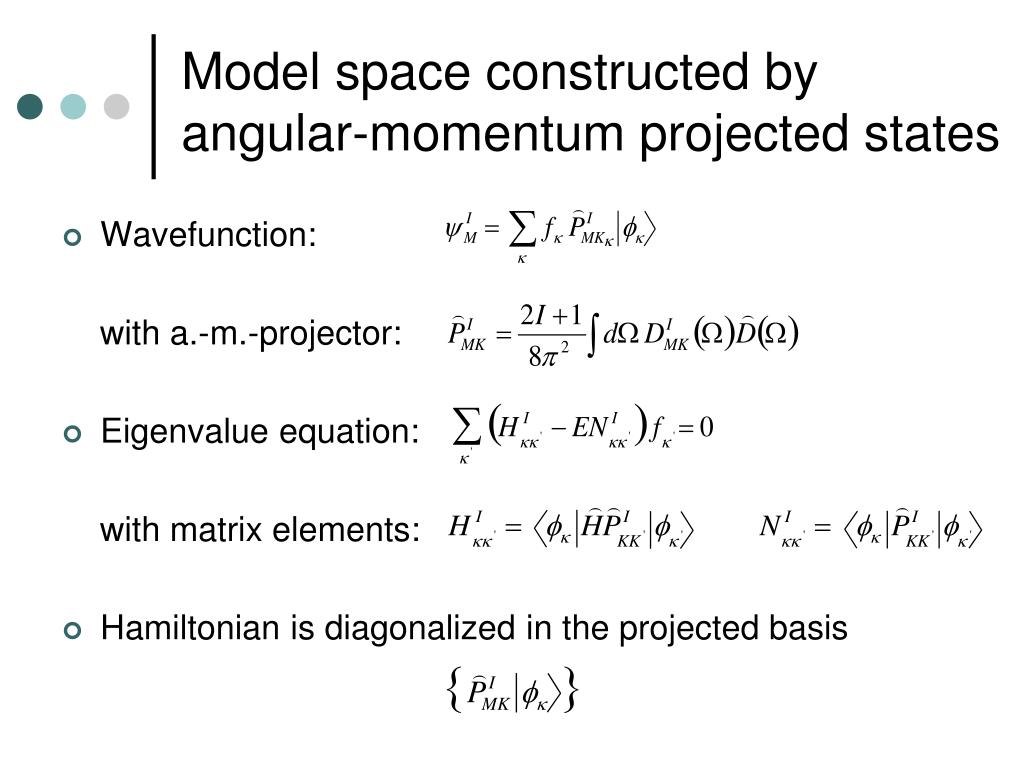

  8. Model space constructed by angular-momentum projected states • Wavefunction: with a.-m.-projector: • Eigenvalue equation: with matrix elements: • Hamiltonian is diagonalized in the projected basis

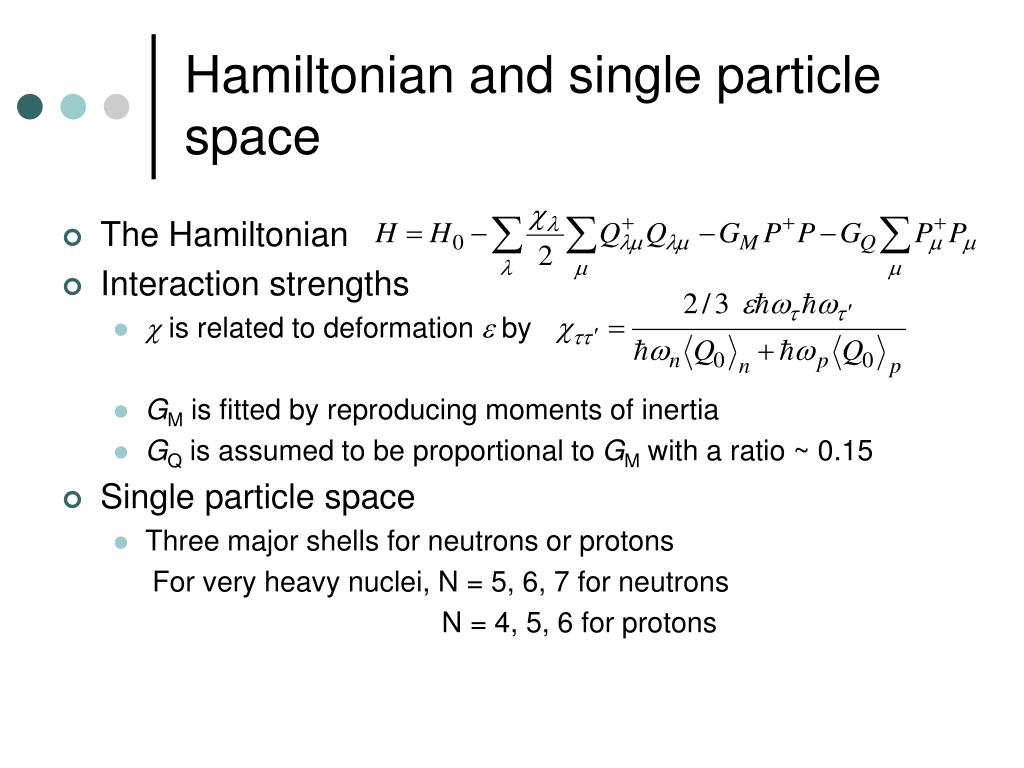

  9. Hamiltonian and single particle space • The Hamiltonian • Interaction strengths • c is related to deformation e by • GM is fitted by reproducing moments of inertia • GQ is assumed to be proportional to GM with a ratio ~ 0.15 • Single particle space • Three major shells for neutrons or protons For very heavy nuclei, N = 5, 6, 7 for neutrons N = 4, 5, 6 for protons

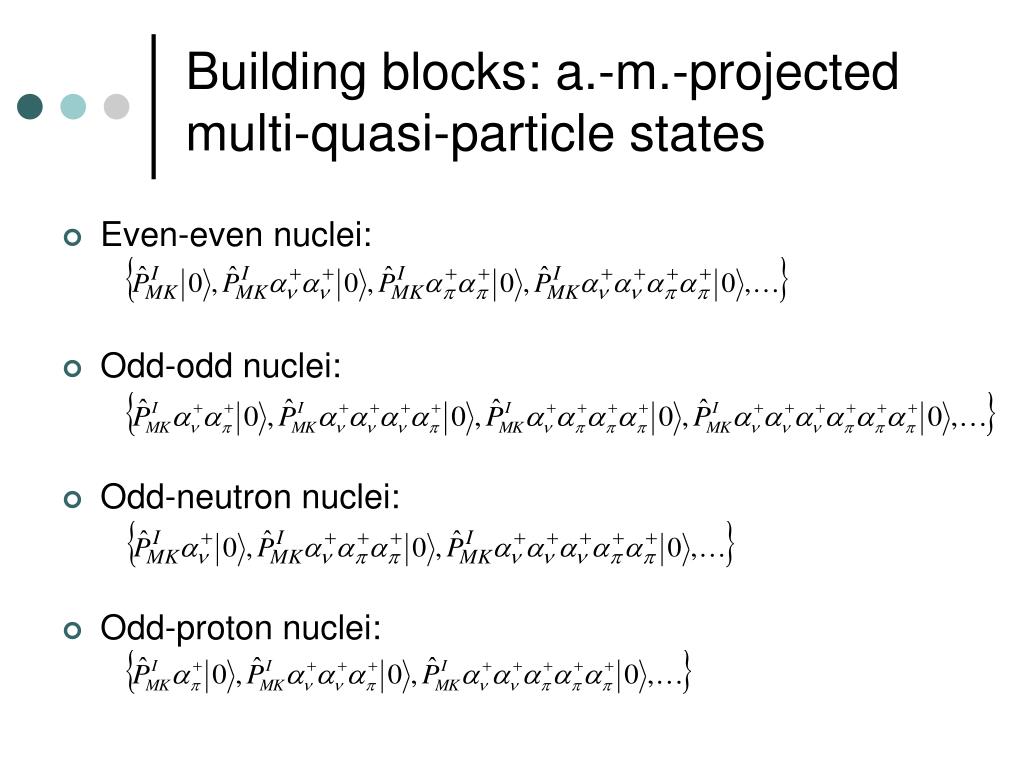

  10. Building blocks: a.-m.-projected multi-quasi-particle states • Even-even nuclei: • Odd-odd nuclei: • Odd-neutron nuclei: • Odd-proton nuclei:

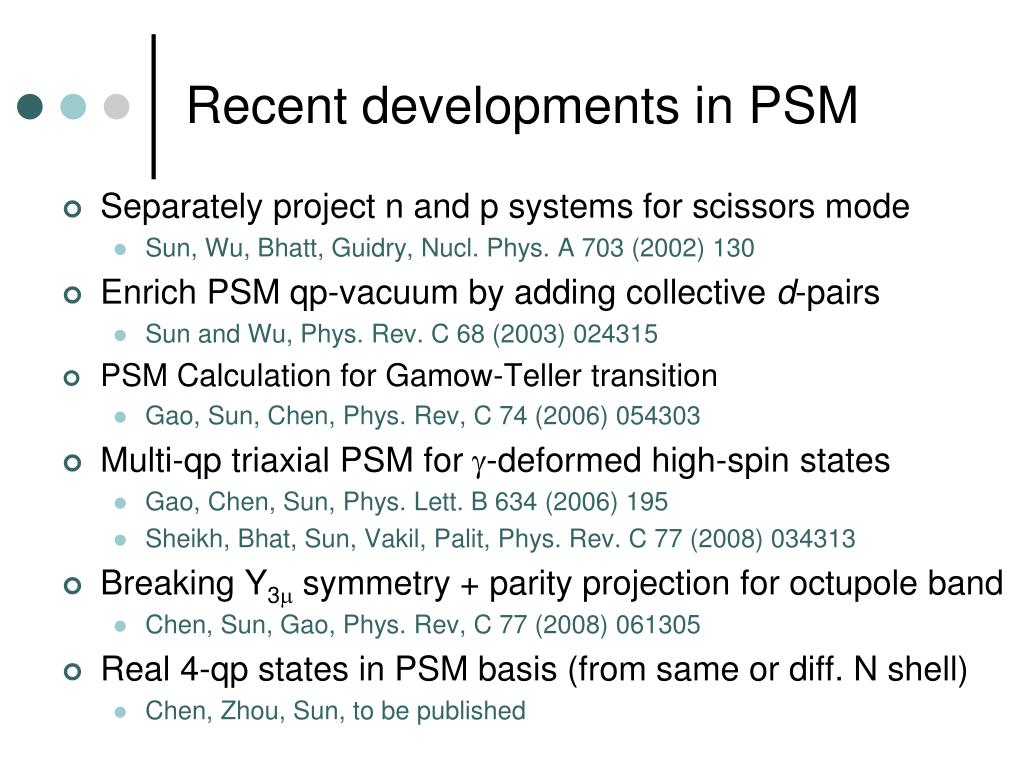

  11. Recent developments in PSM • Separately project n and p systems for scissors mode • Sun, Wu, Bhatt, Guidry, Nucl. Phys. A 703 (2002) 130 • Enrich PSM qp-vacuum by adding collective d-pairs • Sun and Wu, Phys. Rev. C 68 (2003) 024315 • PSM Calculation for Gamow-Teller transition • Gao, Sun, Chen, Phys. Rev, C 74 (2006) 054303 • Multi-qp triaxial PSM for g-deformed high-spin states • Gao, Chen, Sun, Phys. Lett. B 634 (2006) 195 • Sheikh, Bhat, Sun, Vakil, Palit, Phys. Rev. C 77 (2008) 034313 • Breaking Y3m symmetry + parity projection for octupole band • Chen, Sun, Gao, Phys. Rev, C 77 (2008) 061305 • Real 4-qp states in PSM basis (from same or diff. N shell) • Chen, Zhou, Sun, to be published

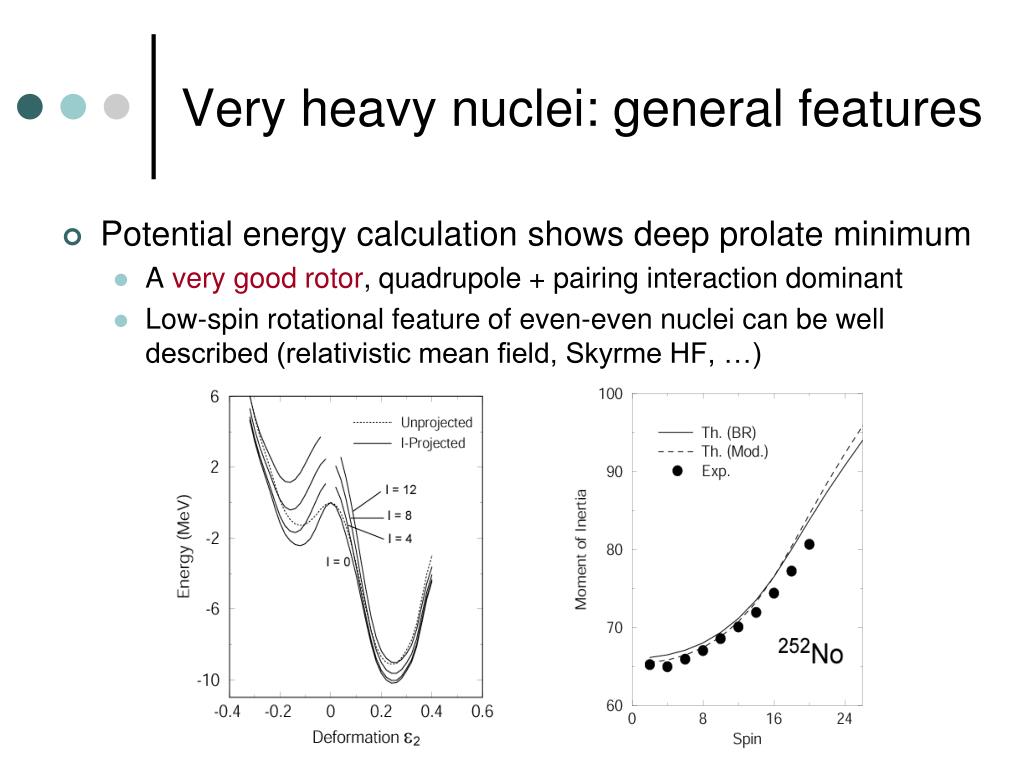

  12. Very heavy nuclei: general features • Potential energy calculation shows deep prolate minimum • A very good rotor, quadrupole + pairing interaction dominant • Low-spin rotational feature of even-even nuclei can be well described (relativistic mean field, Skyrme HF, …)

  13. Yrast line in very heavy nuclei • No useful information can be extracted from low-spin g-band (rigid rotor behavior) • First band-crossing occurs at high-spins (I = 22 – 26) • Transitions are sensitive to the structure of the crossing bands • g-factor varies very much due to the dominant proton or neutron contribution

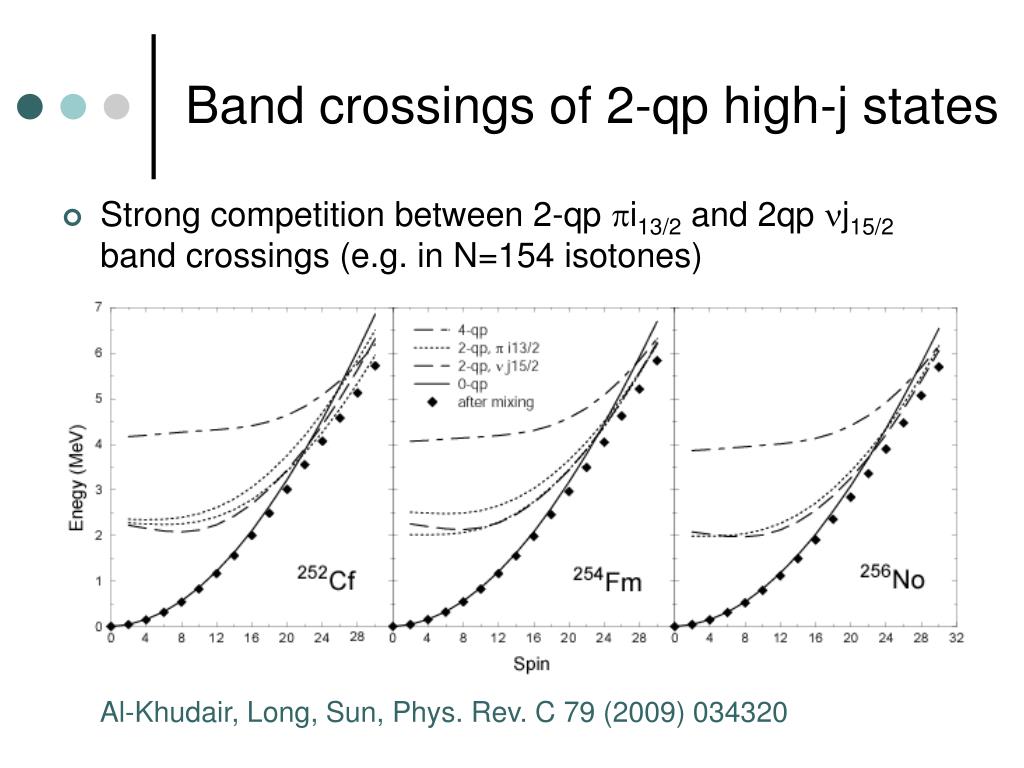

  14. Band crossings of 2-qp high-j states • Strong competition between 2-qp pi13/2 and 2qp nj15/2 band crossings (e.g. in N=154 isotones) • Al-Khudair, Long, Sun, Phys. Rev. C 79 (2009) 034320

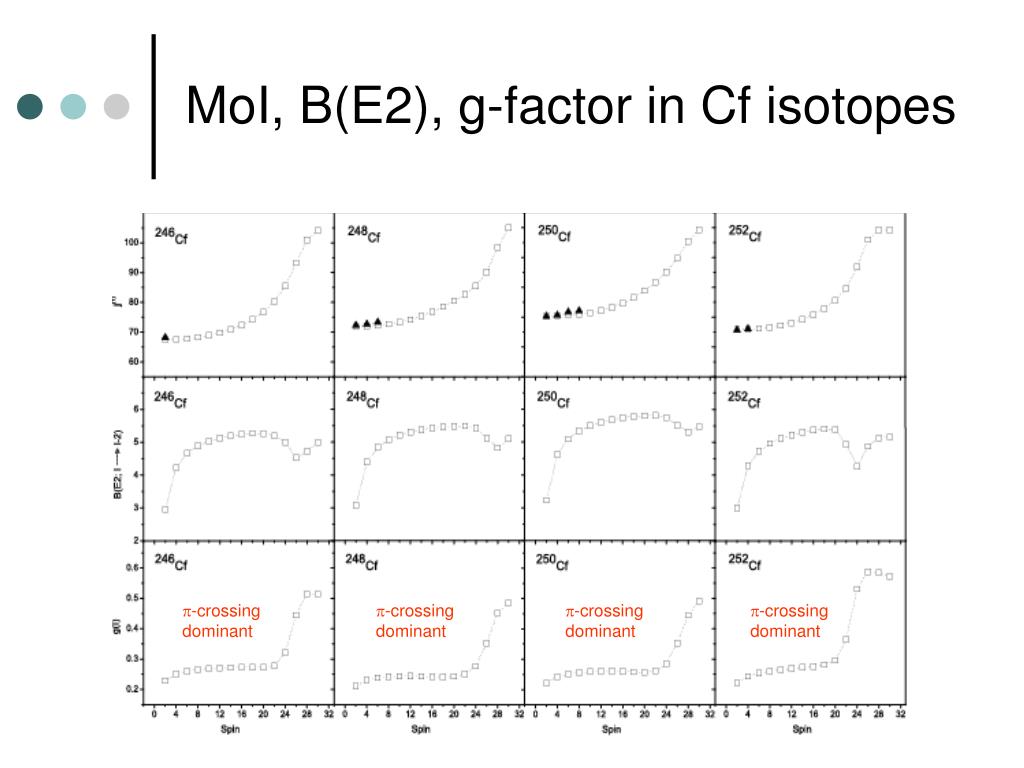

  15. MoI, B(E2), g-factor in Cf isotopes p-crossing dominant p-crossing dominant p-crossing dominant p-crossing dominant

  16. MoI, B(E2), g-factor in Fm isotopes p-crossing dominant p-crossing dominant

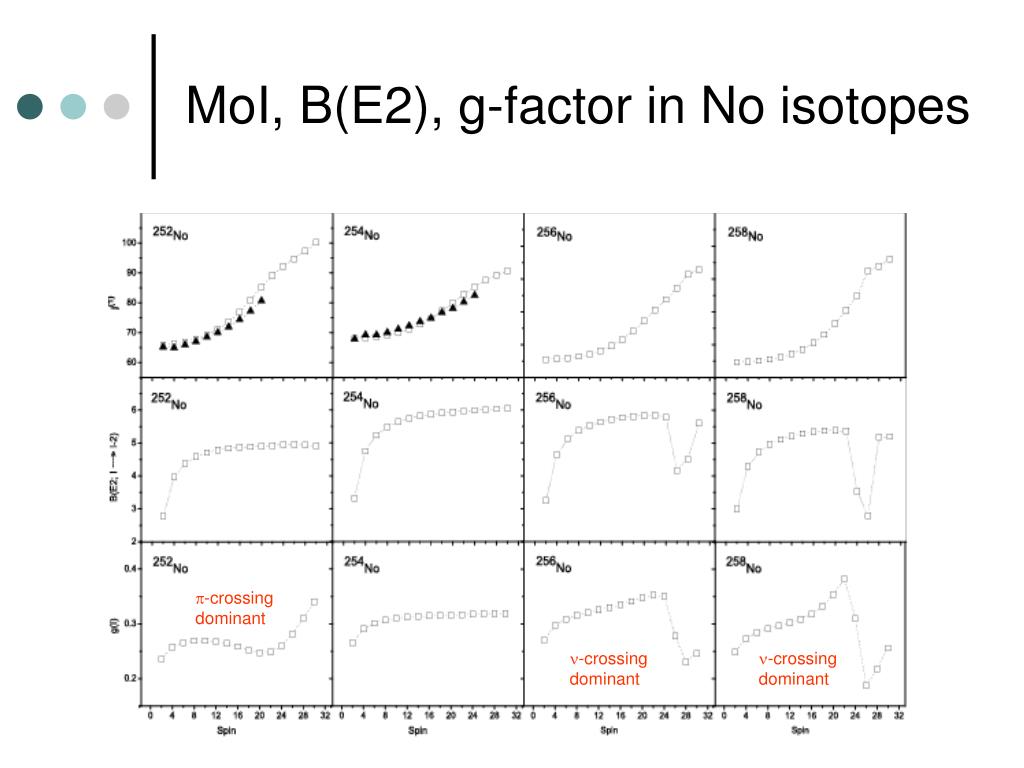

  17. MoI, B(E2), g-factor in No isotopes p-crossing dominant n-crossing dominant n-crossing dominant

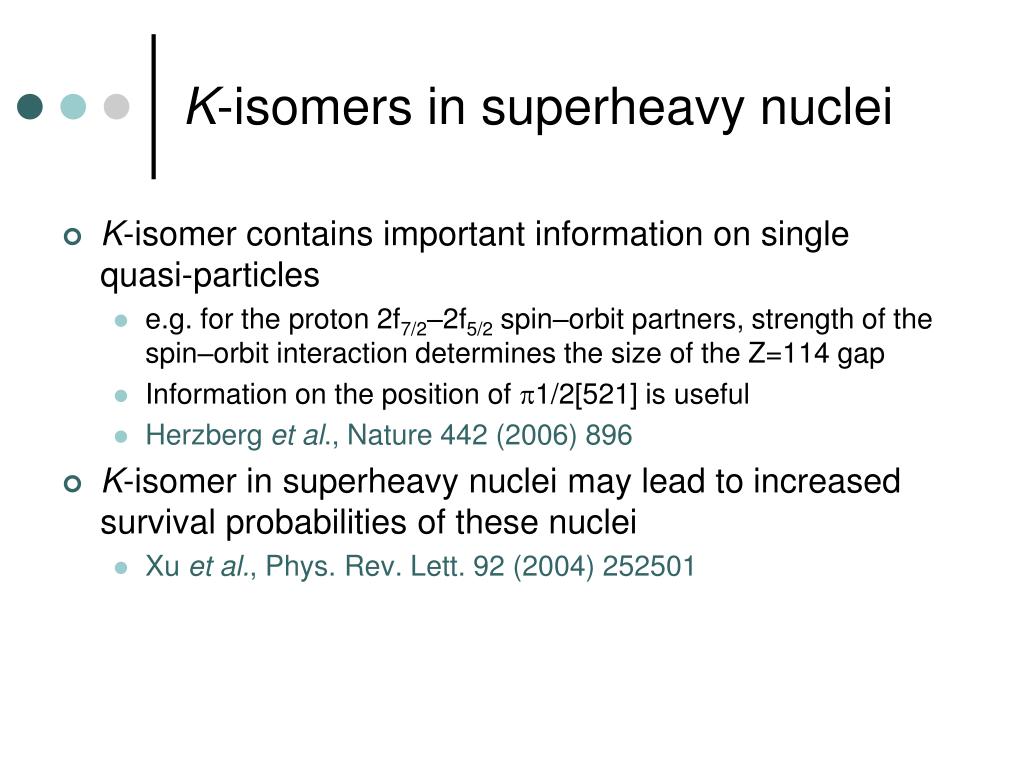

  18. K-isomers in superheavy nuclei • K-isomer contains important information on single quasi-particles • e.g. for the proton 2f7/2–2f5/2 spin–orbit partners, strength of the spin–orbit interaction determines the size of the Z=114 gap • Information on the position of p1/2[521] is useful • Herzberg et al., Nature 442 (2006) 896 • K-isomer in superheavy nuclei may lead to increased survival probabilities of these nuclei • Xu et al., Phys. Rev. Lett. 92 (2004) 252501

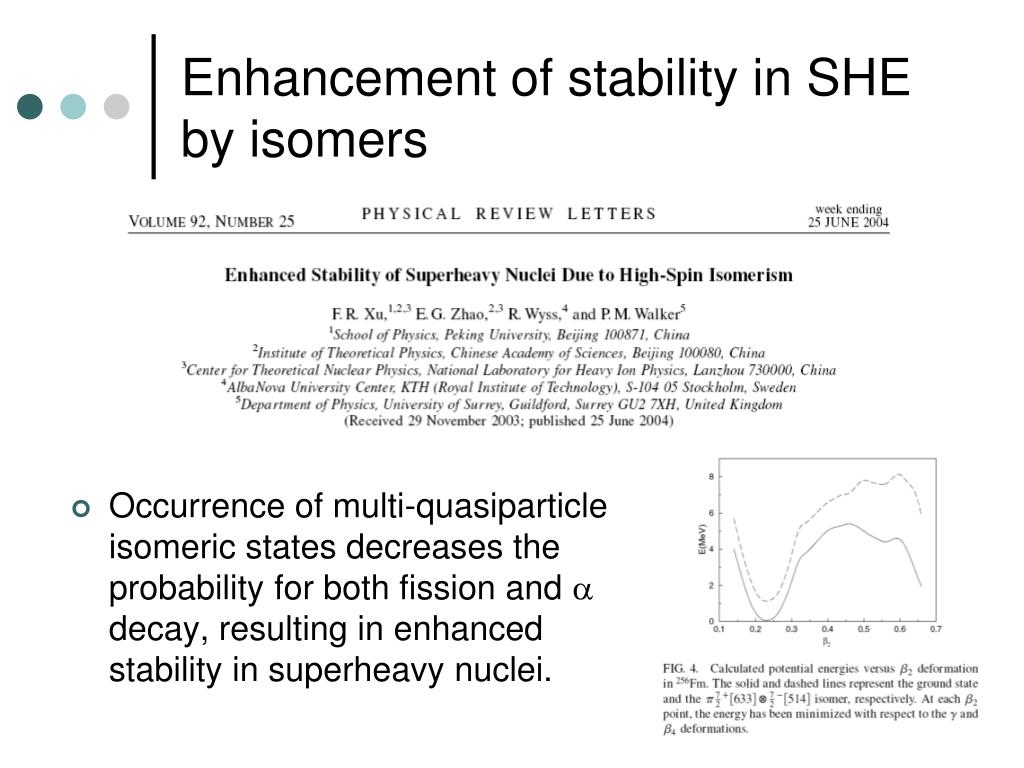

  19. Enhancement of stability in SHE by isomers • Occurrence of multi-quasiparticle isomeric states decreases the probability for both fission and adecay, resulting in enhanced stability in superheavy nuclei.

  20. K-isomers in 254No • The lowest kp = 8- isomeric band in 254No is expected at 1–1.5 MeV • Ghiorso et al., Phys. Rev. C7 (1973) 2032 • Butler et al., Phys. Rev. Lett. 89 (2002) 202501 • Recent experiments confirmed two isomers: T1/2 = 266 ± 2 ms and 184 ± 3 μs • Herzberg et al., Nature 442 (2006) 896

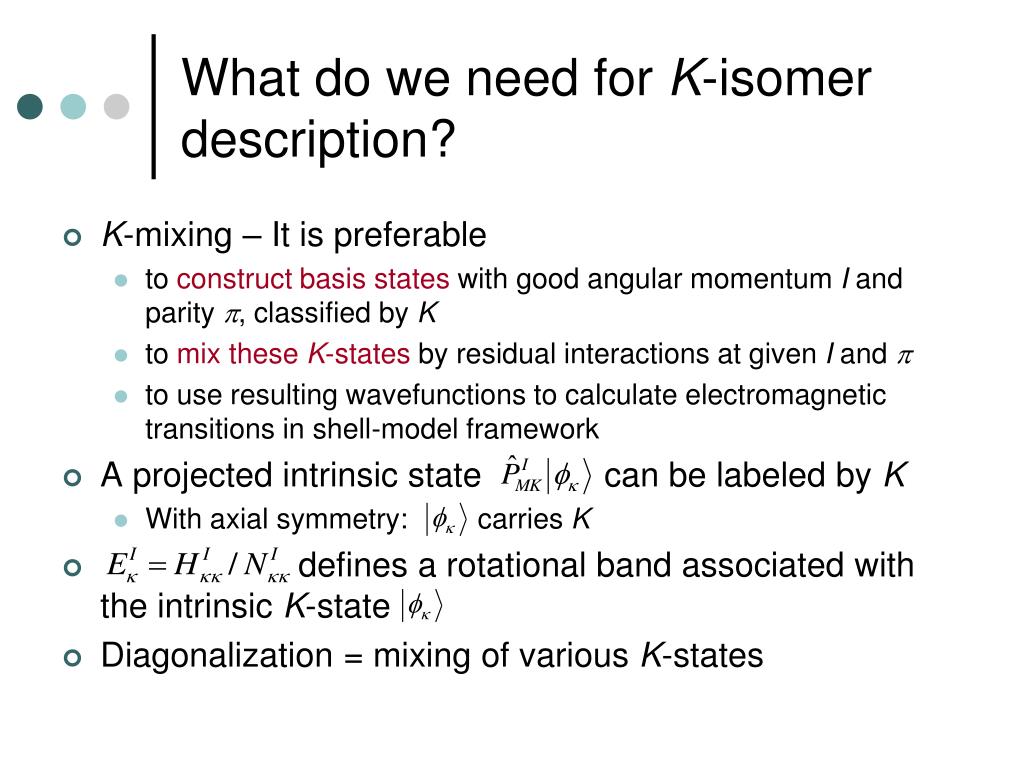

  21. What do we need for K-isomer description? • K-mixing – It is preferable • to construct basis states with good angular momentum I and parity p, classified by K • to mix these K-states by residual interactions at given I and p • to use resulting wavefunctions to calculate electromagnetic transitions in shell-model framework • A projected intrinsic state can be labeled by K • With axial symmetry: carries K • defines a rotational band associated with the intrinsic K-state • Diagonalization = mixing of various K-states

  22. K-isomers in 254No - interpretation

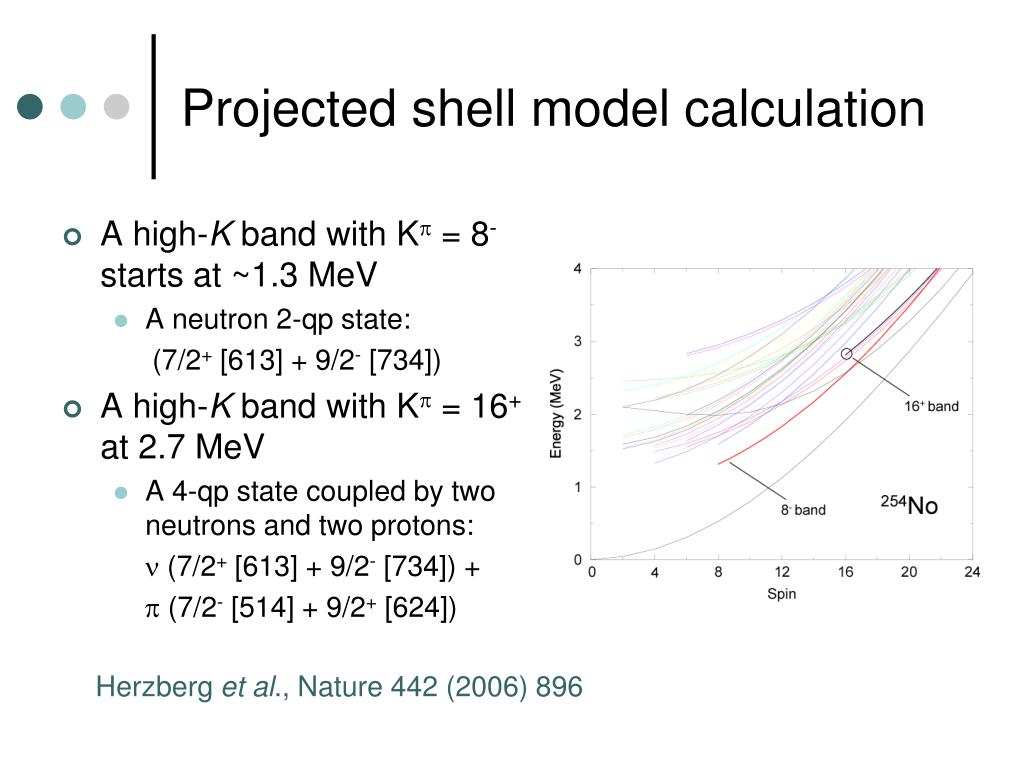

  23. Projected shell model calculation • A high-K band with Kp = 8- starts at ~1.3 MeV • A neutron 2-qp state: (7/2+ [613] + 9/2- [734]) • A high-K band with Kp = 16+ at 2.7 MeV • A 4-qp state coupled by two neutrons and two protons: n (7/2+ [613] + 9/2- [734]) + p (7/2- [514] + 9/2+ [624]) • Herzberg et al., Nature 442 (2006) 896

  24. Prediction: K-isomers in No chain • Positions of the isomeric states depend on the single particle states • Nilsson states used: • T. Bengtsson, I. Ragnarsson, Nucl. Phys. A 436 (1985) 14

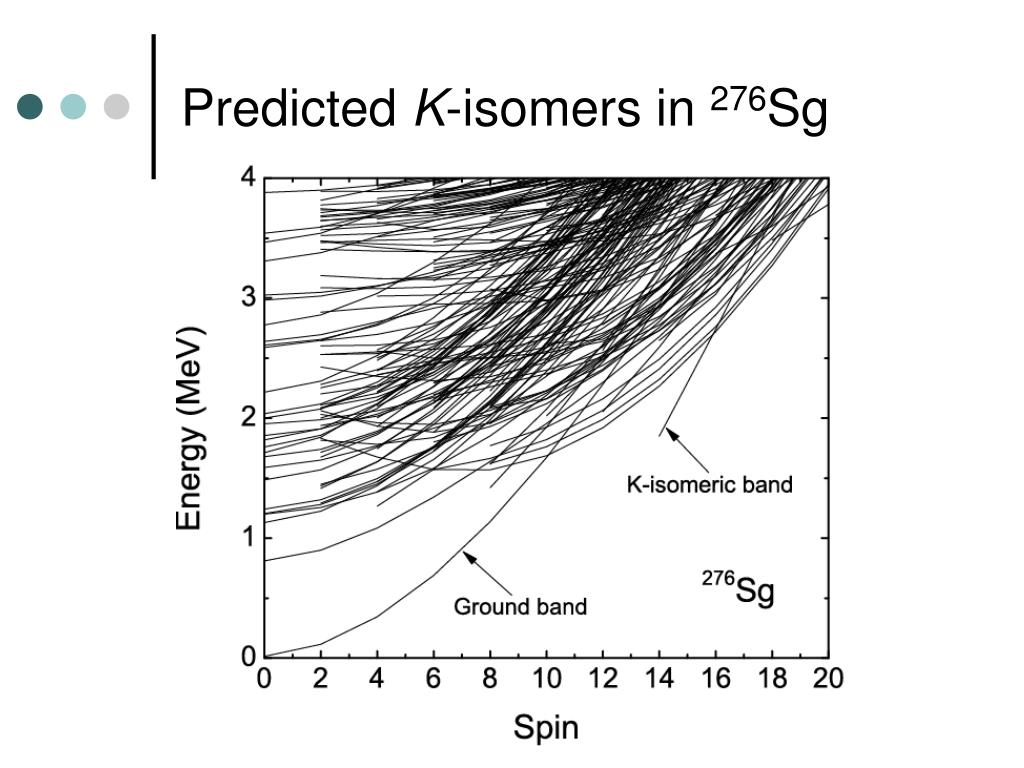

  25. Predicted K-isomers in 276Sg Predicted K-isomers in 276Sg

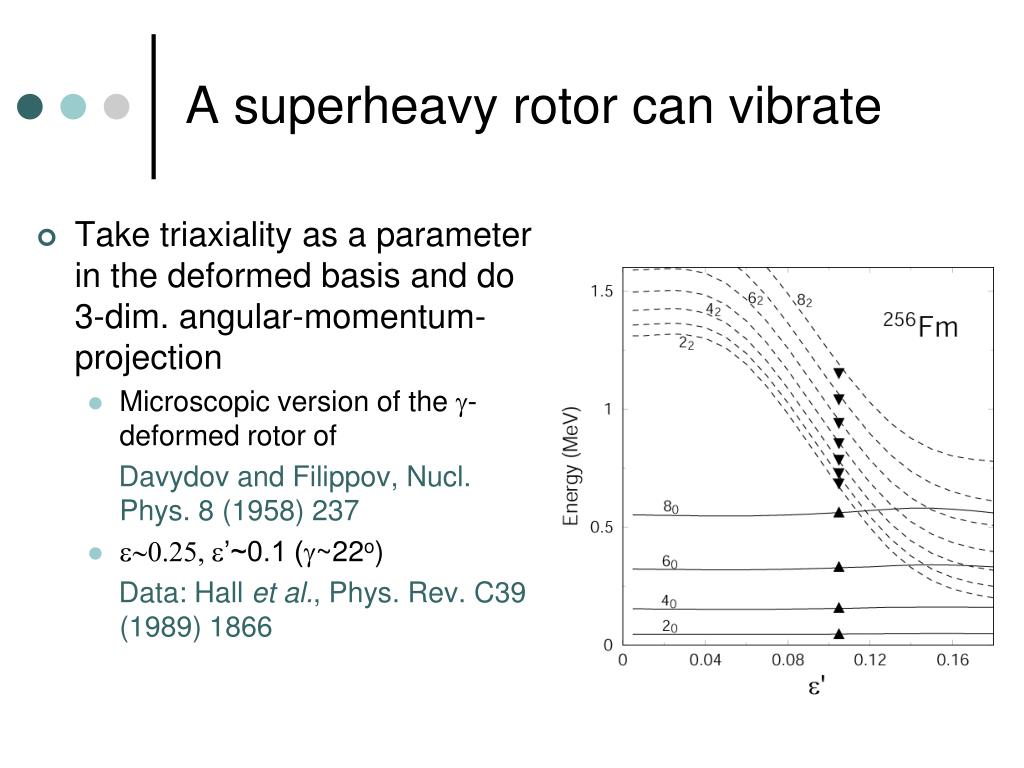

  26. A superheavy rotor can vibrate • Take triaxiality as a parameter in the deformed basis and do 3-dim. angular-momentum-projection • Microscopic version of the g-deformed rotor of Davydov and Filippov, Nucl. Phys. 8 (1958) 237 • e~0.25, e’~0.1 (g~22o) Data: Hall et al., Phys. Rev. C39 (1989) 1866

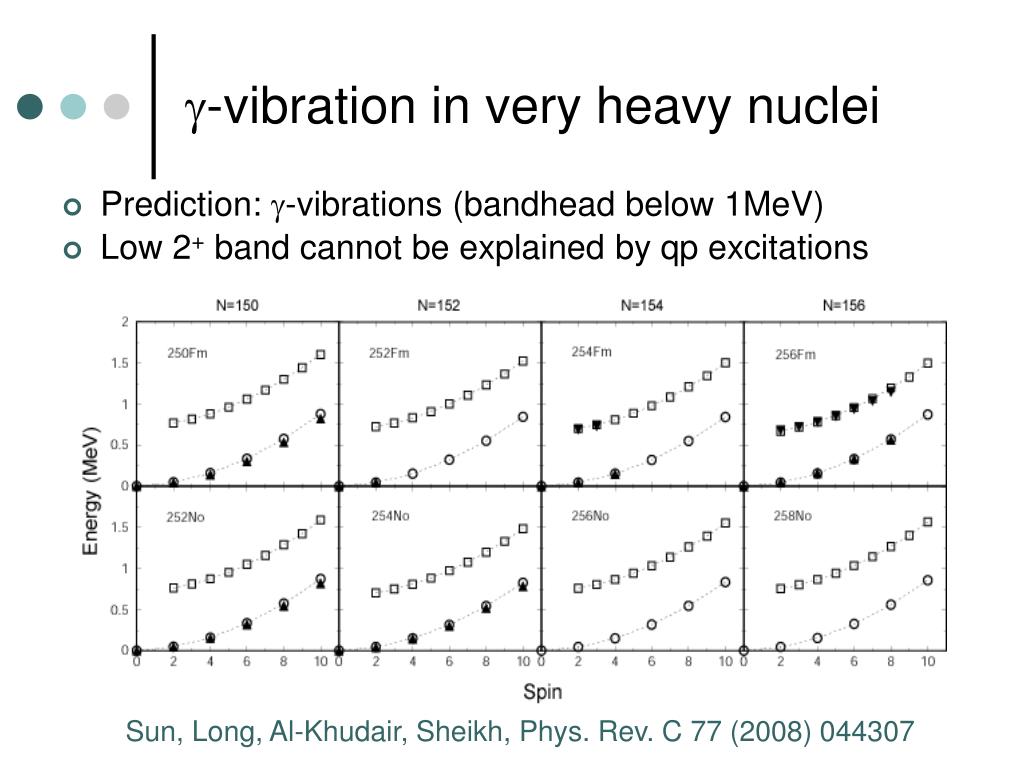

  27. g-vibration in very heavy nuclei • Prediction: g-vibrations (bandhead below 1MeV) • Low 2+ band cannot be explained by qp excitations • Sun, Long, Al-Khudair, Sheikh, Phys. Rev. C 77 (2008) 044307

  28. Multi-phonon g-bands • Multi-phonon g-vibrational bands were predicted for rear earth nuclei • Classified by K = 0, 2, 4, … • Y. Sun et al, Phys. Rev. C61 (2000) 064323 • Multi-phonon g-bands also predicted to exist in the heaviest nuclei • Show strong anharmonicity

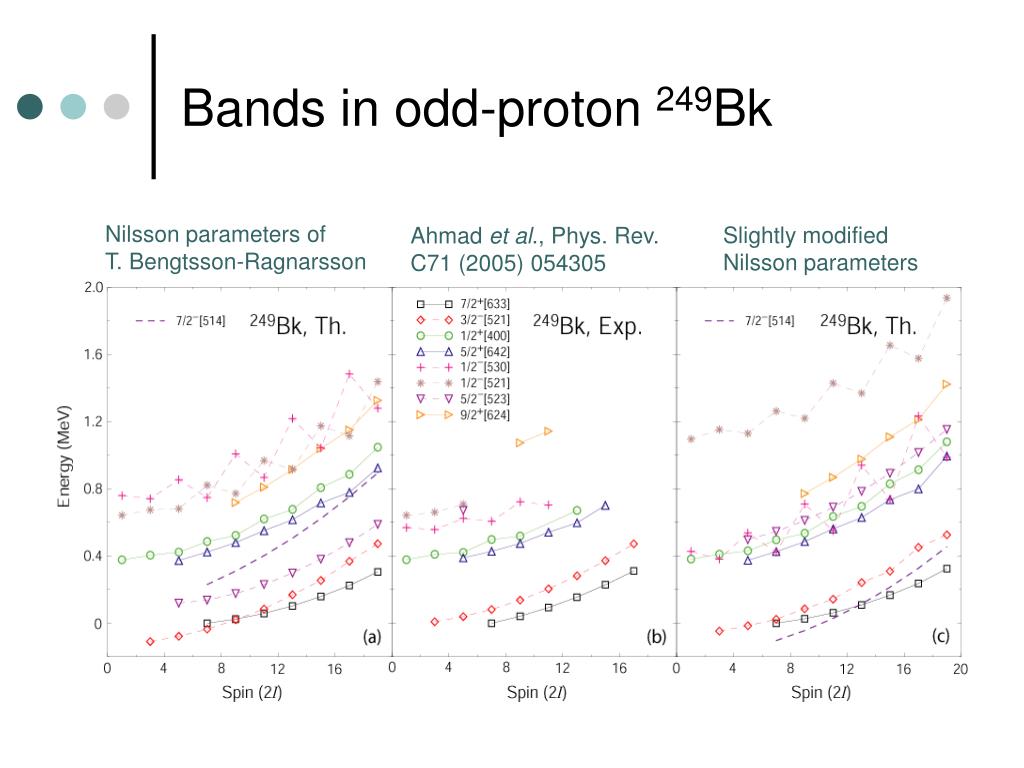

  29. Bands in odd-proton 249Bk Nilsson parameters of T. Bengtsson-Ragnarsson Slightly modified Nilsson parameters Ahmad et al., Phys. Rev. C71 (2005) 054305

  30. Bands in odd-proton 249Bk

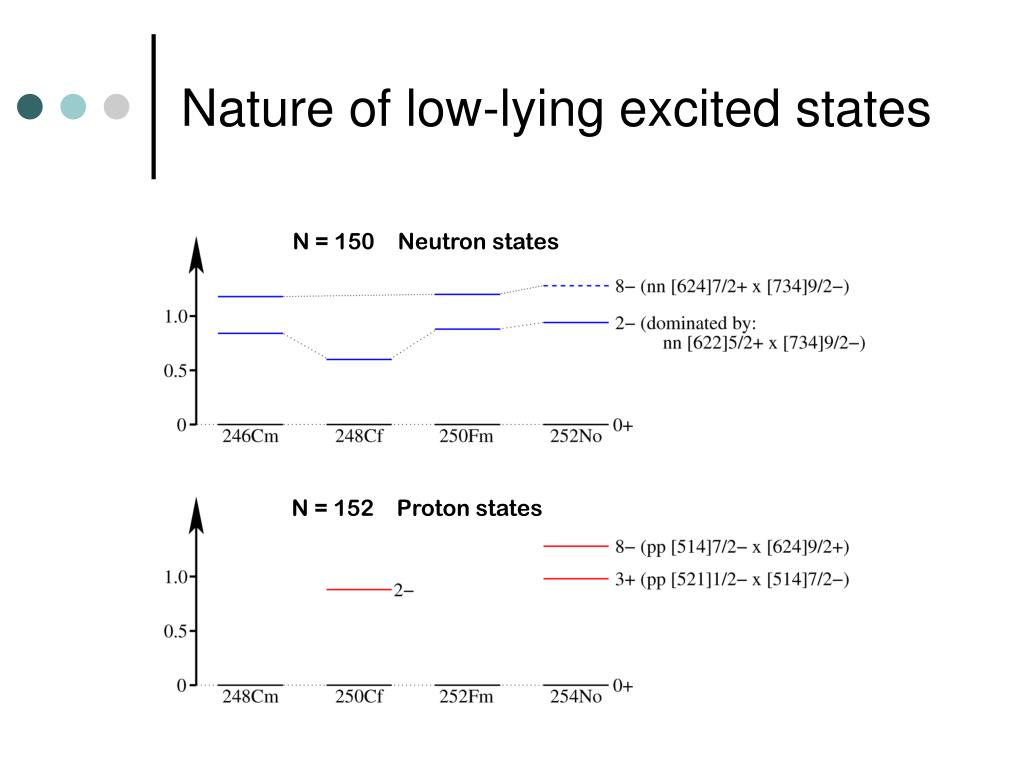

  31. Nature of low-lying excited states N = 150 Neutron states N = 152 Proton states

  32. Octupole correlation: Y30 vs Y32 • Strong octupole effect known in the actinide region (mainly Y30 type: parity doublet band) • As mass number increases, starting from Cm-Cf-Fm-No, 2- band is lower • Y32 correlation may be important

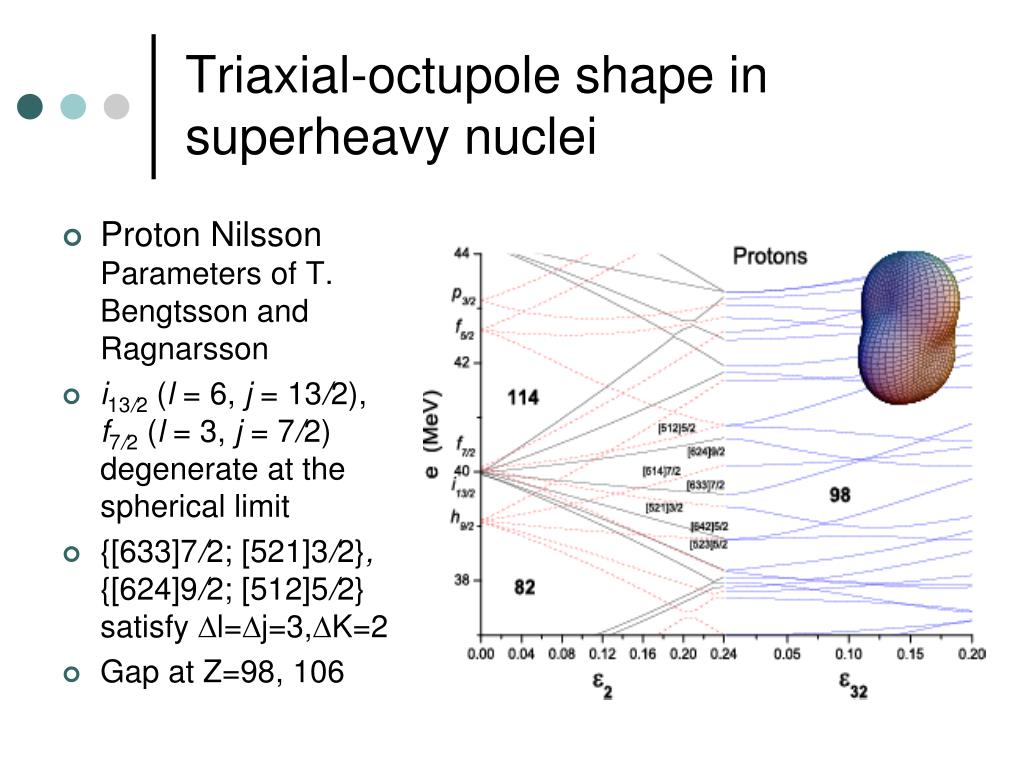

  33. Triaxial-octupole shape in superheavy nuclei • Proton Nilsson Parameters of T. Bengtsson and Ragnarsson • i13/2 (l = 6, j = 13/2), f7/2 (l = 3, j = 7/2) degenerate at the spherical limit • {[633]7/2; [521]3/2}, {[624]9/2; [512]5/2} satisfy Dl=Dj=3,DK=2 • Gap at Z=98, 106

  34. Yrast and 2- bands in N=150 nuclei • Chen, Sun, Gao, • Phys. Rev. C 77 • (2008) 061305

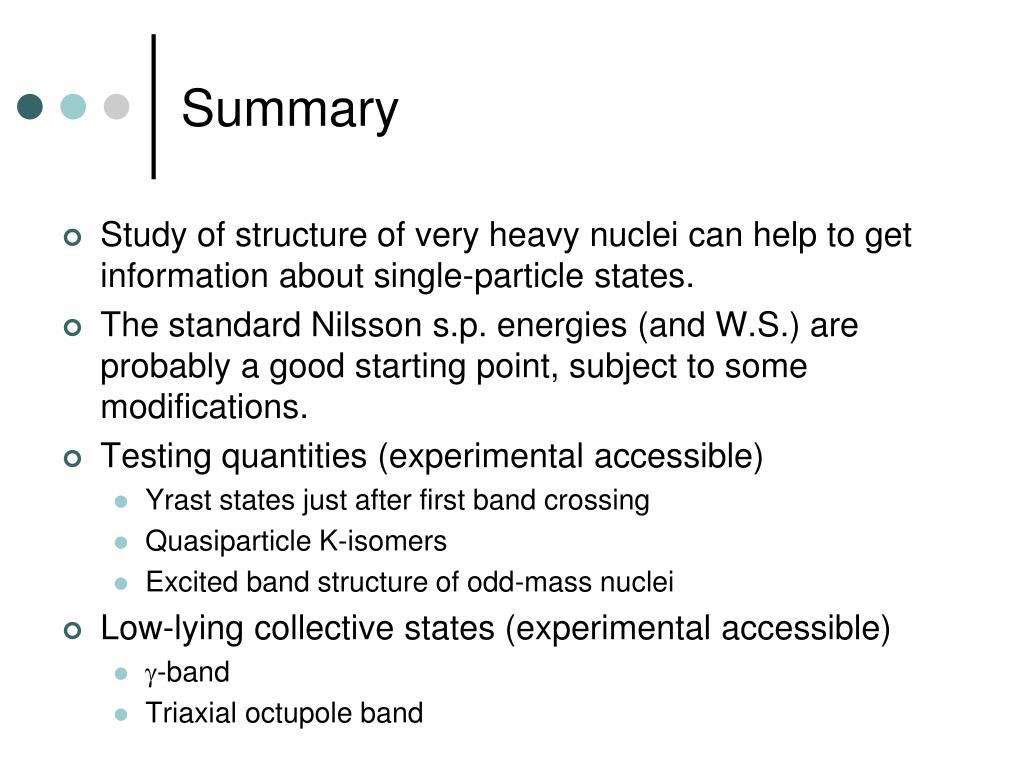

  35. Summary • Study of structure of very heavy nuclei can help to get information about single-particle states. • The standard Nilsson s.p. energies (and W.S.) are probably a good starting point, subject to some modifications. • Testing quantities (experimental accessible) • Yrast states just after first band crossing • Quasiparticle K-isomers • Excited band structure of odd-mass nuclei • Low-lying collective states (experimental accessible) • g-band • Triaxial octupole band
