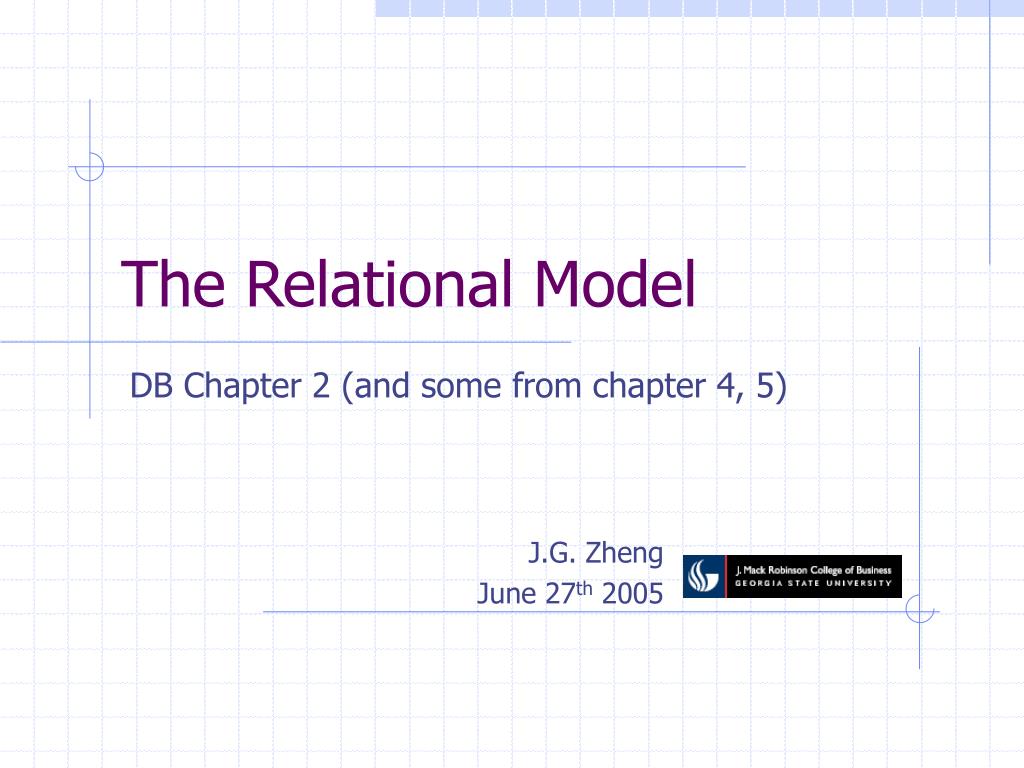

  1. The Relational Model DB Chapter 2 (and some from chapter 4, 5) J.G. Zheng June 27th 2005

  2. Overview • Relational model terminologies and foundations • Some design concepts

  3. Introduction • Edgar F. Codd, 1970 • One sentence to explain relational database model: Data are organized in relations (tables), which are linked (relationship) by keys

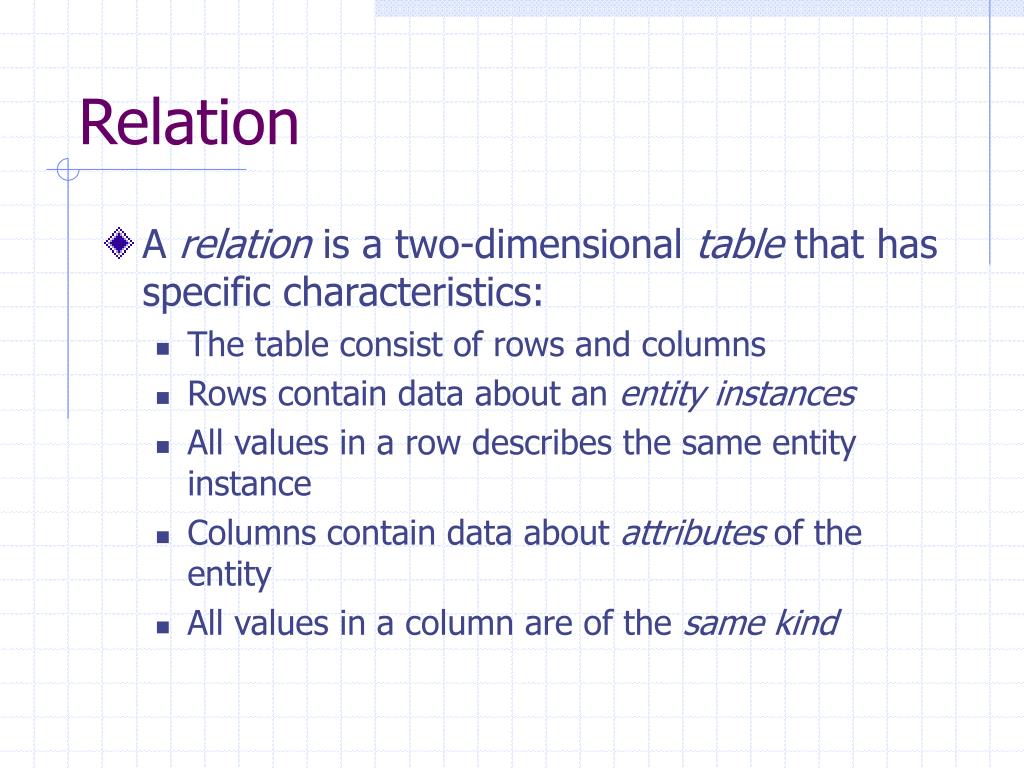

  4. Relation • A relation is a two-dimensional table that has specific characteristics: • The table consist of rows and columns • Rows contain data about an entity instances • All values in a row describes the same entity instance • Columns contain data about attributes of the entity • All values in a column are of the same kind

  5. Relation (continued) • Relation’s specific characteristics go on: • Cells of the table hold a single value • Each row is distinct • Each column has a unique name • The order of the rows is unimportant • The order of the columns is unimportant

  6. Non-Relation Examples

  7. Relation Examples • And, any tables in page 92 and 93

  8. Relation Terminology Contrast

  9. Keys • A key is one or morecolumns of a relation that is used to identify a record • Primary key • Foreign key

  10. Primary Key • Primary key • The value of this key column uniquely identifies a single record (row) • There is only one primary key for a table • Candidate Key • A candidate to become the primary key • There can be multiple candidate keys for a table • Alternate key

  11. Composite Key • A key that contains two or more attributes (columns) • Example • “FirstName” + “LastName” • “FirstName” + “LastName” + “BirthDate” • “FirstName” + “LastName” + “BirthDate” + “BirthCity” • …

  12. Surrogate Key/Artificial Key • It’s a key created arbitrarily to replace the natural key • Typically used in place of a composite key • Usually it has no real meaning • Example • We can create a “ReviewID” in the “BookReviews” table to replace the original composite key

  13. Relationship and Foreign Key • Relationship defines how tables (relations) are linked • Two tables are linked by a pair of keys • The primary key of one table • The foreign key in the linked table • These two keys are of the same kind

  14. Relationship Example Foreign Key Primary Key (PK) Primary Key (PK)

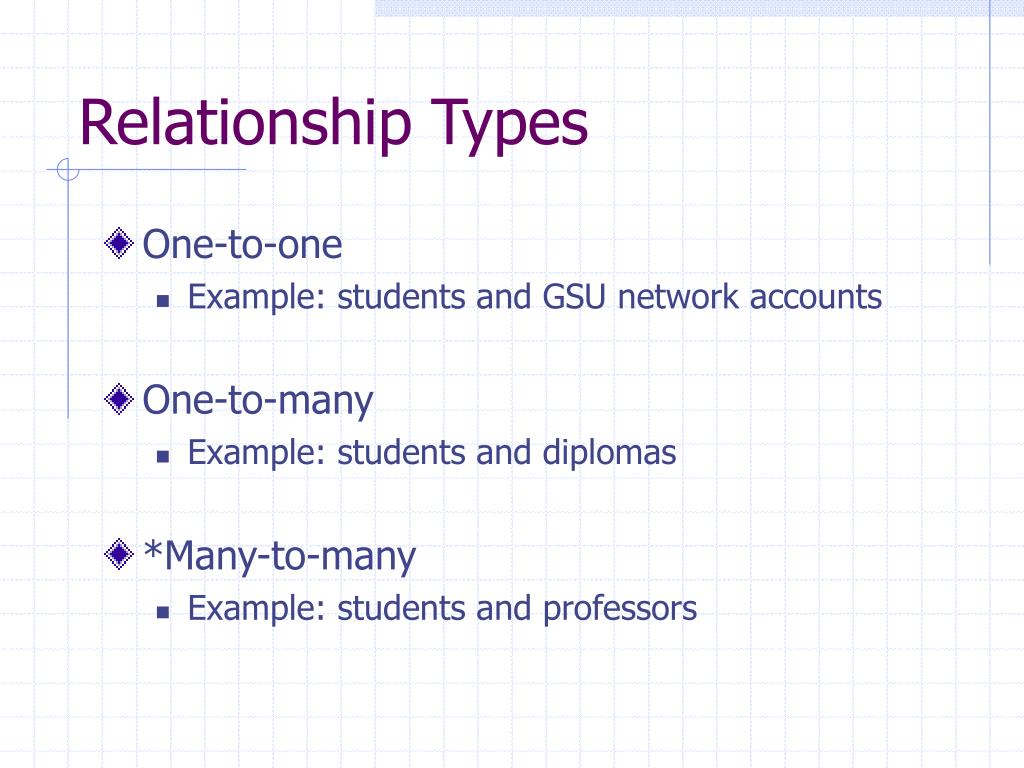

  15. Relationship Types • One-to-one • Example: students and GSU network accounts • One-to-many • Example: students and diplomas • *Many-to-many • Example: students and professors

  16. Referential Integrity • Every value of a foreign key must match a value of the primary key • For example (“Premiere Products” database) • In “Customer” table, “RepNum” is a foreign key (linked to the “Rep” table where “RepNum” is the primary key). • Then every value of “RepNum” in the “Customer” table must exist in the “Rep” table

  17. Relational Algebra • Selection • Projection • Join • …

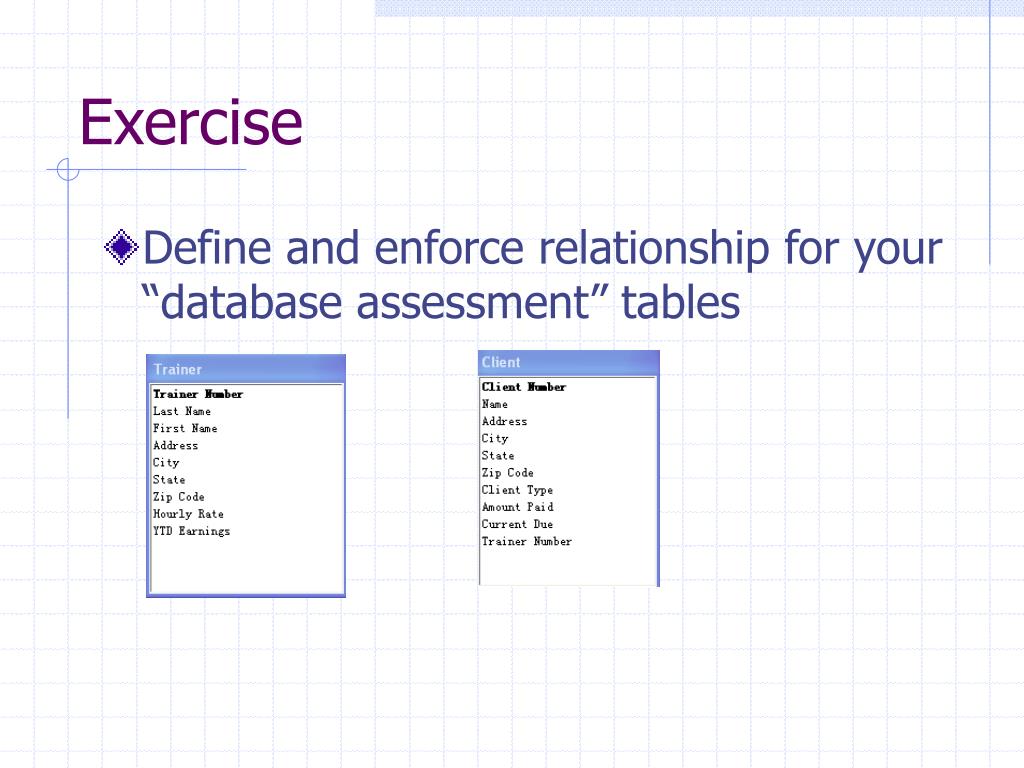

  18. Exercise • Define and enforce relationship for your “database assessment” tables

  19. Using MS Access • Exercise: using query designer (QBE) to query “AmazonBooks” • Choosing columns • Specifying criteria • Sorting • Calculating

  20. Summary • Understand three important concepts of relational database model • Relation • Keys • Primary key, candidate key, alternate key • Composite key • Natural key, surrogate key, artificial key • Foreign key • Relationship

  21. Good Resources • Edgar Frank Codd • http://www.db2tridex.org/efcodd.html • MS Access tutorial • http://mis.bus.sfu.ca/tutorials/MSAccess/tutorials.html
