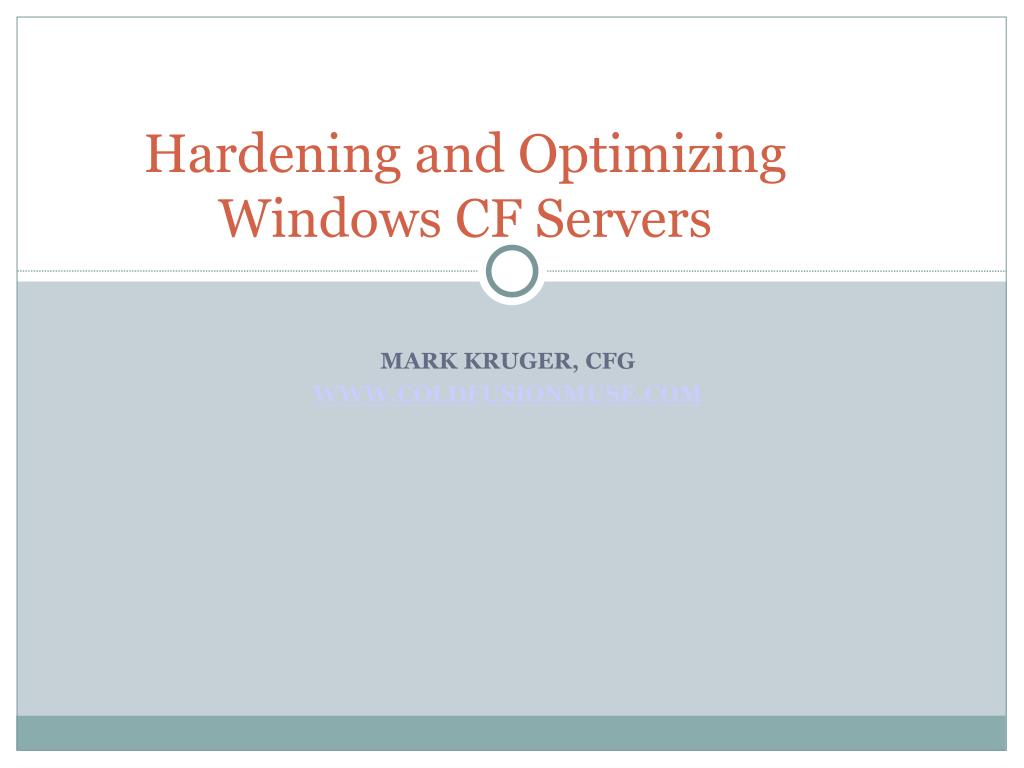

1. Hardening and Optimizing Windows CF Servers MARK KRUGER, CFG WWW.COLDFUSIONMUSE.COM

2. Hardening:The Myth of Win Servers Instability • Left over from NT and Windows 95 • There is no need to reboot your server constantly • A Windows Server CAN be made Secure • Not every patch is for you • Take the simple steps and repeat them for every server. • Defense in Depth covers a multitude of sins

3. Hardening: Checklist • Change the Defaults (This goes for everything!) • Administrator Account • Administrative Shares • Guest Account • Disable Unneeded Services • Print Spooler • Fax, ICS, Intersite Message, Remote Registry, Telnet • Add Auditing For Failed Attempts • Segregate Data Carefully • C drive for system • D drive for Data • Each drive should have different permissions

4. Hardening: Checklist part 2 • Always use NTFS – it allows for extremely granular and layered permissions. • Set Strong Password Policies • Set ACLs on file shares • Minimize “Everyone” group • Anti-Virus and Updates • Anti-virus is only as good as the frequency of update. • Real time scan or not is a judgment call (my view) • Remove unneeded programs • Office

5. Hardening: Checklist Part 3 • Separate DB from Code – if at all possible • No File based (embedded) DBs • Always install the SPs • Judiciously install the patches • Use the Baseline Security Analyzer. • Build up the server block by block – add CF last. • BOTTOM LINE: A “hardened” server does only the things you specifically ask it to do.

6. Hardening: IIS Checklist • Remove Unneeded File mappings • Hdr • Mdb • Printer • Support Technologies on a Site by Site basis • Don’t Run CF on HTML sites. Don’t run PHP on CF sites etc. • Don’t allow any old MIME type download. • Use specific IP settings not catchall settings • Secure Certificate – New standard is TLS/2048bit. • Disable HTTPS 2.x and below. • http://support.microsoft.com/kb/187498

7. Hardening Resources • Microsoft Baseline Security Analyzer - http://technet.microsoft.com/en-us/security/cc184923.aspx • URLScan http://www.microsoft.com/downloads/details.aspx?FamilyId=EE41818F-3363-4E24-9940-321603531989&displaylang=en • SQL Digger - http://www.foundstone.com/us/resources/termsofuse.asp?file=ssldigger.zip • MS Win2000 Security checklist - http://technet.microsoft.com/en-us/library/cc751389.aspx • Spath Win2003 sec checklist: http://www.servepath.com/support/win2003-securitychecklist.php NOTE: Use the “TCP/IP Hardening” check list with great care. It’s not a web server check list. • A security check list list : http://www.securityfocus.com/archive/105/508808/30/150/threaded • Series by Mark Minasi

8. Troubleshooting (TBS) • Scenario 1 – User complains that “JRUN is locking up”. • Scenario 2 – Server periodically crawls, then speeds up again. • Scenario 3 – a Web service refuses to work. For each Scenario we are going to do triage. But first, what do we have to work with?

9. TBS Resources • Log Files • CF Logs – usually in %cf home%/logs • Jrun or JVM logs – usually in %cf home%/runtime/logs • Hot Spot Logs – Sometimes found in the runtime/bin directory • Web Logs – if sites are logging • Windows Logs – System, Security, application • Performance Monitor • Web service counters • Coldfusion Counters (if you can get them running) • CFStat • Jrun Metrics (http://kb2.adobe.com/cps/191/tn_19120.html) • Server Monitor, Seefusion or Fusion Reactor • Hard knocks and experience • Networking Logs (SMTP, Firewall, SNMP) • Database Logs and error reporting

10. TBS Scenario 1JRUN is Locked Up • Only means a JRUN error on a web page. • Could be a hot spot crash • Could be queuing threads (most likely) • Could be DoS or capacity issue • Triage Steps • Watch Counters in CFSTAT, PerfMon or a monitor • Check for a hot spot log file • Check JVM Heap Sizes and GC settings • Watch “active” requests • Monitor the DB for Blocks or Locks • Enable “slow page logging” at a reasonable threshold • Ask the “predictable timing” question and examine client vars. • Check Network settings for other possibilities.

11. TBS LockupMost Likely Suspects (in order) • DB or other external Service • JVM Settings Issue (more in a moment) • Client Vars in Registry • Specific high traffic page(s) that is underperforming • Server Resources (File I/O, Memory, Procs etc) • Conflicting program (Virus scan in RT for example) • 3rd part jar or CFX Tag • One of the 3 or 4 hot spot compiler bugs.

12. TBS and the JVM • There is one thing that everyone can do – adjust your JVM memory. • The default is inadequate for anything but a test desktop. • Use a max and min that are the same or nearly so • Use as much as you can • 1.3 gigs on a 32 bit • 6,8,16 gigs on a 64 bit (maybe more)

13. TBS Scenario 2Server Crawls Periodically • This is usually due to an external resource. • Check Client Vars and purge routine • Check routines for backup, scanning etc. • Try to “trap” the moment the crawl begins • Think about the traffic patterns – login at market open for example • DB Indexing Tweaks • GC issues • Network Changes or re-negotiation

14. TBS Scenario 3 Web Service Issues • Web services rely on domain resolution • HOSTS file + DNS • Internal External Networking • Some resources are local • Firewalls have a say • Certificates that work for you may not work for your JVM without some extra steps • Web services use “stub generation” – they create a ‘wrapper’ class that encapsulates the class definition.

15. TBS Additional Resources • www.coldfusionmuse.com – Rundowns of troubleshooting adventures • www.houseoffusion.com – CF-Talk • www.cfbloggers.org – the best blog aggregator of CF blogs • http://www.carehart.org/cf411/ - Charlie Arehart puts a great deal of work into this page.

16. Q and A mkruger@cfwebtools.com
