  1. Manas Mittal J. Lifton, M. Lapinski, J. Paradiso Responsive Environments Group MIT Media Laboratory TricorderMobile Interface for Browsing Sensor Networks TricorderMobile Interface for Browsing Sensor Networks

  2. Wireless Sensor Networks • Real Time • Decentralized • Spatial Localized • In Situ • Information Rich • Vision : Sensing Everywhere MSI – CHI ‘07

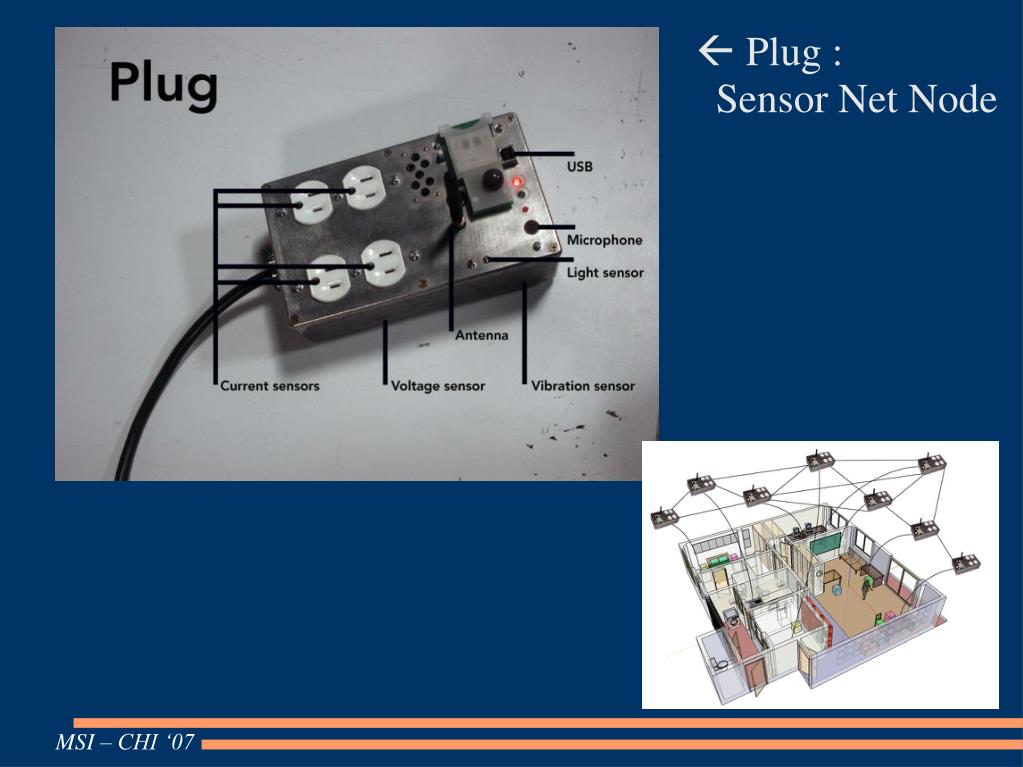

  3.  Plug : Sensor Net Node MSI – CHI ‘07

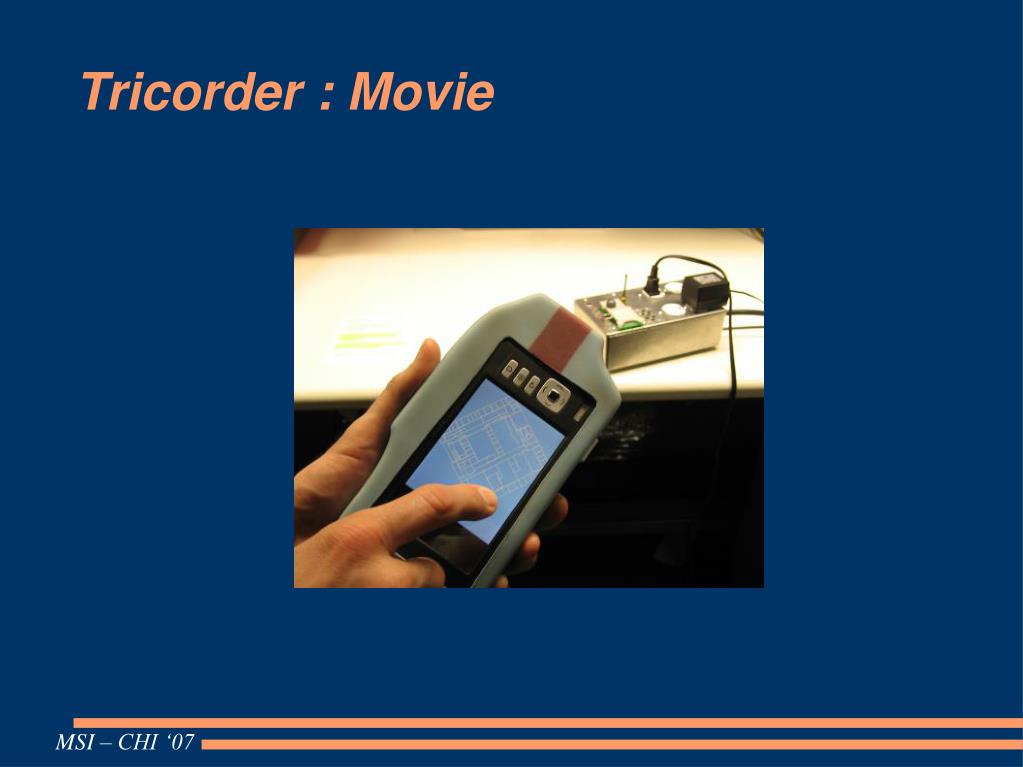

  4. Tricorder : Movie MSI – CHI ‘07

  5. Browsing Sensor Data : Tricorder High Level Description MSI – CHI ‘07

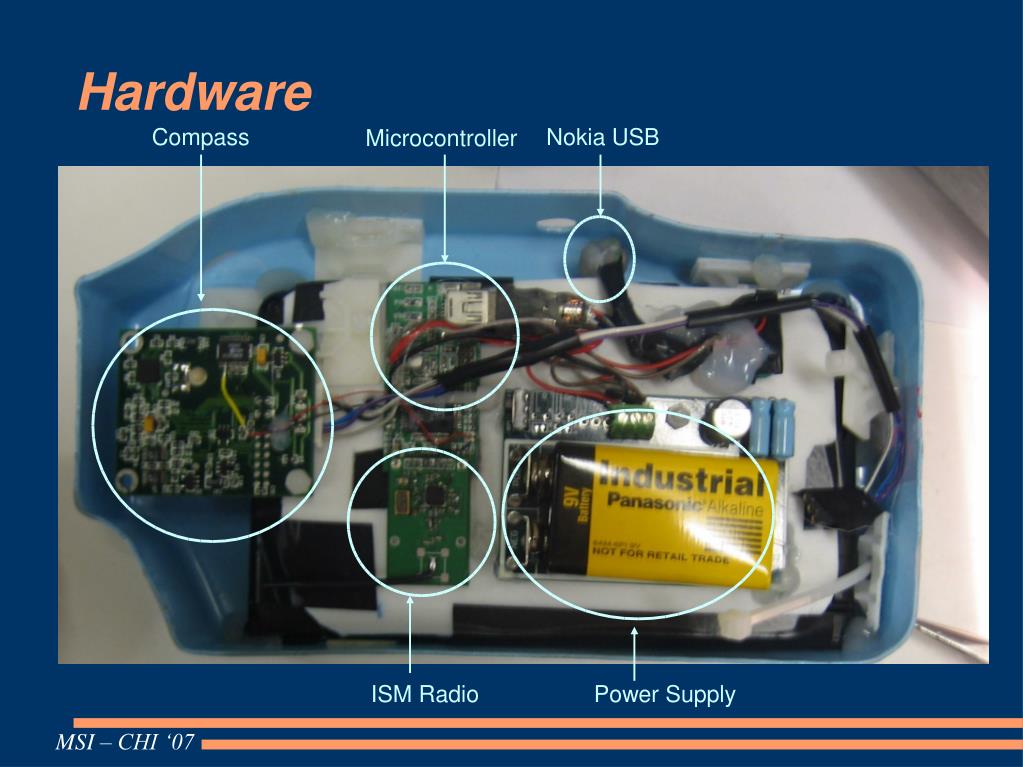

  6. Hardware MSI – CHI ‘07

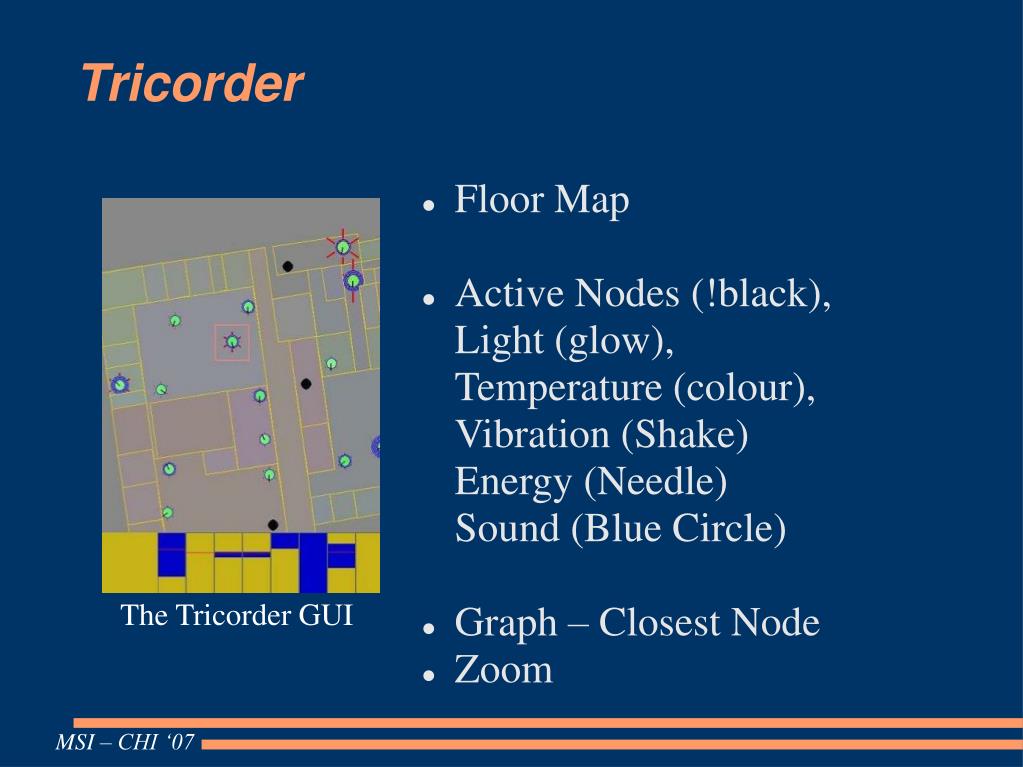

  7. Tricorder • Floor Map • Active Nodes (!black), Light (glow), Temperature (colour), • Vibration (Shake) Energy (Needle) • Sound (Blue Circle) • Graph – Closest Node • Zoom The Tricorder GUI MSI – CHI ‘07

  8. Contributions • Sensor Networks – Make Ubicomp Happen • Tricorder : - First working Prototype - Beyond Location - Information (Decentralized, Real-Time) - Embedded in the environment - Localization ‘hints’ MSI – CHI ‘07
