  1. Achieving Better Privacy Protection in WSNs Using Trusted Computing Yanjiang YANG , Robert DENG, Jianying ZHOU, Ying QIU

  2. Content Project Summary - why should it be done? • Introduction • Heterogeneous WSN Architecture • Example: Achieving User Query Privacy • Conclusion

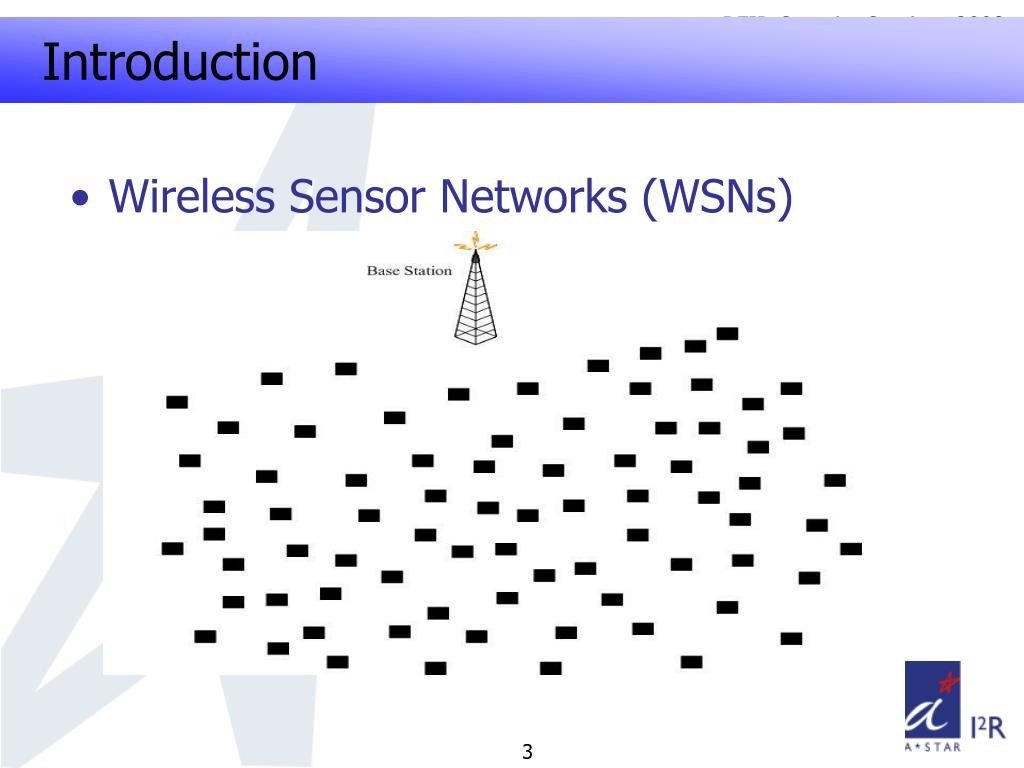

  3. Introduction Project Summary - why should it be done? • Wireless Sensor Networks (WSNs)

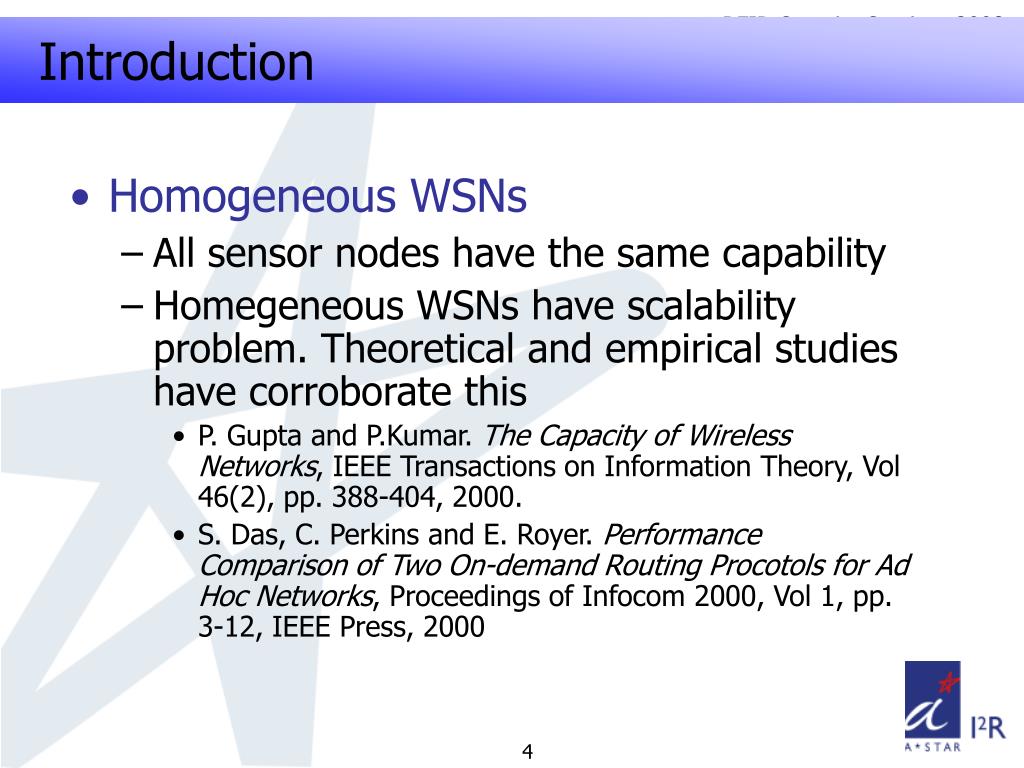

  4. Introduction Project Summary - why should it be done? • Homogeneous WSNs • All sensor nodes have the same capability • Homegeneous WSNs have scalability problem. Theoretical and empirical studies have corroborate this • P. Gupta and P.Kumar. The Capacity of Wireless Networks, IEEE Transactions on Information Theory, Vol 46(2), pp. 388-404, 2000. • S. Das, C. Perkins and E. Royer. Performance Comparison of Two On-demand Routing Procotols for Ad Hoc Networks, Proceedings of Infocom 2000, Vol 1, pp. 3-12, IEEE Press, 2000

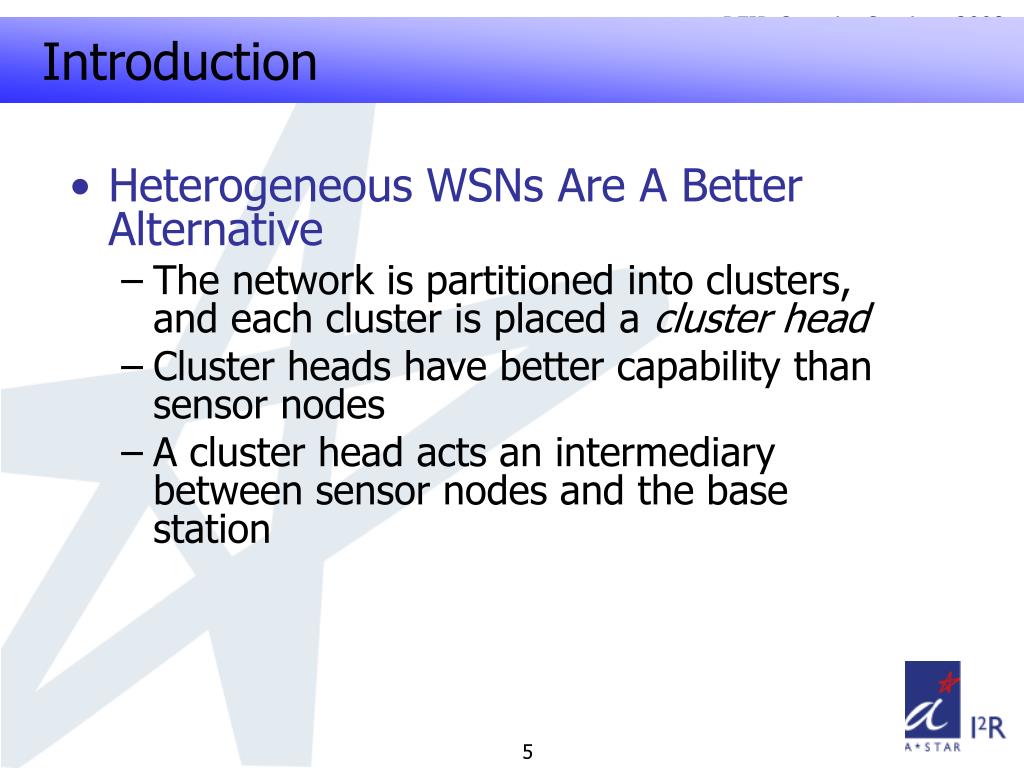

  5. Introduction Project Summary - why should it be done? • Heterogeneous WSNs Are A Better Alternative • The network is partitioned into clusters, and each cluster is placed a cluster head • Cluster heads have better capability than sensor nodes • A cluster head acts an intermediary between sensor nodes and the base station

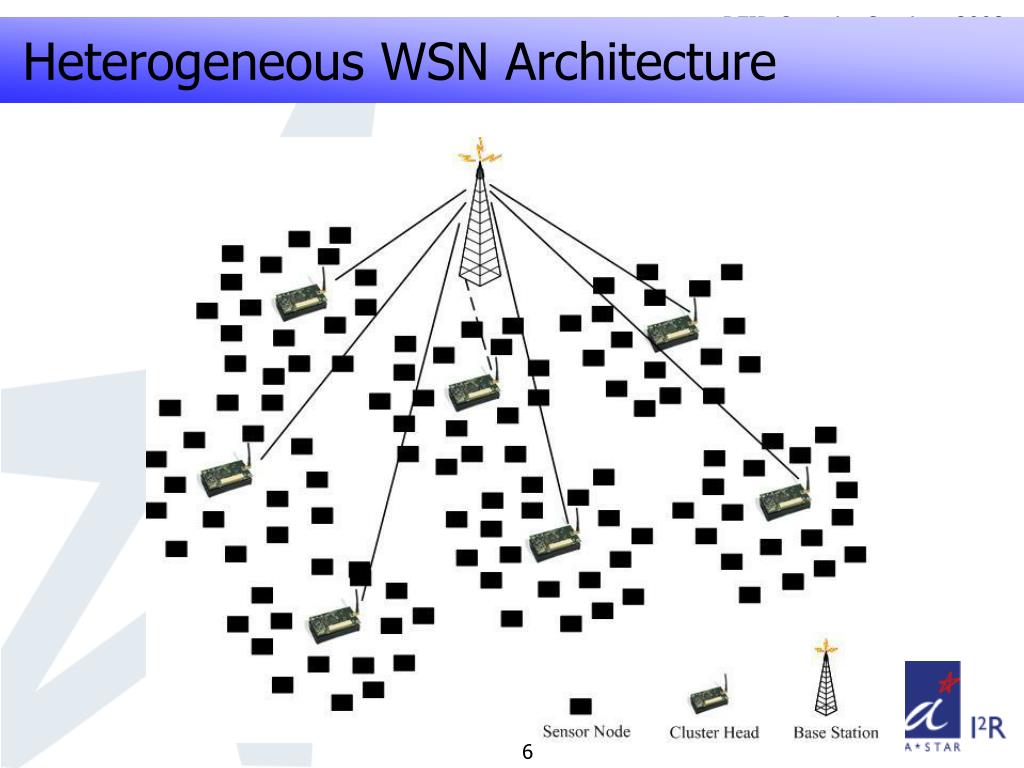

  6. HeterogeneousWSNArchitecture Project Summary - why should it be done?

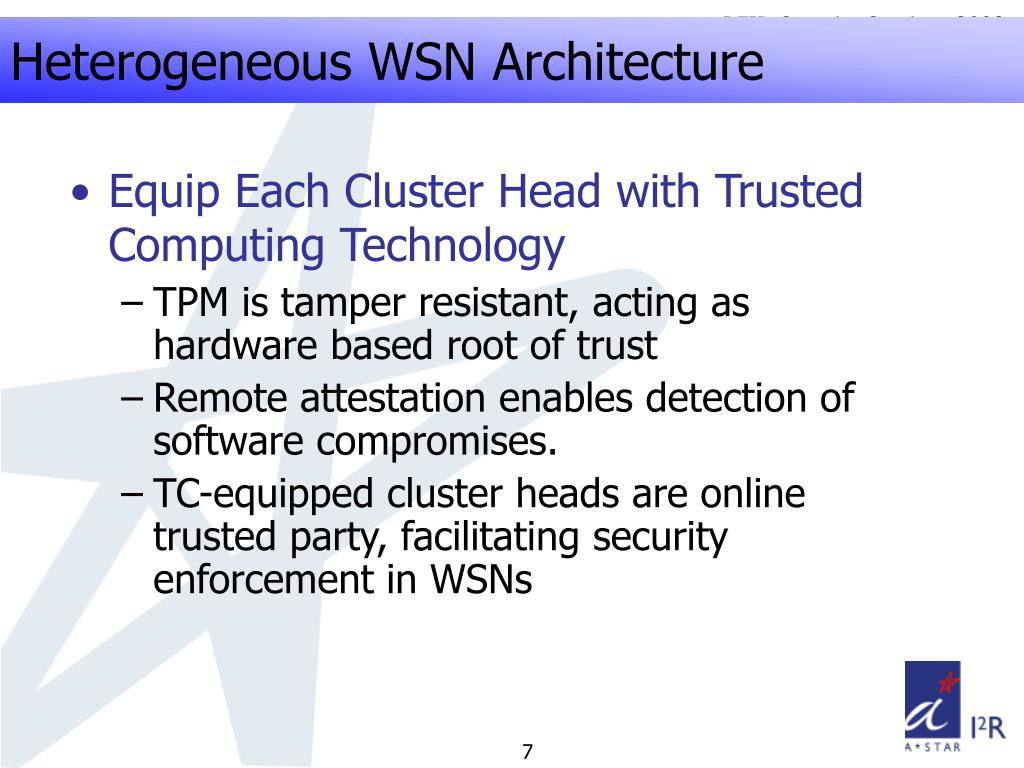

  7. HeterogeneousWSNArchitecture Project Summary - why should it be done? • Equip Each Cluster Head with Trusted Computing Technology • TPM is tamper resistant, acting as hardware based root of trust • Remote attestation enables detection of software compromises. • TC-equipped cluster heads are online trusted party, facilitating security enforcement in WSNs

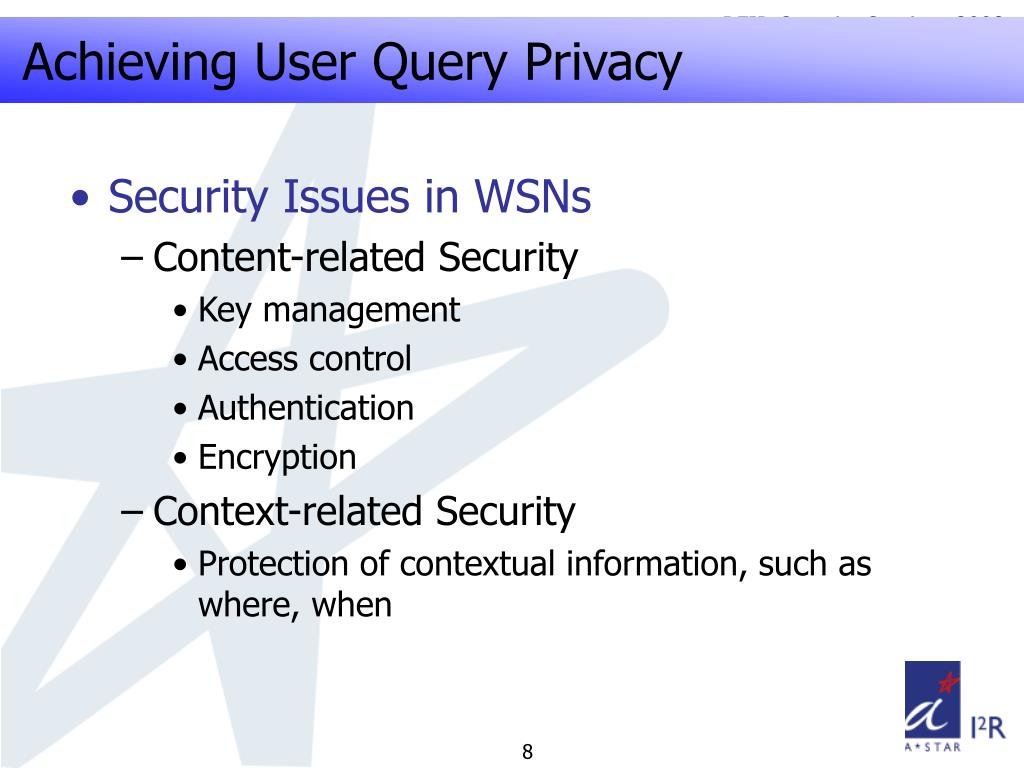

  8. Achieving User Query Privacy Project Summary - why should it be done? • Security Issues in WSNs • Content-related Security • Key management • Access control • Authentication • Encryption • Context-related Security • Protection of contextual information, such as where, when

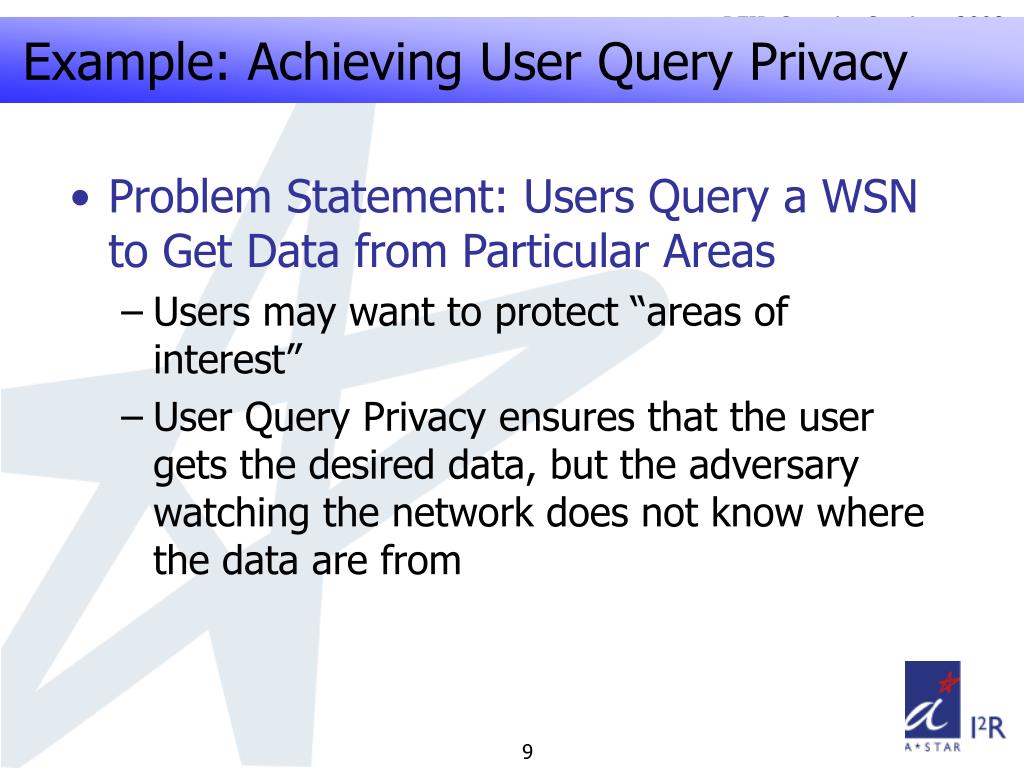

  9. Example: Achieving User Query Privacy Project Summary - why should it be done? • Problem Statement: Users Query a WSN to Get Data from Particular Areas • Users may want to protect “areas of interest” • User Query Privacy ensures that the user gets the desired data, but the adversary watching the network does not know where the data are from

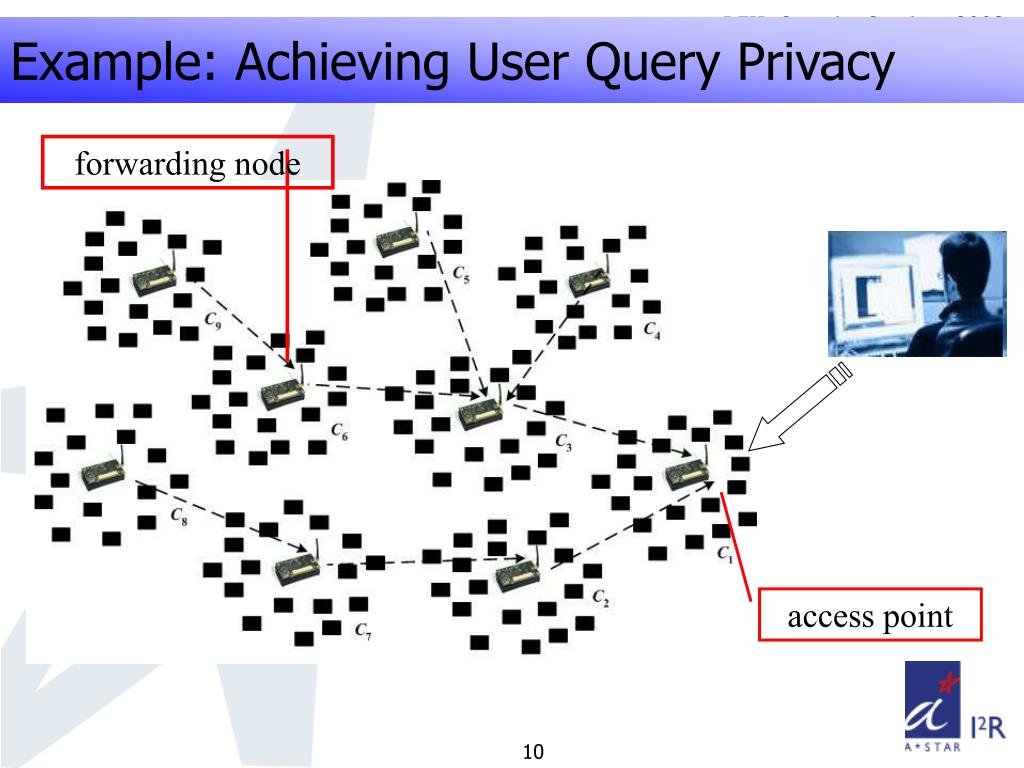

  10. Example: Achieving User Query Privacy forwarding node accesspoint

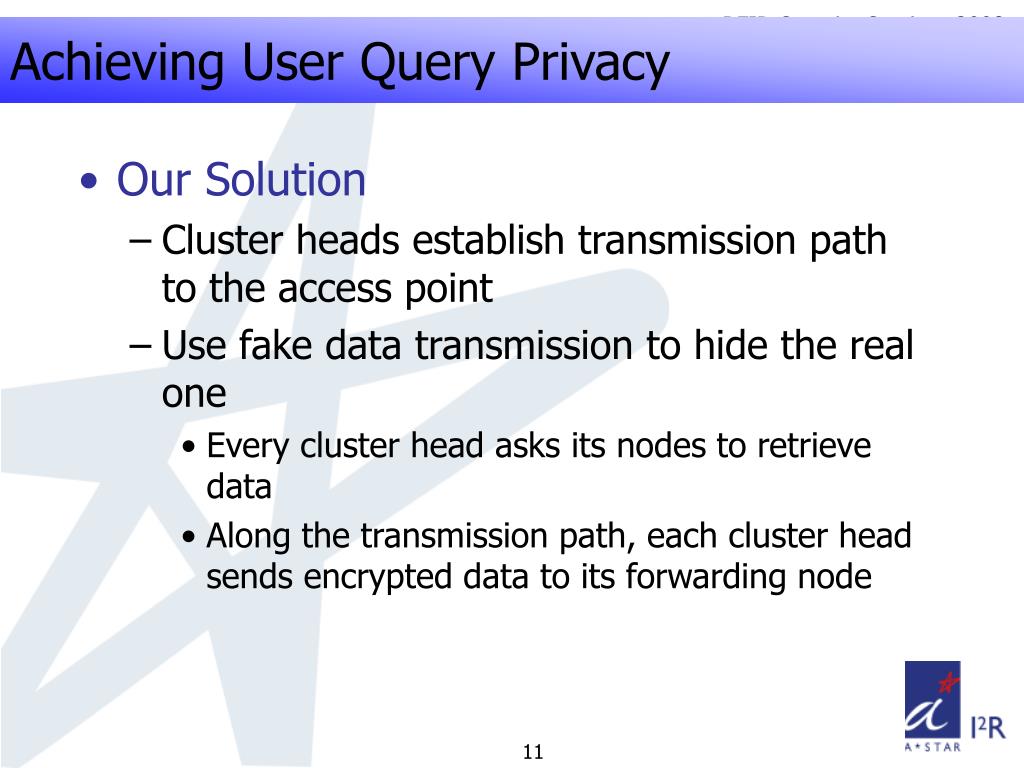

  11. Achieving User Query Privacy • Our Solution • Cluster heads establish transmission path to the access point • Use fake data transmission to hide the real one • Every cluster head asks its nodes to retrieve data • Along the transmission path, each cluster head sends encrypted data to its forwarding node

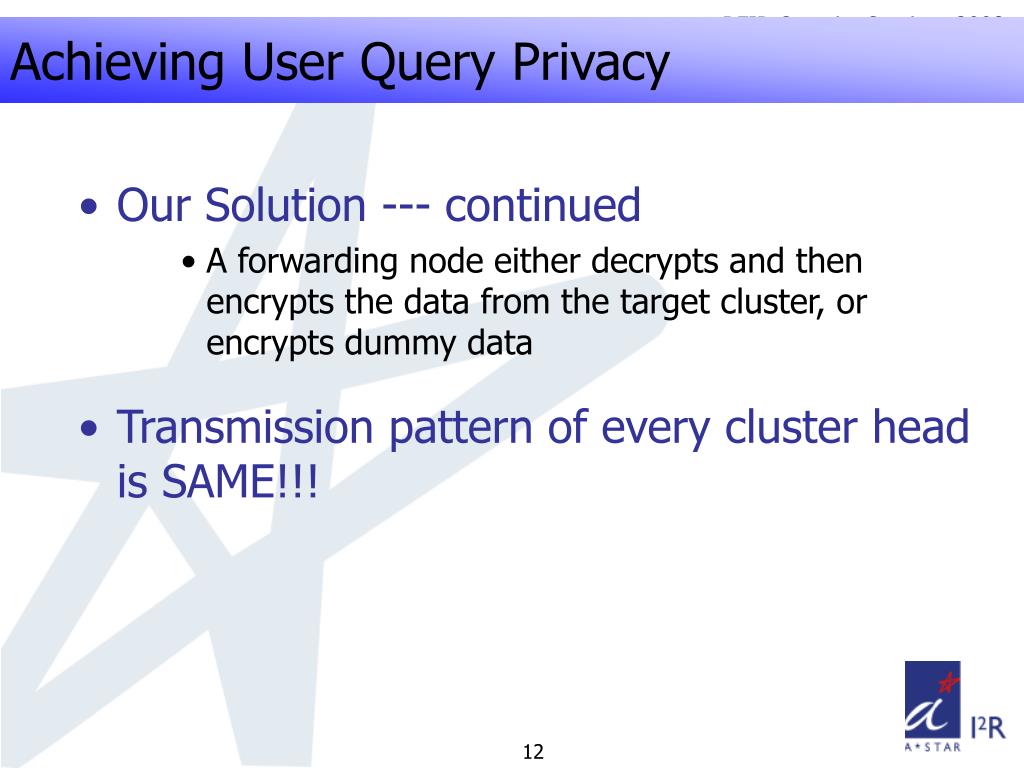

  12. Achieving User Query Privacy • Our Solution --- continued • A forwarding node either decrypts and then encrypts the data from the target cluster, or encrypts dummy data • Transmission pattern of every cluster head is SAME!!!

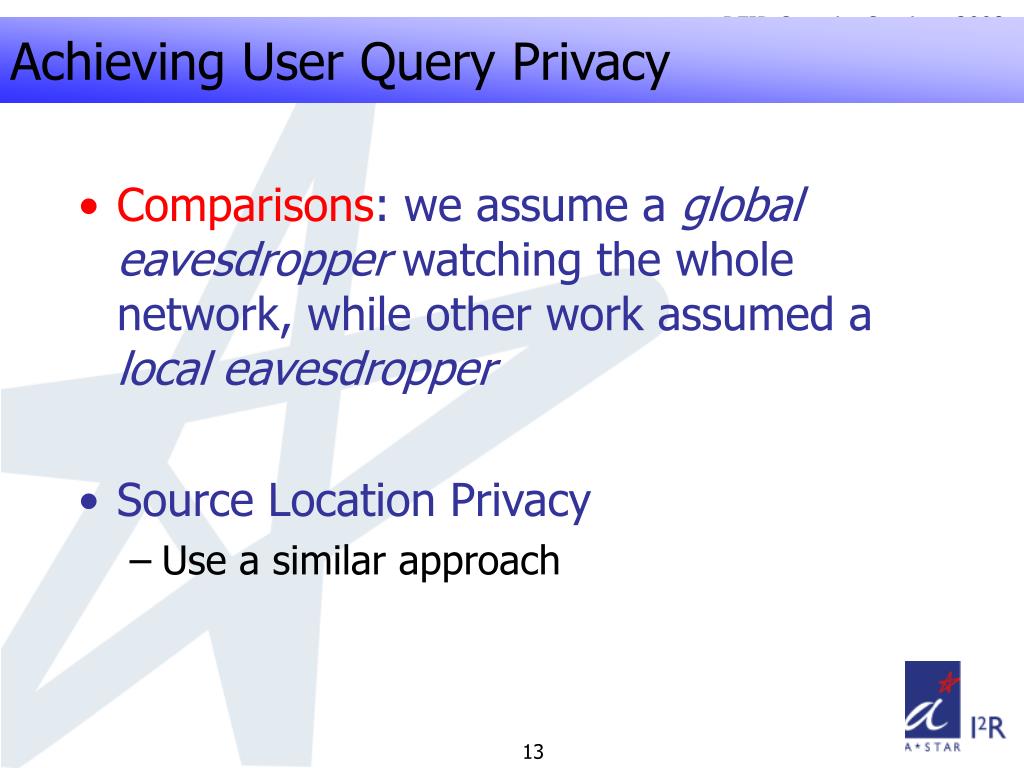

  13. Achieving User Query Privacy • Comparisons: we assume a global eavesdropper watching the whole network, while other work assumed a local eavesdropper • Source Location Privacy • Use a similar approach

  14. Conclusion Project Summary - why should it be done? • Heterogeneous WSNs Are More Scalable • TC-equipped Cluster Heads Facilitate Security Enforcement • We Showed How to Achieve Better User Query Privacy and Source Location Privacy

  15. Q & A Project Summary - why should it be done? Thank you for your kind attention.
