  1. CAMPUS NETWORK STATUS/FUTURES Terry Gray Director, Networks & Distributed Computing UW Computing & Communications October 2001

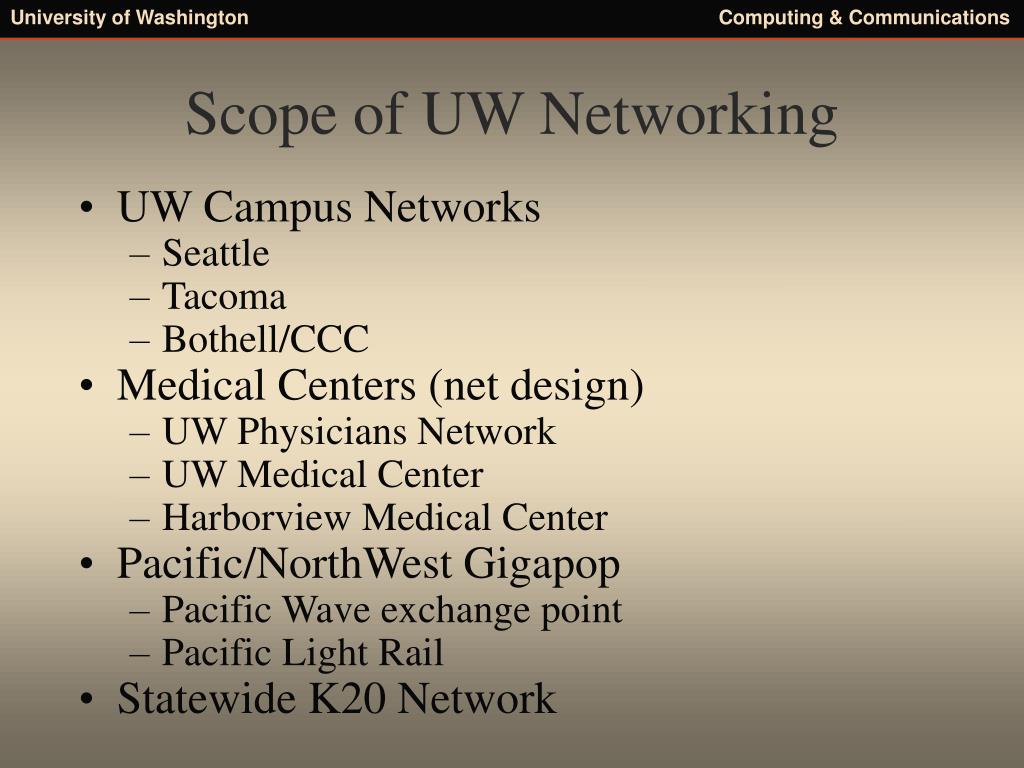

  2. Scope of UW Networking • UW Campus Networks • Seattle • Tacoma • Bothell/CCC • Medical Centers (net design) • UW Physicians Network • UW Medical Center • Harborview Medical Center • Pacific/NorthWest Gigapop • Pacific Wave exchange point • Pacific Light Rail • Statewide K20 Network

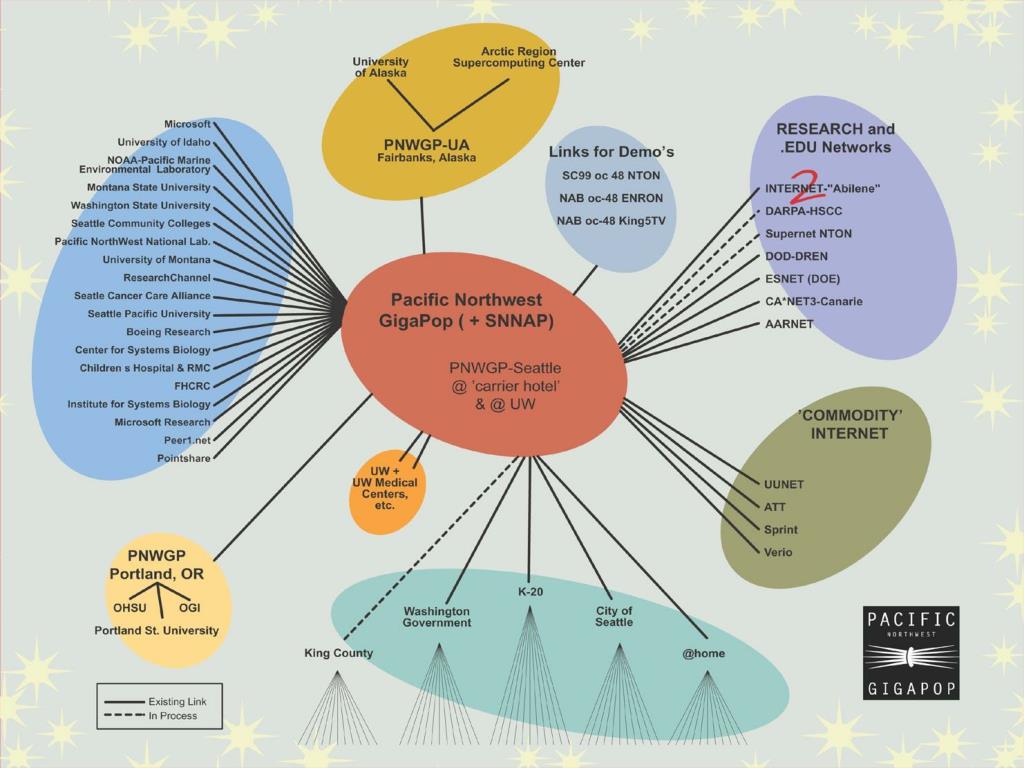

  3. Pacific Northwest Gigapop

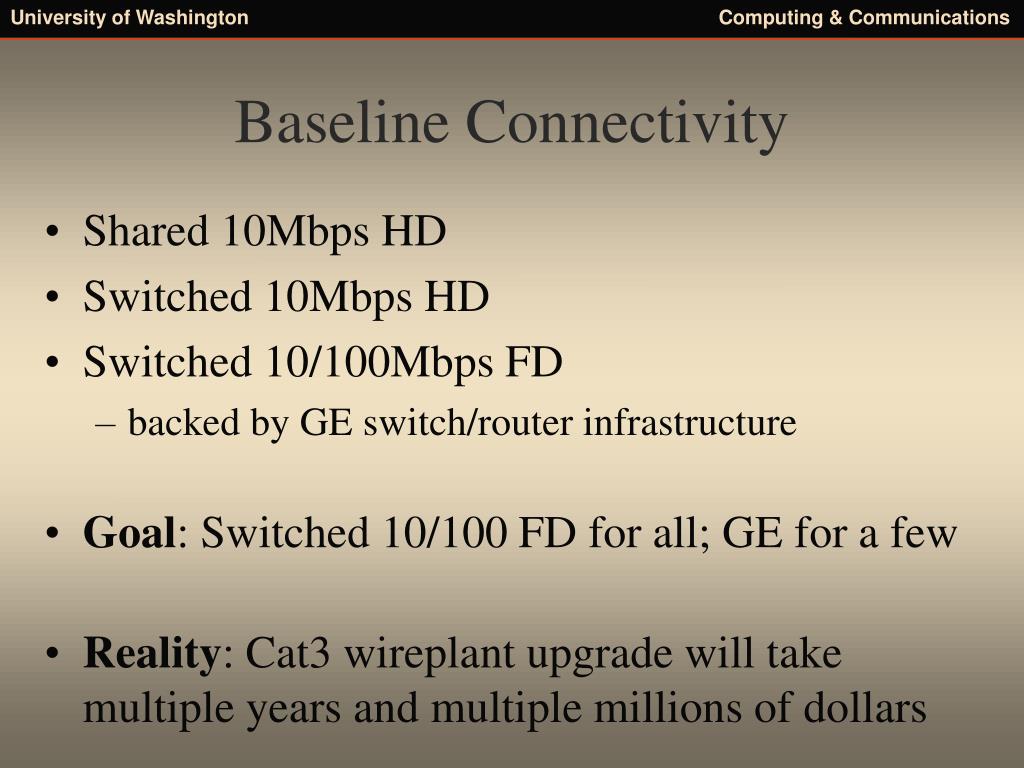

  4. Baseline Connectivity • Shared 10Mbps HD • Switched 10Mbps HD • Switched 10/100Mbps FD • backed by GE switch/router infrastructure • Goal: Switched 10/100 FD for all; GE for a few • Reality: Cat3 wireplant upgrade will take multiple years and multiple millions of dollars

  5. Advanced Services • Multicast • Partially deployed • Older routers need to be replaced • QoS • Laissez faire? Premium service? • Best with FD connections. • VoIP • Needs QoS, extra-high availability • POE desirable; implies UPS in closets • IPv6

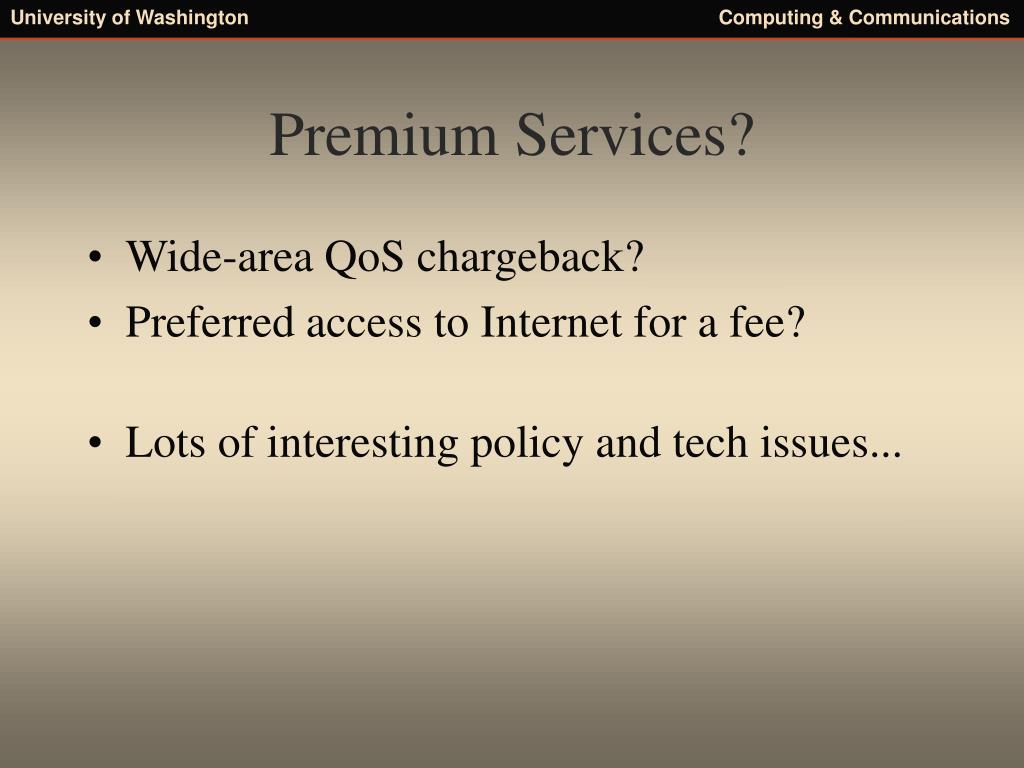

  6. Premium Services? • Wide-area QoS chargeback? • Preferred access to Internet for a fee? • Lots of interesting policy and tech issues...

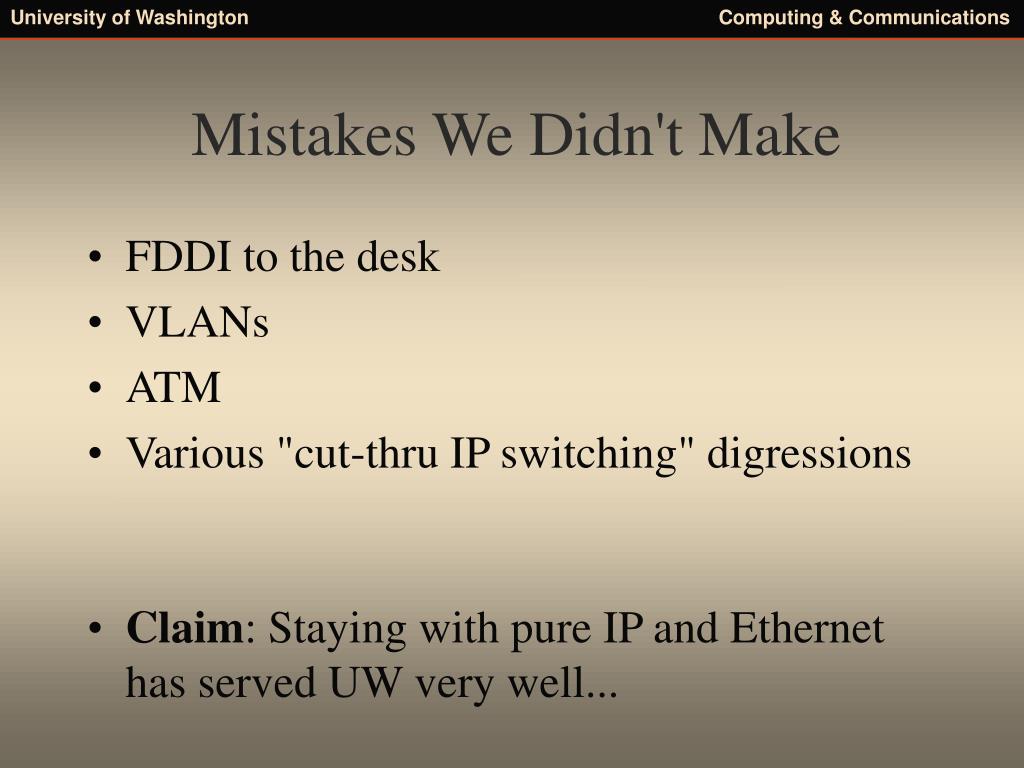

  7. Mistakes We Didn't Make • FDDI to the desk • VLANs • ATM • Various "cut-thru IP switching" digressions • Claim: Staying with pure IP and Ethernet has served UW very well...

  8. Current Statistics • Avg Backbone traffic: nearly 2 TB/day • Peak Inbound traffic: 100 Mbps (40 in 1999) • Peak Outbound traffic: 160 Mbps (20 in 1999) • Doubling time: Less than 2 years!! • Hosts: over 50,000 • Modems: over 2,000 • Switched subnets: 70% (30% in 1999) • 10/100 FD subnets: 25% (5% in 1999) • Cat 5 buildings: 10%

  9. UW-S Building/Subnet Status

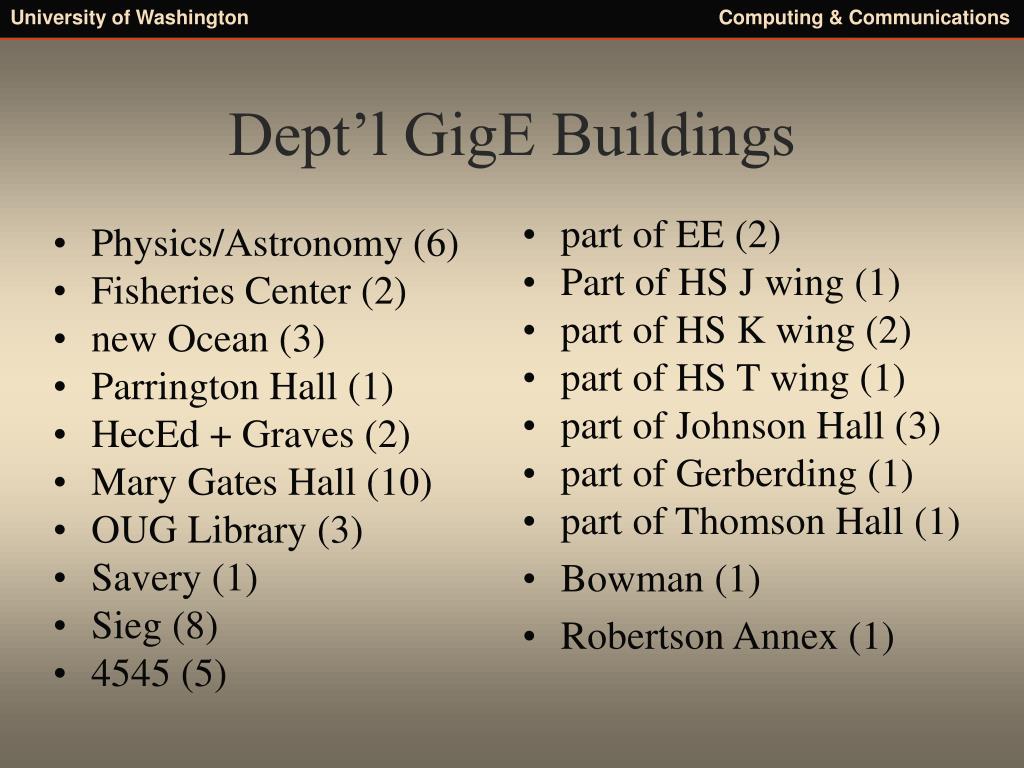

  10. Physics/Astronomy (6) Fisheries Center (2) new Ocean (3) Parrington Hall (1) HecEd + Graves (2) Mary Gates Hall (10) OUG Library (3) Savery (1) Sieg (8) 4545 (5) part of EE (2) Part of HS J wing (1) part of HS K wing (2) part of HS T wing (1) part of Johnson Hall (3) part of Gerberding (1) part of Thomson Hall (1) Bowman (1) Robertson Annex (1) Dept’l GigE Buildings

  11. Simplified Network Topology Core Switch Gigapop 4 Fed Nets Border Router Internet2 Router Router 30 Internet Interior Switch Interior Switch 300 PBX Edge Switch Edge Switch 1000+ Branch Site 50,000 Desktop Desktop

  12. Number of Devices

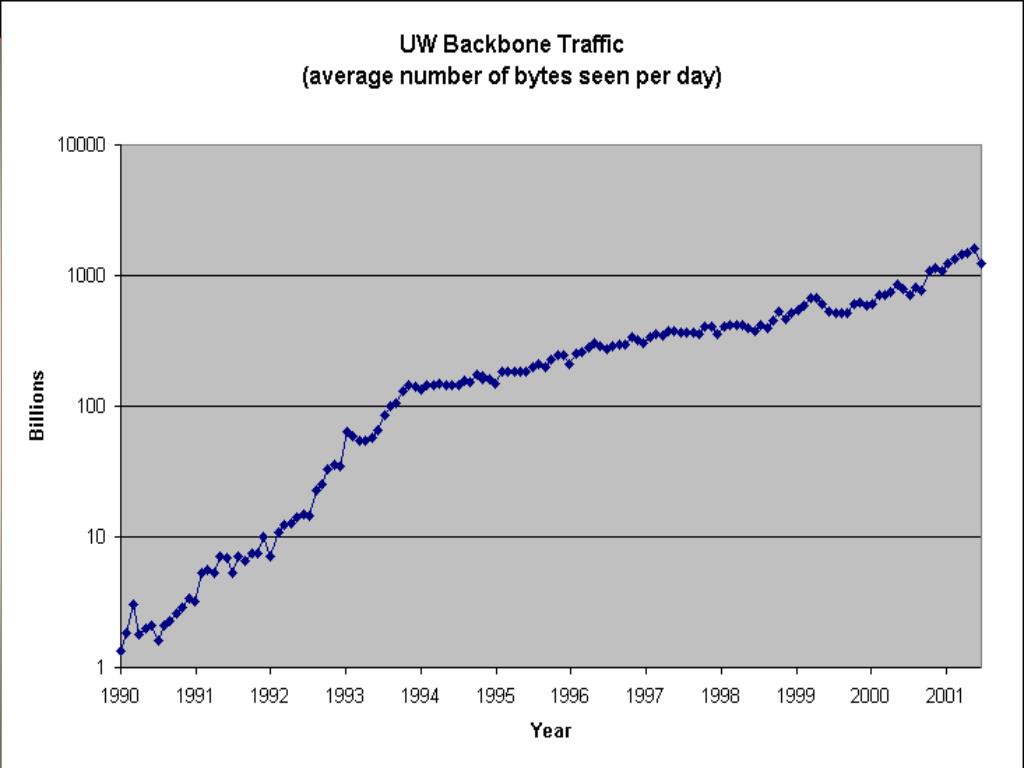

  13. Backbone Traffic

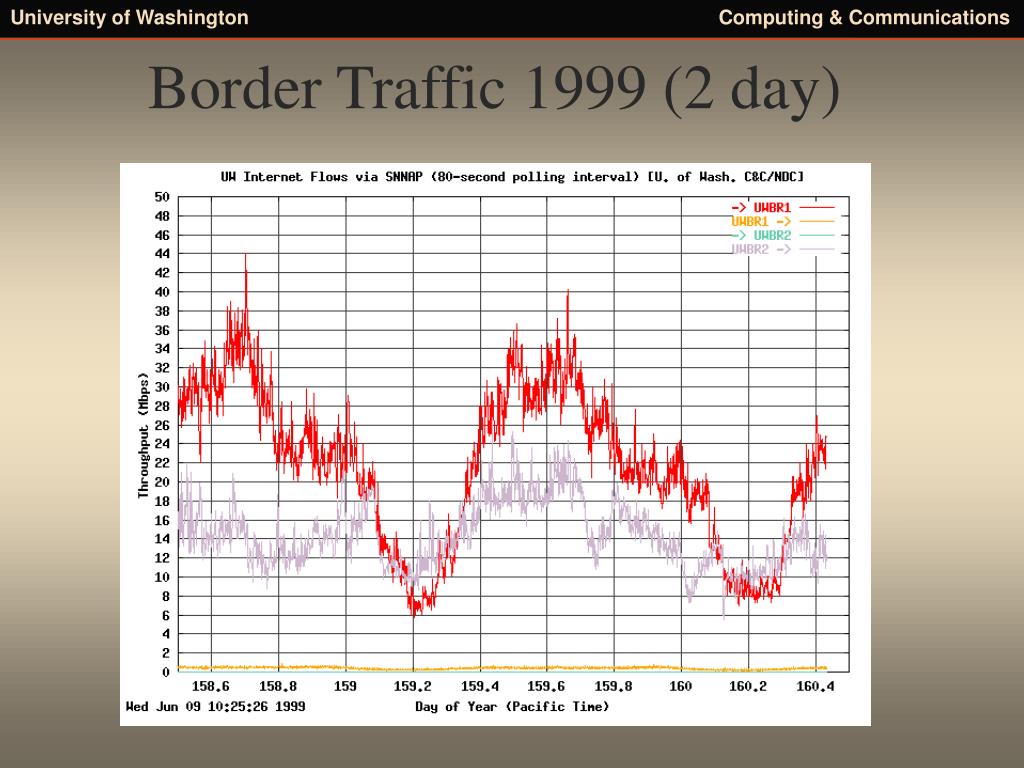

  14. Border Traffic 1999 (2 day)

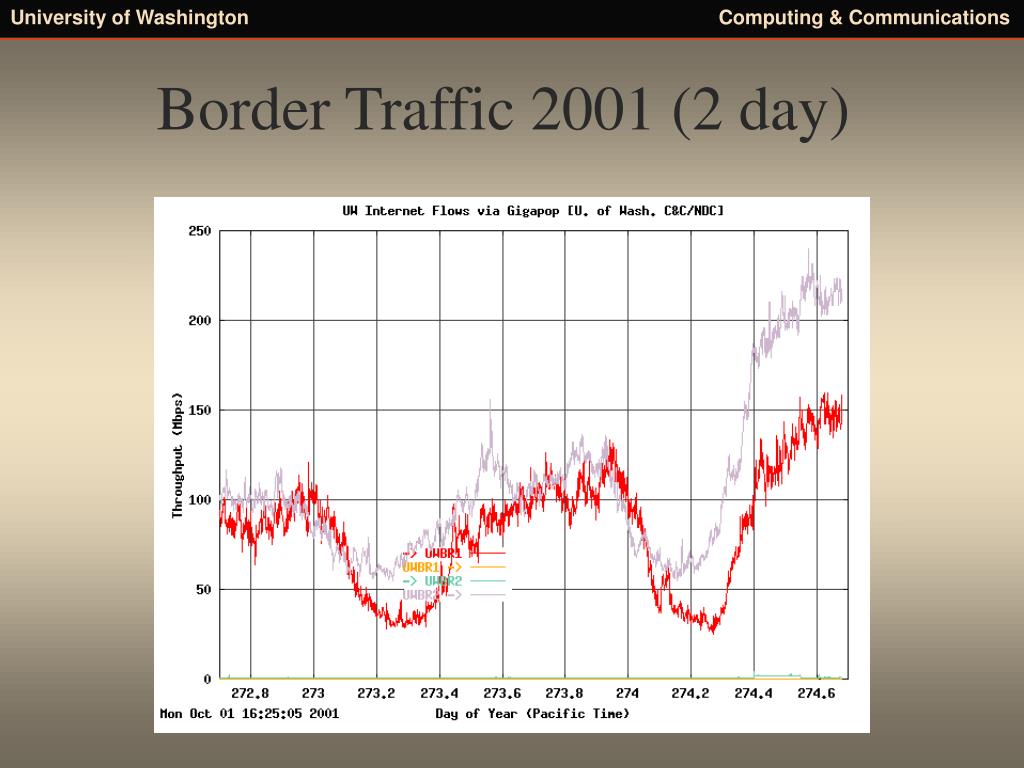

  15. Border Traffic 2001 (2 day)

  16. Border Traffic 2001 (6 hour)

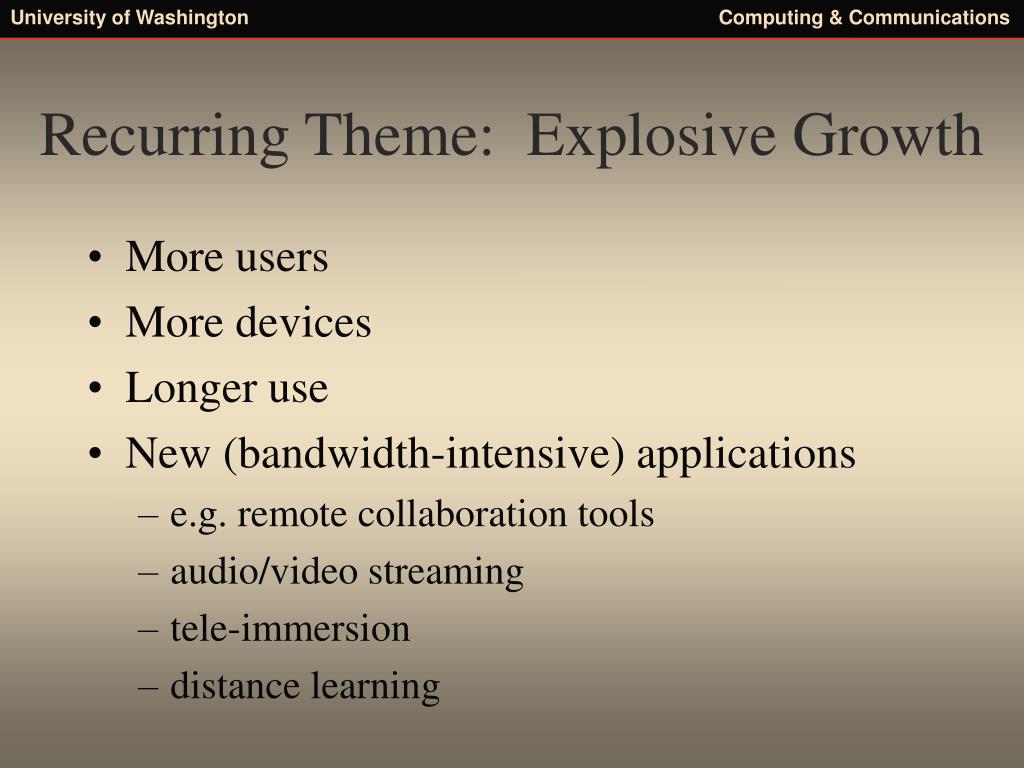

  17. Recurring Theme: Explosive Growth • More users • More devices • Longer use • New (bandwidth-intensive) applications • e.g. remote collaboration tools • audio/video streaming • tele-immersion • distance learning

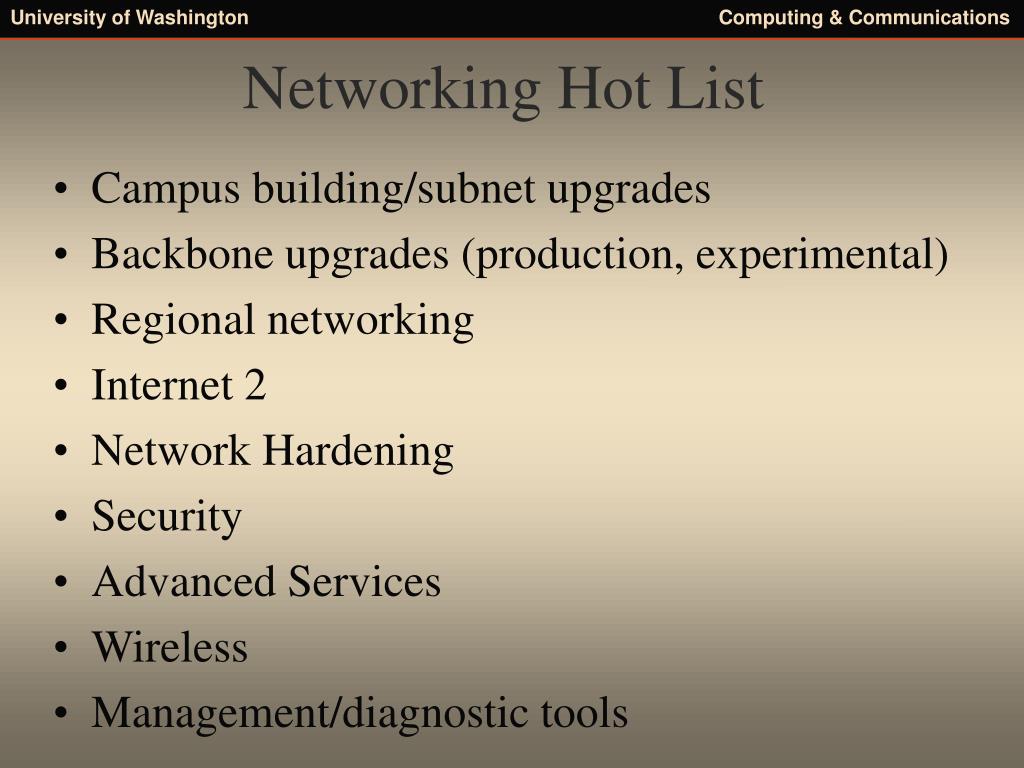

  18. Networking Hot List • Campus building/subnet upgrades • Backbone upgrades (production, experimental) • Regional networking • Internet 2 • Network Hardening • Security • Advanced Services • Wireless • Management/diagnostic tools

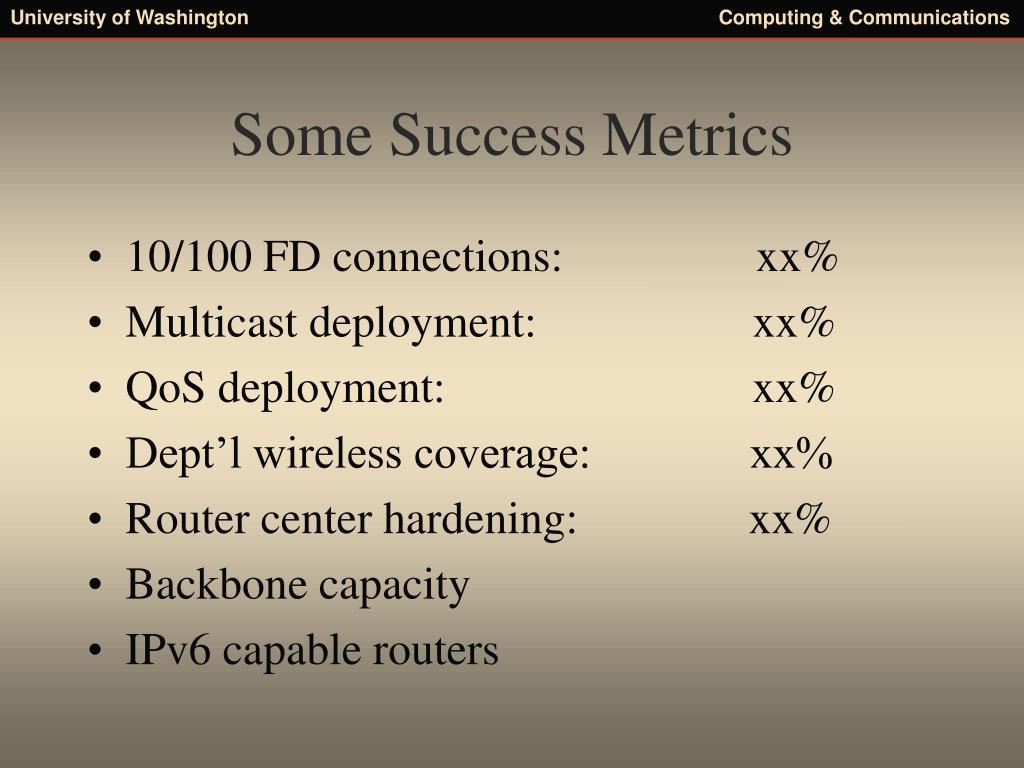

  19. Some Success Metrics • 10/100 FD connections: xx% • Multicast deployment: xx% • QoS deployment: xx% • Dept’l wireless coverage: xx% • Router center hardening: xx% • Backbone capacity • IPv6 capable routers

  20. Questions? • Or comments… • Or complaints...
