  1. Presents the new Mini 24

  2. Wall-hung boiler Bithermic exchanger Mini 24 RBC 24 E Open chamber 24 kW Self diagnostic system Electronic thermometer Furnace type: open Output power: 22,66 kW Min. 6,7 kW Stars of efficiency: * Expansion vessel: 6 lt. Flow rate raised t 30°: 11,20 lt/min Width: 410mm Height: 730mm Depth: 320mm

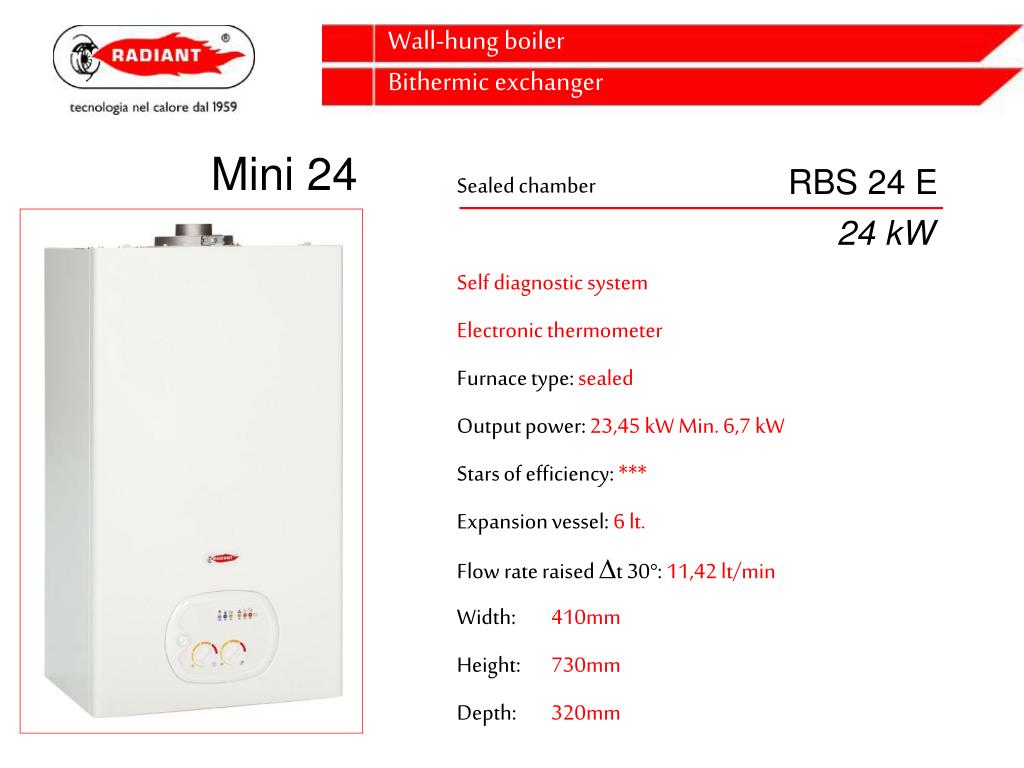

  3. Wall-hung boiler Bithermic exchanger Mini 24 RBS 24 E Sealed chamber 24 kW Self diagnostic system Electronic thermometer Furnace type: sealed Output power: 23,45 kW Min. 6,7 kW Stars of efficiency: *** Expansion vessel: 6 lt. Flow rate raised t 30°: 11,42 lt/min Width: 410mm Height: 730mm Depth: 320mm

  4. Wall-hung boiler Bithermic exchanger RBS 24 Sealed chamber Open chamber RBC 24

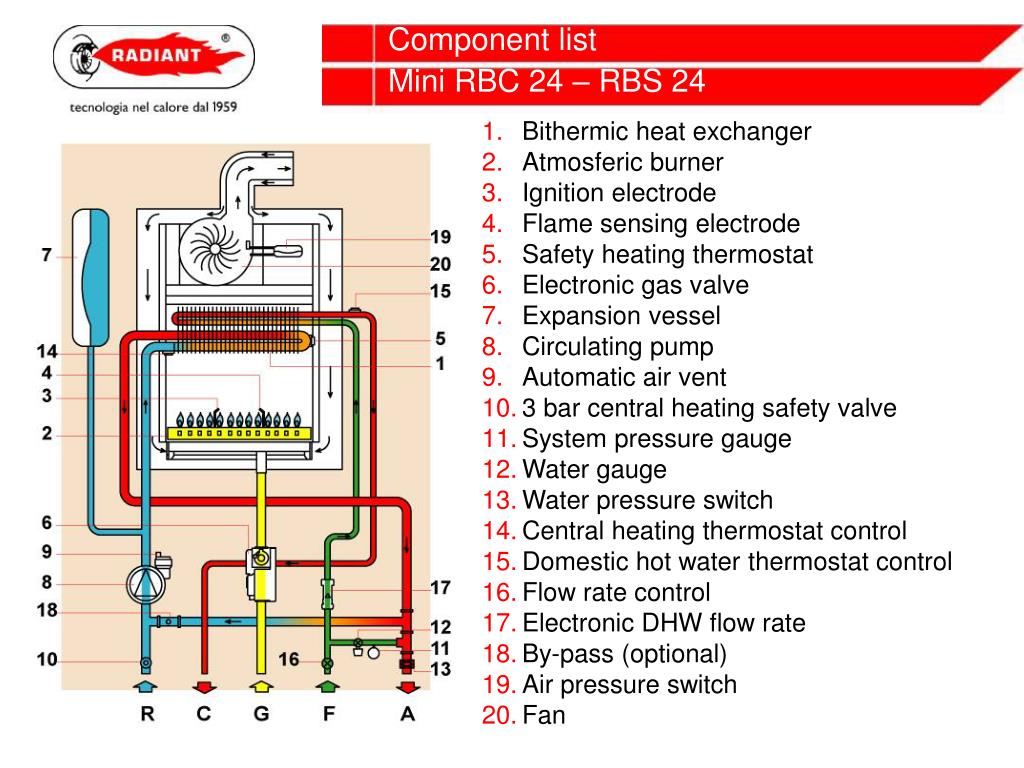

  5. Component list Mini RBC 24 – RBS 24 • Bithermic heat exchanger • Atmosferic burner • Ignition electrode • Flame sensing electrode • Safety heating thermostat • Electronic gas valve • Expansion vessel • Circulating pump • Automatic air vent • 3 bar central heating safety valve • System pressure gauge • Water gauge • Water pressure switch • Central heating thermostat control • Domestic hot water thermostat control • Flow rate control • Electronic DHW flow rate • By-pass (optional) • Air pressure switch • Fan

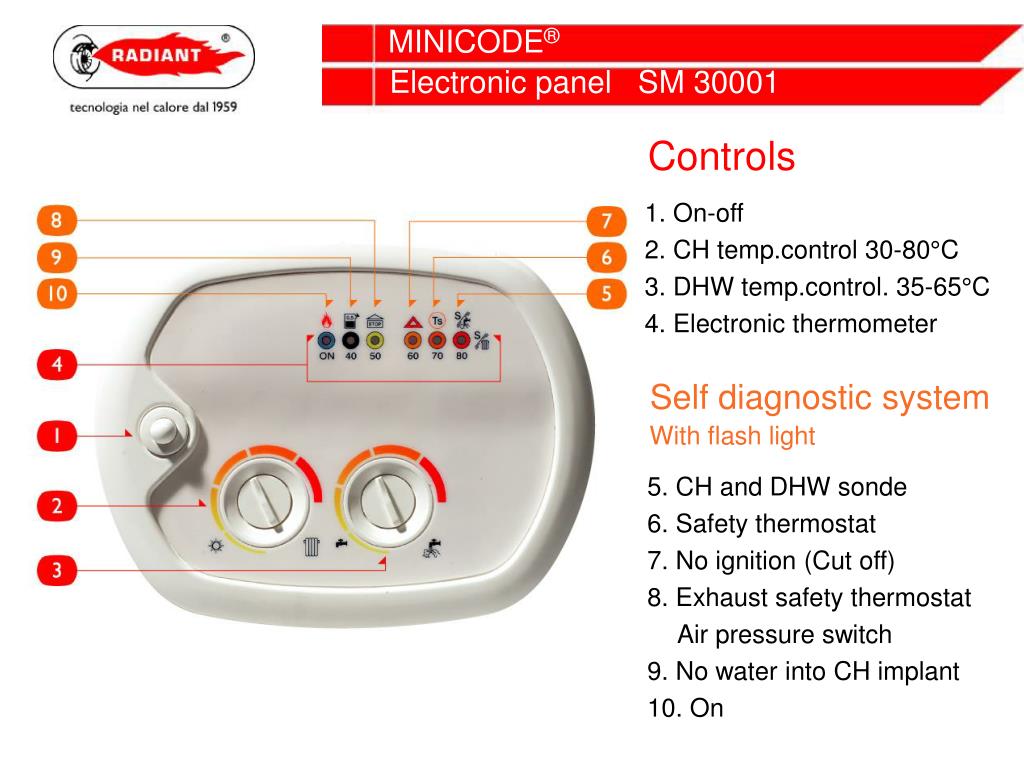

  6. MINICODE® Electronic panel SM 30001 Controls 1. On-off 2. CH temp.control 30-80°C 3. DHW temp.control. 35-65°C 4. Electronic thermometer Self diagnostic system With flash light 5. CH and DHW sonde 6. Safety thermostat 7. No ignition (Cut off) 8. Exhaust safety thermostat Air pressure switch 9. No water into CH implant 10. On

  7. MINICODE® Electronic panel SM 30001 Characteristics • Self diagnostic system • Continuous flame modulation in CH - DHW • DHW temperature from 35° to 65°C • CH temperature from 30° to 80°C • Max power regulation • Low CH temperature • Antifrost system • Post circulation pump • No block pump safety • Late starting (for little implant) • Outside temperature • Automatic by-pass (optional) • Remote control system (optional) • IP X5D

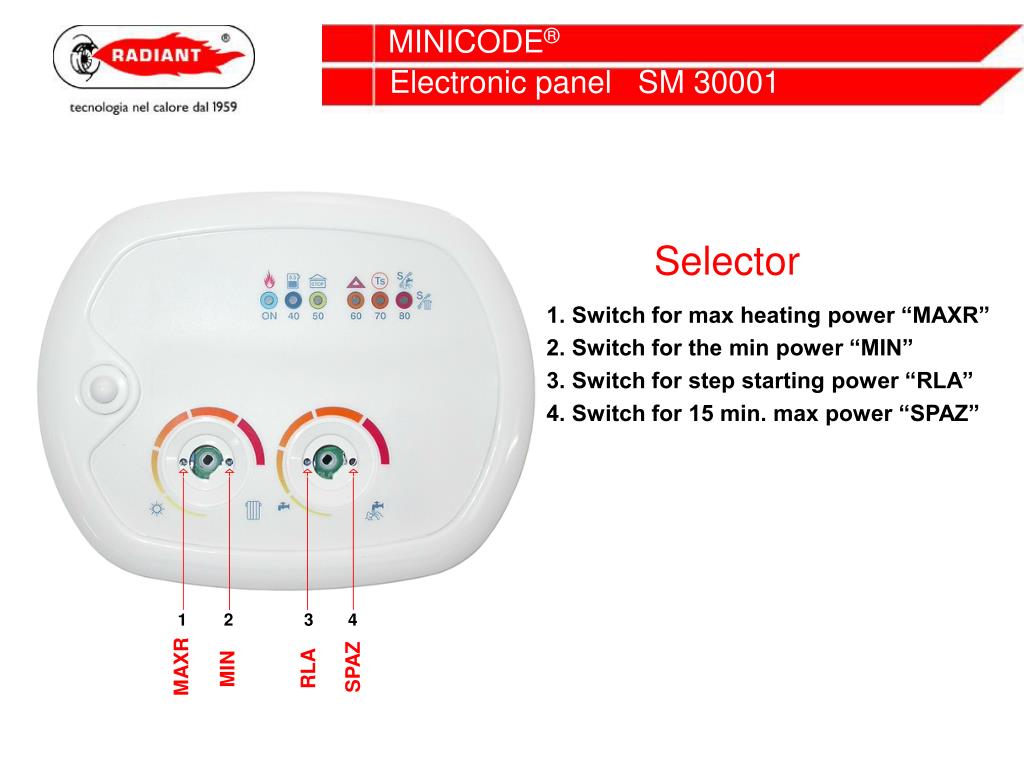

  8. MINICODE® Electronic panel SM 30001 Selector 1. Switch for max heating power “MAXR” 2. Switch for the min power “MIN” 3. Switch for step starting power “RLA” 4. Switch for 15 min. max power “SPAZ” 1 2 3 4 SPAZ MAXR RLA MIN

  9. MINICODE® Electronic control SM 30001  A CH temperature selection  B CH temporized (3 minutes)  DHW no over pressure C DHW temperature selection  D Monothermic – Storage- Bithermic  E System – combi – storage boiler  F Natural gas LPG  G

  10. Gas valve NORDGAS Gas valve • Motorized valve • Ignition transformer separated • Simple regulation • Quiet work • More sensibility, quick work

  11. Electronic flow control Radiant Radiant electronic flow control • Flow control with microprocessor, on from 0,2 bar • Limescale protection • Stainless steel filter • Water rate control

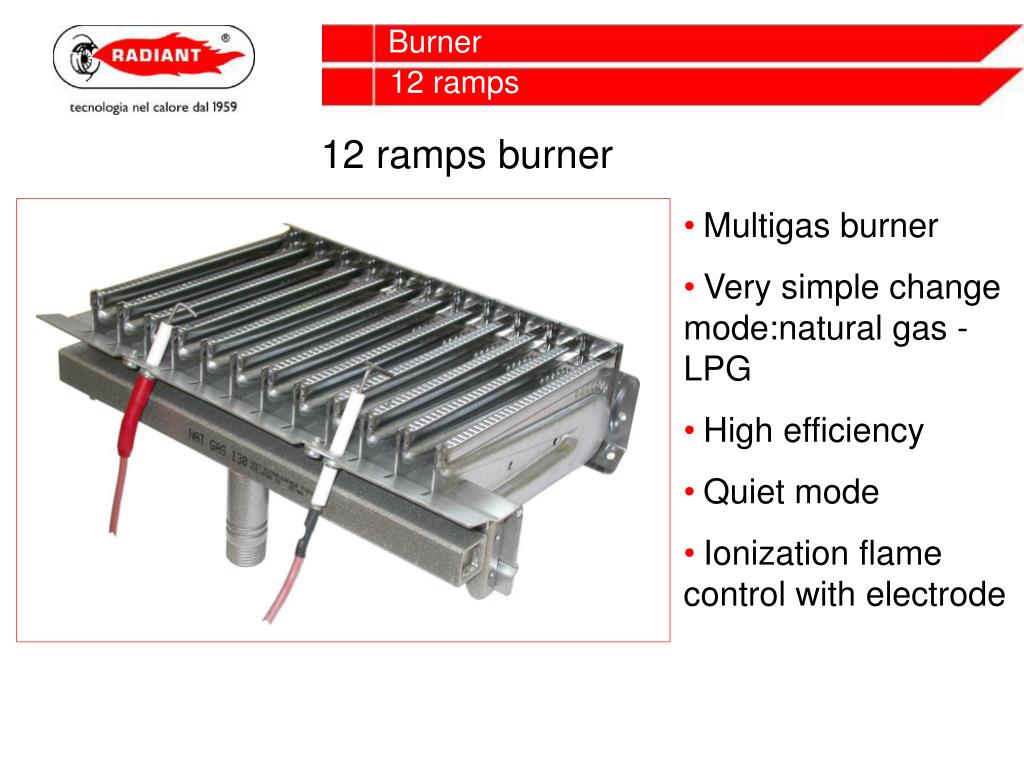

  12. Burner 12 ramps 12 ramps burner • Multigas burner • Very simple change mode:natural gas - LPG • High efficiency • Quiet mode • Ionization flame control with electrode

  13. Exchanger Bithermic Bithermic exchanger • Limescale control with NTC sondes • 6 thermic exchange passages

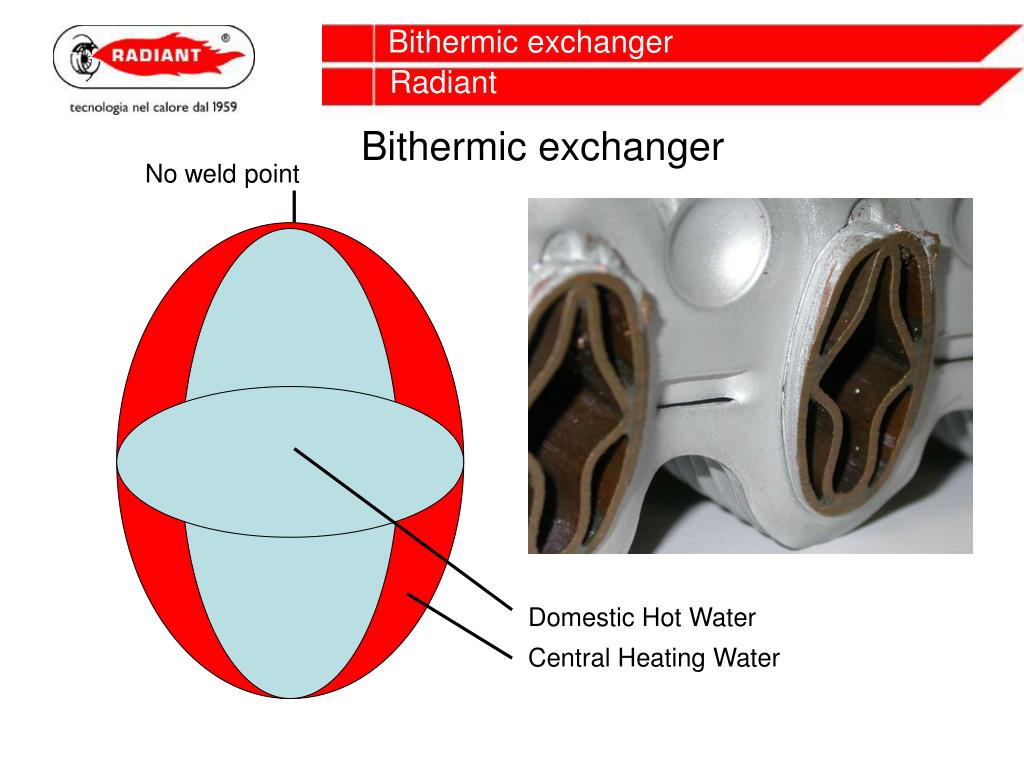

  14. Bithermic exchanger Radiant Bithermic exchanger No weld point Domestic Hot Water Central Heating Water

  15. Case Unsoundtrack Front and side insulating panel, for a lower noice level of working

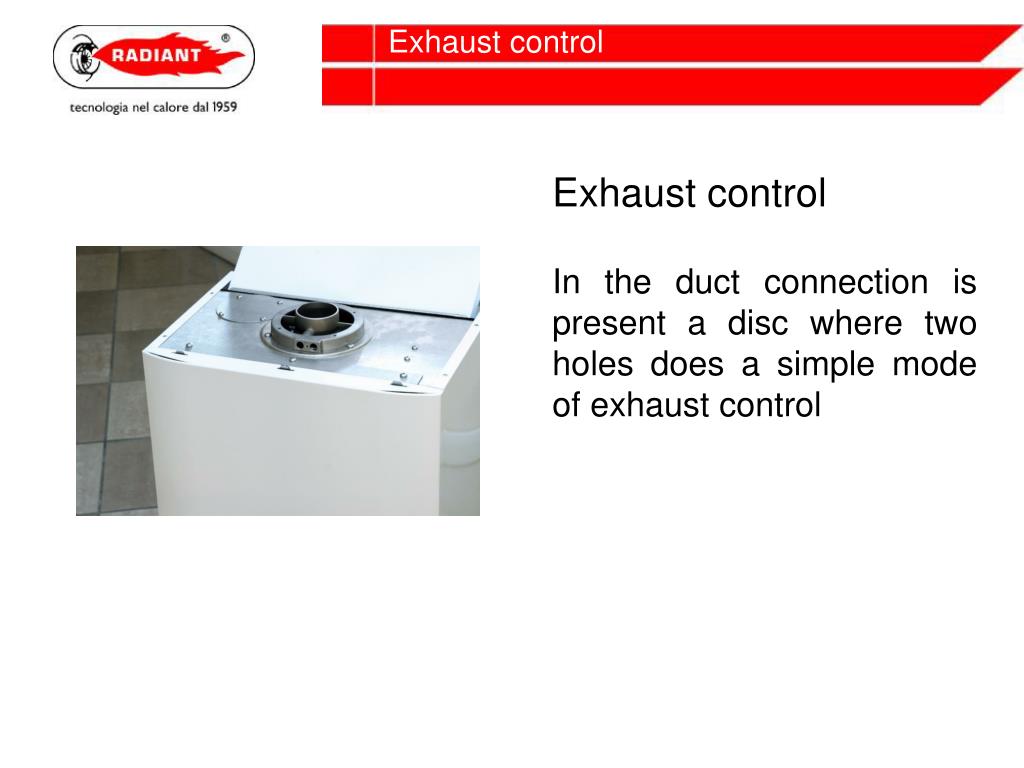

  16. Exhaust control Exhaust control In the duct connection is present a disc where two holes does a simple mode of exhaust control

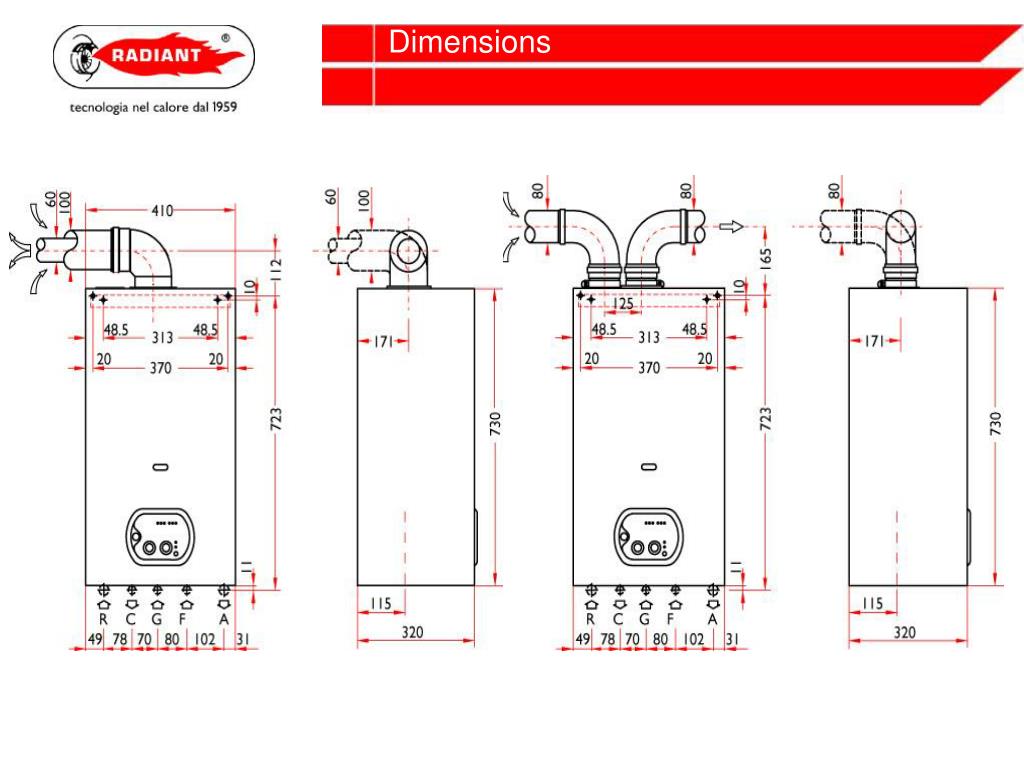

  17. Dimensions

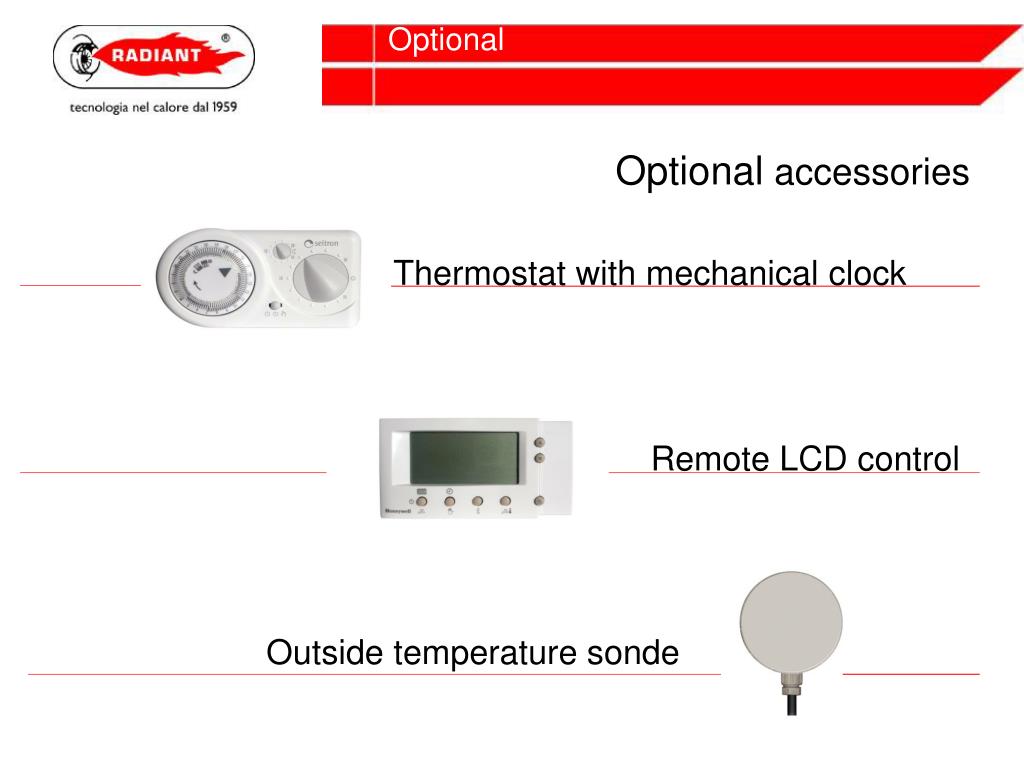

  18. Optional Optional accessories Thermostat with mechanical clock Remote LCD control Outside temperature sonde

  19. The future now with Mini 24
