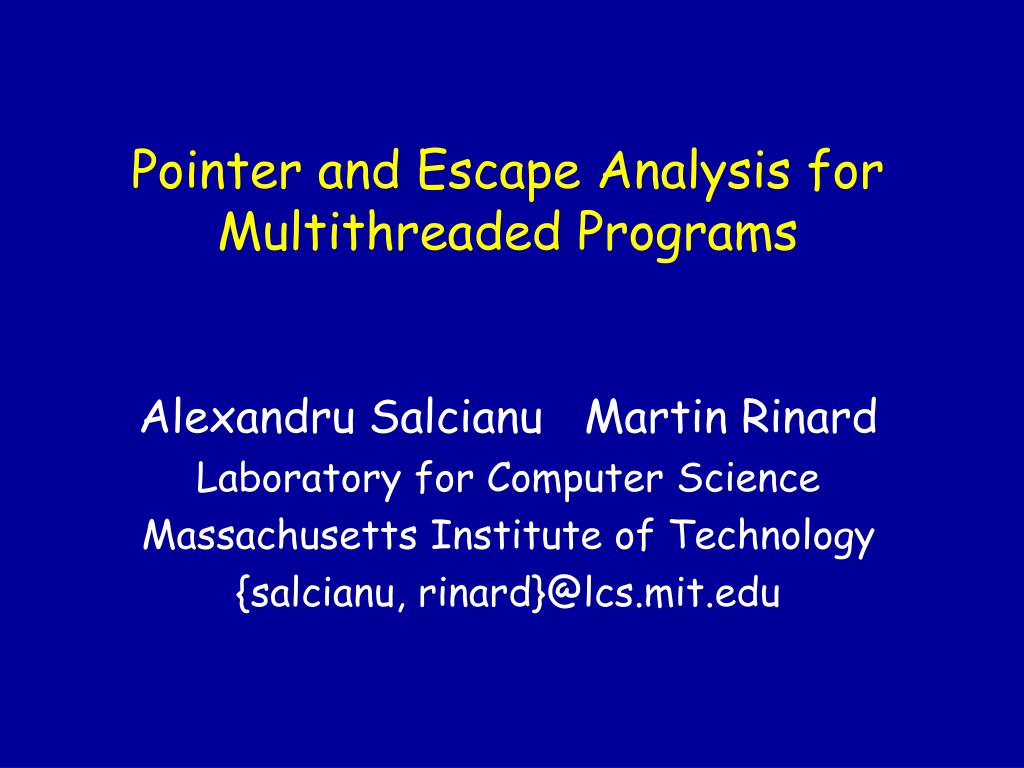

Pointer and Escape Analysis for Multithreaded Programs. Alexandru Salcianu Martin Rinard Laboratory for Computer Science Massachusetts Institute of Technology {salcianu, rinard}@lcs.mit.edu. Goal. Automatically extract precise points-to and escape information for multithreaded programs.

bayley
Télécharger la présentation

Pointer and Escape Analysis for Multithreaded Programs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Pointer and Escape Analysis for Multithreaded Programs Alexandru Salcianu Martin Rinard Laboratory for Computer Science Massachusetts Institute of Technology {salcianu, rinard}@lcs.mit.edu

  2. Goal Automatically extract precise points-to and escape information for multithreaded programs Application Analyze and optimize multithreaded programs which use region-based memory allocation

  3. Outline • Example • Analysis • Experimental Results • Related Work • Conclusions

  4. Parallel Fibonacci Computation Fib(3)

  5. Parallel Fibonacci Computation Fib(3) Spawn threads Fib(2) Fib(1)

  6. Parallel Fibonacci Computation Fib(3) Fib(2) Fib(1) Spawn threads Fib(1) Fib(0)

  7. Parallel Fibonacci Computation Fib(3) Fib(2) Fib(1) Fib(1) Fib(0) Join threads

  8. Parallel Fibonacci Computation Fib(3) Fib(2) Fib(1) Fib(1) Fib(0) Join threads

  9. Parallel Fibonacci Computation Fib(3) Fib(2) Fib(1) Fib(1) Fib(0) Final result

  10. while(1) { int i = read_input(); Fib f = new Fib(i); Fib.run(); } class Fib implements Runnable { int source; Fib(int i) { source = i; } public void run() { Task t = new Task(new Integer(source)); t.start(); t.join(); System.out.println(t.target); } } Class Task extends Thread { Integer source, target; Task(Integer s) { source=s;} public void run() { int v = source.intValue(); if(v<=1) { target = value; } else { Task t1 = new Task(new Integer(v-1)); Task t2 = new Task(new Integer(v-2)); t1.start(); t2.start(); t1.join(); t2.join(); int x = t1.target.intValue(); int y = t2.target.intValue(); target = new Integer(x+y); } } Fibonacci Code

  11. Parallel Fibonacci Computation Fib(3) Fib(2) Fib(1) Fib(1) Fib(0) Final result

  12. Impact of Dynamic Object Allocation • More garbage collection • Execution time overhead • The garbage collection cycles interfere with the application • Real time constraints are difficult to meet • Try to solve this by exploiting the strong correlation between lifetime of objects and lifetime of computation

  13. Solution • Execute each computation in its own memory region: • computation allocates its objects in that region • when computation ends, all objects are deallocated

  14. Advantages of Regions • Good news: no need for garbage collection ! • More predictable programs • Great for real time applications with hard time constraints

  15. Advantages of Regions • Good news: no need for garbage collection ! • More predictable programs • Great for real time applications with hard time constraints • Adopted in the Real Time Specification for Java (Bollela et al., 2000)

  16. Using Regions in Example while(1) { int i = read_input() ; Fib f = new Fib(i); Region r = new Region(); r.enter(f); } r.enter(f) will execute the run() method of f in the memory region r. Lifetime of region = lifetime of computation

  17. Nested Regions • Short-lived computations are embedded into bigger computations • The nesting of regions corresponds to the nesting of computations • Hierarchy of memory regions • Lifetime of a child region is included in the lifetime of its parent region

  18. Nested Regions Example Memory Region Object

  19. Nested Regions Example Parent Memory Region Object Child Memory Region

  20. Nested Regions Example Parent Memory Region Object Child Memory Region

  21. Safety Problem Parent Memory Region Object Dangling reference Child Memory Region

  22. Dynamic Check Approach Memory Region Object Referencing Down Regions Is NOT OK Referencing Up Regions Is OK Dynamic checks to make sure all references go up

  23. Problems with Dynamic Check Approach • Execution time overhead • Programs have to cope with a new kind of runtime exception • Detecting the error at runtime may not be that useful …

  24. Our Goal • Analyze the program and statically check that it never creates dangling references • If no object is reachable from outside the computation that creates it, clearly no dangling references

  25. Dynamic Check Approach Memory Region Object Referencing Down Regions Is NOT OK Referencing Up Regions Is OK Escaped object

  26. Our Goal • Analyze the program and statically check that it never creates dangling references • If no object is reachable from outside the computation that creates it, clearly no dangling references • Escape analysis: given a computation, find out which objects escape from the computation, i.e., are reachable from outside the computation

  27. Region Safety Analysis • Identify all run() methods that might be called by Region.enter() • Each such method + threads it starts represent one possible computation • Use pointer and escape analysis to check that for every computation, no object created inside it is reachable from outside • If so, no dangling references • Can remove all checks!

  28. Why Do We Need a New Analysis? • Existing analyses treat threads in a very conservative way: • All objects reachable from a thread are considered to escape • No attempt is done to recapture them • But in Fib example, all objects escape into some thread, but none of them escape the whole computation

  29. Key Contribution of Analysis • Analyze interactions between threads • Can recognize when objects do not escape a multithreaded computation • Even when the objects are accessed by multiple threads within the computation

  30. Outline • Example • Analysis • Experimental Results • Related Work • Conclusions

  31. Analysis Key Features • Uses graphs to model heap • Nodes represent objects • Edges represent references • Intra-procedural analysis is flow sensitive • Inter-procedural analysis is bottom-up • Compositional at both method and thread level: • Analyzes a method / thread once, specializes the result for each use • Records enough info to analyze the interactions between parallel threads

  32. Nodes • NI = inside nodes • represent objects created within the analyzed part of the program • one inside node for each object creation site; represents all objects created at site • thread nodes represent thread objects • NO = outside nodes • placeholders for unknown nodes • will be disambiguated in the inter-procedural/ inter-thread analysis • key element for compositionality nI nO

  33. Outside node types • NP = parameter nodes • represent objects passed as incoming parameters • NL = load nodes • represent objects loaded from a node reachable from outside the analyzed part of the program • one load node for each load statement in a method

  34. Edges • Used to model heap references • Inside edges • represent references created by the analyzed part of the program • Outside edges • represent heap references read from nodes reachable from outside the analyzed part of the program f n1 n2 f n3 n4

  35. Escape function • A node escapes if it is reachable from outside the analyzed part of the program: • Parameter nodes escape • Nodes corresponding to unanalyzed started threads escape • Nodes reachable from an escaped node escape too • The escape function records how each node escapes: through a parameter, through an unanalyzed started thread etc.

  36. Parallel Interaction Graph • Models the result of the execution of the analyzed part of the program • Contains: • Inside edges • Outside edges • Escape function • Started threads • Action ordering Inherited from base algorithm for sequential programs Key extension for multithreaded programs Improves precision of analysis

  37. Intra-procedural analysis • Analysis scope = one method • Initial state: • formals point to parameter nodes • each parameter nP escapes through itself: e(nP) = { nP } • no thread has been started yet • Transfer functions for each type of instruction

  38. void static foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; }

  39. a 1 void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; }

  40. a 1 b 2 void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; }

  41. a 1 b 2 void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; } f

  42. a 1 b 2 1 is started void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; } f and escape into 1 2 1

  43. a 1 f g b 2 c 3 1 is started and escape into 1 , 2 3 1 void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; }

  44. Inter-thread analysis • Extends the scope of the analysis from a method to a method + threads it starts • Given a program point P • Find a parallel interaction graph that reflects the interaction of: • Current method up to P • Threads it [transitively] starts

  45. Inter-thread analysis • Suppose there is only one started thread • First step: get the parallel interaction graph at the end of the run() method of that thread

  46. a 1 f g b 2 c 3 1 is started and escape into 1 , 2 3 1 void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; }

  47. a 1 f g b 2 c 3 1 is started and escape into 1 , 2 3 1 Class SThread extends Thread { public void run() { x = this.f; y = new C(); x.g = y; } } void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; }

  48. a 1 f g b 2 c 3 1 is started and escape into 1 , 2 3 1 and escape through 4 , 5 6 4 Class SThread extends Thread { public void run() { x = this.f; y = new C(); x.g = y; } } void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; } this 4 f x 5 g y 6

  49. Inter-thread analysis • We want to combine the two parallel interaction graphs in a single one • Need to disambiguate the outside nodes • Second step: map the outside nodes from one graph to nodes from the other graph • Initial mappings • Rules for extending them

  50. a 1 f g b 2 c 3 1 is started and escape into 1 , 2 3 1 and escape through 4 , 5 6 4 Class SThread extends Thread { public void run() { x = this.f; y = new C(); x.g = y; } } void foo() { a = new SThread(); b = new C(); a.f = b; a.start(); c = b.g; } 2 this 4 f x 5 g y 6
