  1. Welcome to SUNTZE and an introduction to Voice-over Packet-networks Voice-Over-IP Gateway

  2. SUNTZE…Exclusive representatives for NICER CANADA CORPORATION (Vancouver – Montreal) NICER are a global supplier of Voice-and-Fax over-IP Solutions

  3. Phone-to-Phone FXS Internet FXS Branch Office #2direct connected phonedirect connected fax machine Branch Office #1Key Telephone Systemdirect connect fax machine What is Voice over IP (VoIP)? • Voice/fax are converted to IP packets • Voice/fax/data share the same IP network • Voice/fax “ride free” on the data network

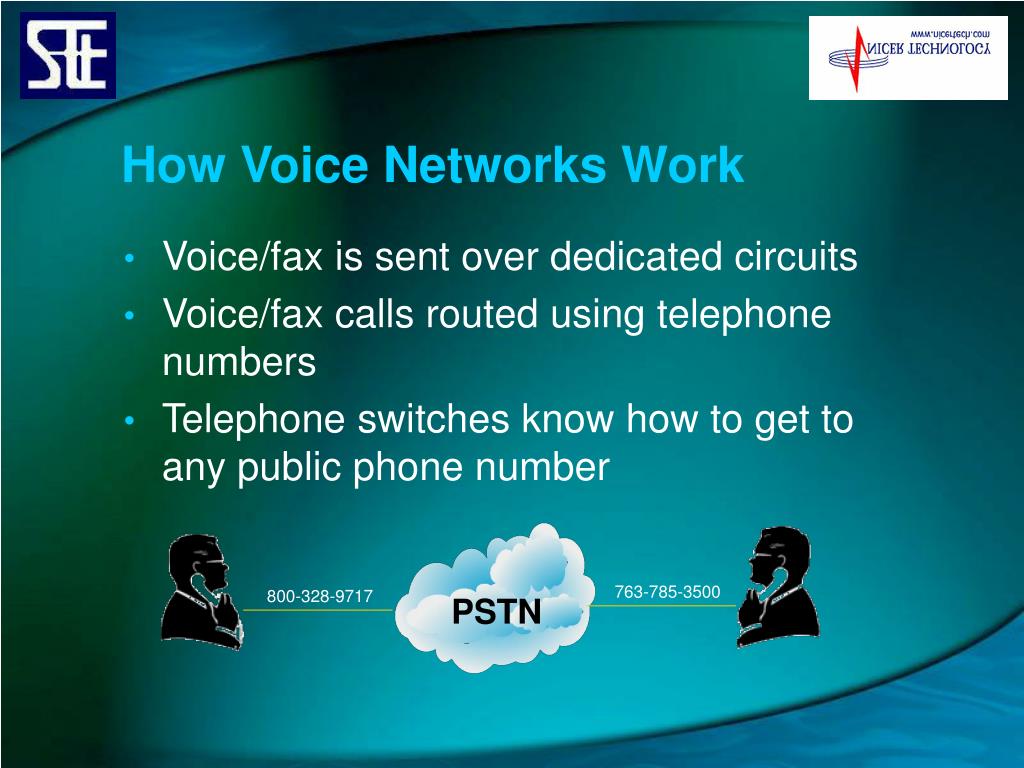

  4. PSTN How Voice Networks Work • Voice/fax is sent over dedicated circuits • Voice/fax calls routed using telephone numbers • Telephone switches know how to get to any public phone number 763-785-3500 800-328-9717

  5. How Data Networks Work • Data is sent in packets • IP is the standard protocol • Data is routed using IP addresses • Routers know how to get to any public IP address, or at least how to ask

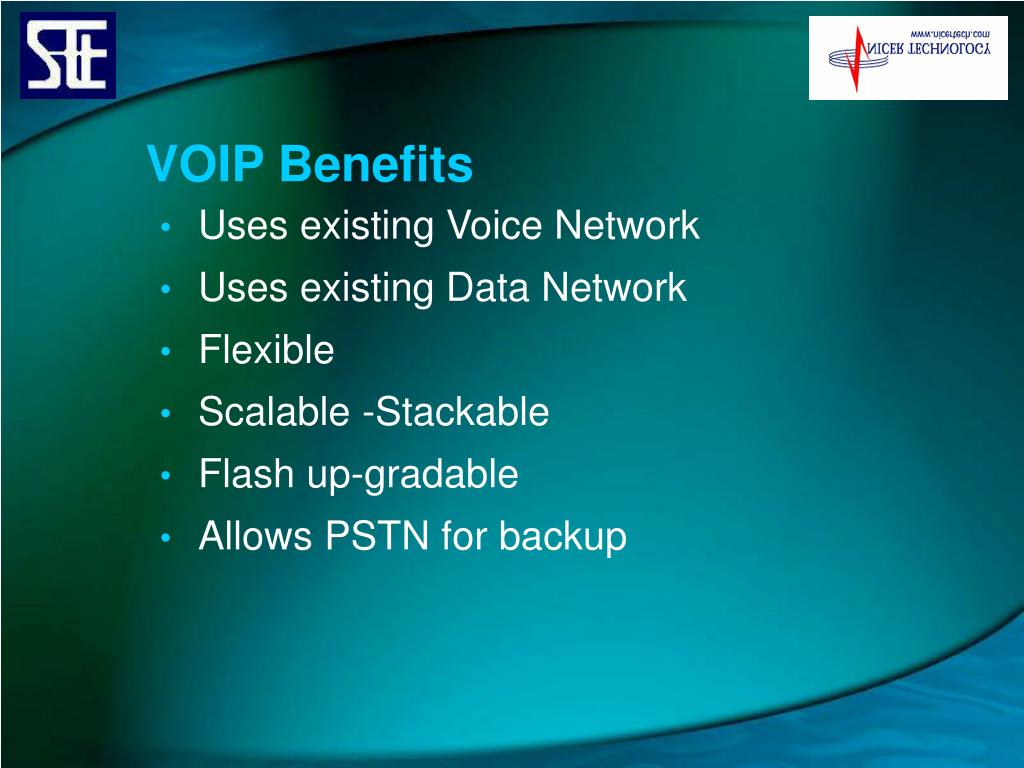

  6. VOIP Benefits • Uses existing Voice Network • Uses existing Data Network • Flexible • Scalable -Stackable • Flash up-gradable • Allows PSTN for backup

  7. Convert the dialed number to an IP address Establish connection-less path to remote gateway using existing data network VOIP Functions

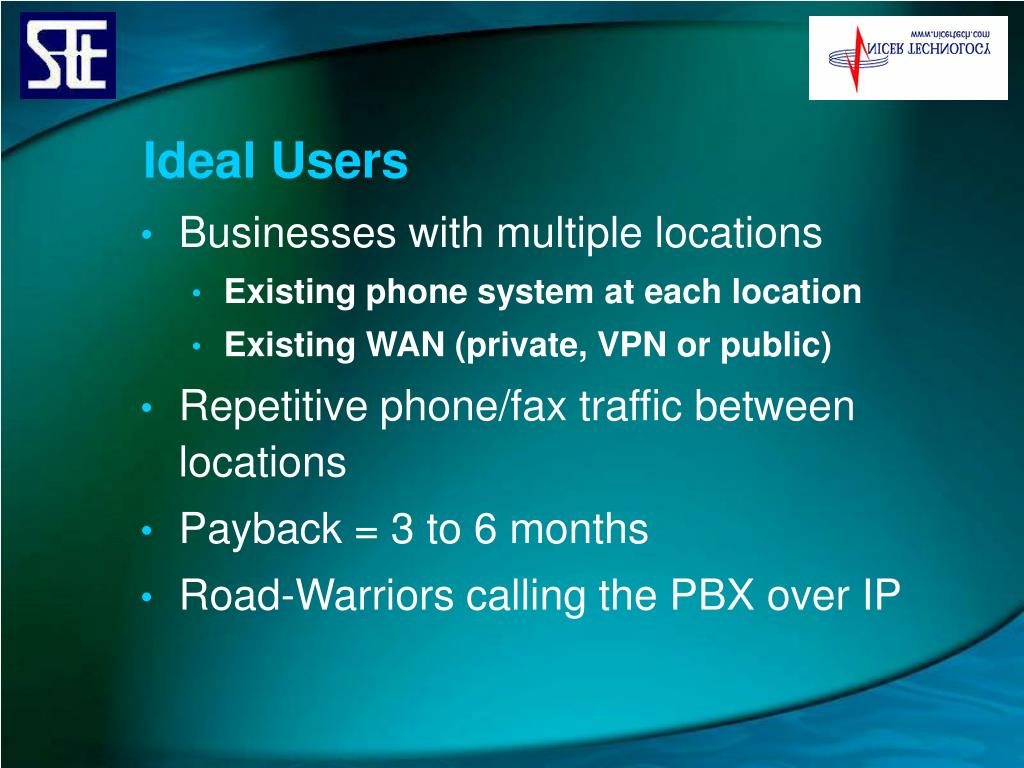

  8. Ideal Users • Businesses with multiple locations • Existing phone system at each location • Existing WAN (private, VPN or public) • Repetitive phone/fax traffic between locations • Payback = 3 to 6 months • Road-Warriors calling the PBX over IP

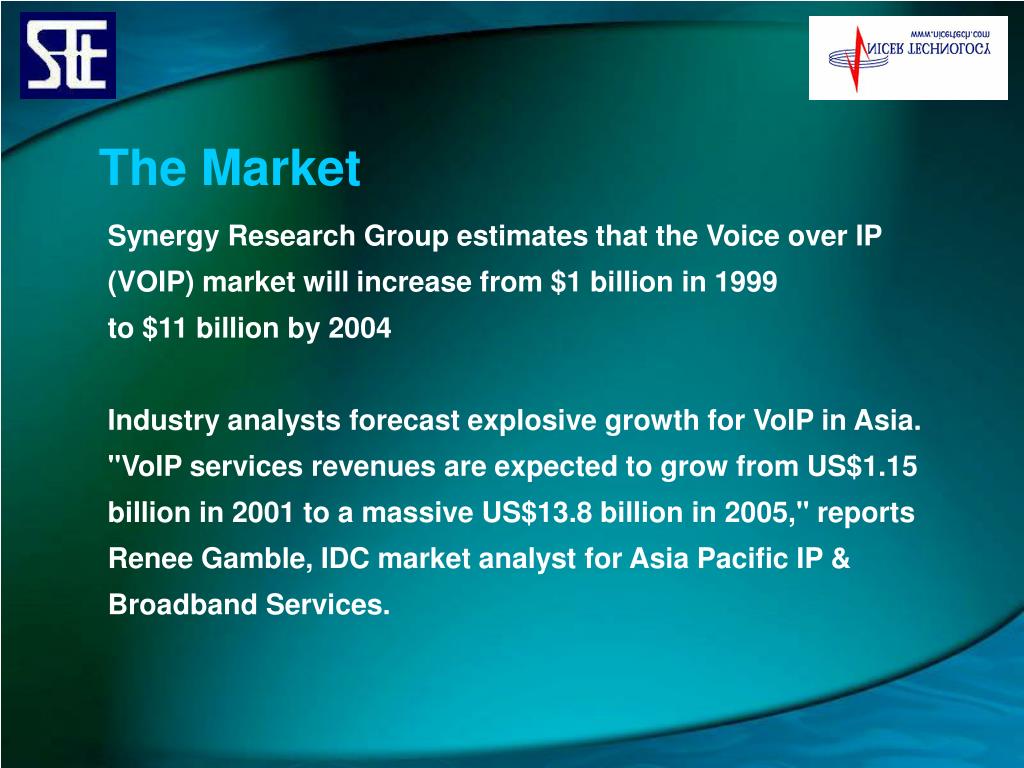

  9. The Market Synergy Research Group estimates that the Voice over IP (VOIP) market will increase from $1 billion in 1999 to $11 billion by 2004 Industry analysts forecast explosive growth for VoIP in Asia. "VoIP services revenues are expected to grow from US$1.15 billion in 2001 to a massive US$13.8 billion in 2005," reports Renee Gamble, IDC market analyst for Asia Pacific IP & Broadband Services.

  10. Customers • First Commercial Bank (H/O Taiwan)(one of seven banks owned by the Taiwanese Government) • CP Group (H/O Thailand)(controls 250 companies in 20 countries) • Roo Hsing Garment Co. (H/O Taiwan) • Pan American Silver

  11. Growth Strategy • Organic growth – Expand our sales and marketing capabilities • Acquisition growth – complete acquisition opportunities that support our goals of growth

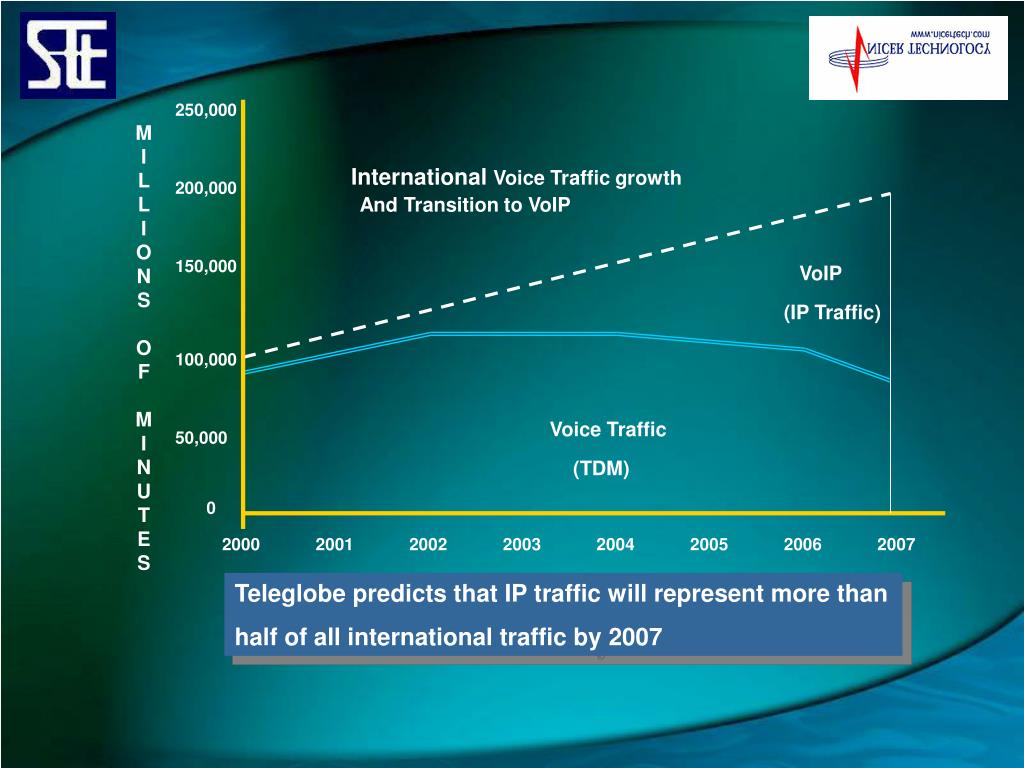

  12. 250,000 M I L L I O N S O F M I N U T E S International Voice Traffic growth And Transition to VoIP 200,000 150,000 VoIP (IP Traffic) 100,000 Voice Traffic 50,000 (TDM) 0 2000 2001 2002 2003 2004 2005 2006 2007 Teleglobe predicts that IP traffic will represent more than half of all international traffic by 2007

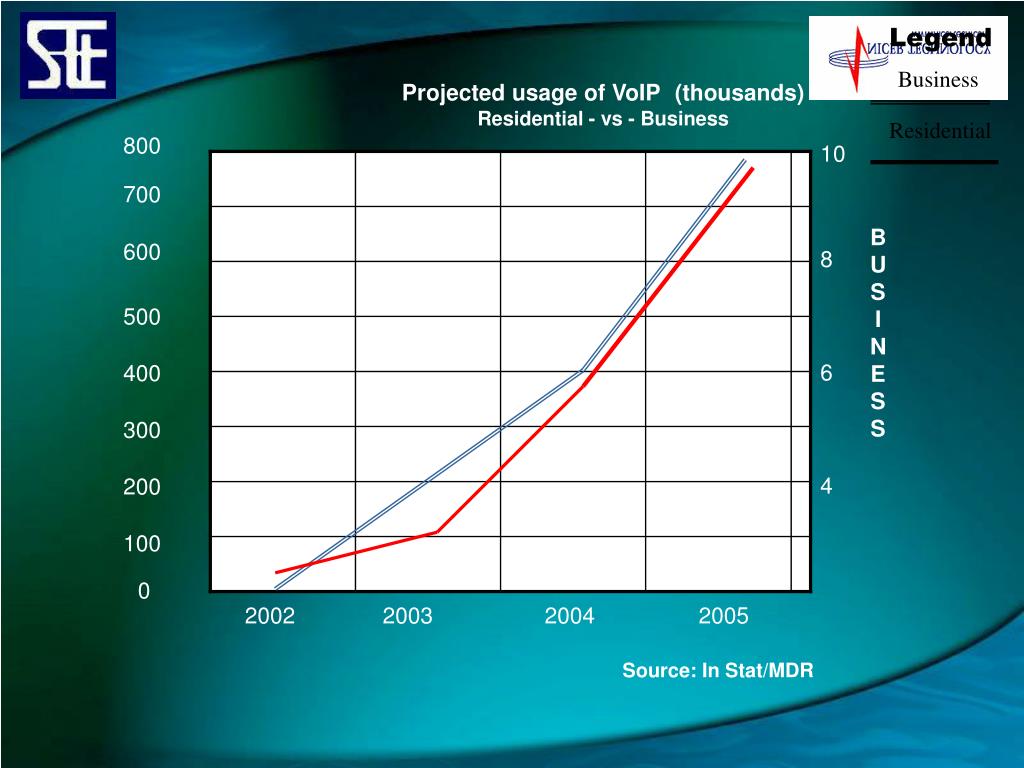

  13. Projected usage of VoIP(thousands) Residential - vs - Business 800 10 700 R E S I D E N T I A L B U S I N E S S 600 8 500 6 400 300 4 200 100 0 2002 2003 2004 2005 Legend Business Residential Source: In Stat/MDR

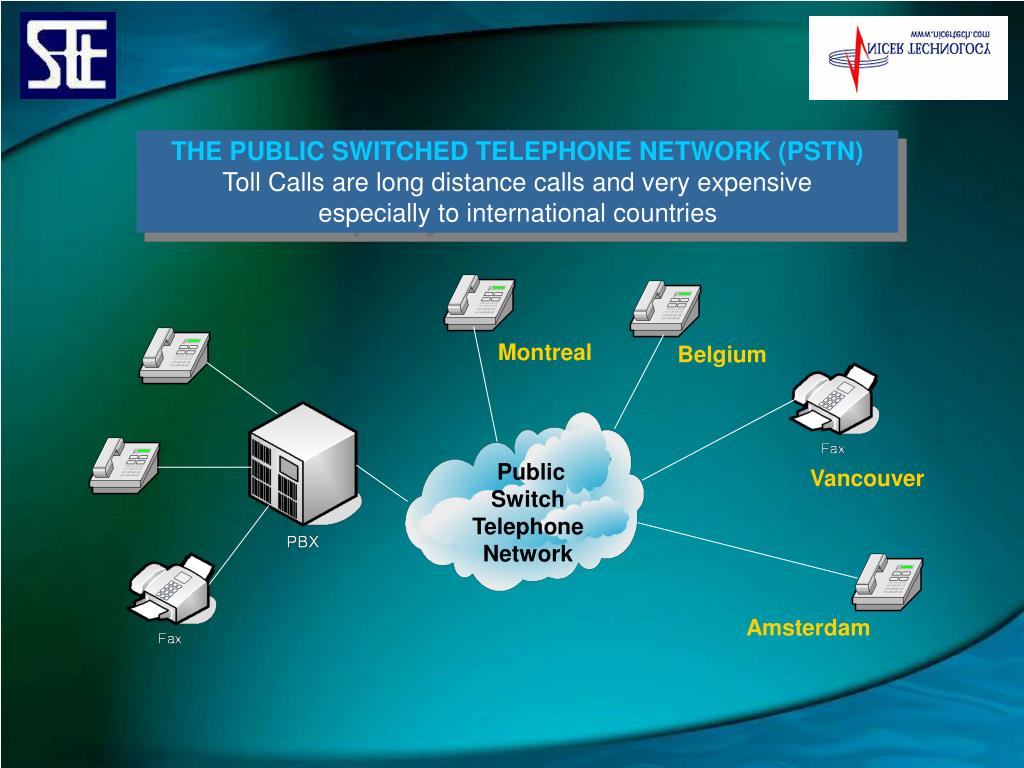

  14. Montreal Belgium Public SwitchTelephoneNetwork Vancouver Amsterdam THE PUBLIC SWITCHED TELEPHONE NETWORK (PSTN)Toll Calls are long distance calls and very expensive especially to international countries

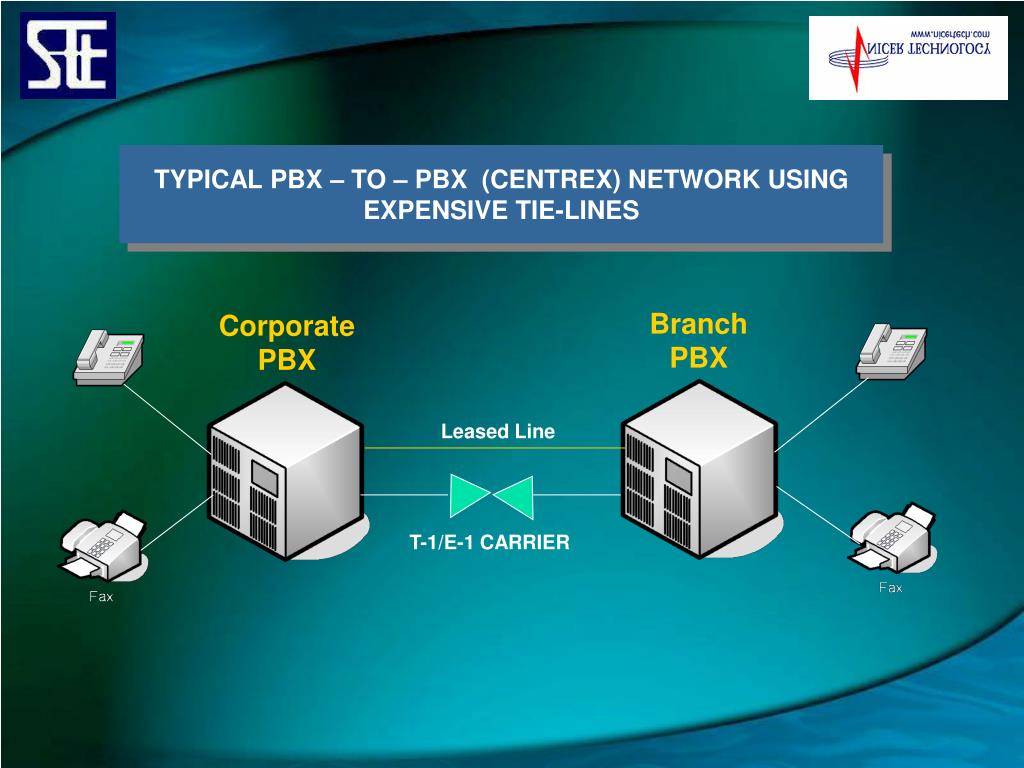

  15. BranchPBX Corporate PBX Leased Line T-1/E-1 CARRIER TYPICAL PBX – TO – PBX (CENTREX) NETWORK USING EXPENSIVE TIE-LINES

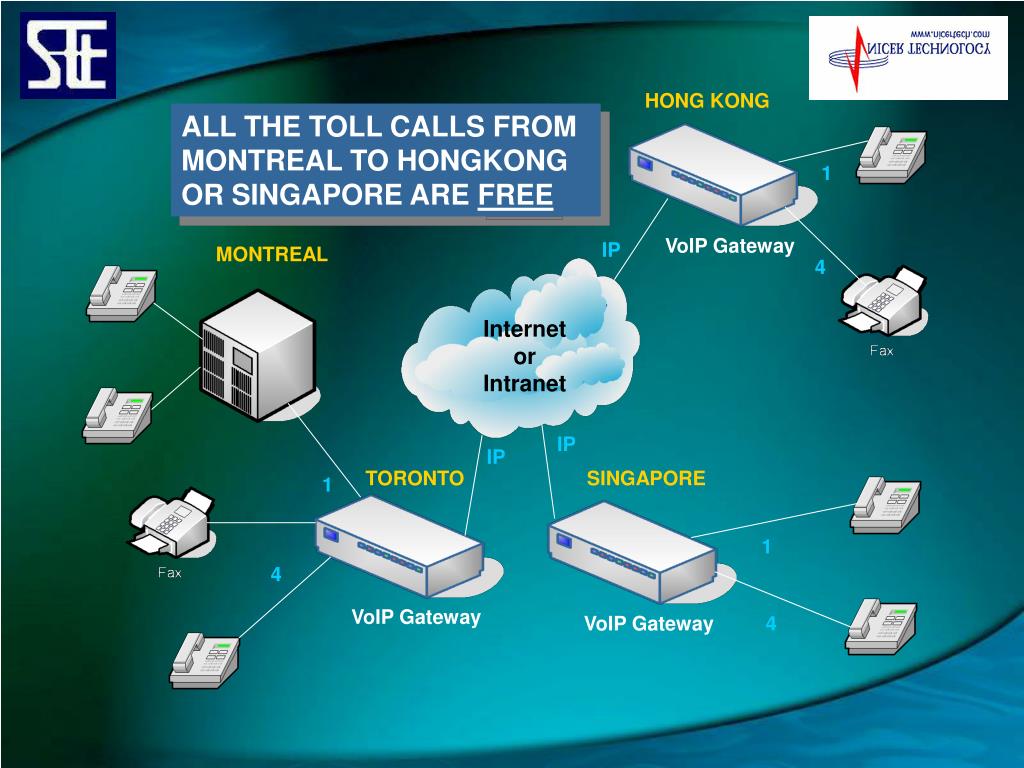

  16. HONG KONG 1 IP MONTREAL 4 InternetorIntranet IP IP TORONTO SINGAPORE 1 1 VoIP Gateway VoIP Gateway VoIP Gateway 4 4 ALL THE TOLL CALLS FROM MONTREAL TO HONGKONG OR SINGAPORE ARE FREE

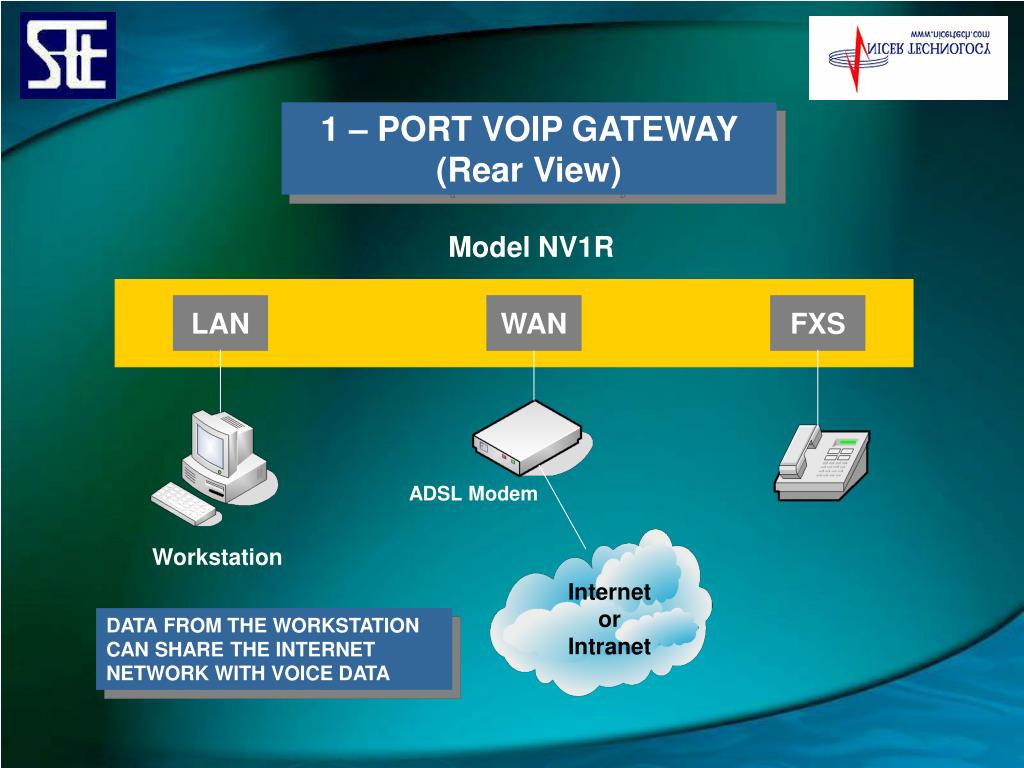

  17. Model NV1R LAN WAN FXS ADSL Modem Workstation InternetorIntranet 1 – PORT VOIP GATEWAY (Rear View) DATA FROM THE WORKSTATION CAN SHARE THE INTERNET NETWORK WITH VOICE DATA

  18. Model NV1R LAN WAN FXS Ethernet Hub ADSL Modem InternetorIntranet Workstation Workstation 1 – PORT VOIP GATEWAY (Rear View) DATA FROM THE WORKSTATIONS CAN SHARE THE WAN NETWORK WITH VOICE DATA

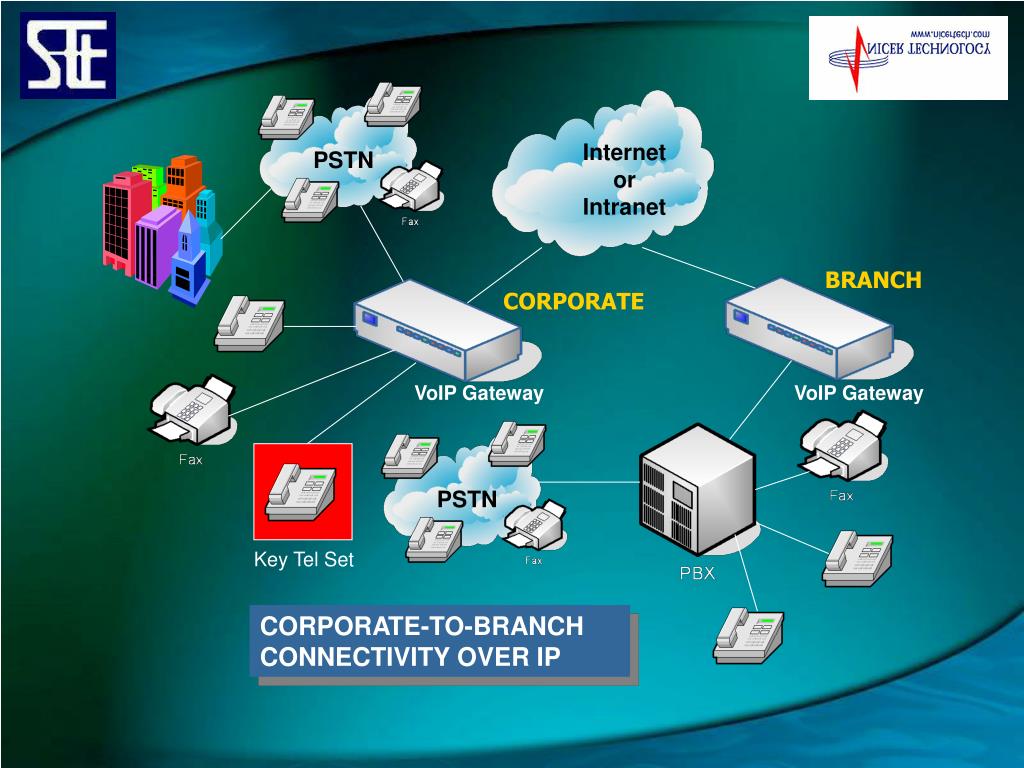

  19. InternetorIntranet PSTN PSTN BRANCH CORPORATE VoIP Gateway VoIP Gateway Key Tel Set CORPORATE-TO-BRANCH CONNECTIVITY OVER IP

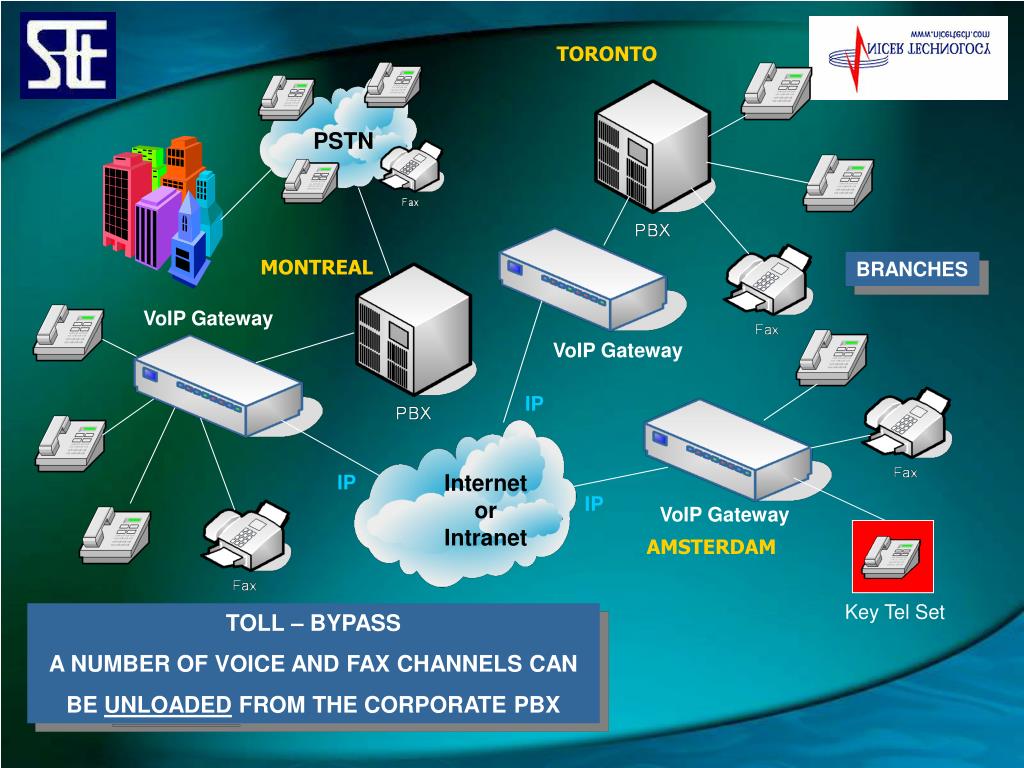

  20. TORONTO PSTN MONTREAL BRANCHES VoIP Gateway VoIP Gateway IP InternetorIntranet IP IP VoIP Gateway AMSTERDAM Key Tel Set TOLL – BYPASS A NUMBER OF VOICE AND FAX CHANNELS CAN BE UNLOADED FROM THE CORPORATE PBX

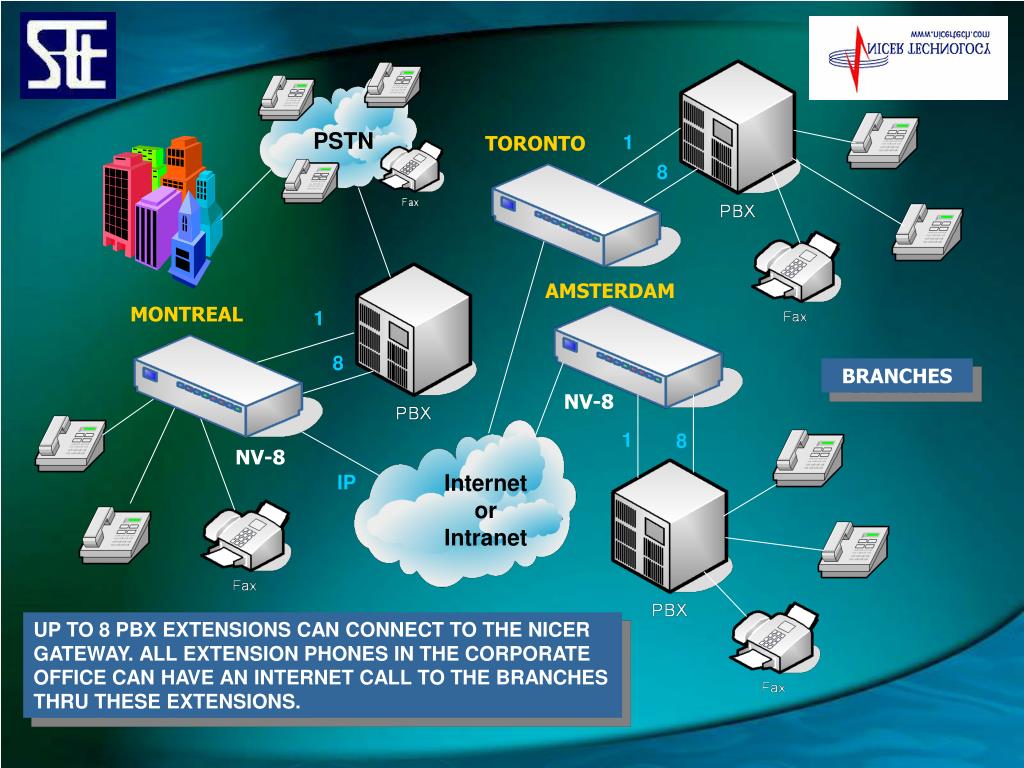

  21. 1 TORONTO 8 PSTN AMSTERDAM MONTREAL 1 8 BRANCHES NV-8 1 8 NV-8 InternetorIntranet IP UP TO 8 PBX EXTENSIONS CAN CONNECT TO THE NICER GATEWAY. ALL EXTENSION PHONES IN THE CORPORATE OFFICE CAN HAVE AN INTERNET CALL TO THE BRANCHES THRU THESE EXTENSIONS.

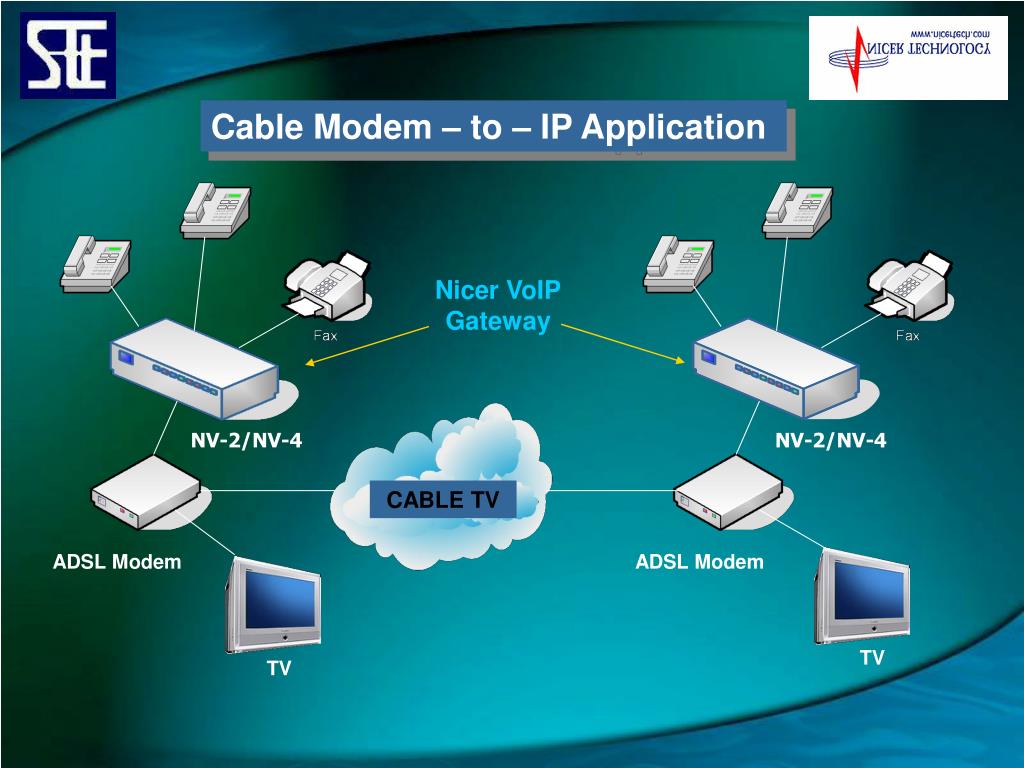

  22. CABLE TV Cable Modem – to – IP Application Nicer VoIPGateway NV-2/NV-4 NV-2/NV-4 ADSL Modem ADSL Modem TV TV

  23. Strong Partnerships

  24. THANK YOU FOR YOUR ATTENTION
