take a look at WIENSTROM

introduction of conditioned based maintenance at WIENSTROM using the knowledge-based expertsystem MABI. take a look at WIENSTROM. area: 2.000 km 2 stations: ca. Substaions 40 nettransformers 10.000 house service connec: 220.000 electricity meters 1.500.000 net: [km] 380kV 56

becca
Télécharger la présentation

take a look at WIENSTROM

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. introduction of conditioned based maintenance at WIENSTROM using the knowledge-based expertsystemMABI

  2. take a look at WIENSTROM area: 2.000 km2 stations:ca. Substaions 40 nettransformers 10.000 house service connec: 220.000 electricity meters 1.500.000 net:[km] 380kV 56 110kV 764 20kV, 10kV 7.141 1kV 14.058 maximum load 1.918MW installed power 1.503MW

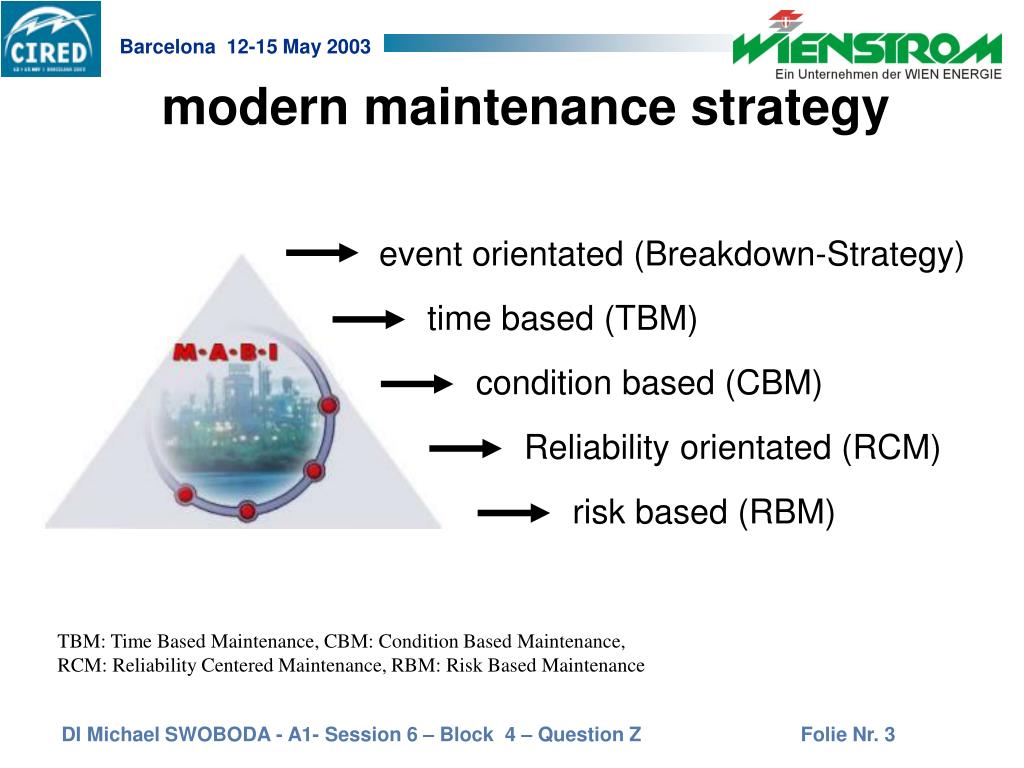

  3. modern maintenance strategy event orientated (Breakdown-Strategy) time based (TBM) condition based (CBM) Reliability orientated (RCM) risk based (RBM) TBM: Time Based Maintenance, CBM: Condition Based Maintenance, RCM: Reliability Centered Maintenance, RBM: Risk Based Maintenance

  4. Interface to the company strategy wear out high: 100% flexible boarders high: 100% importance high: 100% efficiency

  5. MMI Browser (as used for internet) Data care conditioncatch condition valuation maintenanceplaning function Working stockhistory Breakdown data expertknowledge Working stocktechnik databank expertsystem in use Modulares Anlagenbewertungs- und Instandhaltungspaket

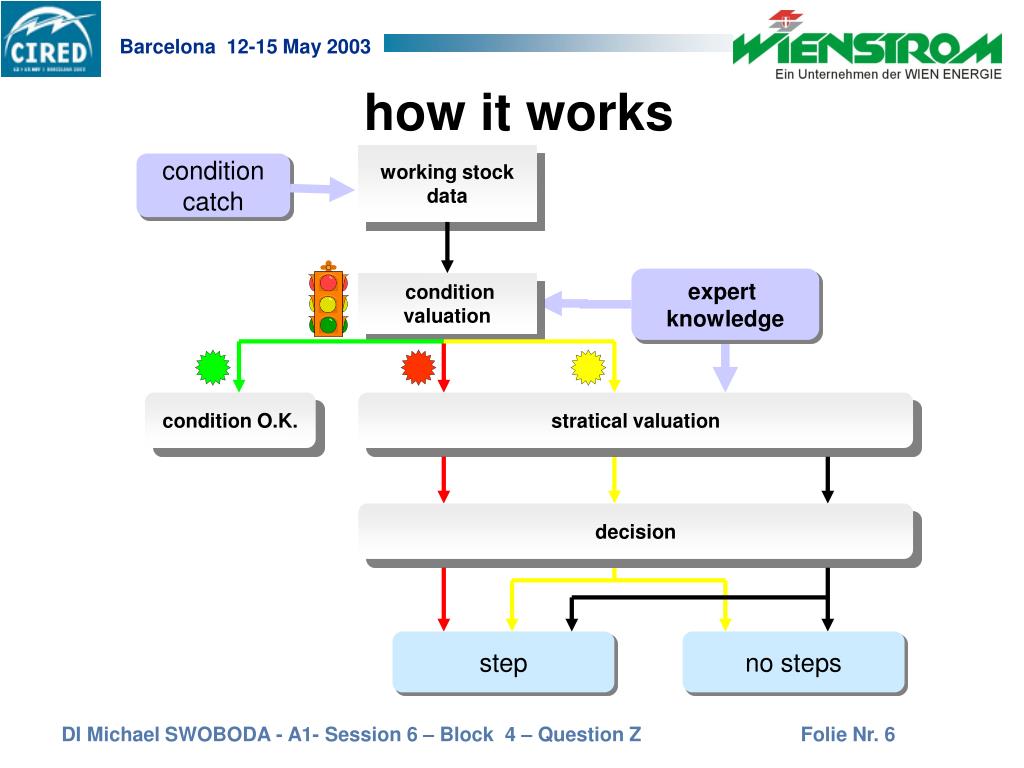

  6. working stock data condition catch expert knowledge condition valuation condition O.K. stratical valuation decision step no steps how it works

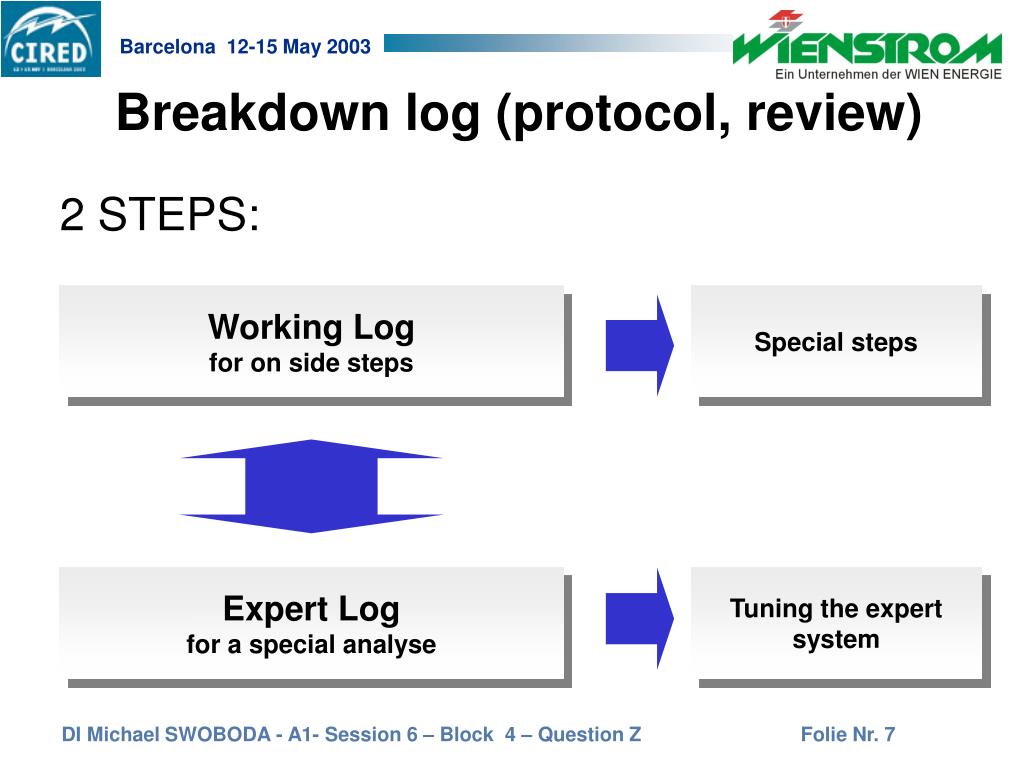

  7. Breakdown log (protocol, review) 2 STEPS: Working Log for on side steps Special steps Expert Log for a special analyse Tuning the expert system

  8. possible interfaces calculations mobile datamangement FM - Profil GIS / NIS Systeme digital plan (record-office)

  9. experience • Cost minimisation • knowledge is independent from men and can be used by everybody • getting equal rules and equal maintenance all over the company • maintenance process synchronisation
