  1. PC319 The Great Database Consolidation, Project Server 2010 to 2013 Migration in 8 Easy Steps Richard Van Langen Principal Consultant Sensei Project Solutions

  2. The Great Database Consolidation

  3. Speaker Introduction

  4. Richard Van Langen, BSEE, PMP, MCP, MCTS • I work for Sensei Project Solutions, Inc. and have over 20 years experience in Project Management and implementing Portfolio & Project Server • Education • B.S.Electrical Engineering • Based in Central New York State • Microsoft certification in SharePoint & Project Server • Project Management Institute certification as a PMP

  5. Project Server 2013 Migration Overview

  6. Common Perception of Migration • Immensely Complex Process Fraught with Challenges and Pitfalls

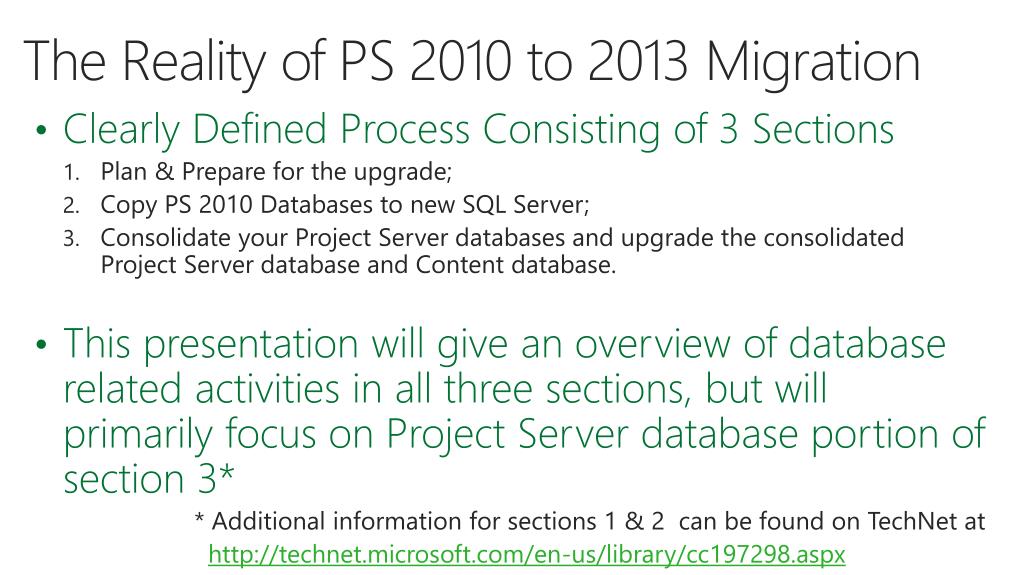

  7. The Reality of PS 2010 to 2013 Migration • Clearly Defined Process Consisting of 3 Sections • Plan & Prepare for the upgrade; • Copy PS 2010 Databases to new SQL Server; • Consolidate your Project Server databases and upgrade the consolidated Project Server database and Content database. • This presentation will give an overview of database related activities in all three sections, but will primarily focus on Project Server database portion of section 3* * Additional information for sections 1 & 2 can be found on TechNet at http://technet.microsoft.com/en-us/library/cc197298.aspx

  8. TechNet Contains Entire Process Overview • http://go.microsoft.com/fwlink/p/?LinkId=259648 A C B

  9. Free Summary Handout Sheet Available from the Sensei Project Solutions Booth #407

  10. A Section 1: Plan & Prepare • Before starting you must understand your SharePoint 2010 farm and set up a new SharePoint 2013 farm • Note key upgrade items • Gather current configuration information & plan for customizations • Deploy your Project Server 2013 farm • Prepare your Windows PowerShell Environment • Verify that your databases are in Native Mode • Check your data for known issues

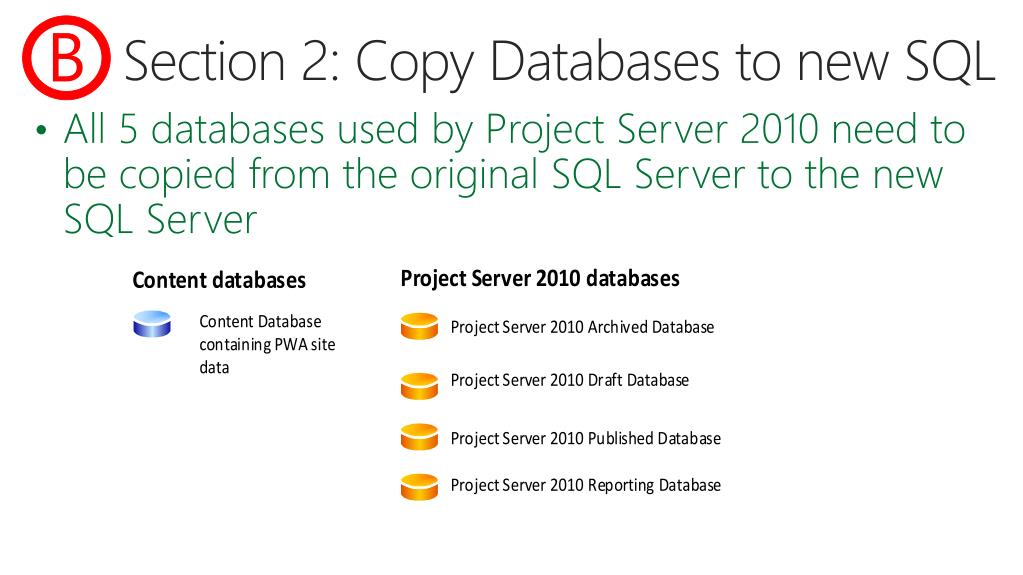

  11. B Section 2: Copy Databases to new SQL • All 5 databases used by Project Server 2010 need to be copied from the original SQL Server to the new SQL Server

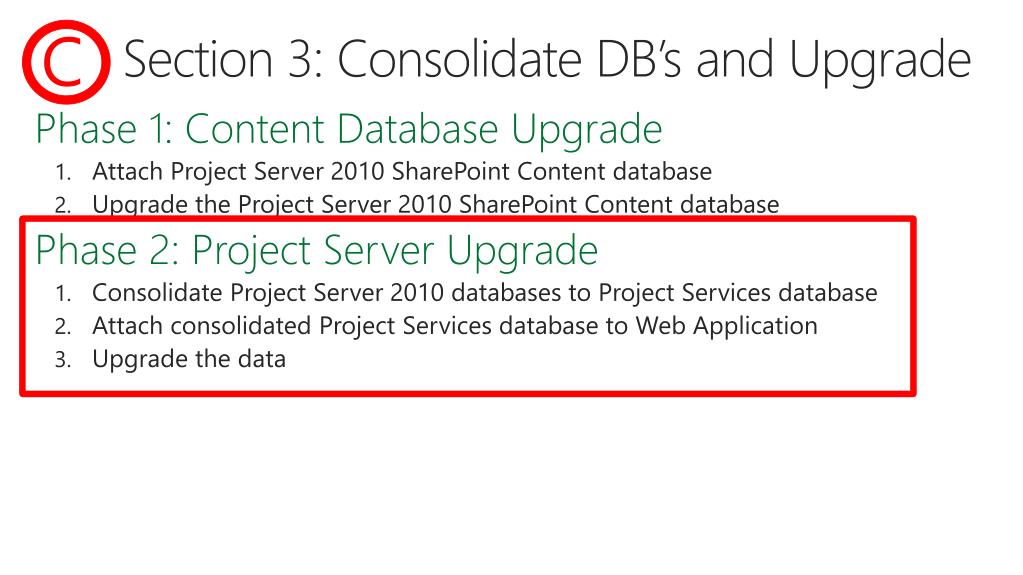

  12. C Section 3: Consolidate DB’s and Upgrade Phase 1: Content Database Upgrade • Attach Project Server 2010 SharePoint Content database • Upgrade the Project Server 2010 SharePoint Content database Phase 2: Project Server Upgrade • Consolidate Project Server 2010 databases to Project Services database • Attach consolidated Project Services database to Web Application • Upgrade the data

  13. A Native Mode Verification

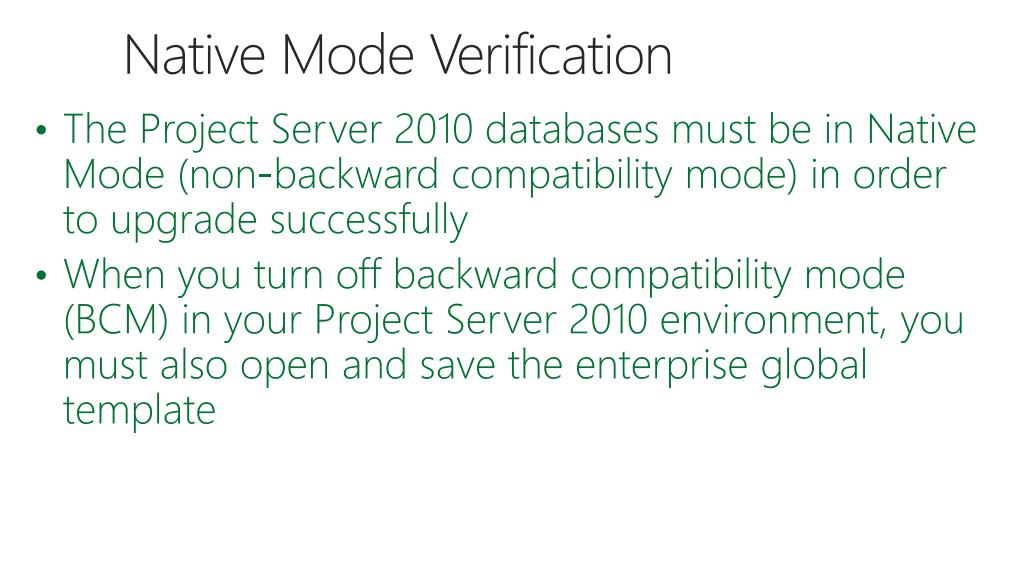

  14. Native Mode Verification • The Project Server 2010 databases must be in Native Mode (non-backward compatibility mode) in order to upgrade successfully • When you turn off backward compatibility mode (BCM) in your Project Server 2010 environment, you must also open and save the enterprise global template

  15. A Backward Compatibility

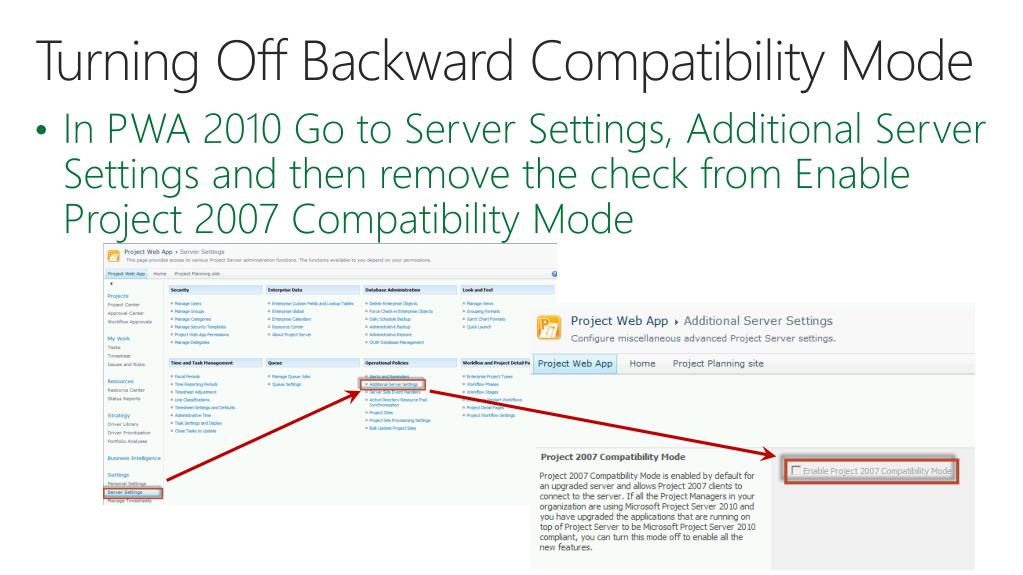

  16. Turning Off Backward Compatibility Mode • In PWA 2010 Go to Server Settings, Additional Server Settings and then remove the check from Enable Project 2007 Compatibility Mode

  17. A Check for Known Data Issues

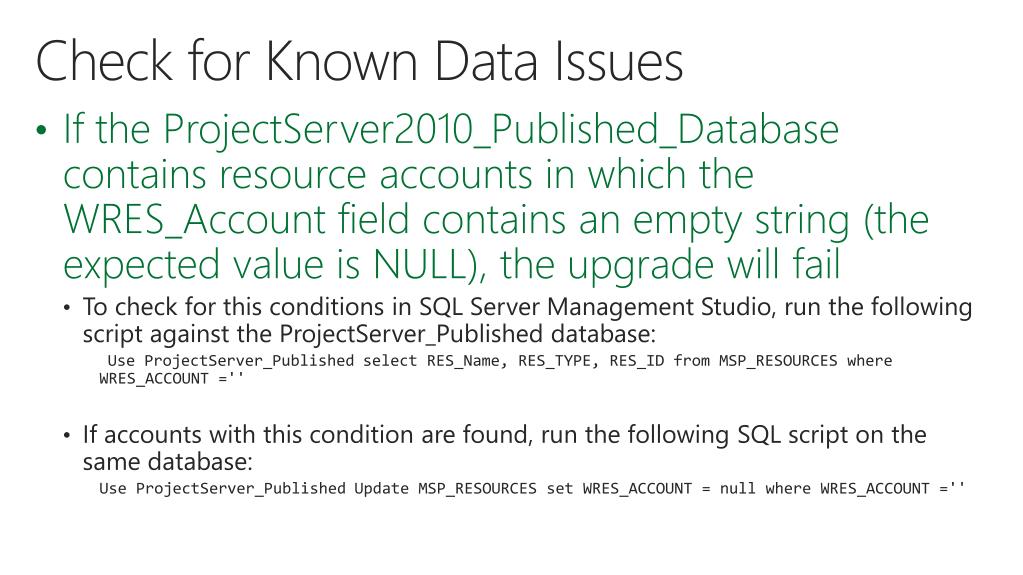

  18. Check for Known Data Issues • If the ProjectServer2010_Published_Database contains resource accounts in which the WRES_Account field contains an empty string (the expected value is NULL), the upgrade will fail • To check for this conditions in SQL Server Management Studio, run the following script against the ProjectServer_Published database:
Use ProjectServer_Published
select RES_Name, RES_TYPE, RES_ID from MSP_RESOURCES where WRES_ACCOUNT ='' • If accounts with this condition are found, run the following SQL script on the same database: Use ProjectServer_Published
Update MSP_RESOURCES set WRES_ACCOUNT = null where WRES_ACCOUNT =''

  19. A PowerShell Fundamentals

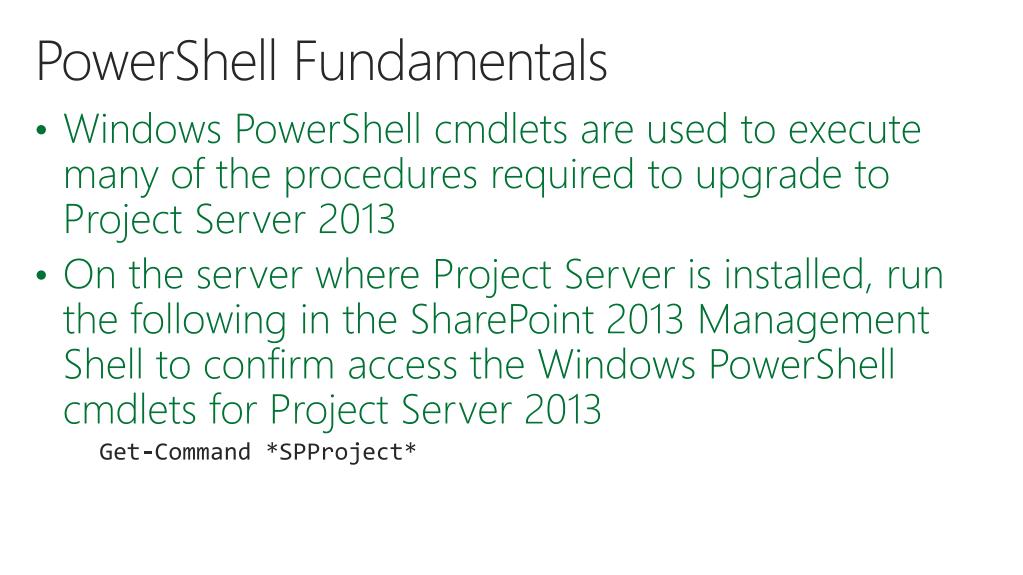

  20. PowerShell Fundamentals • Windows PowerShell cmdlets are used to execute many of the procedures required to upgrade to Project Server 2013 • On the server where Project Server is installed, run the following in the SharePoint 2013 Management Shell to confirm access the Windows PowerShell cmdlets for Project Server 2013 Get-Command *SPProject*

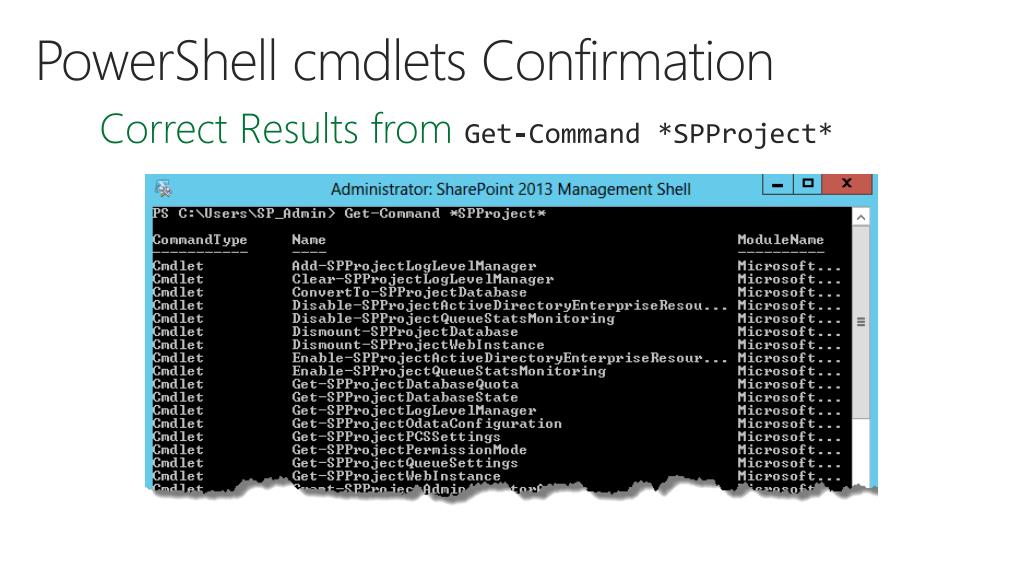

  21. PowerShell cmdlets Confirmation Correct Results from Get-Command *SPProject*

  22. Demo. SharePoint PowerShell Check

  23. B Database Copying

  24. Database Copying • Use SQL Server Management Studio backup & restore to copy the databases to the new environment’s SQL Server

  25. Content Database Upgrade

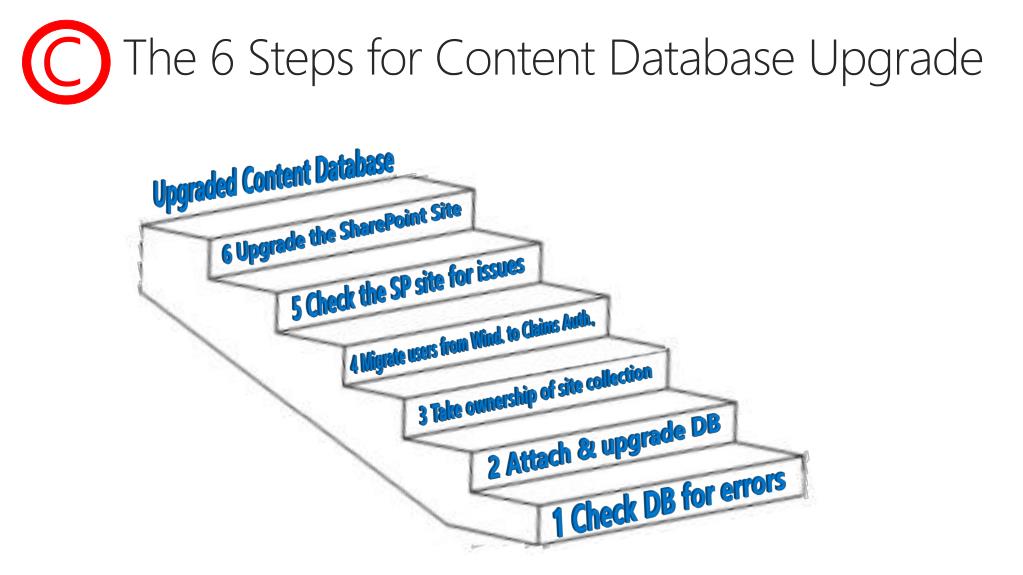

  26. C The 6 Steps for Content Database Upgrade Upgraded Content Database 6 Upgrade the SharePoint Site 5 Check the SP site for issues 4 Migrate users fromWind. to Claims Auth., 3 Take ownership of site collection 2 Attach & upgrade DB 1 Check DB for errors

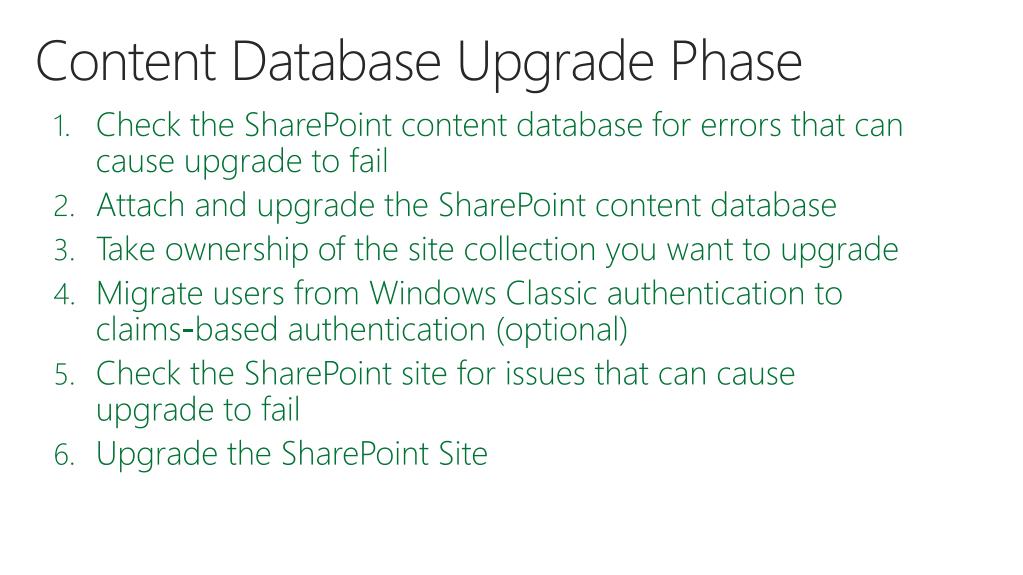

  27. Content Database Upgrade Phase • Check the SharePoint content database for errors that can cause upgrade to fail • Attach and upgrade the SharePoint content database • Take ownership of the site collection you want to upgrade • Migrate users from Windows Classic authentication to claims-based authentication (optional) • Check the SharePoint site for issues that can cause upgrade to fail • Upgrade the SharePoint Site

  28. Content Upgrade PowerShell cmdlets

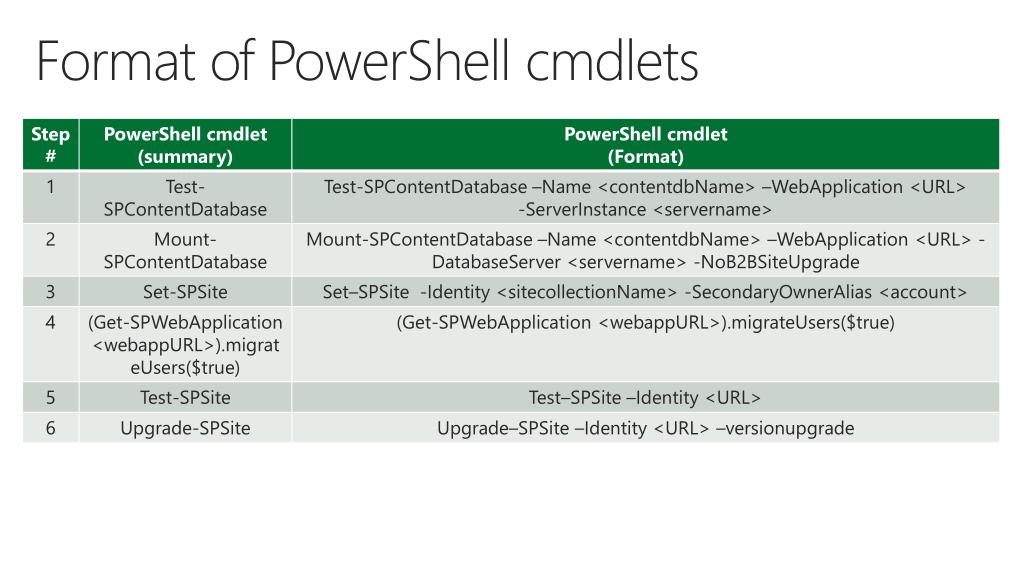

  29. Format of PowerShell cmdlets

  30. Project Server Upgrade

  31. The 8 Steps for Project Server Upgrade ** Upgraded Project Server 2013 ** 8 PWA Feature Enable 7 PWA Upgrade 6 PWA Error Check 5 Mounting PWA Instance 4 DB Upgrade 3 DB Error Check 2 Attach DB to Web Application 1 Existing DB Consolidation

  32. 1: Existing Database Consolidation 1 Existing DB Consolidation

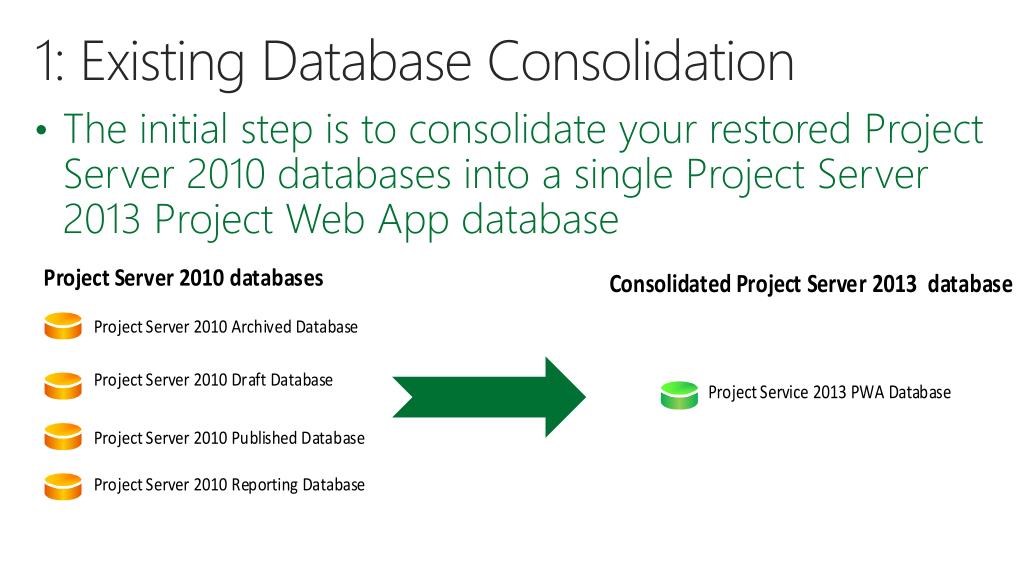

  33. 1: Existing Database Consolidation • The initial step is to consolidate your restored Project Server 2010 databases into a single Project Server 2013 Project Web App database

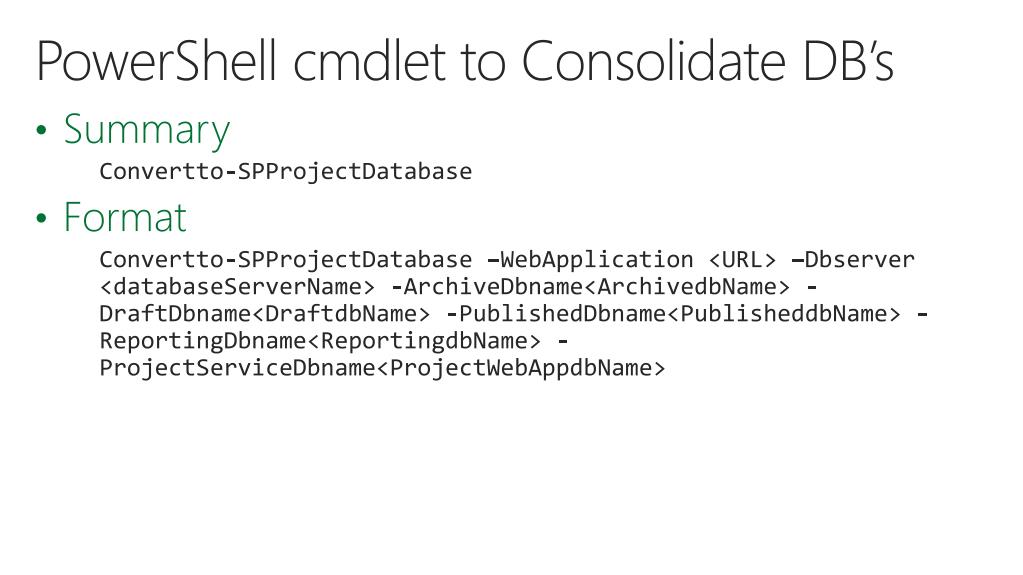

  34. PowerShell cmdlet to Consolidate DB’s • Summary Convertto-SPProjectDatabase • Format Convertto-SPProjectDatabase –WebApplication <URL> –Dbserver <databaseServerName> -ArchiveDbname<ArchivedbName> -DraftDbname<DraftdbName> -PublishedDbname<PublisheddbName> -ReportingDbname<ReportingdbName> -ProjectServiceDbname<ProjectWebAppdbName>

  35. Required Parameters

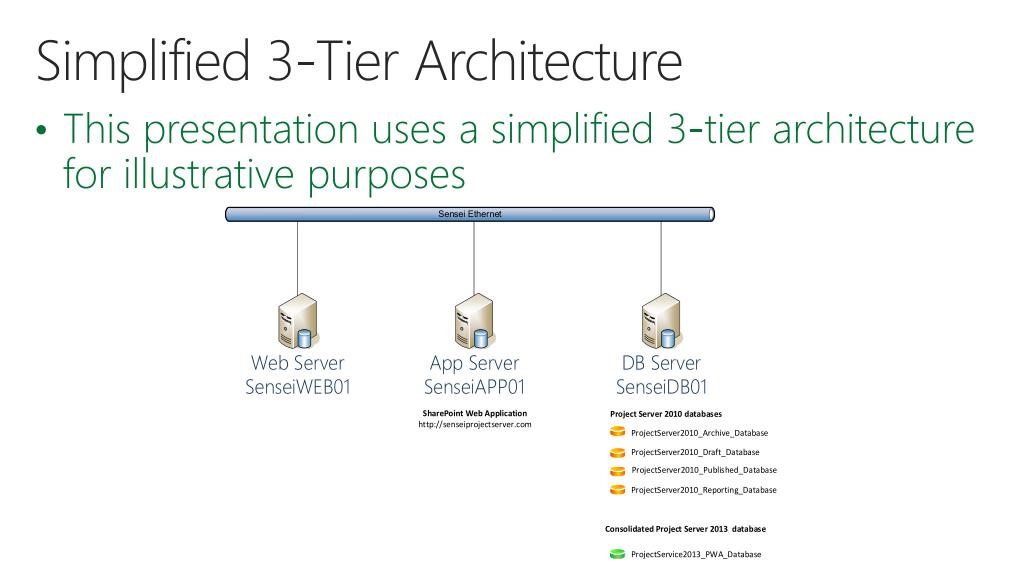

  36. Simplified 3-Tier Architecture • This presentation uses a simplified 3-tier architecture for illustrative purposes

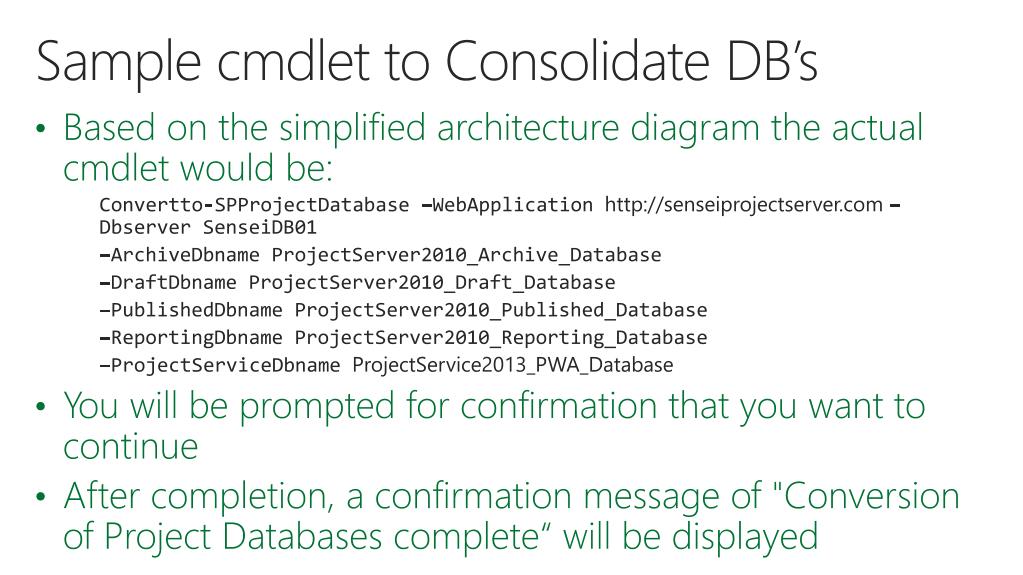

  37. Sample cmdlet to Consolidate DB’s • Based on the simplified architecture diagram the actual cmdlet would be: Convertto-SPProjectDatabase –WebApplication http://senseiprojectserver.com –Dbserver SenseiDB01 –ArchiveDbname ProjectServer2010_Archive_Database –DraftDbname ProjectServer2010_Draft_Database –PublishedDbname ProjectServer2010_Published_Database –ReportingDbname ProjectServer2010_Reporting_Database –ProjectServiceDbnameProjectService2013_PWA_Database • You will be prompted for confirmation that you want to continue • After completion, aconfirmation message of "Conversion of Project Databases complete“ will be displayed

  38. Step 1 Demo. Existing DB Consolidation

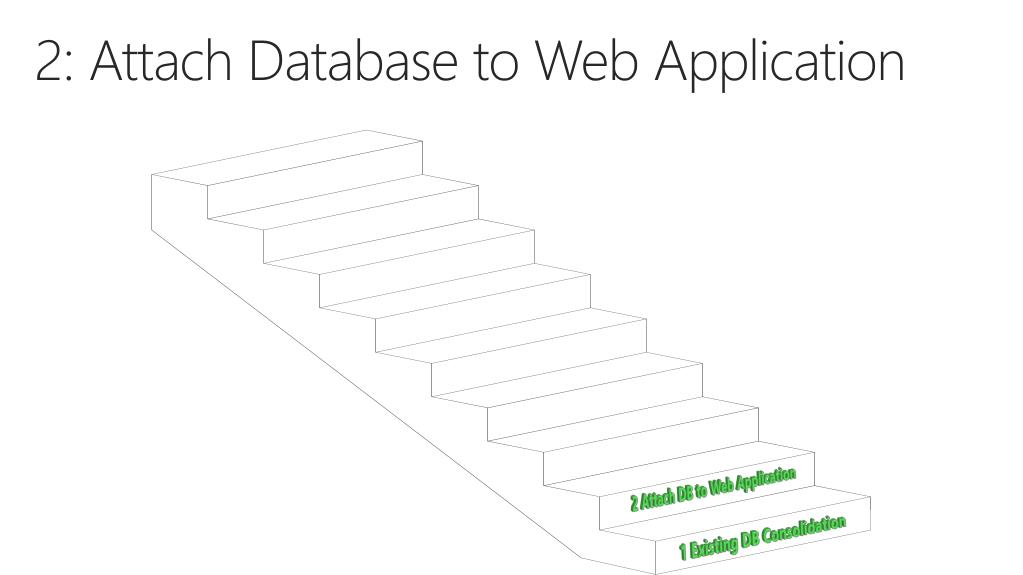

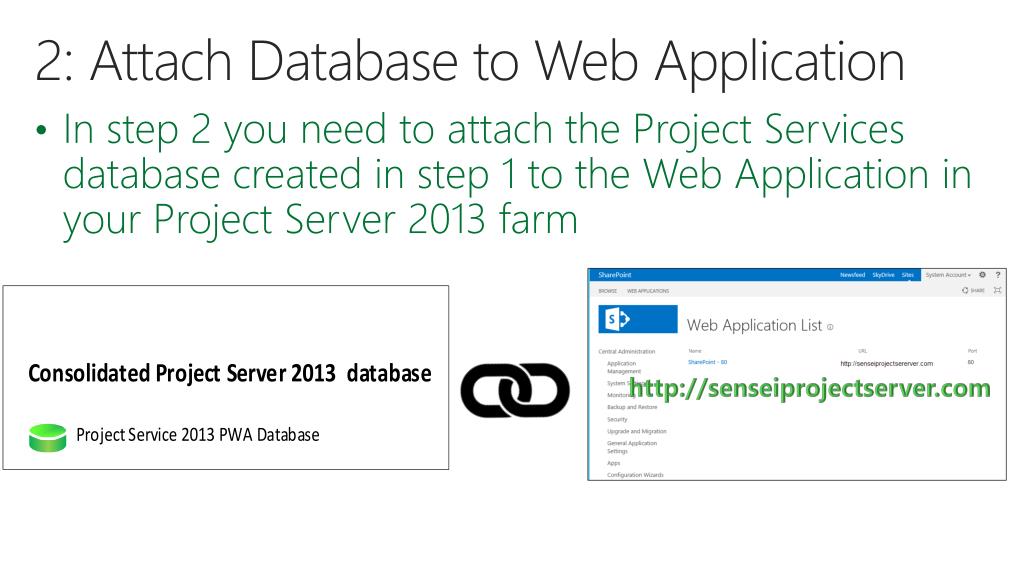

  39. 2: Attach Database to Web Application 2 Attach DB to Web Application 1 Existing DB Consolidation

  40. 2: Attach Database to Web Application • In step 2 you need to attach the Project Services database created in step 1 to the Web Application in your Project Server 2013 farm http://senseiprojectserver.com

  41. PowerShell cmdlet to Attach Database • Summary Mount-SPProjectDatabase • Format Mount-SPProjectDatabase –Name <ProjectWebAppdbName> -WebApplication<URL> –DatabaseServer <databaseServerName>

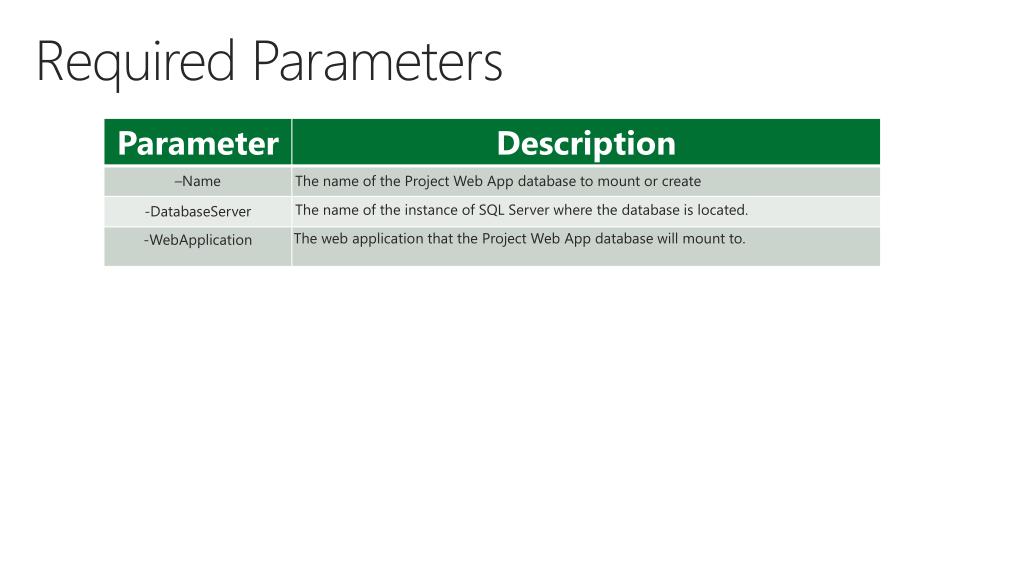

  42. Required Parameters

  43. Sample cmdlet to Attach DBto Web App • Based on the simplified architecture diagram the actual cmdlet would be: Mount-SPProjectDatabase –Name ProjectService2013_PWA_Database -WebApplication http://senseiprojectserver.com –DatabaseServer SenseiDB01 • After completion you will be returned to the Windows PowerShell command prompt; you will not see a confirmation message upon successful completion.

  44. Step 2 Demo. Attaching DB to Web App

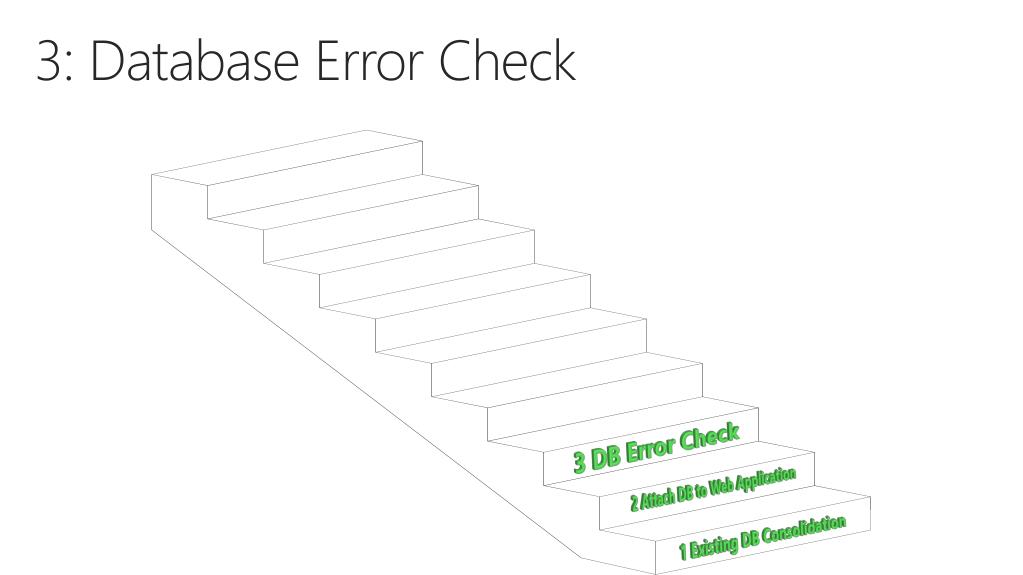

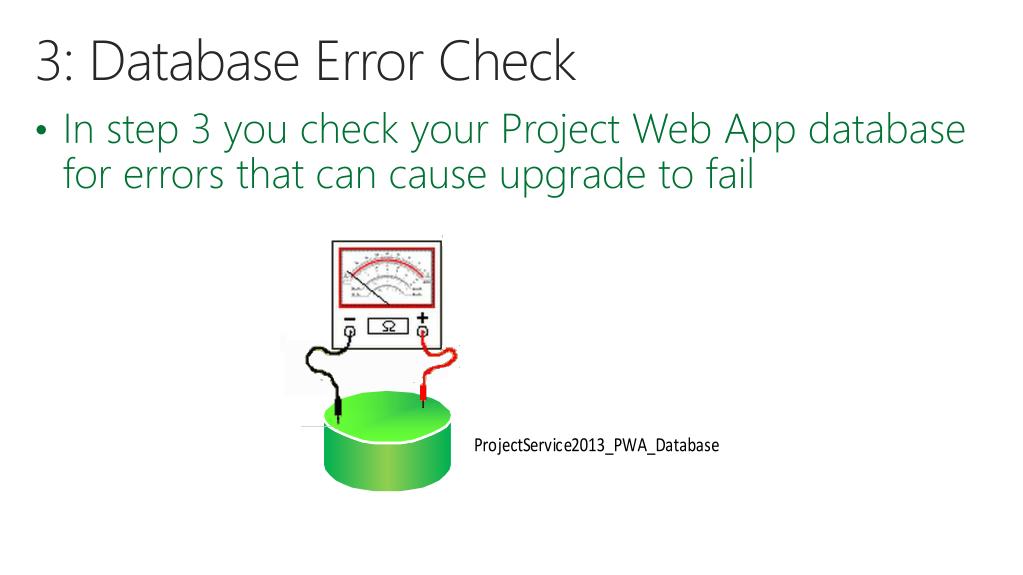

  45. 3: Database Error Check 3 DB Error Check 2 Attach DB to Web Application 1 Existing DB Consolidation

  46. 3: Database Error Check • In step 3 you check your Project Web App database for errors that can cause upgrade to fail

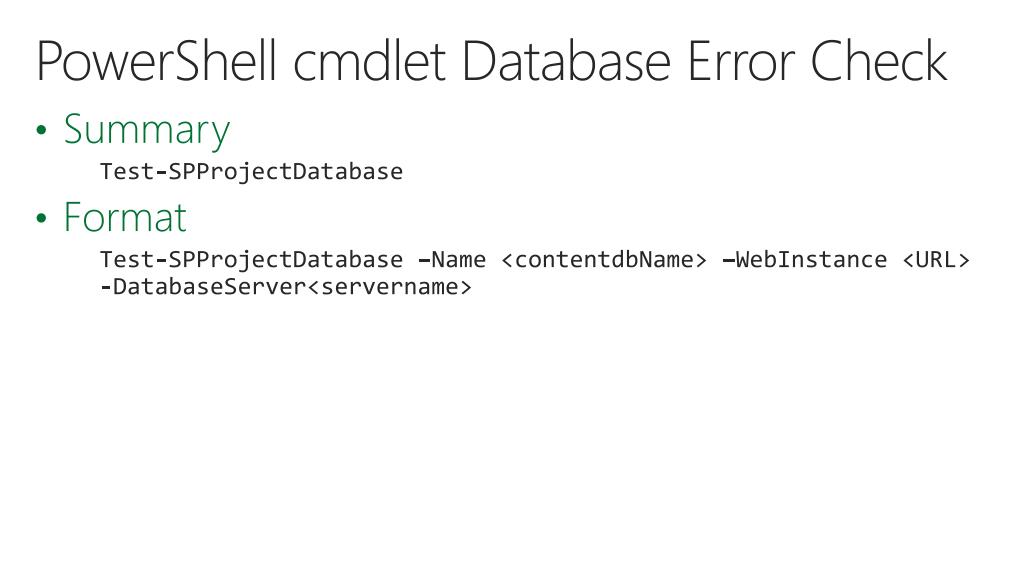

  47. PowerShell cmdlet Database Error Check • Summary Test-SPProjectDatabase • Format Test-SPProjectDatabase –Name <contentdbName> –WebInstance <URL> -DatabaseServer<servername>

  48. Required Parameters

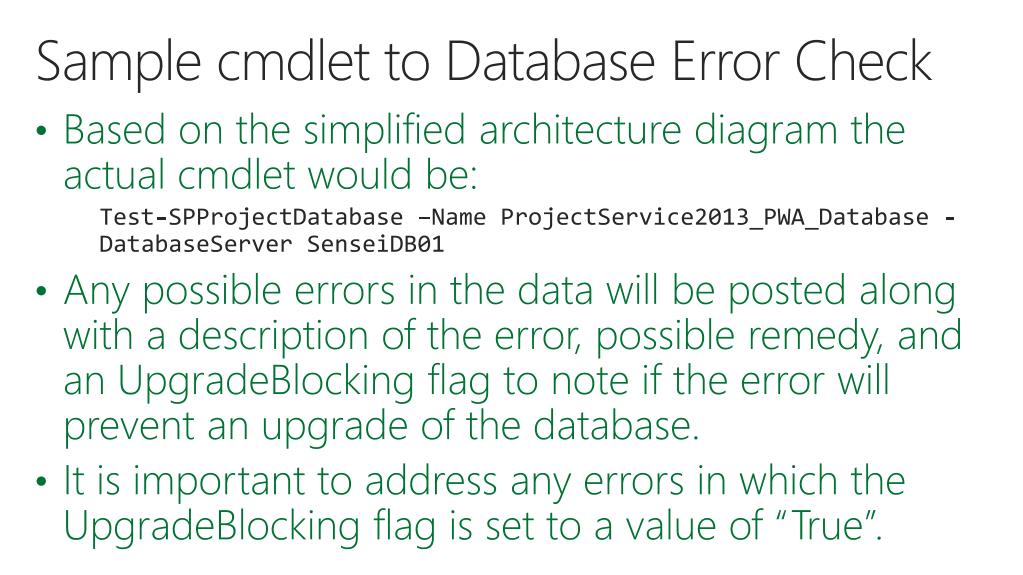

  49. Sample cmdlet to Database Error Check • Based on the simplified architecture diagram the actual cmdlet would be: Test-SPProjectDatabase –Name ProjectService2013_PWA_Database -DatabaseServer SenseiDB01 • Any possible errors in the data will be posted along with a description of the error, possible remedy, and an UpgradeBlocking flag to note if the error will prevent an upgrade of the database. • It is important to address any errors in which the UpgradeBlocking flag is set to a value of “True”.
