  1. 11-4 Areas of Regular Polygons

  2. 11.4 Areas of Regular Polygons • Area of a Regular Polygon Vocab: Center – in the center Radius - to a vertex Central angle –from 2 radii Apothem –perpendicular from center to side

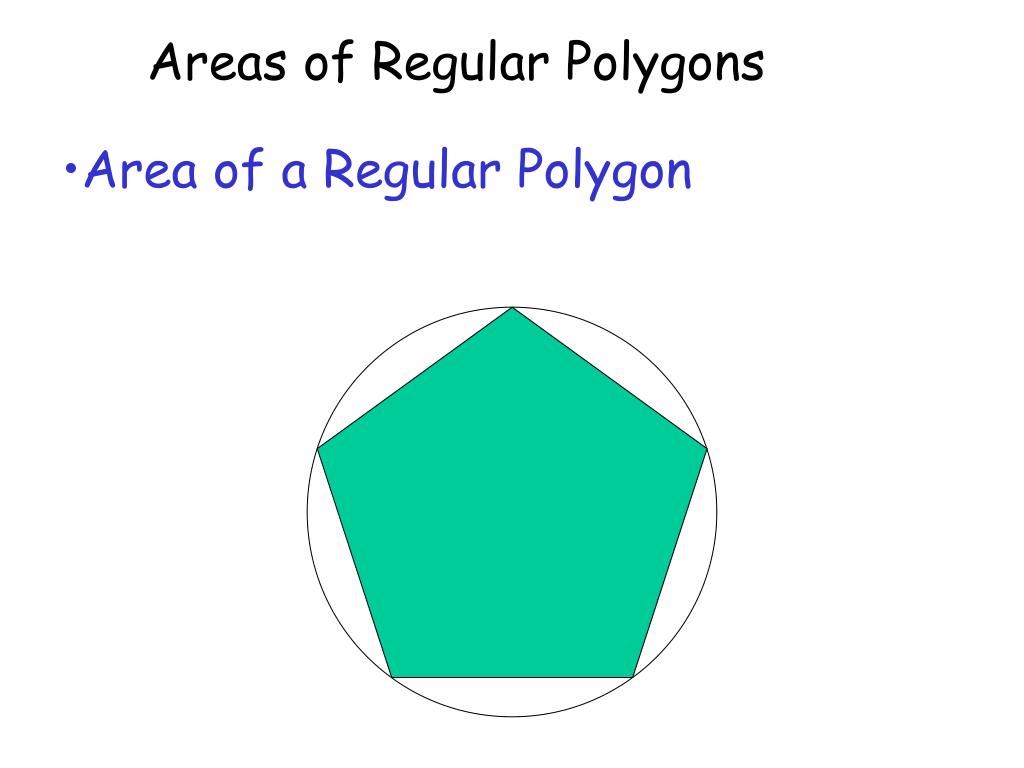

  3. Areas of Regular Polygons • Area of a Regular Polygon

  4. Areas of Regular Polygons • Area of a Regular Polygon • Area = (area of the ) x (# of ’s)

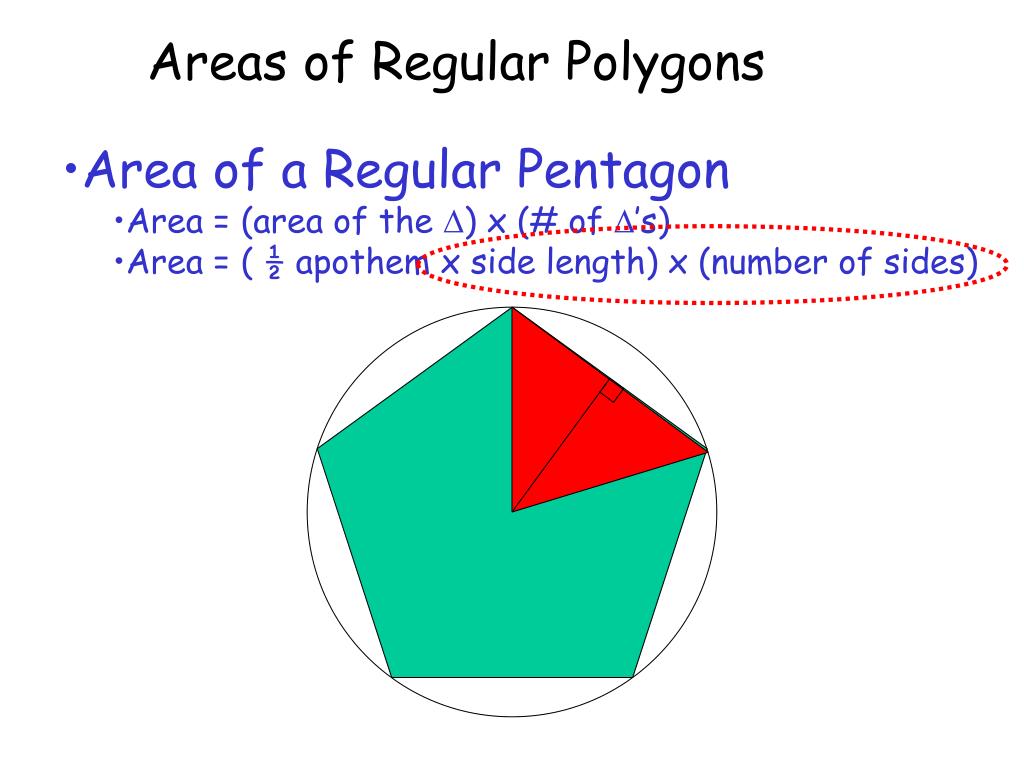

  5. Areas of Regular Polygons • Area of a Regular Pentagon • Area = (area of the ) x (# of ’s) • Area = ( ½ apothem x side length) x (number of sides)

  6. Areas of Regular Polygons • Area of a Regular Pentagon • Area = (area of the ) x (# of ’s) • Area = ( ½ apothem x side length) x (number of sides)

  7. Areas of Regular Polygons • Area of a Regular Pentagon • Area = (½ apothem x side length) x (number of sides) • Area = ½ apothem x Perimeter

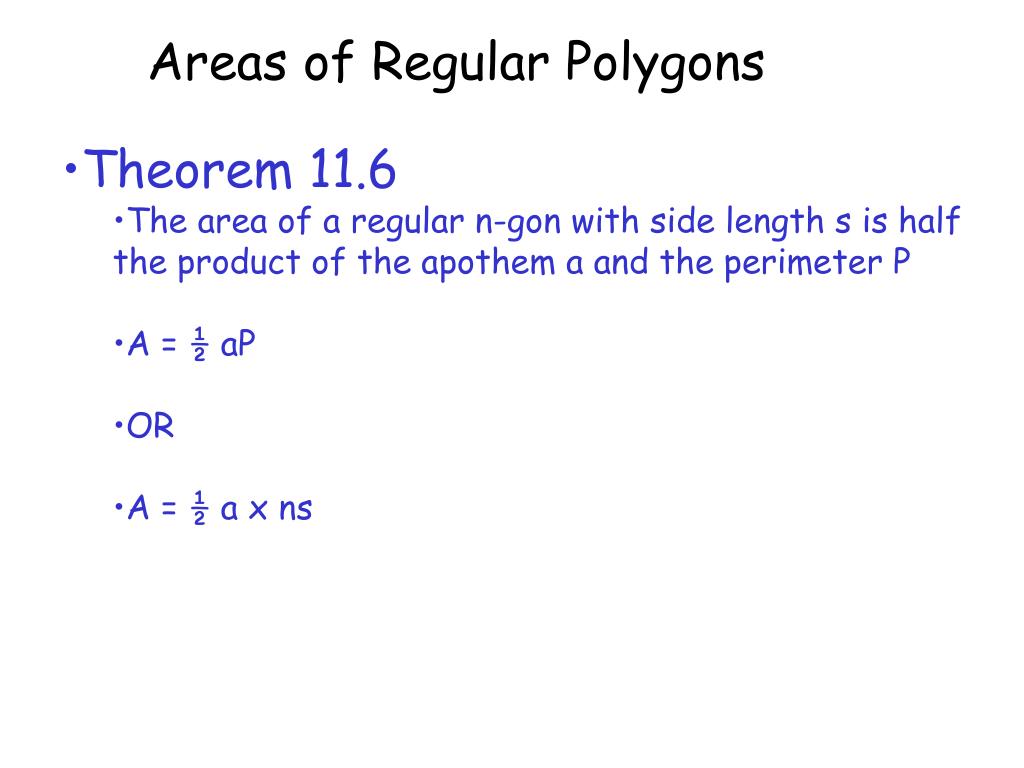

  8. Areas of Regular Polygons • Theorem 11.6 • The area of a regular n-gon with side length s is half the product of the apothem a and the perimeter P • A = ½ aP • OR • A = ½ a x ns

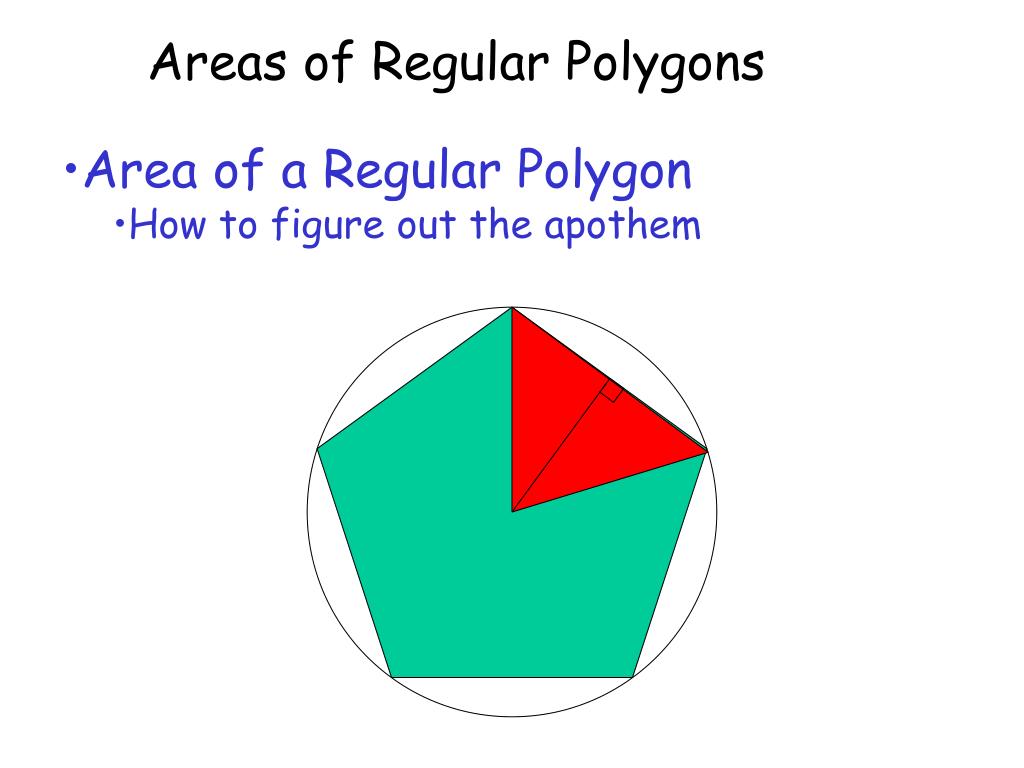

  9. Areas of Regular Polygons • Area of a Regular Polygon • How to figure out the apothem

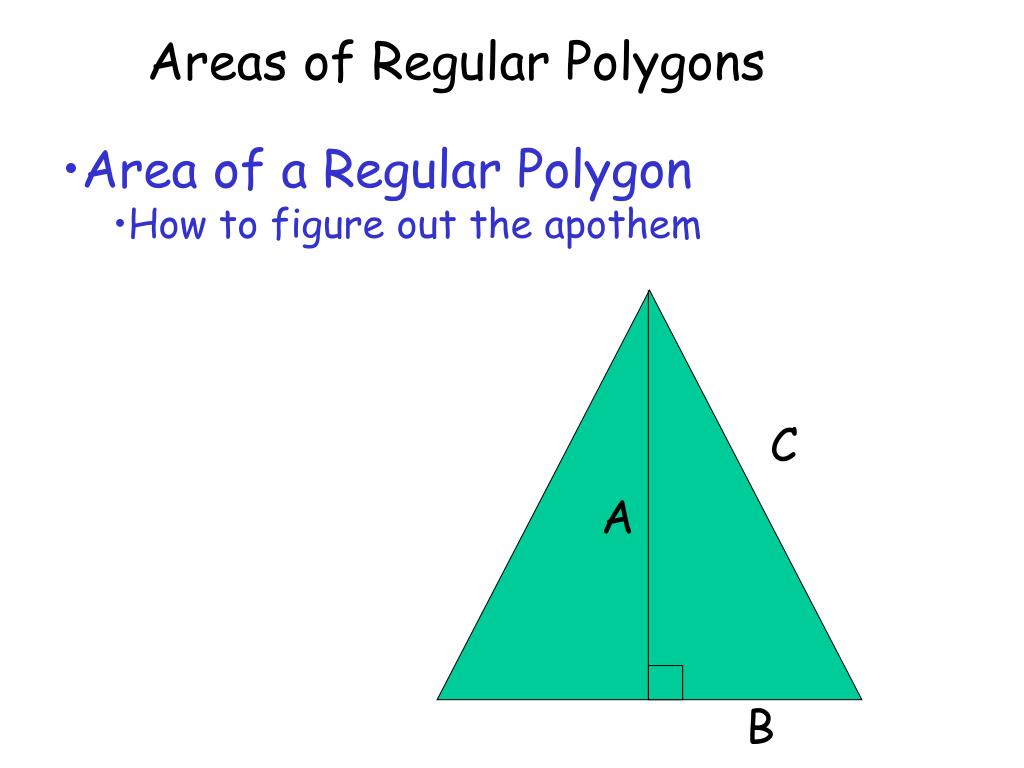

  10. Areas of Regular Polygons • Area of a Regular Polygon • How to figure out the apothem C A B

  11. Areas of Regular Polygons • Area of a Regular Polygon • How to figure out the apothem • P-Thag Theorem C Apothem B

  12. Areas of Regular Polygons • Area of a Regular Polygon • How to figure out the apothem • tan x = __B__ • apothem x° C Apothem B

  13. Areas of Regular Polygons • Area of a Regular Polygon • How to figure out the apothem • tan x = __B__ • apothem • Apothem =_ B__ • tan x x° C Apothem B

  14. Areas of Regular Polygons • Area of a Regular Polygon • How to figure out the apothem • cos x = apothem • C • Apothem = cos x • C x° C Apothem B

  15. SPICSA P 443 1-12all, 14,16
