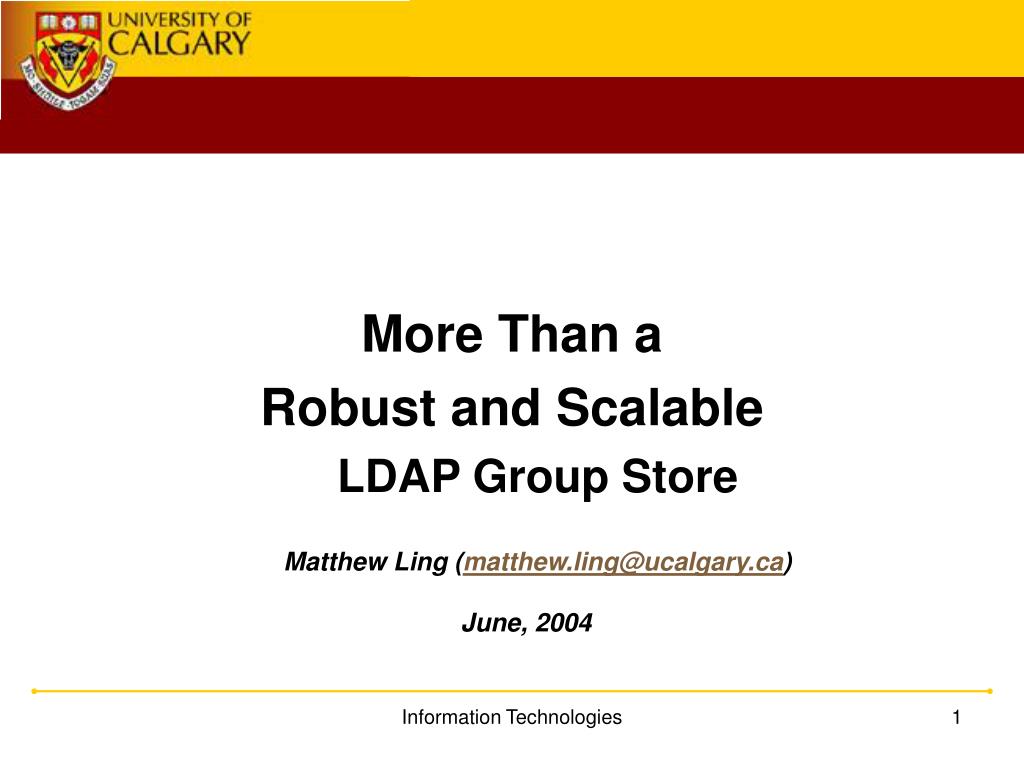

  1. More Than a Robust and Scalable LDAP Group Store Matthew Ling (matthew.ling@ucalgary.ca) June, 2004 Information Technologies

  2. Agenda • Just-in-Time LDAP Group Store (JIT LDAP) • Comparison to PAGS • Institutional Group Implementation Issues • Identity Amalgamation Information Technologies

  3. JIT LDAP Just-in-Time LDAP Group Store Information Technologies

  4. Motivation – Authorization (1) Authorization: • Answers these question: (bottom-up) • Which groups does this person belong to? • Which groups does this sub-group belong to? • Does not answer these questions: (top-down) • Who belongs to this group? • Which sub-group belongs to this group? Information Technologies

  5. Group A Group B Group C SG A.1 SG A.2 SG B.1 SG C.1 SG C.2 SG C.3 SG A.1.1 SG C.2.1 A B B C C A Motivation – Authorization (2) All LDAP Groups Group/Subgroup Person Information Technologies

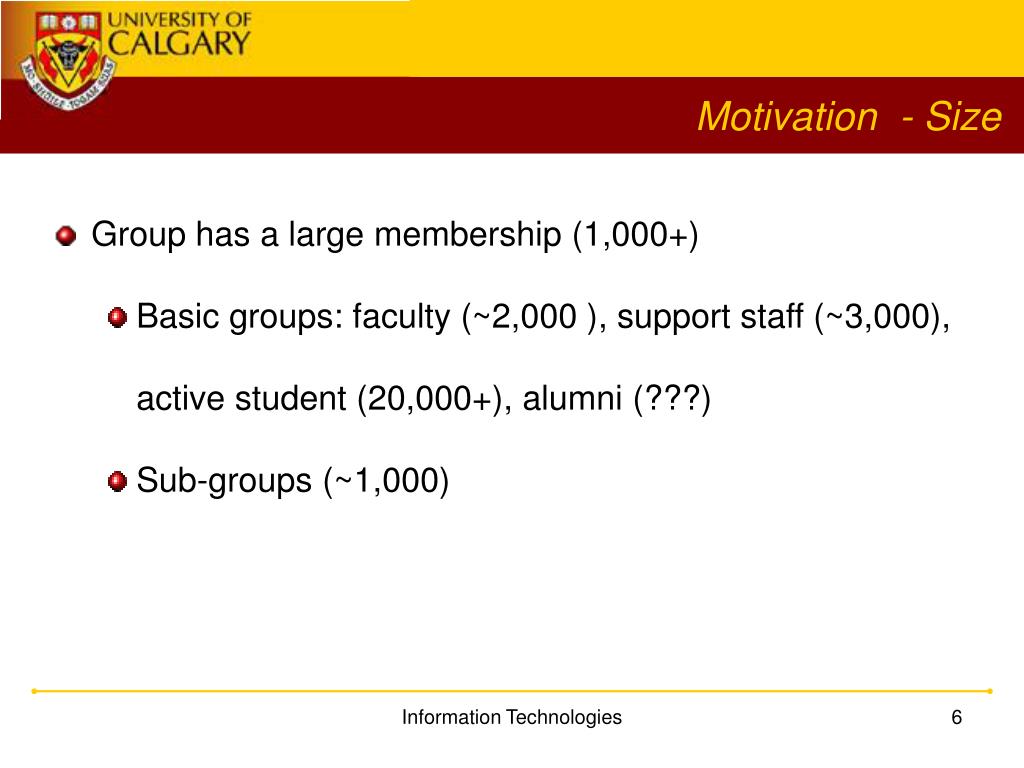

  6. Motivation - Size • Group has a large membership (1,000+) • Basic groups: faculty (~2,000 ), support staff (~3,000), active student (20,000+), alumni (???) • Sub-groups (~1,000) Information Technologies

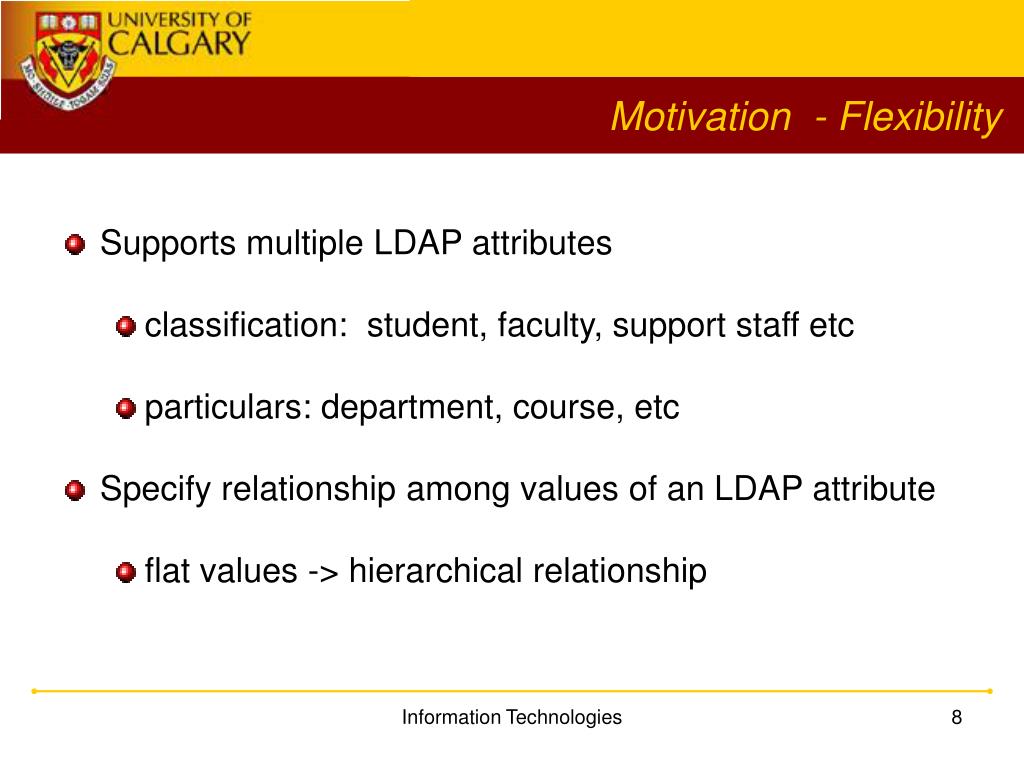

  7. Motivation - Reusability • Applications share group information via LDAP • Portal and web applications share groups • LDAP attribute value is the name of a group (e.g. which department a person belongs to?) Information Technologies

  8. Motivation - Flexibility • Supports multiple LDAP attributes • classification: student, faculty, support staff etc • particulars: department, course, etc • Specify relationship among values of an LDAP attribute • flat values -> hierarchical relationship Information Technologies

  9. Motivation - Manageability • LDAP attribute with 100+ values (e.g. course) • Automatic discovery of new values • not required: exhaustive group name list • Automatic derivation of relationship among values • not required: complete subgroup relationship map Information Technologies

  10. JIT LDAP - Basics • uPortal compatibility: 2.1.x, 2.2 • Minimalist and yet all-inclusive approach • (Minimalist) creates a user’s groups on-demand as (s)he signs on • (Minimalist) “learns” groups gradually in a need-to-know basis • (All-inclusive) A value of an LDAP attribute is a group • Group Manager/Permission Manager compatibility • static group/subgroup definition is available • Group name/membership definition delegated to external agents, i.e., no “business knowledge” • Package: http://www.ucalgary.ca/~mling/uportal/jitldapgroup/ Information Technologies

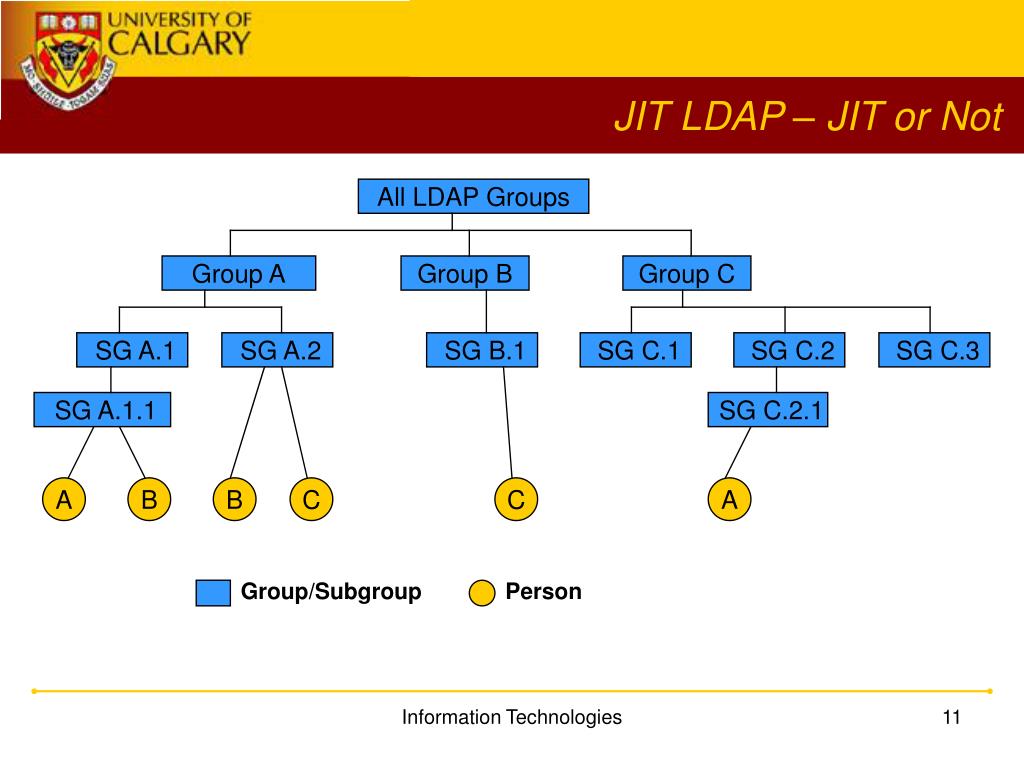

  11. Group A Group B Group C SG A.1 SG A.2 SG B.1 SG C.1 SG C.2 SG C.3 SG A.1.1 SG C.2.1 A B B C C A JIT LDAP – JIT or Not All LDAP Groups Group/Subgroup Person Information Technologies

  12. Group A Group B Group C SG A.1 SG A.2 SG B.1 SG C.1 SG C.2 SG C.3 SG A.1.1 SG C.2.1 A B B C C A JIT LDAP – non JIT All LDAP Groups • Group and subgroup definition are invariant but person membership can change • Load all group members together Group/Subgroup Person Information Technologies

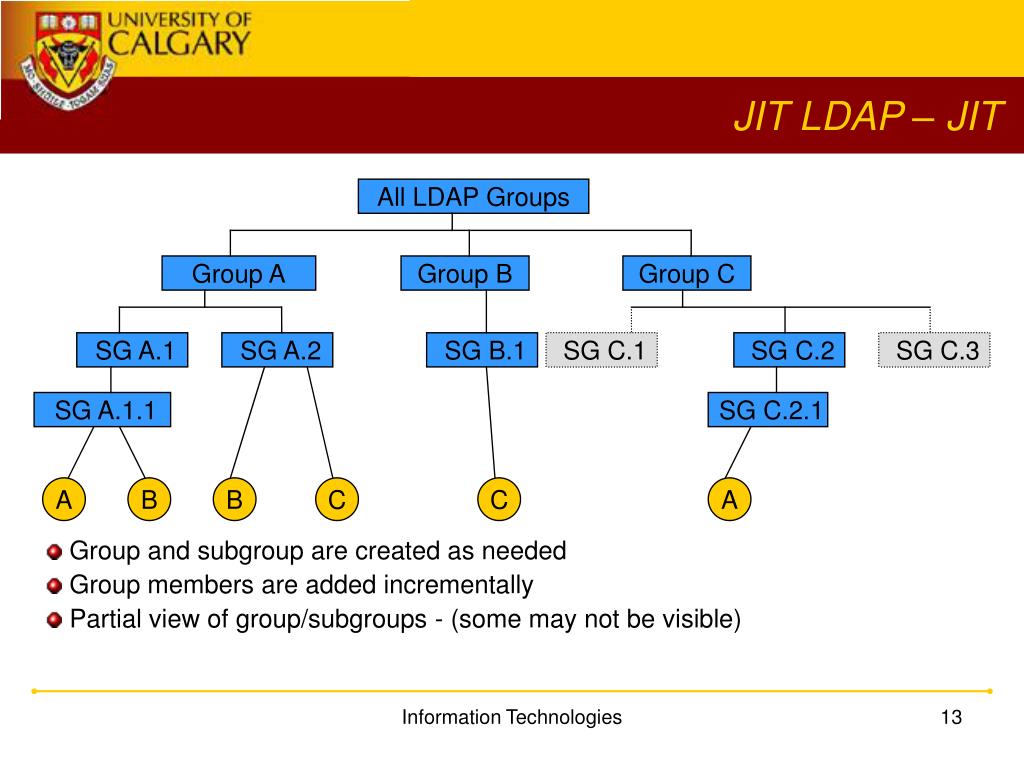

  13. Group A Group B Group C SG A.1 SG A.2 SG B.1 SG C.1 SG C.1 SG C.2 SG C.3 SG C.3 SG A.1.1 SG C.2.1 A B B C C A JIT LDAP – JIT All LDAP Groups • Group and subgroup are created as needed • Group members are added incrementally • Partial view of group/subgroups - (some may not be visible) Information Technologies

  14. LDAP filter: uid=${key} LDAP attribute name JIT LDAP - Configuration (1) <JitLDAPGroupStore> <config> <url>ldap://ldap.univerity:389/ou=people,o=some.university</url> <bindDN>cn=manager,ou=people,o=some.univesity</bindDN> <bindPassword>manager-password</bindPassword> <keyfield>uid</keyfield> <keyvalue>${key}</keyvalue> <retention-time>180</retention-time> </config> <group attribute=“department” /> </JitLDAPGroupStore> Information Technologies

  15. JIT LDAP - Configuration (2) • When a user signs on, a LDAP search is performed • All groups associated with the user are created (once) automatically • A group is also created (once) by • Look up a person in the group via Group/Permission Manager • Name conflict amongst LDAP attributes: • prefixed by LDAP attribute name Information Technologies

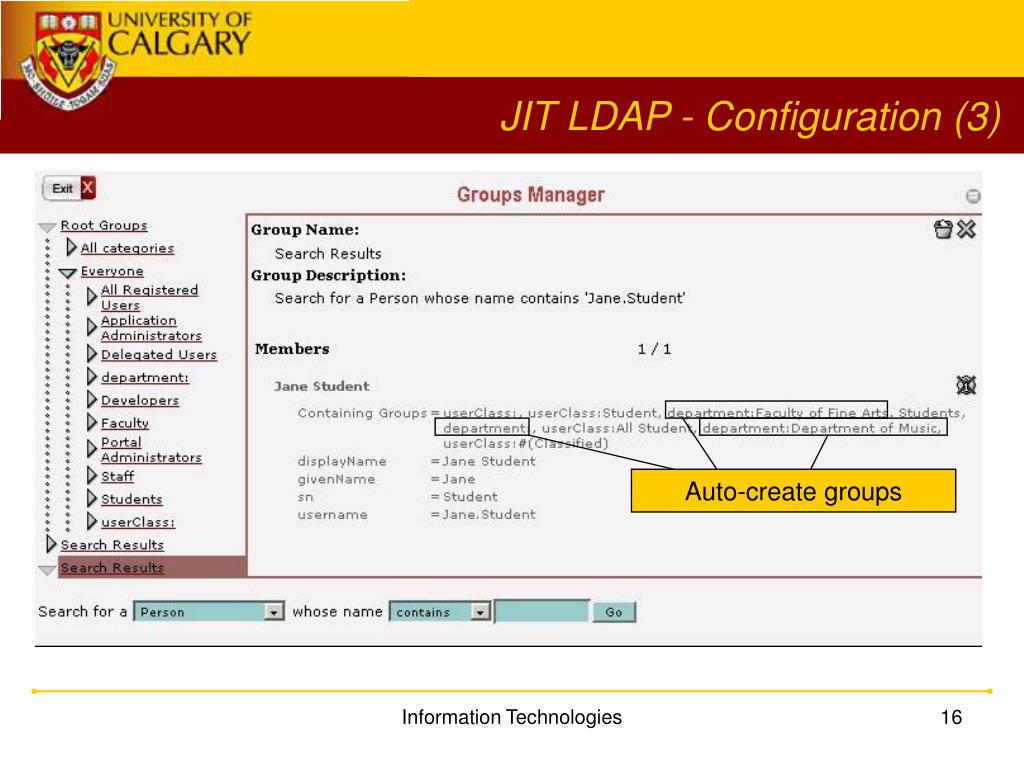

  16. Auto-create groups JIT LDAP - Configuration (3) Information Technologies

  17. JIT LDAP – Implications Addition/Deletion of a group could become “fuzz” • Add a group: • (Implicit) A person has the group name • (Explicit) Include programmatically • Delete a group: • (Implicit) No person has the group name and regular flushing of cached group entries • (Explicit) Exclude programmatically • No distributed locking or broadcasting during addition/deletion Information Technologies

  18. JIT LDAP - Group Manager Integration • default super group “<attribute name>:”, e.g., “department:” • add the super group of an attribute to the group “Everyone” • all groups become subgroups of the default super group • pre-defined groups are defined as follows <group attribute=“department” > <subgroup-tree> <subgroup name=“Department of Civil Engineering”/> <subgroup name=“Department of Drama”/> </subgroup-tree> </group> Information Technologies

  19. JIT LDAP - Subgroup Relationship • define a logical sub-group: the group name is not an LDAP attribute value • define subgroup hierarchy <group attribute=“department” > <subgroup-tree> <subgroup name=“Faculty of Engineering”> <subgroup name=“Department of Civil Engineering” /> </subgroup> ......... </subgroup-tree> </group> Information Technologies

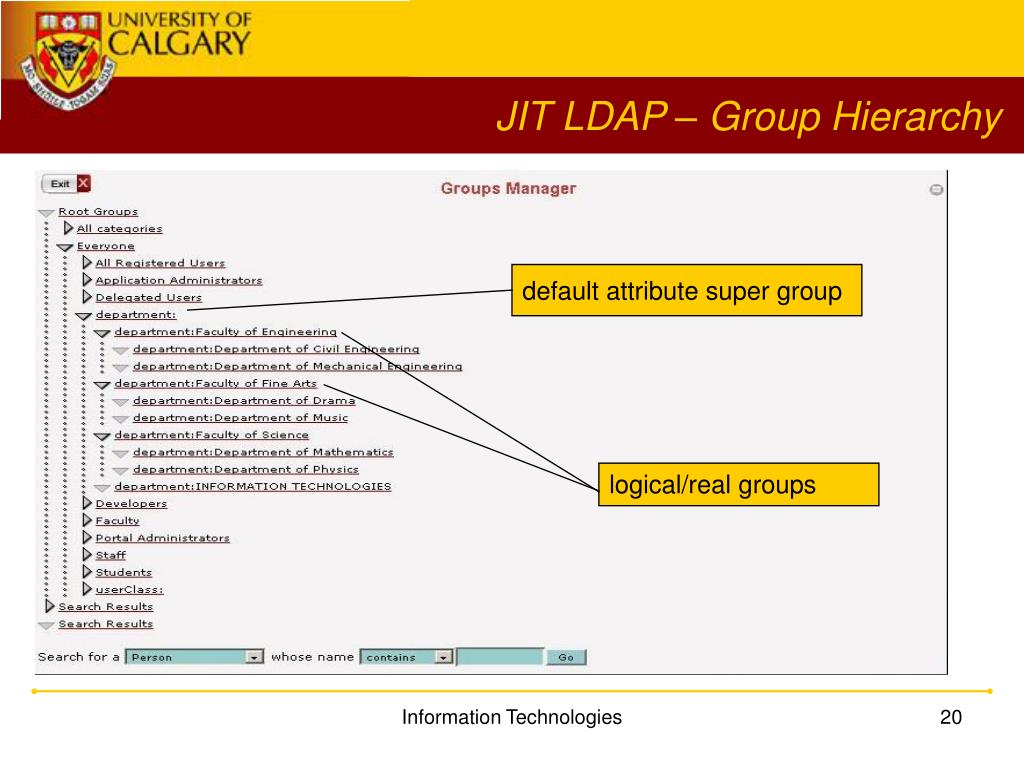

  20. default attribute super group logical/real groups JIT LDAP – Group Hierarchy Information Technologies

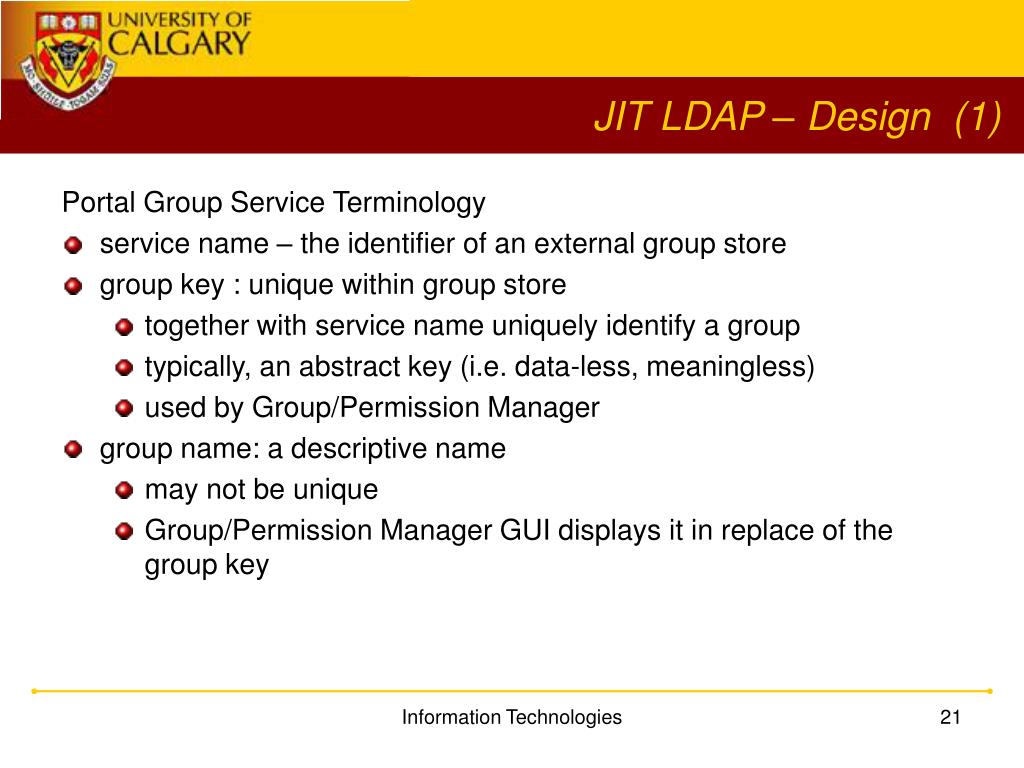

  21. JIT LDAP – Design (1) Portal Group Service Terminology • service name – the identifier of an external group store • group key : unique within group store • together with service name uniquely identify a group • typically, an abstract key (i.e. data-less, meaningless) • used by Group/Permission Manager • group name: a descriptive name • may not be unique • Group/Permission Manager GUI displays it in replace of the group key Information Technologies

  22. JIT LDAP – Design (2) JIT LDAP Design • group key = LDAP value prefixed with the attribute name <LDAP attribute name> ‘:’ <LDAP value> • uniqueness because of the prefix and the nature of data • no abstract key management required • group name = group key • no group name management required Information Technologies

  23. JIT LDAP - Permission Manager Implication Permission manager: permission grant/deny by principal key principal key = <service name>.<group key> = <service name>.<prefixed LDAP value> • principal key is a now derivative of the name of the group • assumes that names of the group will not change over time • permission rules can be added by back-end processes before the group is defined (because no abstract key assignment is needed) Information Technologies

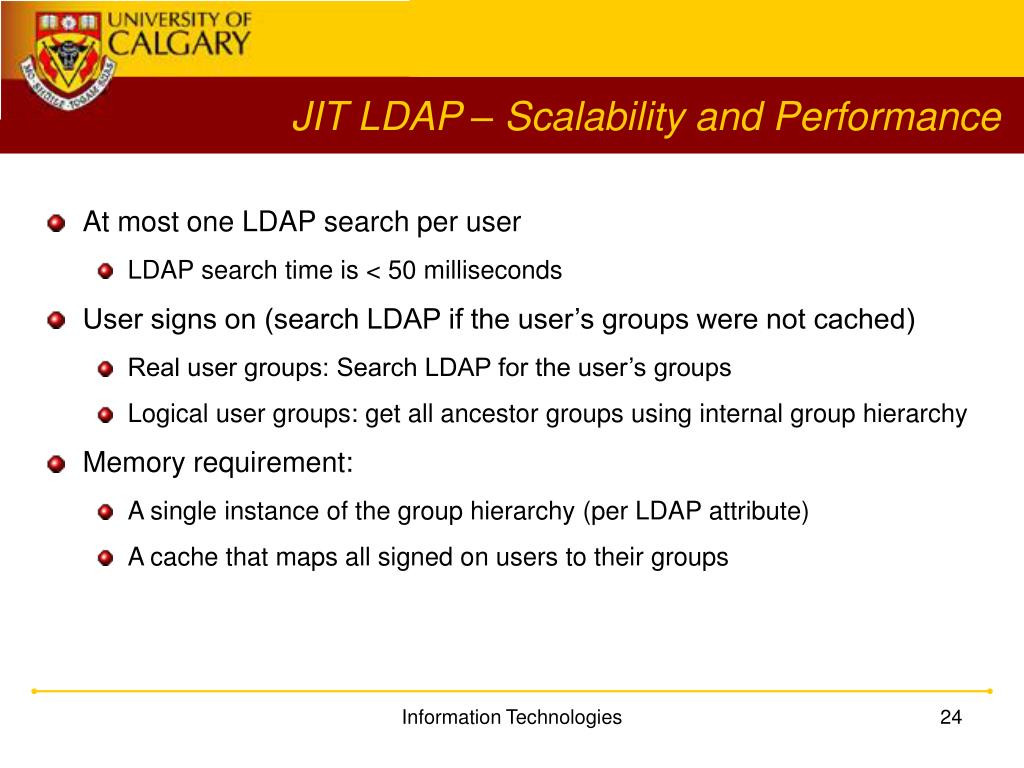

  24. JIT LDAP – Scalability and Performance • At most one LDAP search per user • LDAP search time is < 50 milliseconds • User signs on (search LDAP if the user’s groups were not cached) • Real user groups: Search LDAP for the user’s groups • Logical user groups: get all ancestor groups using internal group hierarchy • Memory requirement: • A single instance of the group hierarchy (per LDAP attribute) • A cache that maps all signed on users to their groups Information Technologies

  25. JIT LDAP – Loose Ends • Key value: default node separator is dot, ‘.’ • group key = an LDAP attribute value • A group key cannot contain dot ‘.’ • JIT LDAP replaces all ‘.’ with ‘#’ • Change node separator (available in uPortal 2.1.5 or above) • For example, “->” Information Technologies

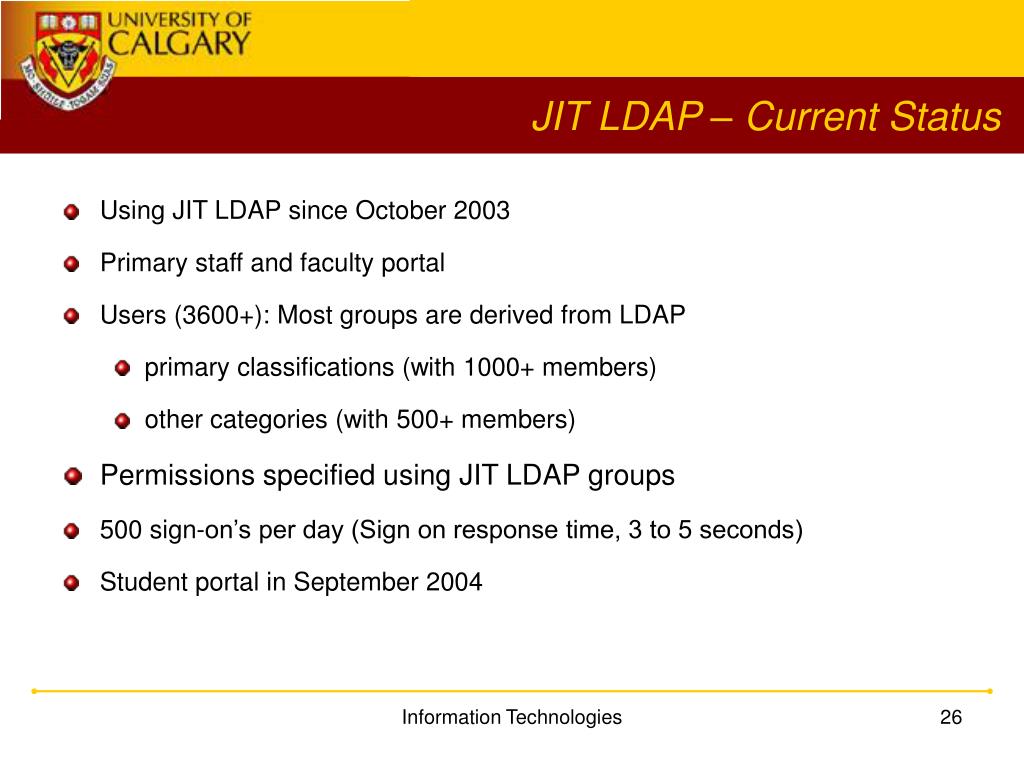

  26. JIT LDAP – Current Status • Using JIT LDAP since October 2003 • Primary staff and faculty portal • Users (3600+): Most groups are derived from LDAP • primary classifications (with 1000+ members) • other categories (with 500+ members) • Permissions specified using JIT LDAP groups • 500 sign-on’s per day (Sign on response time, 3 to 5 seconds) • Student portal in September 2004 Information Technologies

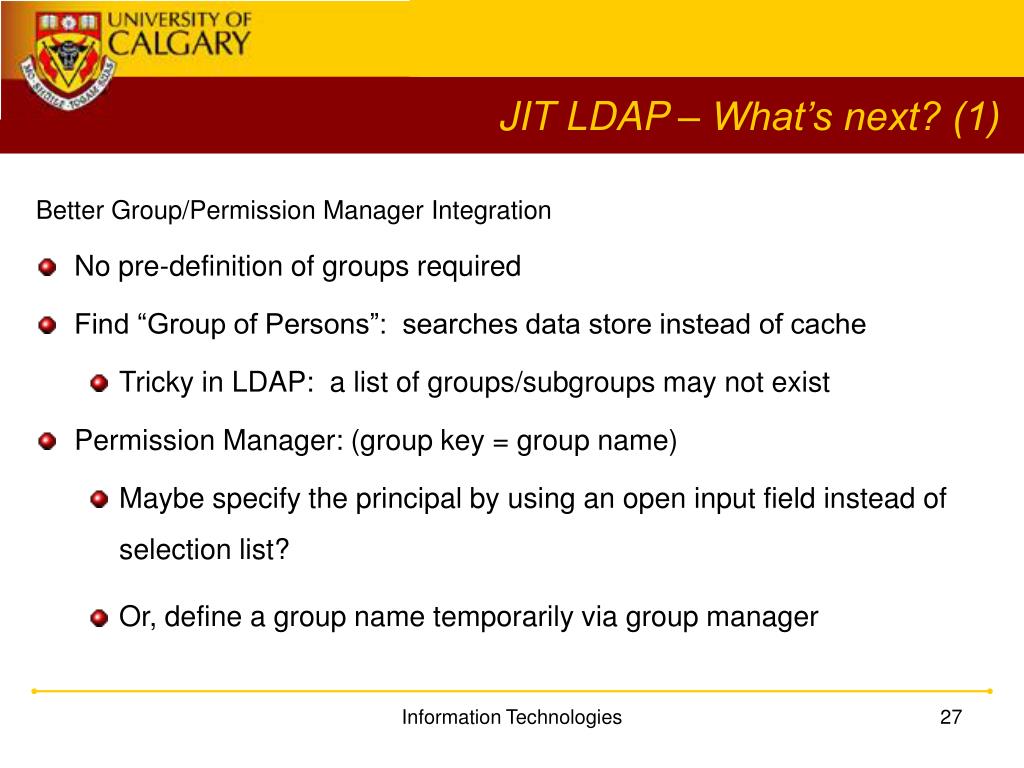

  27. JIT LDAP – What’s next? (1) Better Group/Permission Manager Integration • No pre-definition of groups required • Find “Group of Persons”: searches data store instead of cache • Tricky in LDAP: a list of groups/subgroups may not exist • Permission Manager: (group key = group name) • Maybe specify the principal by using an open input field instead of selection list? • Or, define a group name temporarily via group manager Information Technologies

  28. JIT LDAP – What’s next? (2) Permission Manager Convenience • Union operation – multiple “GRANT” rules • Negation operation – “DENY” rules (kind of) • Supports group definition using set operators: • union: has one of the given group names • intersection: has all given group names • difference: has one but not the other group name • negation: has none of the given group names Information Technologies

  29. JIT LDAP – What’s next? (3) Auto derivation of hierarchical relationship • Structured group names required, e.g., federated group names • English.101.L01.T02 triggers the creation of group hierarchies, like, • EnglishEnglish.101English.101.L01English.101.L01.T02 • EnglishEnglish.101 (suppress the rest) • English101L01T02 (portal group name = leaf component of the portal group key) Information Technologies

  30. JIT LDAP – What’s next? (4) Factor out JIT logic • Allows data store independent • Accepts user’s group names received during sign-on • JIT just caches the user’s group names • JIT re-queries sign-on server for group names if necessary (Note: We have a SSO server that can provide a user’s group names at sign-on time) Information Technologies

  31. Comparison to PAGS Comparison to PAGS Information Technologies

  32. Comparison to PAGS (1) Design Difference 1: Value as group key verses value as data • JIT LDAP: LDAP value is the key of the group • Value can be is AS IS • PAGS: LDAP value is a piece of personal data • Additional interpretation may be required Information Technologies

  33. Comparison to PAGS (2) Design Difference 2: Abstract key verses verbose key • JIT LDAP: Use the name of the group as the key • No internal key management • Permission rules are group name dependent • PAGS: Use an abstract key • Abstract key management • Group names can change without affecting permission rules Information Technologies

  34. Comparison to PAGS (3) • Just-In-Time verses Invariant • JIT LDAP: New groups are created as needed • PAGS: Groups are defined (created) at start up • Group Definition • JIT LDAP: Explicit exclusion - include all unless specified • PAGS: Explicit inclusion – include only if specified Information Technologies

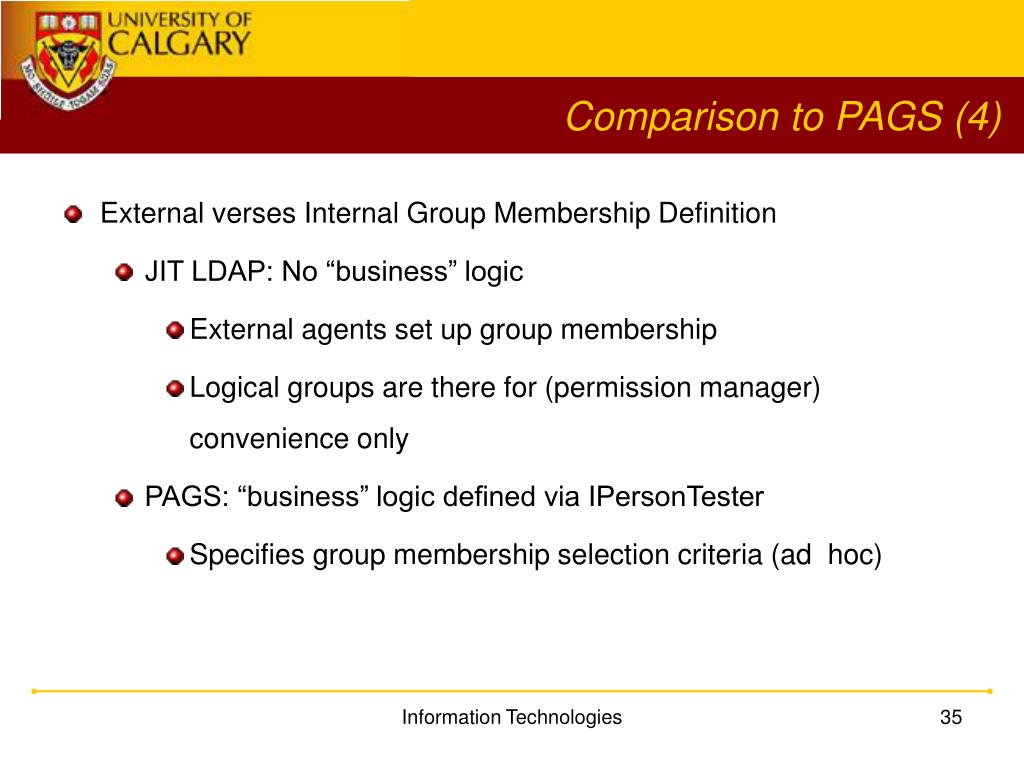

  35. Comparison to PAGS (4) • External verses Internal Group Membership Definition • JIT LDAP: No “business” logic • External agents set up group membership • Logical groups are there for (permission manager) convenience only • PAGS: “business” logic defined via IPersonTester • Specifies group membership selection criteria (ad hoc) Information Technologies

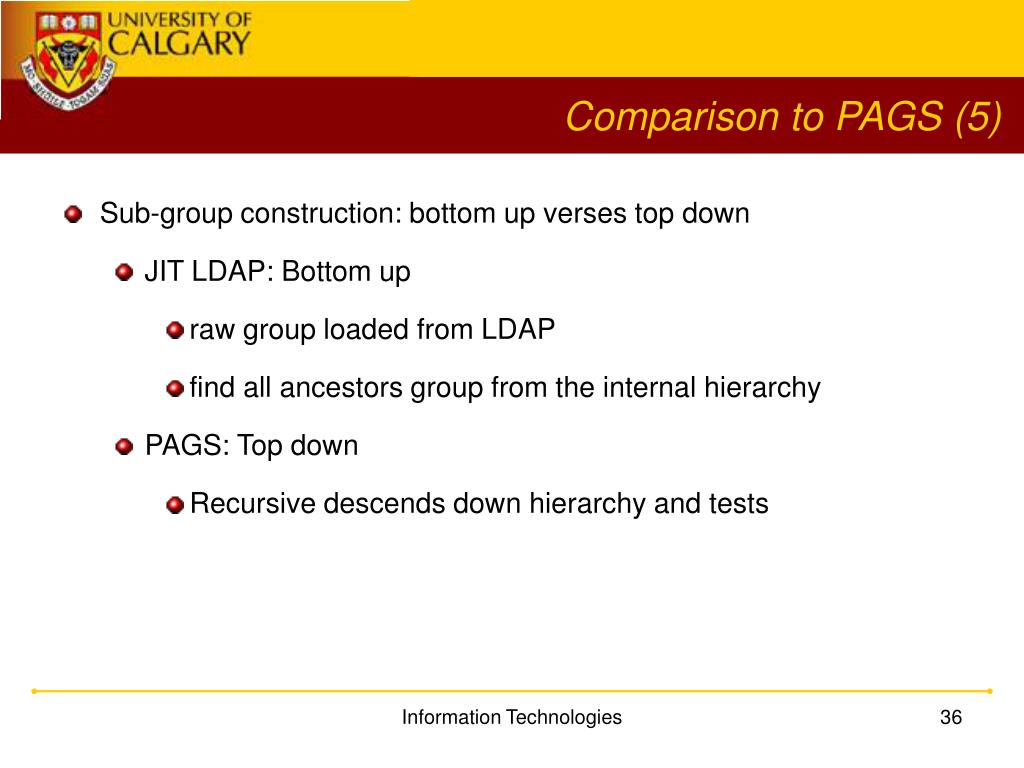

  36. Comparison to PAGS (5) • Sub-group construction: bottom up verses top down • JIT LDAP: Bottom up • raw group loaded from LDAP • find all ancestors group from the internal hierarchy • PAGS: Top down • Recursive descends down hierarchy and tests Information Technologies

  37. Institutional Group (IG) Institutional Group Implementation Issues Information Technologies

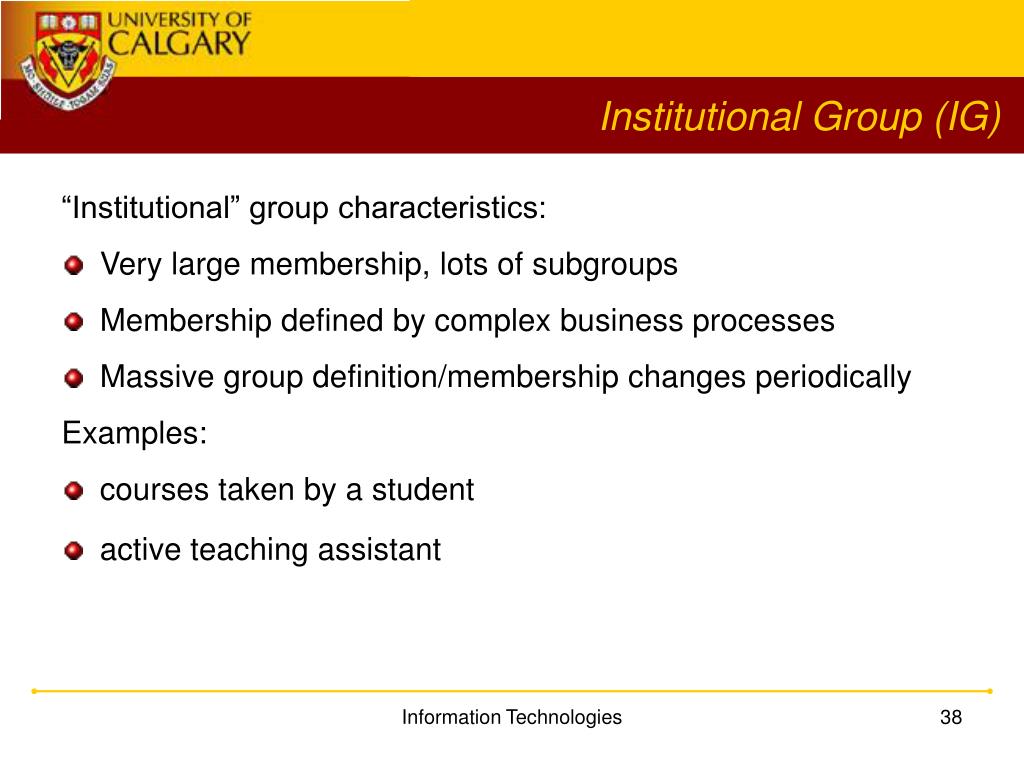

  38. Institutional Group (IG) “Institutional” group characteristics: • Very large membership, lots of subgroups • Membership defined by complex business processes • Massive group definition/membership changes periodically Examples: • courses taken by a student • active teaching assistant Information Technologies

  39. IG - Implementation Issues Our considerations and re-considerations • Just-in time or invariant • Group name space management • Group relationship • Automatic group membership – time sensitivity • Source of a person’s group information: pull or push model • Stateful or stateless group information Information Technologies

  40. IG - Just-In-Time verses Invariant Why Just-In-Time? • Performance – load as needed instead of all at group expansion • Availability – better suits 24x7 operation • Manageability • Delegation of administration/definition to external agents • Single authoritative definition source • Dynamic – group information can be pulled from or pushed by any source Information Technologies

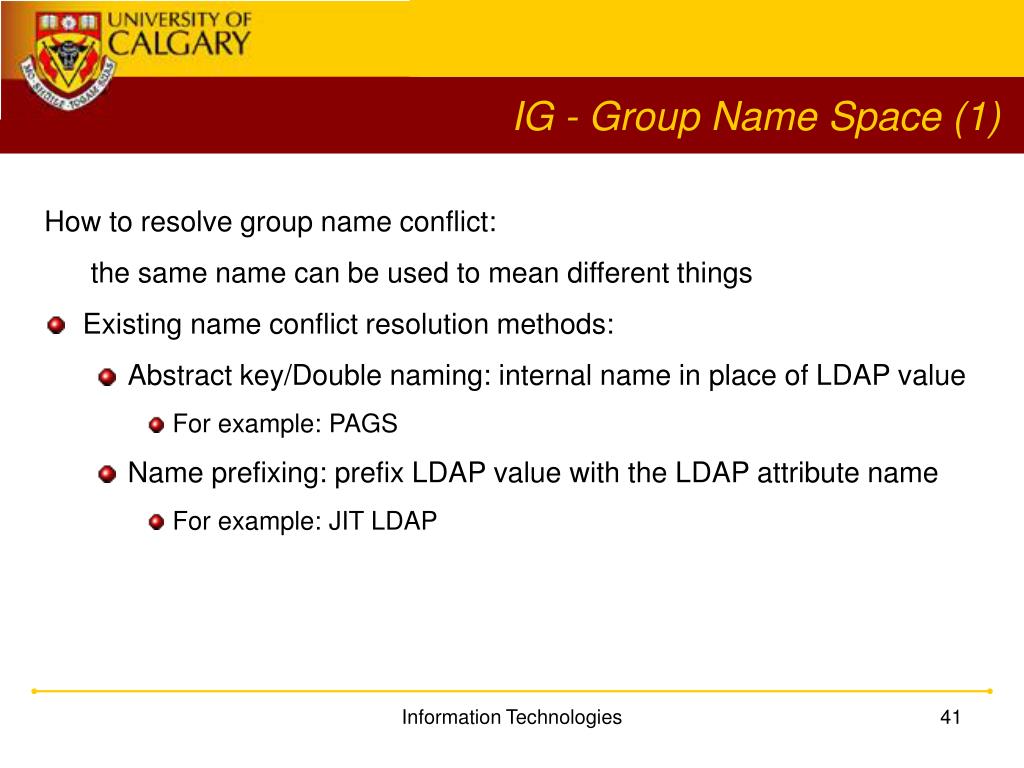

  41. IG - Group Name Space (1) How to resolve group name conflict: the same name can be used to mean different things • Existing name conflict resolution methods: • Abstract key/Double naming: internal name in place of LDAP value • For example: PAGS • Name prefixing: prefix LDAP value with the LDAP attribute name • For example: JIT LDAP Information Technologies

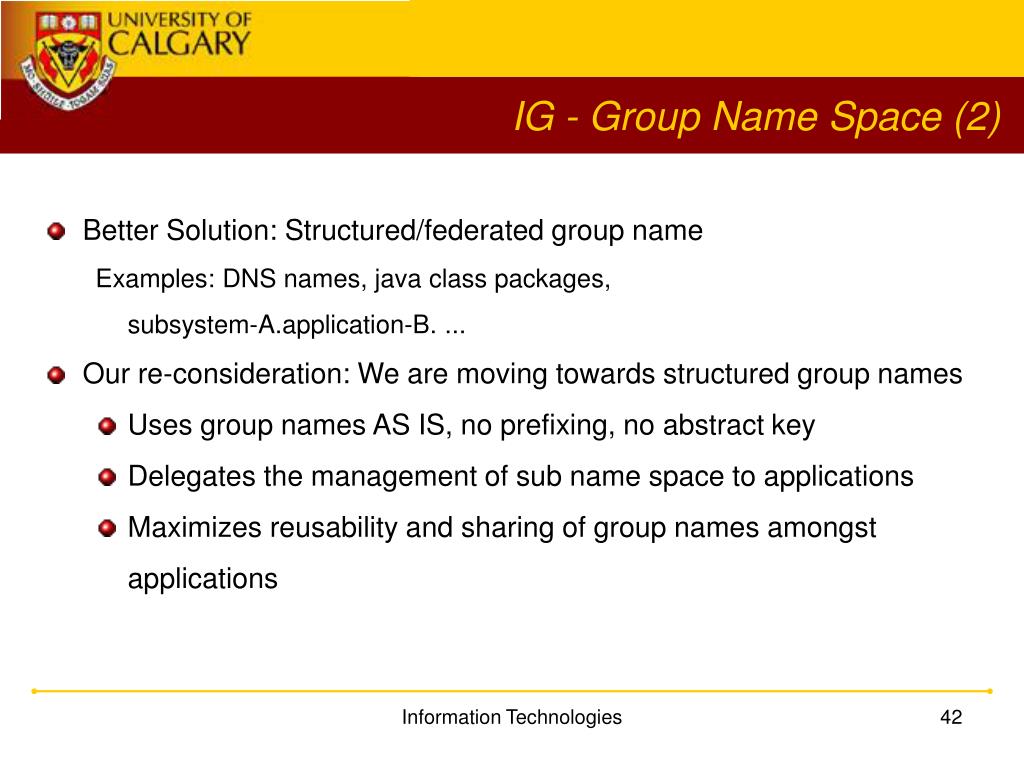

  42. IG - Group Name Space (2) • Better Solution: Structured/federated group name Examples: DNS names, java class packages, subsystem-A.application-B. ... • Our re-consideration: We are moving towards structured group names • Uses group names AS IS, no prefixing, no abstract key • Delegates the management of sub name space to applications • Maximizes reusability and sharing of group names amongst applications Information Technologies

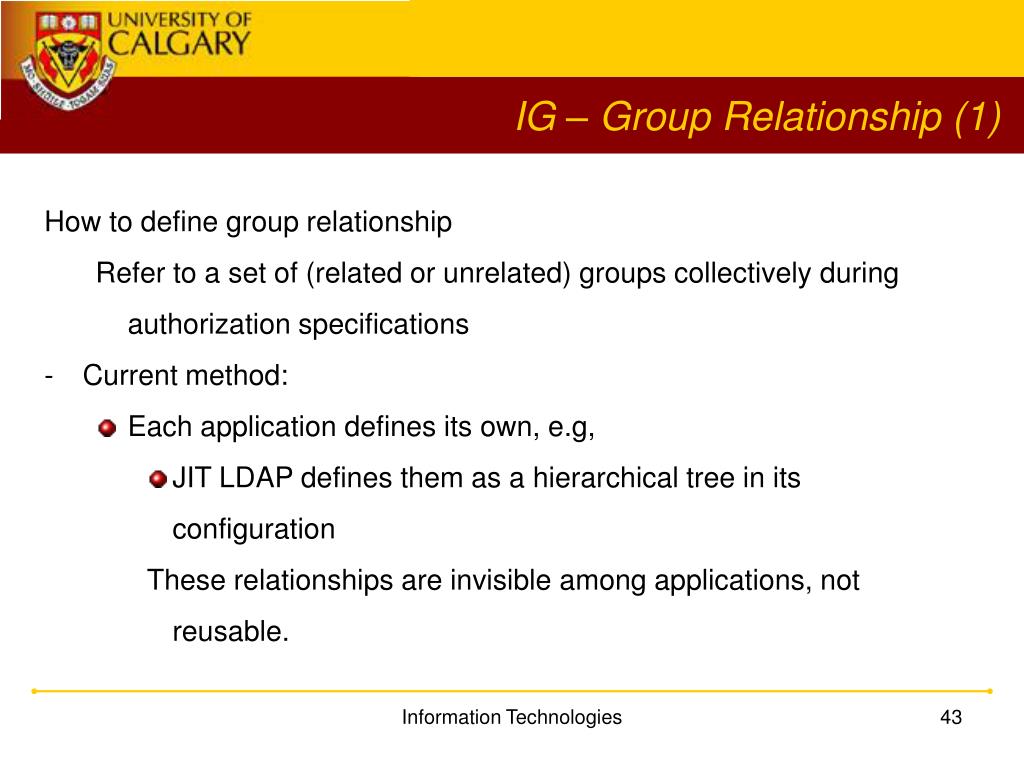

  43. IG – Group Relationship (1) How to define group relationship Refer to a set of (related or unrelated) groups collectively during authorization specifications • Current method: • Each application defines its own, e.g, • JIT LDAP defines them as a hierarchical tree in its configuration These relationships are invisible among applications, not reusable. Information Technologies

  44. IG – Group Relationship (2) • Simple methods to increase the reusability of sub-group relationships: • Explicitly spell out in LDAP • Implicitly derived from the structured name Information Technologies

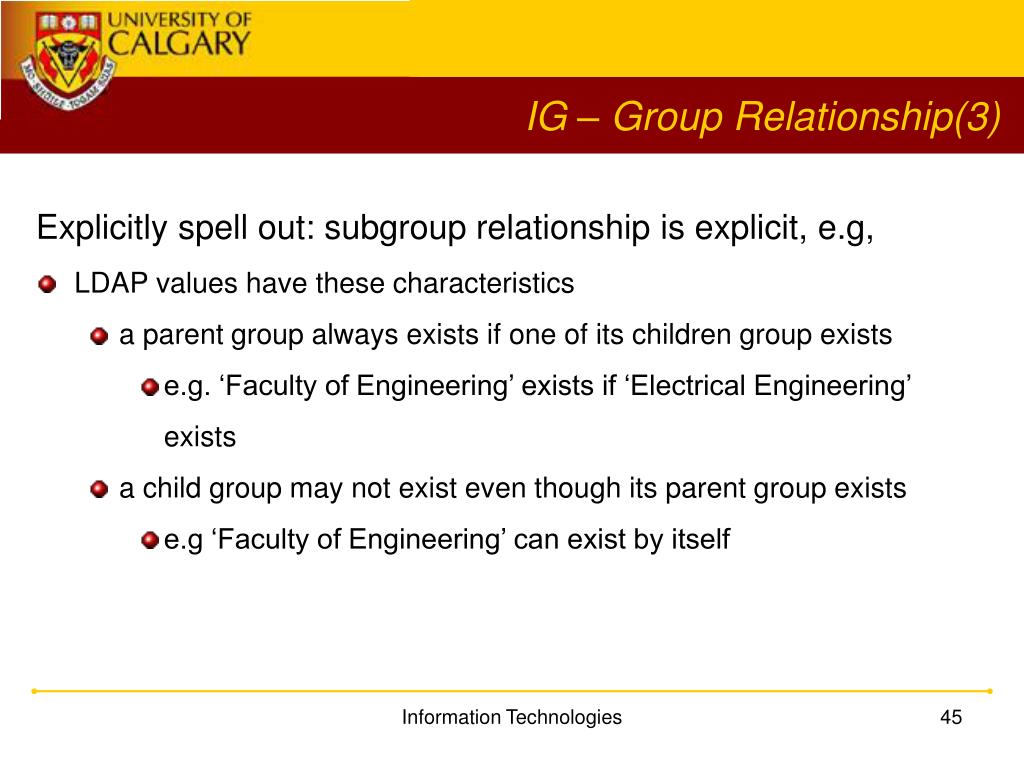

  45. IG – Group Relationship(3) Explicitly spell out: subgroup relationship is explicit, e.g, • LDAP values have these characteristics • a parent group always exists if one of its children group exists • e.g. ‘Faculty of Engineering’ exists if ‘Electrical Engineering’ exists • a child group may not exist even though its parent group exists • e.g ‘Faculty of Engineering’ can exist by itself Information Technologies

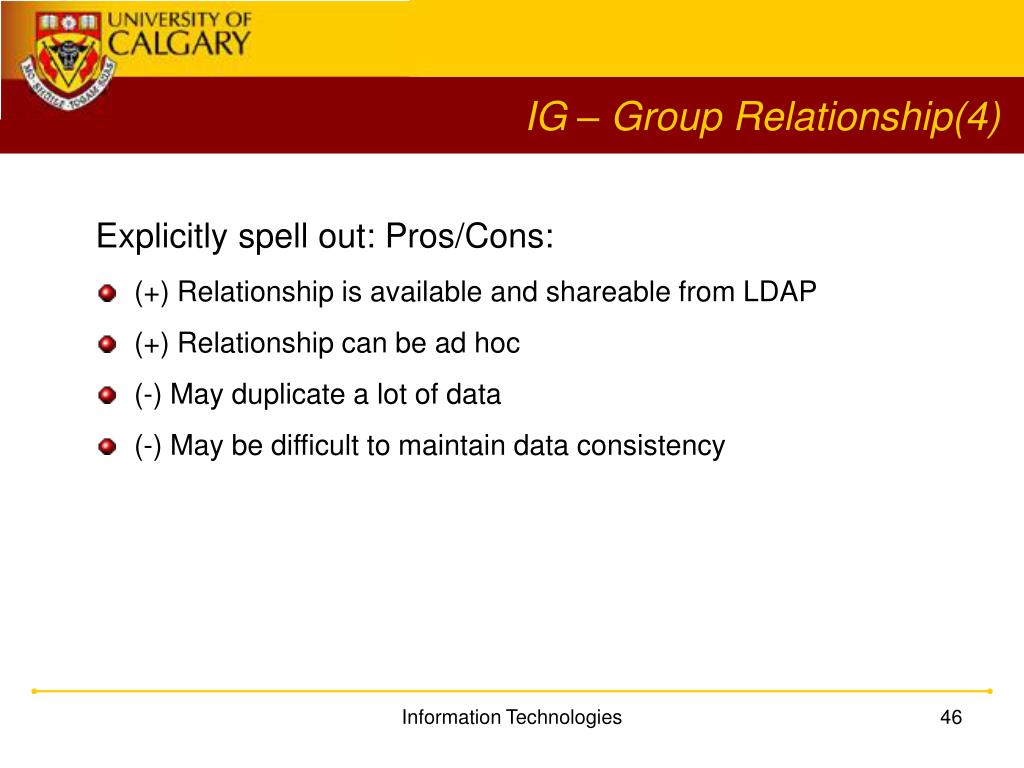

  46. IG – Group Relationship(4) Explicitly spell out: Pros/Cons: • (+) Relationship is available and shareable from LDAP • (+) Relationship can be ad hoc • (-) May duplicate a lot of data • (-) May be difficult to maintain data consistency Information Technologies

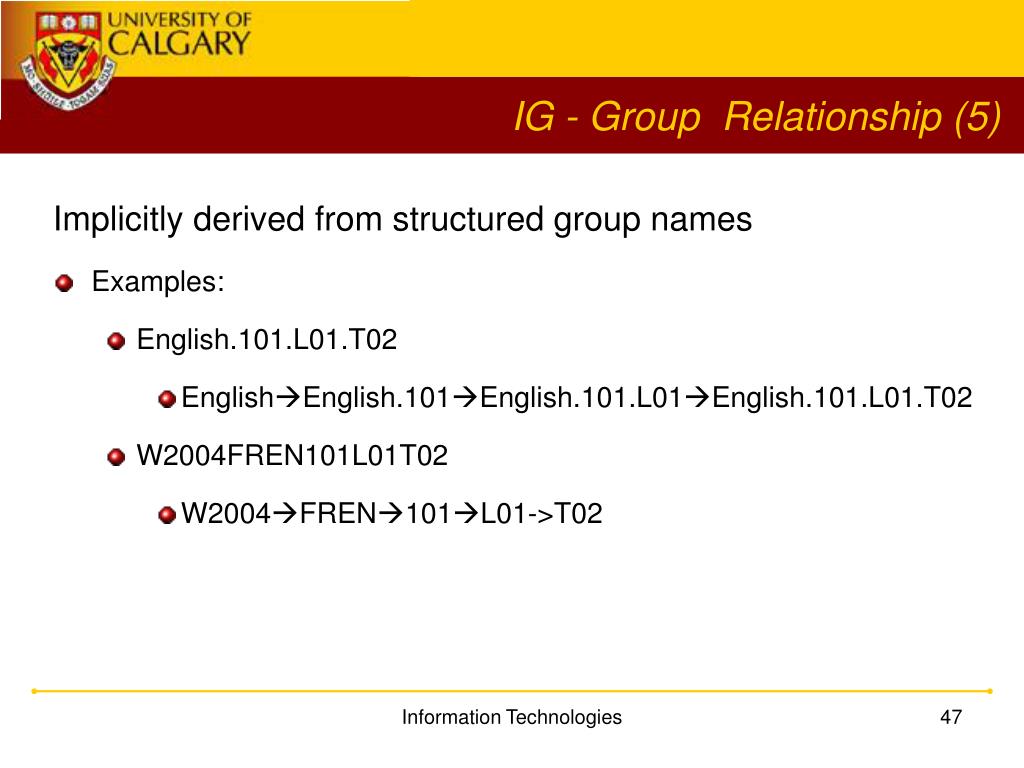

  47. IG - Group Relationship (5) Implicitly derived from structured group names • Examples: • English.101.L01.T02 • EnglishEnglish.101English.101.L01English.101.L01.T02 • W2004FREN101L01T02 • W2004FREN101L01->T02 Information Technologies

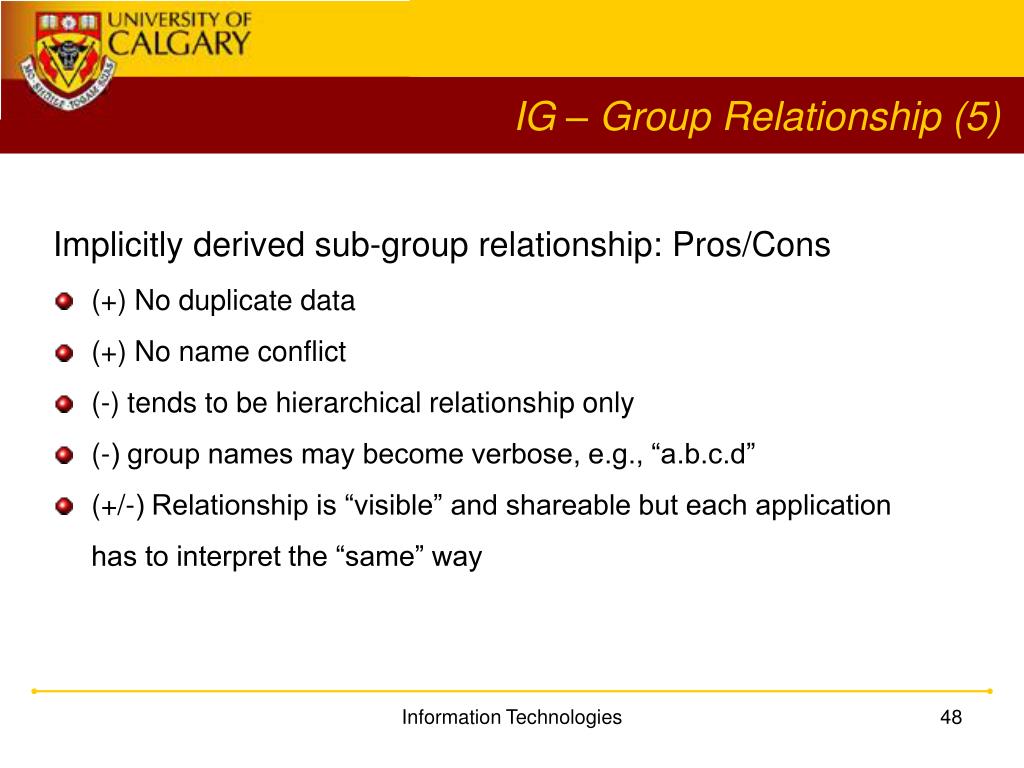

  48. IG – Group Relationship (5) Implicitly derived sub-group relationship: Pros/Cons • (+) No duplicate data • (+) No name conflict • (-) tends to be hierarchical relationship only • (-) group names may become verbose, e.g., “a.b.c.d” • (+/-) Relationship is “visible” and shareable but each application has to interpret the “same” way Information Technologies

  49. IG – Group Relationship (6) Re-consideration: • Original plan: • Use portal internal sub-group definition • Revised plan • Use structured names and explicitly spell out sub-group relationships Information Technologies

  50. IG – Time Sensitivity (1) When to add/drop group definition and membership massively • The role ceases but its function lingers • For example: Teaching assistant (TA) • Cease to be a TA at the end of term • Continue to perform some TA functions after the term ends, e.g., submit student grades etc • HR may not tread the person as TA but the faculty continues to do so Information Technologies
