  1. ITU-T security workshop Geneva, Switzerland, 9-10 February 2009 3GPP SA3 status Valtteri Niemi, SA3 Chairman Nokia Research Center Lausanne, Switzerland

  2. Outline • Some history and background • SAE/LTE security: some highlights • Home (e)NodeB security • Other work items

  3. Some history and background

  4. Some history (1/2) • For 3GPP Release 99 (frozen 2000), WG SA3 created 19 new specifications, e.g. • TS 33.102 “3G security; Security architecture” • 5 specifications (out of these 19) originated by ETSI SAGE, e.g. TS 35.202 “KASUMI specification” • For Release 4 (frozen 2001), SA3 was kept busy with GERAN security while ETSI SAGE originated again 5 new specifications, e.g. • TS 35.205-208 for MILENAGE algorithm set • Release 5 (frozen 2002): SA3 added 3 new specifications, e.g.: • TS 33.203 “IMS security” • TS 33.210 “Network domain security: IP layer”

  5. Some history (2/2) • Release 6 (frozen 2005): SA3 added 17 new specifications, e.g.: • TS 33.246 “Security of MBMS” • TS 33.220-222 “Generic Authentication Architecture” • Release 7 (frozen 2007): SA3 added 13 new specifications • ETSI SAGE created 5 specifications for UEA2 & UIA2 (incl. SNOW 3G spec) (TS 35.215-218, TR 35.919) • Release 8 (frozen 2008): SA3 has added 5 new specifications, e.g.: • TS 33.401 “SAE: Security architecture” • TS 33.402 “SAE: Security with non-3GPP accesses” • (1-2 more TR’s maybe still be included in Rel-8)

  6. SAE/LTE security (Rel-8): some highlights

  7. SAE/LTE: What and why? SAE = System Architecture Evolution LTE = Long Term Evolution (of radio networks) • LTE offers higher data rates, up to 100 Mb/sec • SAE offers optimized (flat) IP-based architecture • Technical terms: • E-UTRAN = Evolved UTRAN (LTE radio network) • EPC = Evolved Packet Core (SAE core network) • EPS = Evolved Packet System ( = RAN + EPC )

  8. Implications on security • Flat architecture: • All radio access protocols terminate in one node: eNB • IP protocols also visible in eNB • Security implications due to • Architectural design decisions • Interworking with legacy and non-3GPP networks • Allowing eNB placement in untrusted locations • New business environments with less trusted networks involved • Trying to keep security breaches as local as possible • As a result (when compared to UTRAN/GERAN): • Extended Authentication and Key Agreement • More complex key hierarchy • More complex interworking security • Additional security for eNB (compared to NB/BTS/RNC)

  9. Home (e) Node B security

  10. Operator’s core network UE HeNB insecure link SGW OAM Home (e)NB architecture Figure from draft TR 33.820 One of the key concepts: Closed Subscriber Group

  11. Threats • Compromise of HeNB credentials • e.g. cloning of credentials • Physical attacks on HeNB • e.g. physical tampering • Configuration attacks on HeNB • e.g. fraudulent software updates • Protocol attacks on HeNB • e.g. man-in-the-middle attacks • Attacks against the core network • e.g. Denial of service • Attacks against user data and identity privacy • e.g. by eavesdropping • Attacks against radio resources and management

  12. Other features in past releases of 3GPP

  13. IMS home IMS visited PS domain IMS (SIP) security (Rel-5) authentication & key agreement network domain security security mechanism agreement integrity protection R99 access security

  14. Release 6 highlights

  15. WLAN interworking in 3GPP • WLAN access zone can be connected to cellular core network • Shared subscriber database & charging & authentication (WLAN Direct IP access) • Shared services (WLAN 3GPP IP Access) • Service continuity is the next step

  16. BGW: BearerGateway (first hop IP-router) BM-SC: Broadcast/Multicast Service Center BSF: Bootstrapping Server Function MBMS Security Architecture (node layout) Content Server Mobile Operator Network BM-SC Content Server BSF Internet BGW BM-SC can reside in home or visited network

  17. Generic Authentication Architecture (GAA) • GAA consists of three parts (Rel-6): • TS 33.220 Generic Bootstrapping Architecture (GBA) offers generic authentication capability for various applications based on shared secret. Subscriber authentication in GBA is based on HTTP Digest AKA [RFC 3310]. • TS 33.221 Support of subscriber certificates: PKI Portal issues subscriber certificates for UEs and delivers an operator CA certificates. The issuing procedure is secured by using shared keys from GBA. • TS 33.222 Access to Network Application Function using HTTPS is also based on GBA. Figure from 3GPP TR 33.919

  18. Release 7 & 8 highlights

  19. Release 7 & 8: security enhancements • Key establishment for secure UICC-terminal channel (TS 33.110) • Applies, e.g. for secure UICC-terminal channel specified by ETSI SCP • Built on top of GBA • Key establishment between UICC hosting device and a remote device (TS 33.259) • Liberty-3GPP security interworking • GBA push (TS 33.223, Rel-8) • Applies to several OMA specified features (e.g. BCAST) • Network domain security: Authentication Framework (TS 33.310) enhanced for TLS support • Withdrawal of A5/2 algorithm

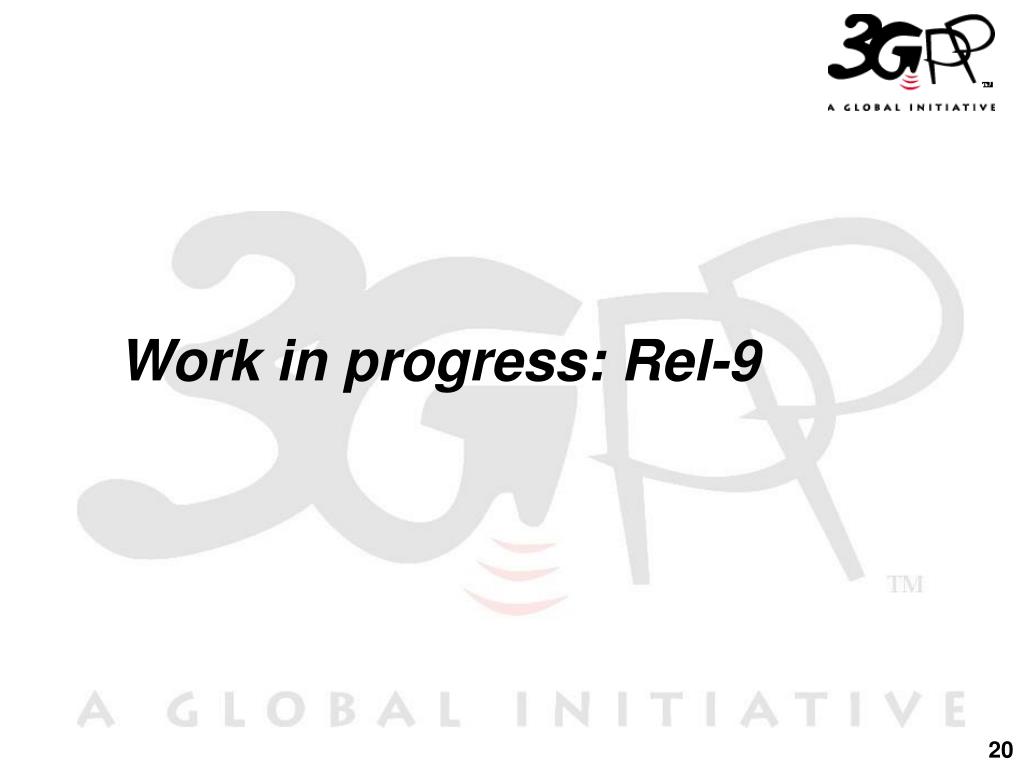

  20. Work in progress: Rel-9

  21. Rel-9 work items • SAE/LTE: emergence call security • Media security • End-to-end and end-to-middle protection of media independently of access technology • Protection against unsolicited communications in IMS • Remote management of USIM/ISIM for machine-to-machine communications • Security of Earthquake and Tsunami Warning System

  22. For more information: www.3gpp.org
