  1. Yahoo Audience Expansion: Migration from Hadoop Streaming to Spark Gavin Li, Jaebong Kim, Andy Feng Yahoo

  2. Agenda • Audience Expansion Spark Application • Spark scalability: problems and our solutions • Performance tuning

  3. How we built audience expansion on Spark audience expansion

  4. Audience Expansion • Train a model to find users perform similar as sample users • Find more potential “converters”

  5. System • Large scale machine learning system • Logistic Regression • TBs input data, up to TBs intermediate data • Hadoop pipeline is using 30000+ mappers, 2000 reducers, 16 hrs run time • All hadoopstreaming, ~20 jobs • Use Spark to reduce latency and cost

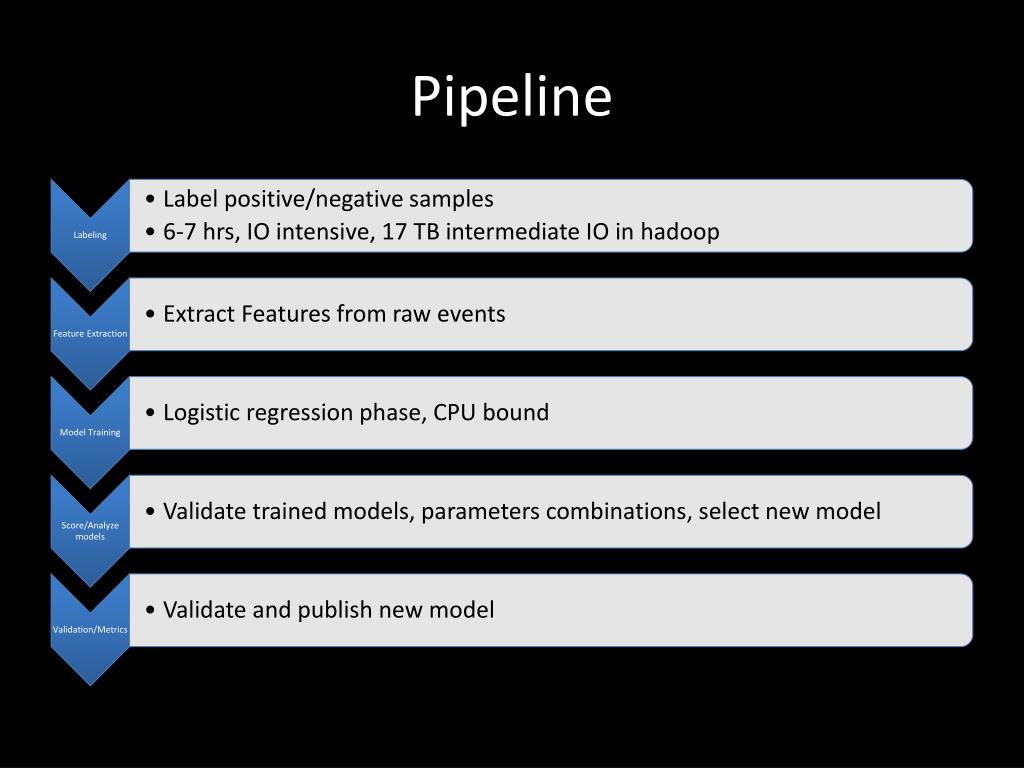

  6. Pipeline

  7. How to adopt to Spark efficiently? • Very complicated system • 20+ hadoop streaming map reduce jobs • 20k+ lines of code • Tbs data, person.monthsto do data validation • 6+ person, 3 quarters to rewritethe system based on Scala from scratch

  8. Our migrate solution • Build transition layer automatically convert hadoop streaming jobs to Spark job • Don’t need to change any Hadoop streaming code • 2 person*quarter • Private Spark

  9. ZIPPO Audience Expansion Pipeline 20+ Hadoop Streaming jobs ZIPPO: Hadoop Streaming Over Spark Hadoop Streaming Spark HDFS

  10. ZIPPO • A layer (zippo) between Spark and application • Implemented all Hadoop Streaming interfaces • Migrate pipeline without code rewriting • Can focus on rewriting perfbottleneck • Plan to open source Audience Expansion Pipeline Hadoop Streaming ZIPPO: Hadoop Streaming Over Spark Spark HDFS

  11. ZIPPO - Supported Features • Partition related • HadoopPartitioner class (-partitioner) • Num.map.key.fields, num.map.parition.fields • Distributed cache • -cacheArchive, -file, -cacheFile • Independent working directory for each task instead of each executor • HadoopStreaming Aggregation • Input Data Combination (to mitigate many small files) • Customized OutputFormat, InputFormat

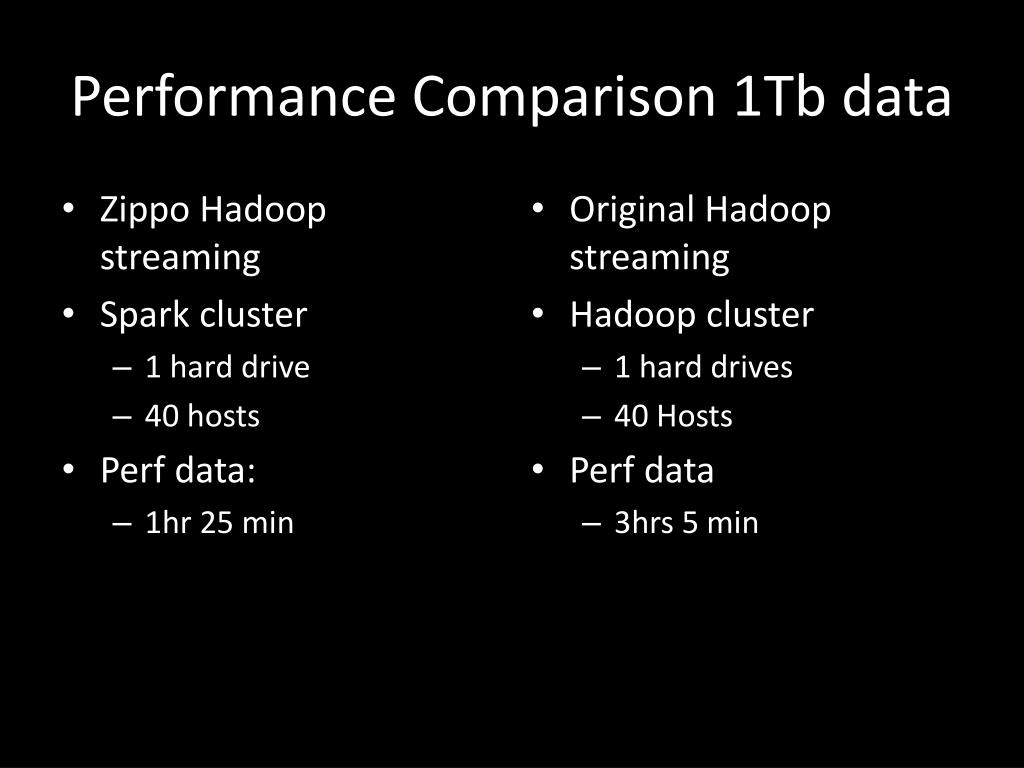

  12. Performance Comparison 1Tb data • Zippo Hadoop streaming • Spark cluster • 1 hard drive • 40 hosts • Perf data: • 1hr 25 min • Original Hadoop streaming • Hadoopcluster • 1 hard drives • 40 Hosts • Perf data • 3hrs 5 min

  13. Spark Scalability

  14. Spark Shuffle • Mapper side of shuffle write all the output to disk(shuffle files) • Data can be large scale, so not able to all hold in memory • Reducers transfer all the shuffle files for each partition, then process

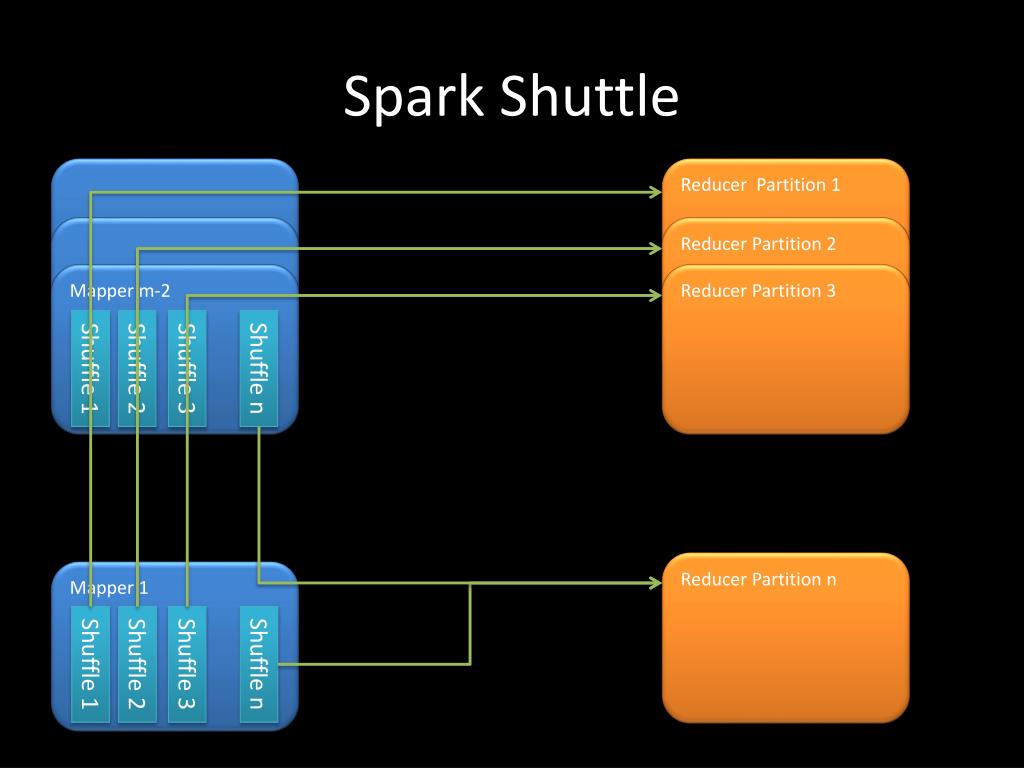

  15. Spark Shuttle Reducer Partition 1 Reducer Partition 2 Mapper m-2 Reducer Partition 3 Shuffle 1 Shuffle 2 Shuffle 3 Shuffle n Reducer Partition n Mapper 1 Shuffle 1 Shuffle 2 Shuffle 3 Shuffle n

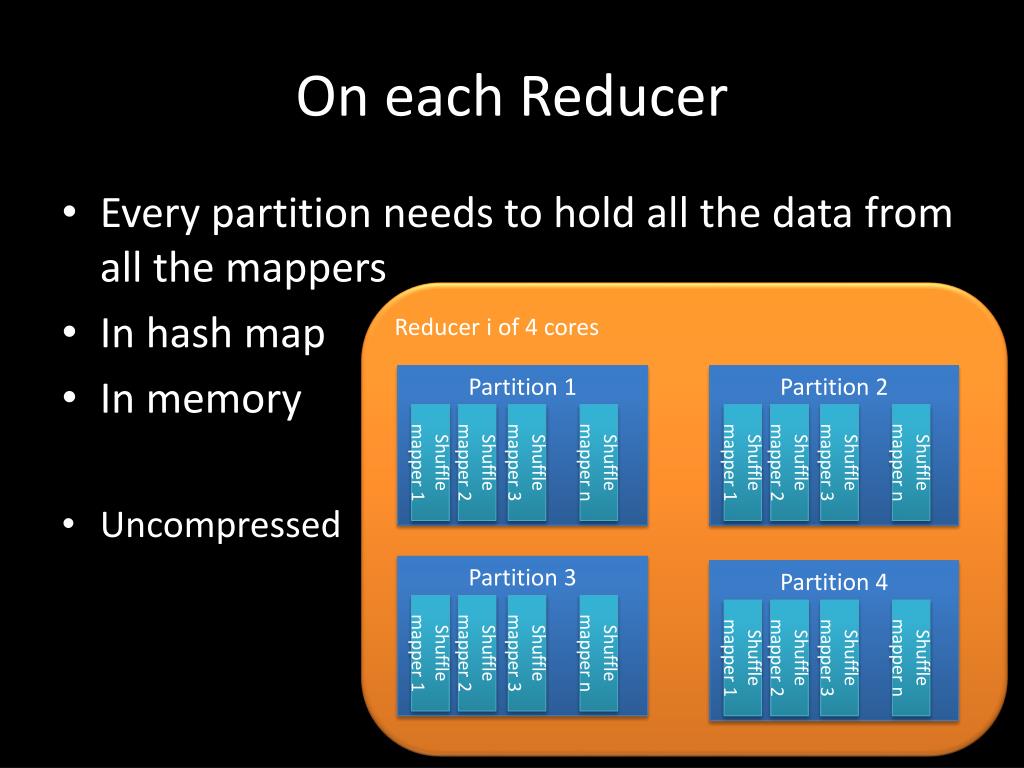

  16. On each Reducer • Every partition needs to hold all the data from all the mappers • In hash map • In memory • Uncompressed Reducer i of 4 cores Partition 1 Partition 2 Shuffle mapper 1 Shuffle mapper 2 Shuffle mapper 3 Shuffle mapper n Shuffle mapper 1 Shuffle mapper 2 Shuffle mapper 3 Shuffle mapper n Partition 3 Partition 4 Shuffle mapper 1 Shuffle mapper 2 Shuffle mapper 3 Shuffle mapper n Shuffle mapper 1 Shuffle mapper 2 Shuffle mapper 3 Shuffle mapper n

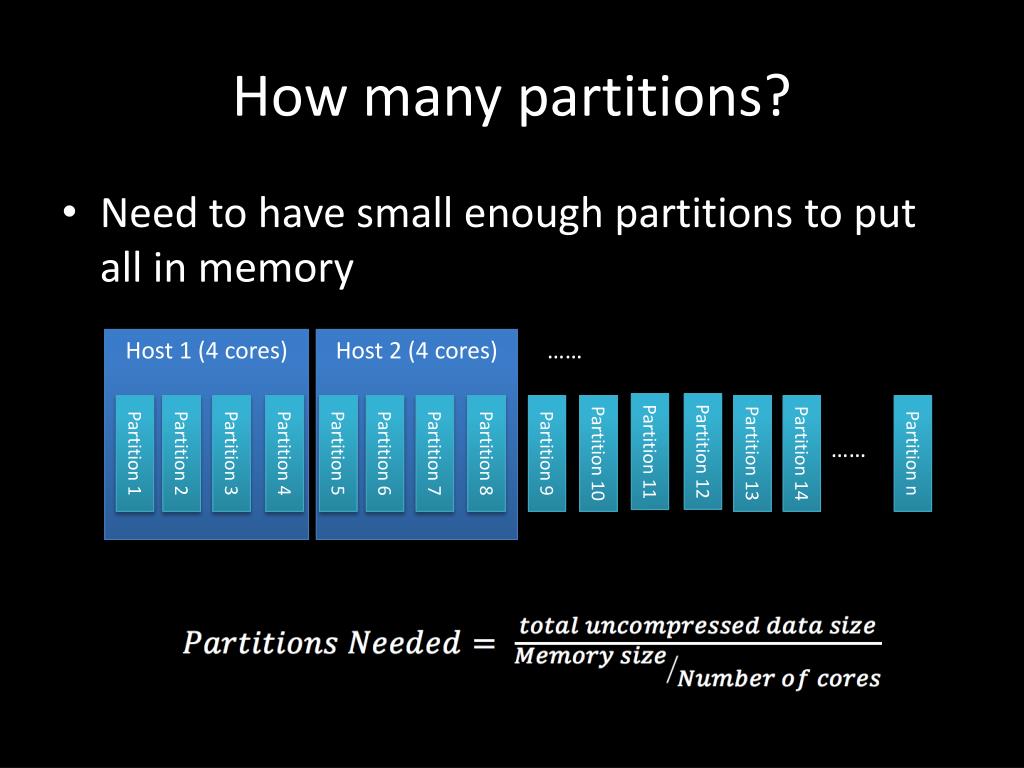

  17. How many partitions? • Need to have small enough partitions to put all in memory Host 2 (4 cores) Host 1 (4 cores) …… Partition 12 Partition 11 Partition 1 Partition 2 Partition 3 Partition 4 Partition 5 Partition 6 Partition 7 Partition 8 Partition 9 Partition 10 Partition 13 Partition 14 Partition n ……

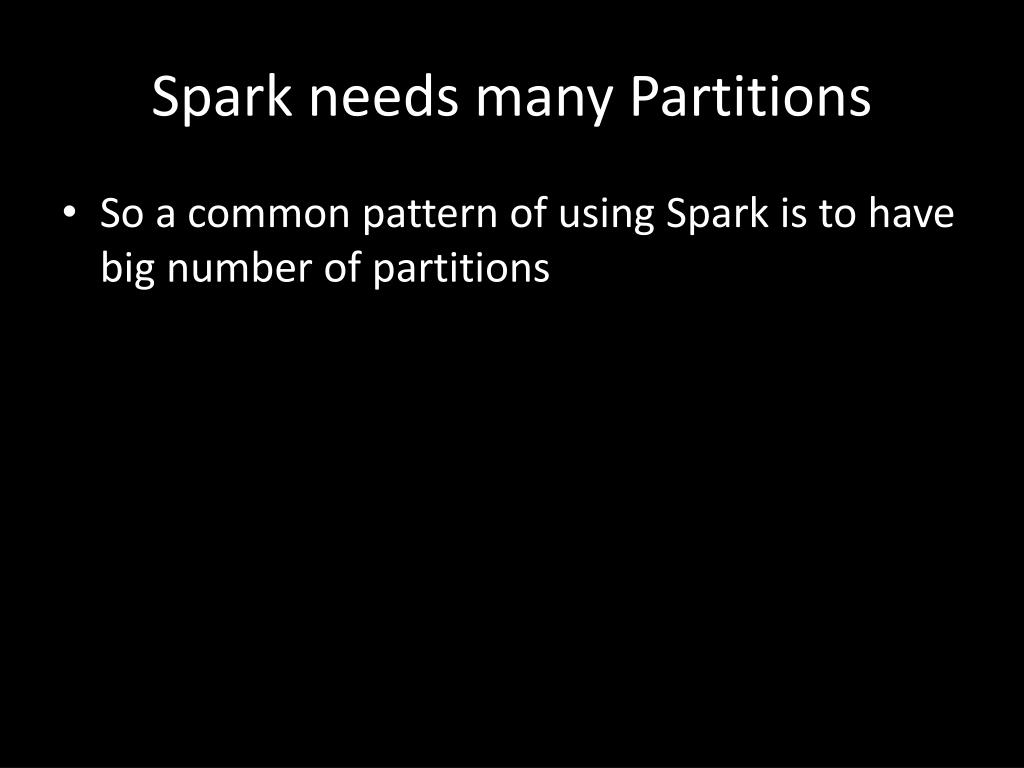

  18. Spark needs many Partitions • So a common pattern of using Spark is to have big number of partitions

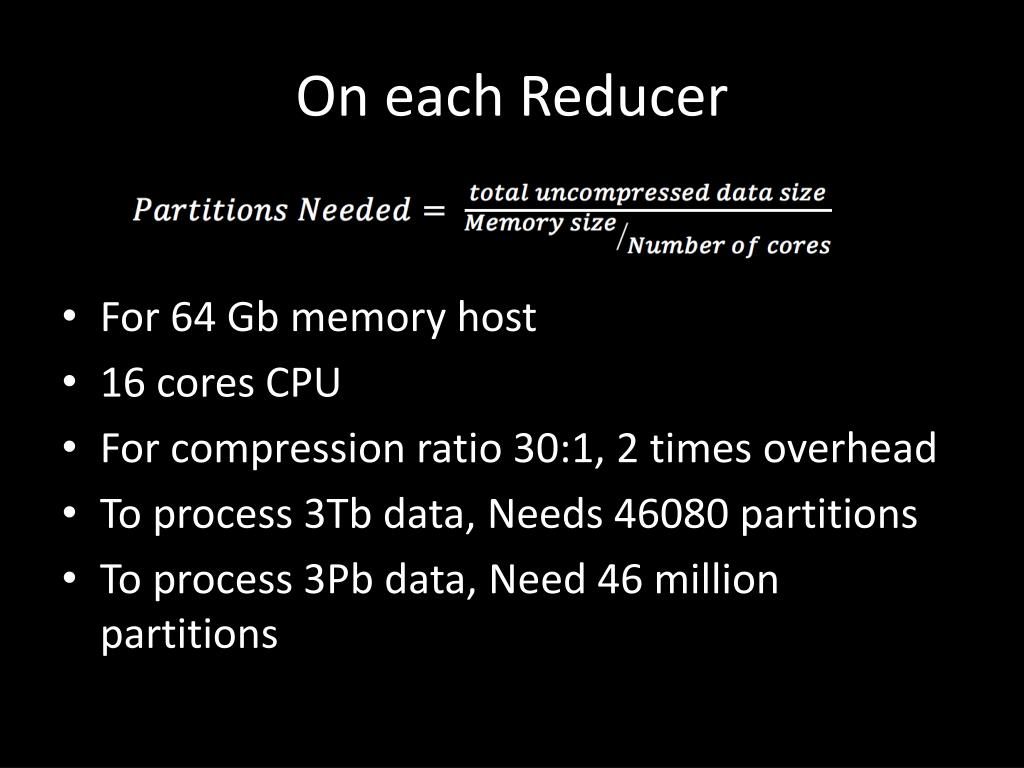

  19. On each Reducer • For 64 Gb memory host • 16 cores CPU • For compression ratio 30:1, 2 times overhead • To process 3Tb data, Needs 46080 partitions • To process 3Pb data, Need 46 million partitions

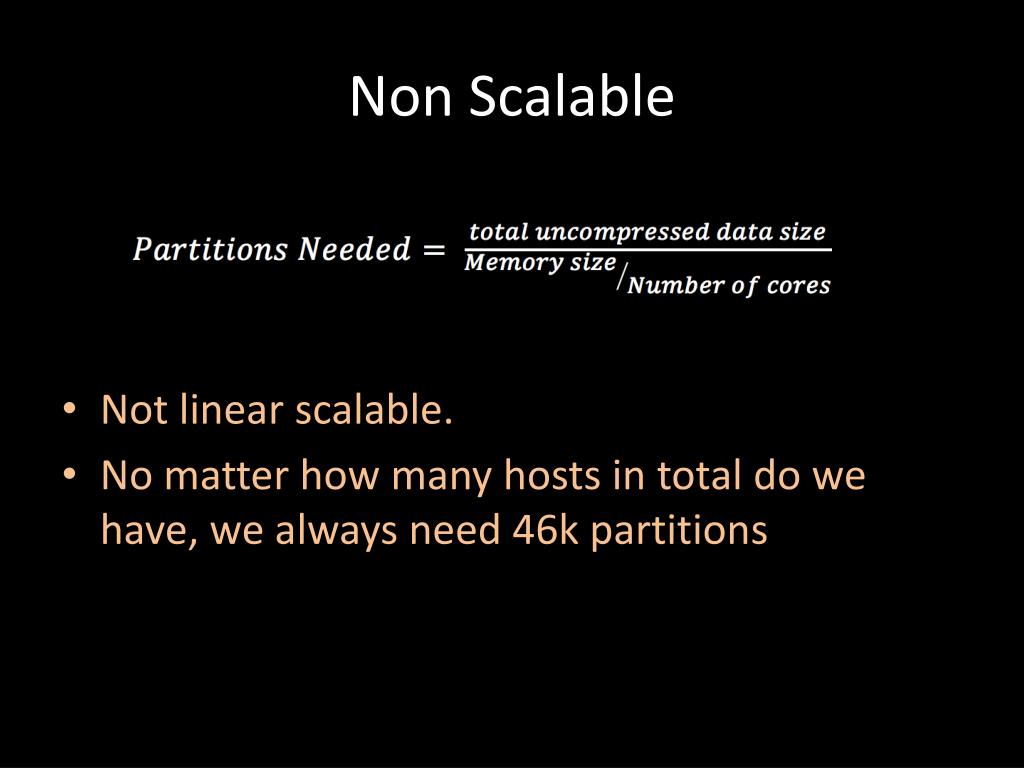

  20. Non Scalable • Not linear scalable. • No matter how many hosts in total do we have, we always need 46k partitions

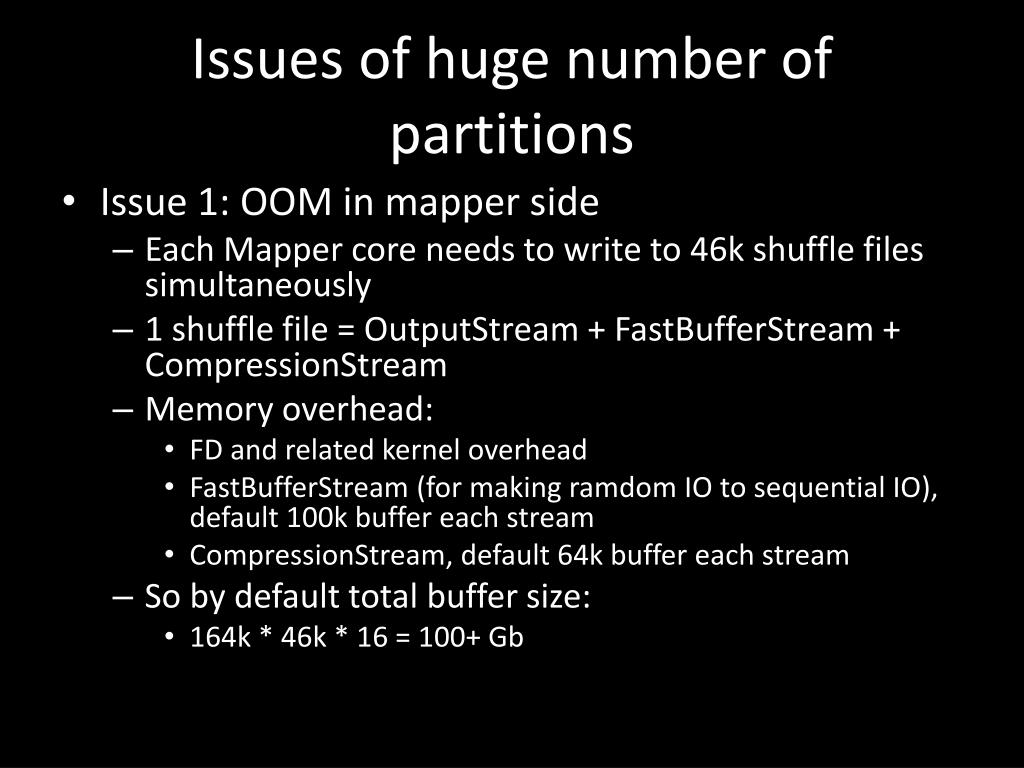

  21. Issues of huge number of partitions • Issue 1: OOM in mapper side • Each Mapper core needs to write to 46k shuffle files simultaneously • 1 shuffle file = OutputStream + FastBufferStream + CompressionStream • Memory overhead: • FD and related kernel overhead • FastBufferStream(for making ramdom IO to sequential IO), default 100k buffer each stream • CompressionStream, default 64k buffer each stream • So by default total buffer size: • 164k * 46k * 16 = 100+ Gb

  22. Issues of huge number of paritions • Our solution to Mapper OOM • Set spark.shuffle.file.buffer.kb to 4k for FastBufferStream (kernel block size) • Based on our Contributed patch https://github.com/mesos/spark/pull/685 • Set spark.storage.compression.codec to spark.storage.SnappyCompressionCodec to enable snappy to reduce footprint • Set spark.snappy.block.size to 8192 to reduce buffer size (while snappy can still have good compression ratio) • Total buffer size after this: • 12k * 46k * 16 = 10Gb

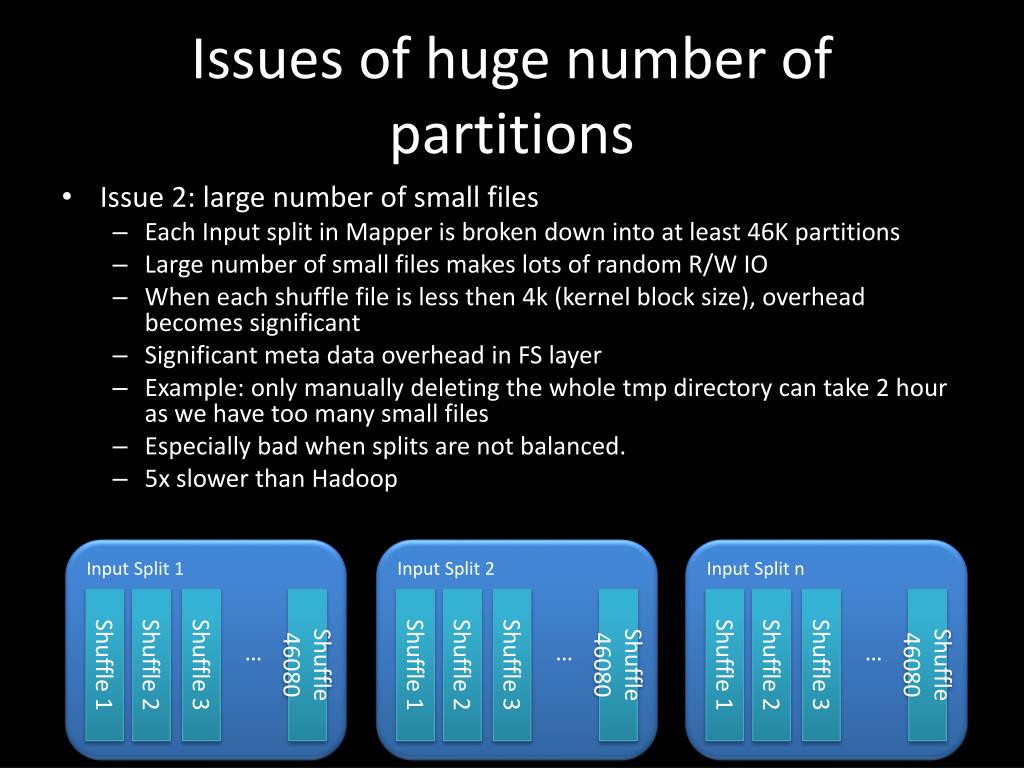

  23. Issues of huge number of partitions • Issue 2: large number of small files • Each Input split in Mapper is broken down into at least 46K partitions • Large number of small files makes lots of random R/W IO • When each shuffle file is less then 4k (kernel block size), overhead becomes significant • Significant meta data overhead in FS layer • Example: only manually deleting the whole tmp directory can take 2 hour as we have too many small files • Especially bad when splits are not balanced. • 5x slower than Hadoop Input Split 1 Input Split 2 Input Split n Shuffle 1 Shuffle 2 Shuffle 3 Shuffle 46080 Shuffle 1 Shuffle 2 Shuffle 3 Shuffle 46080 Shuffle 1 Shuffle 2 Shuffle 3 Shuffle 46080 … … …

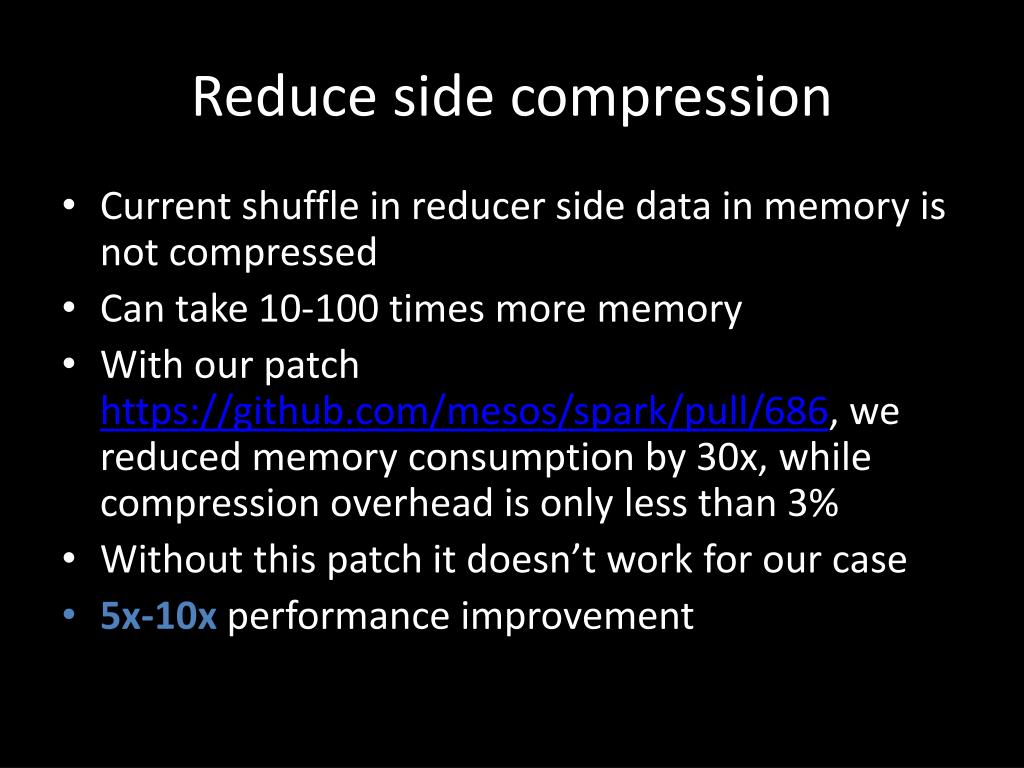

  24. Reduce side compression • Current shuffle in reducer side data in memory is not compressed • Can take 10-100 times more memory • With our patch https://github.com/mesos/spark/pull/686, we reduced memory consumption by 30x, while compression overhead is only less than 3% • Without this patch it doesn’t work for our case • 5x-10x performance improvement

  25. Reduce side compression • Reducer side • compression – 1.6k files • Noncompression – 46k shuffle files

  26. Reducer Side Spilling Reduce Compression Bucket 1 Compression Bucket 2 Compression Bucket 3 Compression Bucket n … Spill 1 Spill 2 Spill n

  27. Reducer Side Spilling • Spills the over-size data to Disk in the aggregation hash table • Spilling - More IO, more sequential IO, less seeks • All in mem – less IO, more random IO, more seeks • Fundamentally resolved Spark’s scalability issue

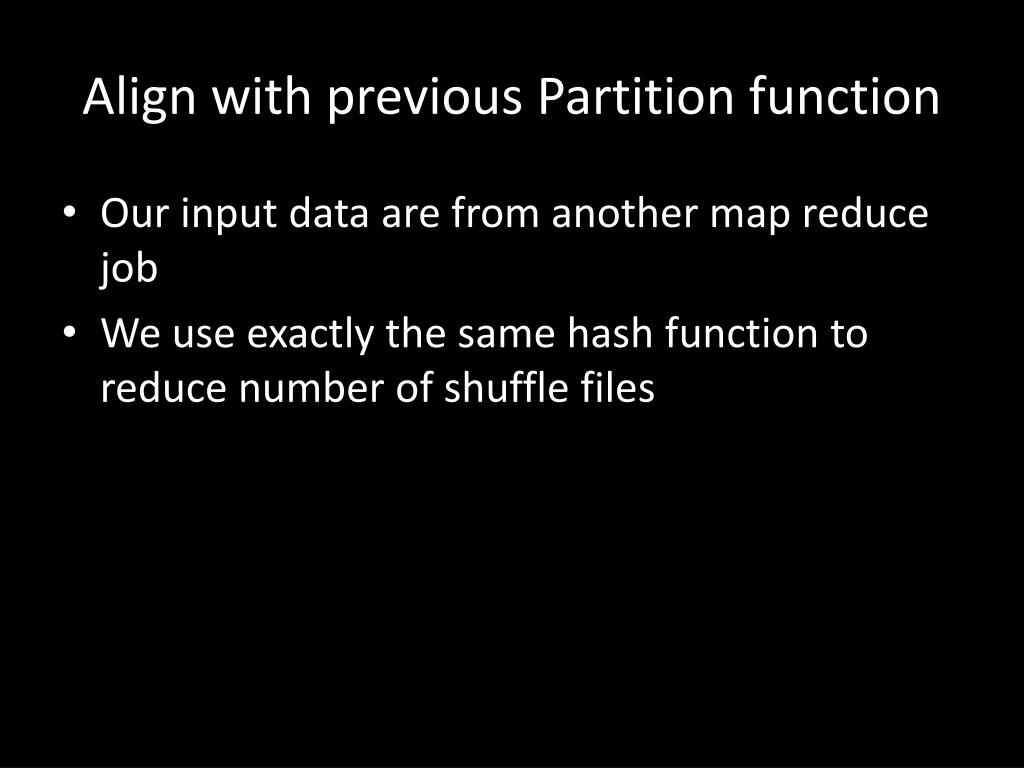

  28. Align with previous Partition function • Our input data are from another map reduce job • We use exactly the same hash function to reduce number of shuffle files

  29. Align with previous Partition function • New hash function, More even distribution Previous Job Generating Input data Spark Job Input Data 0 Key 0, 4, 8… shuffule file 0 shuffule file 0 shuffule file 1 shuffule file 1 shuffule file 2 shuffule file 2 Key 1,5,9… shuffule file 3 shuffule file 3 shuffule file 4 Mod 4 Mod 5 shuffule file 4 Key 2, 6, 10… shuffule file 0 shuffule file 0 shuffule file 1 shuffule file 1 shuffule file 2 shuffule file 2 Key 3, 7, 11… shuffule file 3 shuffule file 3 shuffule file 4 shuffule file 4

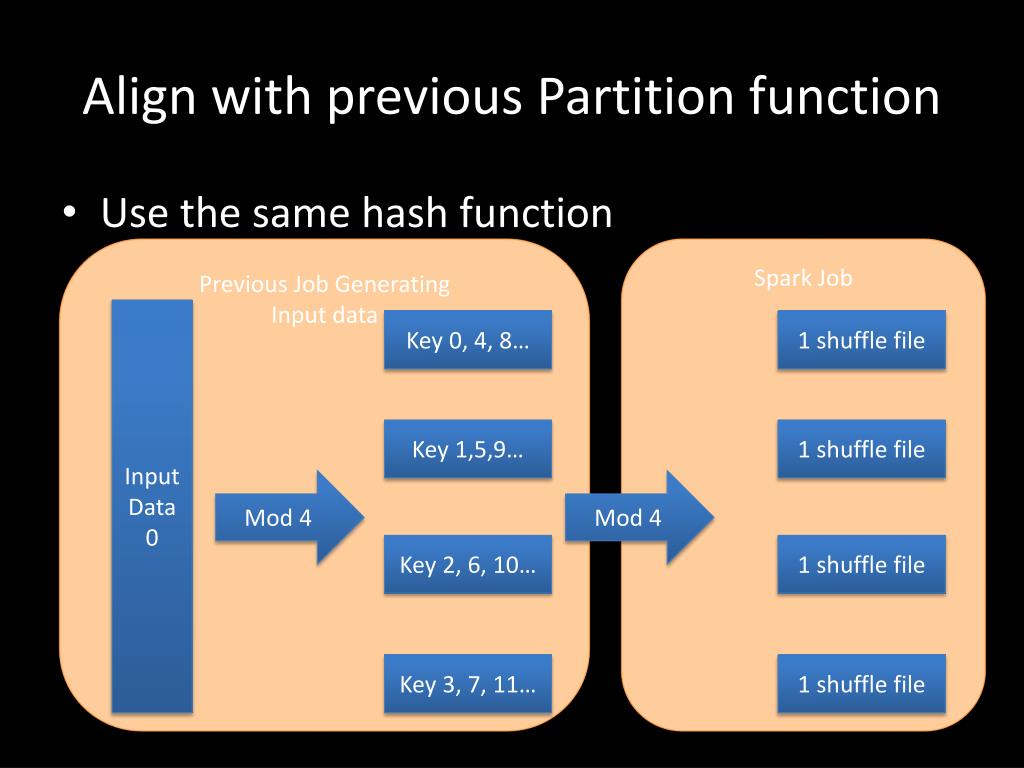

  30. Align with previous Partition function • Use the same hash function Previous Job Generating Input data Spark Job Input Data 0 Key 0, 4, 8… 1 shuffle file Key 1,5,9… 1 shuffle file Mod 4 Mod 4 Key 2, 6, 10… 1 shuffle file Key 3, 7, 11… 1 shuffle file

  31. Align with previous Hash function • Our Case: • 16m shuffle files, 62kb on average (5-10x slower) • 8k shuffle files, 125mb on average • Several different input data sources • Partition function from the major one

  32. Performance tunning

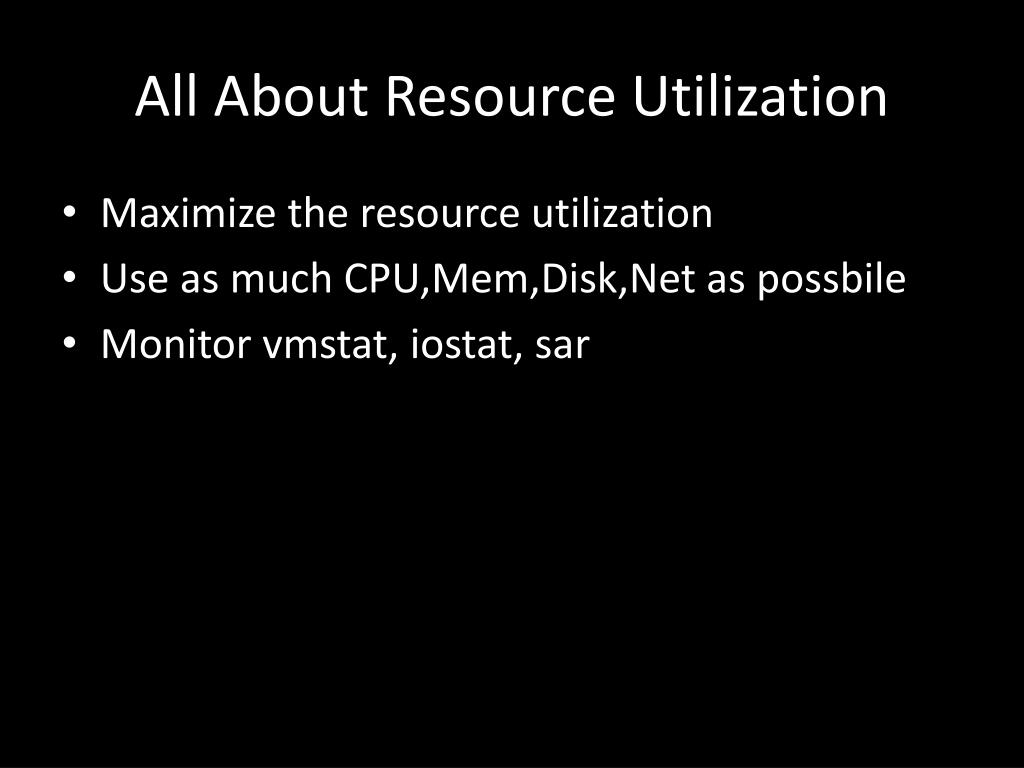

  33. All About Resource Utilization • Maximize the resource utilization • Use as much CPU,Mem,Disk,Net as possbile • Monitor vmstat, iostat, sar

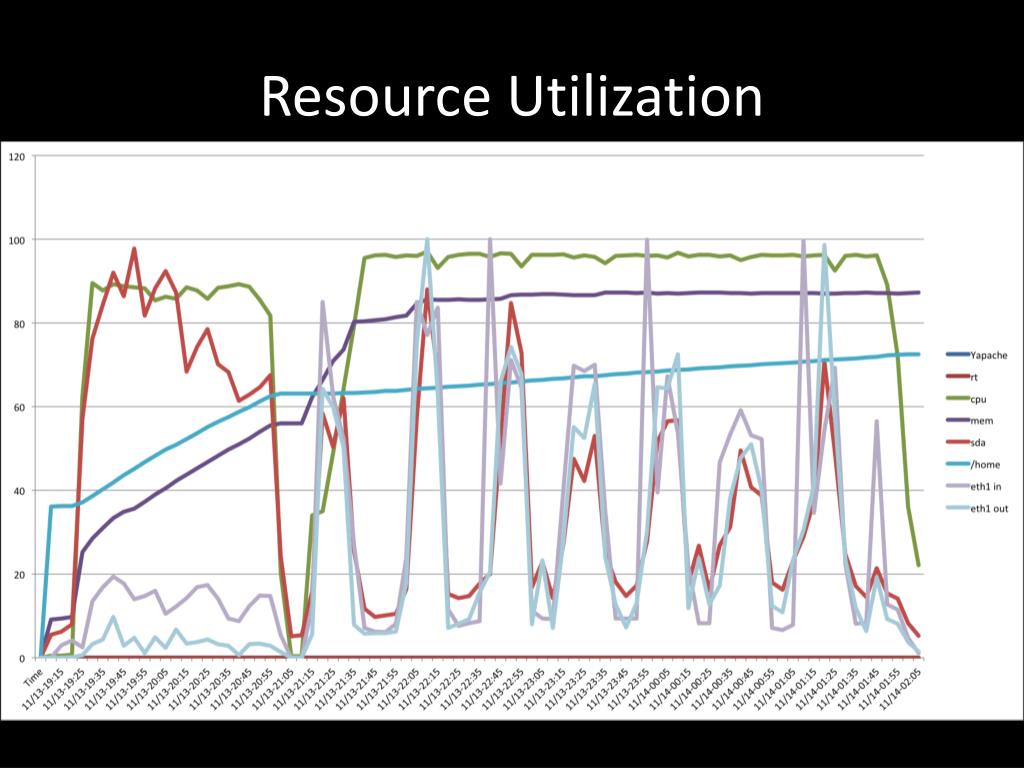

  34. Resource Utilization • (This is old diagram, to update)

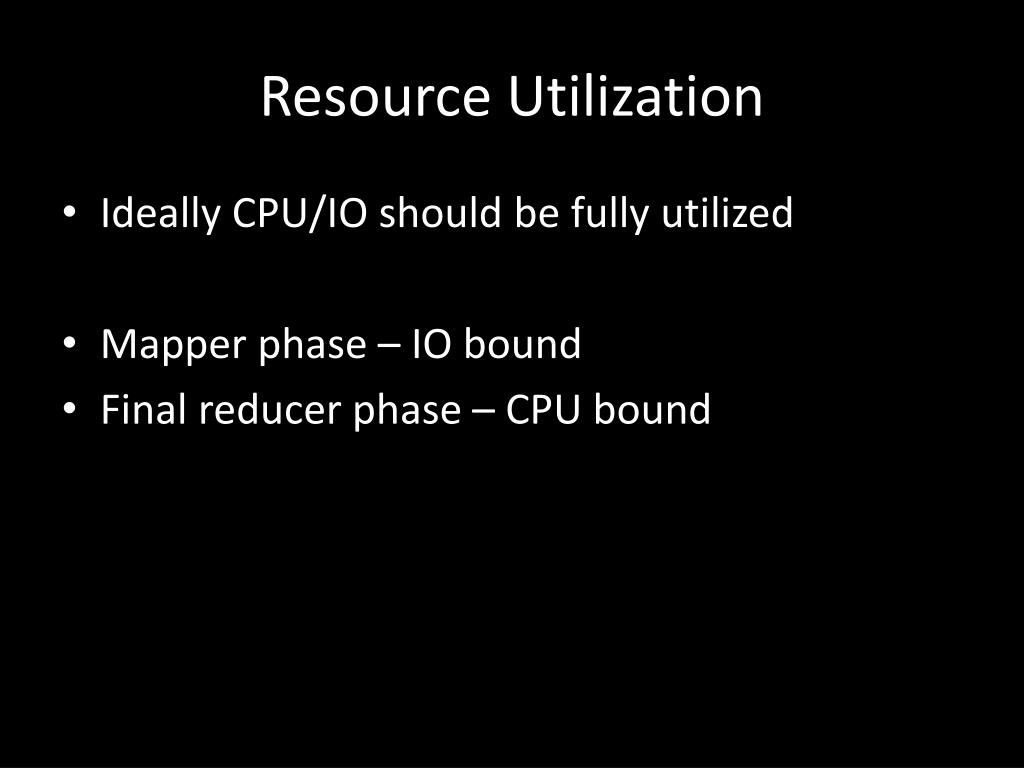

  35. Resource Utilization • Ideally CPU/IO should be fully utilized • Mapper phase – IO bound • Final reducer phase – CPU bound

  36. Shuffle file transfer • Spark transfers all shuffle files to reducer memory before start processing. • Non-streaming(very hard to change to streaming). • For poor resource utilization • So need to make sure maxBytesInFlight is set big enough • Consider allocating 2x more threads than physical core number

  37. Thanks. Gavin Li liyu@yahoo-inc.com Jaebong Kim pitecus@yahoo-inc.com Andrew Fengafeng@yahoo-inc.com
