  1. A Pictorial Introduction to Components in Scientific Computing

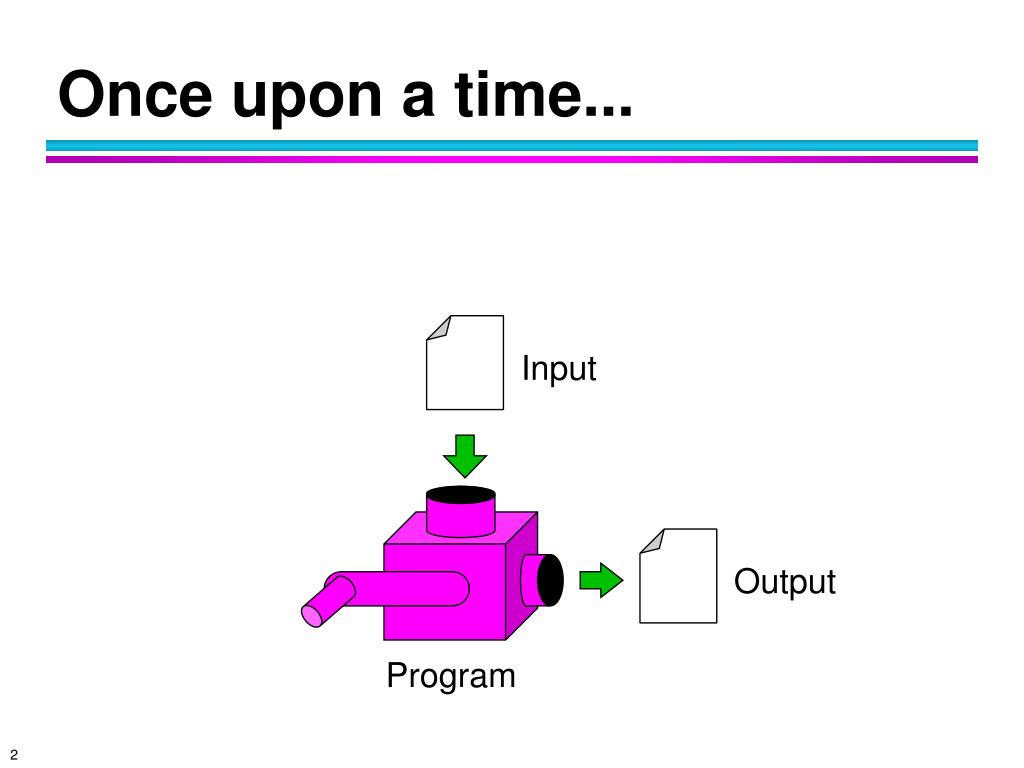

  2. Input Output Program Once upon a time...

  3. Bottle Neck As Scientific Computing grew...

  4. Tried to ease the bottle neck

  5. 1 1 2 2 1 3 3 4 4 2 4 3 SPMD was born.

  6. But it isn’t easy!!! But it isn’t easy!!! 1 1 2 2 1 3 3 4 4 2 4 3 SPMD worked.

  7. Input Input email client spreadsheet browser graphics Output editor Unicode Program multimedia database Meanwhile, corporate computing was growing in a different way

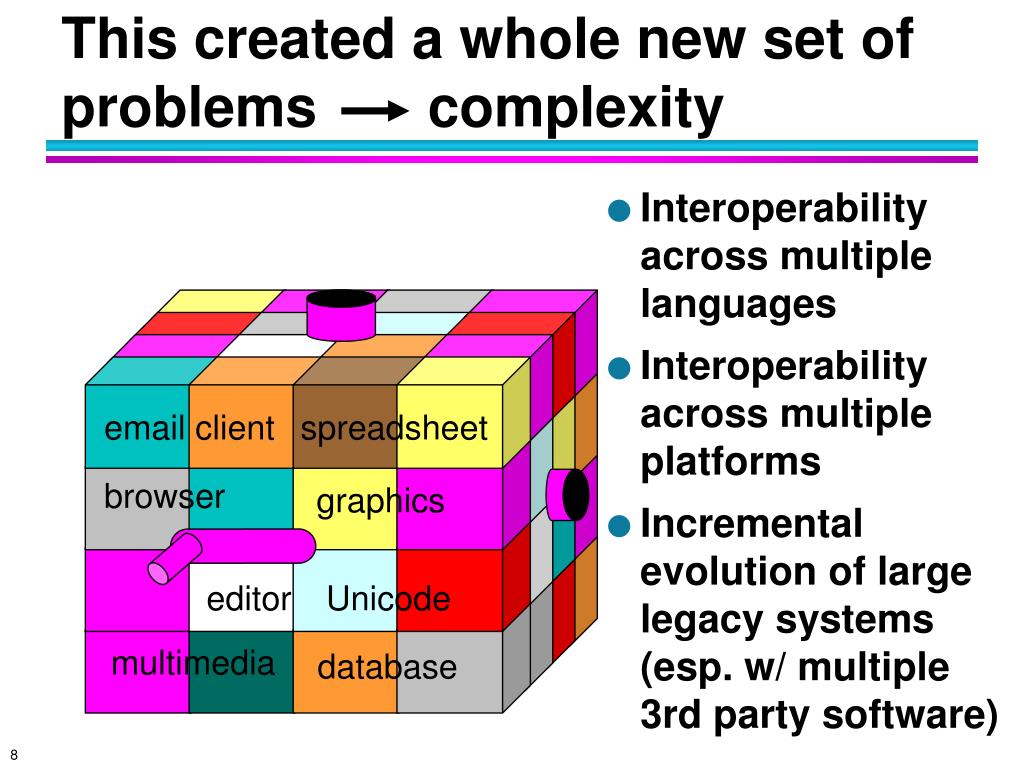

  8. email client spreadsheet browser graphics editor Unicode multimedia database This created a whole new set of problems complexity • Interoperability across multiple languages • Interoperability across multiple platforms • Incremental evolution of large legacy systems (esp. w/ multiple 3rd party software)

  9. Component Technology addresses these problems

  10. So what’s a component ??? Implementation : No Direct Access Interface Access : Generated by Tools Matching Connector : Assigned by Framework Hidden from User

  11. Language & Platform independent interfaces C Java F77 C++ Automatically generated bindings to working code Python 1. Interoperability across multiple languages

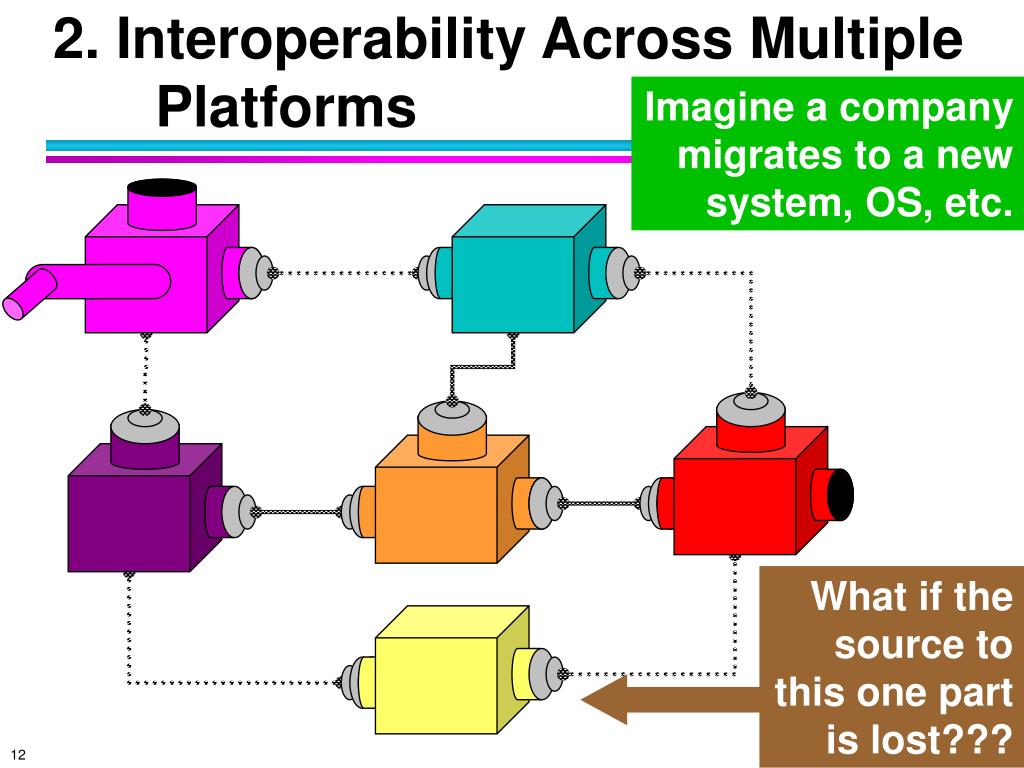

  12. What if the source to this one part is lost??? 2. Interoperability Across Multiple Platforms Imagine a company migrates to a new system, OS, etc.

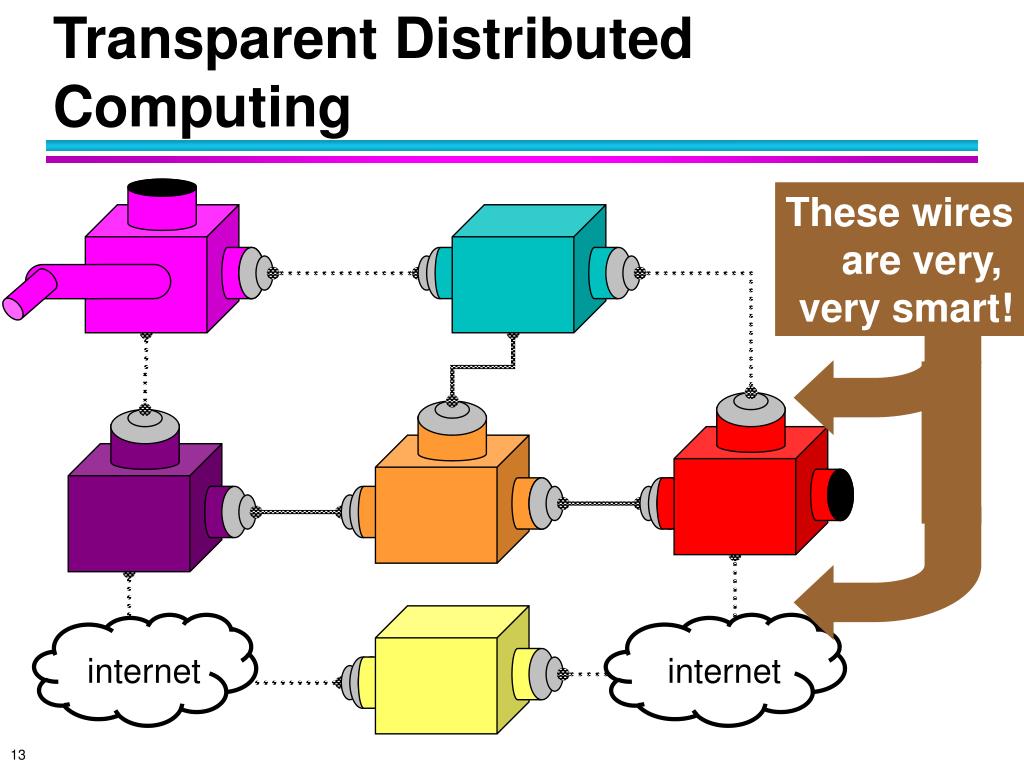

  13. These wires are very, very smart! Transparent Distributed Computing internet internet

  14. v 1.0 v 3.0 v 2.0 3. Incremental Evolution With Multiple 3rd party software

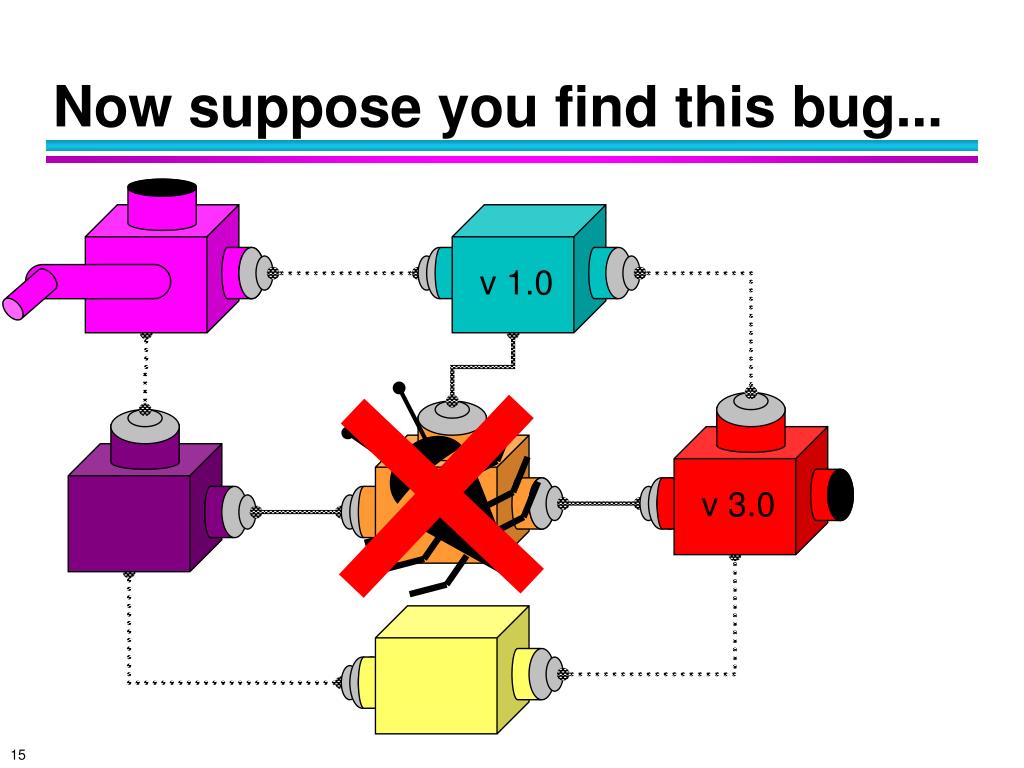

  15. v 1.0 v 3.0 v 2.0 Now suppose you find this bug...

  16. 2.0 v 1.0 v 3.0 v 2.0 2.1 Good news: an upgrade available Bad news: there’s a dependency

  17. Great News: Solvable with Components 2.0 v 3.0 2.1

  18. v 1.0 2.0 2.1 Great News: Solvable with Components v 3.0

  19. SAMRAI DataFoundry JEEP Sapphire Scientific Viz Ardra Overture nonlinear solvers ALPS hypre linear solvers Why Components for Scientific Computing Complexity • Interoperability across multiple languages • Interoperability across multiple platforms • Incremental evolution of large legacy systems (esp. w/ multiple 3rd party software)

  20. Science Industry ? The Model for Scientific Component Programming CCA

  21. TheEnd
