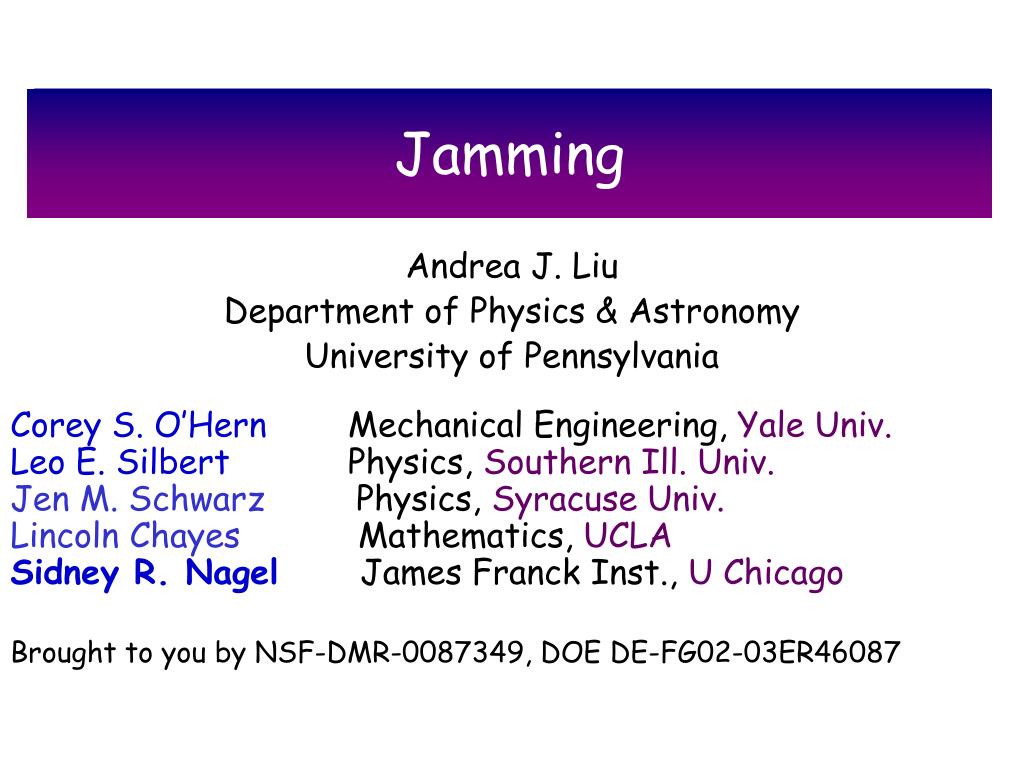

  1. Jamming Andrea J. Liu Department of Physics & Astronomy University of Pennsylvania Corey S. O’Hern Mechanical Engineering, Yale Univ. Leo E. Silbert Physics,Southern Ill. Univ. Jen M. SchwarzPhysics, Syracuse Univ. Lincoln ChayesMathematics, UCLA Sidney R. Nagel James Franck Inst., U Chicago Brought to you by NSF-DMR-0087349, DOE DE-FG02-03ER46087

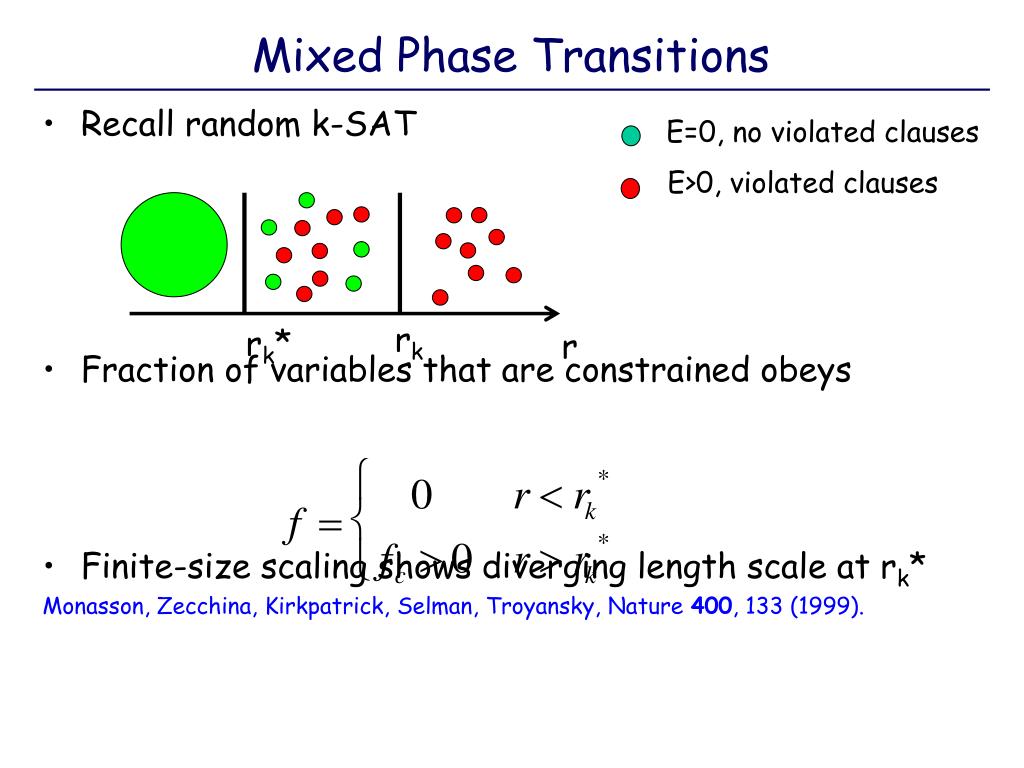

  2. rk rk* r Mixed Phase Transitions • Recall random k-SAT • Fraction of variables that are constrained obeys • Finite-size scaling shows diverging length scale at rk* Monasson, Zecchina, Kirkpatrick, Selman, Troyansky, Nature 400, 133 (1999). E=0, no violated clauses E>0, violated clauses

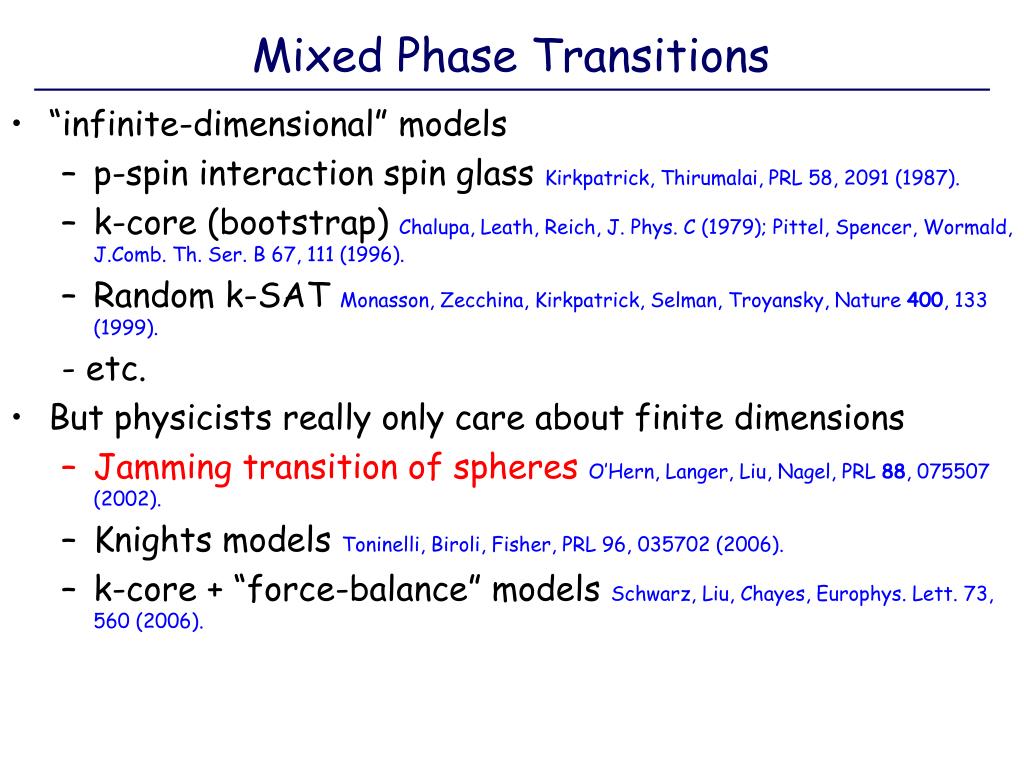

  3. Mixed Phase Transitions • “infinite-dimensional” models • p-spin interaction spin glass Kirkpatrick, Thirumalai, PRL 58, 2091 (1987). • k-core (bootstrap) Chalupa, Leath, Reich, J. Phys. C (1979); Pittel, Spencer, Wormald, J.Comb. Th. Ser. B 67, 111 (1996). • Random k-SAT Monasson, Zecchina, Kirkpatrick, Selman, Troyansky, Nature 400, 133 (1999). - etc. • But physicists really only care about finite dimensions • Jamming transition of spheresO’Hern, Langer, Liu, Nagel, PRL 88, 075507 (2002). • Knights models Toninelli, Biroli, Fisher, PRL 96, 035702 (2006). • k-core + “force-balance” models Schwarz, Liu, Chayes, Europhys. Lett. 73, 560 (2006).

  4. Stress Relaxation Time • Behavior of glassforming liquids depends on how long you wait • At short time scales, silly putty behaves like a solid • At long time scales, silly putty behaves like a liquid Stress relaxation time t: how long you need to wait for system to behave like liquid

  5. Glass Transition When liquid cools, stress relaxation time increases When liquid crystallizes Particles order Stress relaxation time suddenlyjumps When liquid is cooled through glass transition Particles remain disordered Stress relaxation time increases continuously “Picture Book of Sir John Mandeville’s Travels,” ca. 1410.

  6. A. J. Liu and S. R. Nagel, Nature 396 (N6706) 21 (1998). Jamming Phase Diagram Temperature Glass transition unjammed jammed Shear stress Granular packings J 1/Density unjammed state is in equilibrium jammed state is out of equilibrium Problem: Jamming surface isfuzzy

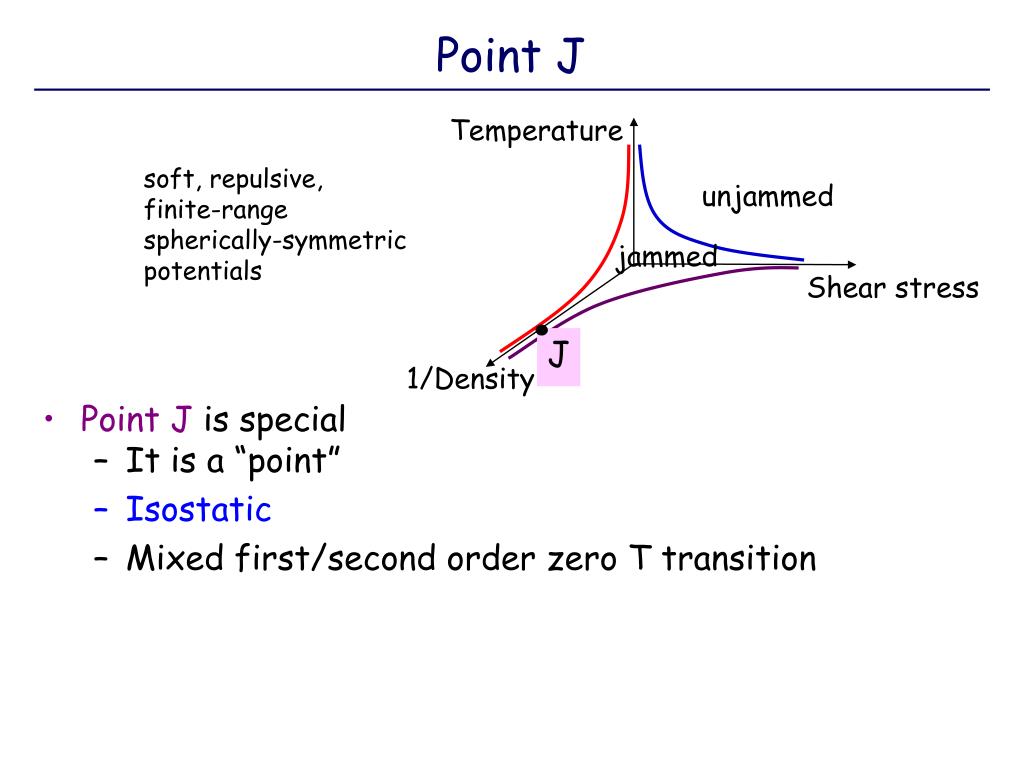

  7. C. S. O’Hern, S. A. Langer, A. J. Liu and S. R. Nagel, Phys. Rev. Lett. 88, 075507 (2002). C. S. O’Hern, L. E. Silbert, A. J. Liu, S. R. Nagel, Phys. Rev. E 68, 011306 (2003). Point J is special It is a “point” Isostatic Mixed first/second order zero T phase transition Point J Temperature unjammed Shear stress jammed J 1/Density soft, repulsive, finite-range spherically-symmetric potentials Model granular materials

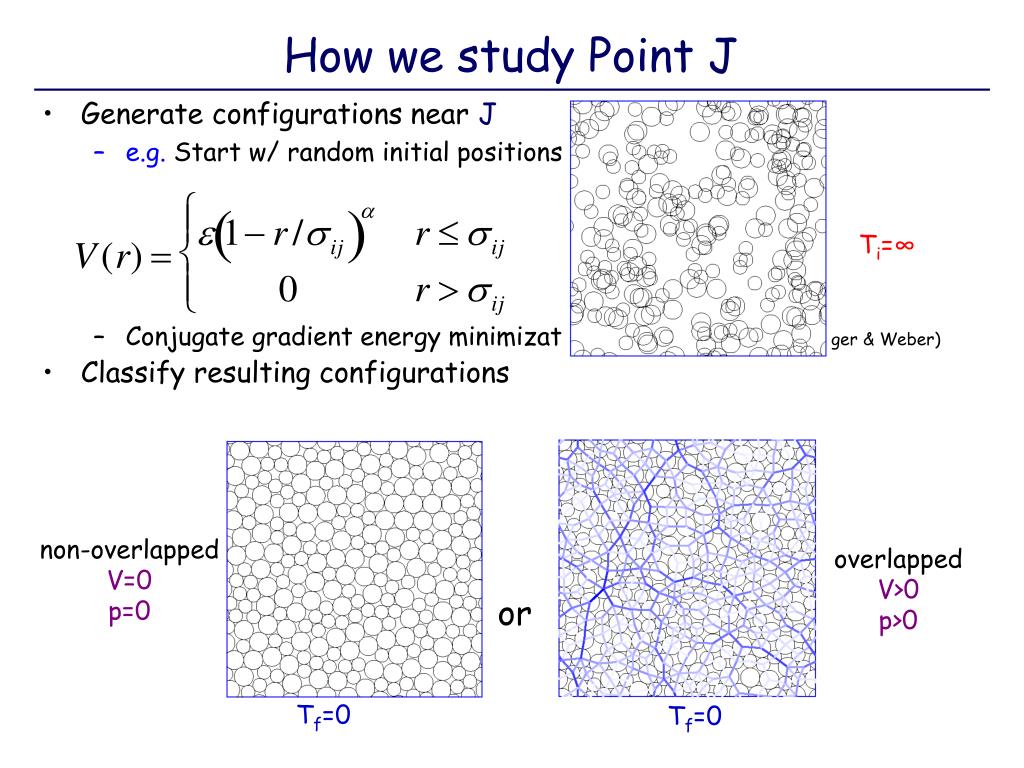

  8. Generate configurations near J e.g. Start w/ random initial positions Conjugate gradient energy minimization (Inherent structures, Stillinger & Weber) Classify resulting configurations How we study Point J Ti=∞ non-overlapped V=0 p=0 overlapped V>0 p>0 or Tf=0 Tf=0

  9. Onset of Jamming is Onset of Overlap We focus on ensemble rather than individual configs (c.f. Torquato) Good ensemble is fixed f-fc, or fixed pressure - - - - - - - -4 -3 -2 log(- c) D=2 D=3 • Pressures for different states collapse on a single curve • Shear modulus and pressure vanish at the same fc

  10. How Much Does fc Vary Among States? Distribution of fc values narrows as system size grows Distribution approaches delta-function as N Essentially all configurations jam at one packing density Of course, there is a tail up to close-packed crystal J is a “POINT” f0 w

  11. Where do virtually all states jam in infinite system limit? 2d (bidisperse) 3d (monodisperse) These are values associated with random close-packing! Point J is at Random Close-Packing log(f*- f0) f0 w

  12. Point J is special It is a “point” Isostatic Mixed first/second order zero T transition Point J Temperature unjammed Shear stress jammed J 1/Density soft, repulsive, finite-range spherically-symmetric potentials

  13. Number of Overlaps/Particle Z (2D) (3D) - - - - - - - log(f- fc) Just abovefc there are Zc overlapping neighbors per particle Just below fc, no particles overlap

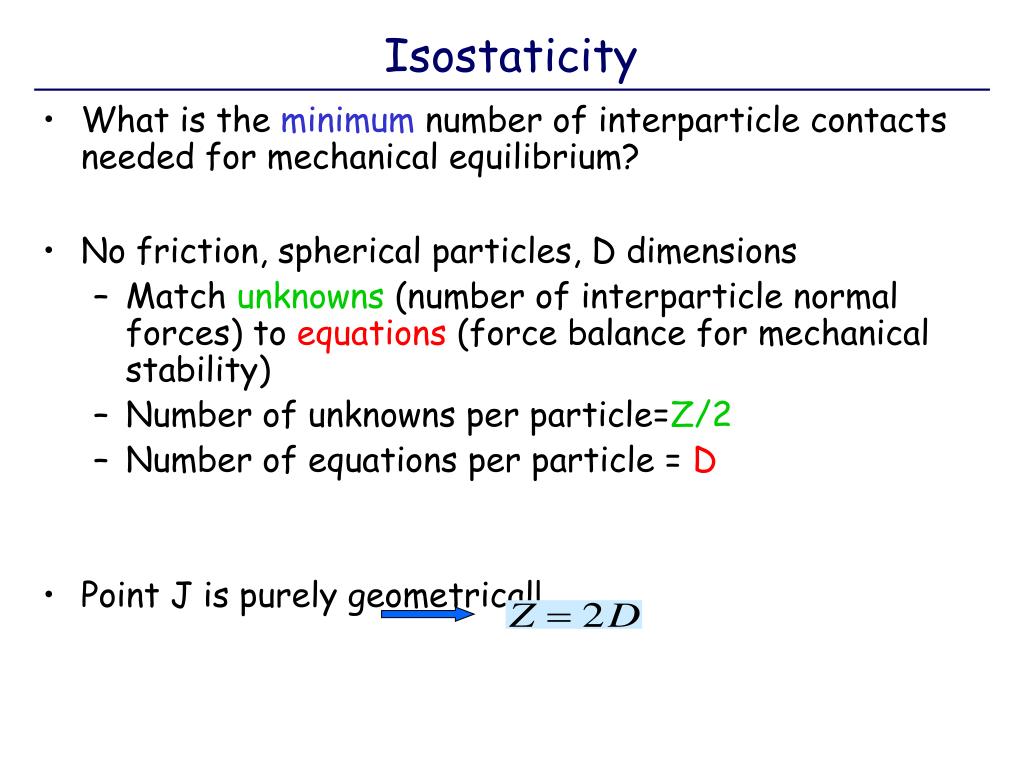

  14. Isostaticity What is the minimum number of interparticle contacts needed for mechanical equilibrium? No friction, spherical particles, D dimensions Match unknowns (number of interparticle normal forces) to equations (force balance for mechanical stability) Number of unknowns per particle=Z/2 Number of equations per particle = D Point J is purely geometrical!

  15. L. E. Silbert, A. J. Liu, S. R. Nagel, PRL 95, 098301 (‘05) Excess low-w modes swamp w2 Debyebehavior: boson peak D(w) approaches constant as f fc(M. Wyart, S.R. Nagel, T.A. Witten, EPL (05)) Unusual Solid Properties Near Isostaticity Lowest freq mode atf-fc=10-8 Density of Vibrational Modes f- fc

  16. Point J is special It is a “point” Isostatic Mixed first/second order zero T transition Point J Temperature unjammed Shear stress jammed J 1/Density soft, repulsive, finite-range spherically-symmetric potentials

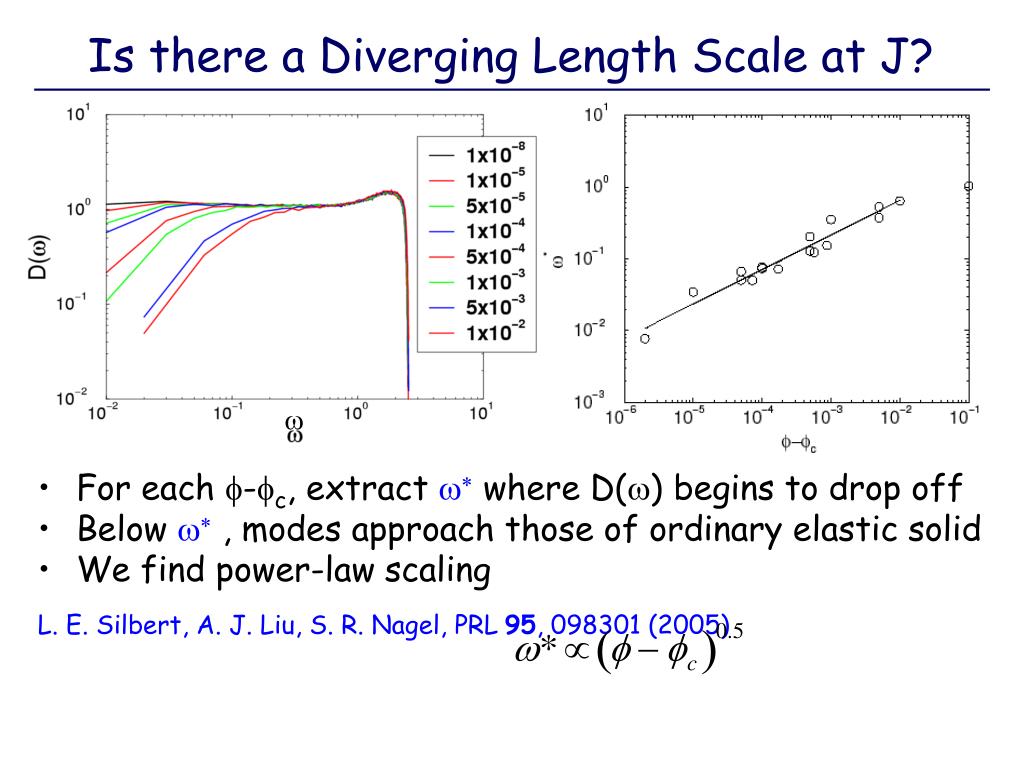

  17. For each f-fc, extract w* where D(w) begins to drop off Below w* , modes approach those of ordinary elastic solid We find power-law scaling L. E. Silbert, A. J. Liu, S. R. Nagel, PRL 95, 098301 (2005) Is there a Diverging Length Scale at J? w

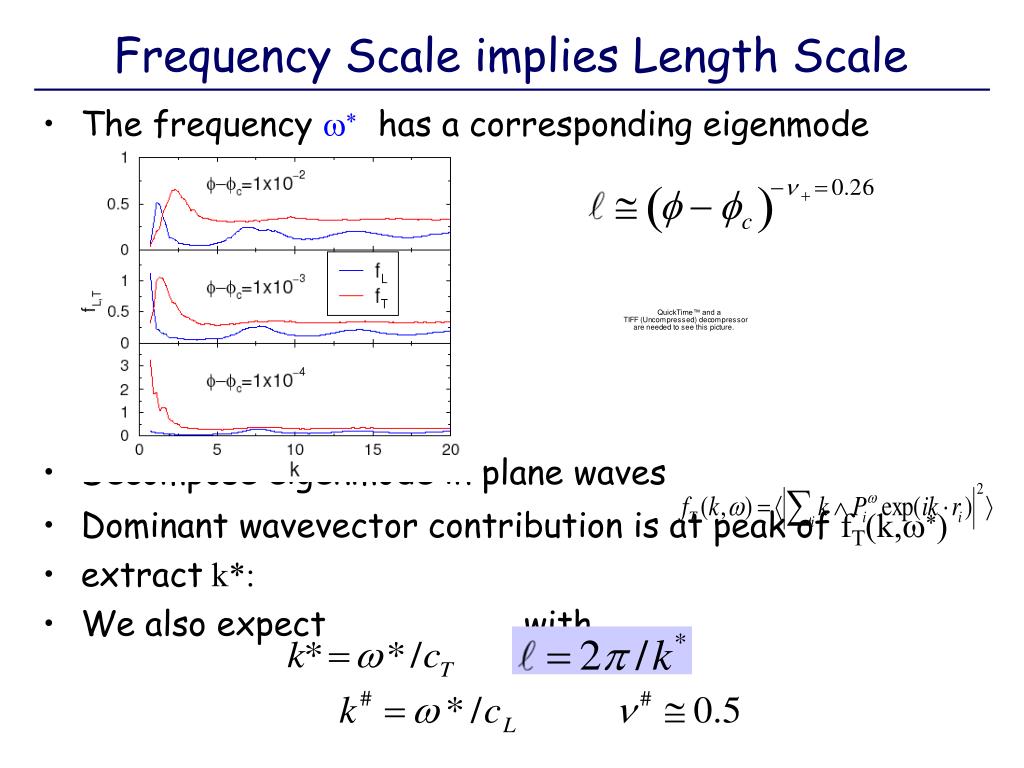

  18. The frequency w* has a corresponding eigenmode Decompose eigenmode in plane waves Dominant wavevector contribution is at peak of fT(k,w*) extract k*: We also expect with Frequency Scale implies Length Scale

  19. Summary of Jamming Transition Mixed first-order/second-order transition Number of overlapping neighbors per particle Static shear modulus Diverging length scale And perhaps also

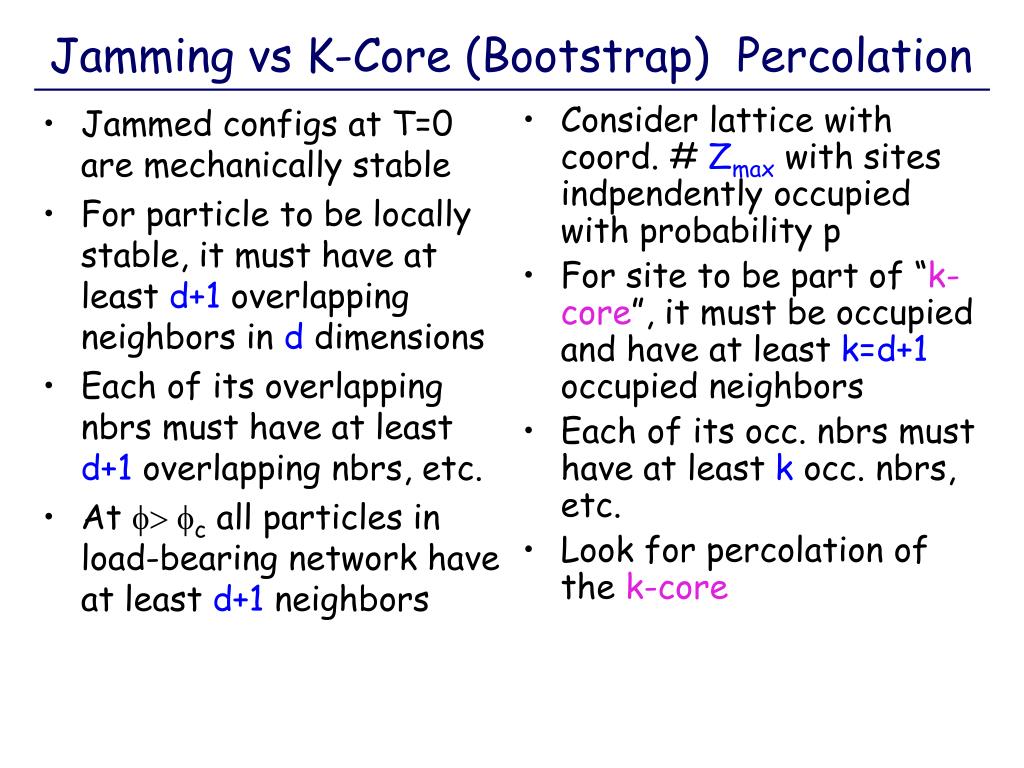

  20. Jamming vs K-Core (Bootstrap) Percolation Jammed configs at T=0 are mechanically stable For particle to be locally stable, it must have at least d+1 overlapping neighbors in d dimensions Each of its overlapping nbrs must have at least d+1 overlapping nbrs, etc. At f> fc all particles in load-bearing network have at least d+1 neighbors • Consider lattice with coord. # Zmax with sites indpendently occupied with probability p • For site to be part of “k-core”, it must be occupied and have at least k=d+1 occupied neighbors • Each of its occ. nbrs must have at least k occ. nbrs, etc. • Look for percolation of the k-core

  21. K-core Percolation on the Bethe Lattice K-core percolation is exactly solvable on Bethe lattice This is mean-field solution Let K=probability of infinite k-connected cluster For k>2 we find Chalupa, Leath, Reich, J. Phys. C (1979) Pittel, et al., J.Comb. Th. Ser. B 67, 111 (1996) • Recall simulation results J. M. Schwarz, A. J. Liu, L. Chayes, EPL (06)

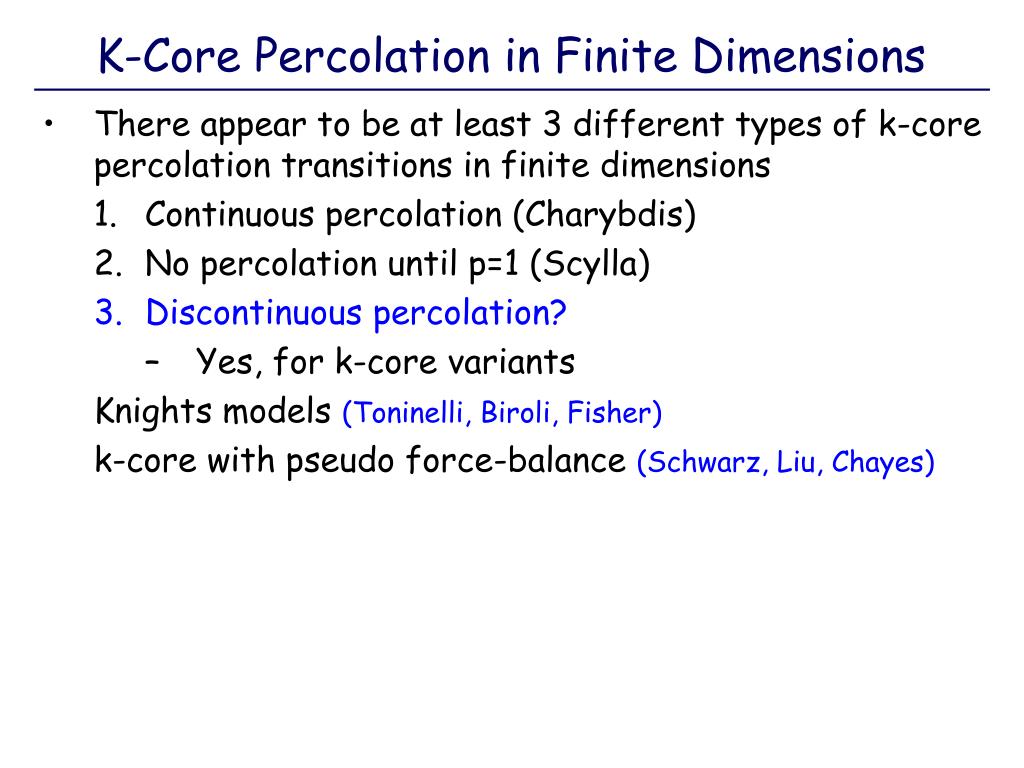

  22. K-Core Percolation in Finite Dimensions There appear to be at least 3 different types of k-core percolation transitions in finite dimensions Continuous percolation (Charybdis) No percolation until p=1 (Scylla) Discontinuous percolation? Yes, for k-core variants Knights models (Toninelli, Biroli, Fisher) k-core with pseudo force-balance (Schwarz, Liu, Chayes)

  23. Knights Model Rigorous proofs that pc<1 Transition is discontinuous* Transition has diverging correlation length* *based on conjecture of anisotropic critical behavior in directed percolation • Toninelli, Biroli, Fisher, PRL 96, 035702 (2006).

  24. A k-Core Variant We introduce “force-balance” constraint to eliminate self-sustaining clusters Cull if k<3or if all neighbors are on the same side k=3 24 possible neighbors per site Cannot have all neighbors in upper/lower/right/left half

  25. The discontinuity cincreases with system size L If transition were continuous, c would decrease with L Discontinuous Transition? Yes Fraction of sites in spanning cluster

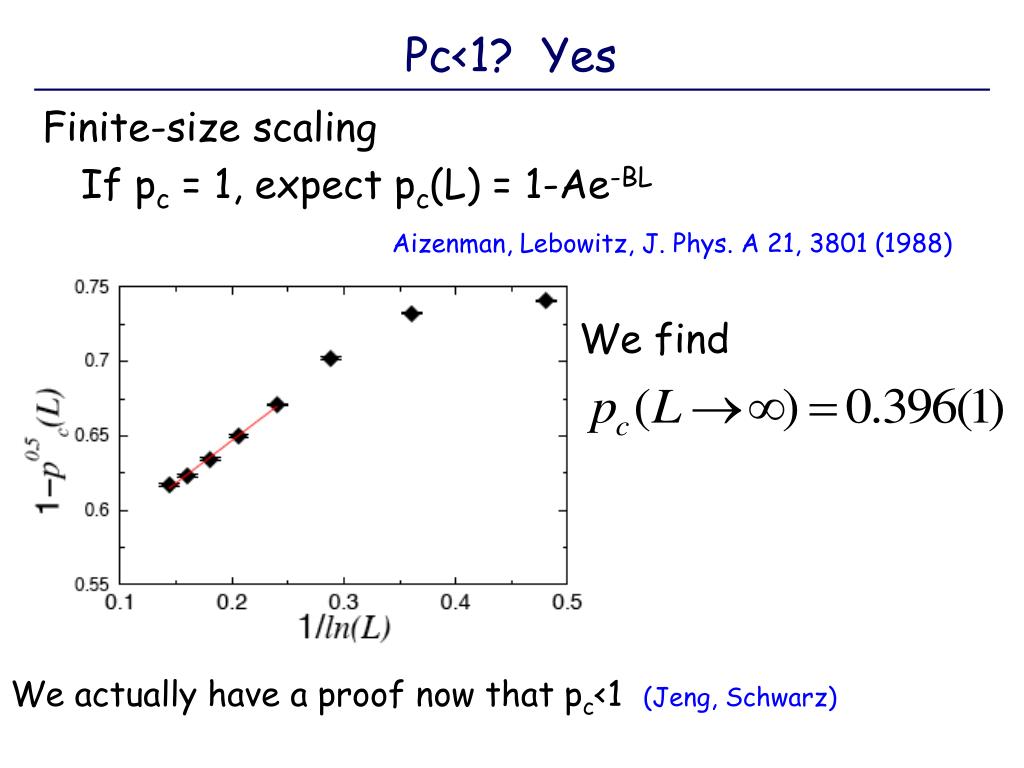

  26. Pc<1? Yes Finite-size scaling If pc = 1, expect pc(L) = 1-Ae-BL Aizenman, Lebowitz, J. Phys. A 21, 3801 (1988) We find We actually have a proof now that pc<1 (Jeng, Schwarz)

  27. Diverging Correlation Length? Yes This value of collapses the order parameter data with For ordinary 1st-order transition,

  28. Diverging Susceptibility? Yes How much is removed by the culling process?

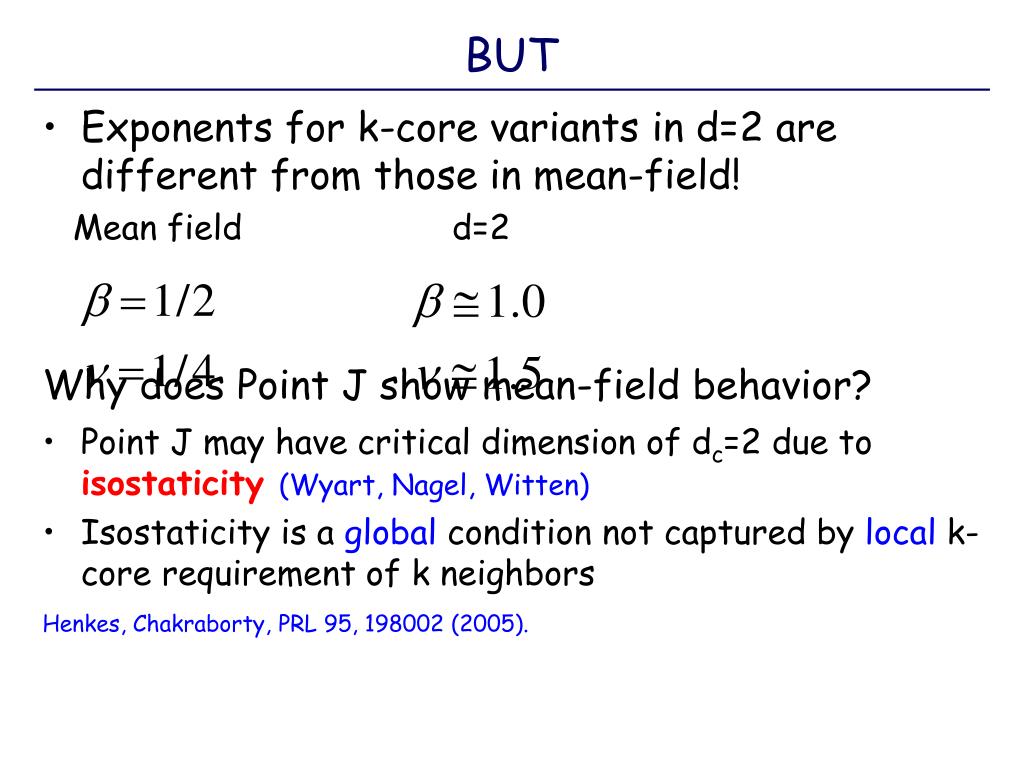

  29. BUT Exponents for k-core variants in d=2 are different from those in mean-field! Mean field d=2 Why does Point J show mean-field behavior? Point J may have critical dimension of dc=2 due to isostaticity (Wyart, Nagel, Witten) Isostaticity is a global condition not captured by local k-core requirement of k neighbors Henkes, Chakraborty, PRL 95, 198002 (2005).

  30. Similarity to Other Models The discontinuity & exponents we observe are rare but have been found in a few models Mean-field p-spin interaction spin glass (Kirkpatrick, Thirumalai, Wolynes) Mean-field dimer model (Chakraborty, et al.) Mean-field kinetically-constrained models (Fredrickson, Andersen) Mode-coupling approximation of glasses (Biroli,Bouchaud) These models all exhibit glassy dynamics!! First hint of UNIVERSALITY in jamming

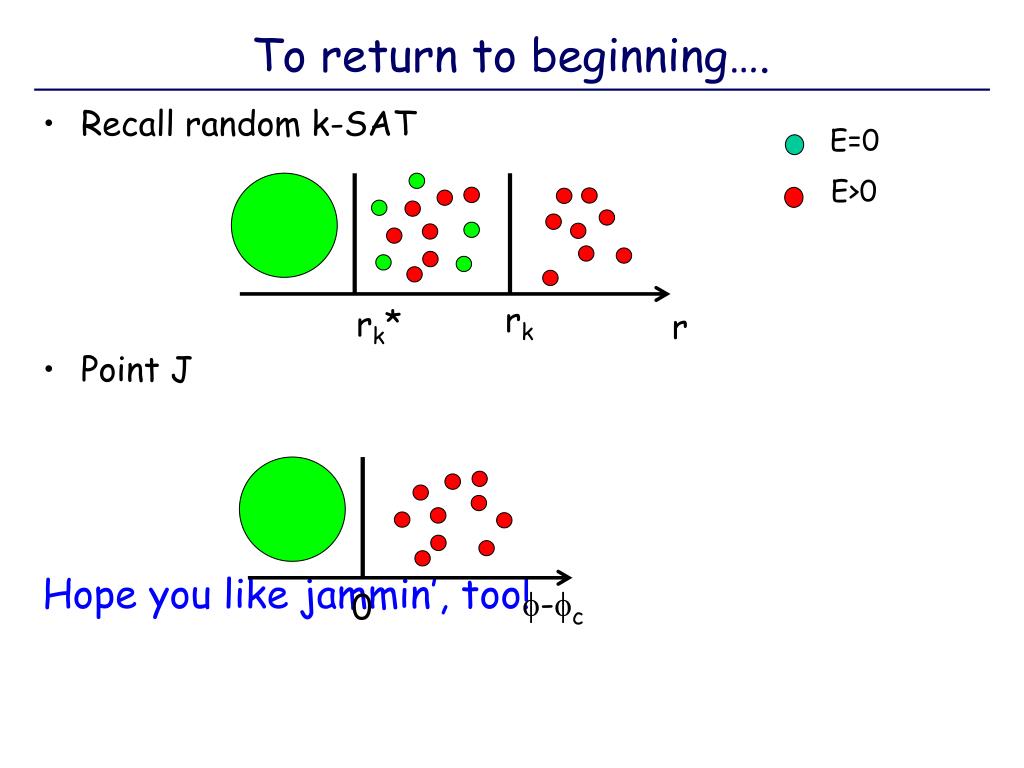

  31. E=0 E>0 rk rk* r To return to beginning…. • Recall random k-SAT • Point J Hope you like jammin’, too! -c 0

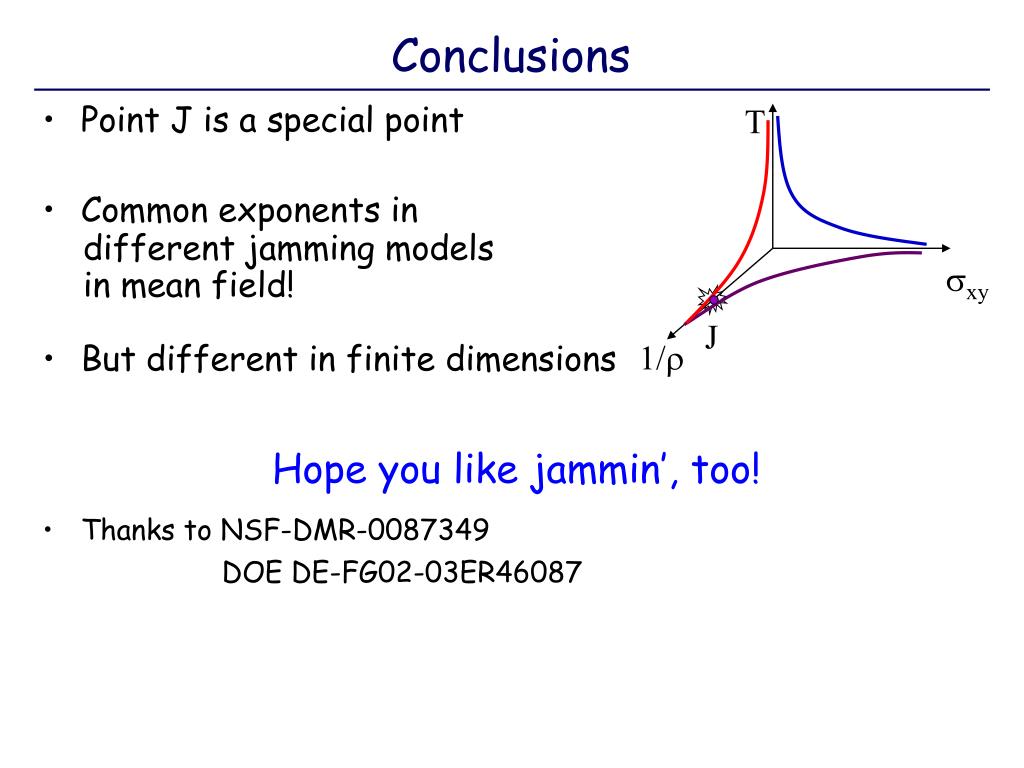

  32. Point J is a special point Common exponents in different jamming models in mean field! But different in finite dimensions Hope you like jammin’, too! Thanks to NSF-DMR-0087349 DOE DE-FG02-03ER46087 Conclusions T sxy 1/r J
