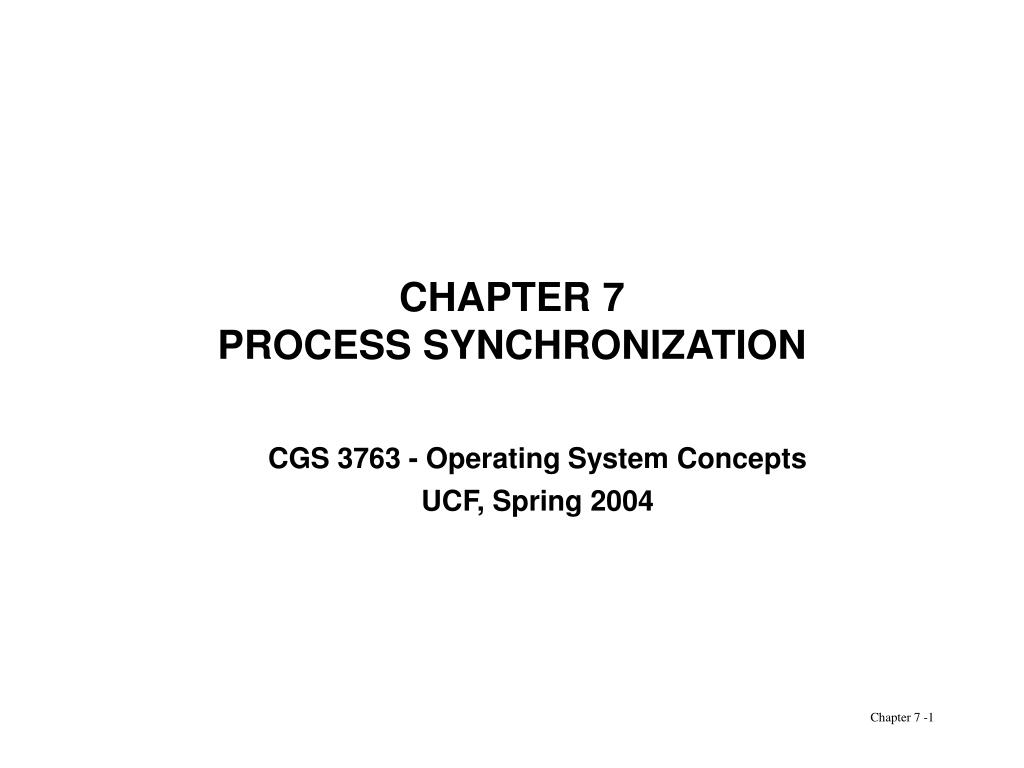

  1. CHAPTER 7PROCESS SYNCHRONIZATION CGS 3763 - Operating System Concepts UCF, Spring 2004

  2. COOPERATING PROCESSES • Independent processes cannot affect or be affected by the execution of another process. • Dependent processes can affect or be affected by the execution of another process • a.k.a., Cooperating Processes • Processes may cooperate for: • Information sharing • Computation speed-up (Requires 2 or more CPUs) • Modularity • Convenience

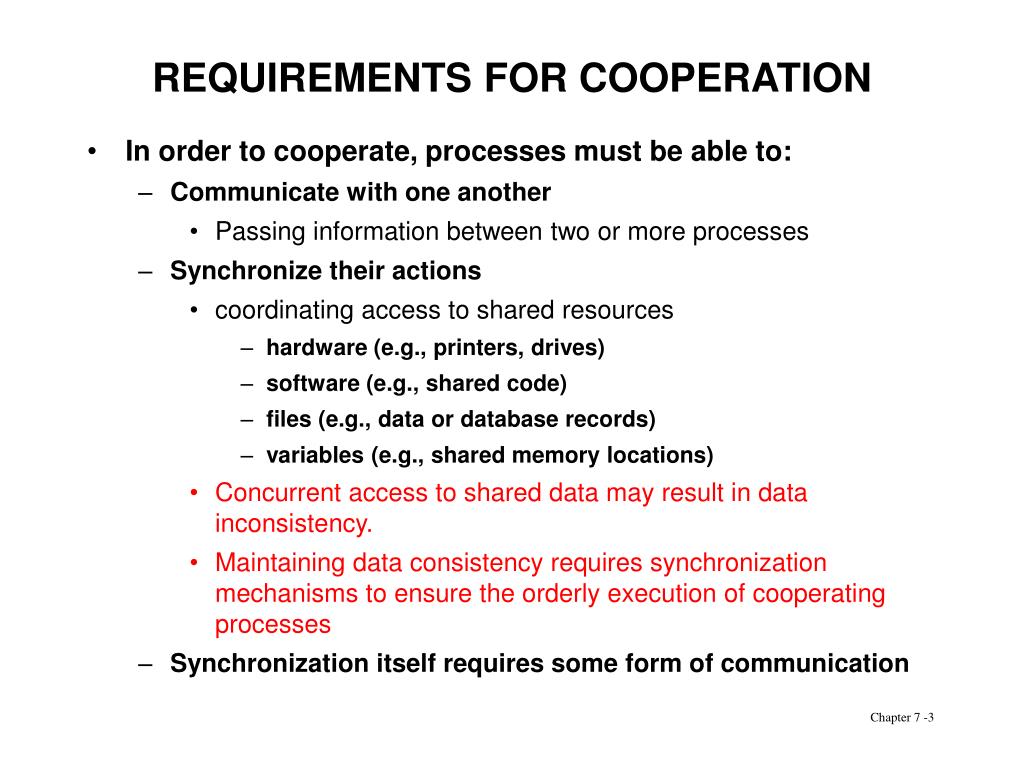

  3. REQUIREMENTS FOR COOPERATION • In order to cooperate, processes must be able to: • Communicate with one another • Passing information between two or more processes • Synchronize their actions • coordinating access to shared resources • hardware (e.g., printers, drives) • software (e.g., shared code) • files (e.g., data or database records) • variables (e.g., shared memory locations) • Concurrent access to shared data may result in data inconsistency. • Maintaining data consistency requires synchronization mechanisms to ensure the orderly execution of cooperating processes • Synchronization itself requires some form of communication

  4. PROCESS SYNCHRONIZATION • Particularly important with concurrent execution • Can cause two major problems: • Race Condition - • When two or more cooperating processes access and manipulate the same data concurrently, and • the outcome of the execution depends on the order in which the access takes place. • Deadlock (Chapter 8) - • When two or more waiting processes require shared resource for their continued execution • but the required resources are held by other waiting processes

  5. RACE CONDITION • Cooperating processes have within their programs “critical sections” • A code segment during which a process accesses and changes a common variable or data item. • When one processes is in its critical section, no other process must execute in its own critical section. • Execution of critical sections with respect to the same shared variable or data item must be mutually exclusive • A race condition occurs when two processes execute critical sections in a non-mutually exclusive manner.

  6. RACE CONDITION EXAMPLES • File Level Access • Editing files in a word processor • Record Level Access • Modifying a data base record • Shared Variable Level P1 P2 : : LOAD X LOAD X X = X+1 X = X+1 STORE X STORE X : : • Final value for X based on execution sequence

  7. RACE CONDITION EXAMPLES (cont.) • Think of concurrent access as a series of sequential instructions with respect to the shared variable, data or resource. • If no interrupts during each code section: X = 1051 • If interrupts do occur results may vary: X = 51 or 1050

  8. PREVENTING RACE CONDITIONS • Two options (policies) for preventing race conditions: • we must make sure that each process executes its critical section without interruption (PROBLEMS????) • make other processes wait until the current process completes execution of its critical section • Any mechanism for solving the critical section problem must meet the following: • Mutual Exclusion - Only one process at a time may execute in its critical section • Progress - Processes must be allowed to execute their critical sections at some time • Bounded Waiting - Cannot prevent a process from executing its critical section indefinitely

  9. SOLUTIONS TO CRITICAL SECTION PROBLEM • Text book contains various software and hardware solutions to the critical section problem: • Algorithm 1 (software/shared memory): • Uses turn variable to alternate entry into critical sections between two processes • Assures mutual exclusion but not progress requirement • Algorithm 2 (software/shared memory): • Uses flag variables to show requests by processes wishing to enter their critical sections. • Assures mutual exclusion but not progress requirement • Algorithm 3 (software/shared memory): • Uses flags to show requests, then turn to break tie • Meets all three requirements but only for two processes

  10. SOLUTIONS TO CRITICAL SECTION PROBLEM (cont.) • Swap/Test-and-Set (hardware/software/shared memory) • Executed as atomic or indivisible instructions. • Allows process to test status of a “lock” variable and set lock at same time. • Can execute critical section only if unlocked. • Can be used to simplify programming of synchronization algorithms.

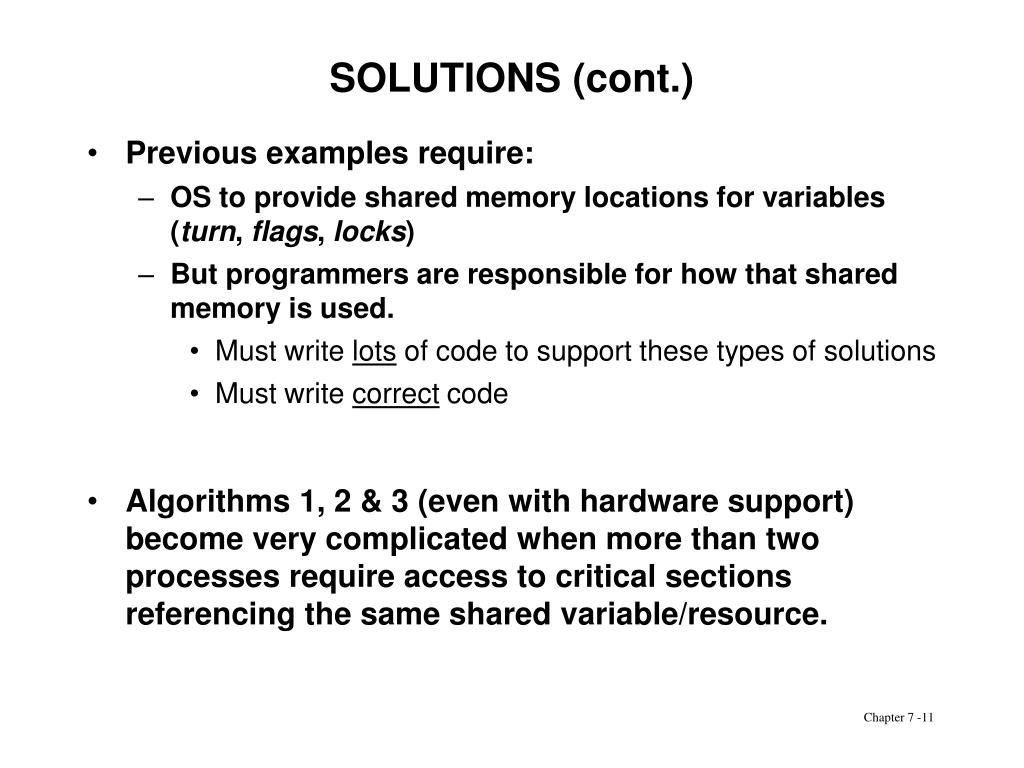

  11. SOLUTIONS (cont.) • Previous examples require: • OS to provide shared memory locations for variables (turn, flags, locks) • But programmers are responsible for how that shared memory is used. • Must write lots of code to support these types of solutions • Must write correct code • Algorithms 1, 2 & 3 (even with hardware support) become very complicated when more than two processes require access to critical sections referencing the same shared variable/resource.

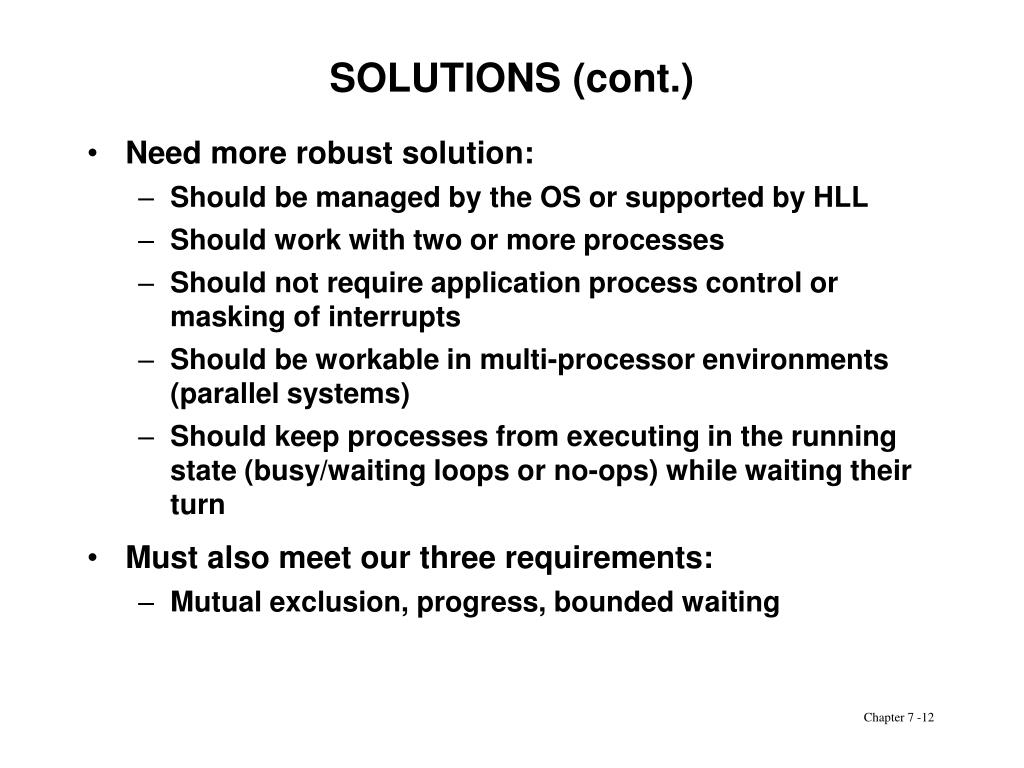

  12. SOLUTIONS (cont.) • Need more robust solution: • Should be managed by the OS or supported by HLL • Should work with two or more processes • Should not require application process control or masking of interrupts • Should be workable in multi-processor environments (parallel systems) • Should keep processes from executing in the running state (busy/waiting loops or no-ops) while waiting their turn • Must also meet our three requirements: • Mutual exclusion, progress, bounded waiting

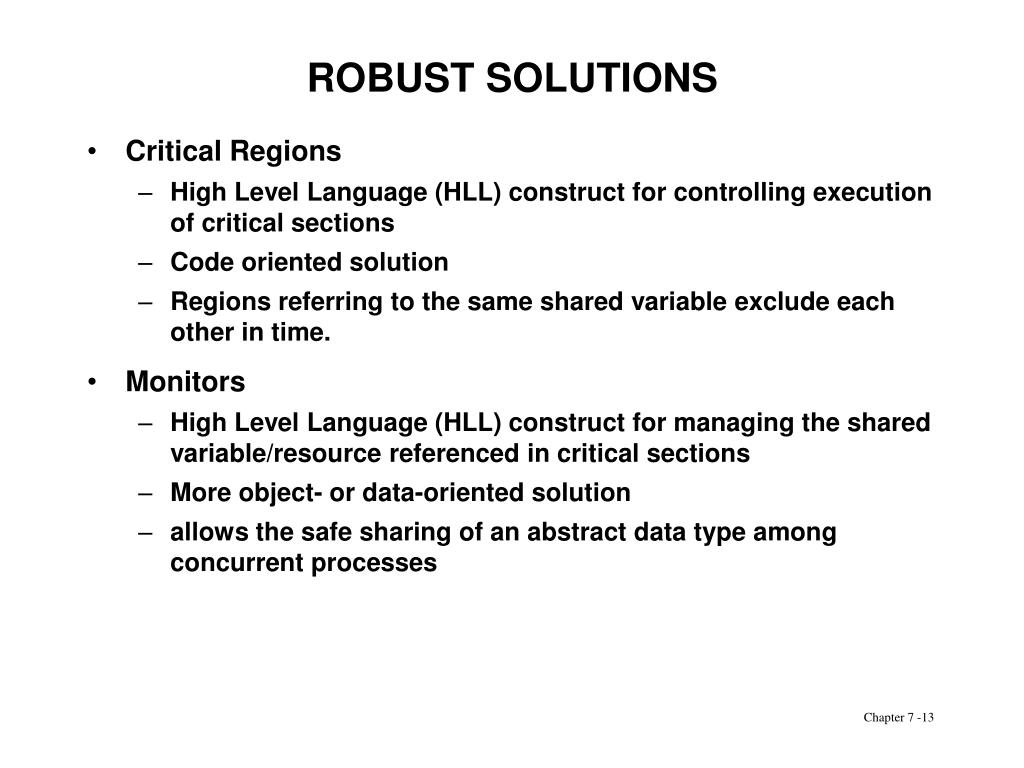

  13. ROBUST SOLUTIONS • Critical Regions • High Level Language (HLL) construct for controlling execution of critical sections • Code oriented solution • Regions referring to the same shared variable exclude each other in time. • Monitors • High Level Language (HLL) construct for managing the shared variable/resource referenced in critical sections • More object- or data-oriented solution • allows the safe sharing of an abstract data type among concurrent processes

  14. ROBUST SOLUTIONS (cont.) • Semaphores • Can be managed by OS or applications programmer • Processes execute P( ) operation before entering critical section • Processes execute V( ) operation after leaving critical section • P( ) and V( ) can be a type of system call

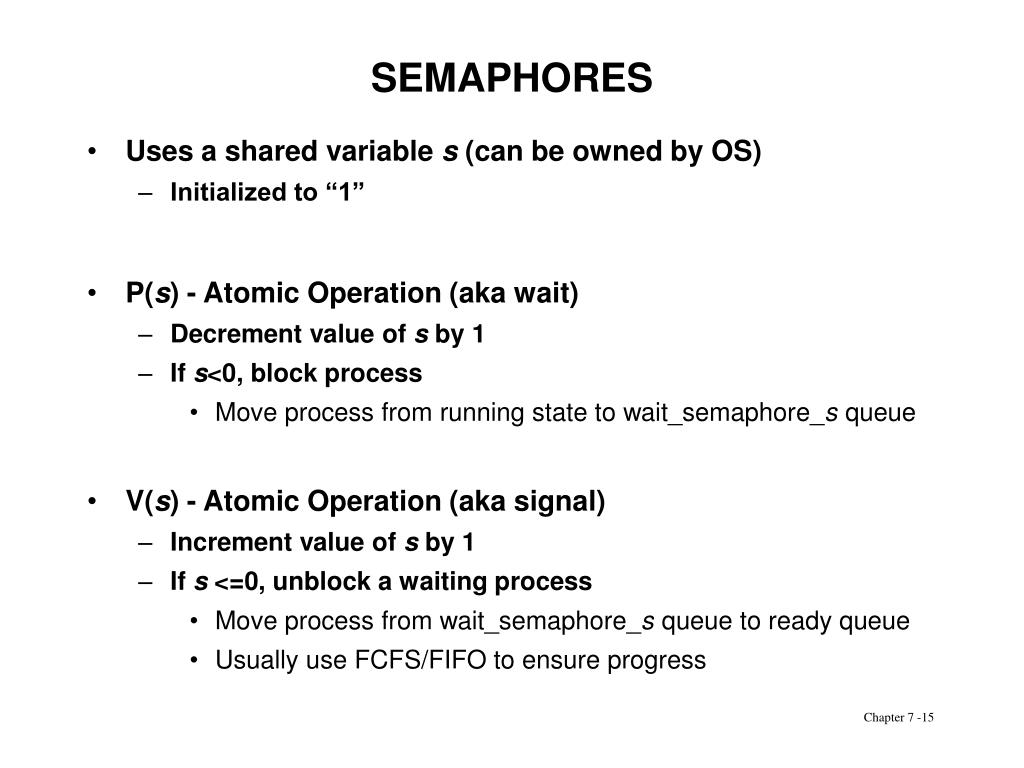

  15. SEMAPHORES • Uses a shared variable s (can be owned by OS) • Initialized to “1” • P(s) - Atomic Operation (aka wait) • Decrement value of s by 1 • If s<0, block process • Move process from running state to wait_semaphore_s queue • V(s) - Atomic Operation (aka signal) • Increment value of s by 1 • If s <=0, unblock a waiting process • Move process from wait_semaphore_s queue to ready queue • Usually use FCFS/FIFO to ensure progress

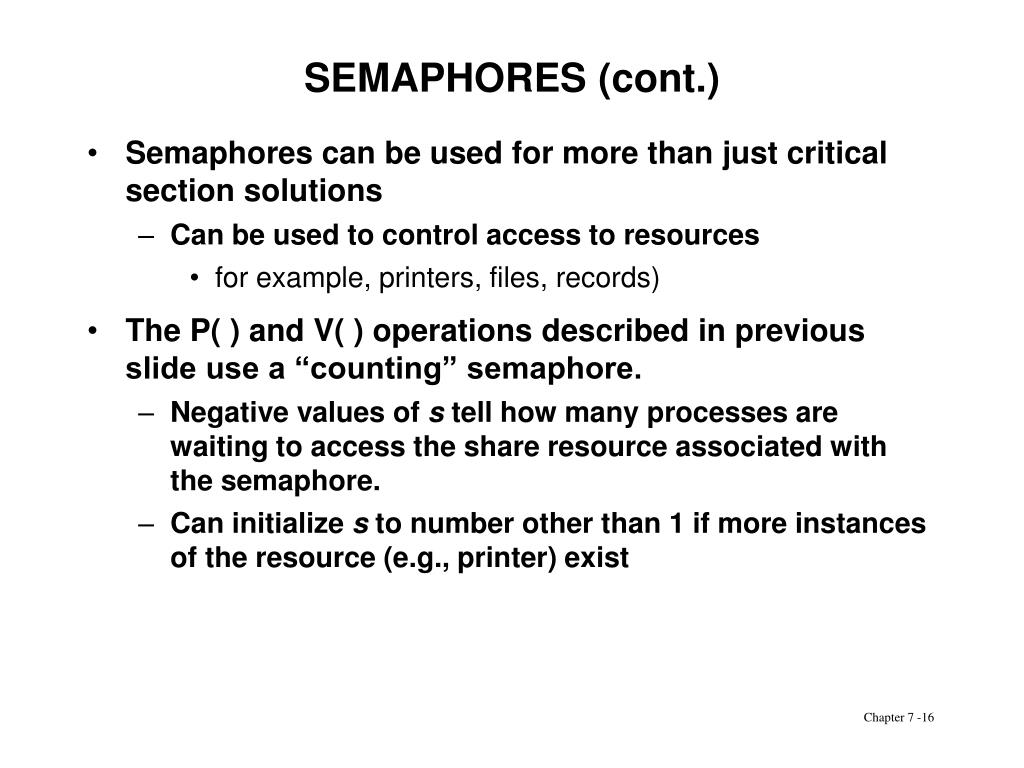

  16. SEMAPHORES (cont.) • Semaphores can be used for more than just critical section solutions • Can be used to control access to resources • for example, printers, files, records) • The P( ) and V( ) operations described in previous slide use a “counting” semaphore. • Negative values of s tell how many processes are waiting to access the share resource associated with the semaphore. • Can initialize s to number other than 1 if more instances of the resource (e.g., printer) exist
