  1. Cascading Style Sheets (CSS) IT210: Web-based IT

  2. Slides modified based upon Charles Severance’s Creative Common’s Licensed CSS intro slides available in full here:http://open.umich.edu/sites/default/files/Severance-SI502-W09-Week10-CSS.pptas well as prior BYU IT210 instructors

  3. The big picture... <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en"> <head> <title>University of Michigan</title> .... @import "/CSS/graphical.css"/**/; p.text strong, .verbose, .verbose p, .verbose h2{text-indent:-876em;position:absolute} p.text strong a{text-decoration:none} p.text em{font-weight:bold;font-style:normal} div.alert{background:#eee;border:1px solid red;padding:.5em;margin:0 25%} a img{border:none} .hot br, .quick br, dl.feature2 img{display:none} div#main label, legend{font-weight:bold} In the modern era of web design we represent content and structure in HTML and formatting and layout in CSS. Source: http://www.umich.edu

  4. Web design has evolved a *lot* over the years - as computers and networks have gotten faster. 1995 2007 Source: www.yahoo.com

  5. CSS Allows Separation of effort / specialization Developer Designer @import "/CSS/graphical.css"/**/; p.text strong, .verbose, .verbose p, .verbose h2{text-indent:-876em;position:absolute} p.text strong a{text-decoration:none} p.text em{font-weight:bold;font-style:normal} div.alert{background:#eee;border:1px solid ... <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en"> <head> <title>University of Michigan</title> .... Everyone needs to know some HTML and some CSS and some programming - but to be truly skilled at a professional level requires deep understanding and specialization.

  6. Other CSS Benefits • Smaller code / faster downloads • Improved layout options • Uniform look & feel • Easier maintenance • Cross-browser compatibility (in principle) • Cool effects (dynamic HTML - along with Javascript, DOM)

  7. Tranforming the look and feel of a page using a CSS style sheet. + body { font-family: arial, san-serif; } a, a:link { color: #0000cc; } ...

  8. Applying Basic Styles

  9. The Browser has “default styling” for all tags. <h1><a href="index.htm"> AppEngineLearn</a></h1> <ul> <li><a href="sites.htm">Sites</a></li> <li><a href="topics.htm" >Topics</a></li> </ul> <h2>Google App Engine: About</h2> <p> Welcome to the site dedicated to learning the Google Application Engine. We hope you find www.appenginelearn.com useful. </p>

  10. We will apply CSS to the tags in the document. With no changes to the HTML.

  11. Lots of CSS properties to play with background-color, border-width, border-color, margin-top, padding, font-family, top, left, right, float, font-size, background-image, text-align, text-decoration, font-style, font-weight, vertical-align, visibility, overflow, .... We can set these properties on any HTML tag in a document.

  12. Source:http://www.lesliefranke.com/files/reference/csscheatsheet.htmlSource:http://www.lesliefranke.com/files/reference/csscheatsheet.html

  13. Anatomy of a CSS Rule selector - which part of the document does this rule apply to body { font-family:arial, sans-serif; font-size: 100%; } value - What are we setting the property to. property - which aspect of CSS are we changing

  14. Multiple tags with same styling h1, h2, h3 { color: yellow; background-color: black; } Making a noticeable background color is a fun way to debug / identify blocks.

  15. Three ways to add style rules • Inline Style - Add style information to a tag • Embedded Style - Add style information to the document at the beginning • External Style Sheet* - Put all of your style in an external file • *Preferred - because two people can work independently

  16. Inline Styles <h1> <img src="appengine.jpg" width="142" height="109“ alt="Google App Engine Logo“ style="float:right"/> Google App Engine: About</h1> <p> Welcome to the site dedicated to learning the Google Application Engine. We hope you find www.appenginelearn.com useful. </p>

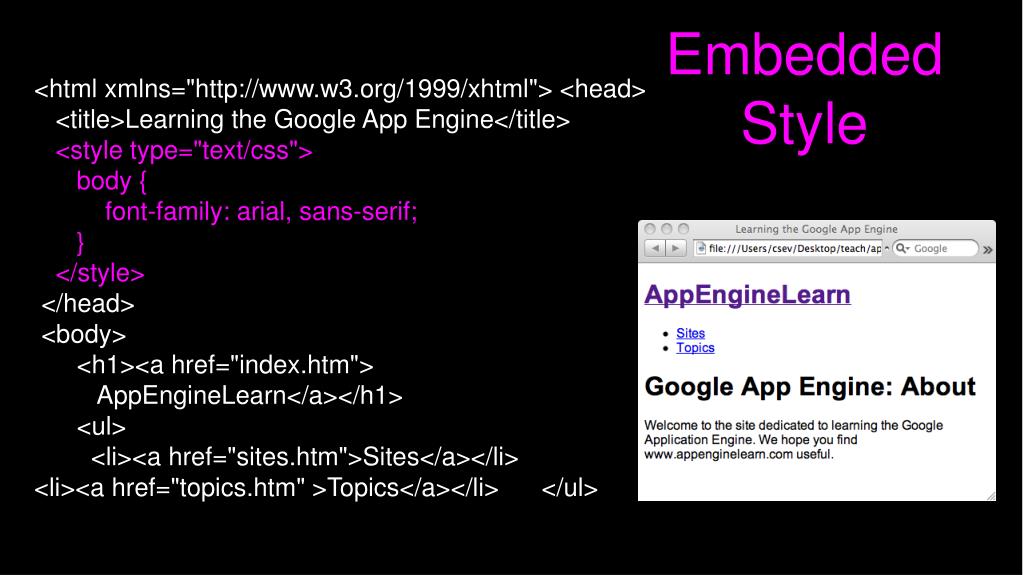

  17. Embedded Style <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>Learning the Google App Engine</title> <style type="text/css"> body { font-family: arial, sans-serif; } </style> </head> <body> <h1><a href="index.htm"> AppEngineLearn</a></h1> <ul> <li><a href="sites.htm">Sites</a></li> <li><a href="topics.htm" >Topics</a></li> </ul>

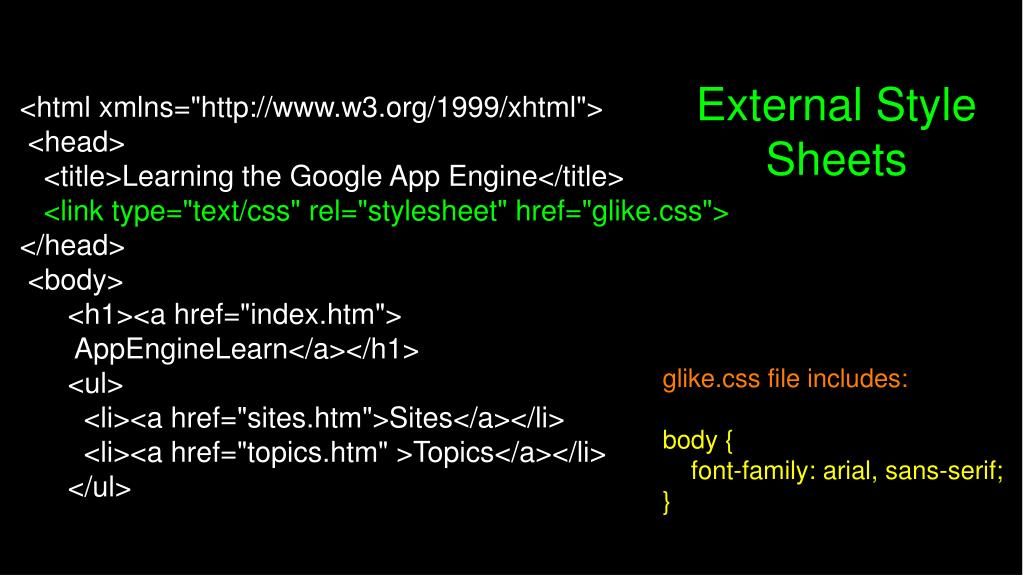

  18. External Style Sheets <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>Learning the Google App Engine</title> <link type="text/css" rel="stylesheet" href="glike.css"> </head> <body> <h1><a href="index.htm"> AppEngineLearn</a></h1> <ul> <li><a href="sites.htm">Sites</a></li> <li><a href="topics.htm" >Topics</a></li> </ul> glike.css file includes: body { font-family: arial, sans-serif; }

  19. <head> <title>Learning the Google App Engine</title> <link type="text/css" rel="stylesheet" href="glike.css"> </head> csev$ ls –l total 32 -rw-r--r-- 1 csev staff 44 Jan 28 13:14 glike.css-rw-r--r-- 1 csev staff 680 Feb 17 08:25 index.htm-rw-r--r-- 1 csev staff 886 Feb 17 08:00 sites.htm-rw-r--r-- 1 csev staff 681 Feb 17 08:01 topics.htm csev$ We put the CSS file in the same directory so the link works.

  20. Basic CSS Demo

  21. Default Styling for Links (introducing “pseudo-classes”)

  22. Styling Links a { font-weight: bold; } a:link { color: black; } a:visited { color: gray; } a:hover { text-decoration: none; color: white; background-color: navy; } a:active { color: aqua; background-color: navy; } link - before a visit visited - after it has been visited hover - when your mouse is over it but you have not clicked active - you have clicked it and you have not yet seen the new page Browser default styling for links is downright ugly!

  23. CSS Tags and Attributes • As CSS was introduced they introduced two new tags that are pretty much there to serve as handles for styling • <div> - A block tag (breaks justification) • <span> - An inline tag that does not break justification • There are two attributes with special meaning to CSS • id= - Marks a unique block within the document for styling (use only once) • class= - Marks a non-unique tag within the document for styling (multi-use)

  24. div as Container The id attribute on the tag allows us to uniquely mark a div in a document. The id tag is also useful for screen readers. <div> <p>This is a paragraph inside a div.</p> <p>So is this.</p> </div> <div id="header"> <ul> <li><a href="sites.htm">Sites</a></li> <li><a href="topics.htm" >Topics</a></li> </ul> </div> “div” stands for “division” as it allows us to divide our page into parts or sections and then do something different with each “section”.

  25. Styling a block with “id” Everything within block Paragraphs within block #footer { font-style: italic; font-family: Times, serif; } #footer p { font-style: italic; font-family: Times, serif; } or <div id="footer"> <p>Please send any comments to csev@umich.edu</p> </div> id= identifies a *particular* block - only one in a document

  26. Nested divs <div id="outer"> <div id="nested1"> <p>A paragraph inside the first nested div.</p> </div> <div id="nested2"> <p>A paragraph inside the second nested div.</p> </div> </div> <!-- End of the outer div --> Adding divs give us a “handle” to apply styling (CSS) to a block of text.

  27. Paragraphs and Divs <p>This is a paragraph.</p> <div>This looks like a paragraph, but it's actually a div.</div> <p>This is another paragraph.</p> <div>This is another div.</div> Think

  28. Styling with class= .fun { color: #339999; font-family: Georgia, Times, serif; letter-spacing: 0.05em; } <p class="fun">A man walks into a bar; you would've thought he'd see it coming!</p> <p>Have a nice day.<p> <p class=”fun”>More fun stuff</p> class can be used many times in a document.

  29. Span (Invisible tag) <p><span class="fun">Bubble Under</span> is a group of diving enthusiasts based in the south-west UK who meet up for diving trips in the summer months when the weather is good and the bacon rolls are flowing. We arrange weekends away as small groups to cut the costs of accommodation and travel and to ensure that everyone gets a trustworthy dive buddy.</p> Sometimes you want to style something smaller than a whole block - then use span. Do not use span if you are applying something to a whole block - just put your styling on the enclosing block tag.

  30. <body> <div id="header"> <h1><a href="index.htm“class="selected">SI502</a></h1> <ul class="toolbar"> <li><a href="books.htm">Books</a></li> <li><a href="topics.htm" >Topics</a></li> </ul> </div> <div id="bodycontent"> <h1>Networked Computing: About</h1> <p> This course is a survey course covering a broad range of technology topics at a high level. The course is aimed at students with no prior technical skills other than the general use of a computer. Really! </p> </div> </body> When building HTML, we use id and class to add little “handles” in the HTML to make it so we can “style” areas of the document. Pick div id’s to indicate meaning.

  31. Inheritance • Inheritance is where specific CSS properties are passed down to descendent elements.* • Example: <p>This is a <em>very</em> important element</p> • What will the word “very” look like when rendered if the CSS specifies p { color: red; } ? • *Not all CSS properties are inherited. Imagine what would happen in this example if we had specified a border around p and it was inherited by em.

  32. More Examples

  33. Summary • HTML provides content and structure; CSS provides formatting and layout • CSS is best kept in a separate file that is called on from the HTML • Special tags DIV and SPAN accompanied by attributes in the form of Classes and IDs provide hooks for the CSS • Many CSS properties are inherited to simplify coding

  34. Next Session • Positioning/Layout with CSS • The Box Model • CSS Resources • CSS Browser Support
