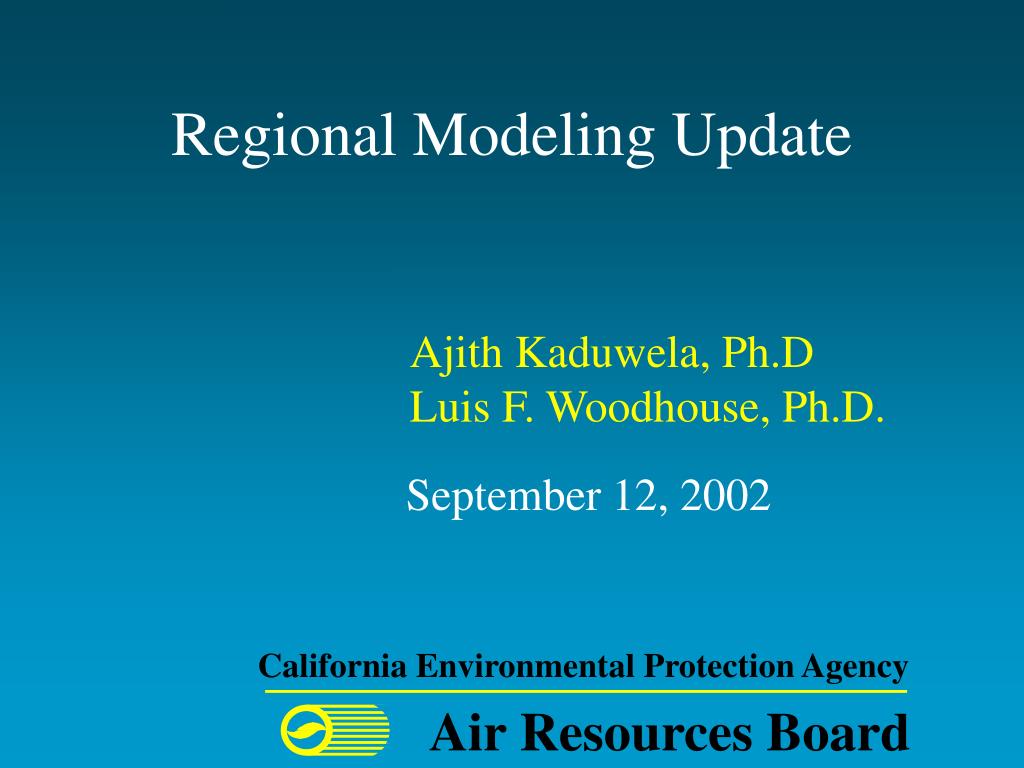

  1. California Environmental Protection Agency Air Resources Board Regional Modeling Update Ajith Kaduwela, Ph.D Luis F. Woodhouse, Ph.D. September 12, 2002

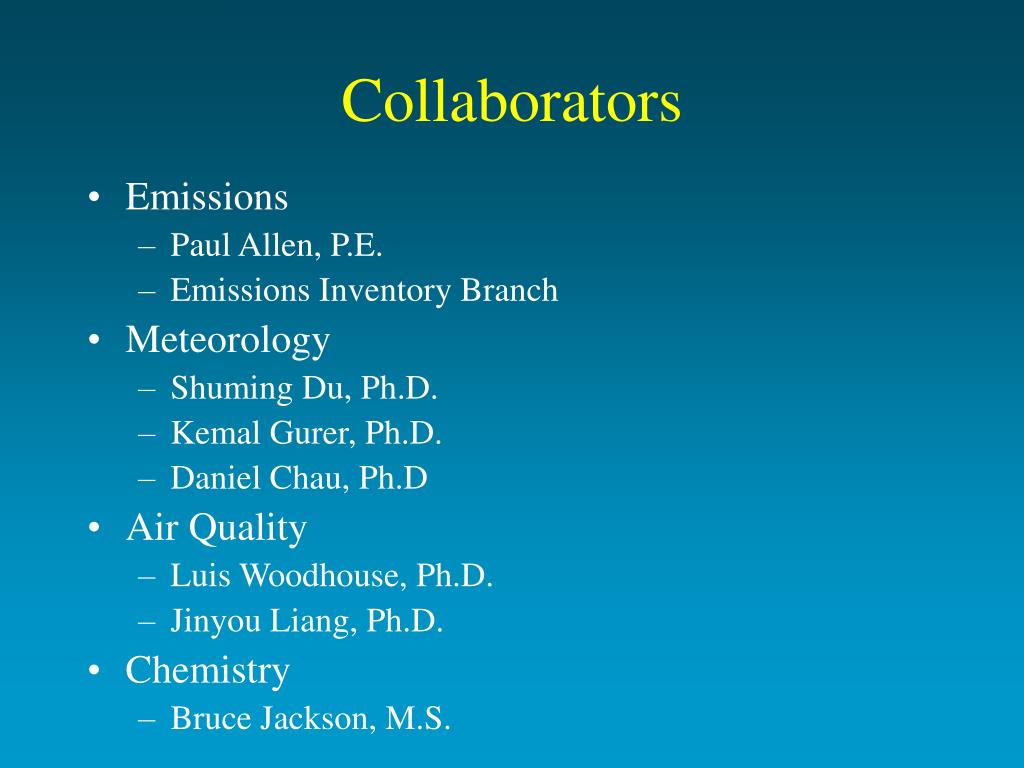

  2. Collaborators • Emissions • Paul Allen, P.E. • Emissions Inventory Branch • Meteorology • Shuming Du, Ph.D. • Kemal Gurer, Ph.D. • Daniel Chau, Ph.D • Air Quality • Luis Woodhouse, Ph.D. • Jinyou Liang, Ph.D. • Chemistry • Bruce Jackson, M.S.

  3. Outline • Summary of Draft Modeling Protocol • Photochemical Models Used • Model Input Preparation • Meteorological Models Used • Modeling Results/Performance Evaluation • MATES-II, CRC/DOE/NERL Study • Future Work

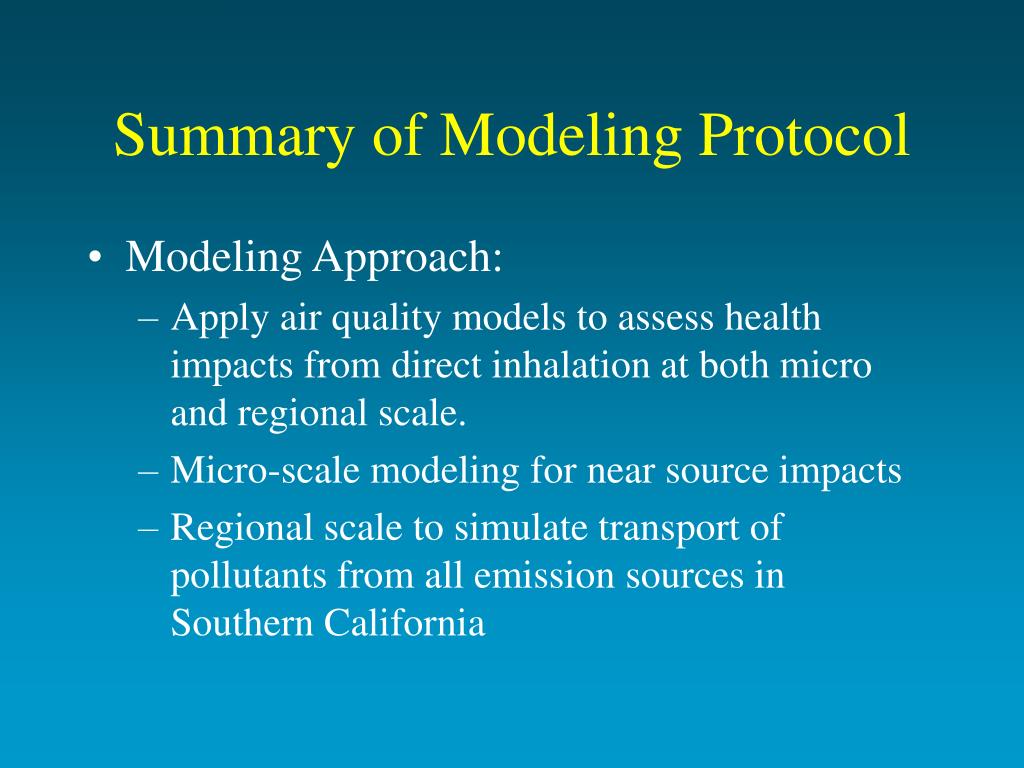

  4. Summary of Modeling Protocol • Modeling Approach: • Apply air quality models to assess health impacts from direct inhalation at both micro and regional scale. • Micro-scale modeling for near source impacts • Regional scale to simulate transport of pollutants from all emission sources in Southern California

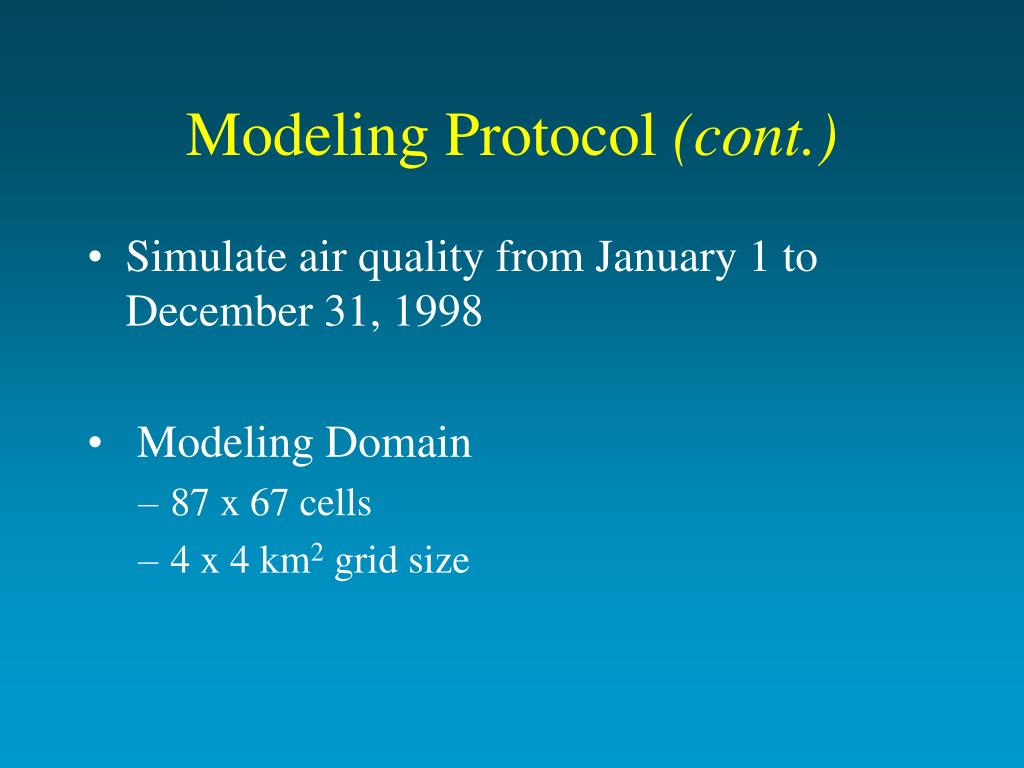

  5. Modeling Protocol (cont.) • Simulate air quality from January 1 to December 31, 1998 • Modeling Domain • 87 x 67 cells • 4 x 4 km2 grid size

  6. Ventura San Bernardino Los Angeles Riverside Orange San Diego Mexico Regional Modeling Domain

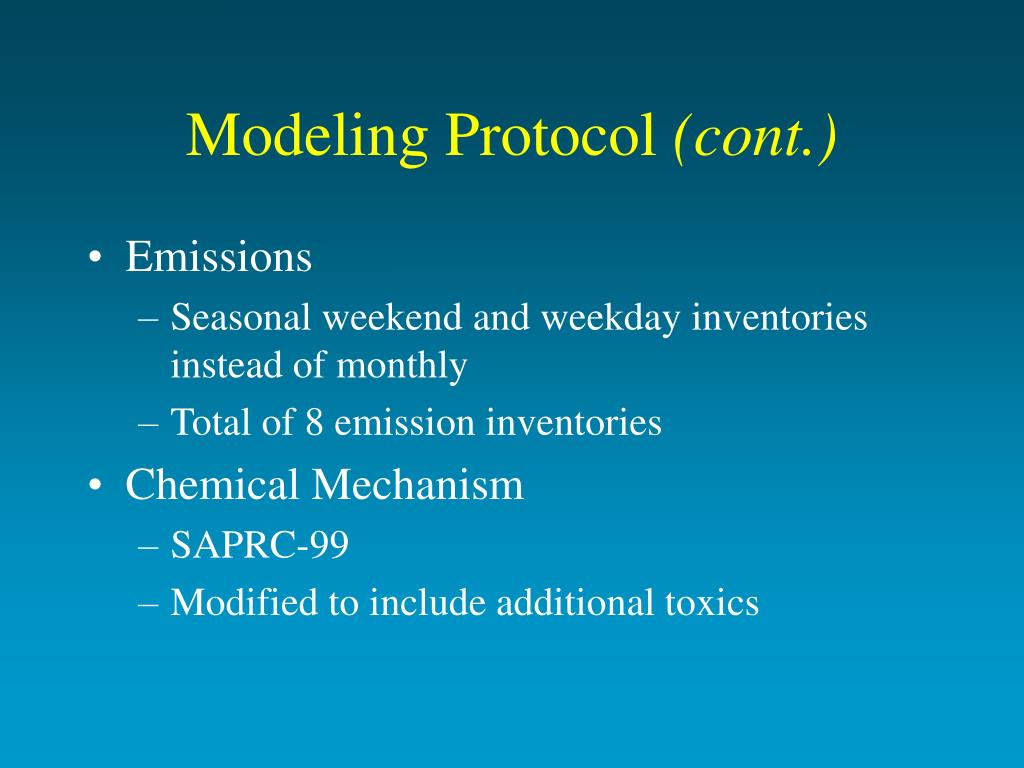

  7. Modeling Protocol (cont.) • Emissions • Seasonal weekend and weekday inventories instead of monthly • Total of 8 emission inventories • Chemical Mechanism • SAPRC-99 • Modified to include additional toxics

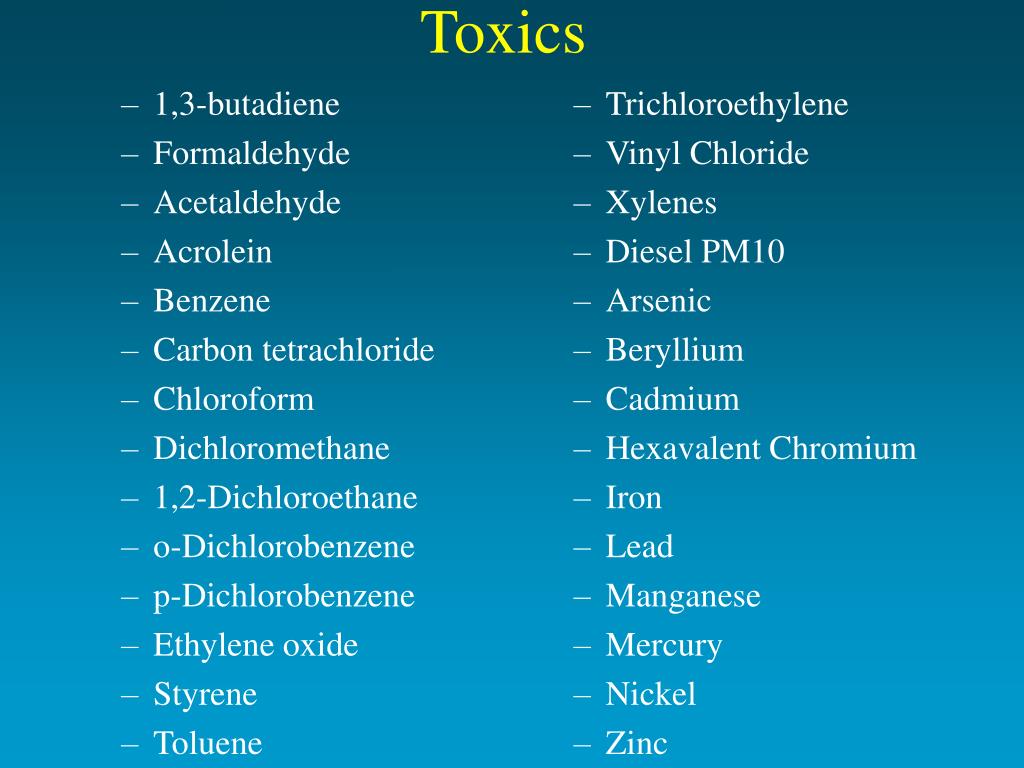

  8. 1,3-butadiene Formaldehyde Acetaldehyde Acrolein Benzene Carbon tetrachloride Chloroform Dichloromethane 1,2-Dichloroethane o-Dichlorobenzene p-Dichlorobenzene Ethylene oxide Styrene Toluene Trichloroethylene Vinyl Chloride Xylenes Diesel PM10 Arsenic Beryllium Cadmium Hexavalent Chromium Iron Lead Manganese Mercury Nickel Zinc Toxics

  9. Modeling Protocol (cont.) • Two grid-base photochemical models • Run Models-3/CMAQ for selected episodes • Run one air quality model for entire 1998 • using CALGRID instead of UAM-FCM

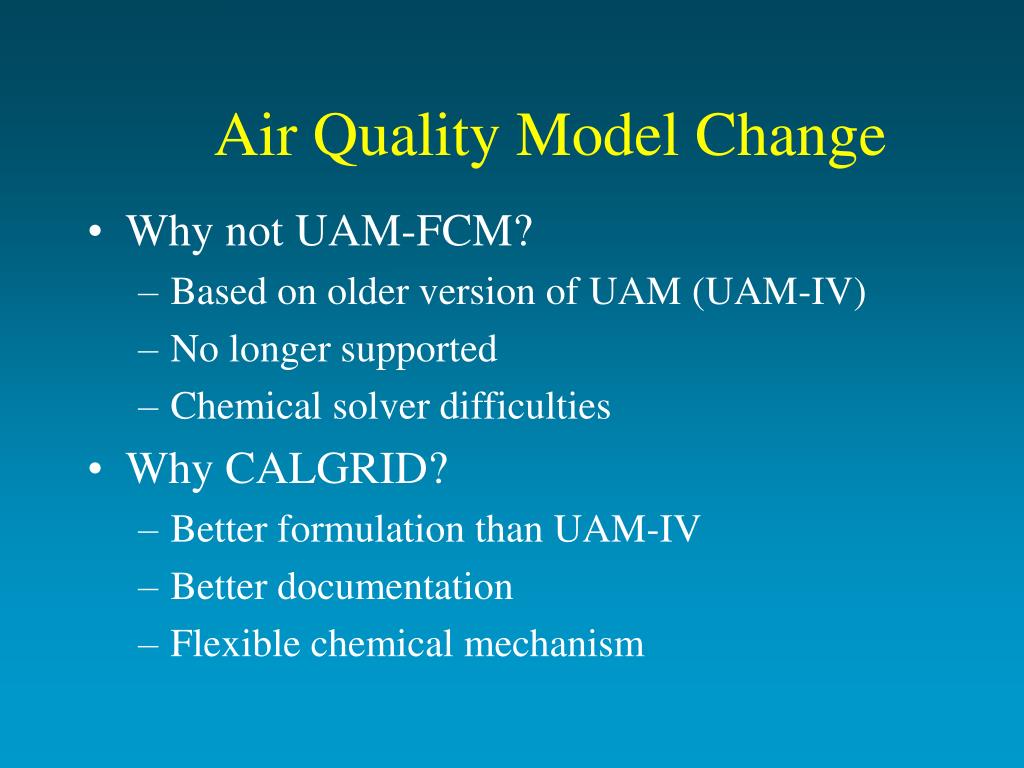

  10. Air Quality Model Change • Why not UAM-FCM? • Based on older version of UAM (UAM-IV) • No longer supported • Chemical solver difficulties • Why CALGRID? • Better formulation than UAM-IV • Better documentation • Flexible chemical mechanism

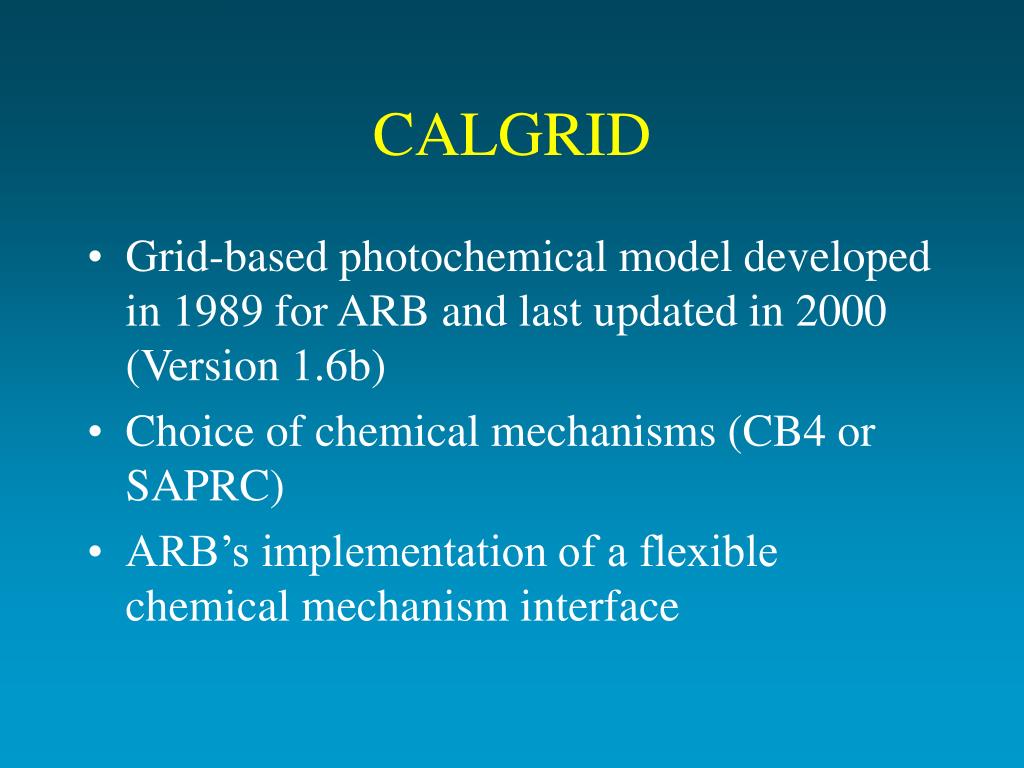

  11. CALGRID • Grid-based photochemical model developed in 1989 for ARB and last updated in 2000 (Version 1.6b) • Choice of chemical mechanisms (CB4 or SAPRC) • ARB’s implementation of a flexible chemical mechanism interface

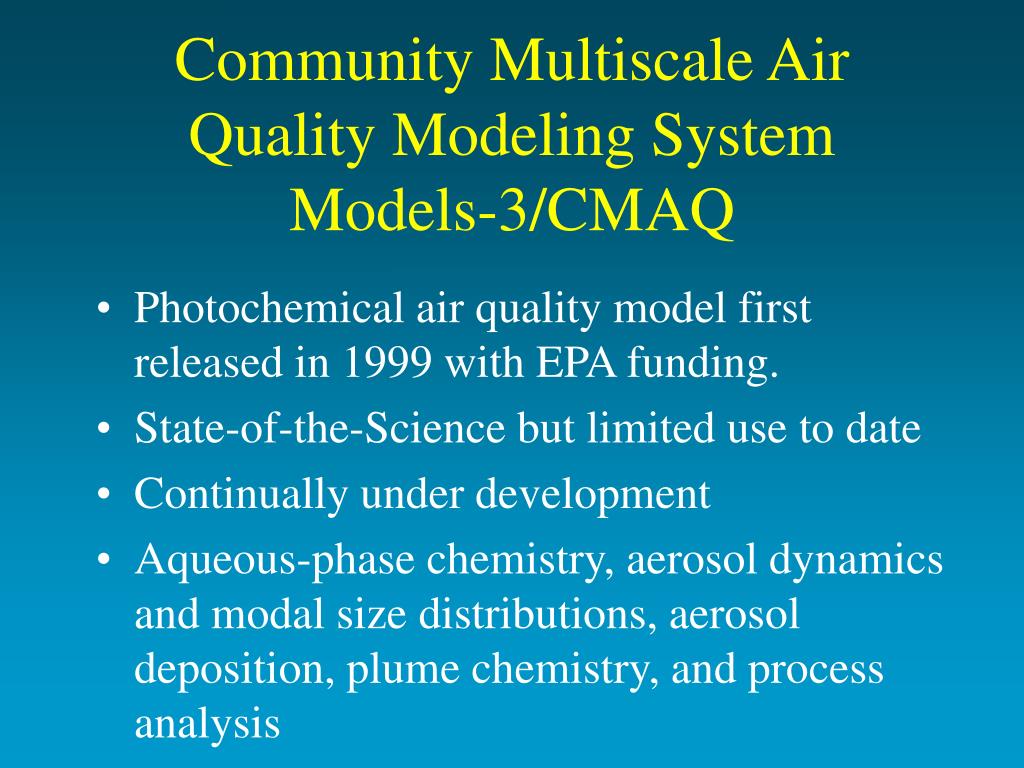

  12. Community Multiscale Air Quality Modeling System Models-3/CMAQ • Photochemical air quality model first released in 1999 with EPA funding. • State-of-the-Science but limited use to date • Continually under development • Aqueous-phase chemistry, aerosol dynamics and modal size distributions, aerosol deposition, plume chemistry, and process analysis

  13. CMAQ MM5 17 vertical layers Domain top: 14.6 km SAPRC-99 with toxics QSSA or SMVGEAR dry deposition for some toxic VOCs first order decay for deposition of PM 7 days of CPU/month 1 GB/day CALGRID CALMET 10 vertical layers Domain top: 3 km SAPRC-99 with toxics QSSA or Hybrid dry deposition for all toxic VOCs particulate deposition for PM 3 days of CPU/month 0.5 GB/day CMAQ vs. CALGRID

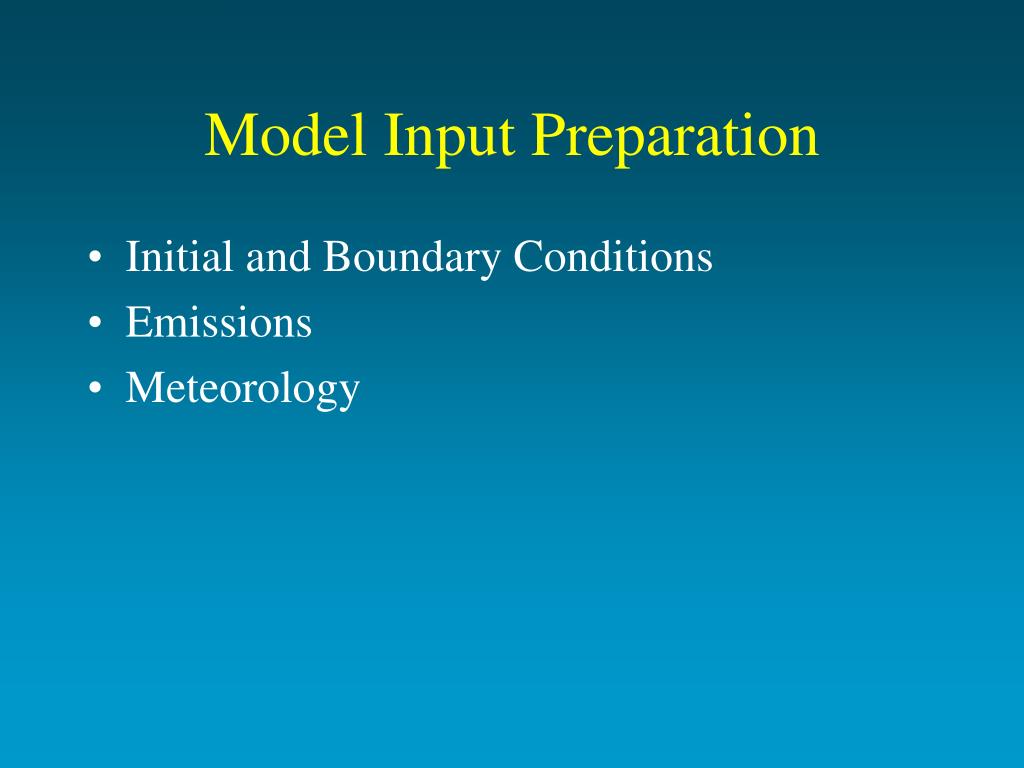

  14. Model Input Preparation • Initial and Boundary Conditions • Emissions • Meteorology

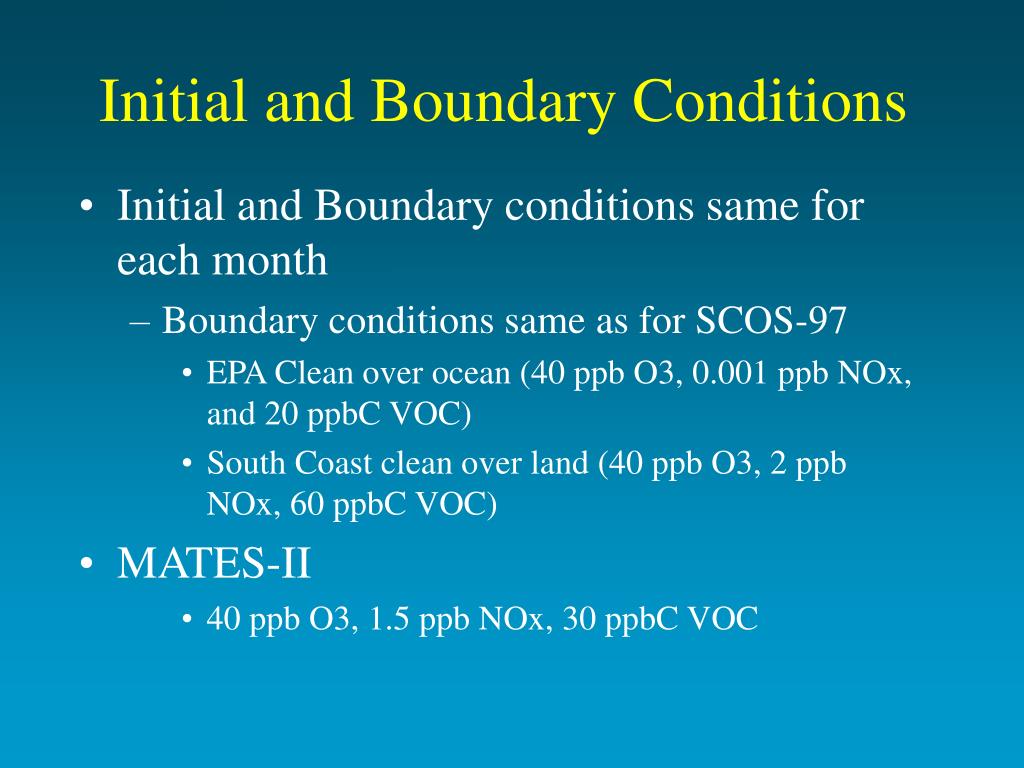

  15. Initial and Boundary Conditions • Initial and Boundary conditions same for each month • Boundary conditions same as for SCOS-97 • EPA Clean over ocean (40 ppb O3, 0.001 ppb NOx, and 20 ppbC VOC) • South Coast clean over land (40 ppb O3, 2 ppb NOx, 60 ppbC VOC) • MATES-II • 40 ppb O3, 1.5 ppb NOx, 30 ppbC VOC

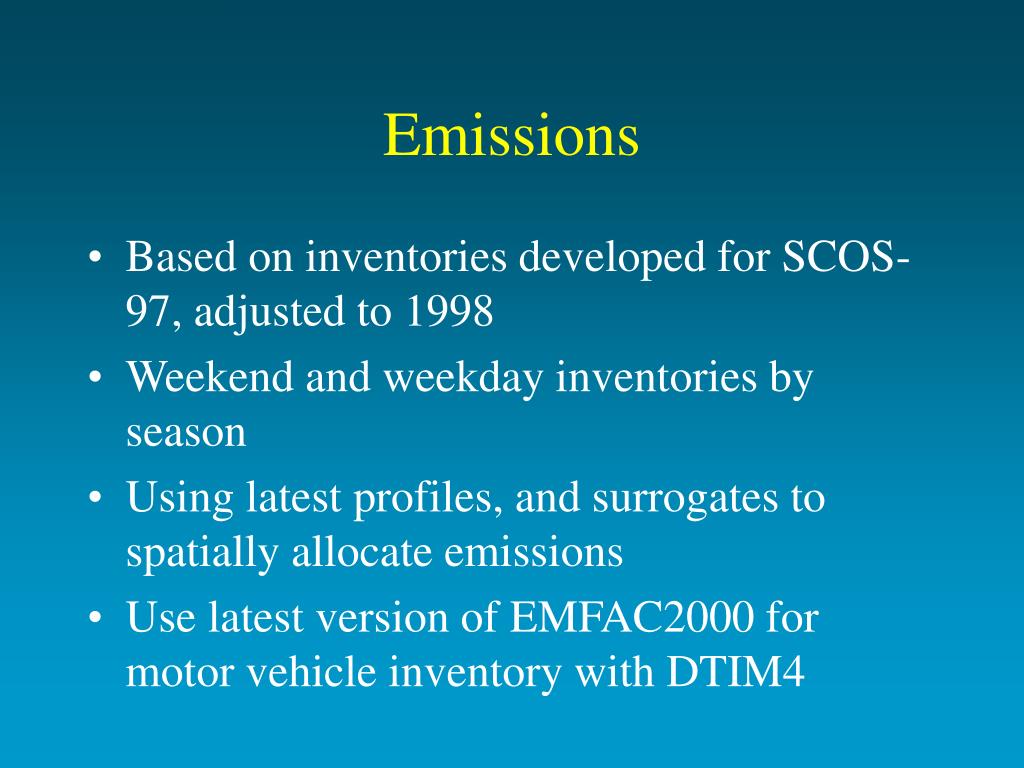

  16. Emissions • Based on inventories developed for SCOS-97, adjusted to 1998 • Weekend and weekday inventories by season • Using latest profiles, and surrogates to spatially allocate emissions • Use latest version of EMFAC2000 for motor vehicle inventory with DTIM4

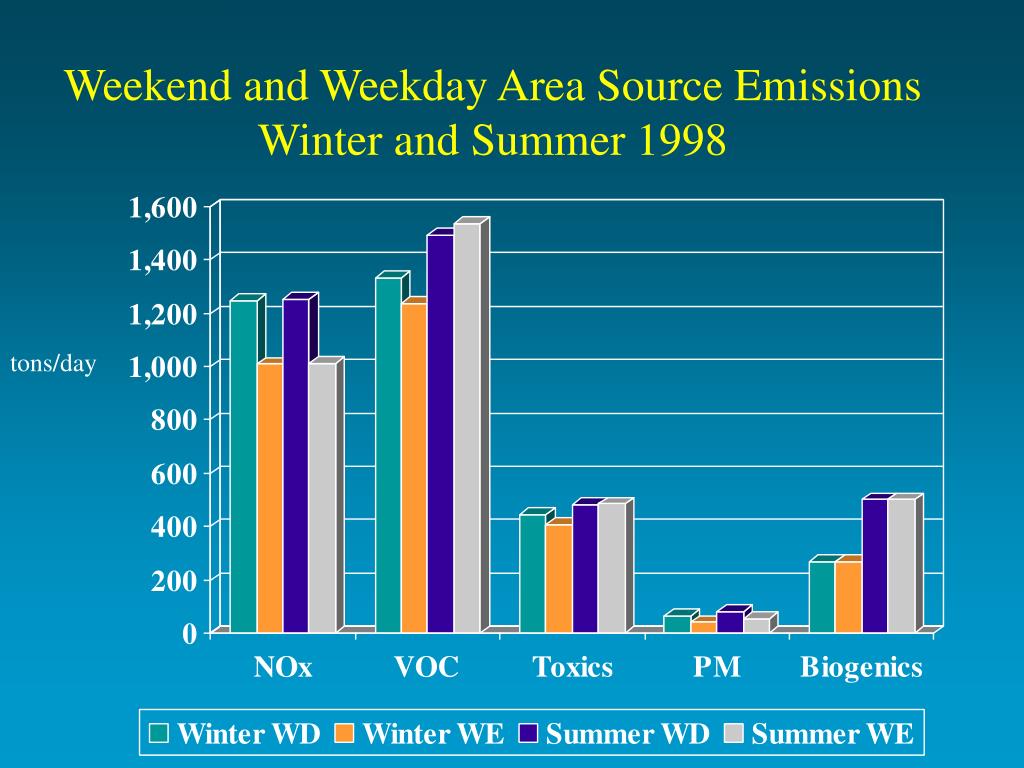

  17. Weekend and Weekday Area Source Emissions Winter and Summer 1998 tons/day

  18. Weekend and Weekday Elevated Emissions tons/day

  19. Summer Weekday NO 0 hr 6 hr Levels (kg/hr): 1 (B) 10 (G) 50 (Y) 80 (O) 100 (R) 16 hr 12 hr

  20. Summer Weekday BENZENE 0 hr 6 hr Levels (kg/hr); 1 (B) 2 (G) 3 (Y) 4 (O) 5 (R) 16 hr 12 hr

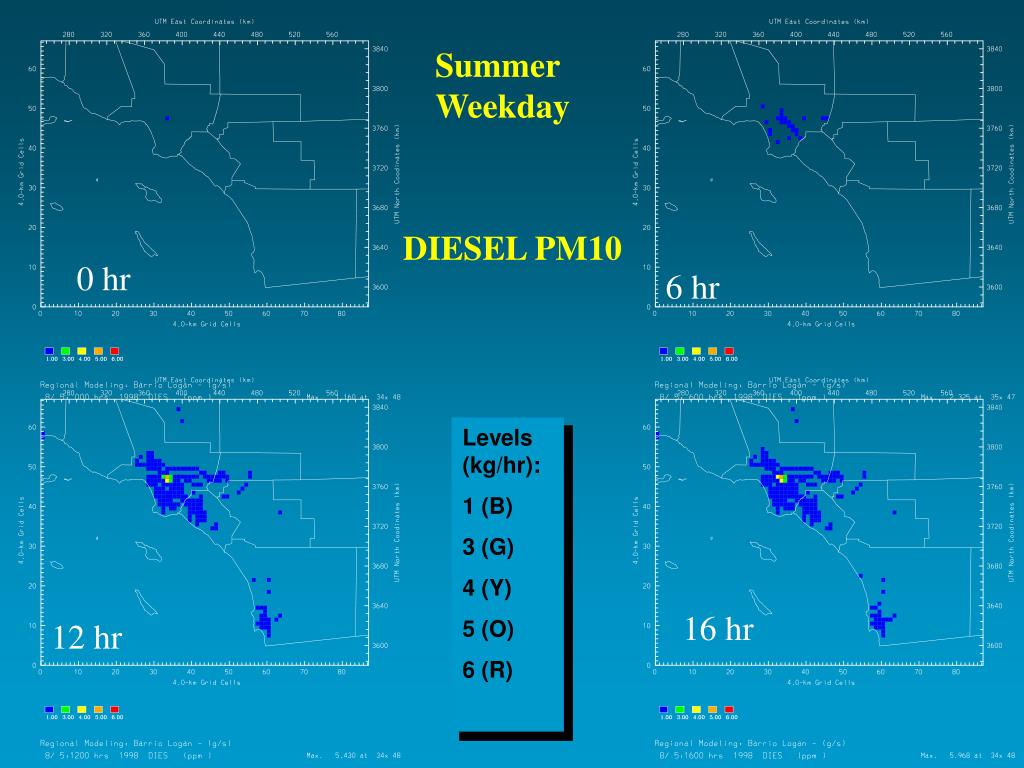

  21. Summer Weekday DIESEL PM10 0 hr 6 hr Levels (kg/hr): 1 (B) 3 (G) 4 (Y) 5 (O) 6 (R) 16 hr 12 hr

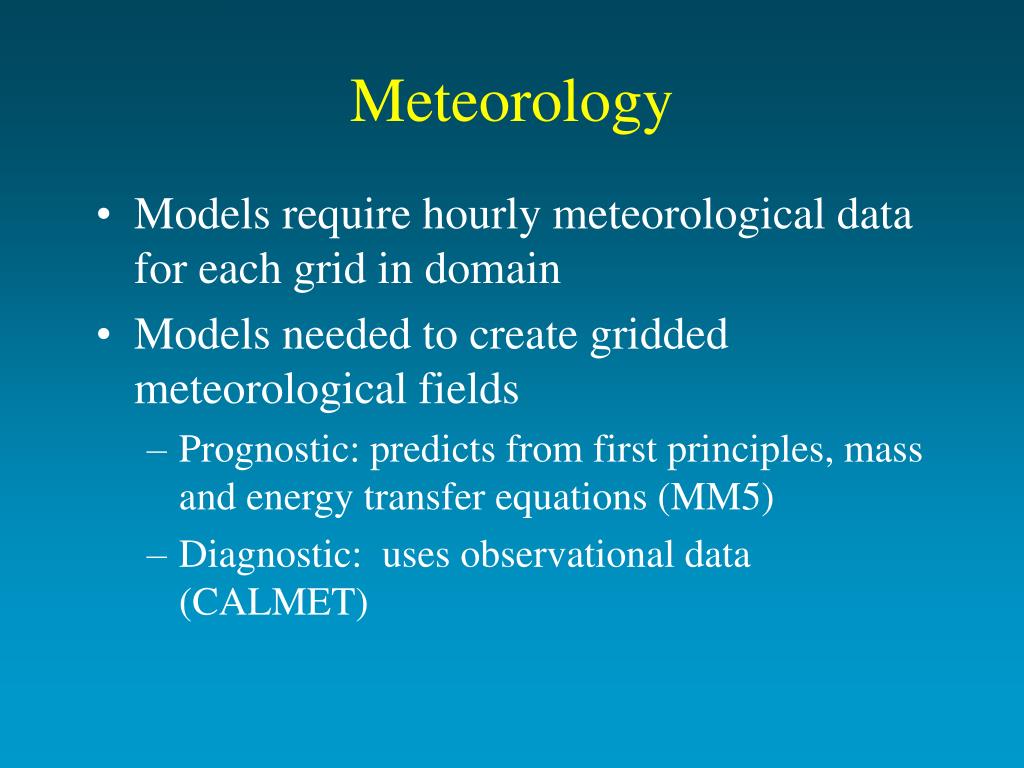

  22. Meteorology • Models require hourly meteorological data for each grid in domain • Models needed to create gridded meteorological fields • Prognostic: predicts from first principles, mass and energy transfer equations (MM5) • Diagnostic: uses observational data (CALMET)

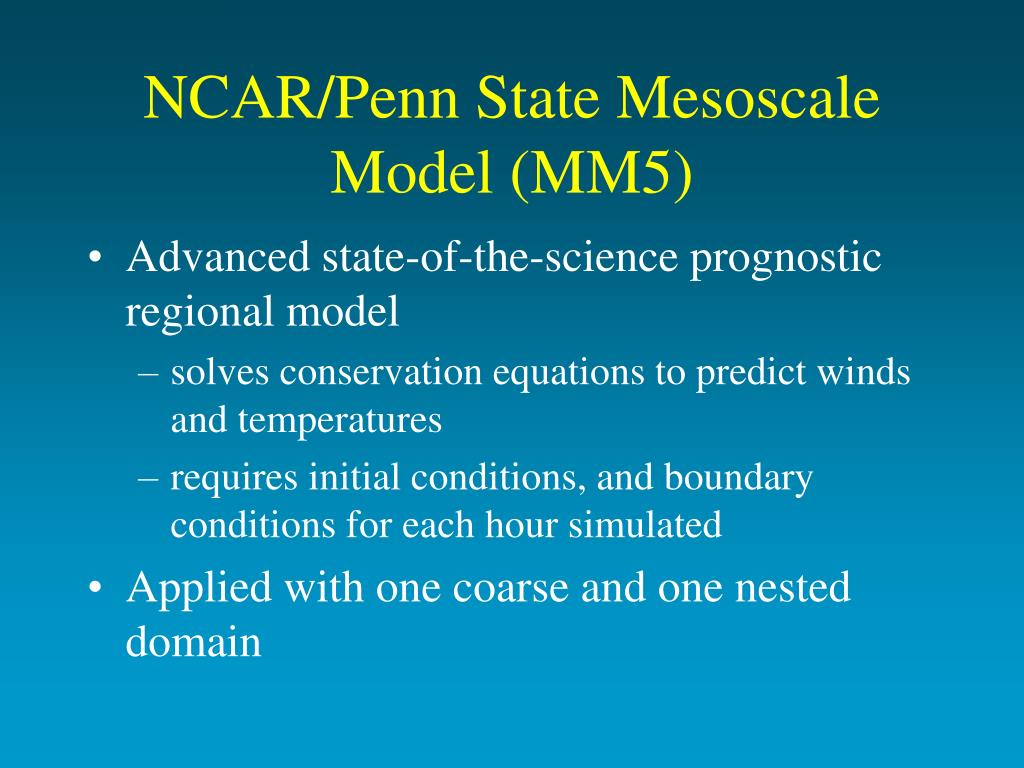

  23. NCAR/Penn State Mesoscale Model (MM5) • Advanced state-of-the-science prognostic regional model • solves conservation equations to predict winds and temperatures • requires initial conditions, and boundary conditions for each hour simulated • Applied with one coarse and one nested domain

  24. MM5 (cont.) • Analysis nudging used but no Data assimilation (FDDA) • 27 vertical layers (matched to 17 for air quality simulations) • MM5 exercised for entire 1998

  25. CALMET • Diagnostic generation of meteorological fields with objective analysis • Parameterized treatments of slope flows, kinematic terrain effects, terrain blocking effects, and a micro meteorological model for overland and overwater boundary layers

  26. CALMET (cont.) • Model driven by observations • 10 National Weather Service surface sites • ~100 California Irrigation Management System (CIMIS) surface stations • One upper air (NWS) site and two buoys • ~60 surface ARB/District monitoring sites (for January and August only)

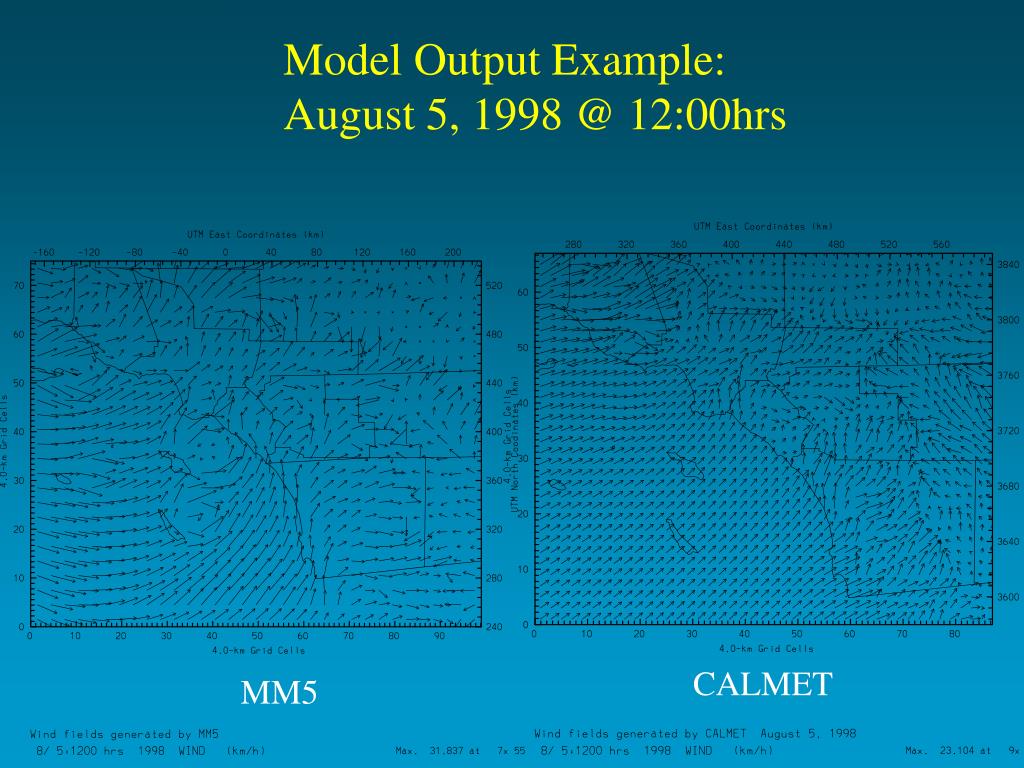

  27. Model Output Example: August 5, 1998 @ 12:00hrs CALMET MM5

  28. Model Output Example: January 20, 1998 @ 12:00hrs CALMET MM5

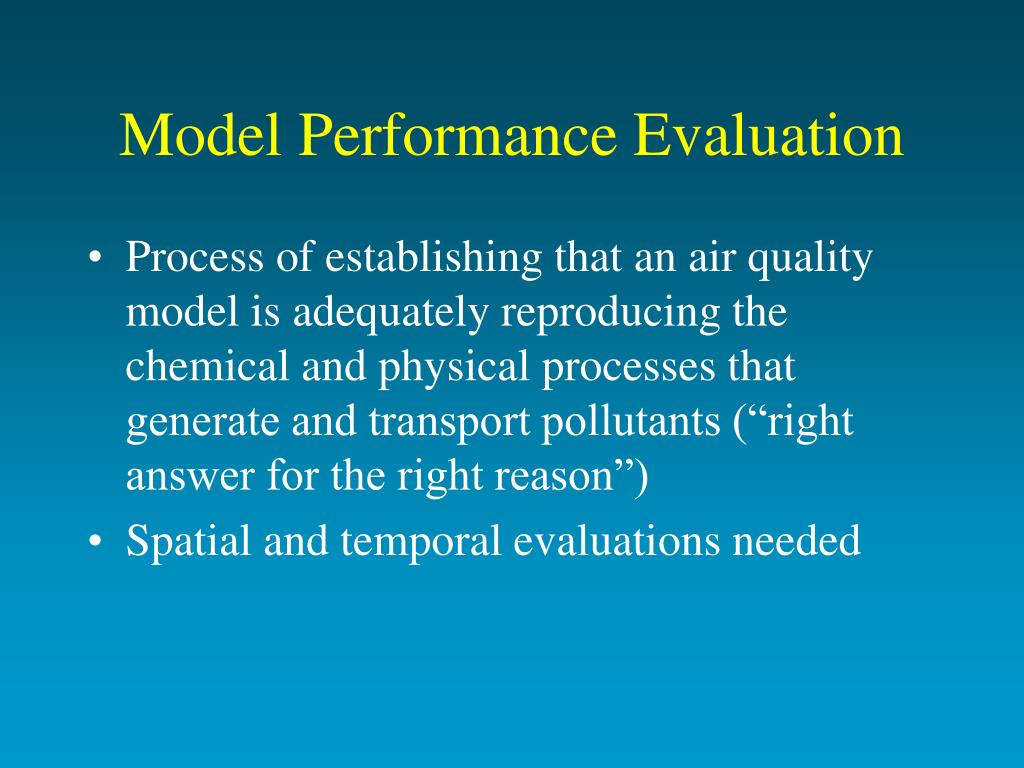

  29. Model Performance Evaluation • Process of establishing that an air quality model is adequately reproducing the chemical and physical processes that generate and transport pollutants (“right answer for the right reason”) • Spatial and temporal evaluations needed

  30. Model Performance Evaluation • Procedures well established for episodic hourly concentrations of O3 • peak estimation accuracy, mean bias, variance, gross error, scatter plots, time series plots, and isopleths • diagnostic and sensitivity simulations • No procedure established for 24-hr or annual concentrations

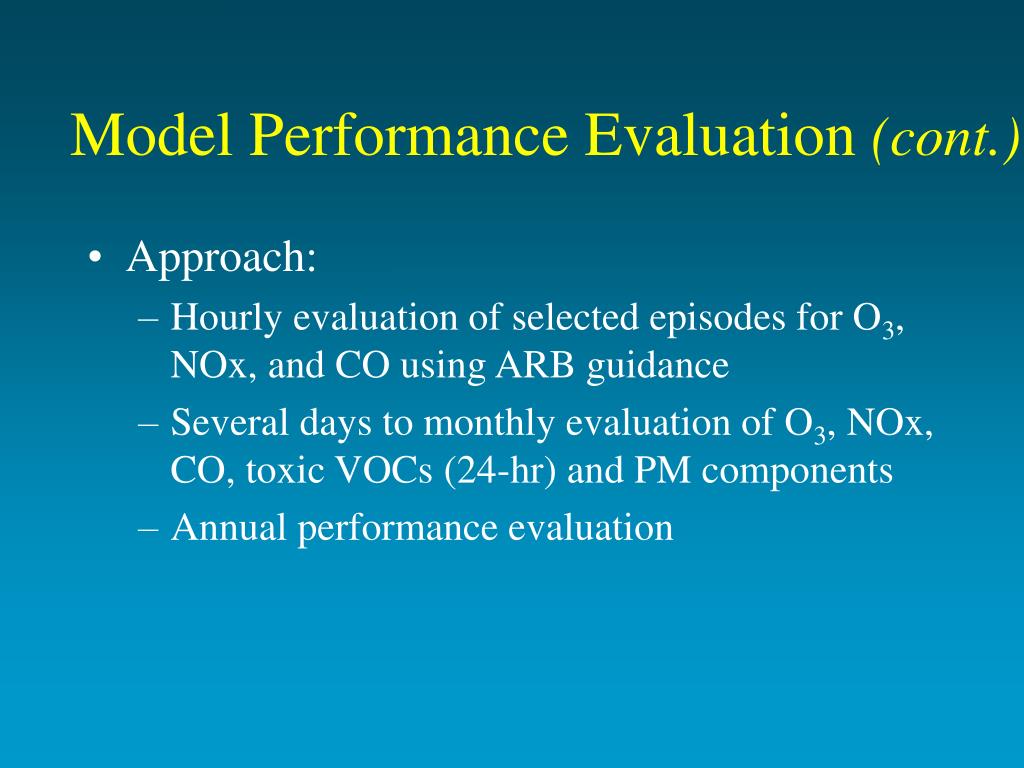

  31. Model Performance Evaluation (cont.) • Approach: • Hourly evaluation of selected episodes for O3, NOx, and CO using ARB guidance • Several days to monthly evaluation of O3, NOx, CO, toxic VOCs (24-hr) and PM components • Annual performance evaluation

  32. Data For Model Evaluation • 1-hr average concentrations for all 1998 • O3, NO, CO, NO2 • ARB and District monitoring sites • 24-hr Average concentrations for PM10 components • 24-hr measurements for selected VOCs

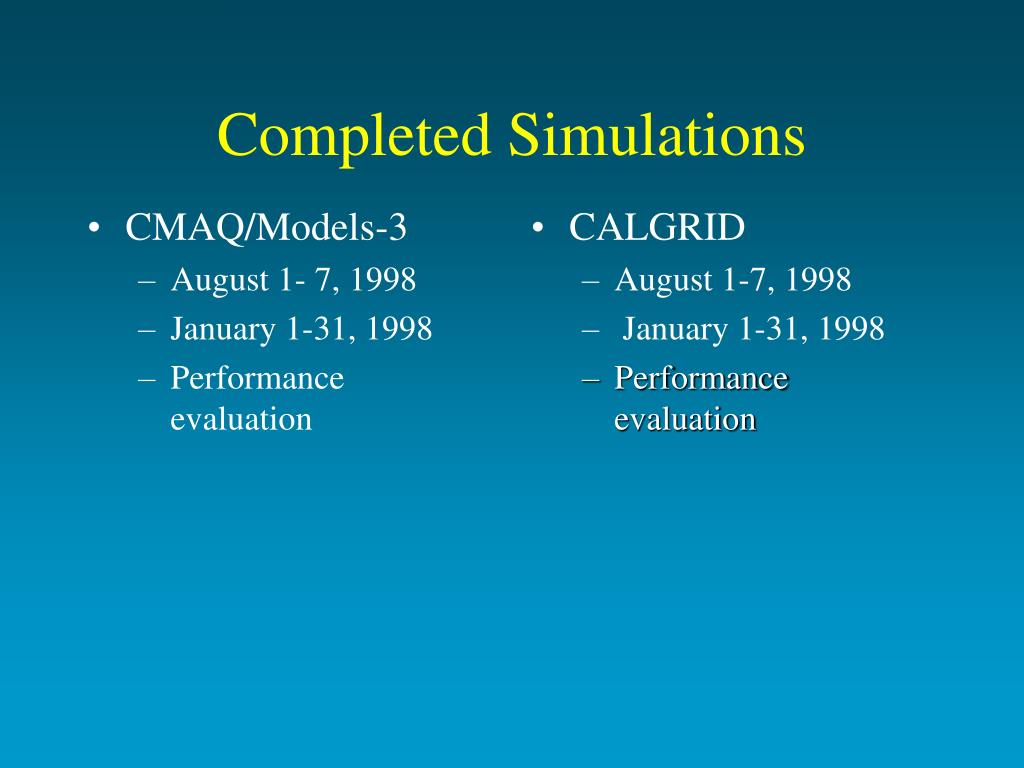

  33. CMAQ/Models-3 August 1- 7, 1998 January 1-31, 1998 Performance evaluation CALGRID August 1-7, 1998 January 1-31, 1998 Performance evaluation Completed Simulations

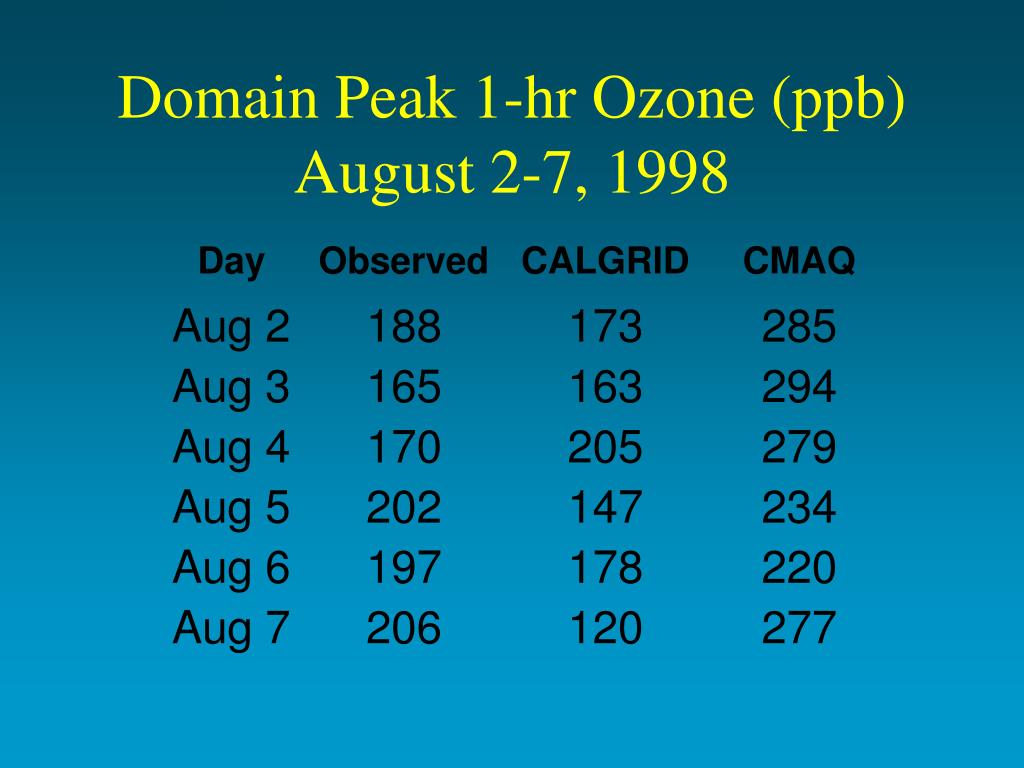

  34. Domain Peak 1-hr Ozone (ppb)August 2-7, 1998

  35. C A L G R I D C A L G R I D Aug 3 @ 13 hrs Aug 2 @ 14 hrs Peak O3 CMAQ: AUG 3 at 16 hrs CMAQ: AUG 2 @ 17 hrs

  36. 24-hr Model PerformanceAugust 1-7, 1998 • Calculated 24-hr monthly average for O3, CO, and NOx (from hourly values) and compare with predictions • Insufficient data to fully assess 24-hr model performance for toxics

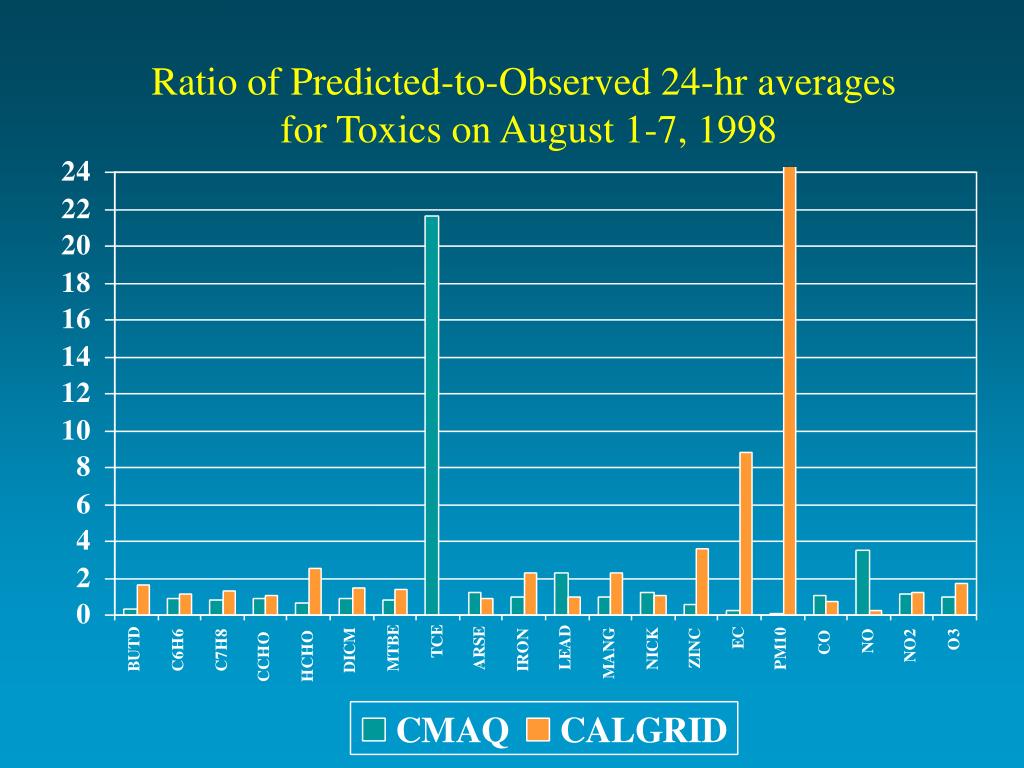

  37. Ratio of Predicted-to-Observed 24-hr averages for Toxics on August 1-7, 1998

  38. Observed Maximum 1-hr OzoneJanuary 1-31, 1998

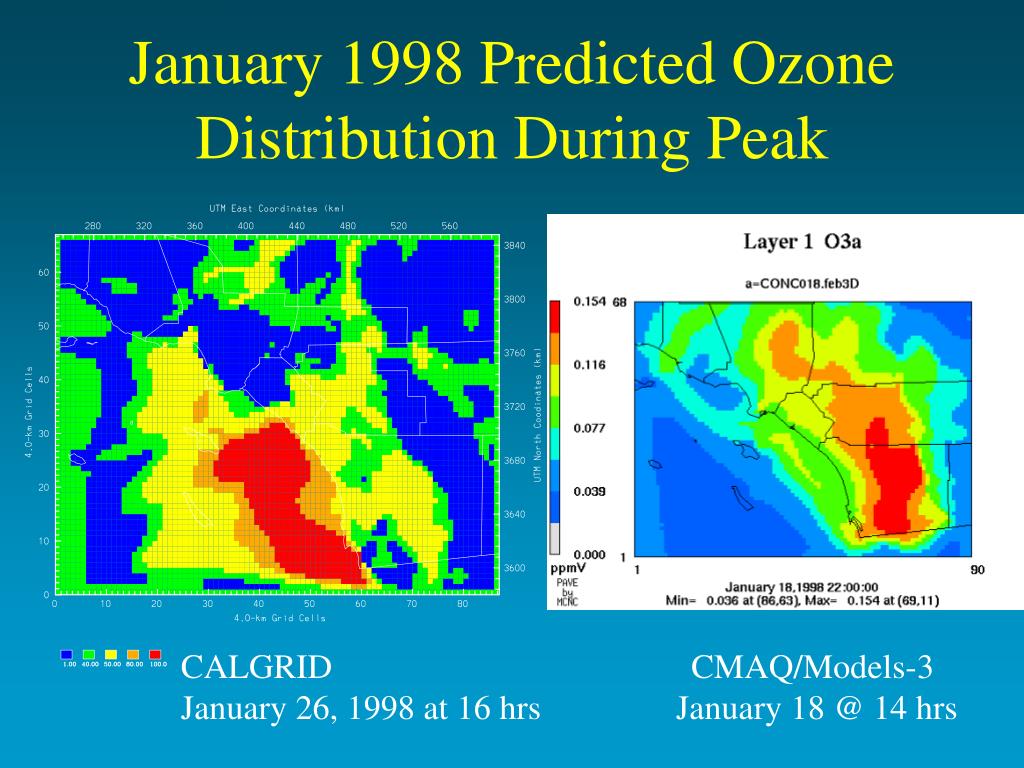

  39. January 1998 Predicted Ozone Distribution During Peak CALGRID January 26, 1998 at 16 hrs CMAQ/Models-3 January 18 @ 14 hrs

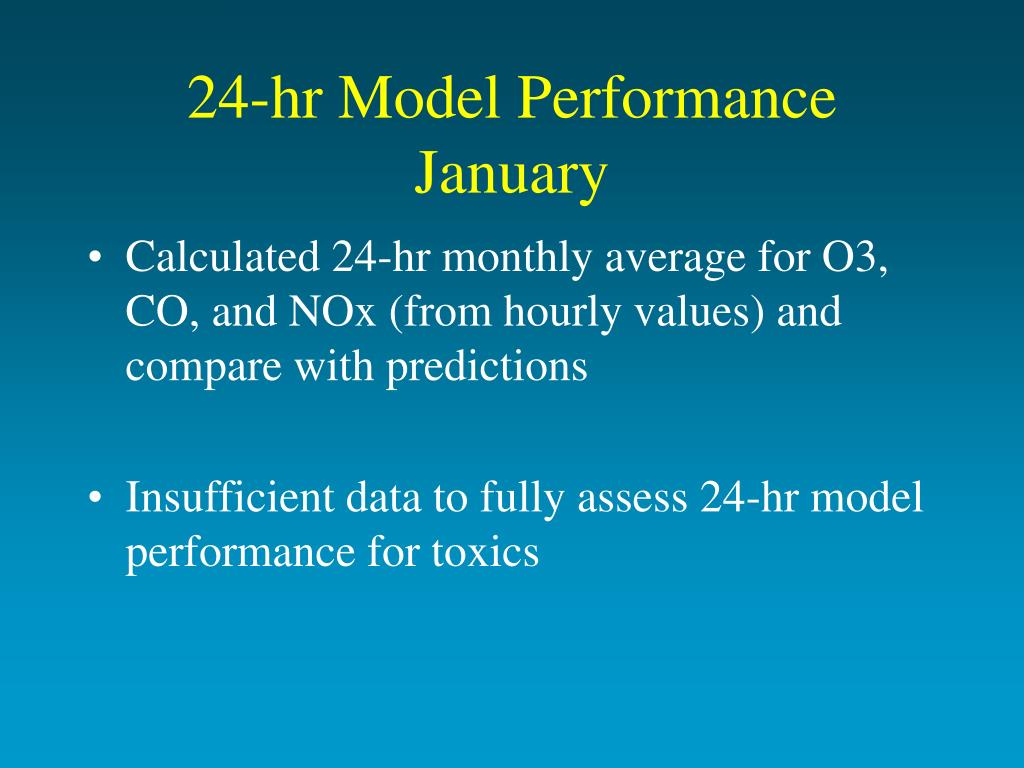

  40. 24-hr Model PerformanceJanuary • Calculated 24-hr monthly average for O3, CO, and NOx (from hourly values) and compare with predictions • Insufficient data to fully assess 24-hr model performance for toxics

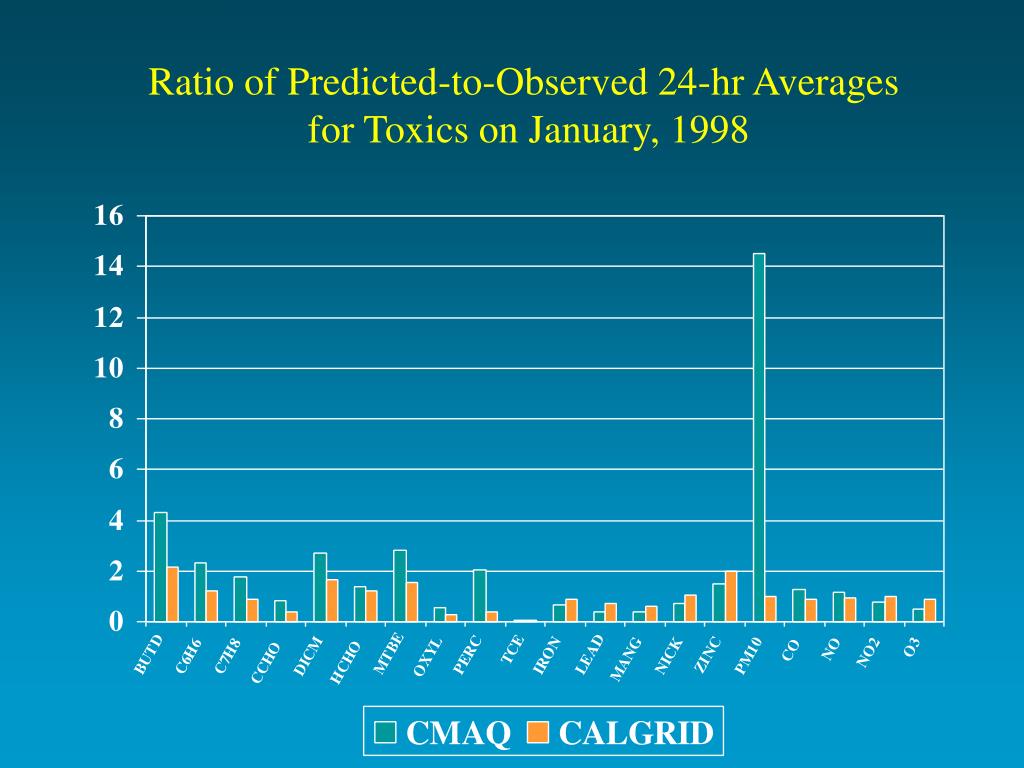

  41. Ratio of Predicted-to-Observed 24-hr Averages for Toxics on January, 1998

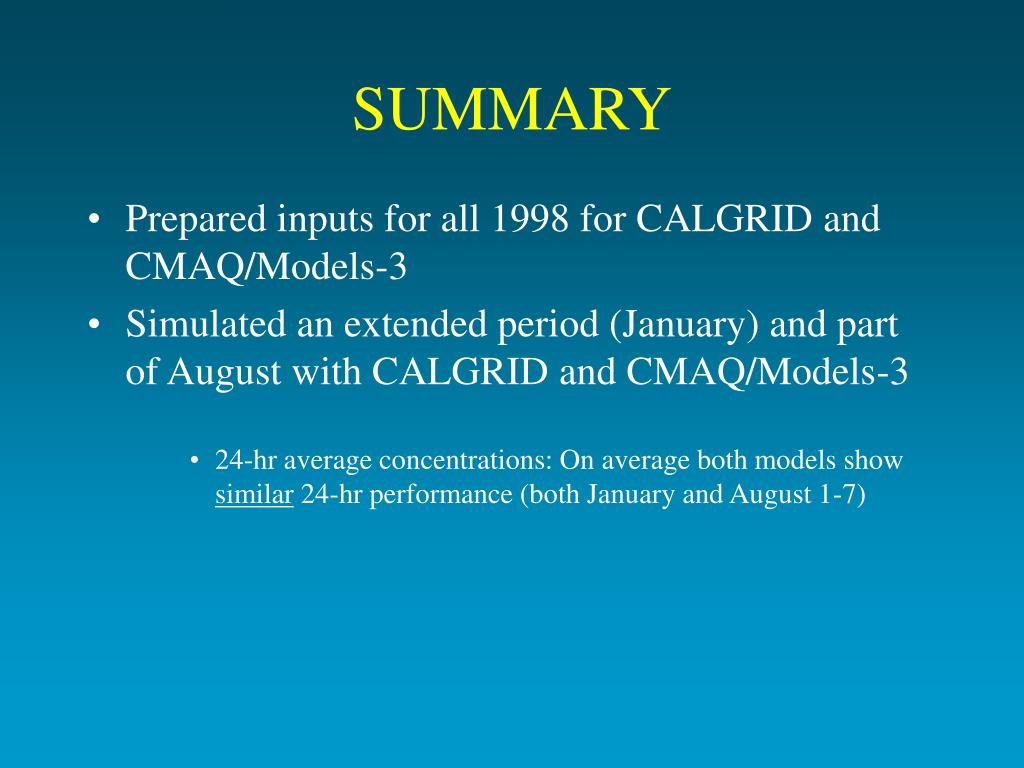

  42. SUMMARY • Prepared inputs for all 1998 for CALGRID and CMAQ/Models-3 • Simulated an extended period (January) and part of August with CALGRID and CMAQ/Models-3 • 24-hr average concentrations: On average both models show similar 24-hr performance (both January and August 1-7)

  43. MATES IIMultiple Air Toxics Exposure Study II • South Coast Air Quality Management District • Monitored ~30 pollutants from April 1, 1998 to March 31, 1999 at 10 sites • Air quality modeling for entire MATES II period • UAM with CB-IV and UAM-tox with updated CB-IV • CALMET for meteorology • Domain • 105 x 60 cell (2x2 km2), 5 layers ; region top of 2 km

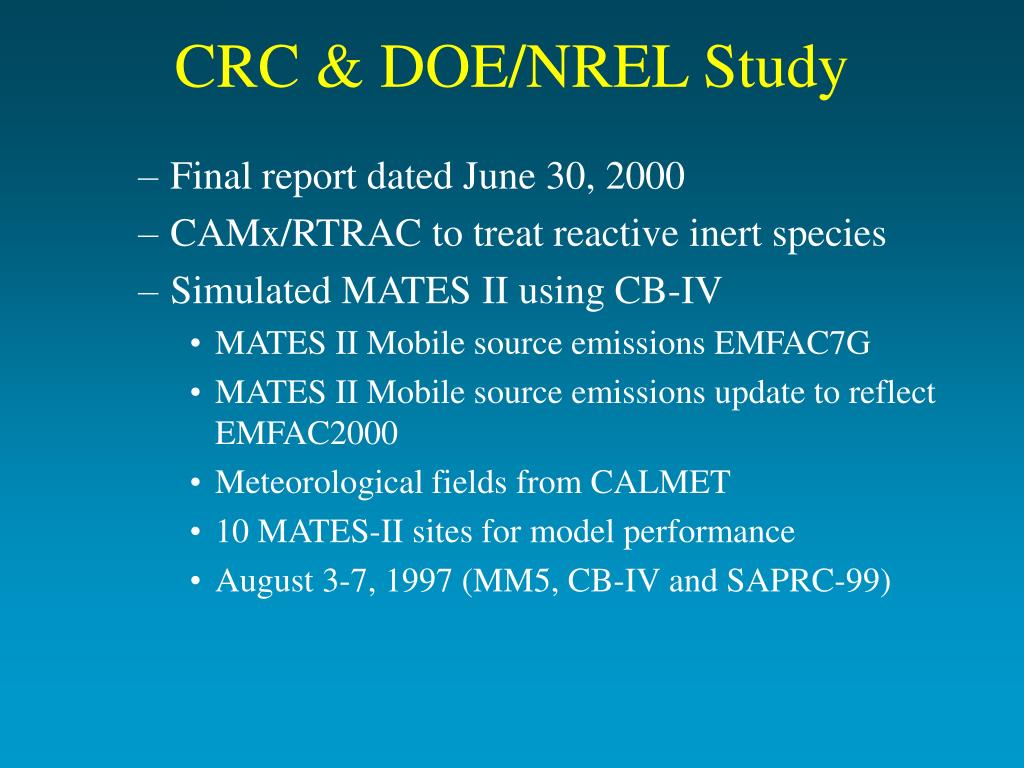

  44. CRC & DOE/NREL Study • Final report dated June 30, 2000 • CAMx/RTRAC to treat reactive inert species • Simulated MATES II using CB-IV • MATES II Mobile source emissions EMFAC7G • MATES II Mobile source emissions update to reflect EMFAC2000 • Meteorological fields from CALMET • 10 MATES-II sites for model performance • August 3-7, 1997 (MM5, CB-IV and SAPRC-99)

  45. Future Work • January, 2003: • CALGRID for entire year • Models-3/CMAQ for selected periods • Model performance evaluation • Annual averages and potential risks • Contour plots of risk by species and total risk • February, 2003: • Draft report
