  1. Data Mining Using Genetic Programming: A PhD Talk Jeroen Eggermont

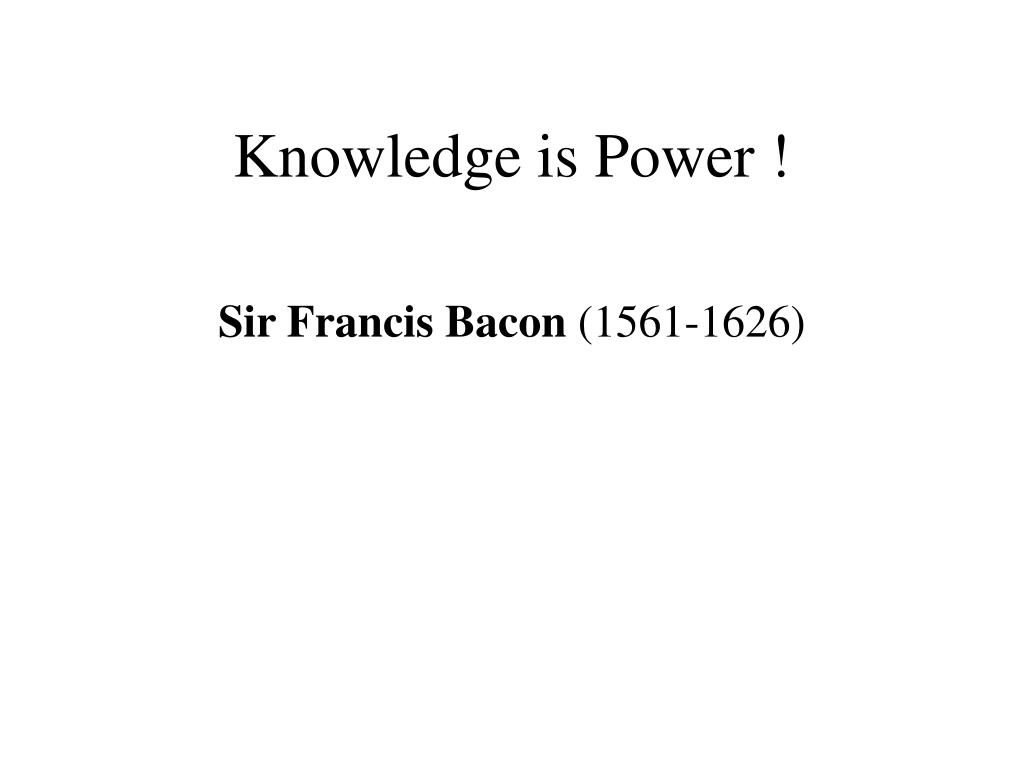

  2. Knowledge is Power ! Sir Francis Bacon (1561-1626)

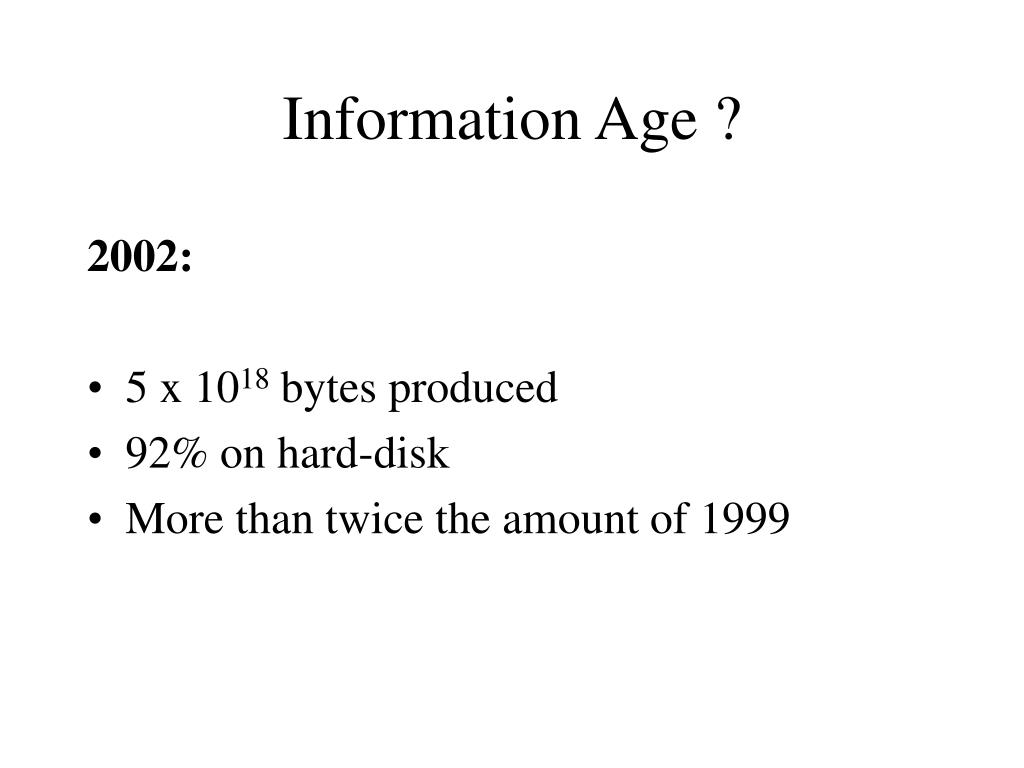

  3. Information Age ? 2002: • 5 x 1018 bytes produced • 92% on hard-disk • More than twice the amount of 1999

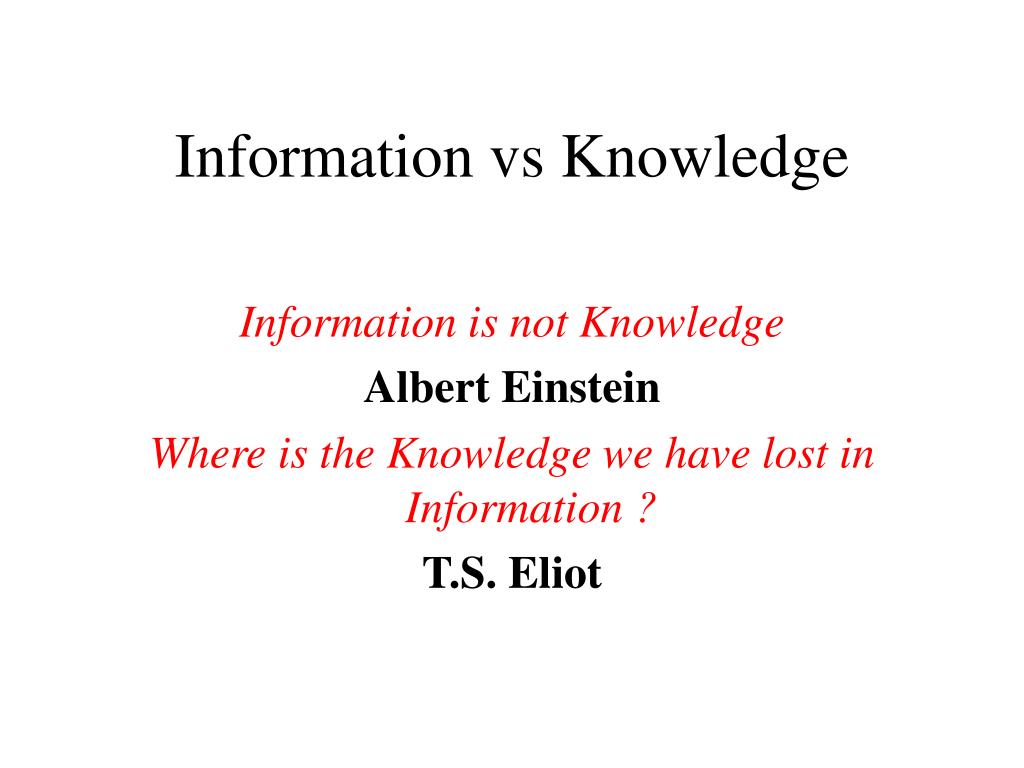

  4. Information vs Knowledge Information is not Knowledge Albert Einstein Where is the Knowledge we have lost in Information ? T.S. Eliot

  5. Knowledge Discovery Knowledge Discovery in Databases ``the nontrivial process of identifying valid, novel, potentially useful, and ultimately understandable patterns in data ´´ Data Mining phase: identifies, searches or constructs patterns

  6. Classification Construct or find a model in order to predict the category of some data value. Question: Do we want to have a BBQ ?

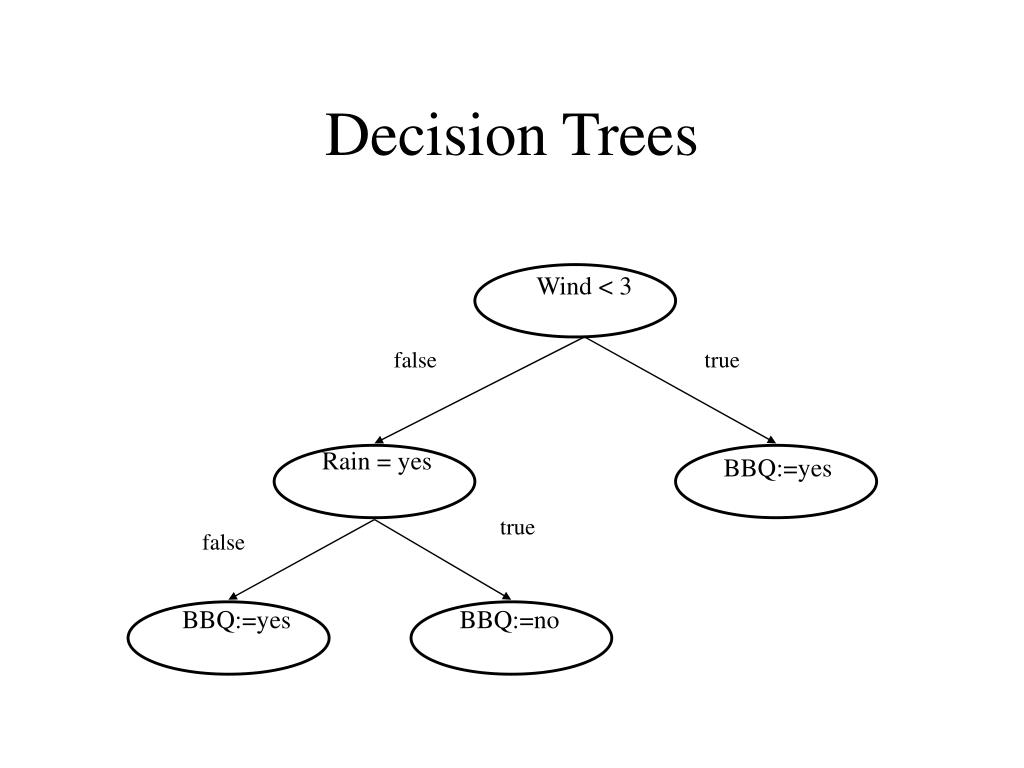

  7. Wind < 3 false true Rain = yes BBQ:=yes true false BBQ:=yes BBQ:=no Decision Trees

  8. Evolutionary Computation • is based on biological metaphors • has great practical potential • is (getting) popular in many fields • yields powerful, diverse applications • gives high performance against low costs • AND IT’S FUN !

  9. The Metaphor EVOLUTION Individual Fitness Environment PROBLEM SOLVING Candidate Solution Quality Problem

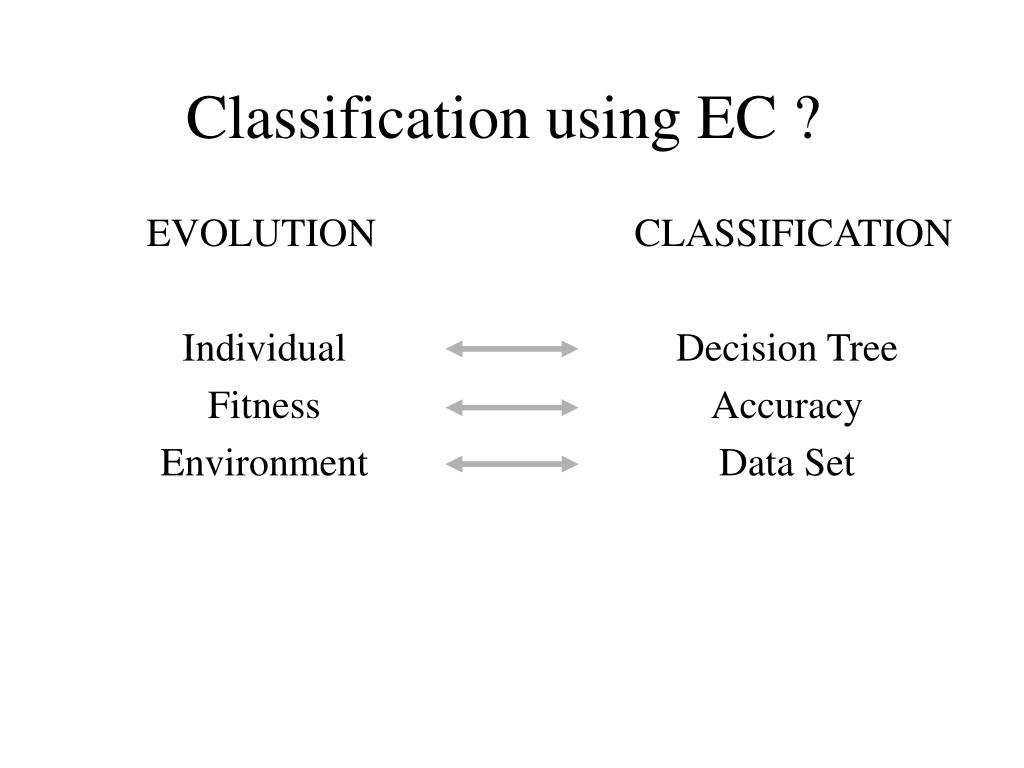

  10. Classification using EC ? EVOLUTION Individual Fitness Environment CLASSIFICATION Decision Tree Accuracy Data Set

  11. Wind < 3 false true Rain = yes BBQ:=yes true false BBQ:=yes BBQ:=no Genetic Programming Evolutionary Computation using Trees

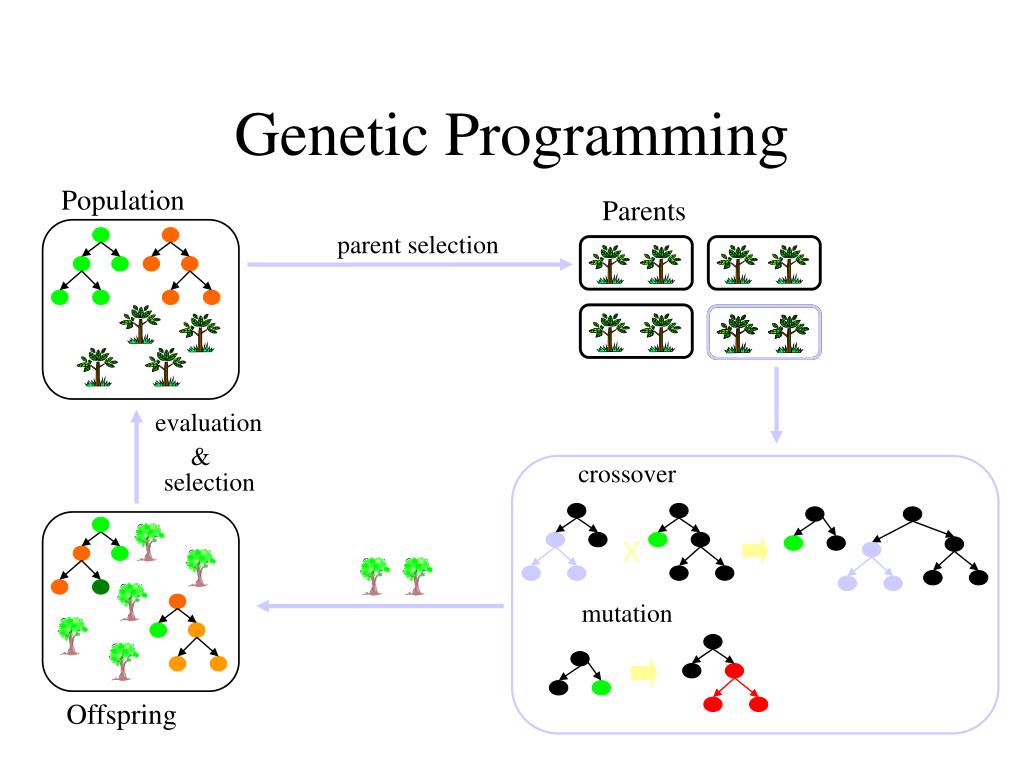

  12. Population Parents parent selection evaluation & crossover selection X mutation Offspring Genetic Programming

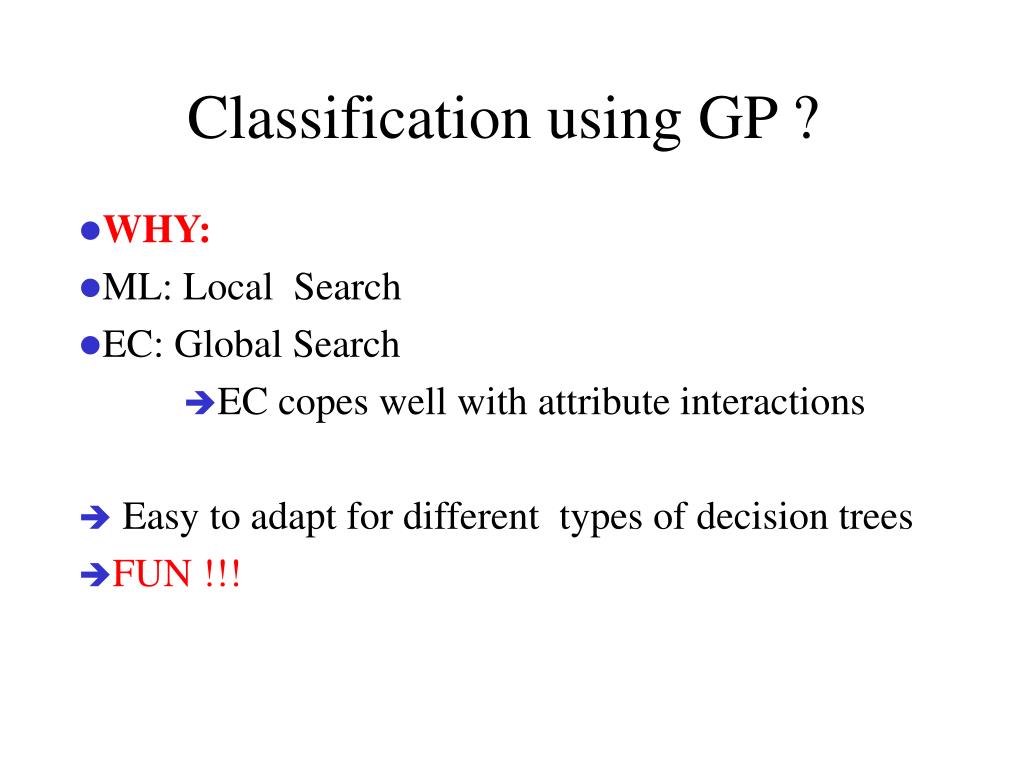

  13. Classification using GP ? • WHY: • ML: Local Search • EC: Global Search • EC copes well with attribute interactions • Easy to adapt for different types of decision trees • FUN !!!

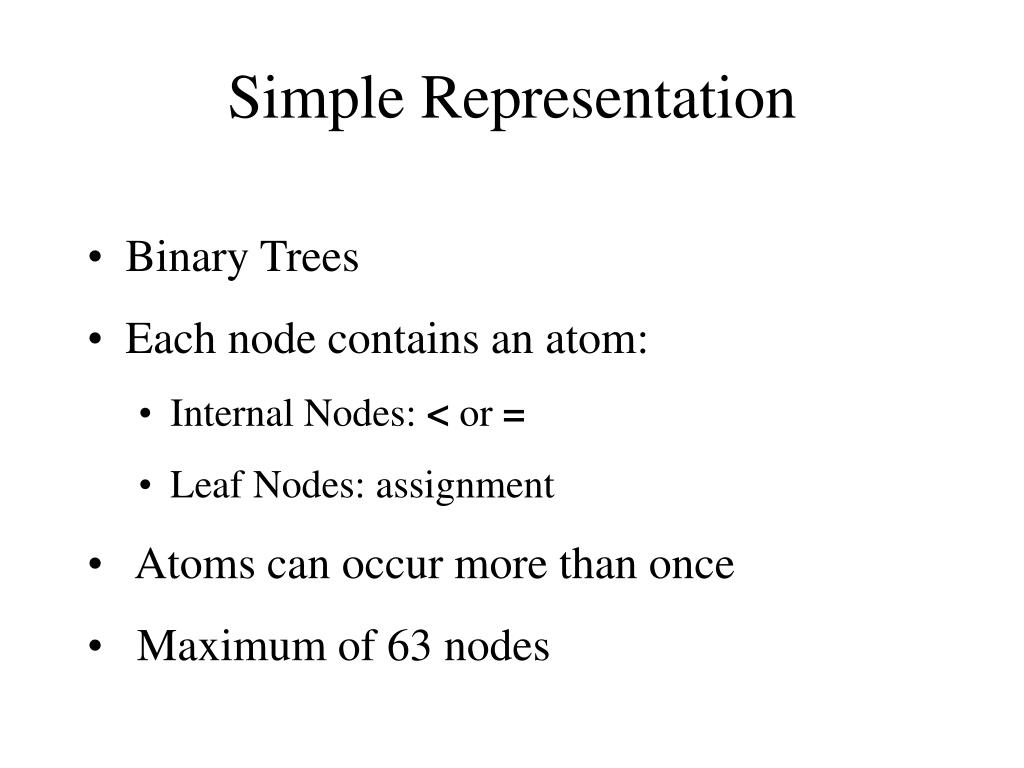

  14. Simple Representation • Binary Trees • Each node contains an atom: • Internal Nodes:< or = • Leaf Nodes: assignment • Atoms can occur more than once • Maximum of 63 nodes

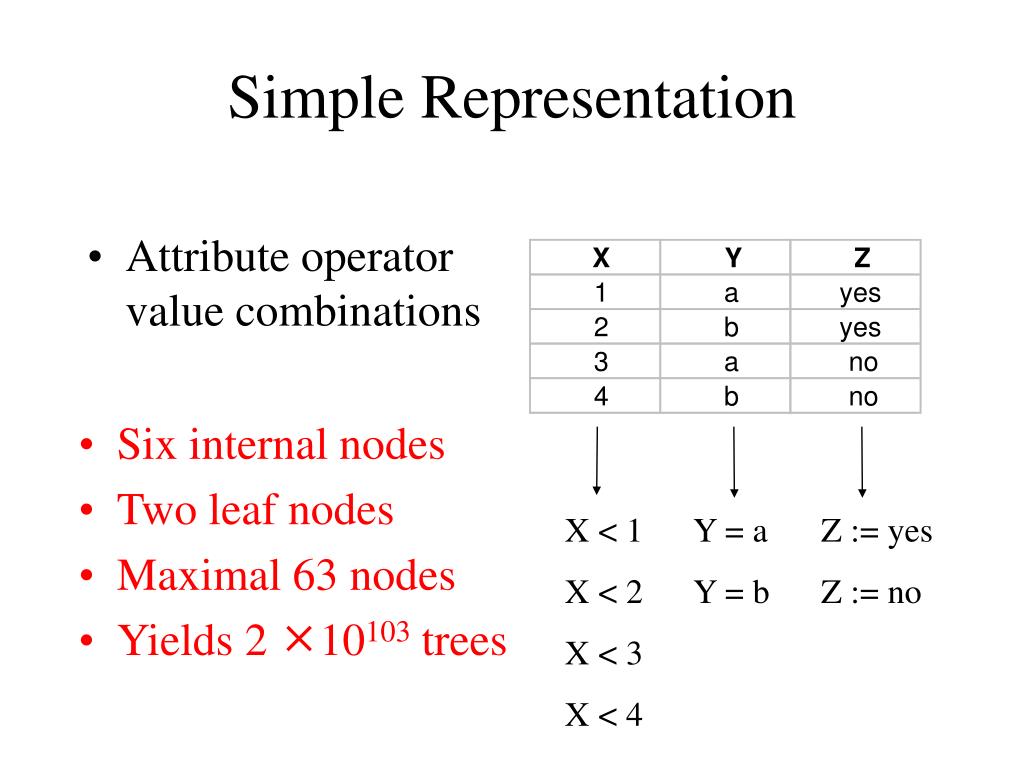

  15. X Y Z 1 a yes 2 b yes 3 a no 4 b no X < 1 X < 2 X < 3 X < 4 Y = a Y = b Z := yes Z := no Simple Representation • Attribute operator value combinations • Six internal nodes • Two leaf nodes • Maximal 63 nodes • Yields 2 10103 trees

  16. Refining the Search Space How can we reduce the search space? • reduce number of classes • reduce atoms for non-numerical attributes • reduce atoms for numerical attributes

  17. Refining the Search Space Split domain of a numerical attributes • Heuristics: • gain • gain_ratio • K-means clustering

  18. X Y Z 1 a yes 2 b yes 3 a no 4 b no Y = a Y = b Z := yes Z := no Refined Representation (k = 2) • Three internal atoms • Two leaf nodes • Maximum 63 nodes • Smaller Search Space X < 1 X < 2 X < 3 X < 4

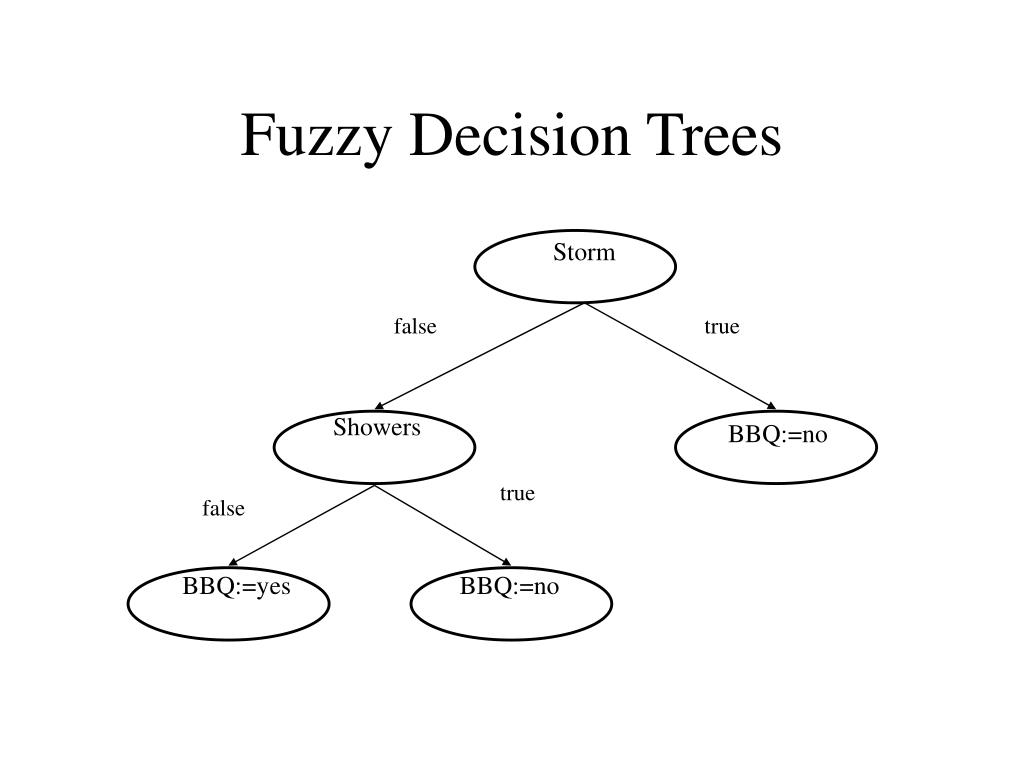

  19. Storm false true Showers BBQ:=no true false BBQ:=yes BBQ:=no Fuzzy Decision Trees

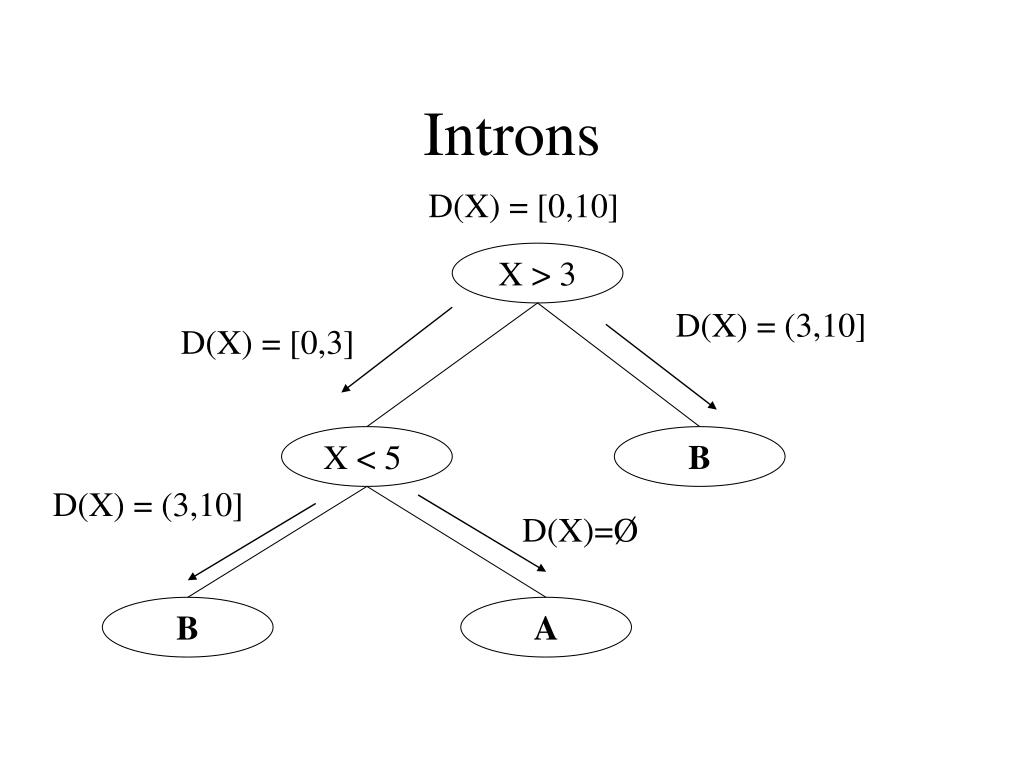

  20. D(X) = [0,10] D(X) = (3,10] D(X) = [0,3] D(X) = (3,10] D(X)=Ø Introns X > 3 X < 5 B B A

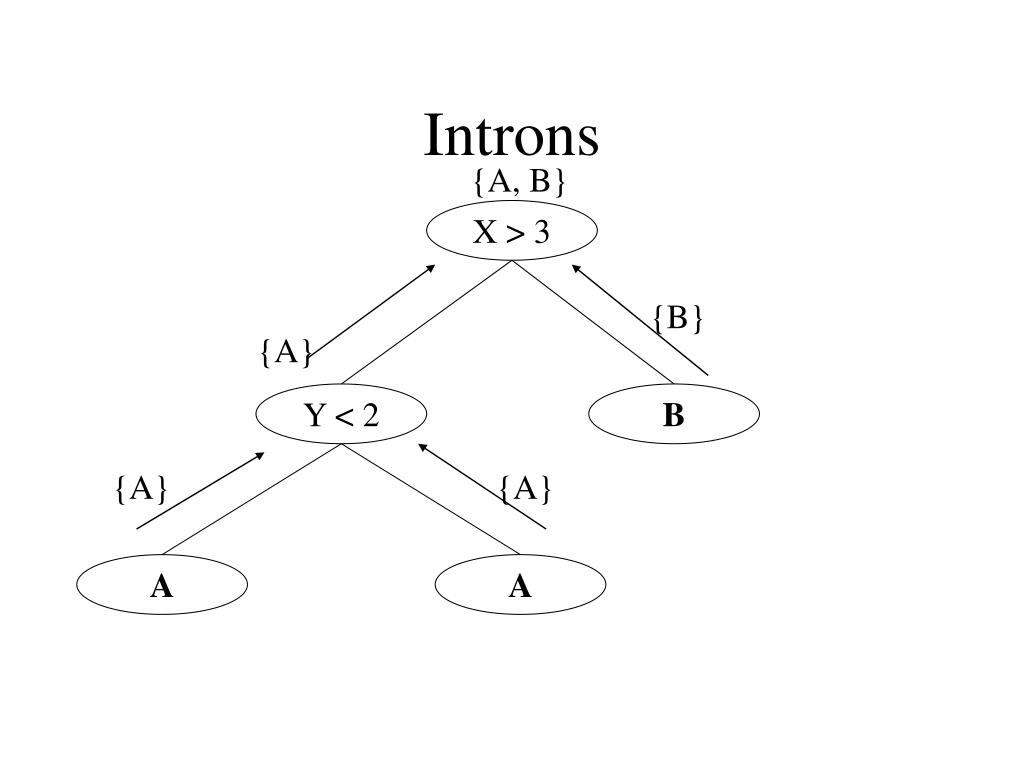

  21. {A, B} {B} {A} {A} {A} Introns X > 3 Y < 2 B A A

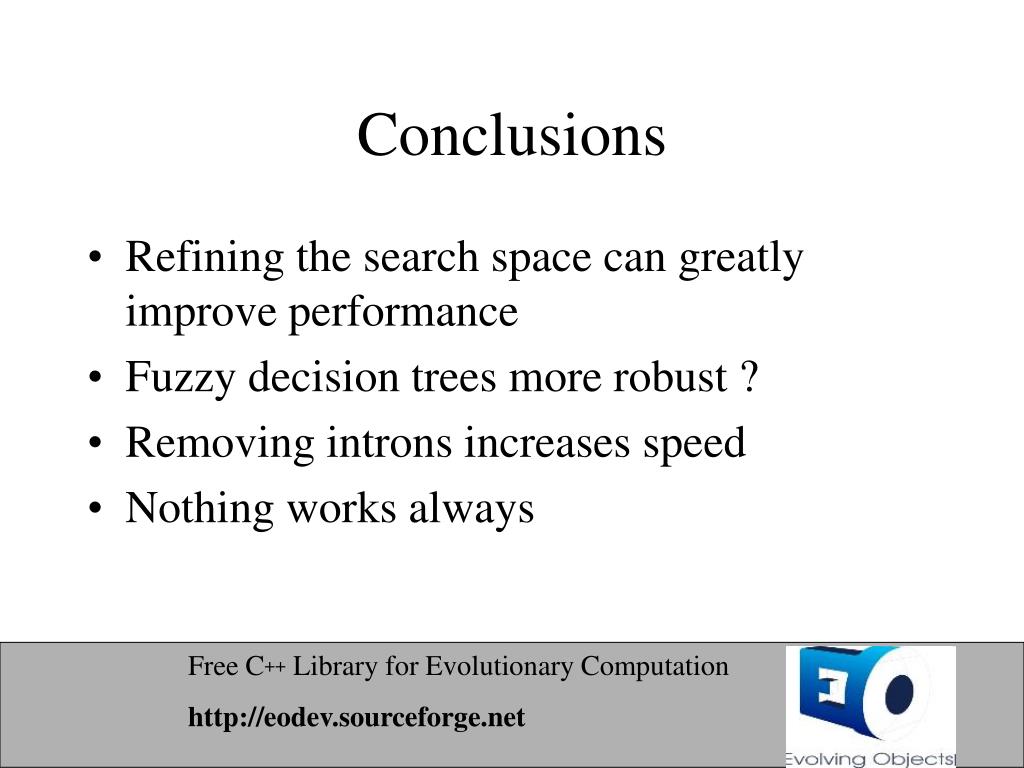

  22. Conclusions • Refining the search space can greatlyimprove performance • Fuzzy decision trees more robust ? • Removing introns increases speed • Nothing works always Free C++ Library for Evolutionary Computation http://eodev.sourceforge.net
