  1. Moving from Flex 3 to Flex 4 The Good, the Bad, and the Ugly… Joan Lafferty Adobe Systems #adobemax103

  2. Now Playing… (Agenda) • What is Flex 4 all about? • What are the major changes in Flex 4 from Flex 3? • Help Flex 3 developers understand new concepts in Flex 4 that are different from Flex 3. • What are the hiccups that people might run into when migrating applications to Flex 4? Twitter: #adobemax103

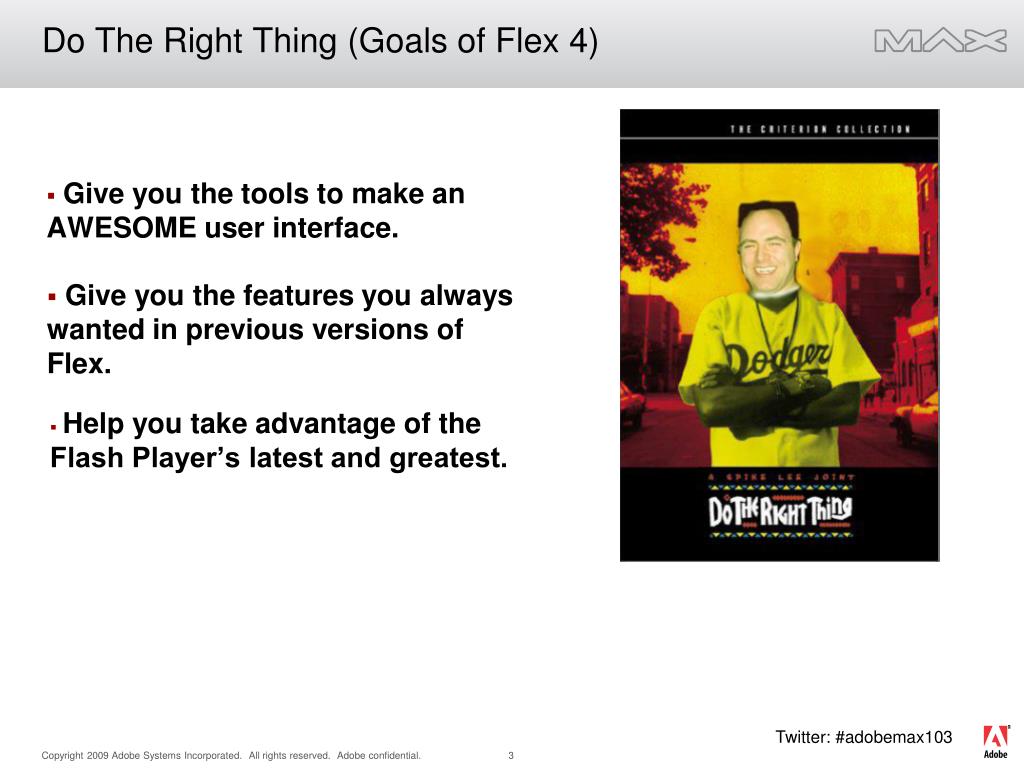

  3. Do The Right Thing (Goals of Flex 4) • Give you the tools to make an AWESOME user interface. • Give you the features you always wanted in previous versions of Flex. • Help you take advantage of the Flash Player’s latest and greatest. Twitter: #adobemax103

  4. “Paths of Glory” (Benefits of Flex 4) • Ease of Complex Skinning • Easier to create components that use different layouts • Improvements in Effects • Simpler States syntax • Faster Compiler • 2-way Binding • Advanced CSS Support • Taking advantage of Player 10 features such as pixel bender effects and the Flash Text Engine. Twitter: #adobemax103

  5. New Packages spark.layouts.* BasicLayout spark.effects.* spark.components.* HorizontalLayout AddAction TileLayout Application mx packages mx.controls.* mx.containers.* mx.effects.* mx.events.* mx.graphics.* mx.managers.* … Animate VerticalLayout Border spark.primitives.* … AnimateColor Button Fade BitmapImage ButtonBar Ellipse Move CheckBox Graphic Move3D DropDownList Line Resize Path Group Rect Rotate List RectangularDropShadow Rotate3D VideoElement SkinnableContainer … … Twitter: #adobemax103

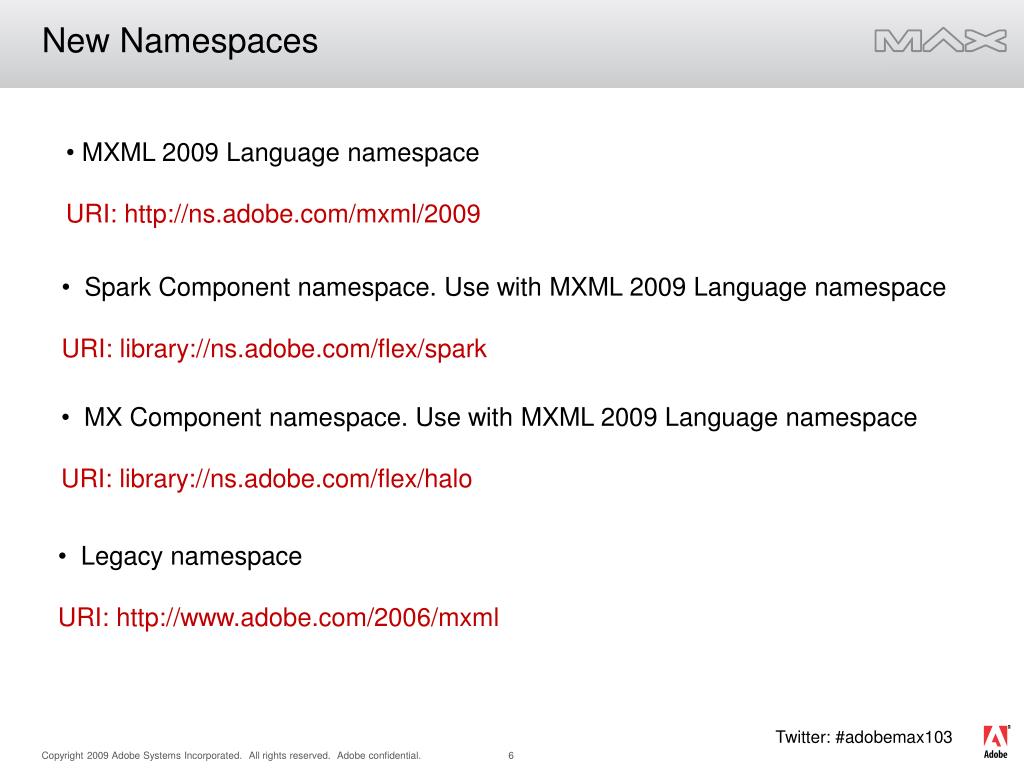

  6. New Namespaces • MXML 2009 Language namespace • URI: http://ns.adobe.com/mxml/2009 • Spark Component namespace. Use with MXML 2009 Language namespace • URI: library://ns.adobe.com/flex/spark • MX Component namespace. Use with MXML 2009 Language namespace • URI: library://ns.adobe.com/flex/halo • Legacy namespace • URI: http://www.adobe.com/2006/mxml Twitter: #adobemax103

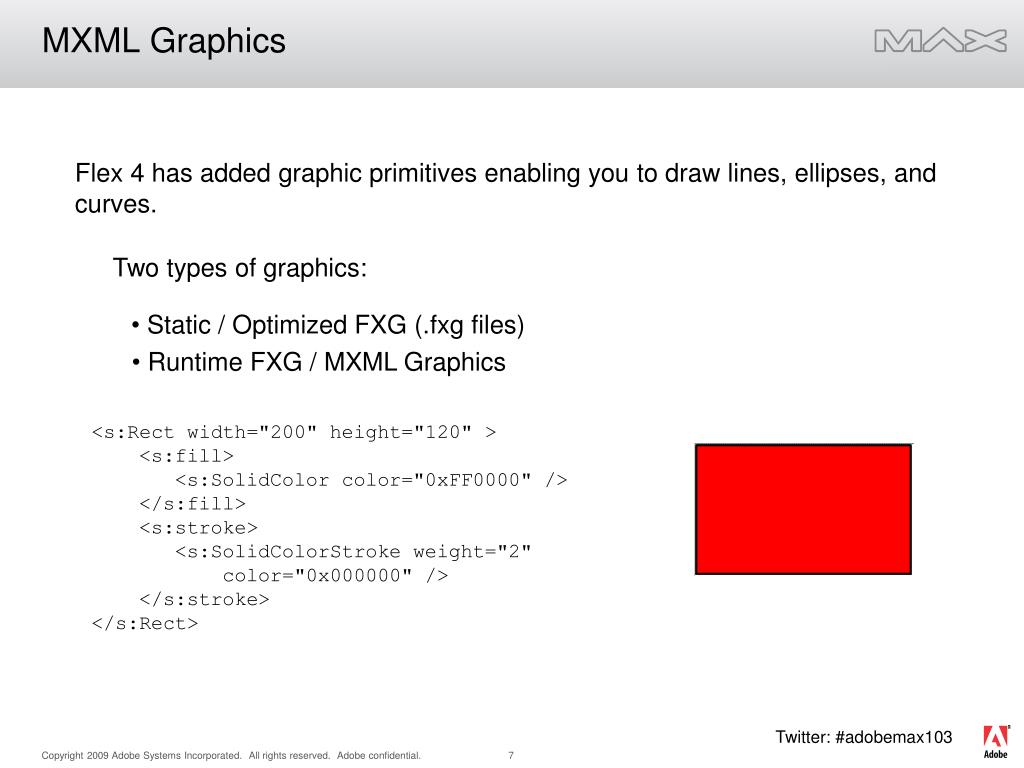

  7. MXML Graphics Flex 4 has added graphic primitives enabling you to draw lines, ellipses, and curves. Two types of graphics: • Static / Optimized FXG (.fxg files) • Runtime FXG / MXML Graphics <s:Rect width="200" height="120" > <s:fill> <s:SolidColor color="0xFF0000" /> </s:fill> <s:stroke> <s:SolidColorStroke weight="2" color="0x000000" /> </s:stroke> </s:Rect> Twitter: #adobemax103

  8. “Lost in Translation” (Flex States) • States were confusing to use in the past. • Removal of AddChild, RemoveChild • Replaced by includeIn and excludeFrom attributes that are specified inline. <s:Button label=“submit” includeIn=“completeState” /> <s:Button label=“clear” excludeFrom=“resetState” /> • Removal of SetStye and SetProperty • New dot syntax <s:TextInput color.errorState=“0xFF0000” color.validState=“0x000000” /> <s:Button click.submitState=“submit()” click.clearState=“resetForm()” /> • States are used in Skin files. Twitter: #adobemax103

  9. Skinning in Flex 4 Button.as ButtonSkin.mxml • Components all have separate skin files (e.g. ButtonSkin.mxml) • These skin files use MXML Graphics to draw skin parts • The skins also define states. Spark Button • To customize a component use: • Styles • Custom Skin Twitter: #adobemax103

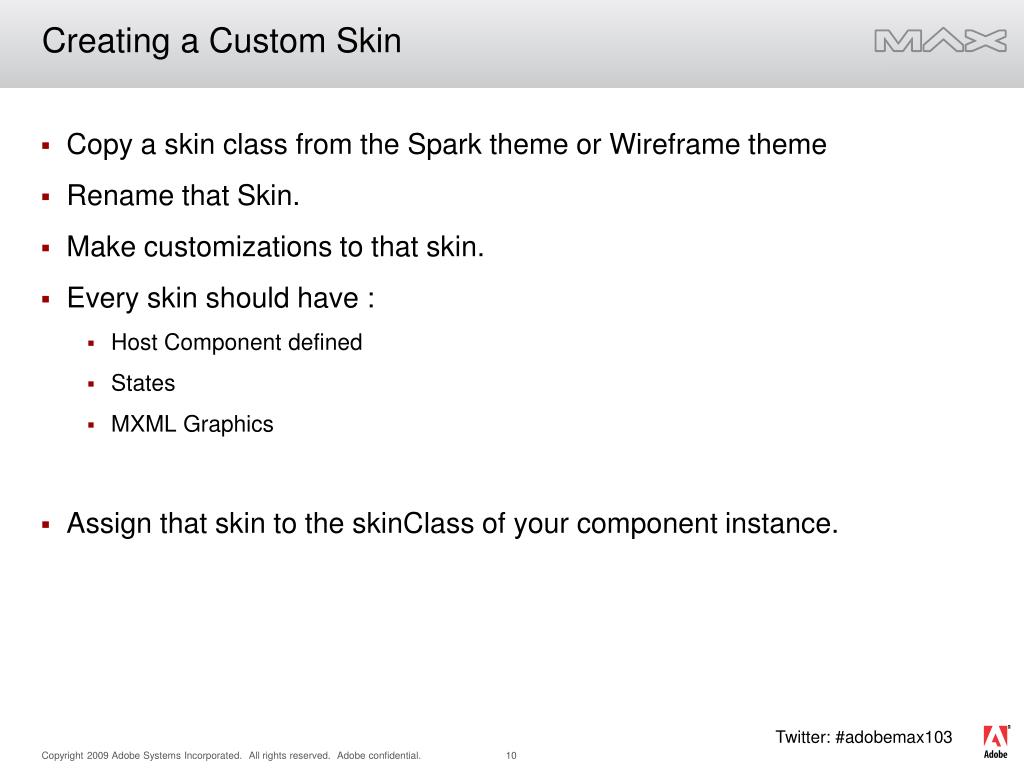

  10. Creating a Custom Skin • Copy a skin class from the Spark theme or Wireframe theme • Rename that Skin. • Make customizations to that skin. • Every skin should have : • Host Component defined • States • MXML Graphics • Assign that skin to the skinClass of your component instance. Twitter: #adobemax103

  11. The Usual Suspects (Common Migration Issues) • Type selectors need namespaces • Compile against player 10. • Application.application -> FlexGlobals.topLevelApplication • RSLs are on by default. • Declarations Tag • Unsupported styles in skins. Twitter: #adobemax103

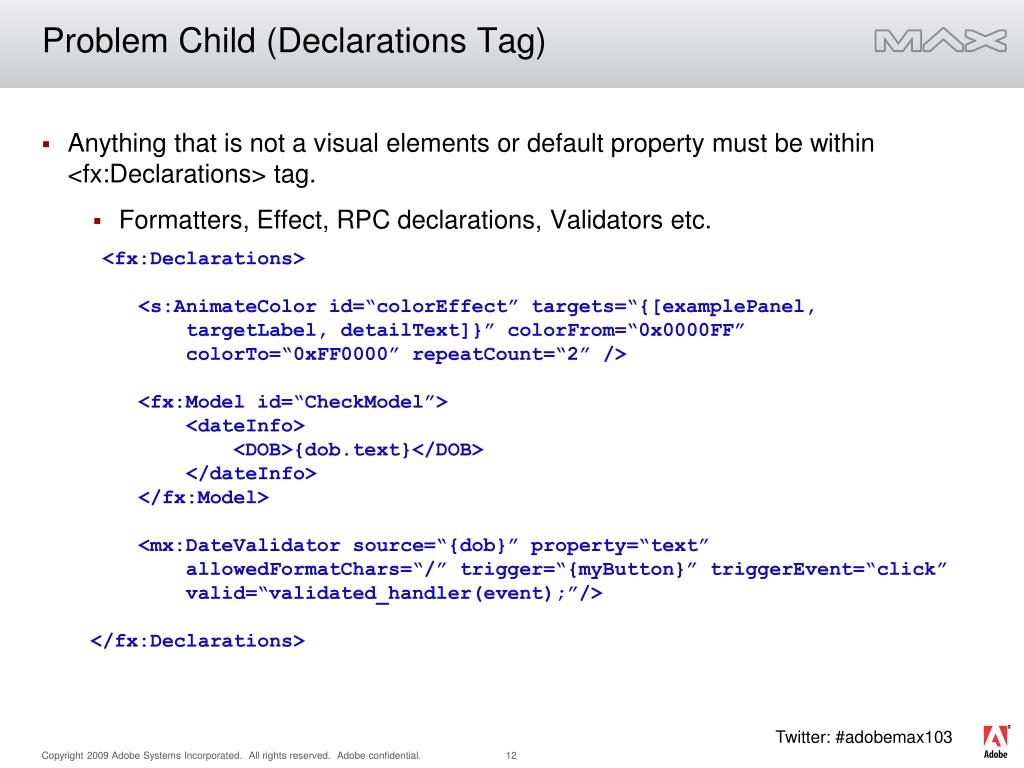

  12. Problem Child (Declarations Tag) • Anything that is not a visual elements or default property must be within <fx:Declarations> tag. • Formatters, Effect, RPC declarations, Validators etc. <fx:Declarations> <s:AnimateColor id=“colorEffect” targets=“{[examplePanel, targetLabel, detailText]}” colorFrom=“0x0000FF” colorTo=“0xFF0000” repeatCount=“2” /> <fx:Model id=“CheckModel”> <dateInfo> <DOB>{dob.text}</DOB> </dateInfo> </fx:Model> <mx:DateValidator source=“{dob}” property=“text” allowedFormatChars=“/” trigger=“{myButton}” triggerEvent=“click” valid=“validated_handler(event);”/> </fx:Declarations> Twitter: #adobemax103

  13. “If Looks Could Kill” (Theme Changes) • The default theme is the Spark theme in Flex 4. • The default theme in Flex 3 was Halo. • Many of the styles that were available in the Halo theme are not available in the Spark theme. Twitter: #adobemax103

  14. “If Looks Could Kill” (Theme Changes) Twitter: #adobemax103

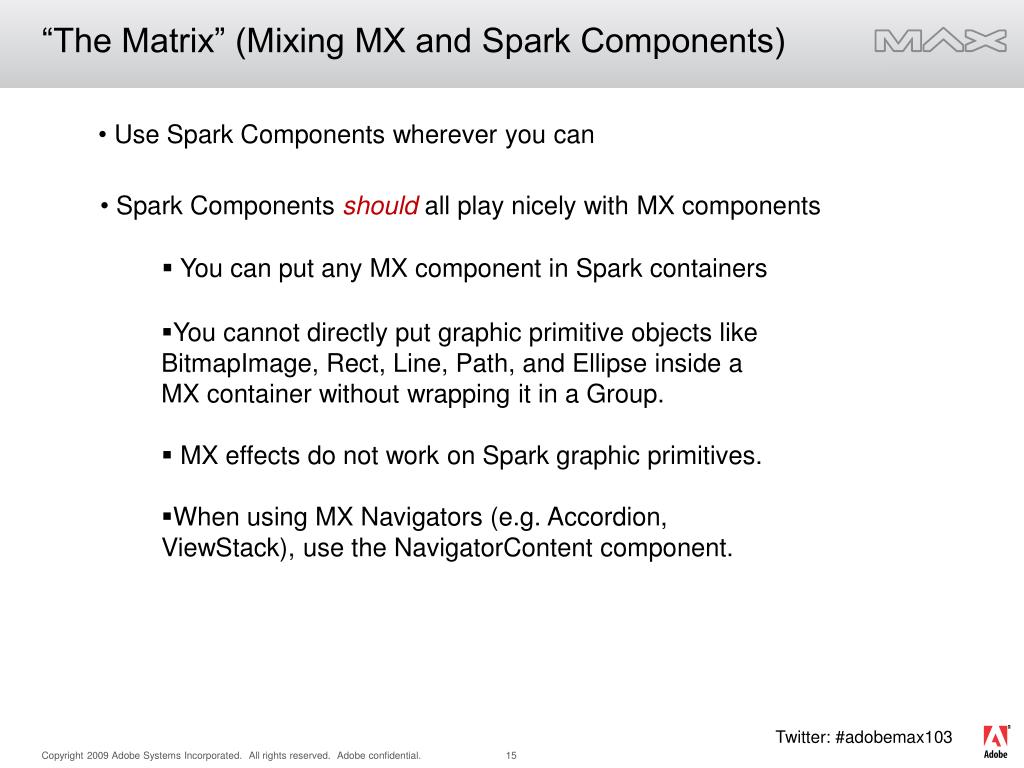

  15. “The Matrix” (Mixing MX and Spark Components) • Use Spark Components wherever you can • Spark Components should all play nicely with MX components • You can put any MX component in Spark containers • You cannot directly put graphic primitive objects like BitmapImage, Rect, Line, Path, and Ellipse inside a MX container without wrapping it in a Group. • MX effects do not work on Spark graphic primitives. • When using MX Navigators (e.g. Accordion, ViewStack), use the NavigatorContent component. Twitter: #adobemax103

  16. “There Will Be Blood” (Mixing Halo and Spark Components) • The Spark components don’t support the Halo theme. • Cannot create spark component based itemRenderers for MX List based components (in this Beta) • APIs between MX and Spark components are different (e.g. addChildvsaddElement) • When using MX and Spark components together, you may want to use TLFTextfield for all MX components (which isn’t the default). • Add the compiler argument • -theme+=${flexlib}\projects\spark\TLFText.css • Disclaimer: TLFTextfield is not supported on MX TextArea, TextInput and RichTextEditor Twitter: #adobemax103

  17. Resources Devnet articles: Differences Between Flex 3 and Flex 4 (Beta) http://www.adobe.com/devnet/flex/articles/flex3and4_differences.html Flex 4 Effects by Chet Haase: http://www.adobe.com/devnet/flex/articles/flex4_effects_pt1.html Introducing Skinning in Flex 4 by Ryan Frishberg http://www.adobe.com/devnet/flex/articles/flex4_skinning.html Spark Layouts with Flex 4 by Evtim Georgiev http://www.adobe.com/devnet/flex/articles/spark_layouts.html Flex 4 Backwards Compatibility Doc: http://labs.adobe.com/wiki/index.php/Flex_4:Backward_Compatibility Flex Examples by Peter DeHaan: http://blog.flexexamples.com/ Flex 4 Feature Specifications: http://opensource.adobe.com/wiki/display/flexsdk/Gumbo Twitter: #adobemax103

  18. Q&A http://butterfliesandbugs.wordpress.com Twitter: #adobemax103
