  1. Software Service and Repair BMW Coding, Individualization, and Programming Ken Welch Mission Viejo HS / Saddleback College

  2. Ken Welch • Department Chairman Technical Education • Mission Viejo High School • Automotive Technology Instructor • Mission Viejo High School – Full time • 33 years • Saddleback College – Part-time • 33 years

  3. Crevier BMW and Irvine BMW(9/2/20009) and (9/4/2009)

  4. Jake Logan – Service ManagerCrevier BMW 1500 Auto Mall Drive, Santa Ana, CA  92705 CREVIER BMW

  5. Mike Crowley – Shop FormanIrvine BMW9881 Research Drive, Irvine, CA 92618

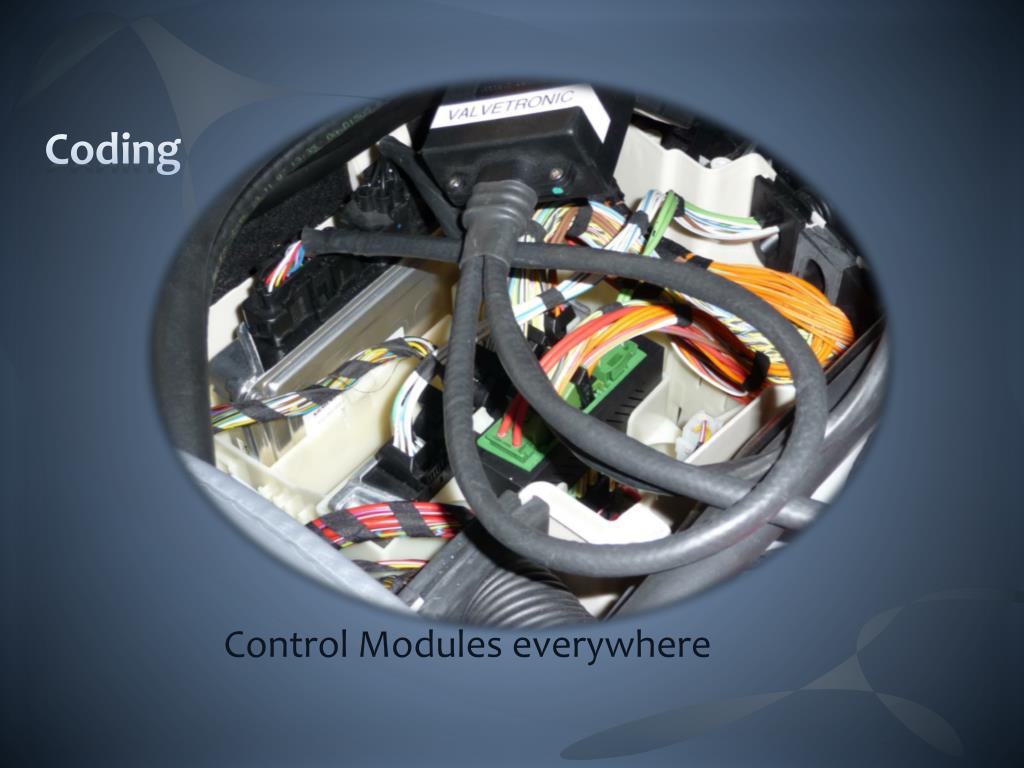

  6. Coding Control Modules everywhere

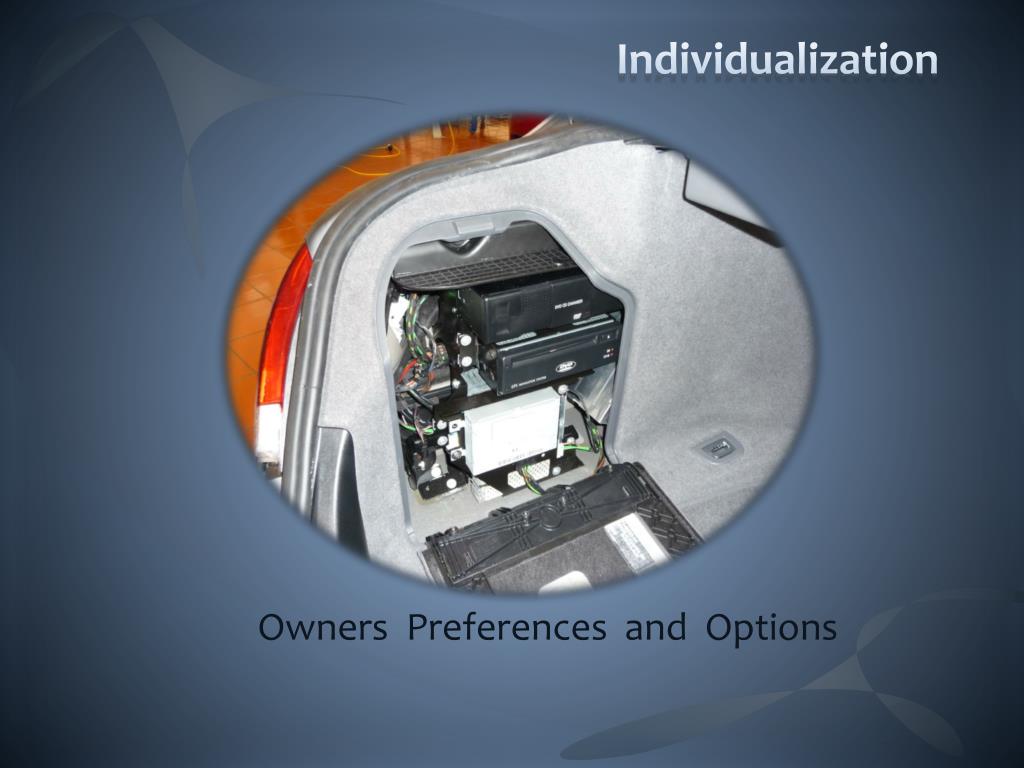

  7. Individualization Owners Preferences and Options

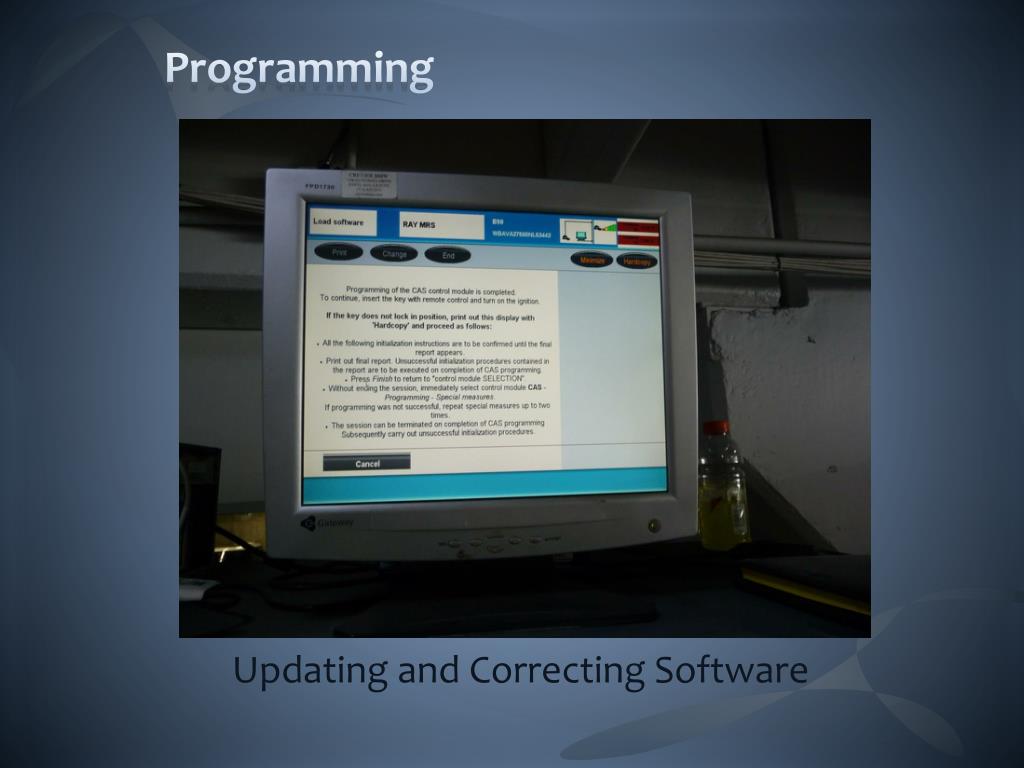

  8. Programming Updating and Correcting Software

  9. New Model Technology • Multiple networks per vehicle • Fiber-optic (MOST-bus or Flex-Ray bus) • 5-6 wired bus systems • Thirty to Sixty processors common • Sixty to Seventy processors (new 7 series) • Faster processing speeds • Sensor data sharing in the networks • Shared control modules between models

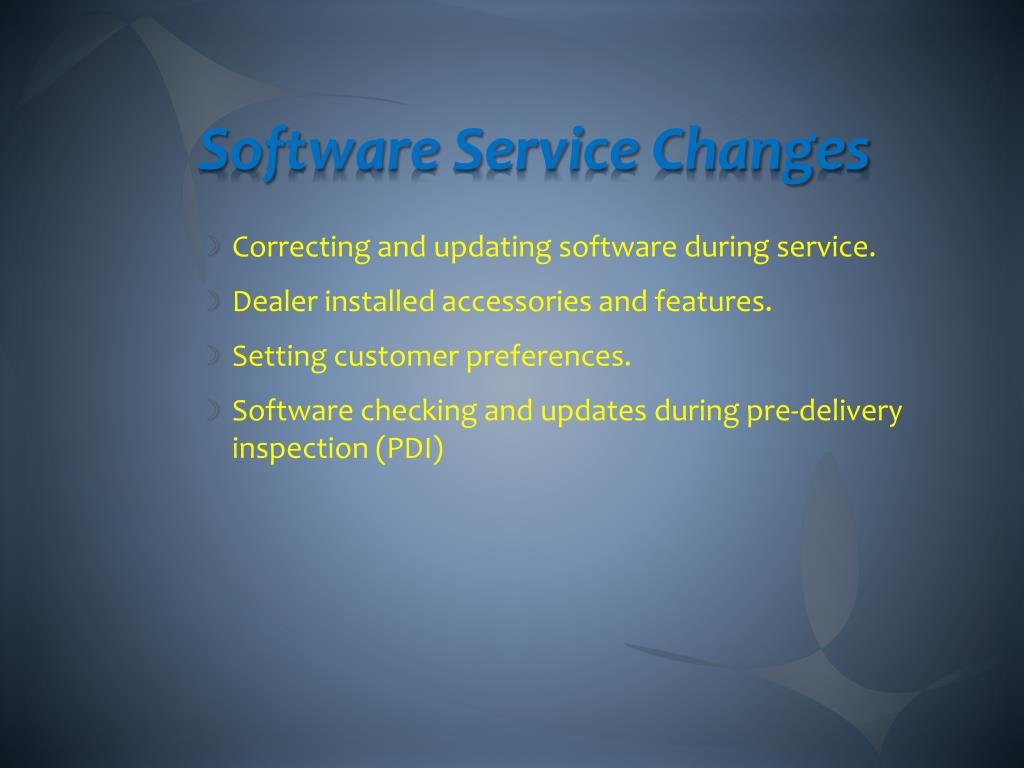

  10. Software Service Changes • Correcting and updating software during service. • Dealer installed accessories and features. • Setting customer preferences. • Software checking and updates during pre-delivery inspection (PDI)

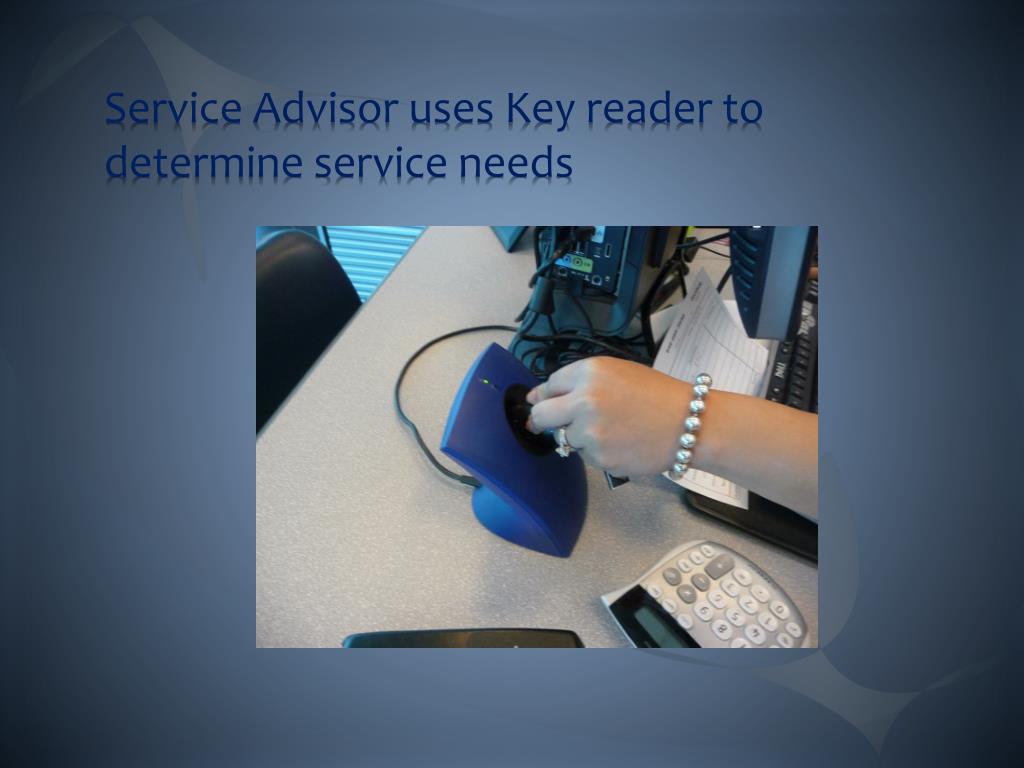

  11. Service Advisor uses Key reader to determine service needs

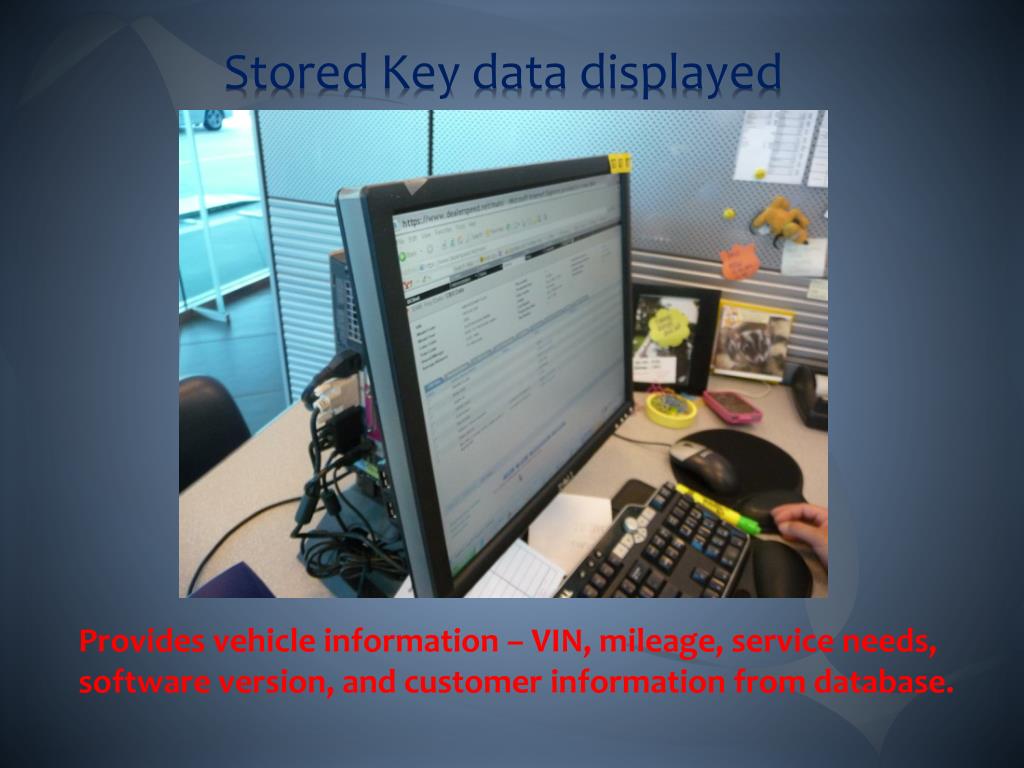

  12. Stored Key data displayed Provides vehicle information – VIN, mileage, service needs, software version, and customer information from database.

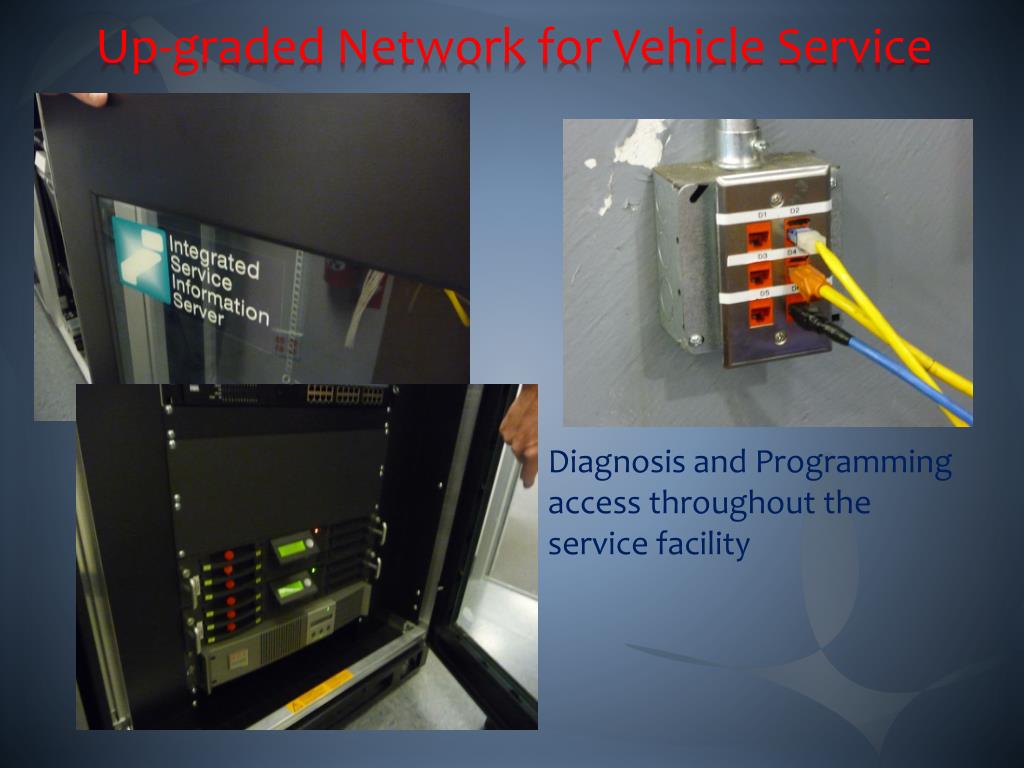

  13. Up-graded Network for Vehicle Service Diagnosis and Programming access throughout the service facility

  14. New Technician Service Equipment ISID used for diagnosis and programming

  15. Specialized Vehicle Network Adapters OBD II connector style “A”

  16. Fiber-optic network adaptor (“B” adaptor) Connected to BMW MOST-bus in glove box

  17. Speaking with IEEE Spectrum, Technical University professor Manfred Broy • F-22 Raptor fighter jet uses about 1.7 million lines of software code • Boeing’s upcoming 787 Dreamliner passenger jet is expected to use close to 6.5 million lines of code • Modern luxury vehicle “probably contains close to 100 million lines of software code” • Mercedes Benz S-Class, the car’s radio and navigation system alone requires up to 20 million lines of code • Source: http://www.motorauthority.com/what-2k-worth-of-software-in-the-average-vehicle.html

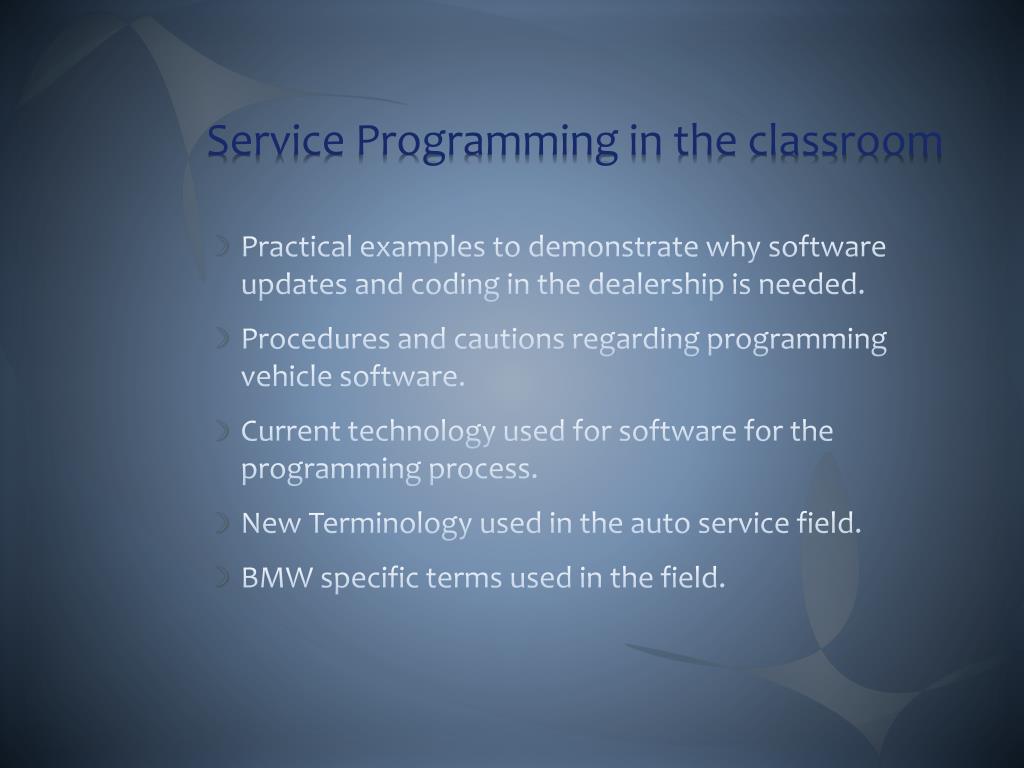

  18. Service Programming in the classroom • Practical examples to demonstrate why software updates and coding in the dealership is needed. • Procedures and cautions regarding programming vehicle software. • Current technology used for software for the programming process. • New Terminology used in the auto service field. • BMW specific terms used in the field.
