Introduction to Design Patterns. This lecture will introduce the idea of design patterns What they are and how they are structured We’ll talk about specific patterns several times this semester Today: Iterator and Factory Method After we’ve studied C++ objects: Adapter, Memento, Observer
E N D

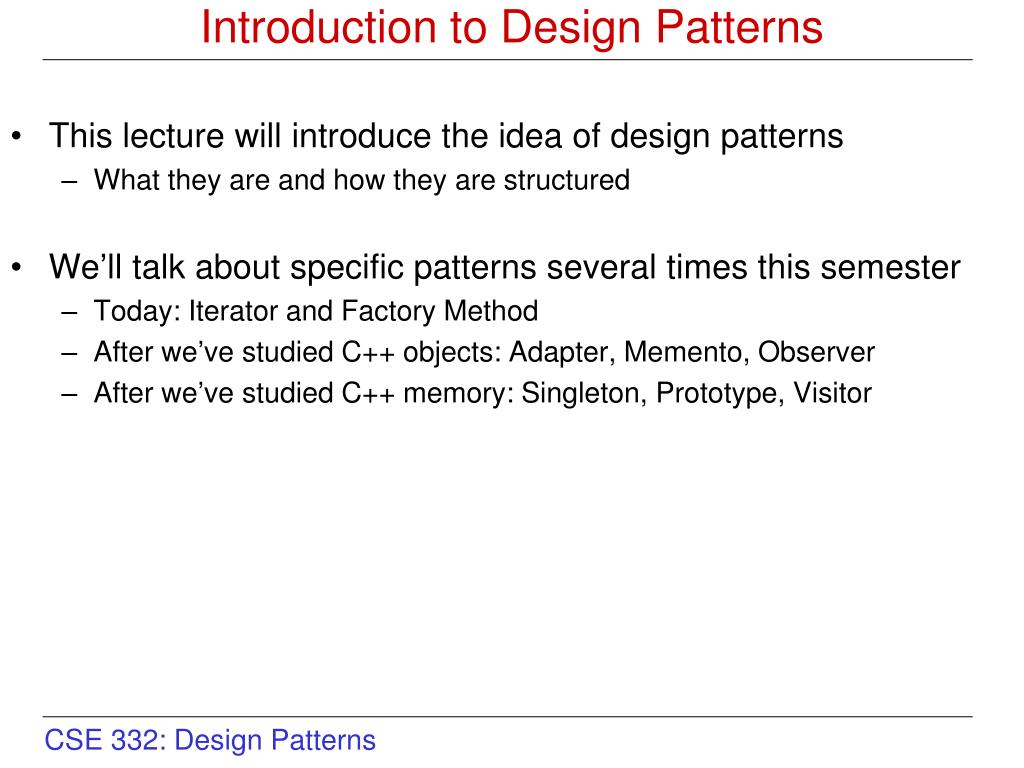

Introduction to Design Patterns • This lecture will introduce the idea of design patterns • What they are and how they are structured • We’ll talk about specific patterns several times this semester • Today: Iterator and Factory Method • After we’ve studied C++ objects: Adapter, Memento, Observer • After we’ve studied C++ memory: Singleton, Prototype, Visitor

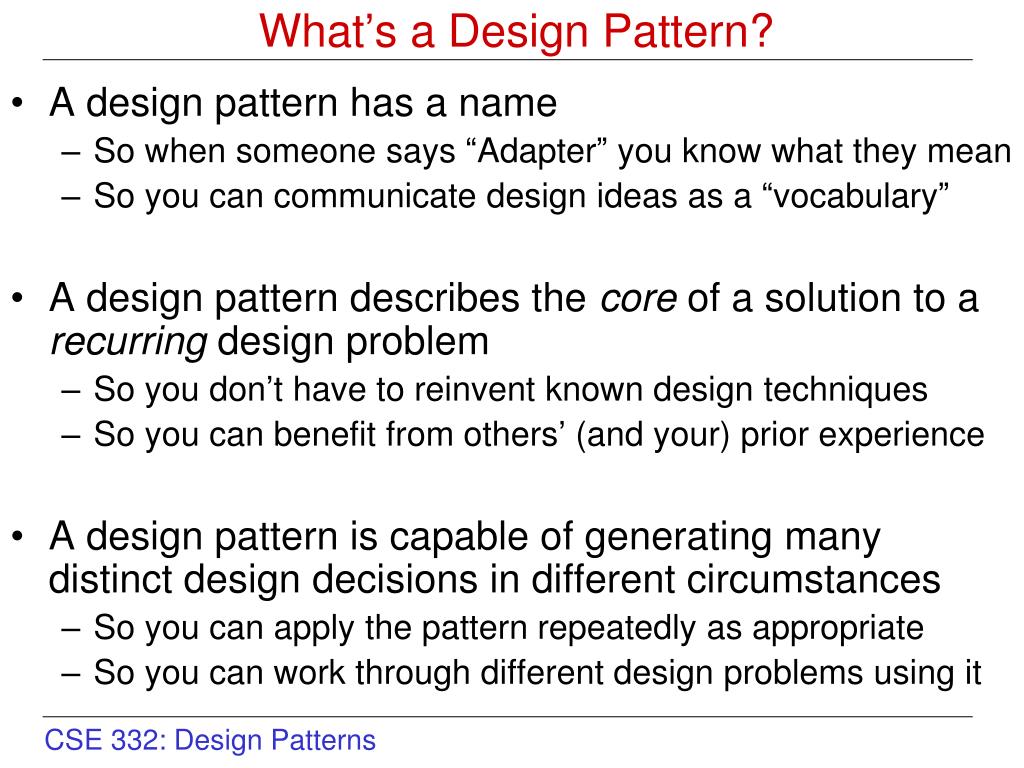

What’s a Design Pattern? • A design pattern has a name • So when someone says “Adapter” you know what they mean • So you can communicate design ideas as a “vocabulary” • A design pattern describes the core of a solution to a recurring design problem • So you don’t have to reinvent known design techniques • So you can benefit from others’ (and your) prior experience • A design pattern is capable of generating many distinct design decisions in different circumstances • So you can apply the pattern repeatedly as appropriate • So you can work through different design problems using it
Iterator Pattern • Problem • Want to access aggregated elements sequentially • E.g., traverse a container of values, objects etc. and print them out • Context • Don’t want to know/manage details of how they’re stored • E.g., could be in an array, list, vector, or deque • Solution core • Provide a common interface for iteration over a container: (1) start; (2) access; (3) increment; (4) termination • Consequences • Frees user from knowing details of how elements are stored • Decouples containers from algorithms (crucial in C++ STL) • Example list<int>::iterator
Problem You want a type to create a related type polymorphically E.g., a container should create appropriate begin and end iterators Context Each type knows which related type it should create Solution core Polymorphic creation E.g., abstract method that different types override E.g., provide traits and common interface (as in the STL we’ll use) Consequences Type that’s created matches type(s) it’s used with Example vector<double> v; vector<double>::iterator i = v.begin(); Factory Method Pattern
