  1. Ocean Color Experiment Ver. 2 (OCE2) ~ Concept Presentations~ Parametric Cost S. Seipel May 21, 2012

  2. PRICE H: Key Input Parameters • Global Parameters: • Labor Rate • Typical Contractor Rates • Inflation (NASA escalation rates) • Engineering Environment • Individual Cost Component Parameters: • Complexity Factors (Table driven, defined by Price Systems from industry experience) • Modification Level/Remaining Design Factor (Heritage) • Quantity and Design Repeat (Learning Curve) • Composition (Structure, Electronic, Purchased, Cost Pass-through) • Mass • Operating Platform (Unmanned Space – High Reliability)

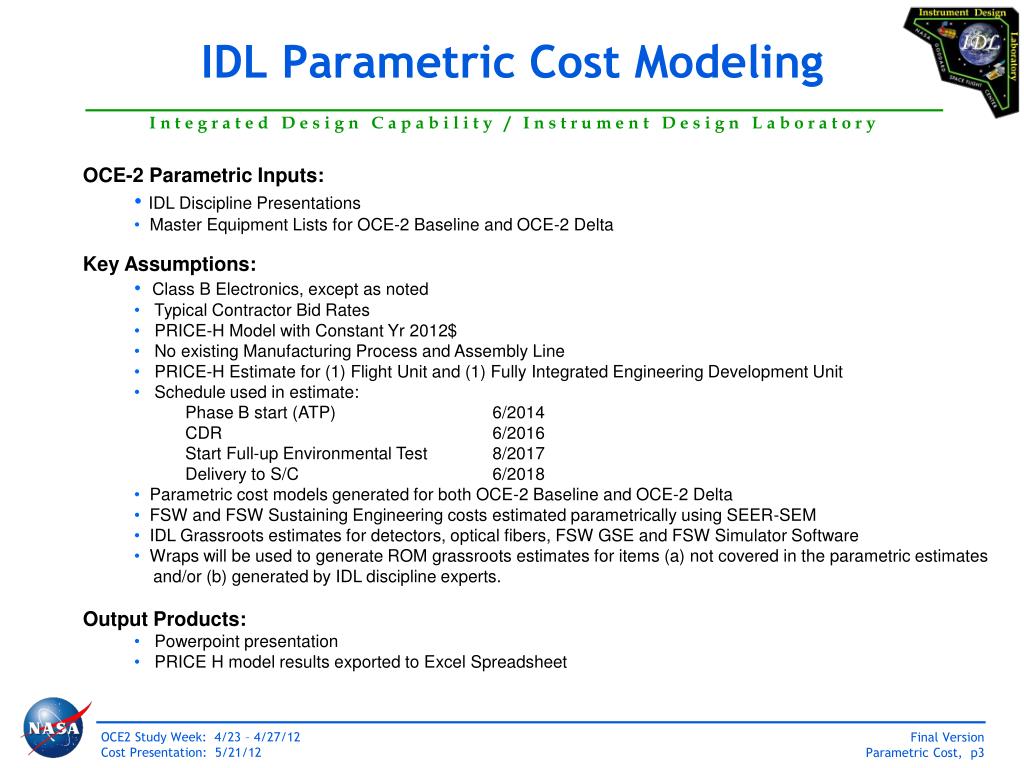

  3. IDL Parametric Cost Modeling • OCE-2 Parametric Inputs: • IDL Discipline Presentations • Master Equipment Lists for OCE-2 Baseline and OCE-2 Delta • Key Assumptions: • Class B Electronics, except as noted • Typical Contractor Bid Rates • PRICE-H Model with Constant Yr 2012$ • No existing Manufacturing Process and Assembly Line • PRICE-H Estimate for (1) Flight Unit and (1) Fully Integrated Engineering Development Unit • Schedule used in estimate: Phase B start (ATP) 6/2014 • CDR 6/2016 • Start Full-up Environmental Test 8/2017 • Delivery to S/C 6/2018 • Parametric cost models generated for both OCE-2 Baseline and OCE-2 Delta • FSW and FSW Sustaining Engineering costs estimated parametrically using SEER-SEM • IDL Grassroots estimates for detectors, optical fibers, FSW GSE and FSW Simulator Software • Wraps will be used to generate ROM grassroots estimates for items (a) not covered in the parametric estimates and/or (b) generated by IDL discipline experts. • Output Products: • Powerpointpresentation • PRICE H model results exported to Excel Spreadsheet

  4. Quantities • Quantities for OCE-2 and Delta OCE-2 • One Flight Unit • One Fully Integrated Engineering Development Unit • Selective Engineering Test Units (ETUs) at subsystem level • Definition of ETU and EDU: • Engineering Test Units (ETU) or protoflight • Will be tested to flight qualification levels • Can be flown • Engineering Development Units (EDU) (prototype) • Will not be tested to flight qualification levels • Can not be flown

  5. OCE-2Top-Level Cost Model Note: Estimate is based upon Current Best Estimate (CBE) Mass without contingency

  6. OCE-2Expanded Model

  7. OCE-2 Summary Cost Estimate (Typical contractor bid rates, 2012 CY Dollars) Note: Estimate is based upon Current Best Estimate (CBE) Mass without contingency Continued on next page

  8. OCE-2 Summary Cost Estimate (Typical contractor bid rates, 2012 CY Dollars) Note: Estimate is based upon Current Best Estimate (CBE) Mass without contingency

  9. OCE-2 Summary Cost Estimate(Typical contractor bid rates, 2012 CY Dollars) Note: Estimate is based upon Current Best Estimate (CBE) Mass without contingency

  10. DELTA OCE-2Top-Level Cost Model Note: Estimate is based upon Current Best Estimate (CBE) Mass without contingency

  11. DELTA OCE-2Expanded Model

  12. DELTA OCE-2 Summary Cost Estimate (Typical contractor bid rates, 2012 CY Dollars) Note: Estimate is based upon Current Best Estimate (CBE) Mass without contingency Continued on next page

  13. DELTA OCE-2 Summary Cost Estimate (Typical contractor bid rates, 2012 CY Dollars) Note: Estimate is based upon Current Best Estimate (CBE) Mass without contingency

  14. DELTA OCE-2 Summary Cost Estimate(Typical contractor bid rates, 2012 CY Dollars) Note: Estimate is based upon Current Best Estimate (CBE) Mass without contingency

  15. IDL Point Design Estimate & Cost Risk • The IDL Cost Estimate is a Point Estimate based on the single point design of the instrument • The point design that the IDL derives in a 1-week study is an engineering solution, but not necessarily THE solution that will be implemented for flight • The point estimate is described by the IDL in the MEL in terms of Current Best Estimate (CBE) of mass and materials, and represents a single estimate among a range of feasible possibilities • Cost risk analysis attempts to address the risk that the eventual outcome of the parameters may differ from the CBE selections made at the conceptual design phase of pre-formulation • Cost risk capabilities within the parametric cost modeling tool allow a range of input values to be entered to generate a range of cost outcomes • Cost risk simulation is performed using well known sampling techniques (e.g. Monte Carlo simulation) of the parameter ranges resulting in a Probability Distribution Function (PDF) of possible outcomes, also known as a Density Curve • PDF can also be represented as a Cumulative Distribution Function (CDF), also known as an S-Curve to provide a graphical representation of the possibilities of various cost outcomes • Cost risk analysis takes additional labor and is beyond a 1-week IDL study, and is not recommended for the initial instrument conceptual design, but will be necessary for proposal development
