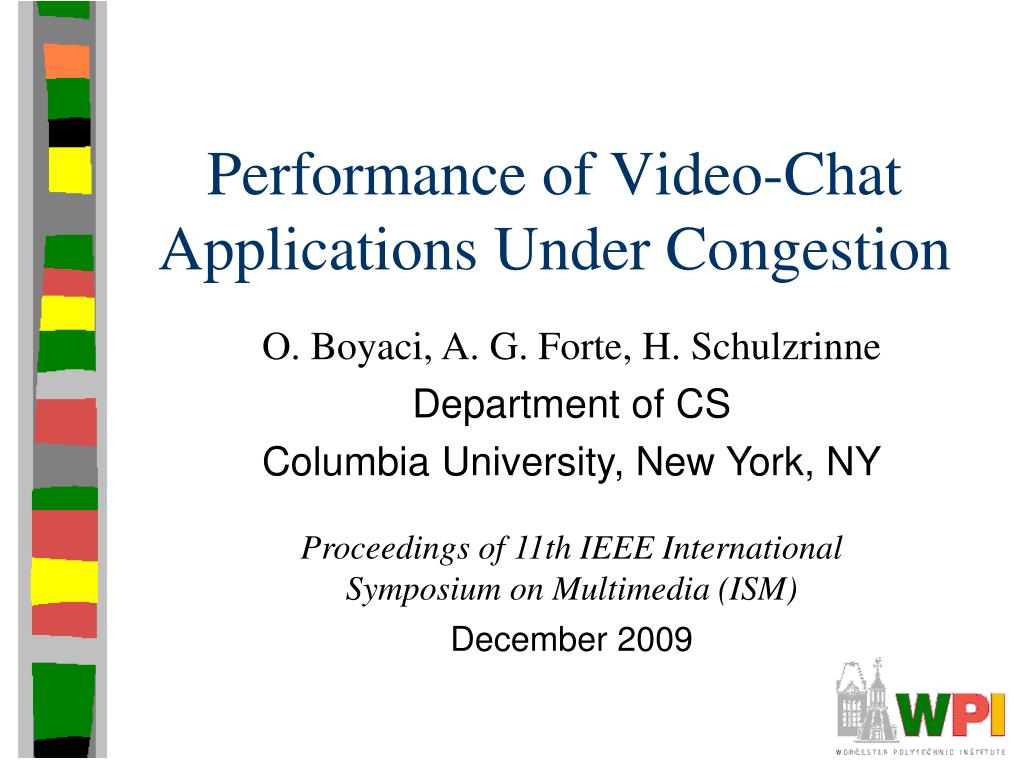

  1. Performance of Video-Chat Applications Under Congestion • O. Boyaci, A. G. Forte, H. Schulzrinne • Department of CS • Columbia University, New York, NY • Proceedings of 11th IEEE International Symposium on Multimedia (ISM) • December 2009

  2. Introduction (1 of 3) • High speed Internet should consider many last-mile technologies • ADSL, Cable, satellite • Many of these have asymmetric bandwidths • Ex: ADSL common 3 Mb/s down, 1 Mb/s up • Many common apps (Web, Video streaming) fine with more bandwidth down • But video chat (or video conferencing or interactive video) needs to send video as well as receive it • Uplink can become bottleneck • Worse when there is cross traffic • This paper focuses on uplink

  3. Introduction (2 of 3) • Changes in bandwidth due to congestion can affect video and audio • Video suffers more given higher bwidth reqs. • Needs to detect congestion first • Distinguish congestion loss versus wireless loss • (Why?) • Way application reacts can result in “fair share” or increase in overall congestion

  4. Introduction (3 of 3) • Different ways of having congestion from contending traffic • Consider: fixed changes, HTTP (file download), Bit Torrent • Tested: Skype 4.0.0.215, Windows Live Messenger14.0.8064.206, Eyebeam 1.5.19.5.52345, and X-Lite 3.0.47546 • Note, Eyebeam and X-Lite both from from Counterpath • X-Lite free, older codec version (lower visual quality)

  5. Teaser • Skype behaved best • Adapted to packet loss, RTT and jitter • Followed changes in bandwidth without causing loss • Eyebeam performed worst • High fluctuations in transmission speed • Poor adaptation to bandwidth fluctuations

  6. Outline • Introduction (done) • Related Work (next) • Loss • Measurements • Conclusions

  7. Related Work (1 of 2) • Popular video (Youtube, Hulu, Netflix, Joost) have it easier [8, 12] • Use TCP and can can have large buffer • Content stored at various bitrates • Youtube and Hulu – users select • Netflix – chooses automatically • Video chat often uses UDP (as in this study) • Want to avoid underutilization (lower quality) • Want to avoid overutilization (unfair, congestion)

  8. Random Loss vs. Congestion Loss • Generally, packet loss a sign of congestion (e.g. TCP does this with dupacks) • When is this not the case? … wireless • Causes of wireless loss: signal fading, obstacles, co-channel interference • Many of these not due to congestion • Lowering sending rate due to wireless loss may needlessly lower quality • Video chat could use algorithm, such as Spike [14] to distinguish loss type • Spike looks at loss and one-way delay time

  9. Related Work (2 of 2) • Audio chat studied extensively • Latency for audio [4] • Bandwidth and adaptation for Skype audio [6] • But … video not as much • Skype’s responsiveness to video [5] • This paper Skype, Live, Eyebeam, X-Lite

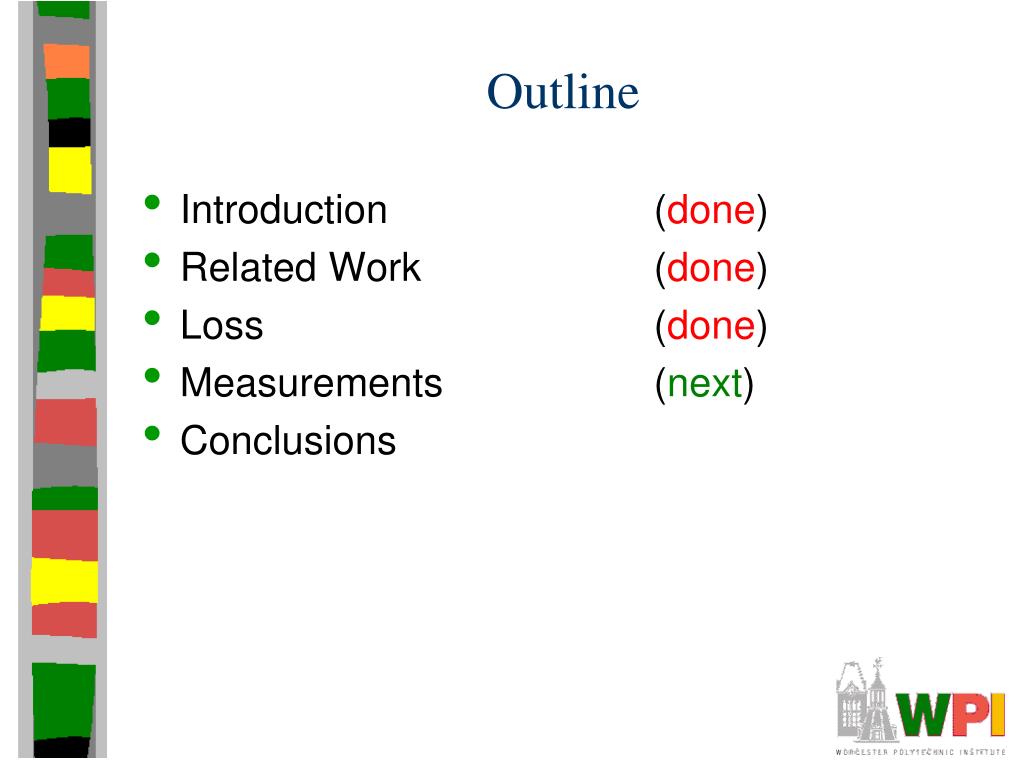

  10. Outline • Introduction (done) • Related Work (done) • Loss (done) • Measurements (next) • Conclusions

  11. Setup • Sender and Recevier for Video • Lenovo Thinkpad X63 laptops • Windows Vista • Wireshark PC -FreeBSD 7.1 -Dummynet to control: queue, RTT, bwdith, loss

  12. Parameters • Emulate ADSL • 114 ms for RTT • Queue size 60 KB • 3 MB/s downlink • 1 MB/s uplink • Three experiments: • Changes in bandwidth • File upload (HTTP) cross traffic • File upload (BitTorrent) cross traffic

  13. Changes in Bandwidth • Step function 1 • Decrease bandwidth by 80 kb/s every 10 seconds • Then increase (same way) • Step function 2 • Decrease bandwidth by 400 kb/s every 10 seconds • Then increase (same way)

  14. Skype with 10-10 Step Function - Adjusts promptly - Minimum rate, drops call - Note, uses jitter and RTT not just lossC

  15. Windows Live with 10-10 Step Function • - Drastically drops video (audio left alone) • Very low, adds FEC to audio • Minimum is 50 kb/s

  16. Eyebeam 10-10 Step Function • Uses H.264 - Doesn’t respond to increase • Tries to keep audio and video • Adds FEC • Only 2 bitrates, high fluctuations

  17. X-Lite 10-10 Step Function • Only has H.263 • Minimum of 180 kb/s, even at 100% loss • Uses FEC for audio (exacerbates problem) • Does not drop call, even if no bwidth

  18. Windows Live with 10-50 Step Function • Adjusts quickly to congestion • Adjusts slowly to lack of congestion • (Live better than others, which are not shown)

  19. Subjective Evaluation • Skype and MSN • Drop video frames, but no visual artifacts • Little packet loss • X-Lite and Eyebeam • Try to keep frame rate, but have lots of artifacts • Lots of packet loss • Only Skype always preserved audio quality

  20. HTTP as Cross Traffic • Traffic competes with video and audio for bandwidth • Again, Dummynet settings the same • HTTP traffic on uplink loads 9 MB file to Media Fire • (I’m going to call this file upload)

  21. X-Lite with File Upload • Traffic doesn’t really change at all • Both get close to the same bandwidth

  22. Eyebeam with File Upload • Similar to X-Lite, but loss rate higher • (Probably because traffic fluctuates more)

  23. Skype with File Upload • Adapts by lowering transmission rate • Low packet loss

  24. Windows Live with File Upload • Does not adapt much • Loss rates periodically higher

  25. BitTorrent as Cross Traffic • Used Vuze [15] and didn’t limit maximum update rate • In general, BitTorrent can have many connections • Paper says about 20 connections

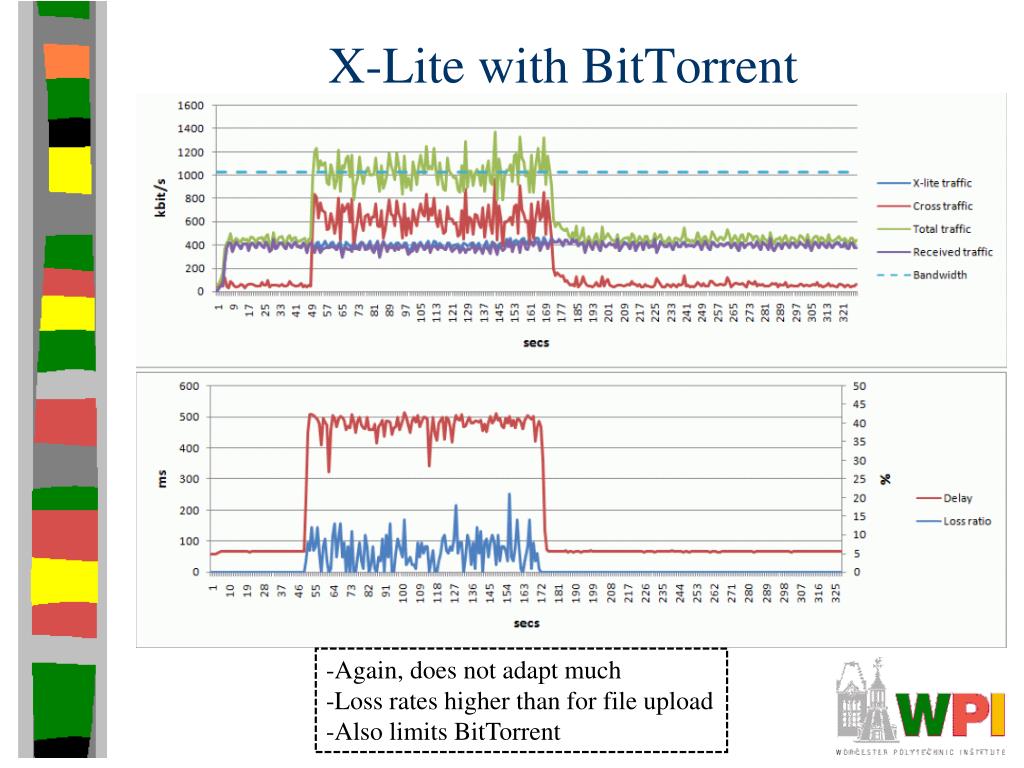

  26. X-Lite with BitTorrent • Again, does not adapt much • Loss rates higher than for file upload • Also limits BitTorrent

  27. Eyebeam with BitTorrent • Again, does not adapt much • Loss rates higher than for file upload • Loss rates higher than for X-Lite

  28. Skype with BitTorrent • Skype lowers rate consistently, giving more data to BitTorrent • Once BitTorrent stops, goes back up

  29. Windows Live with BitTorrent • Lowers rate considerably • Goes back up slowly when BitTorrent gone

  30. Random Losses • Add random losses • Since not from congestion, perhaps video applications would not adapt • Add 1% loss • Case 1: during entire session • Case 2: during middle of session

  31. Eyebeam, X-Lite and Live with Random Losses • Eyebeam and X-Lite • Do not adjust rates at all • Windows Live • Not reported

  32. Skype with Random Losses • For loss in the middle (top), Skype adds 20% FEC • Note, during congestion, decreased rate • For constant loss (bottom), increases gradually (not full speed right away) • Here, can’t determine change in delay

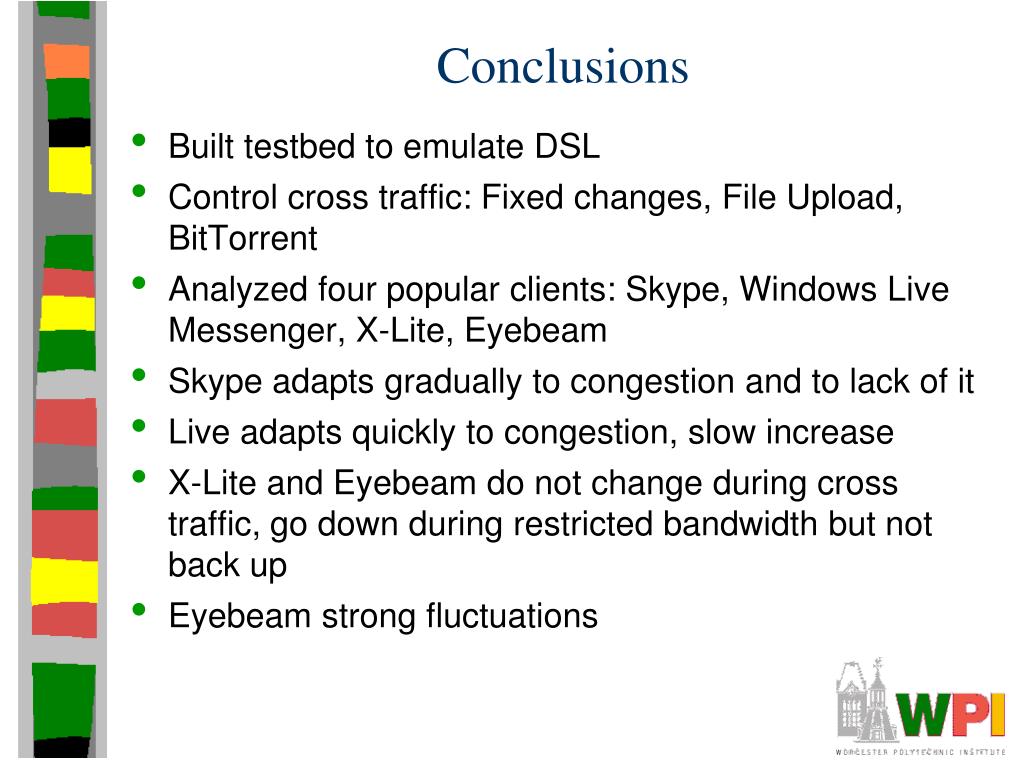

  33. Conclusions • Built testbed to emulate DSL • Control cross traffic: Fixed changes, File Upload, BitTorrent • Analyzed four popular clients: Skype, Windows Live Messenger, X-Lite, Eyebeam • Skype adapts gradually to congestion and to lack of it • Live adapts quickly to congestion, slow increase • X-Lite and Eyebeam do not change during cross traffic, go down during restricted bandwidth but not back up • Eyebeam strong fluctuations

  34. Future Work? • (Paper lists none)
