  1. THE NAVY 463L PALLETS, NETS PROGRAM INFORMATION & INSTRUCTIONS

  2. THE NAVY 463L PALLETS, NETS PROGRAM AGENDA (cont’) NAVAL OPERATION L LOGISTICS SUPPORT CENTER (NOLSC’s) ROLE. REGULATIONS & GUIDANCE. DIRECT REQUEST CONCEPT & THE HUB AND SPOKE CONCEPT. THE NAVY 463L PALLETS, NETS & HARDWARE PROGRAM ACTION TO TAKE.

  3. THE NAVY 463L PALLETS, NETS PROGRAM AGENDA (cont.) TECHNICAL ORDERS. KEYS TO DEFENSE TRANSPORTATION SYSTEM AIRLIFT. 463 DAILY PALLET, NET AND HARDWARE INSPECTION.

  4. THE NAVY 463L PALLETS, NETS PROGRAM AGENDA (CONT’) 463 L PALLET & NET CONFIGERATION & SHIPPING DETAILS. 463 L PALLET & NET EQUIPMENT, STOCK NUMBERS & COST. NAVY 463L PALLET & NET TEAM MEMBERS.

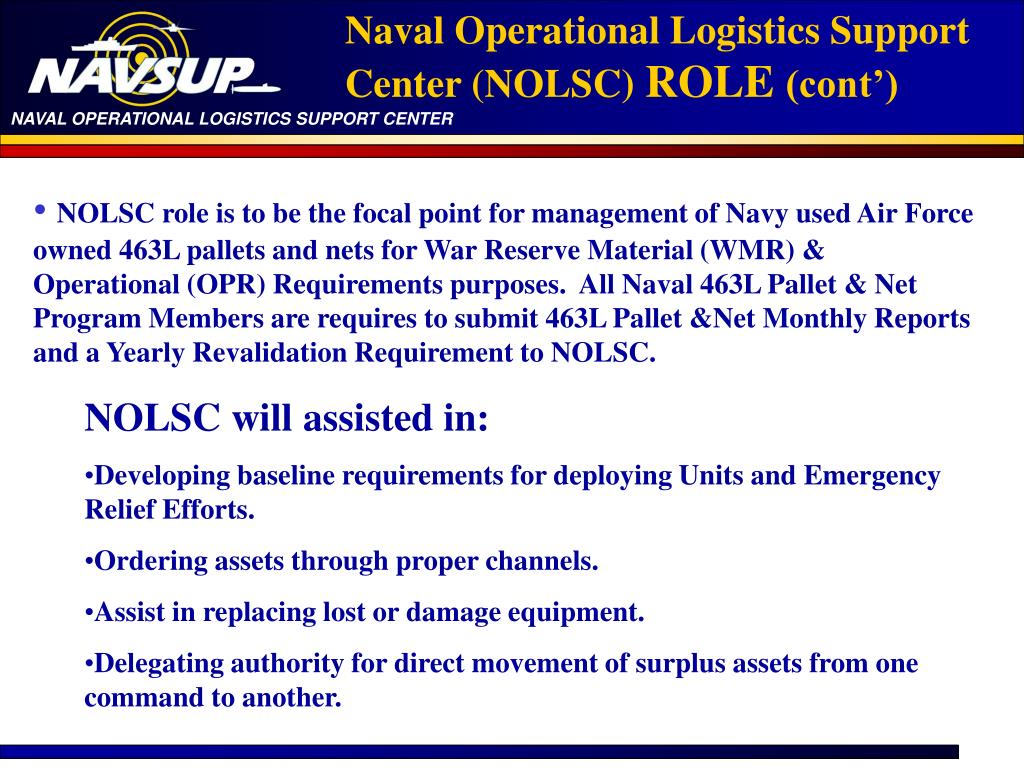

  5. Naval Operational Logistics Support Center (NOLSC) ROLE (cont’) • NOLSC role is to be the focal point for management of Navy used Air Force owned 463L pallets and nets for War Reserve Material (WMR) & Operational (OPR) Requirements purposes. All Naval 463L Pallet & Net Program Members are requires to submit 463L Pallet &Net Monthly Reports and a Yearly Revalidation Requirement to NOLSC. • NOLSC will assisted in: • Developing baseline requirements for deploying Units and Emergency Relief Efforts. • Ordering assets through proper channels. • Assist in replacing lost or damage equipment. • Delegating authority for direct movement of surplus assets from one command to another.

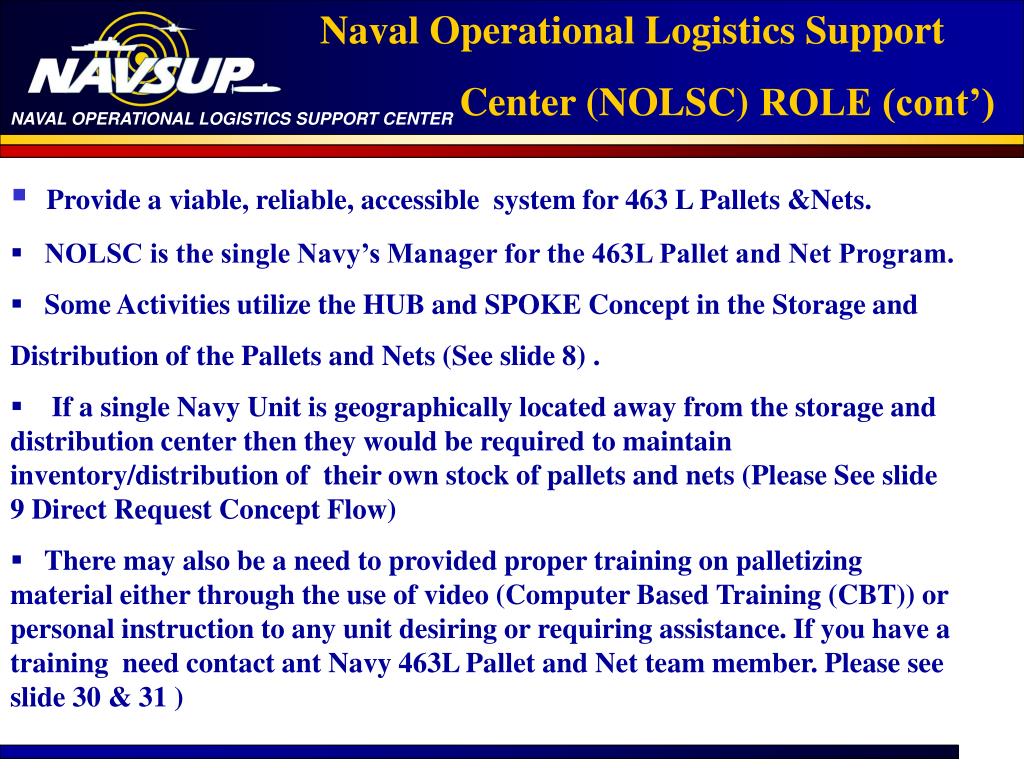

  6. Naval Operational Logistics Support Center (NOLSC)ROLE (cont’) • Provide a viable, reliable, accessible system for 463 L Pallets &Nets. • NOLSC is the single Navy’s Manager for the 463L Pallet and Net Program. • Some Activities utilize the HUB and SPOKE Concept in the Storage and Distribution of the Pallets and Nets (See slide 8) . • If a single Navy Unit is geographically located away from the storage and distribution center then they would be required to maintain inventory/distribution of their own stock of pallets and nets (Please See slide 9 Direct Request Concept Flow) • There may also be a need to provided proper training on palletizing material either through the use of video (Computer Based Training (CBT)) or personal instruction to any unit desiring or requiring assistance. If you have a training need contact ant Navy 463L Pallet and Net team member. Please see slide 30 & 31 )

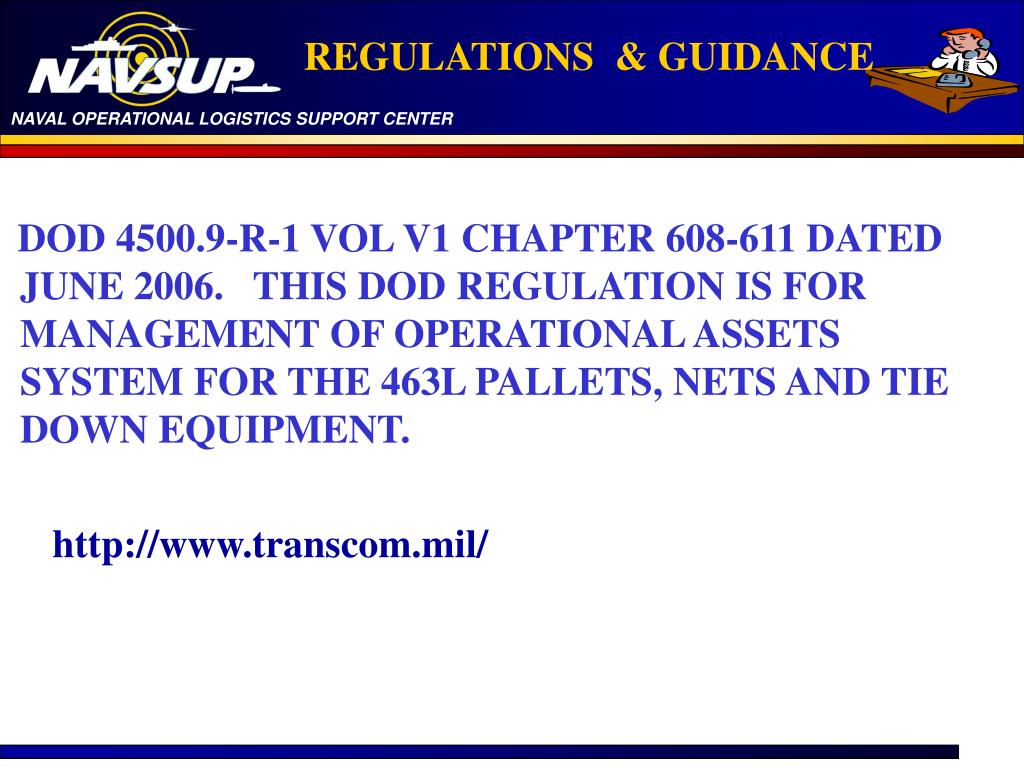

  7. Regulation & Guidance REGULATIONS & GUIDANCE DOD 4500.9-R-1 VOL V1 CHAPTER 608-611 DATED JUNE 2006. THIS DOD REGULATION IS FOR MANAGEMENT OF OPERATIONAL ASSETS SYSTEM FOR THE 463L PALLETS, NETS AND TIE DOWN EQUIPMENT. http://www.transcom.mil/

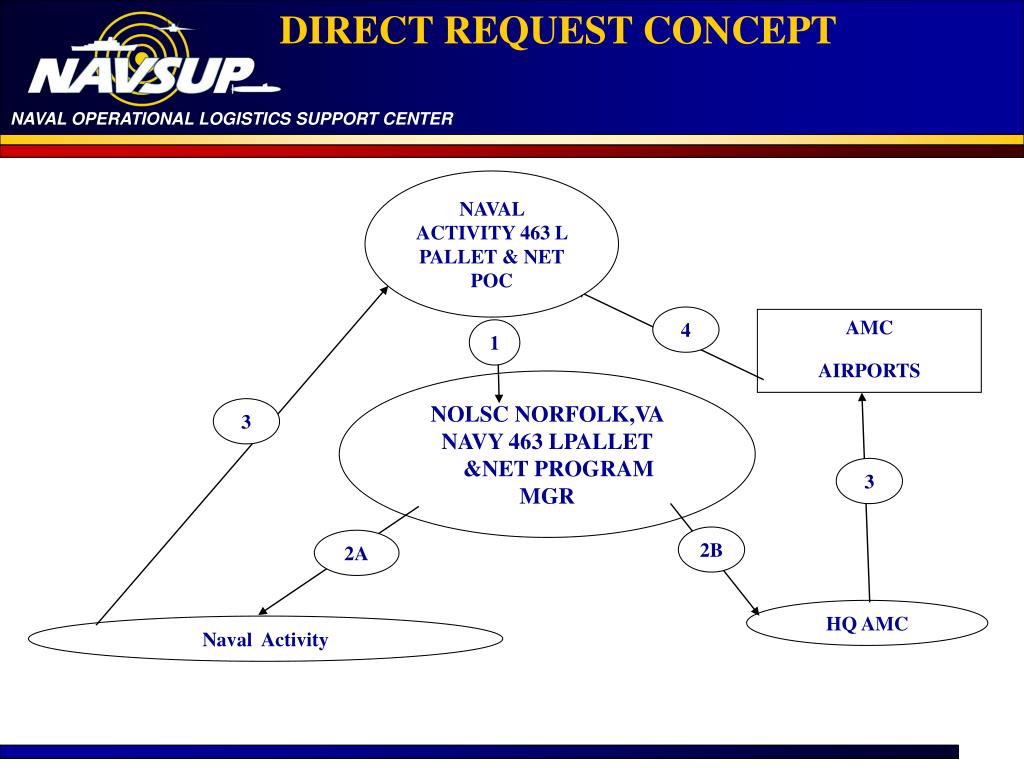

  8. DIRECT REQUEST CONCEPT NAVAL ACTIVITY 463 L PALLET & NET POC 4 AMC AIRPORTS 1 NOLSC NORFOLK,VA NAVY 463 LPALLET &NET PROGRAM MGR 3 3 2B 2A HQ AMC Naval Activity

  9. HUB AND SPOKE CONCEPT vaw127 NAS OCEANA CBC 4 SEAL TEAM 22 VFS 175 NAVY AIR TERMINAL 463L PALLET & NET STORAGE REQUESTER VF 101 AMC APOE NAB LTL CREEK HQ AMC NOLSC NORFOLK,VA NAVY 463 L PALLET & NET PROGRAM MGR Naval Activity MID-ATLANTIC/ TIDEWATER REGION

  10. THE NAVY 463L PALLETS, NETS & HARDWARE (cont’) • 463L Pallets are aluminum 88X108X2.25 area that is capable of accommodating 4000 pounds of material plus 20% outsized cargo. • Nets are (Nylon Top and Side Net restraints) which cover the cargo on all sides and connect to the pallet to provide stability and non-movement of cargo. • 463L Pallets and Nets are essential for use by units with a deployable mission for Operational and/or Exercise activity using the military airlift Air Mobility Command (AMC) system. • The 463L Pallet and Net process is also used to support Emergency Relief Efforts World Wide.

  11. THE NAVY 463L PALLETS, NETS & HARDWARE PROGRAM (cont’) • (a) Operational: Non-deployable commands (i.e. Air Heads/Air Terminals) • (b) War Reserve Material: Units with a deployable mission in support of operational and training requirements • Note - IAW WR-ALC/LE Memorandum of 12 Feb 2003 all 463L assets are to be considered operational. • The 463L Pallet & Net Program is divided into two areas: Deployments and Emergency Relief efforts.

  12. THE NAVY 463L PALLETS, NETS & HARDWARE and ACTION TO TAKE (cont’) • Damaged Nets and Hardware should be Condemned: • 1. If the net has mildew or is rotted to the point where webbing • replacement is not economically feasible ( See slide 24 – Pictures 9,10, 11) • 2. If twenty-five % or more of the net is sun bleached (See slide 24 - Picture 9) • 3. If net contains 52 or more repair points (i.e. hardware replacement, web repair or a combination of both). Multiple combinations of ring replacement and stitching, shall be considered one point of repair. (See slide 20- Picture 1&2) • a. If hardware is deformed, inoperable, broken or has visible cracks, it shall constitute a repair point. (See Sides 21, 22 Pictures 4&5)

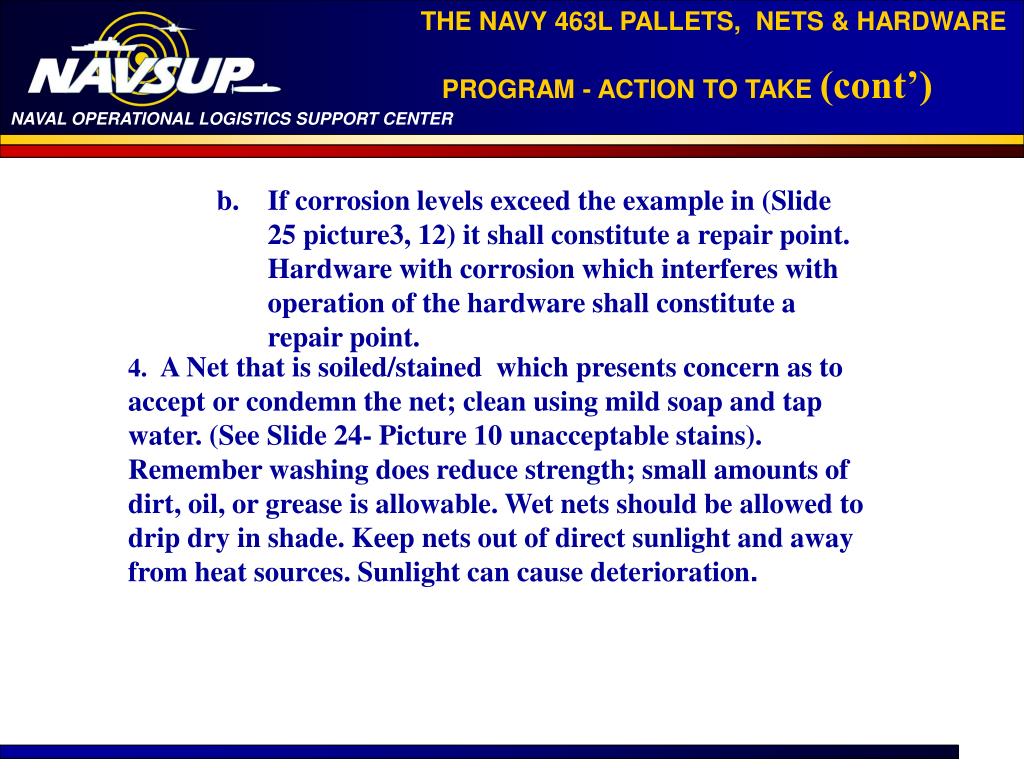

  13. THE NAVY 463L PALLETS, NETS & HARDWARE PROGRAM - ACTION TO TAKE (cont’) • If corrosion levels exceed the example in (Slide 25 picture3, 12) it shall constitute a repair point. Hardware with corrosion which interferes with operation of the hardware shall constitute a repair point. 4. A Net that is soiled/stained which presents concern as to accept or condemn the net; clean using mild soap and tap water. (See Slide 24- Picture 10 unacceptable stains). Remember washing does reduce strength; small amounts of dirt, oil, or grease is allowable. Wet nets should be allowed to drip dry in shade. Keep nets out of direct sunlight and away from heat sources. Sunlight can cause deterioration.

  14. TECHNICAL ORDERS • PALLET AND NET TECHNICAL ORDERS (TOs) • The following TOs detail the maintenance, use and repair of 463L air cargo • pallets and nets: Please see web site: https://www.toindex-s.wpafb.af.mil • TO 35D33-2-2-2, 463L Air Cargo Pallets, Types HCU-6/E and HCU-12/E. • TO 35D33-2-3-1, Air Cargo Pallet Net, HCU-7/E, I, Side, HCU-15/C, II, Top, • U-11/C, III, Side, HCU-16/C, IV, Top. • TO 36M-1-141, Operator and Operation Instruction -- Materials Handling • Equipment System Components of 463L. • TO 00-110N-16, Equipment Authorized for Use with Nuclear Weapons • https://www.toindex-s.wpafb.af.mil/

  15. THE NAVY 463L PALLETS, NETS & HARDWARE PROGRAM - ACTION TO TAKE (cont’) • ACTIONS TO BE TAKEN WHEN PALLETS THAT CAN NOT BE REPAIRED BY THE USER: • PALLETS: Are to be tagged, boxed by NSN and shipped to: • AAR Repair Contract • Inspection and determination of level of repair • Field Level Repair • DODAAC: 0045AM • Address: AAR Mobility Systems • 1001 Reilly Road • Industrial Park • Fayetteville NC 28314 • POC: Glen Christian • Tel # 1-910-860-2667 • Fund cite: FPLT applies with project code 9GJ *Drivers should make an appointment with the above company prior to delivery of Nets.

  16. THE NAVY 463L PALLETS, NETS & HARDWARE PROGRAM - ACTION TO TAKE (cont’) • ACTIONS TO BE TAKEN WHEN PALLETS AND NETS THAT CAN NOT BE REPAIRED BY THE USER: • PALLETS: Are to be tagged by NSN and shipped to: • AAR Repair Contract • Inspection and determination of level of repair • Depot Level Repair • DODAAC: EZ 3516 • Address: AAR MOBILITY SYSTEMS • 201 HANES ST. • CADILLAC MI 49601-5000 • Fund cite: FPLT applies with project code 9GJ • POC: Jeannette Downs 1-800-355-2015 • * Drivers should make an appointment with the above company • prior to delivery of Nets.

  17. THE NAVY 463L PALLETS, NETS & HARDWARE PROGRAM - ACTION TO TAKE (cont’) • ACTIONS TO BE TAKEN WHEN NETS THAT CAN NOT BE REPAIRED BY THE USER: • NETS: • Are to be tagged, boxed by NSN and shipped to: • DODAAC: EZ8723, • Address : TAC INDUSTRIES INC • 2160 Old Selma Rd. • Springfield, OH 5005. • Nets should be marked “ For ‘Repair Contract” • TAC: FPLT, Proj Code: 9GJ • POC: Craig Wilson. Coml (937) 525-7405 • *Drivers should make an appointment with the above company prior to • delivery of Nets.

  18. HCU6 463L Pallet & Airdrop Version 463L Keys to Defense Transportation System Airlift Airdrop Version 463L HCU6 463L Pallet

  19. 463L Nets Keys to Defense Transportation System Airlift

  20. 463 L Pallet & Net Hardware MB-1 Device Keys to Defense Transportation System Airlift MB-2 Device MB-1/MB-2 Device Chains

  21. 463 Daily Pallets, Nets and Hardware Inspection Keys to Defense Transportation System Airlift RFID Tags Straps

  22. 463 Daily Pallets, Nets and Hardware Inspection Picture 1 Picture 2Deformed hHardware 463L Pallet,Nets and Hardware Program Picture 1 Broken Stitch Pattern

  23. 463 Daily Pallets, Nets and Hardware Inspection Picture 3 Rusted hardware that needs to be work on by User Picture 4 Frayed Webbing

  24. 463 Daily Pallets, Nets and Hardware Inspection Picture 5 Frayed Webbing Picture 6 Good Webbing

  25. Picture 8 Good Hardware Picture 7 Good hardware 463 Daily Pallets, Nets and Hardware Inspection

  26. Picture 10 Dirty Webbing Picture 9 Sun Bleached Webbing Picture 11 Mildewed Webbing 463 Daily Pallets, Nets and Hardware Inspection

  27. 463 Daily Pallets, Nets and Hardware Inspection Picture 12 Acceptable Corrosion

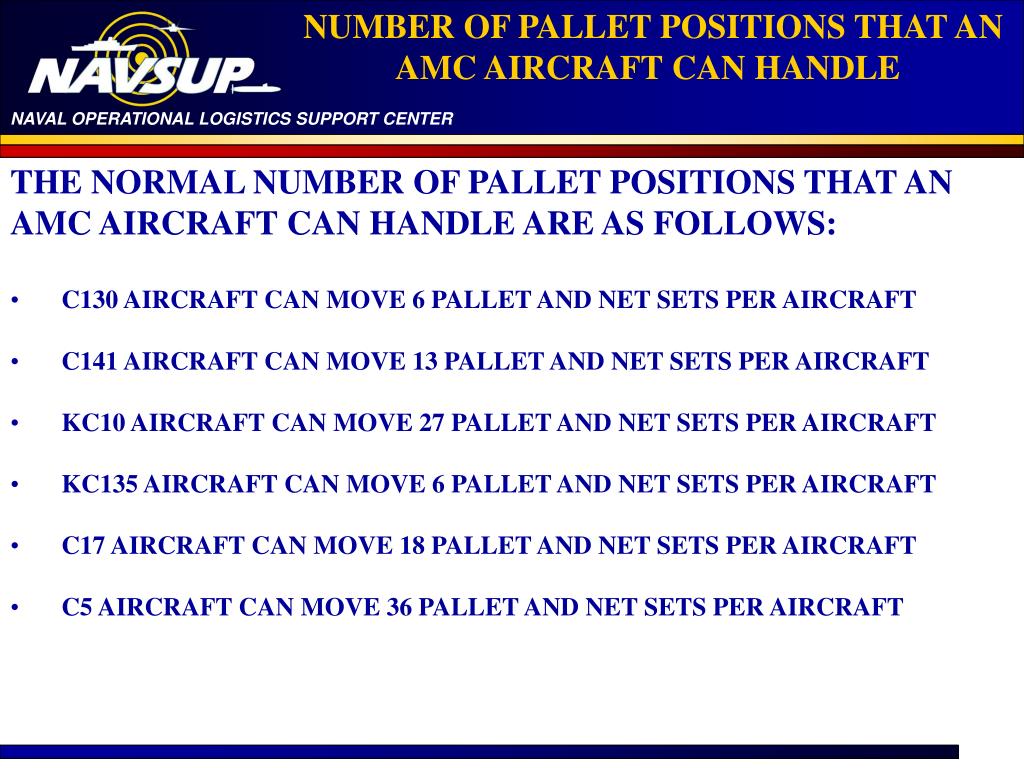

  28. NUMBER OF PALLET POSITIONS THAT AN AMC AIRCRAFT CAN HANDLE • THE NORMAL NUMBER OF PALLET POSITIONS THAT AN • AMC AIRCRAFT CAN HANDLE ARE AS FOLLOWS: • C130 AIRCRAFT CAN MOVE 6 PALLET AND NET SETS PER AIRCRAFT • C141 AIRCRAFT CAN MOVE 13 PALLET AND NET SETS PER AIRCRAFT • KC10 AIRCRAFT CAN MOVE 27 PALLET AND NET SETS PER AIRCRAFT • KC135 AIRCRAFT CAN MOVE 6 PALLET AND NET SETS PER AIRCRAFT • C17 AIRCRAFT CAN MOVE 18 PALLET AND NET SETS PER AIRCRAFT • C5 AIRCRAFT CAN MOVE 36 PALLET AND NET SETS PER AIRCRAFT

  29. 463 L PALLET & NET CONFIGERATION & SHIPPING DETAILS. A loaded 463 L Pallet Dims are:84 inches by 104 inches by 96 inches high. The 463 L Pallet max weight for general cargo is 4,000LBS. The 463 L Pallet max weight for AMMUNITION cargo is 10,000LBS. A single 463 L Pallet weight is 300 Lbs. Total Net weight for 100- Top Nets and 200- Side Nets is 1150 Lbs. 100-Top Nets in 2 boxes 200 Side Nets in 4 boxes You can put 50 Side or Top Nets in a standard shipping box.

  30. 463 L PALLET & NET CONFIGERATION & SHIPPING DETAILS. 100 Pallets weigh 30,000 Lbs. Pallets can be stacked 20 ea high when shipping to a conus destination. 100-Top Nets (in 2 boxes) & 200 Side Nets ( in 4 boxes) weight is 1150Lbs. 100 Pallets, 100-Top Nets (in 2 boxes) & 200 Side Nets( in 4 boxes) can be loaded on 1 Flat Bed Truck. The estimated weight for the shipment is 31,1150 Lbs . Tie down equipment Chains, MB-1/MB-2 Device, Straps, RFID Tags, etc They can be order by using the USG supply system (MILSTRIP/MILSTRAP). It is the deploying unit responsibility to Purchase the above Tie Down Equipment.

  31. 463 L PALLETS & NETS EQUIPMENT & STOCK NUMBERS TYPES AND SIZES OF 463L PALLETS/NETS AND ASSOCIATED EQUIPMENT Nomenclature NSN Size/Capacity AIR FORCE MANAGED 463L EQUIPMENT Pallet, Cargo, Aircraft, HCU-6/E 1670-00-820-4896CT 88 X 108 X 2.25 in *1 ,10,000 lb capacity (CAP) Net, Cargo, Tie down Pallet, Top, HCU-15/C 1670-00-969-4103CT 88 X 108 in 81*1, 10,000 lb (CAP) Net, Cargo, Tie down Pallet, Side HCU-7/E (two pcs per top net) 1670-00-996-2780CT 88 X 108 in *1, 10,000 lb (CAP) Coupler, Pallet, C-141/C-130/C-5 1670-01-061-0990CT 2 in *1 Coupler, Pallet, KC-10/DC-10 1670-01-487-8743CT 1 in *1 ITEMS MANAGED BY DLA AND UNIT FUNDED Strap, Nylon, Tie down, CGU-1/B 1670-00-725-1437 5,000 lb capacity* 2 Cover, Cargo, Pallet 3990-00-930-1480 Unit of Issue Roll (10 count) *2 Strap, Webbing, Tie down 5340-00-980-9277 5,000 lb capacity* 3 Chain, Tie down, MB-1 4010-00-516-8405 10,000 lb capacity 3 Adjuster, Chain, MB-1 1670-00-212-1149 10,000 lb capacity 2 Chain, Tie down, MB-2 1670-00-778-4079 25,000 lb capacity 2 Adjuster, Chain, MB-3 1670-00-212-1150 25,000 lb capacity 2 *1 Pallets/Nets/Couplers managed by WR-ALC/LES, Robins AFB, GA 31098-1611 *2 CGU-1B Strap and Pallet Covers managed by DGSC/S9G, Richmond, VA 23219 *3 Managed by DISC/S9I, 700 Robbins Ave, Philadelphia, PA 19101 For more information see NOLSC Web Site: https://www.ois.disa.mil/nolsc/navtrans/

  32. NAVY 463L PALLET & NET PROGRAM TEAM NAVY PROGRAM MANAGER FOR 463LPALLET& NET PROGRAM Raymond Bilo Com tel # is: (215) 697-0242 DSN tel # is: 442-0242 Com tel # FAX is: (215) 697-4767 E-mail address is: raymond.bilo@navy.mil NAVY 463L PALLET& NET TEAM MEMBERS Paul Barraco (LOGISTICS MGMT BRANCH SUPERVISOR) Com tel # is: (757) 443-5317 DSN TEL # is: 646-5317 Com tel # FAX is: (757) 443-5517. E-mail address is:paul.barraco@navy.mil

  33. NAVY 463L PALLET & NET PROGRAM TEAM NAVY 463L PALLET& NET TEAM MEMBERS Sylvia Hammonds. Com tel # is: (757) 443-5428 Her DSN tel # is: 646-5428. Com FAX tel # is (757) 443-5517. E-mail address is:sylvia.hammonds@navy.mil Clotie Hall. Com tel # is: (757) 443-5492. DSN tel # is: 646-5492 Com FAX tel # is (757) 443-5517 E-mail address is:clotie.hall@navy.mil IF YOU HAVE QUESTION OR CONCERNS CONTACT THE NOLSC NAVY 463L PALLET & NET TEAM
