  1. LOCATED AT BOOTH: 8070 (PRIMETIME TESTING LAB)

  2. Dynamic Data Acquisition3D Measurements before, DURING, & after testing In both ambient or extreme climatic conditions

  3. What is “Dynamic Data Acquisition”? DYNAMIC - Of or relating to physical force, energy, movement. Dynamic. 2011. In Merriam-Webster.com Retrieved October 13, 2011, from http://www.merriam-webster.com/dictionary/dynamic DATA - Information output by a sensing device or organ that includes both useful and irrelevant or redundant information and must be processed to be meaningful. Data. 2011. In Merriam-Webster.com Retrieved October 13, 2011, from http://www.merriam-webster.com/dictionary/data DYNAMIC DATA ACQUISITION – The act of acquiring data DURING a products change of attributes.

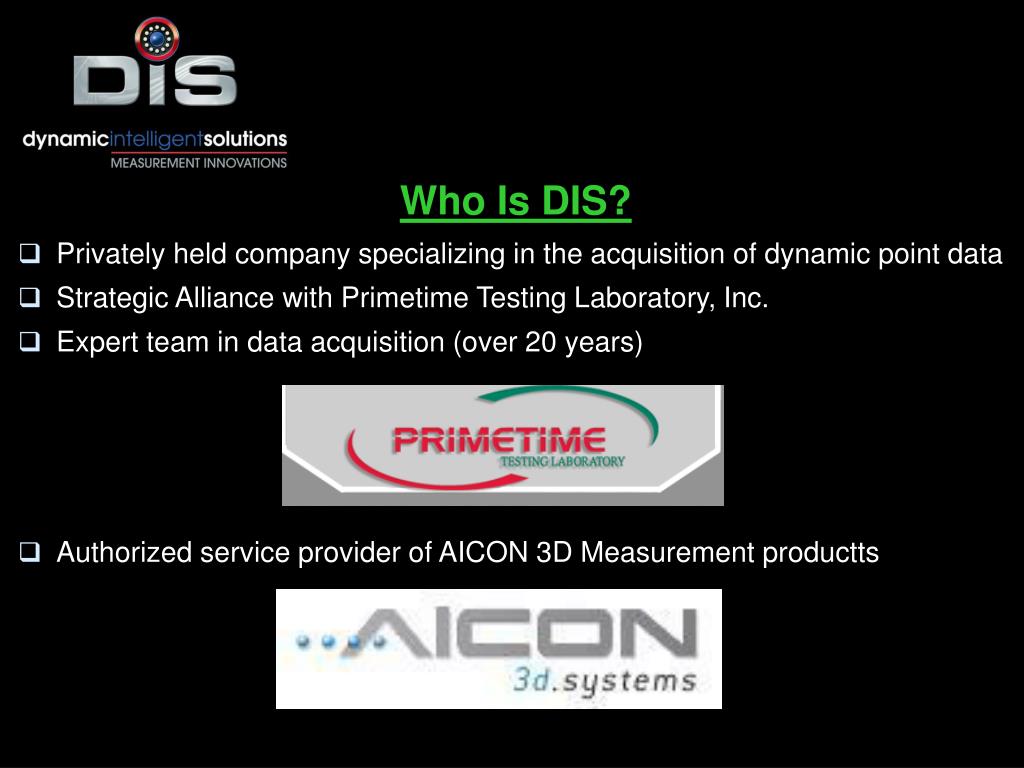

  4. Who Is DIS? • Privately held company specializing in the acquisition of dynamic point data • Strategic Alliance with Primetime Testing Laboratory, Inc. • Expert team in data acquisition (over 20 years) • Authorized service provider of AICON 3D Measurement productts

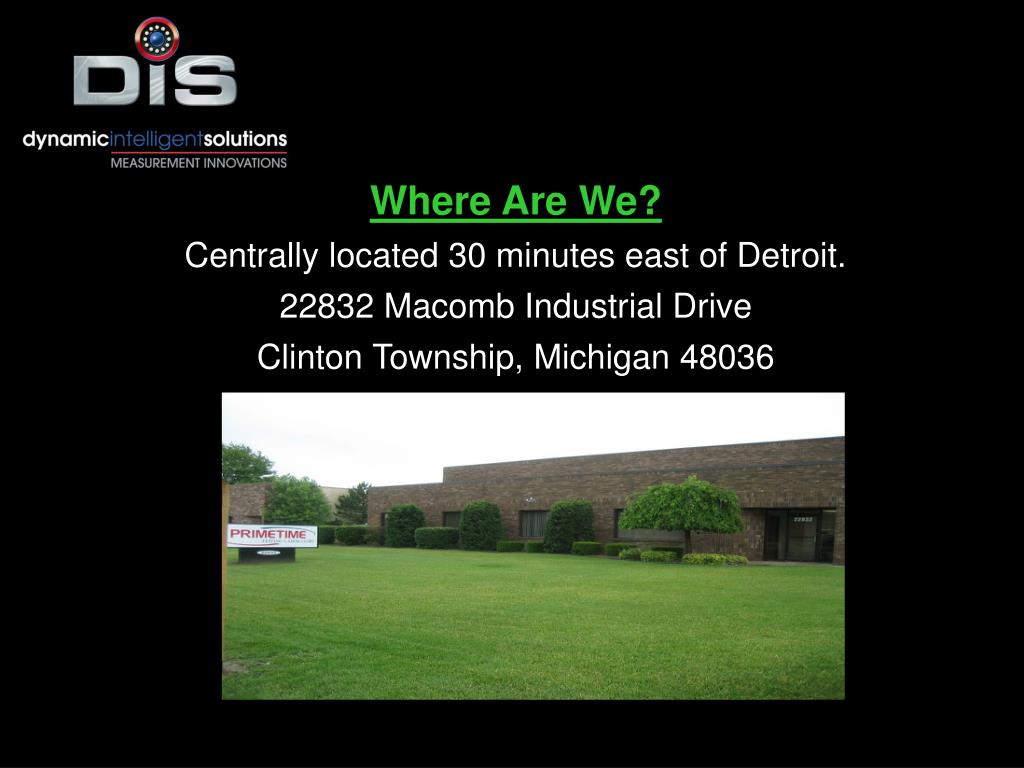

  5. Where Are We? Centrally located 30 minutes east of Detroit. 22832 Macomb Industrial Drive Clinton Township, Michigan 48036

  6. What does DIS offer? • 3D Measurement Service for engineering and manufacturing industries • Dynamically Measure components during extreme climate conditions • Dramatically Improve testing efficiency • Reduce development time and cost

  7. Today’s Traditional Environmental Testing Process • Coordinate measurement machine (CMM) • First measure the part using a CMM • Run it through an environmental profile • Measure the part after a CMM • Compare Before and After point data

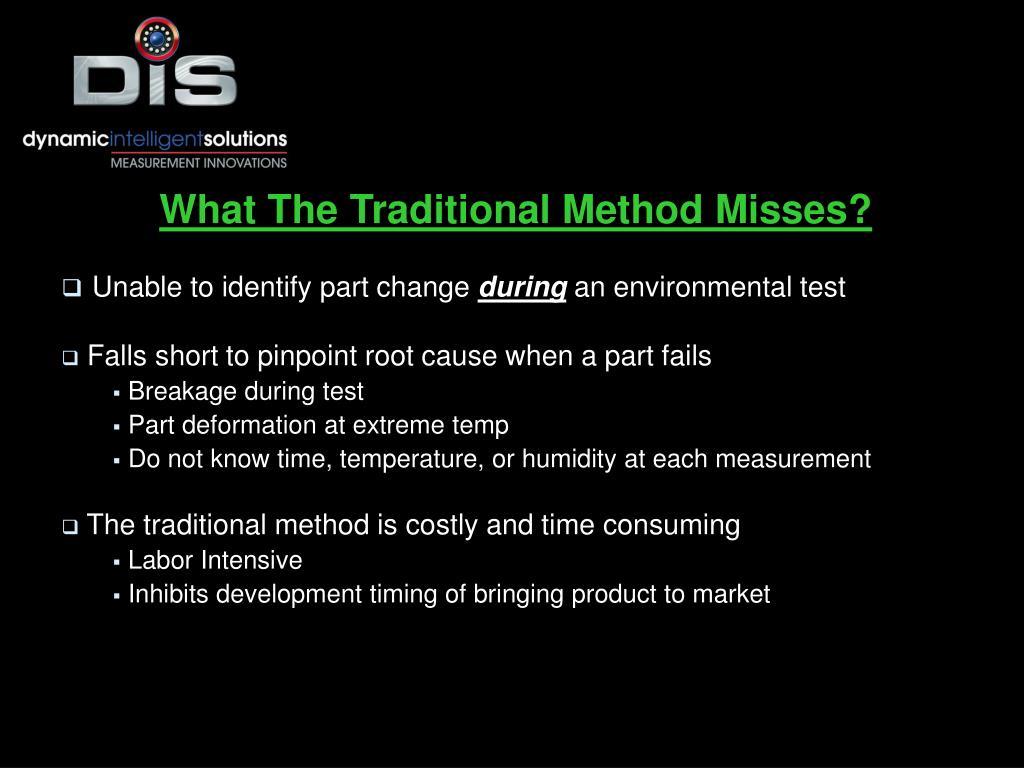

  8. What The Traditional Method Misses? • Unable to identify part change during an environmental test • Falls short to pinpoint root cause when a part fails • Breakage during test • Part deformation at extreme temp • Do not know time, temperature, or humidity at each measurement • The traditional method is costly and time consuming • Labor Intensive • Inhibits development timing of bringing product to market

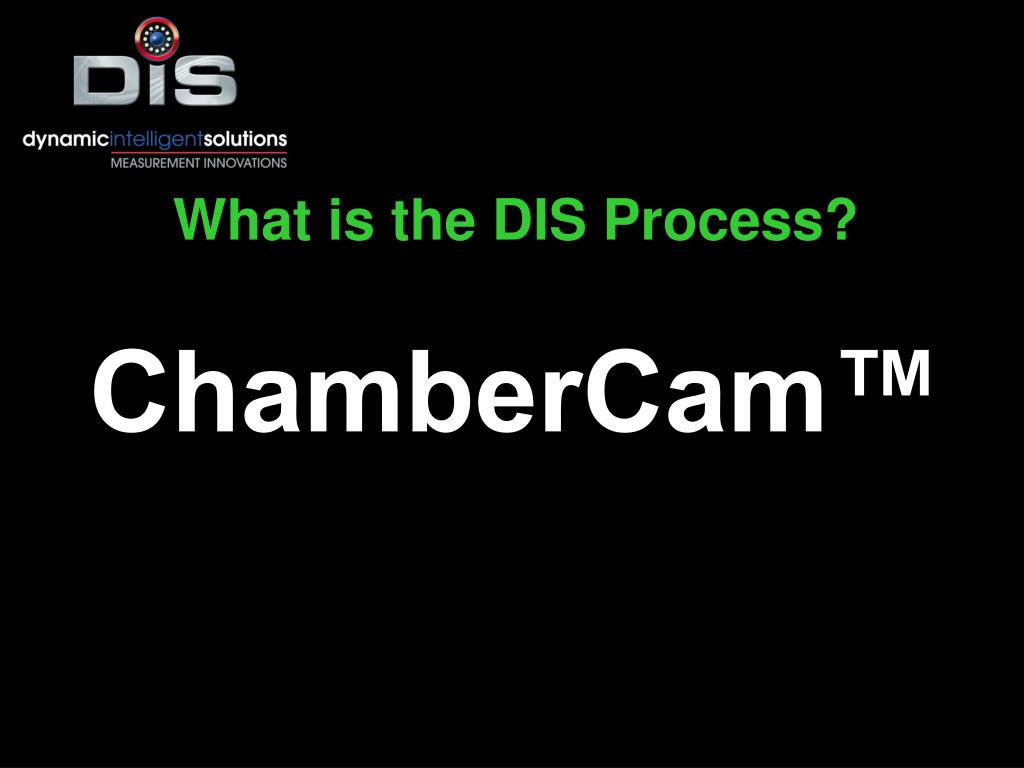

  9. What is the DIS Process? ChamberCam™

  10. What Does ChamberCam™ Provide? • Measures part deformation during an environmental test • Obtain 3D point data and analysis • Records Time, Temp, and Humidity each measurement • Measurements up to 15 times per second • Accuracy of 50 microns

  11. How ChamberCam™ Will Help You • Improve discovery time of root cause analysis • ChamberCam™ provides previously unobtainable data • Time, temperature, humidity, and 3D point data • Captures dimensional data at hundreds of points • Image for every measurement taken • Easy to analyze and create / present data

  12. Application Areas • Instrument Panels • Door panels • Headliners • Seats • Center Consoles • Armrests • Visors • Exterior • Engine and Performance

  13. Application Areas: ChamberCam™ • Instrument Panels • Door panels • Headliners • Seats • Center Consoles • Armrests • Visors • Exterior • Engine and Performance

  14. Application Areas: MoveInspect • Instrument Panels • Door panels • Headliners • Seats • Center Consoles • Armrests • Visors • Exterior • Engine and Performance

  15. Application Areas: MoveInspect • Instrument Panels • Door panels • Headliners • Seats • Center Consoles • Armrests • Visors • Exterior • Engine and Performance

  16. VIDEO SAMPLES

  17. What You Get From Testing • 3D Image overview of measured point data • Image for every measurement taken • 3D deformation table of measured point trajectories • Information pins or graphs for selected measured points • 3D data available to input into CAD • Video of measurements and their deformations • Free viewer to analyze data

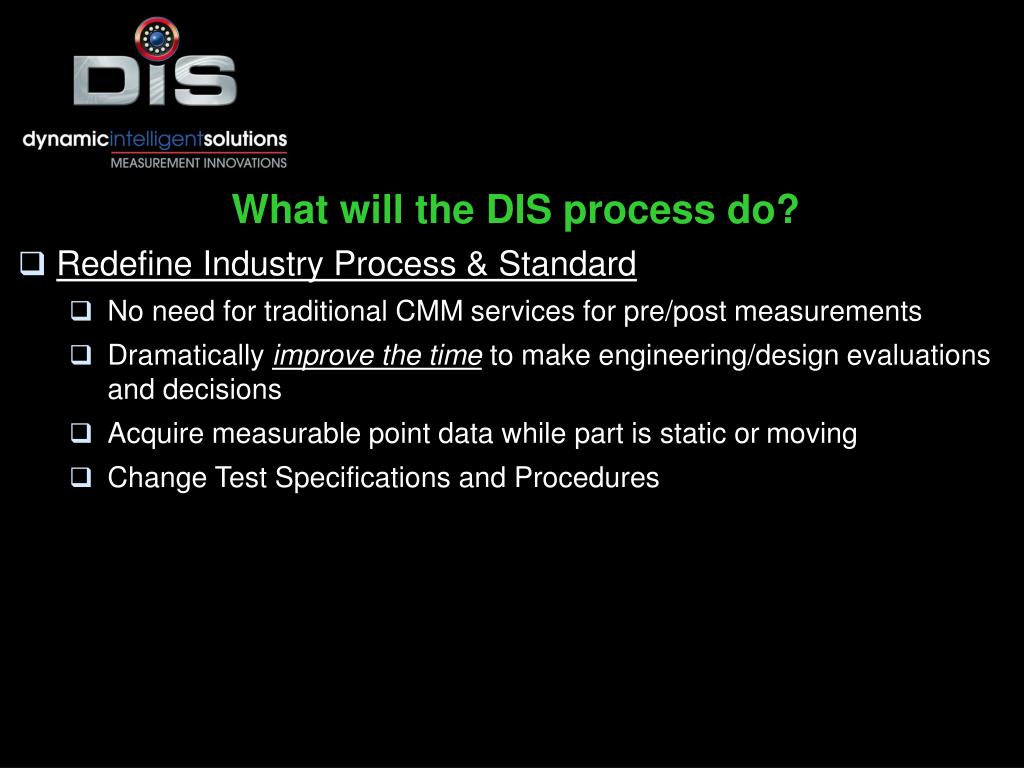

  18. What will the DIS process do? • Redefine Industry Process & Standard • No need for traditional CMM services for pre/post measurements • Dramatically improve the time to make engineering/design evaluations and decisions • Acquire measurable point data while part is static or moving • Change Test Specifications and Procedures

  19. LOCATED AT BOOTH: 8070 (PRIMETIME TESTING LAB)
