  1. Cisco-EMC SQL Server Data Warehouse Fast Track Solutions Sales Training October 17, 2011 TxominBarturen, EMC Eyal Sharon, EMC Justin Kennedy, EMC Frank Cicalese, Cisco Charley Schaff, Cisco Theresa Chen, Cisco

  2. Agenda • Joint sales opportunity • Customer environment and challenges • SQL Server Fast Track Data Warehouse program • EMC and Cisco joint offering • Value proposition and differentiation • Identifying opportunities • Engagement model and sales contacts • Ordering and fulfillment • Competition • Call to action

  3. Joint Sales Opportunity • Microsoft data warehousing = huge sales opportunity • $2.1B addressable market for Cisco UCS • $2.6B storage opportunity * - most of this is EMC VNX opportunity • Microsoft SQL Server is a big player in data warehousing and they are investing to grow share • EMC-Cisco have developed Fast Track Solutions to … • Help you identify new DW opportunities and win in this large market • Simplify customer deployment with pre-tested, validated solutions • Help start new sales conversations with Cisco, EMC and Microsoft * IDC, 2011

  4. What is a Data Warehouse? A Data Warehouse organizes historical data from multiple sources into functional areas - such as accounting, manufacturing and HR - enabling key lines of business and executives to make decisions Business Value Delivers timely and trustworthy intelligence on a variety of business activities and processes to help executives make better decisions

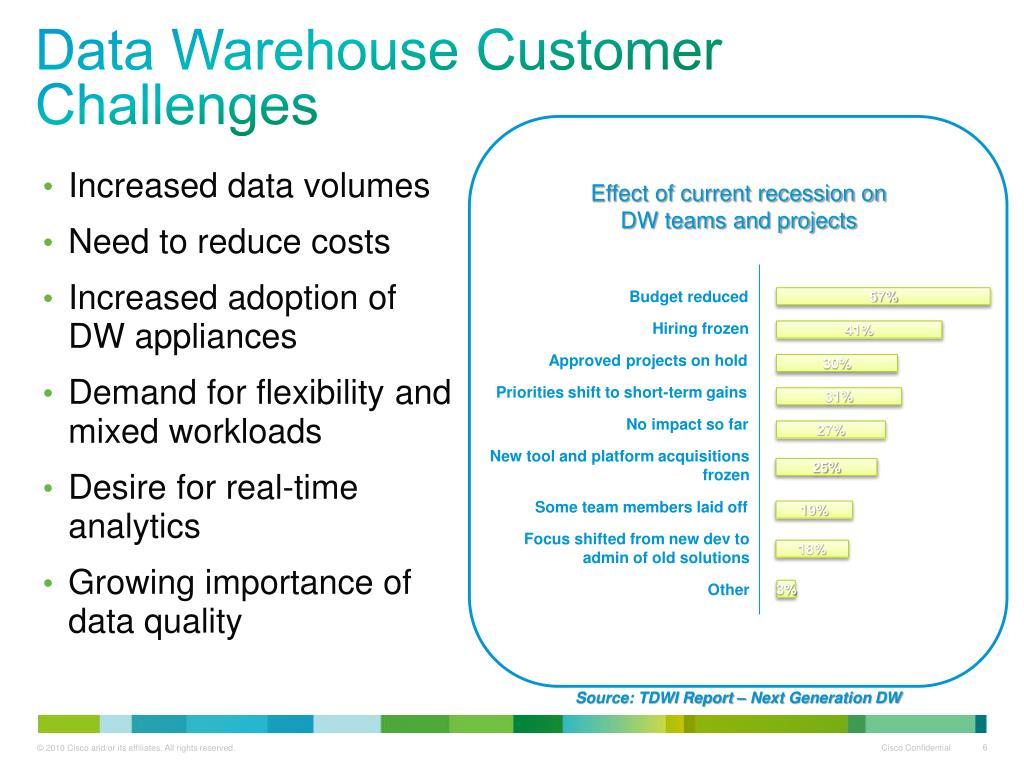

  5. Data Warehouse Customer Challenges Approximate data volume managed by data warehouse • Increased data volumes • Need to reduce costs • Increased adoption of DW appliances • Demand for flexibility and mixed workloads • Desire for real-time analytics • Growing importance of data quality Today In 3 Years 21% Less than 500 GB 5% 20% 500 GB – 1 TB 12% 21% 1 – 3 TB 18% 19% 3 – 10 TB 25% 17% More than 10 TB 34% 2% Don’t Know 6% Source: TDWI Report – Next Generation DW

  6. Data Warehouse Customer Challenges • Increased data volumes • Need to reduce costs • Increased adoption of DW appliances • Demand for flexibility and mixed workloads • Desire for real-time analytics • Growing importance of data quality Effect of current recession on DW teams and projects Budget reduced 57% Hiring frozen 41% Approved projects on hold 30% Priorities shift to short-term gains 31% No impact so far 27% New tool and platform acquisitions frozen 25% Some team members laid off 19% Focus shifted from new dev to admin of old solutions 18% Other 3% Source: TDWI Report – Next Generation DW

  7. SQL Server Fast Track Data Warehouse Reference Architectures to help customers accelerate their DW deployments • A method for designing a cost-effective, balanced system for Data Warehouse workloads • Reference configurations developed in conjunction with hardware partners • Best practices for data layout, loading and management

  8. EMC-Cisco SQL Server Fast Track Joint Offerings Reference Architectures to help customers accelerate their DW deployments • Mid Size Enterprise Fast Track Configuration • Target Data Warehouse size: 12 – 24 TB • Solution components: • - Cisco UCS C250 M2 Rack Mount Server (2 processors) • - EMC VNX 5300 Storage System with 75 SAS disk drives • Large Enterprise Fast Track Configuration • Target Data Warehouse size: 24 – 48 TB • Solution components: • - Cisco UCS C460 M1 Rack Mount Server (4 processors) • - Two EMC VNX 5300 Storage Systems (each with 75 SAS disk drives) • Upsell Cisco networking, EMC BRS products and DR

  9. Value proposition Reduced Risk Accelerated Time to Value • Validated by Microsoft, Cisco and EMC; reduces risk of overspending • Cisco UCS integrates compute, storage, network for balanced performance • Known performance and scalability • Reduced design, deployment time • Cisco UCS automates configuration and provisioning of server, network, storage Low TCO High Scale and Performance • Pre-tested and validated configuration • Shorter deployment through Cisco UCS integration of compute, storage, network • VNX high density footprint and price-performance value • Proven scalability to 48TB • Best of breed - UCS ideal for large memory-intensive workloads • High-bandwidth EMC VNX ideal for DW

  10. High memory density = more workspace in a single server for data warehouse workloads Integration of compute, storage, and network = simplified deployment and management Automated server configuration process = faster time to benefit Unified network fabric converging LAN and SAN = fewer interface cards, cables, and switches Fewer cables, interface cards, physical servers = lower energy costs and less floor space Cisco UCS – DW Value Proposition

  11. VNX Hardware – Ideal for DW Environments • High density drive shelves and racks • Shelves: 25 Drives, 2U Where floor space is a premium VNX is footprint efficient • High bandwidth (Coming this quarter!) • Adds an additional 6Gb/s four lane SAS Ideal for Data warehousing/BI 3X THE CAPACITY 2X THE BANDWIDTH

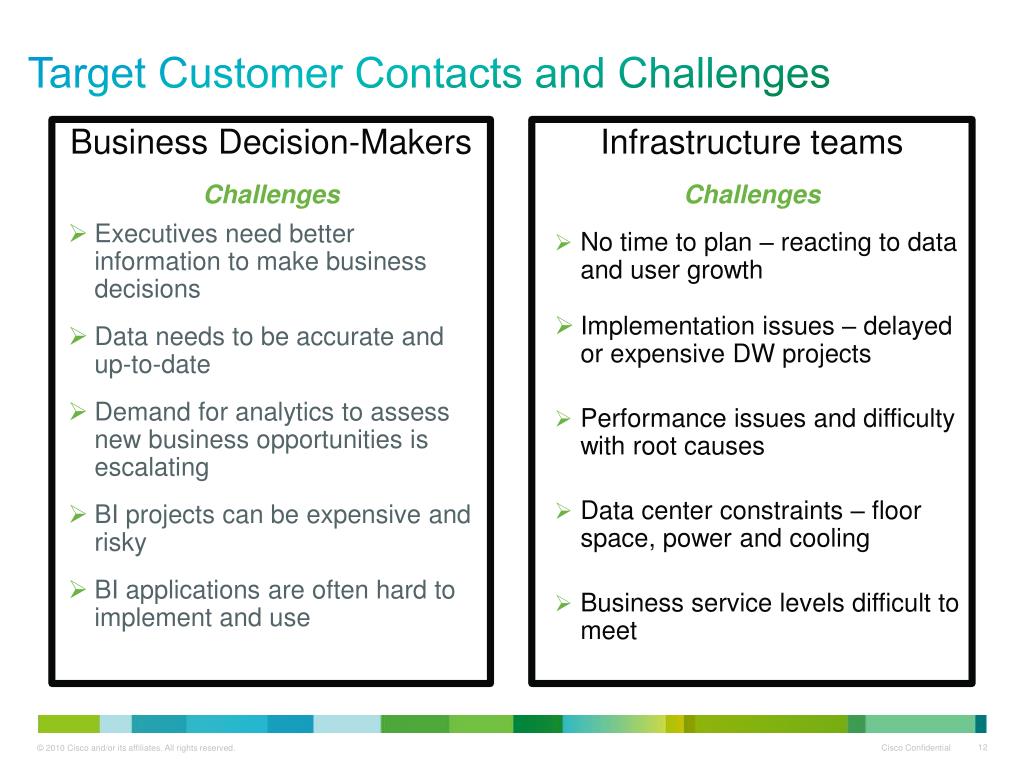

  12. Target Customer Contacts and Challenges • Infrastructure teams • Challenges • No time to plan – reacting to data and user growth • Implementation issues – delayed or expensive DW projects • Performance issues and difficulty with root causes • Data center constraints – floor space, power and cooling • Business service levels difficult to meet Business Decision-Makers Challenges • Executives need better information to make business decisions • Data needs to be accurate and up-to-date • Demand for analytics to assess new business opportunities is escalating • BI projects can be expensive and risky • BI applications are often hard to implement and use

  13. Questions for Business Decision Makers

  14. Questions for Technical Decision Makers

  15. Sales Engagement • Contact your sales counterpart from EMC or Cisco to prospect for data warehouse opportunities in your account • Engage specialist resources from EMC or Cisco to help qualify opportunities • Leverage joint EMC and Cisco channel partners for solution fulfillment • Microsoft sales contacts available to support engagement as needed

  16. Sales and Technical Contacts Cisco EMC • Email the contacts above with the following: • Details on the help needed • Details on the specific opportunity • What region/territory are you located in

  17. Microsoft Sales Contacts Microsoft Fast Track Data Warehouse Contacts Engage your Cisco and EMC contacts for help engaging with Microsoft in your account

  18. Targeted Fulfillment Partners All the above are Cisco, EMC, and Microsoft Gold partners * Microsoft LAR’s

  19. Competitors The companies below have also published SQL Server Fast Track Data Warehouse solutions. Some of these competitors offer compute, storage, and network under the same label.

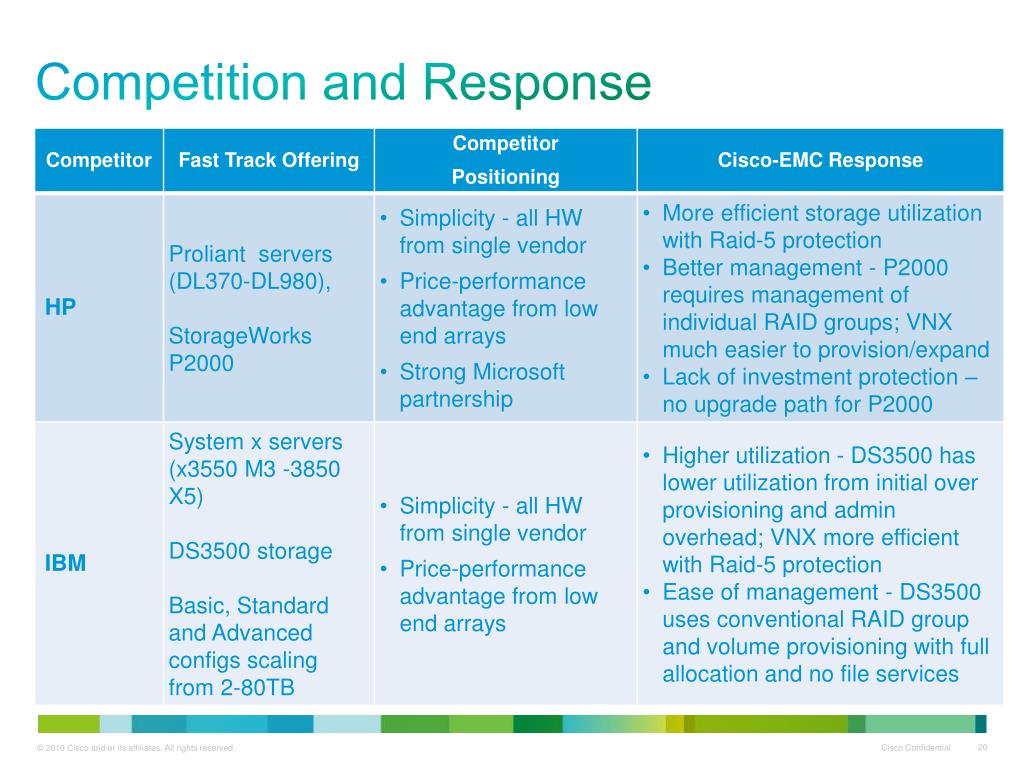

  20. Competition and Response

  21. Call to Action • Read available sales and technical content to learn more about the solution • Identify contacts within your account for a data warehouse conversation • Listen for pain points, competitive POCs, major issues • Engage your local EMC and Cisco sales teams and technical contacts to discuss opportunities • Leverage supporting sales and technical resources to help qualify the opportunity • Develop account plans based on identified opportunities

  22. More Information • EMC • SQL Fast Track Data Warehouse Datasheet on PowerLink: • Home > Solutions > Application Solutions > Microsoft > SQL Server > Core Information > Data Sheets • Fast Track Technical Whitepaper on PowerLink: • Home > Solutions > Application Solutions > Microsoft > SQL Server > Core Information > White Papers • Cisco • SQL Fast Track Data Warehouse Datasheet and Configuration Guide are available at • www.cisco.com/go/microsoft. Click on Solutions tab.

  23. Q & A

  24. Cisco-EMC SQL Server Data Warehouse Fast Track Solutions Technical Training October 17, 2011 Frank Cicalese, Cisco Txomin Barturen, EMC

  25. Microsoft SQL Server is not just a relational database. It is a comprehensive, integrated data platform which contains a complete set of tools that help people derive value from information. What is Microsoft SQL Server?

  26. SQL Server 2008 R2 Core Editions Comparison

  27. SQL Server Integration Services:Architecture

  28. SQL Server Analysis Services:Architecture

  29. SQL Server Reporting Services: Architecture Report Server RS Scale Out Deployment Report Catalog Reporting Data

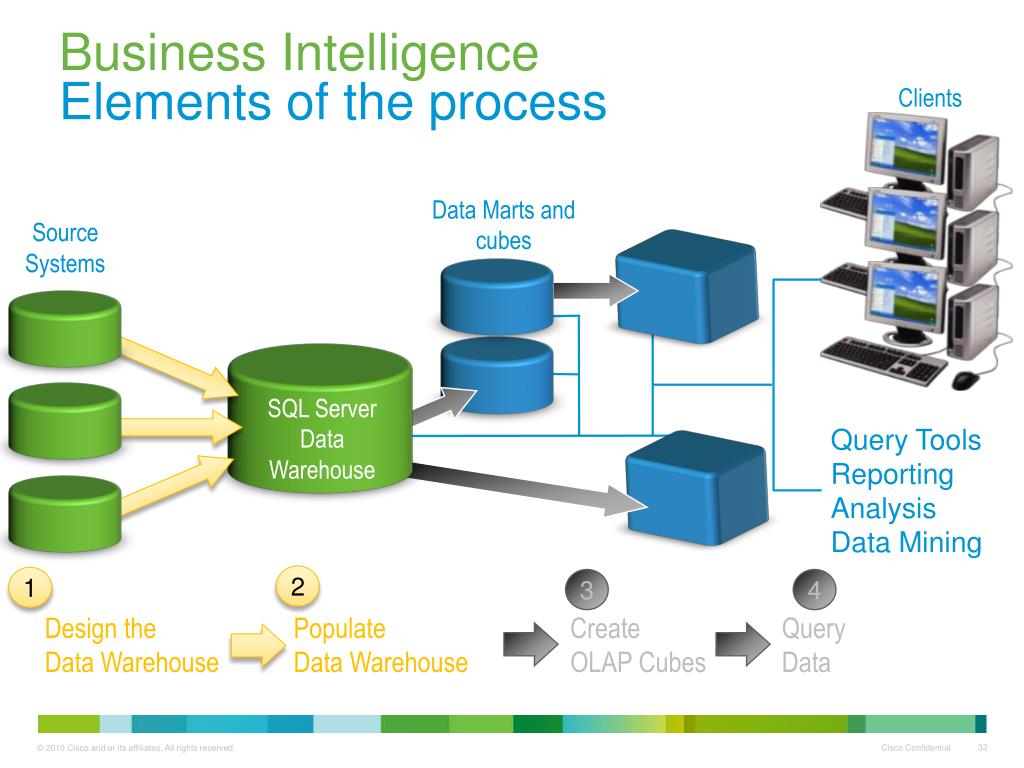

  30. Business IntelligenceElements of the process Clients Data Marts and cubes Source Systems SQL ServerData Warehouse Query Tools Reporting Analysis Data Mining 2 1 3 4 Design the PopulateCreateQuery Data Warehouse Data WarehouseOLAP CubesData

  31. Business IntelligenceElements of the process Clients Data Marts and cubes Source Systems SQL ServerData Warehouse Query Tools Reporting Analysis Data Mining 2 1 3 4 Design the Populate CreateQuery Data Warehouse Data Warehouse OLAP CubesData

  32. Business IntelligenceElements of the process Clients Data Marts and cubes Source Systems SQL ServerData Warehouse Query Tools Reporting Analysis Data Mining 2 1 3 4 Design the Populate Create Query Data Warehouse Data Warehouse OLAP Cubes Data

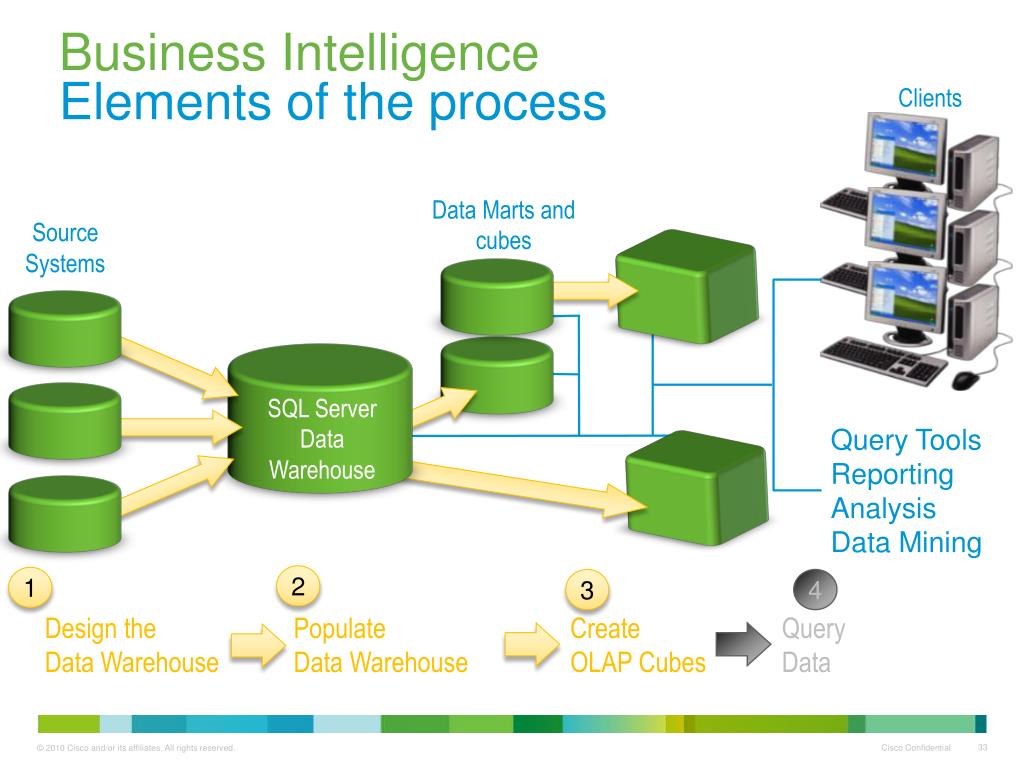

  33. Business IntelligenceElements of the process Clients Data Marts and cubes Source Systems SQL ServerData Warehouse Query Tools Reporting Analysis Data Mining 1 4 2 3 Design the Populate Create Query Data Warehouse Data Warehouse OLAP Cubes Data

  34. Data Warehouse versus OLTP • Database Goal • - Designed for analyticaloperations • Strategic focus • - Optimized for bulk load and large, complex, unpredictable queries • - Fewer concurrent users relative to OLTP • Database Goal • - Designed for operationalrequirements • Tactical focus • - Optimized for transactions: “single row” entry and retrieval • - Thousands of concurrent users

  35. Data Warehouse versus OLTP • Storage Goal • - Primary focus on sequential read operations • - Optimized for disk scan over seek operations • - Storage optimization focused on disk scan rate (MB/s) • Storage Goal • - Emphasis on transactional (random) performance • - Optimized for disk seek over scan operations • - Storage optimization focused on I/O operations/s (IOPs)

  36. Customer Data Warehouses Challenges • Attempt to utilize pre-existing environment • *ADD* Data Warehouse work onto existing production infrastructure • Resource intensive for customer to design configuration • Low success factor and poor ROI

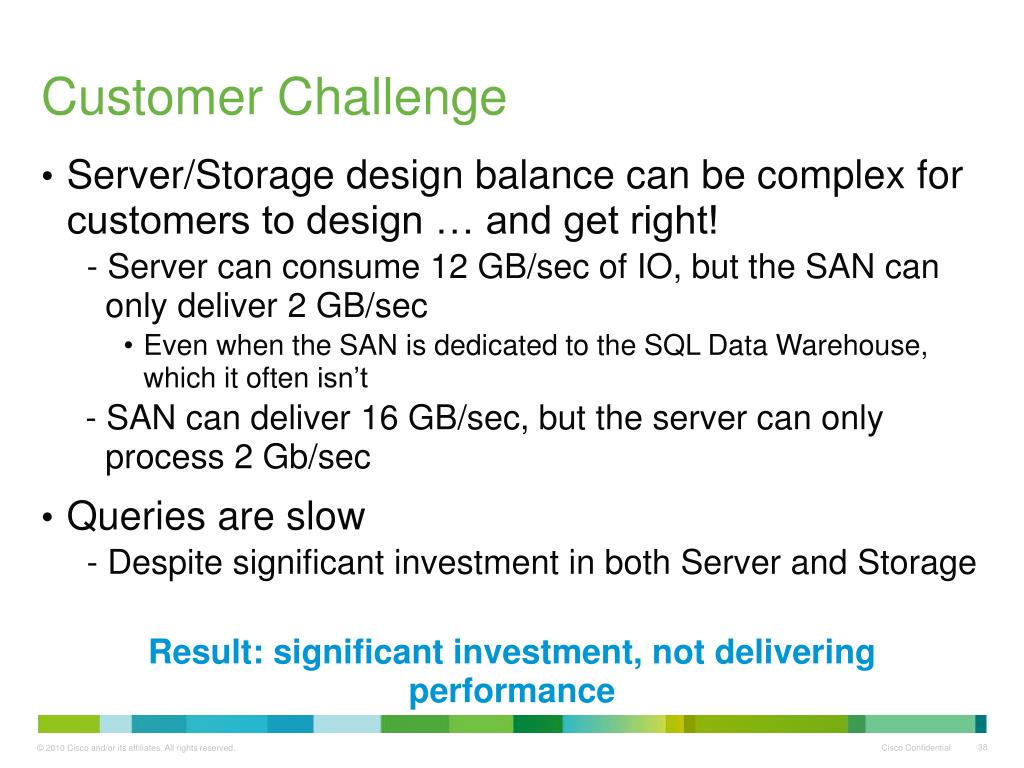

  37. Customer Challenge • Server/Storage design balance can be complex for customers to design … and get right! • - Server can consume 12 GB/sec of IO, but the SAN can only deliver 2 GB/sec • Even when the SAN is dedicated to the SQL Data Warehouse, which it often isn’t • - SAN can deliver 16 GB/sec, but the server can only process 2 Gb/sec • Queries are slow • - Despite significant investment in both Server and Storage Result: significant investment, not delivering performance
