  1. Games and adversarial search

  2. Why study games? • Games can be a good model of many competitive activities • Military confrontations, negotiation, auctions, … • Games are a traditional hallmark of intelligence • Contrarian viewpoint (textbook): • “Chess is to AI as Grand Prix motor racing is to the car industry: state-of-the-art game programs are blindingly fast, highly optimized machines that incorporate the latest engineering advances, but they aren’t much use for doing the shopping or driving off-road.”

  3. Types of game environments

  4. Types of game environments

  5. Alternating two-player zero-sum games • Players take turns • Each game outcome or terminal state has a utility for each player (e.g., 1 for win, 0 for loss) • The sum of both players’ utilities is a constant

  6. Games vs. single-agent search • We don’t know how the opponent will act • The solution is not a fixed sequence of actions from start state to goal state, but a strategyor policy(a mapping from state to best move in that state) • Efficiency is critical to playing well • The time to make a move is limited • The branching factor, search depth, and number of terminal configurations are huge • In chess, branching factor ≈ 35 and depth ≈ 100, giving a search tree of 10154 nodes • This rules out searching all the way to the end of the game

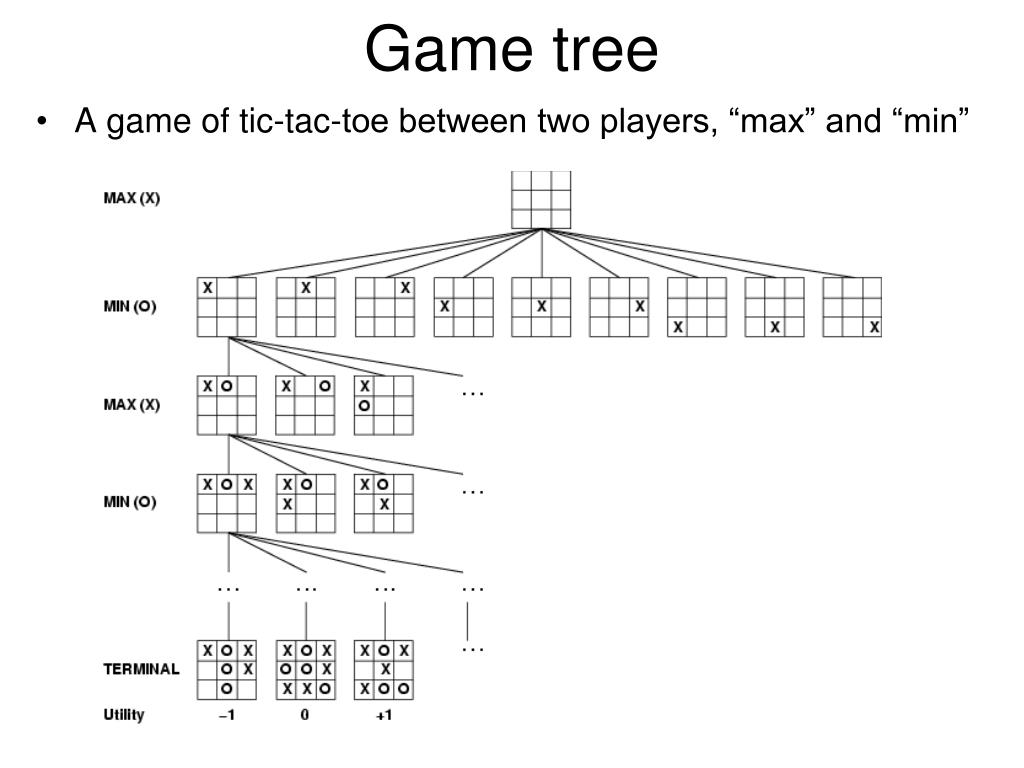

  7. Game tree • A game of tic-tac-toe between two players, “max” and “min”

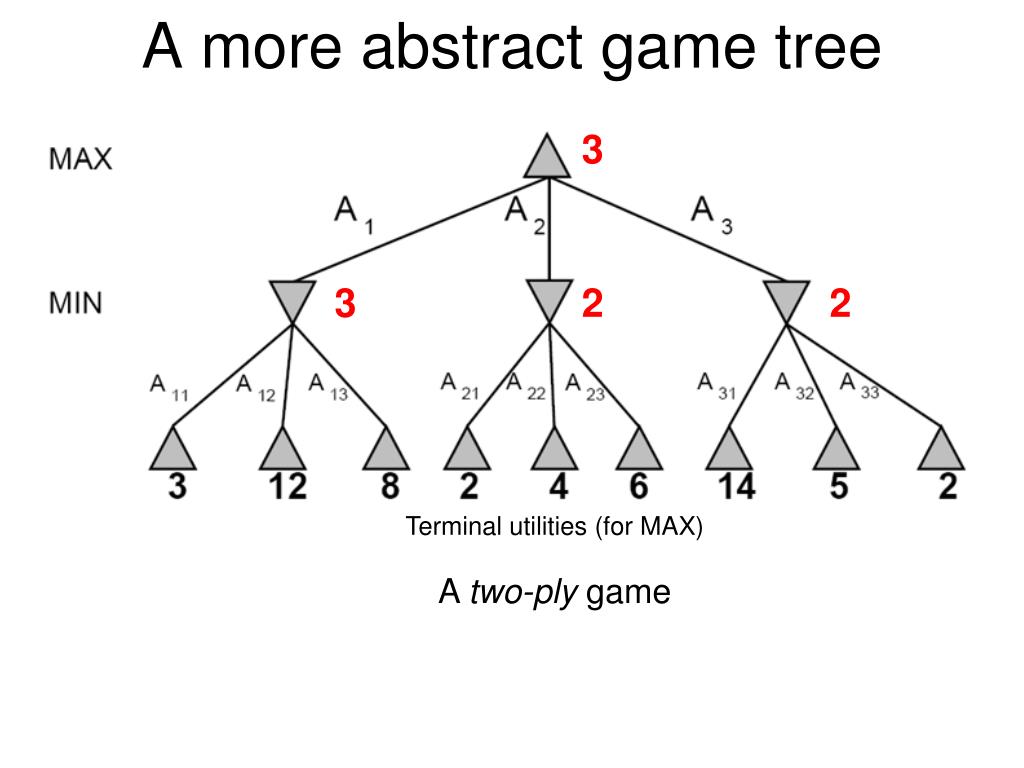

  8. A more abstract game tree 3 3 2 2 Terminal utilities (for MAX) A two-ply game

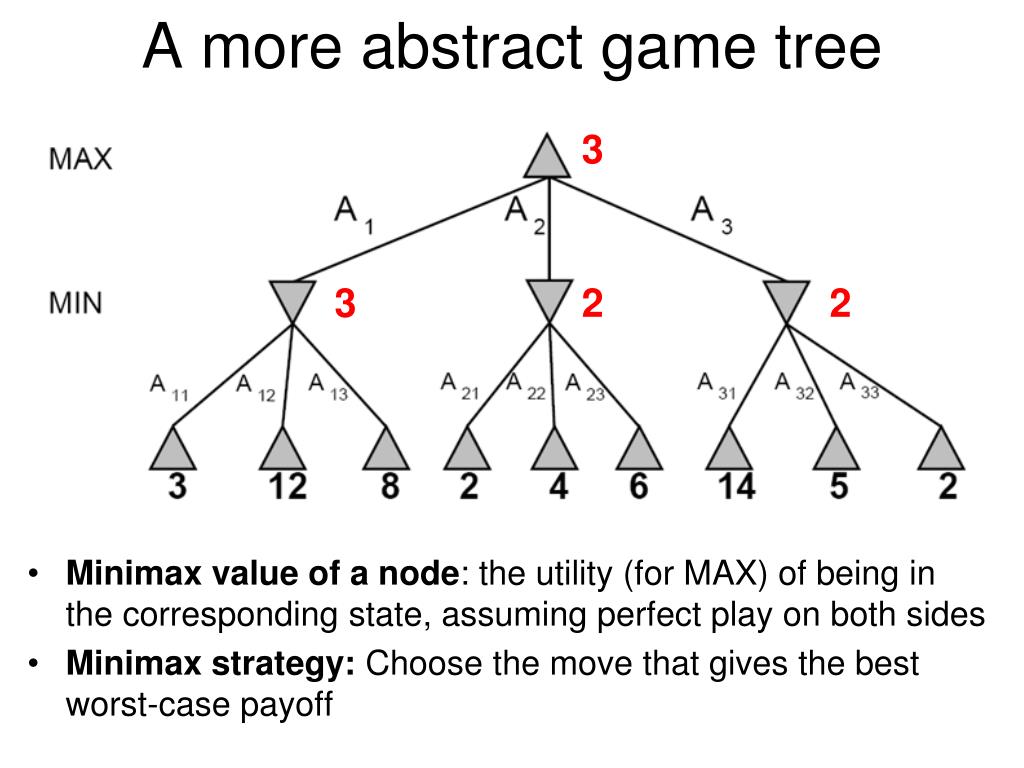

  9. A more abstract game tree 3 • Minimax value of a node: the utility (for MAX) of being in the corresponding state, assuming perfect play on both sides • Minimax strategy: Choose the move that gives the best worst-case payoff 3 2 2

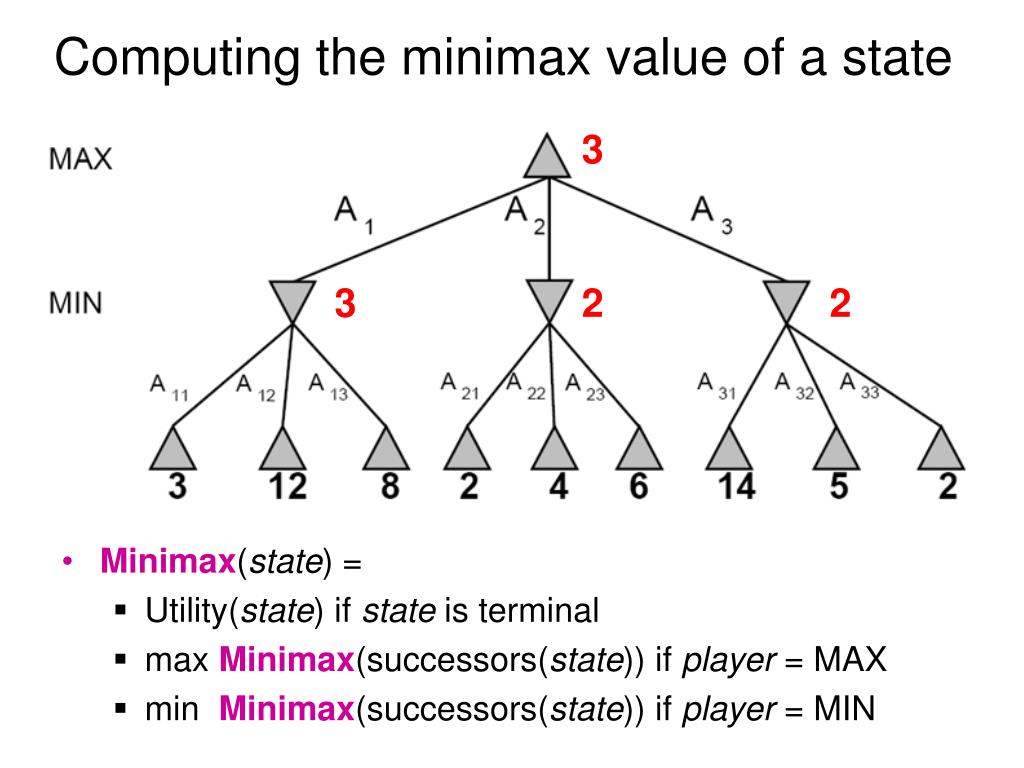

  10. Computing the minimax value of a state 3 • Minimax(state) = • Utility(state) if state is terminal • max Minimax(successors(state)) if player = MAX • min Minimax(successors(state)) if player = MIN 3 2 2

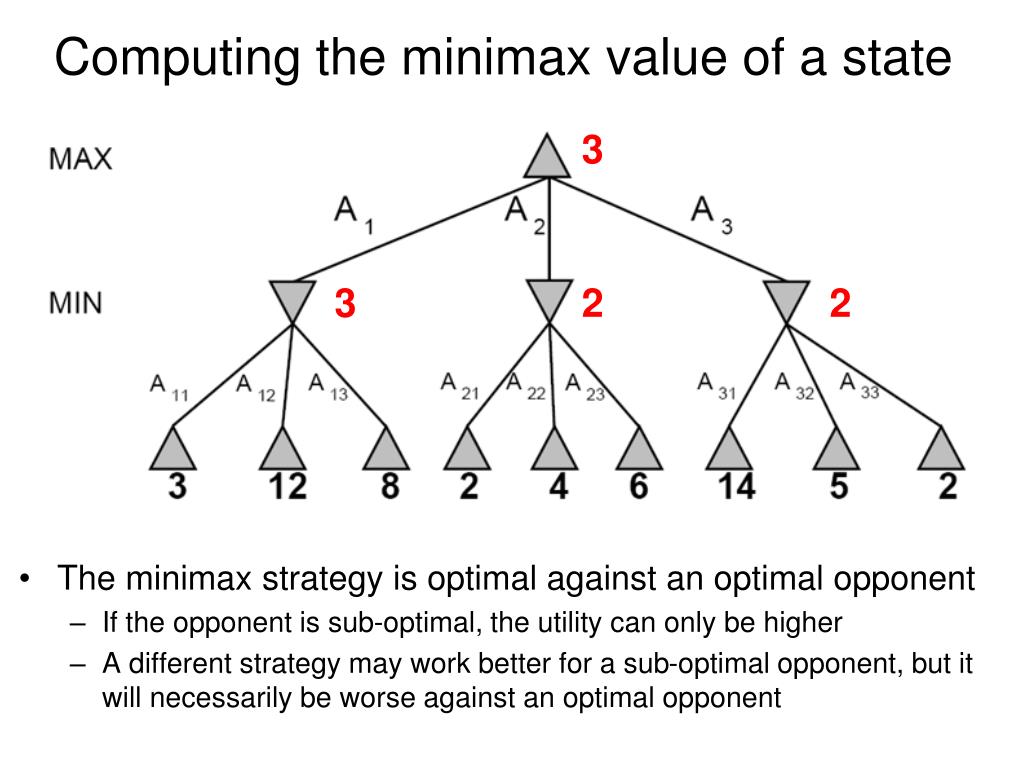

  11. Computing the minimax value of a state 3 • The minimax strategy is optimal against an optimal opponent • If the opponent is sub-optimal, the utility can only be higher • A different strategy may work better for a sub-optimal opponent, but it will necessarily be worse against an optimal opponent 3 2 2

  12. More general games 4,3,2 • More than two players, non-zero-sum • Utilities are now tuples • Each player maximizes their own utility at each node • Utilities get propagated (backed up) from children to parents 4,3,2 1,5,2 4,3,2 7,4,1 1,5,2 7,7,1

  13. Alpha-beta pruning • It is possible to compute the exact minimax decision without expanding every node in the game tree

  14. Alpha-beta pruning • It is possible to compute the exact minimax decision without expanding every node in the game tree 3 3

  15. Alpha-beta pruning • It is possible to compute the exact minimax decision without expanding every node in the game tree 3 3 2

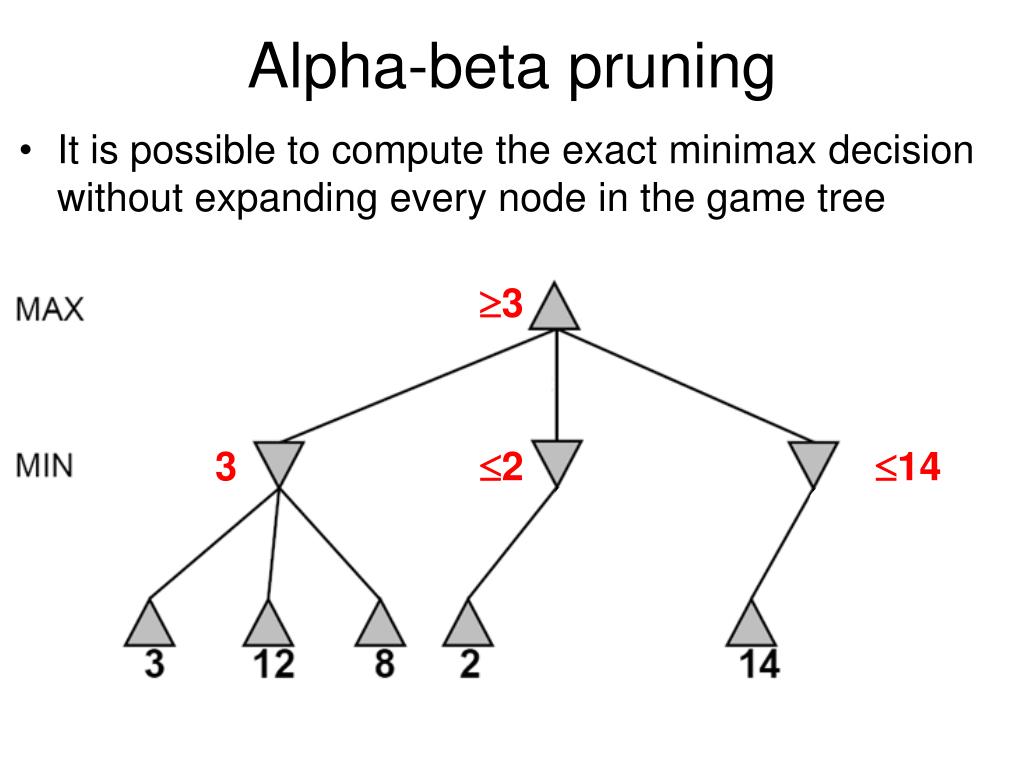

  16. Alpha-beta pruning • It is possible to compute the exact minimax decision without expanding every node in the game tree 3 3 2 14

  17. Alpha-beta pruning • It is possible to compute the exact minimax decision without expanding every node in the game tree 3 3 2 5

  18. Alpha-beta pruning • It is possible to compute the exact minimax decision without expanding every node in the game tree 3 3 2 2

  19. α is the value of the best choice for the MAX player found so far at any choice point above n We want to compute the MIN-value at n As we loop over n’s children, the MIN-value decreases If it drops below α, MAX will never take this branch, so we can ignore n’sremaining children Analogously, βis the value of the lowest-utility choice found so far for the MIN player Alpha-beta pruning MAX  MIN MAX n MIN

  20. Alpha-beta pruning • Pruning does not affect final result • Amount of pruning depends on move ordering • Should start with the “best” moves (highest-value for MAX or lowest-value for MIN) • For chess, can try captures first, then threats, then forward moves, then backward moves • Can also try to remember “killer moves” from other branches of the tree • With perfect ordering, branching factor can be cut in two, or depth of search effectively doubled

  21. Evaluation function • Cut off search at a certain depth and compute the value of anevaluation function for a state instead of its minimax value • The evaluation function may be thought of as the probability of winning from a given state or the expected value of that state • A common evaluation function is a weighted sum of features: Eval(s)= w1 f1(s) + w2 f2(s) + … + wnfn(s) • For chess, wk may be the material value of a piece (pawn = 1, knight = 3, rook = 5, queen = 9) and fk(s) may be the advantage in terms of that piece • Evaluation functions may be learned from game databases or by having the program play many games against itself

  22. Cutting off search • Horizon effect: you may incorrectly estimate the value of a state by overlooking an event that is just beyond the depth limit • For example, a damaging move by the opponent that can be delayed but not avoided • Possible remedies • Quiescence search: do not cut off search at positions that are unstable – for example, are you about to lose an important piece? • Singular extension: a strong move that should be tried when the normal depth limit is reached

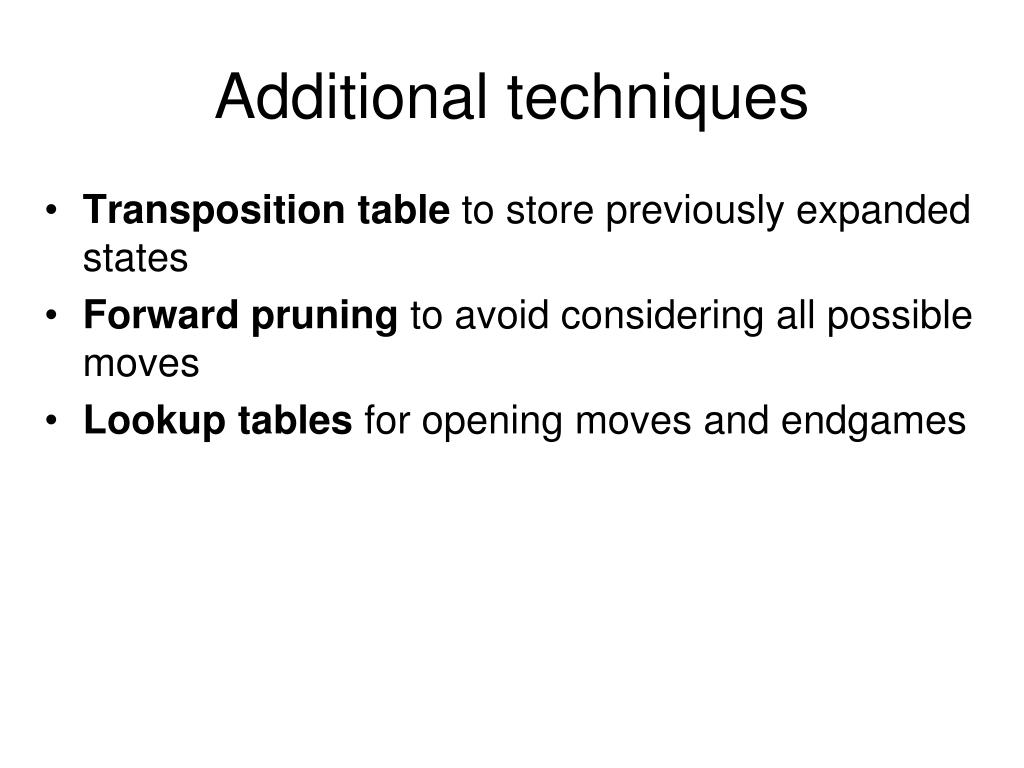

  23. Additional techniques • Transposition table to store previously expanded states • Forward pruning to avoid considering all possible moves • Lookup tables for opening moves and endgames

  24. Chess playing systems • Baseline system: 200 million node evalutions per move (3 min), minimax with a decent evaluation function and quiescence search • 5-ply≈ human novice • Add alpha-beta pruning • 10-ply≈ typical PC, experienced player • Deep Blue: 30 billion evaluations per move, singular extensions, evaluation function with 8000 features, large databases of opening and endgame moves • 14-ply≈Garry Kasparov • Recent state of the art (Hydra):36 billion evaluations per second, advanced pruning techniques • 18-ply ≈better than any human alive?

  25. Games of chance • How to incorporate dice throwing into the game tree?

  26. Games of chance

  27. Games of chance • Expectiminimax: for chance nodes, average values weighted by the probability of each outcome • Nasty branching factor, defining evaluation functions and pruning algorithms more difficult • Monte Carlo simulation: when you get to a chance node, simulate a large number of games with random dice rolls and use win percentage as evaluation function • Can work well for games like Backgammon

  28. Partially observable games • Card games like bridge and poker • Monte Carlo simulation: deal all the cards randomly in the beginning and pretend the game is fully observable • “Averaging over clairvoyance” • Problem: this strategy does not account for bluffing, information gathering, etc.

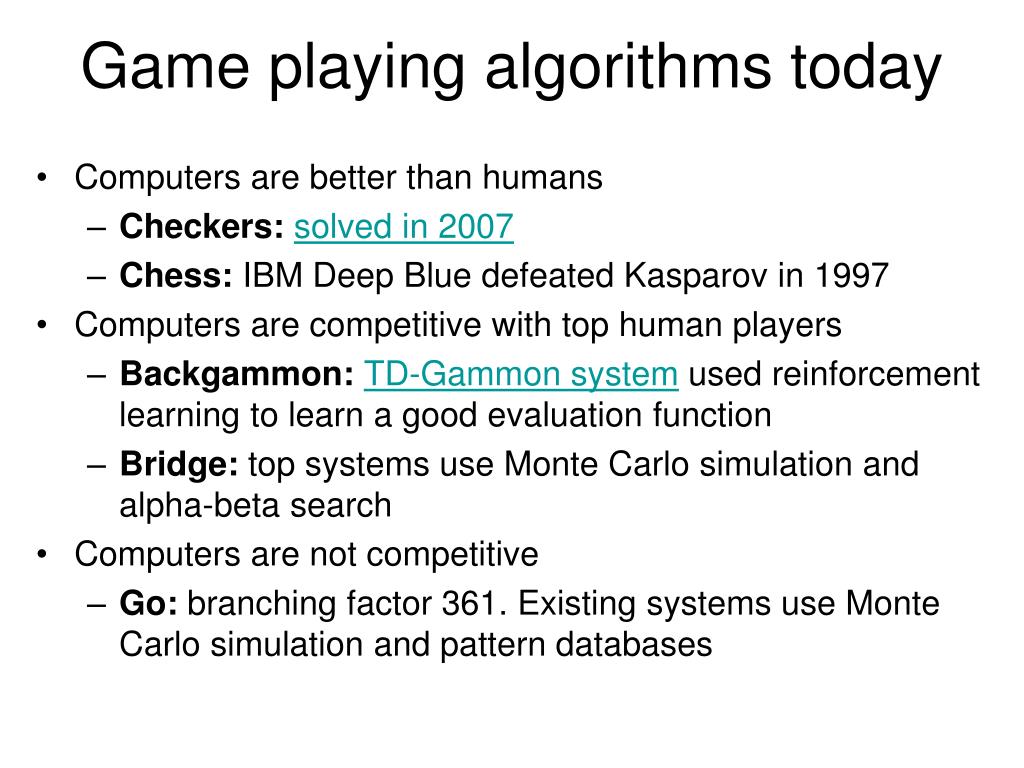

  29. Game playing algorithms today • Computers are better than humans • Checkers:solved in 2007 • Chess: IBM Deep Blue defeated Kasparov in 1997 • Computers are competitive with top human players • Backgammon:TD-Gammon system used reinforcement learning to learn a good evaluation function • Bridge: top systems use Monte Carlo simulation and alpha-beta search • Computers are not competitive • Go: branching factor 361. Existing systems use Monte Carlo simulation and pattern databases

  30. Origins of game playing algorithms • Ernst Zermelo (1912): Minimax algorithm • Claude Shannon (1949): chess playing with evaluation function, quiescence search, selective search (paper) • John McCarthy (1956): Alpha-beta search • Arthur Samuel (1956): checkers program that learns its own evaluation function by playing itself thousands of times
