  1. PLAT-384P Anatomy of HTML5 sites and Metro style apps using HTML5 Tony Ross Program Manager Microsoft Corporation

  2. Agenda • What can I do with HTML5? • Changing content on-the-fly • Fetching data behind-the-scenes • Keeping your code in-check

  3. What can I do with HTML5? • Play media (<audio> and <video>) • Build complex and attractive interfaces (CSS3) • Manipulate pixels (<canvas>) • Scale across devices (SVG) • Load and save files (File API) • Incorporate location awareness (Geolocation API) • And much more…

  4. You can use HTML5 to build Metro style apps

  5. demo HTML5 Example Tony Ross Program Manager Internet Explorer

  6. Basic StructureHTML <!DOCTYPE html> • <!DOCTYPEhtml> • <html> • <head> • <title>My App</title> • <linkrel="stylesheet"href="my.css"> • <linkrel="stylesheet"href="more.css"> • ... • </head> • <body> • ... content ... • <scriptsrc="my.js"></script> • <scriptsrc="more.js"></script> • </body> • </html> <html> <head> <link rel="stylesheet" href="my.css"> <link rel="stylesheet" href="more.css"> </head> <body> <script src="my.js"></script> <script src="more.js"></script> </body> </html>

  7. Basic StructureCSS button • button{ • color: #000; • padding: 4px; • } • .page{ • background-color: #fff; • } • #my { • font-weight: bold; • } color: #000; padding: 4px; .page #my

  8. Basic StructureJavaScript • // variables and objects • vara = {first : 1, second : 2}; • // functions • function add(x, y) { • returnx + y; • } • // function calls • a.result = add(a.first, a.second); {first : 1, second : 2} var a = function add (x, y) return a.result = add(a.first, a.second)

  9. HTML5 apps are navigation-free

  10. Changing Content On-the-Fly

  11. Locating ElementsUsing “querySelector” and “querySelectorAll” • HTML • <aclass="tab"value="1">...</a> • <aclass="tab"value="2">...</a> • <aclass="tab"value="3">...</a> • CSS • .tab { • border-radius: 5px5px00; • } • JavaScript • var tabs = document.querySelectorAll(".tab"); • for(vari = 0; i < tabs.length; i++) { • tabs[i].onclick = showTab; • } class="tab" class="tab" class="tab" .tab document.querySelectorAll(".tab"); tabs[i].onclick = showTab;

  12. Listening to EventsUsing “on*” and “addEventListener” • JavaScript • // Simple registration • tabs[i].onclick = showTab; • // Alternate registration • tabs[i].addEventListener("click", showTab, false); onclick = showTab addEventListener("click", showTab, false)

  13. Changing TextUsing “textContent” • HTML • <h2id="title">Section 1</h2> • CSS • #title { • font-size: 20px; • } • JavaScript • var title = document.querySelector("#title"); • functionsetTitle(name) { • title.textContent = name; • } id="title" #title var title = document.querySelector("#title"); title.textContent = name;

  14. Adding ElementsUsing “createElement” and “appendChild” • HTML • <body> • <imgsrc="my.png"/> • </body> • JavaScript • functionaddImage() { • varimg = document.createElement("img"); • img.src = "my.png"; • document.body.appendChild(img); • } document.createElement("img"); document.body.appendChild(img);

  15. Hiding ElementsUsing “display” • HTML • <sectionid="p1"class="page">...</section> • <sectionid="p2"class="page">...</section> • CSS • .page { • font-size: 20px; • } • JavaScript • function swap(oldPage, newPage) { • oldPage.style.display = "none"; • newPage.style.display = ""; • } oldPage.style.display = "none"; newPage.style.display = "";

  16. demo Changing Content

  17. Fetching Data Behind-the-Scenes

  18. Sending and Receiving DataUsing “XMLHttpRequest” • JavaScript • function load(url, data, callback) { • varxhr = newXMLHttpRequest(); • xhr.open("GET", url, true); • xhr.onload= function() { • callback(xhr.responseText); • } • xhr.send(data); • } varxhr = new XMLHttpRequest(); xhr.open("GET", url, true); xhr.onload = callback(xhr.responseText); xhr.send(data);

  19. Transmitting Complex ObjectsUsing “JSON.parse” and “JSON.stringify” • JavaScript • functionloadJSON(url, data, callback) { • varxhr = newXMLHttpRequest(); • xhr.open("GET", url, true); • xhr.onload = function() { • callback( JSON.parse(xhr.responseText) ); • } • xhr.send( JSON.stringify(data) ); • } • loadJSON("my.json", { id : 1 }, function(response) { • setTitle(response.title); • }); JSON.parse(xhr.responseText) JSON.stringify(data) response { id : 1 } response.title

  20. demo Fetching Data

  21. Keeping your CodeIn-Check

  22. Isolating JavaScriptUsing the Module Pattern • JavaScript • (function(){ • var title = document.querySelector("#title"); • functionsetTitle(name) { • title.textContent = name; • } • setTitle("My Title"); • })(); (function(){ setTitle("My Title"); })();

  23. Exposing Public APIsUsing the Module Pattern • JavaScript • var module = (function(){ • var title = document.querySelector("#title"); • functionsetTitle(name) { • title.textContent = name; • } • return { setTitle : setTitle }; • })(); • module.setTitle("Custom Title"); var module = return { setTitle : setTitle }; module.setTitle("Custom Title");

  24. demo Module Pattern

  25. Recap • Build Metro style apps using HTML5 • Keep your apps navigation-free • Use XMLHttpRequest and JSON between client and server • Organize JavaScript using the module pattern

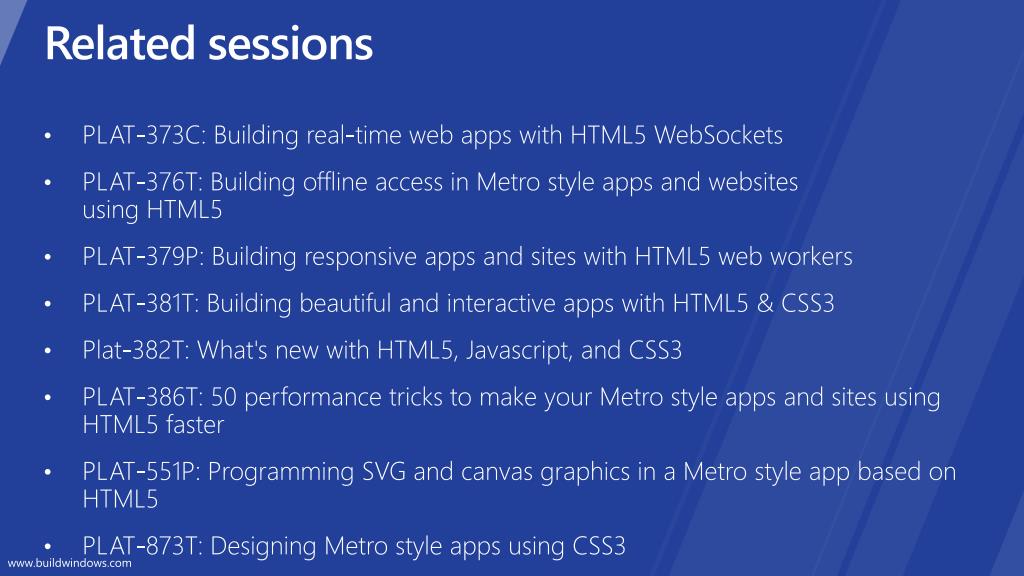

  26. Related sessions • PLAT-373C: Building real-time web apps with HTML5 WebSockets • PLAT-376T: Building offline access in Metro style apps and websites using HTML5 • PLAT-379P: Building responsive apps and sites with HTML5 web workers • PLAT-381T: Building beautiful and interactive apps with HTML5 & CSS3 • Plat-382T: What's new with HTML5, Javascript, and CSS3 • PLAT-386T: 50 performance tricks to make your Metro style apps and sites using HTML5 faster • PLAT-551P: Programming SVG and canvas graphics in a Metro style app based on HTML5 • PLAT-873T: Designing Metro style apps using CSS3

  27. Further reading and documentation • JavaScript: The Language http://channel9.msdn.com/events/mix/mix11/HTM06 • More HTML5 Examples:http://ietestdrive.com/http://www.beautyoftheweb.com/

  28. thank you Feedback and questions http://forums.dev.windows.com Session feedbackhttp://bldw.in/SessionFeedback
