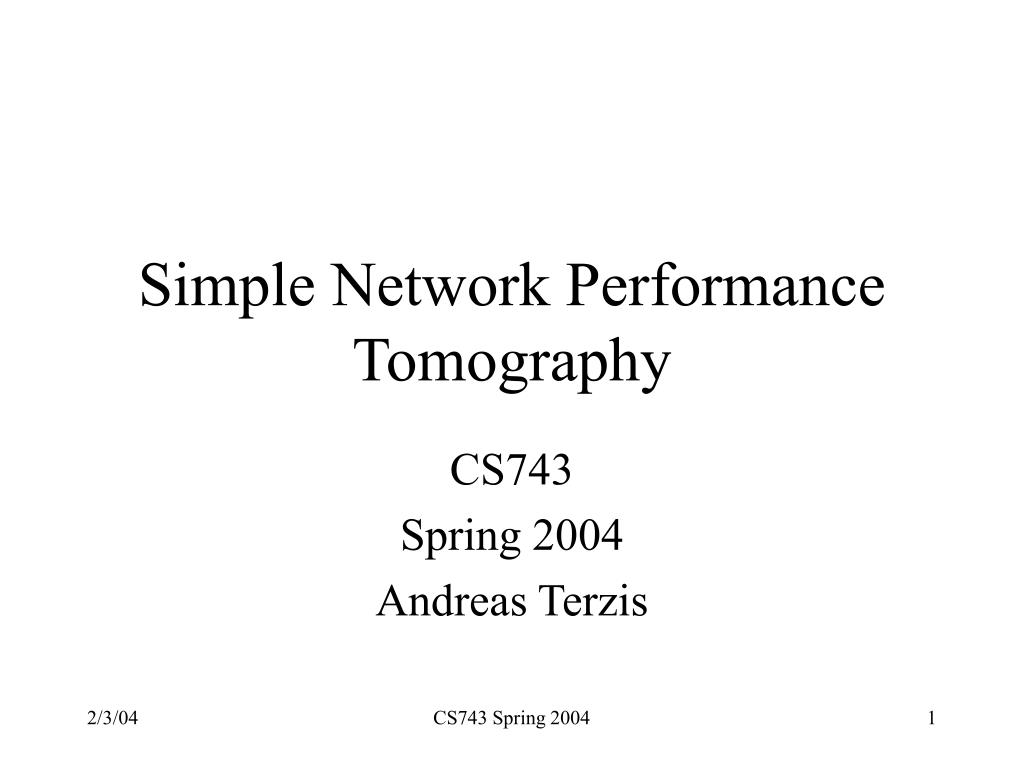

  1. Simple Network Performance Tomography CS743 Spring 2004 Andreas Terzis CS743 Spring 2004

  2. Background • It used to be the case that we need very little about network conditions • Delay • Loss Rate • Availability and Stability of routes • Vern Paxson did one of the first systematical studies in this area [Pax96], [Pax97] • Used traceroute and ping to measure delay and packet loss to a large number of destinations CS743 Spring 2004

  3. Limitations • Many routers today do not respond to ICMP messages • Can be used for attacks • Alternative • Have measurement nodes at both ends • Use existing information (e.g. RTP loss data or TCP retx) to infer characteristics CS743 Spring 2004

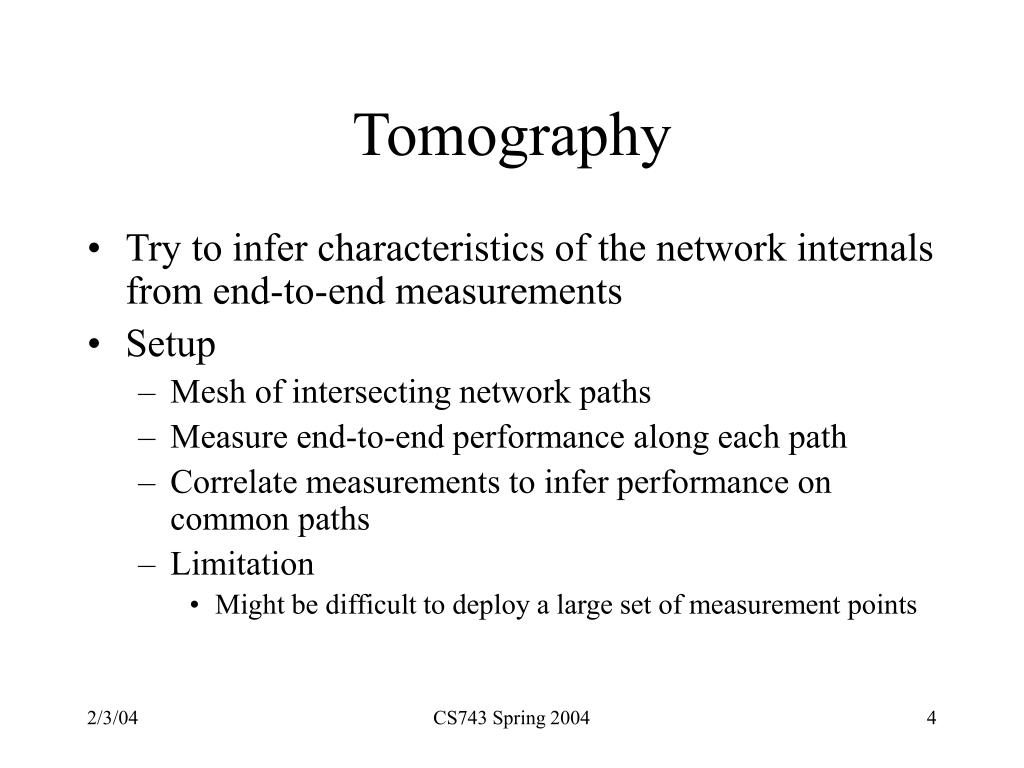

  4. Tomography • Try to infer characteristics of the network internals from end-to-end measurements • Setup • Mesh of intersecting network paths • Measure end-to-end performance along each path • Correlate measurements to infer performance on common paths • Limitation • Might be difficult to deploy a large set of measurement points CS743 Spring 2004

  5. Techniques • Multicast based tomography • Send probes down mcast tree • Packet performance identical on common path • One-to-one map from link-performance to end-to-end performance • Infer link loss rate from measured end-to-end loss rate • Limitation • Mcast not widely deployed CS743 Spring 2004

  6. Techniques • Use TCP retx to identify link loss rate Problem: multiple per-link loss rates can give the same E2E results CS743 Spring 2004

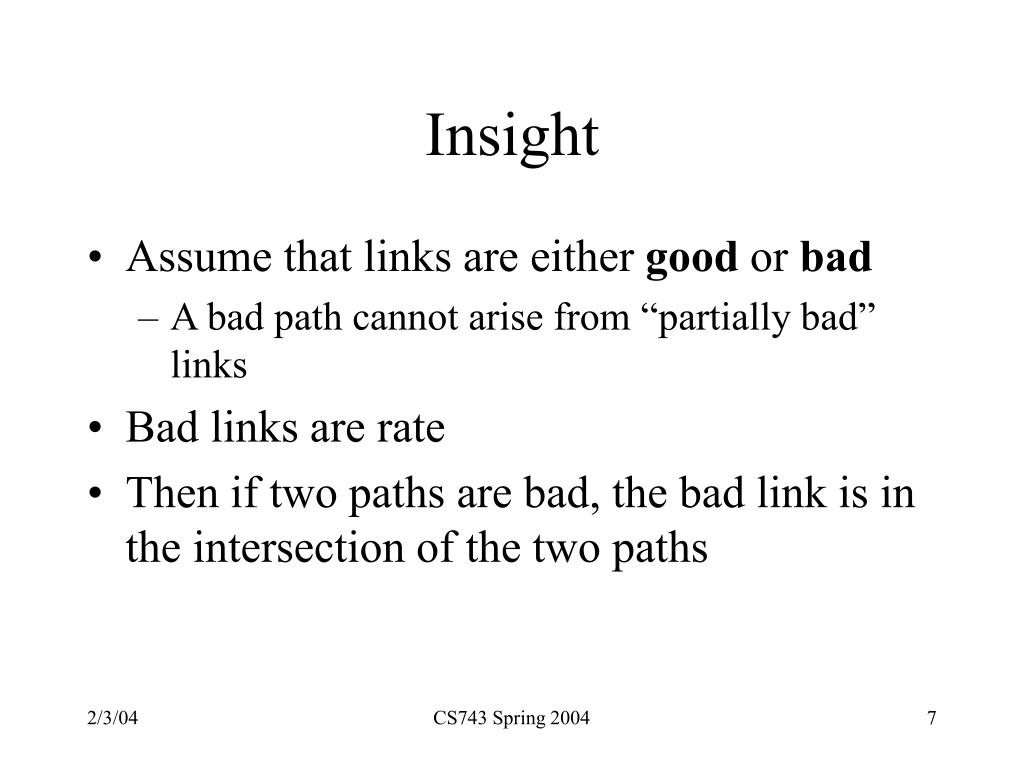

  7. Insight • Assume that links are either good or bad • A bad path cannot arise from “partially bad” links • Bad links are rate • Then if two paths are bad, the bad link is in the intersection of the two paths CS743 Spring 2004

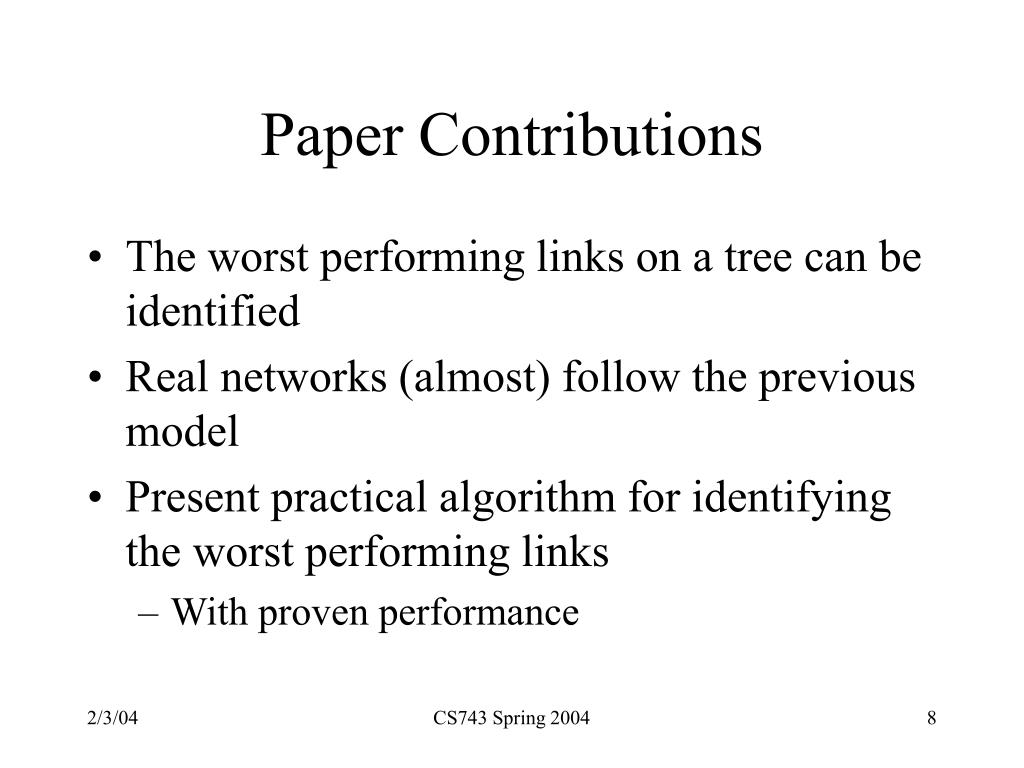

  8. Paper Contributions • The worst performing links on a tree can be identified • Real networks (almost) follow the previous model • Present practical algorithm for identifying the worst performing links • With proven performance CS743 Spring 2004

  9. Model • Tree from source to list of destinations • Each link has characteristic f_i • Path characteristic is product of f_i • Examples of seperable characteristics • High-Low Loss • Delay spikes CS743 Spring 2004

  10. Smallest Consistent Failure Set • Idea: • Take the links closest to the root that are consistent with the observed pattern of bad paths • If a link is not bad then links on all subtrees are bad CS743 Spring 2004

  11. Probability of false positives CS743 Spring 2004

  12. Coverage Probability CS743 Spring 2004
