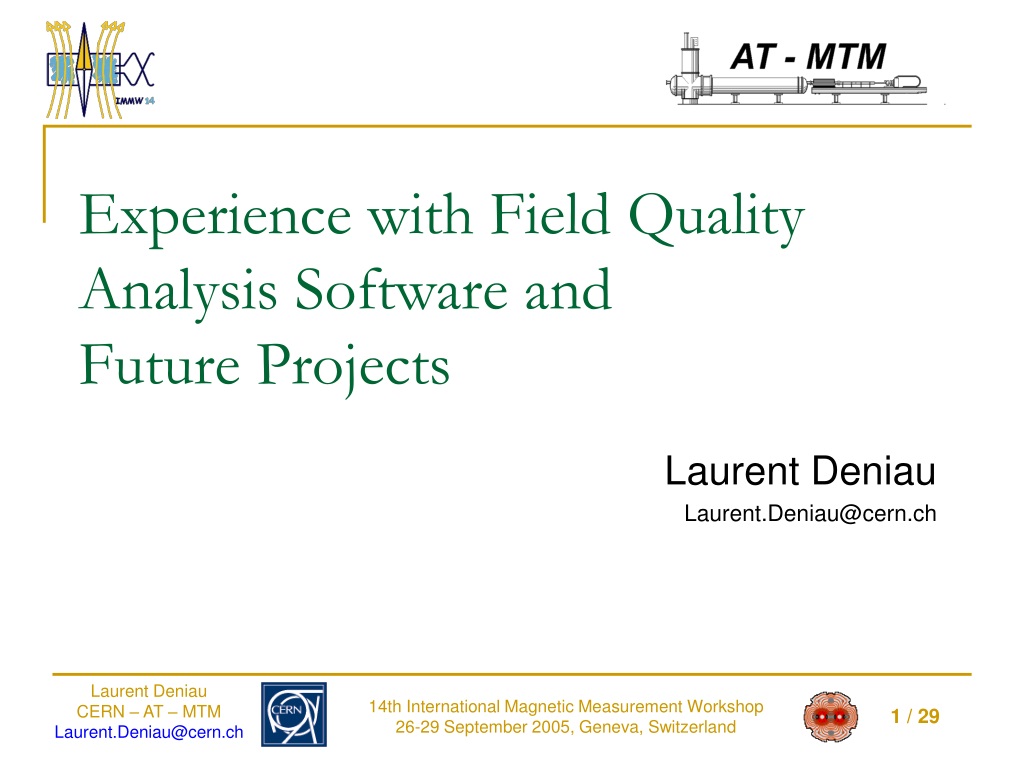

  1. Experience with Field Quality Analysis Software andFuture Projects Laurent Deniau Laurent.Deniau@cern.ch 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  2. Content • Part I: Past Projects • Series Tests Requirements • First System • Second System • Learning from experience • Part II: Future Projects • Future Requirements • Proposal I • Proposal II • Proposal III 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  3. PART I Past Projects 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  4. Series Test Requirements • Test of ~1300 Main Dipoles • Field Quality: 100% [ 20%] • Test of ~400 Main Quadrupoles • Field Quality: 100% [15%] • Test of ~100 Special Quadrupoles • Field Quality: 100% [10%] • Test of ~500 Correctors (over ~8000) • Field Quality: 100% [20%] • System usage (2000 – 2007+) • ~25 users [ ~10 users] • Inside and outside CERN [ inside CERN] • Cold and warm measurements [ cold measurements] • 15000 measurements/magnets ~150MB [ 5000 ~50MB] 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  5. 1st System • Development 1999 • Deployment 1999 – 2000 • Improvement 2000 – 2003 • Resources ~1 m.year over 3 years • Usage 2000 – 2007 • Effective lines of code: • C: 58300 (59.55%) 33079 (57%) generated • Perl: 38162 (38.98%) • Sh: 295 (0.30%) • Other: 1142 (1.17%) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  6. 1st System – Aims [all achieved] • Deal only with rotating coil devices • long shaft, scanner, mole • Parametrizable transformations from measures to magnet integral field and harmonics • Measure + Calibration  Field • Automatic calibration (never used) • Measure + Field  Calibration • Generic processing of devices and magnets • Data extraction (e.g. b3 vs I, b3 vs b1, ...) and plots • Command line tools (Server) • Web interface (Client) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  7. 1st System – Architecture • Each block is a command line program • Communication is through pipes (files transfer) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  8. 1st System – Web Interface 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  9. 1st System – Technologies • Oracle for DB • Imposed by CERN – IT • C for the tools and libraries • Availability, portability, simplicity, efficiency • Perl for the web scripts • Imposed by developers knowledge • Linux and Apache on 5 web servers • Imposed by CERN – IT • Central repository • CVS for sources • AFS (Andrew File System on CERN servers) • Only free/open source software (except DB client) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  10. 1st System – Experience • System not heavily used • ~10 users • Less magnets and measurements than foreseen (15x) • System is oversized and not enough flexible (standard) • Users prefer graphical interface for simple non-repetitive tasks • Users prefer scripting for flexible, configurable, parameterizable and/or repetitive tasks • Some Users are ready to help for supervised programming (assume a framework) • Error handling/messages are of first importance! • Reliability does matter (confidence in the system) • Speed does not matter so much (DBs are slow) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  11. 2nd System • Development 2002 • Deployment 2002 – 2003 • Improvement 2003 – today • Resources ~1 m.year over 3 years • Usage 2002 – 2007+ • Effective lines of code: • C89: 15956 • PHP: 28563 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  12. 2nd System – Aims [none achieved*] • Process all measurements from all devices • Generic processing of devices and magnets • long shaft, scanner, mole, hall probe, SSW, NMR, … • More parametrizable transformation and calibration • More generic data processing (large data set) • Process cycles, history and integral over many magnets • More data manipulation and DBs access • More data extraction facilities • Flexible and extensible (not data oriented) • Unification • The data and DBs access (parser, db engine) • The jungle of configs, tools, tables and scripts (many, …) • 4 layers: www  script  tool  libraries 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  13. 2nd System – Web Interface 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  14. 2nd System – Technologies • As 1st System • Oracle, C, Linux, Apache, CVS, AFS • PHP for the web • Imposed by developer knowledge • Improvement of C libraries • Better code insulation • Better filters 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  15. 2nd System – Experience • Much better web interactivity • Windows-like application • Multiple windows, interactivity, error handler, contextual help • Better configurable DB interface • Very extensible and flexible • Magnet Follow-Up • A lot of work for a little use (many plots and parameters) • Id Cards • Warm-Cold extrapolation • Many data representation and plots • Better filters and alarms • Very little advancement for analysis and unification • No aim reached for the moment (reorientation of aims) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  16. Device calibrations Measure DB External DB Reduction Transformation Extraction Combination Visualization Transformations to physical quantities Measurements Results Files or DB Query Files Configuration/Settings Measure DB Learning from Experience 1/3 • Analysis of measurements always looks the same • Dataflow oriented (left to right) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  17. Learning from Experience 2/3 • Final specifications never exist • R&D needs evolutive prototyping • Prototyping requires iterations and never ends • Outsourcing • Not efficient during prototyping and much less evolutive • 5x – 10x slower than local development • Low control on code quality (result oriented) • Efficient for converting prototype to production software • Efficient for maintenance and support • Commercial software • Problem for long term projects (cycle > 5 years) • Problem for open problems (must fit the needs) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  18. Learning from Experience 3/3 • Users wish-list • Simplicity for simple tasks (graphical interface) • Flexibility for complex tasks (script) • Automation for repetitive tasks (script) • Clear multi-level checks/alarms (error handler) • Access from the web (even for script) • Low level code control (advanced users) • Developers wish-list • Development framework (very important) • Language (very important) • Code test (test-driven development) • Less (no) graphics, plots and interface (take time) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  19. PART II Future Projects 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  20. Future Requirements – 2007+ • Magnet Rescue [MAR] • Test for 1-2 magnets/month • Same as series tests (simplified version) • Fast Measurement Equipment [FAME] • Continuously rotating coils • Large amount of data (> series tests) • New equipments • Field Description for the LHC [FIDEL] • Relies on FAME • Network and DB activities • Very large amount of data (>> series tests, (cycle, history)) • May require to be online one day (fast response time) • Easy prototyping and configuration 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  21. Resources Availability • Technical Students ~8 – 12 months [Easy] • Short term development, require framework and tutorial • Simple programming (except for computer scientists) • Doctoral Students ~2 – 3 years (part time)[Medium] • More time for training (can learn new languages) • Medium – long term development, require framework • Scientific and/or computer skills • Fellows & P.A ~2 – 5 years [Medium  Hard] • Long term development, develop framework, open training • Scientific and/or computer skills • Skills availability (in CERN – AT) • Physicist [Easy] • Computer scientists [Hard] 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  22. Technologies • Already selected or imposed • Labview for acquisition and control • Oracle for DB • PHP & Apache for web • Linux PCs for servers • Analysis interface • Integrated and/or communicate with acquisition • Accessible and/or compatible with Labview • Semi-open questions • Scripting language for users • Programming language for developers/advanced users • Web servers (central) or local program (distributed) • Support and maintenance 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  23. Language Requirements • Widely known (or very easy to learn) • Highly Portable (including 64 bits) • Normalized (ISO) or formally specified (and stable) • Object Oriented • Very good code insulation • Simple memory management • Non-local error management • Reflection • Simple and Efficient • Large set of available libraries • Good operating system API (POSIX) • Good database API (OCI) 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  24. Languages Widely Used • Open source Debian GNU/Linux system includes 230 millions of effective line of code(SLOC) in all fields from all horizons: • C %57 * • C++ %16.8 * • Shell %9 • Lisp %3 • Perl %2.8 • Python %1.8 • Java %1.6 • Fortran %1.2 * • PHP %0.93 • Pascal %0.62 * • Ada %0.61 * Blue languages are normalized (ISO) Green languages are formally specified Red stars indicate languages compiled to native executables, others are interpreted 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  25. 1st Proposal – Resources Oriented • Provide only integrated ‘black boxes’ for analysis • Build prototypes internally (next point Labview) • Rely on sparse resources • Incomplete specification • Enough for fast interactive prototyping • Build prototypes • Validation of analysis ‘black boxes’ • Possibility to extend/improve ‘black boxes’ in C • Hard to use for large projects (unification, refactoring) • Delegate production development • Only AB – CO can take over • Labview everywhere, including prototyping • Design is fixed • Delegate support & maintenance 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  26. 2nd Proposal – Users Oriented • Provide a complete framework (extend 2nd system) • 3 layers: web  script  libraries of scripts • Users can use and/or write advanced scripts • Powerful and flexible • Require users training and tutorial • Hard to control modules unification/integration • Scripting Language • Python (interpreted) – Lisp (interpreted + compiled) • Easy, available, extensible in C • Python not standardized, Lisp is functional • Java – (virtual machine) • Easy, available (?), hard to extend, needs virtual machine • Not standardized but well specified and supported • Maybe blocked by efficiency and/or memory 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  27. 3rd Proposal – All-in-One • Provide a complete framework (extend 2nd system) • 4 layers: web  script  tool  libraries • Users can use and write simple scripts • Powerful but less flexible (focus on simplicity) • No training, small tutorial and examples • Easy to control unification/integration/extension • Advanced users can write plug-in (classes) • Some training, small manual (require knowledge of C) • Powerful and flexible (no limit), still allow Python (or Perl) • Language: Object Oriented C (ISO C89) • Allow Java-like programming in C with all OO features and more! • Easy, available, portable, standard, natively extendable • No problem with efficiency, memory, libraries or APIs 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  28. User WWW DB Data Analysis and Processing Data Analysis and Processing Acquisition and Control Proposals – Architectures Online Acquisition (many sites) Remote Analysis (central) Acquisition Systems Labview on Sun DB Servers Oracle Analysis Servers Linux Script Script 2nd proposal  Python 3rd proposal  OOC http://sma.cern.ch 2nd and 3rd proposals only Sun local copy of tool 1st proposal  Labview 2nd proposal  Python 3rd proposal  OOC 2nd and 3rd proposals only! 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland

  29. Proposals – Summary 14th International Magnetic Measurement Workshop26-29 September 2005, Geneva, Switzerland
