Weekly Report. Speaker ： Hong- Ru Li Advisor ： Chao-Wen Liang Date︰2014/07/25. Schedule. Off-axial PSF measurement. According to the Zernike polynomial, the astigmatism is consist of these two equation. According to the Seidel polynomial, the astigmatism this equation.

bian
Télécharger la présentation

Weekly Report

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Weekly Report Speaker：Hong-RuLi Advisor：Chao-Wen Liang Date︰2014/07/25

  2. Schedule

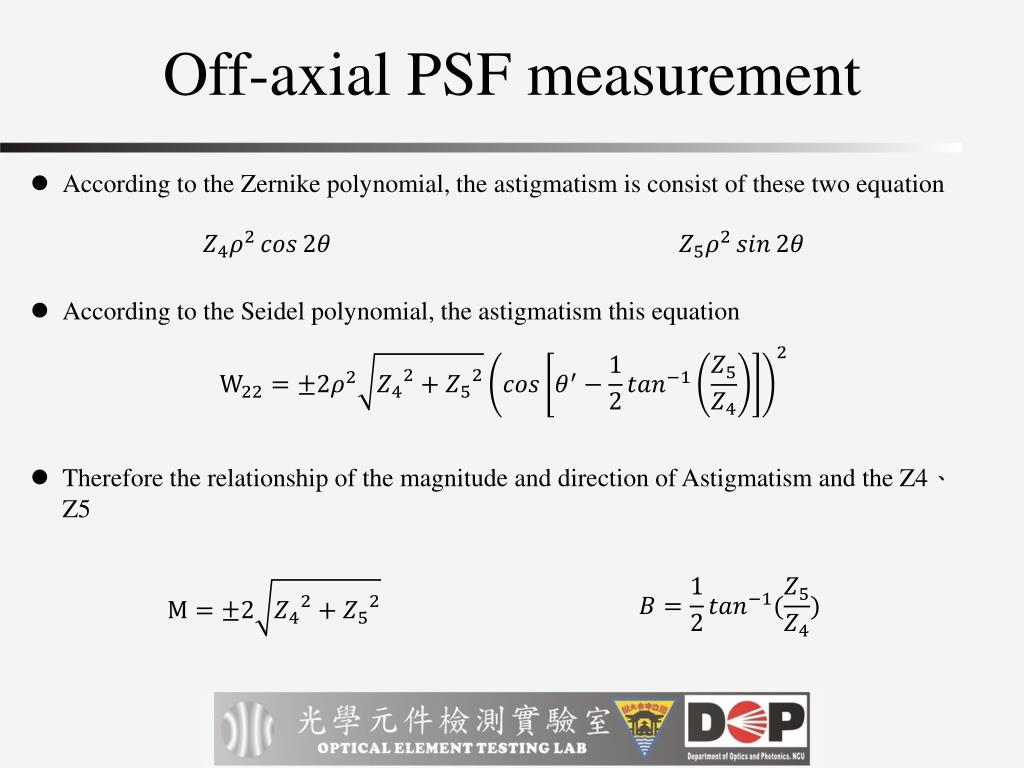

  3. Off-axial PSFmeasurement • According to the Zernike polynomial, the astigmatism is consist of these two equation • According to the Seidel polynomial, the astigmatism this equation • Therefore the relationship of the magnitude and direction of Astigmatism and the Z4、Z5

  4. Off-axial PSFmeasurement • From ZYGO interferometer • From PSF experiment

  5. Off-axial PSFmeasurement The magnitude of Astigmatism with the Rotational angle The direction of Astigmatism with the Rotational angle ZYGO :RMS=0.037563 PSF :RMS=0.043953
