METALLURGICAL PROPERTIES PREDICTION

METALLURGICAL PROPERTIES PREDICTION. Comparison between simulation and actual Component Name : Bearing Housing Grade : GJS 450. CHEMISTRY. TENSILE STRENGTH. 461 N/Sq.mm. ELONGATION. 15 to 18.24%. HARDNESS. 155.4 to 168.2 BHN. FERRITE. 94%. PEARLITE. 6.35 to 12.7%.

bianca-osborn
Télécharger la présentation

METALLURGICAL PROPERTIES PREDICTION

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. METALLURGICAL PROPERTIES PREDICTION Comparison between simulation and actual Component Name : Bearing Housing Grade : GJS 450

  2. CHEMISTRY

  3. TENSILE STRENGTH 461 N/Sq.mm

  4. ELONGATION 15 to 18.24%

  5. HARDNESS 155.4 to 168.2 BHN

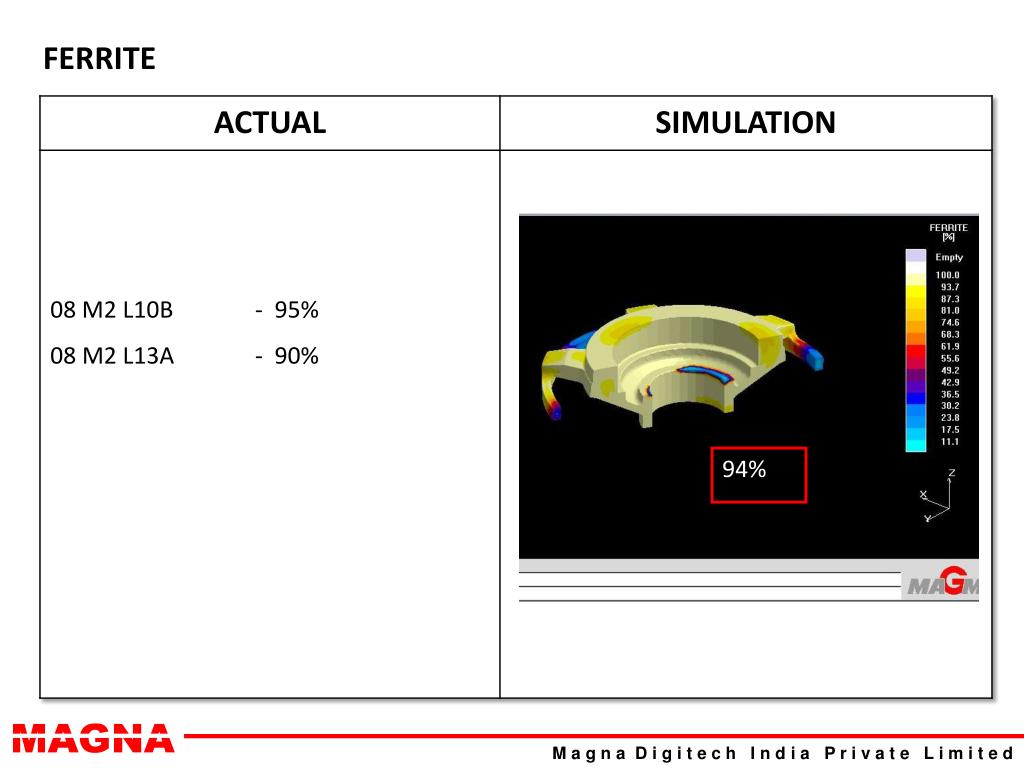

  6. FERRITE 94%

  7. PEARLITE 6.35 to 12.7%

  8. Findings and conclusion Mechanical properties of this grade matches with actual component properties
