Java Quick & Dirty

Java Quick & Dirty. By Bert Wachsmuth. Overview. We will cover: What is Java Using and Writing Java applets Getting more information We will need: Knowledge of HTML and web page creation We will get: Basic understanding of Java but we will NOT become the world’s foremost Java programmer.

bianca
Télécharger la présentation

Java Quick & Dirty

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. JavaQuick & Dirty By Bert Wachsmuth

  2. Overview • We will cover: • What is Java • Using and Writing Java applets • Getting more information • We will need: • Knowledge of HTML and web page creation • We will get: • Basic understanding of Java but we willNOT become the world’s foremost Java programmer

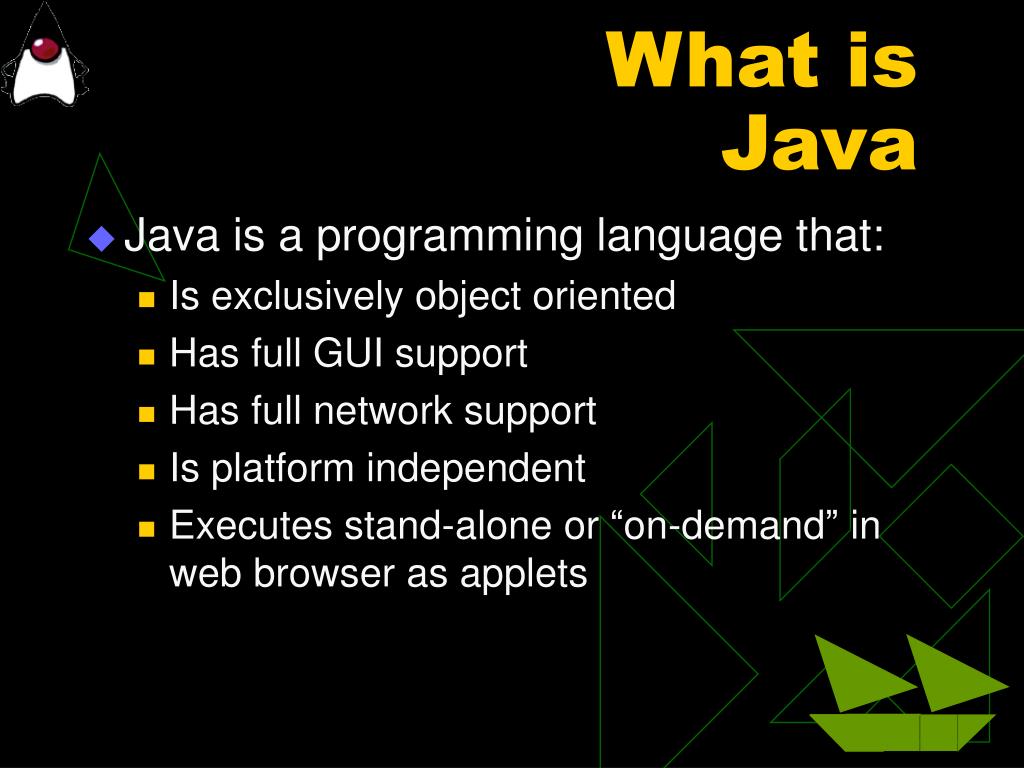

  3. What isJava • Java is a programming language that: • Is exclusively object oriented • Has full GUI support • Has full network support • Is platform independent • Executes stand-alone or “on-demand” in web browser as applets

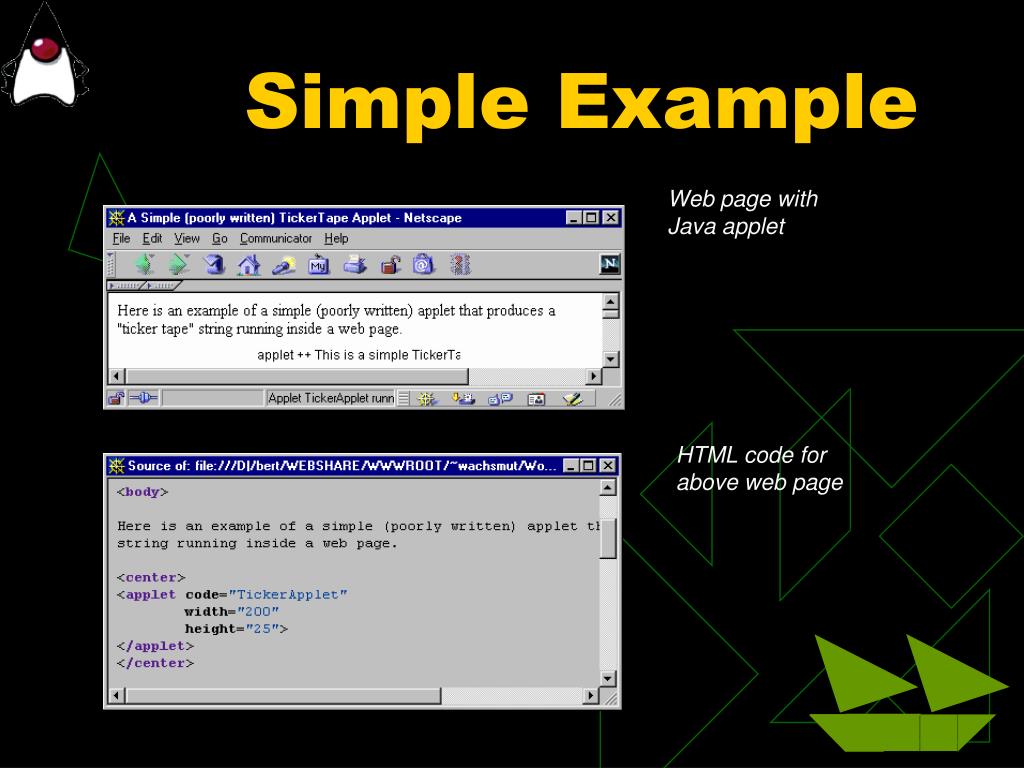

  4. Simple Example Web page with Java applet HTML code for above web page

  5. Simple Example Java code for TickerApplet

  6. Example Summary • To create a web page with an Applet you need: • A Java-aware web browser (usually beyond your control) • A web page including a special HTML tag called <APPLET> tag • One or more Java class files (produced separately from Java source code)

  7. Using JavaApplets • To use Java applets, you: • Locate appropriate class file(s) • Learn how to configure applet • Embed the Applet into web page <applet codebase=“base_url” // if different from current directory code=“AppletName.class” // name of class file width=“###” // width of applet area height=“###”> // height of applet area </applet> // do not forget this

  8. Simple Applets • TickerTape codebase: http://pirate.shu.edu/~wachsmut/Tickercode: TickerApplet.classwidth: 300, height=30 • 3D Surface codebase: http://pirate.shu.edu/~wachsmut/Surfacecode: surface.classwidth: 500, height=550 • Missile Defense codebase: http://www.csd.uu.se/~d95vil/missile/classescode: MissileCommand.classwidth: 320, height: 200

  9. Configurable Applets • Many applets can be configured using “param” tags: • Inquire about name and meaning of “param” tags for the applet • Add “param” tags to HTML as needed <applet codebase=“base_url” code=“AppletName.class” width=“###” height=“###”> <param name=“Name” value=“Value”> <param name=“Name2” value=“Value2”> ...</applet>

  10. Configurable Applet Examples • TickerTape codebase: http://pirate.shu.edu/~wachsmut/Tickercode: TickerApplet.classwidth: 300, height=30param: msg, delay, foreground, background • Chatterbox codebase: http://sciris.shu.edu/Java/Chatcode: ChatterBoxlet.classwidth: 200, height=50param: host (use sciris.shu.edu), port (use 1234) • Note: Applets can be embedded easily with FrontPage or Notes (LearningSpace)

  11. WritingJava Applets To create Java Applets, you need: • Knowledge and a good Java book • Good ideas, patience, and persistence and • A text editor & Java compiler or • An “Integrated Developing Environment” (IDE)

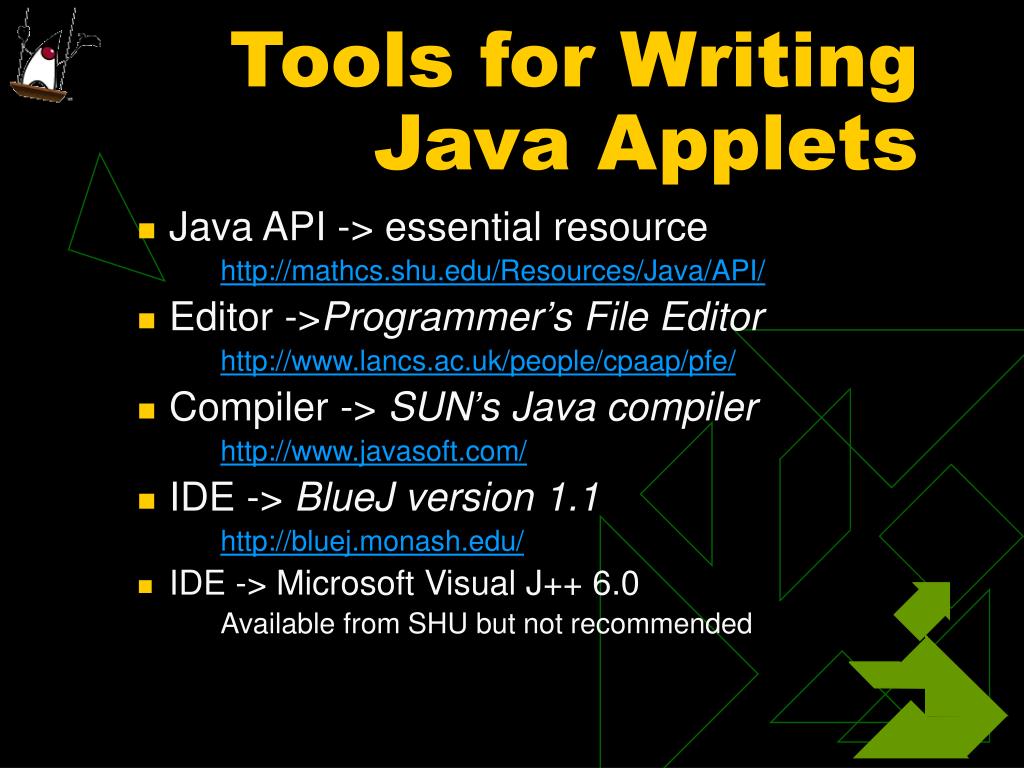

  12. Tools for WritingJava Applets • Java API -> essential resource http://mathcs.shu.edu/Resources/Java/API/ • Editor ->Programmer’s File Editor http://www.lancs.ac.uk/people/cpaap/pfe/ • Compiler -> SUN’s Java compiler http://www.javasoft.com/ • IDE -> BlueJ version 1.1 http://bluej.monash.edu/ • IDE -> Microsoft Visual J++ 6.0 Available from SHU but not recommended

  13. Writing Applets - Intro • Java Applets are saved as “Name.java” • They must be compiled into “Name.class” • They require HTML page to run • They have “fields” and “methods” • fields are used to store data • methods are used to perform action • They inherit *lots* of fields and methods from “parent” classes

  14. Writing Applets - Framework import java.awt.*; import java.awt.event.*; import java.applet.Applet; public class Name extends Applet implement ActionListener { private type aField = new type(“foo”); public void init() { /* code here when applet is initialized */ } public void start() { /* code here to execute when page is visited */ } public void stop() { /* code here to execute when page is left */ } public void paint(Graphics g) { /* drawing code goes here */} public void actionPerformed(ActionEvent ae) { /* code to react to action events here */ } }

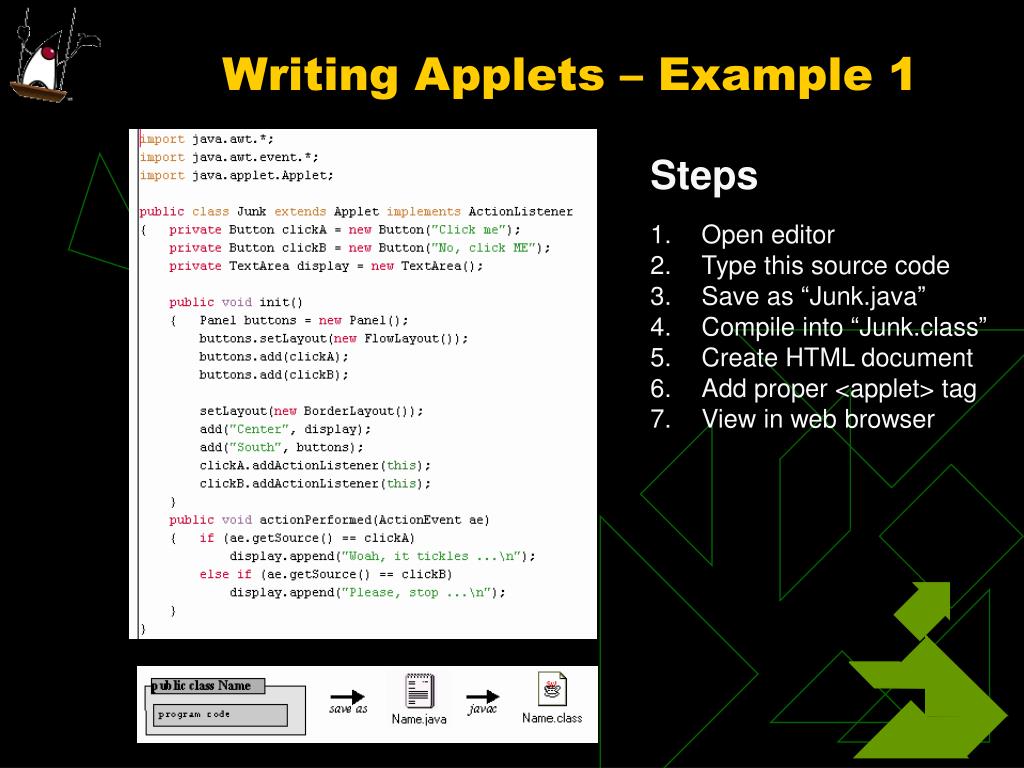

  15. Writing Applets – Example 1 Steps • Open editor • Type this source code • Save as “Junk.java” • Compile into “Junk.class” • Create HTML document • Add proper <applet> tag • View in web browser

  16. Writing Applets – Example 2 Steps • Need two pictures named“picture1.jpg” and picture2.jpg” • Open editor • Type this source code • Save as “Slide.java” • Compile into “SSlide.class” • Create HTML document • Add proper <applet> tag • View in web browser

  17. Enhancing Applet 2 Steps • Modify previous source code • Save and compile • Add proper <param> tag(s) to previous HTML document • View new applet in web browser (quit and restart) Questions: • What parameter tag(s) to use? • What must image names be? • How many images can be loaded?

  18. Self-runningApplet Steps • Modify previous source code • Save and compile • View new applet in web browser (quit and restart) Questions • What’s happening? • What’s the delay? • Pick a new <param> tag! • Does paint method change?

  19. A ProfessionalApplet • To create a professional Applet: • small, fast loading, preloading resources • completely fool-proof • completely configurable • utilizes reusable components (objects) • cool and new • Too much for this course

  20. What’s the Object of Object-Oriented Programming? OOP revolves around 6 principles: • Classes: Fundamental structure of every Java program (fields and methods) • Objects: Are constructed from class blueprints • Encapsulation: Regulate access to class members • Overloading: Multiple definitions for methods • Inheritance: Relationships between classes • Polymorphism: To deal with related classes based on common features

  21. OOP Example Our Task: • Create a unit conversion applet that converts between feet and meter • The program should execute in a separate window • The program should have one menu item to exit Steps: • Think about the objects to be used • Download the files from the web site • Compile, execute, test, and IMPROVE

  22. Some “less-good” News • Java has “version problems” with applets: • 1.0: Netscape 3, IE 3 • 1.1: Netscape < 4.5, IE 4 • 1.2: Netscape > 4.5, IE 4 • 1.3: Netscape 6 or “Java plugin” • Platform independent questionable (<1.3) • C++ “native” code is faster • No access to system-level programming • Large Programs need long download times • Applets have Security Restrictions (no saving…)

  23. More Information • Sun’s Website & Online Tutorials • http://www.javasoft.com/ • JARS Resources • http://www.jars.com/ • Seton Hall Classes • CSAS1111, CSAS1112, etc • Java by Definition • http://pirate.shu.edu/~wachsmut/jbd/ • Books • See Barnes & Nobles or Amazon.com

  24. The End …

  25. What isJavaScript • JavaScript is a programming language that: • Is object-oriented but “loosely typed” • Has no GUI support but supports most web page elements • Is somewhat standardized and runs only inside a JavaScript-aware web browser • Code is embedded directly in a web page • Is a lot easier than Java • JavaScript Example: <script language=“JavaScript”> document.writeln(“Today is ” + (new Date())); </script>
