  1. XCON data modeling – NETCONF, RDF and othersdraft-schulzrinne-sipping-emergency-req-01draft-sipping-sos Henning Schulzrinne Dept. of Computer Science Columbia University XCON - IETF 62 (March 2005) - Minneapolis

  2. Executive summary • XCON is an instance of a standard problem  avoid the IETF tendency to create one-off protocols • excusable a decade ago, recipe for delay now • Provide both “semantic” (tightly constrained) and user interface-oriented interface • Use XForms where user interface is needed • Consider NETCONF for object content manipulation and state retrieval XCON - IETF 62 (March 2005) - Minneapolis

  3. Data representation models • Document model • structured document • RPC model • set/get variables • Data models • RDF • NETCONF • user-interface oriented XCON - IETF 62 (March 2005) - Minneapolis

  4. “Semantic” description • Tightly described set of properties • No expectation that user interface would directly correspond to each element • No I18N issue  application maps description elements to UI elements in appropriate language • translation into other languages done by client • and may derive some parts through local policy, rather than user input • Well-defined extension policy XCON - IETF 62 (March 2005) - Minneapolis

  5. RDF • “Resource Description Framework (RDF) is a language for representing information about resources in the World Wide Web.” • describing resources in terms of simple properties and property values XCON - IETF 62 (March 2005) - Minneapolis

  6. RDF, cont’d. W3C RDF primer XCON - IETF 62 (March 2005) - Minneapolis

  7. RDF/XML example <?xml version="1.0"?> <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#“ xmlns:contact="http://www.w3.org/2000/10/swap/pim/contact#"> <contact:Person rdf:about="http://www.w3.org/People/EM/contact#me"> <contact:fullName>Eric Miller</contact:fullName> <contact:mailbox rdf:resource="mailto:em@w3.org"/> <contact:personalTitle>Dr.</contact:personalTitle> </contact:Person> </rdf:RDF> identifies the thing = subject (a URI) property = predicate value = object W3 RDF primer XCON - IETF 62 (March 2005) - Minneapolis

  8. More about RDF • Generally, “meta data” • RSS is most common usage • Also used in Composite Capabilities/Preferences Profile (CC/PP) • Has schema-like capability to describe vocabularies • Allows trees with nodes and relationships (“is-a”, “has”) XCON - IETF 62 (March 2005) - Minneapolis

  9. RDF: evaluation • Good • limited parameter-value expressiveness • type definition • tools available • Bad: • static document, does not define protocol to get/set elements • would need XCAP, XPath or similar XCON - IETF 62 (March 2005) - Minneapolis

  10. NETCONF • “The NETCONF protocol defines a simple mechanism through which a network device can be managed, configuration data information can be retrieved, and new configuration data can be uploaded and manipulated. The protocol allows the device to expose a full, formal, application programming interface (API).” • http://www.ietf.org/internet-drafts/draft-ietf-netconf-prot-05.txt • Defined to run over HTTP, BEEP, UDP, … XCON - IETF 62 (March 2005) - Minneapolis

  11. NETCONF, cont’d. content configuration data operations <get-config> <edit-config> RPC <rpc> <rpc-reply> application protocol BEEP, SSH, SSL XCON - IETF 62 (March 2005) - Minneapolis

  12. NETCONF • Data = • configuration data = writable  <get-config> • state data = read-only, statistics  <get> • Leaves privacy and authentication to transport layer • Supports Xpath and subtree filtering • Supports multiple “data stores” • default <running> • <candidate> allows incremental update + commit XCON - IETF 62 (March 2005) - Minneapolis

  13. NETCONF RPC <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <rock-the-house xmlns="http://example.net/rock/1.0"> <zip-code>27606-0100</zip-code> </rock-the-house> </rpc> <rpc-reply message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <some-content> <!-- contents here... --> </some-content> </rpc-reply> XCON - IETF 62 (March 2005) - Minneapolis

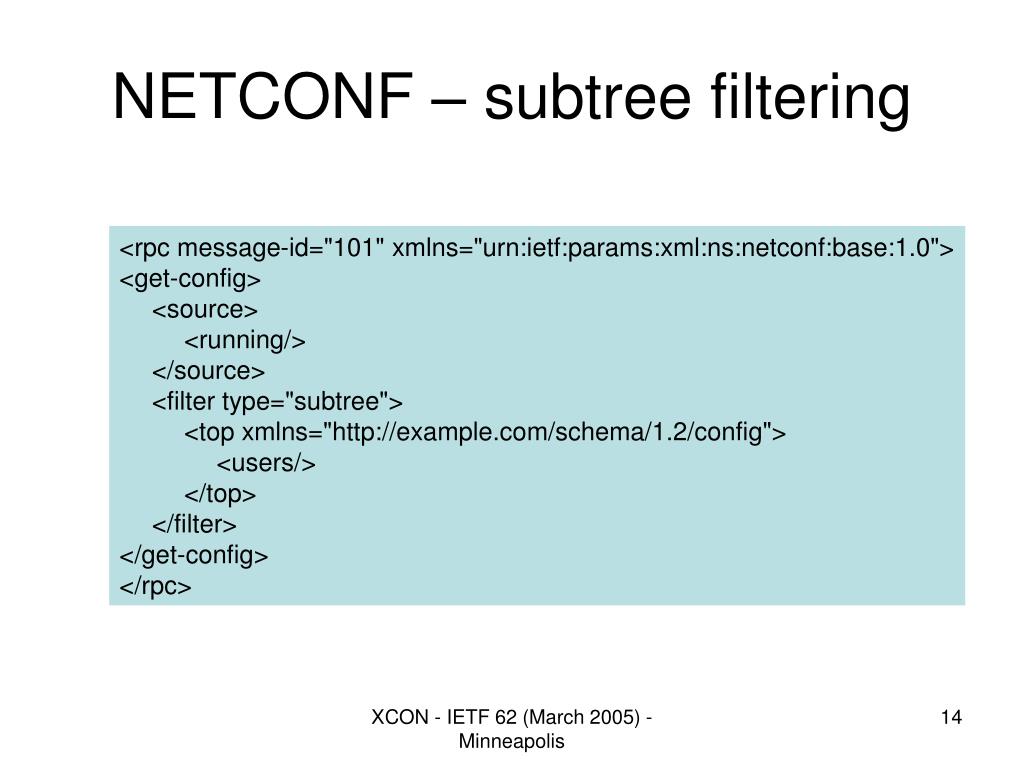

  14. NETCONF – subtree filtering <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <get-config> <source> <running/> </source> <filter type="subtree"> <top xmlns="http://example.com/schema/1.2/config"> <users/> </top> </filter> </get-config> </rpc> XCON - IETF 62 (March 2005) - Minneapolis

  15. NETCONF operations XCON - IETF 62 (March 2005) - Minneapolis

  16. NETCONF capabilities advertisement <hello xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <capabilities> <capability> urn:ietf:params:xml:ns:netconf:base:1.0 </capability> <capability> urn:ietf:params:xml:ns:netconf:base:1.0#startup </capability> <capability> http:/example.net/router/2.3/core#myfeature </capability> </capabilities> <session-id>4</session-id> </hello> XCON - IETF 62 (March 2005) - Minneapolis

  17. User-interface oriented • Describe suggested rendering on controlling client without client knowing meaning of controls • element names are just labels • e.g., can’t gateway to other systems based on equivalence • user interface can change at any time • Element names are text strings, not XML elements • no schema verification possible XCON - IETF 62 (March 2005) - Minneapolis

  18. User-interface oriented • Client software does not need to understand meaning of terms – just variables and prompts • includes necessary prompts and structure • needs to be translated into different languages by server • Existing work: XForms • http://www.w3.org/MarkUp/Forms/2003/xforms-for-html-authors • Allows use of CSS to render on variety of devices • Allows use of JavaScript for client-side verification • Specifies type of control (“selection”), not rendering (“radio button”, “select list”) • Suggestion: allow as alternate representation XCON - IETF 62 (March 2005) - Minneapolis

  19. XForms example <h:html xmlns:h="http://www.w3.org/1999/xhtml“ xmlns="http://www.w3.org/2002/xforms"> <h:head> <h:title>Search</h:title> <model> <submission action="http://example.com/search“ method="get" id="s"/> </model> </h:head> <h:body> <h:p> <input ref="q"><label>Find</label></input> <submit submission="s"><label>Go</label></submit> </h:p> </h:body> </h:html> XCON - IETF 62 (March 2005) - Minneapolis

  20. Conclusion • If desired, XForms provides rich user interaction environment • NETCONF provides flexible configuration retrieval mechanism, with extensibility • incremental configuration + commit • stored configurations (startup, running, candidate) • XPath and subtree selection • no constraints on configuration content XCON - IETF 62 (March 2005) - Minneapolis
