DNA Replication

This resource provides a comprehensive review of DNA structure and the mechanisms of DNA replication. It introduces DNA (Deoxyribonucleic Acid) as a double helix and the foundation for all living organisms, responsible for protein synthesis and traits like eye color and heart function. The structure is built from nucleotides consisting of a phosphate group, a 5-carbon sugar, and nitrogen bases (Adenine, Thymine, Guanine, Cytosine). The replication process involves unwinding the DNA double helix, forming replication forks, and synthesizing new strands. This occurs enzymatically during the S phase of interphase, resulting in two identical DNA molecules.

billie
Télécharger la présentation

DNA Replication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

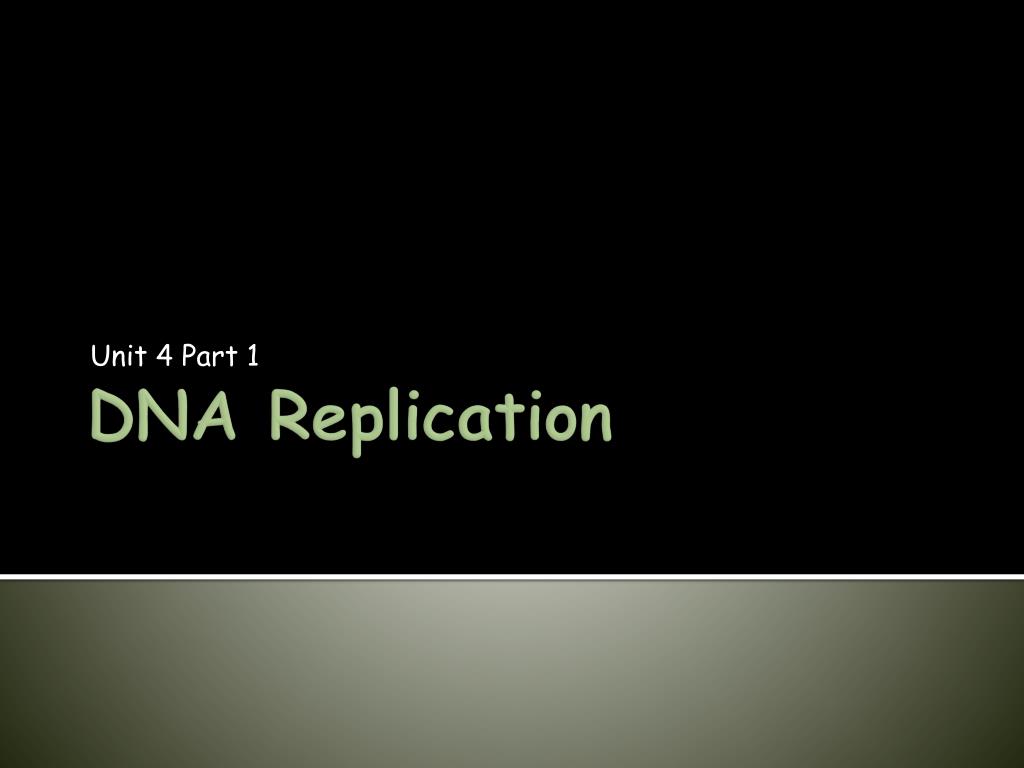

  1. Unit 4 Part 1 DNA Replication

  2. Review of DNA structure • Name: Deoxyribonucleic Acid • Shape: Double Helix • Function: • Basis for all living things • Makes proteins which make traits eye color, nose shape, heart function. • Structure: Made up of repeating units called nucleotides. Nucleotides: (3 Parts) • Phosphate group • 5 Carbon sugar • Sugars and phosphate are held together by a covalent bond. • Nitrogen base • There are 4 nitrogen bases – Hydrogen bonds • Adenine Guanine • Thymine Cytosine

  3. Nitrogen Bases • Nitrogen bases pairing together is what makes the double helix shape. • The 4 nitrogen bases are grouped together • Pyrimidines • Cytosine • Thymine • Purines • Adenine • Guanine • Only a purine can pair with a pyrimidine • Adenine – Thymine • Guanine – Cytosine

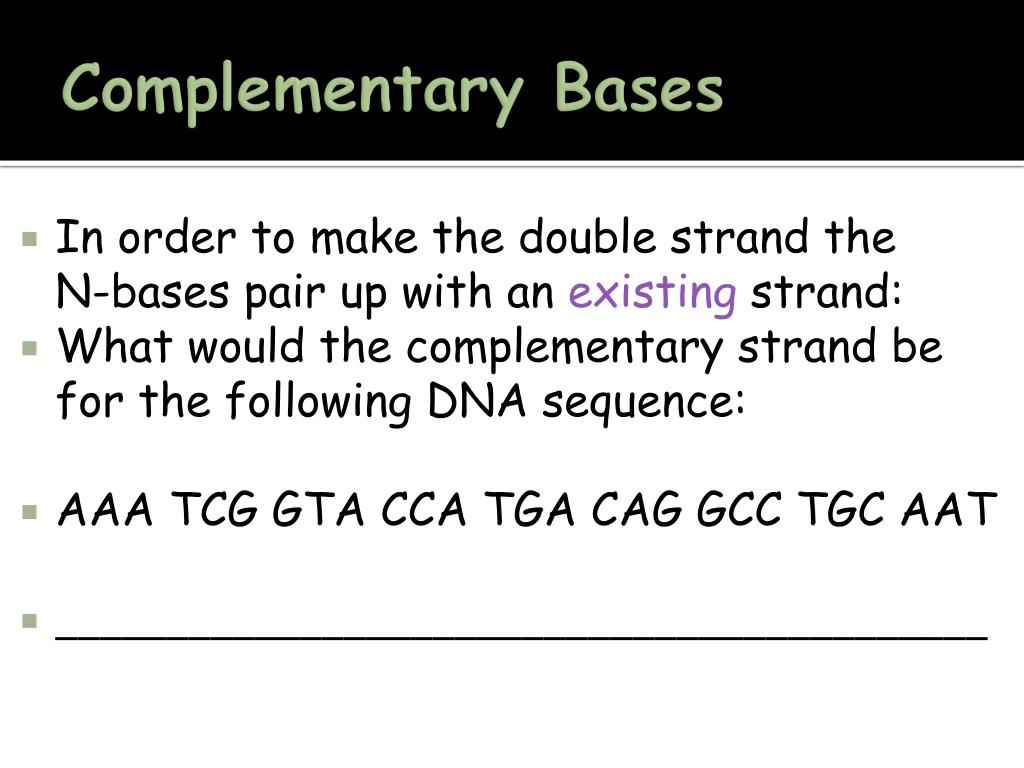

  4. Complementary Bases • In order to make the double strand the N-bases pair up with an existing strand: • What would the complementary strand be for the following DNA sequence: • AAA TCG GTA CCA TGA CAG GCC TGC AAT • __________________________________________

  5. DNA Replication 1. The Double Helix unwinds and unzips by breaking the Hydrogen bonds between the nitrogen bases. • An enzyme called DNA Helicase does this. 2. The 2 strands separate and form a replication fork . • Place where the new nucleo.tideswill be added.

  6. DNA Replication cont’d. 3. New nucleotides are added to the unwound strands (template or parent strands) following the base pairing rules. • DNA Polymerase does this. 4. As DNApolymerasemoves along the strands, 2 new double helixes are formed. 5. Enzymes continue adding nucleotides until it reaches a signal for it to detach.

  7. DNA Replication Review • Occurs during the S phase of interphase. • Process by which 2 identical strands of DNA are created. • First the double helix unwinds and unzips-DNA Helicase. • New nucleotides are added to the existing strands. • DNA replication is complete. • Once the DNA (chromatin) condenses into chromosomes they would be replicated chromosomes.

  8. DNA Replication Video • DNA Replication Video
