AT45 High Voltage Module: Enhanced 45V Output for 575 Series Generators

DESCRIPTION

Introducing the AT45 Output Module, featuring a 45V output with ultra-fast rise times under 2ns, designed for the Model 575 Series digital delay/pulse generators. This module improves performance over the AT35, offering extended pulse widths from 10ns to DC in Hi-Z mode and up to 10 seconds in low impedance mode. Capable of handling rep rates up to 100KHz, the AT45 ensures rapid signal generation while minimizing overshoot through careful cabling and termination. Explore custom configurations tailored to your needs.

1 / 6

Télécharger la présentation

AT45 High Voltage Module: Enhanced 45V Output for 575 Series Generators

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. At45 High Voltage Module Introducing a 45 Volt Output Module with Faster Risetimes for the Model 575 Series Digital Delay / Pulse Generators Tel 800-234-7858 Fax 415-453-9956 www.BerkeleyNucleonics.com

  2. AT45 Module Tel 800-234-7858 Fax 415-453-9956 www.BerkeleyNucleonics.com

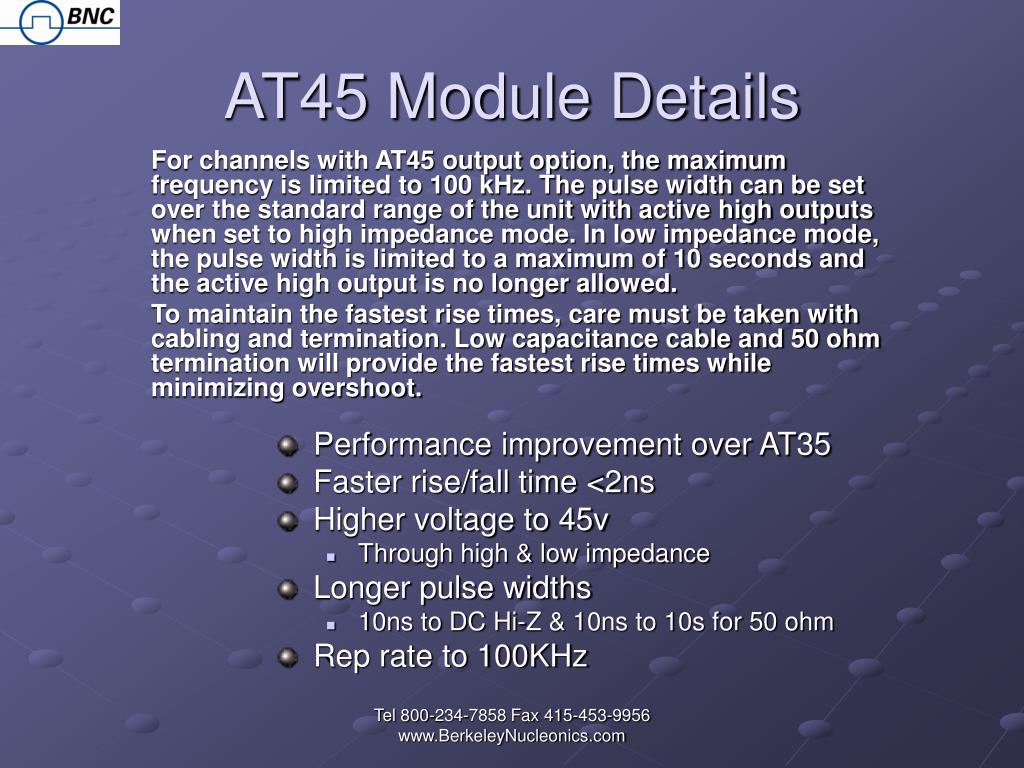

  3. AT45 Module Details • Performance improvement over AT35 • Faster rise/fall time <2ns • Higher voltage to 45v • Through high & low impedance  • Longer pulse widths • 10ns to DC Hi-Z & 10ns to 10s for 50 ohm • Rep rate to 100KHz   For channels with AT45 output option, the maximum frequency is limited to 100 kHz. The pulse width can be set over the standard range of the unit with active high outputs when set to high impedance mode. In low impedance mode, the pulse width is limited to a maximum of 10 seconds and the active high output is no longer allowed. To maintain the fastest rise times, care must be taken with cabling and termination. Low capacitance cable and 50 ohm termination will provide the fastest rise times while minimizing overshoot. Tel 800-234-7858 Fax 415-453-9956 www.BerkeleyNucleonics.com

  4. AT45 Specifications Tel 800-234-7858 Fax 415-453-9956 www.BerkeleyNucleonics.com

  5. AT45 O-Scope Traces 5V Rise, 50 Ohm, 10nS / Div 25V Rise Hi Z, 10nS / Div 45V Rise, 50 Ohm, 10nS / Div 45V Rise Hi Z, 10nS / Div Tel 800-234-7858 Fax 415-453-9956 www.BerkeleyNucleonics.com

  6. Other Outputs for the Model 575 Model 575-8C Shown Above Tel 800-234-7858 Fax 415-453-9956 www.BerkeleyNucleonics.com The Model 575 Series Digital Delay / Pulse Generators are uniquelydesigned with a modular architecture where every two outputs is a separate output module. We can offer custom output stages at a low NRE cost. Berkeley Nucleonics can use this architecture to provide custom configurations. Various output module options include: • Optical Inputs (850 or 1310nm) • Optical Outputs (2, 4, 6 or 8 Channels) • Increased Current • High Voltages • Faster rise time • Your Outputs – Contact BNC
