FRET assays with genetically targeted labels

FRET assays with genetically targeted labels. Protein-protein interactions heterotrimeric G proteins, transcription factors… GPCR conformational changes at ms time resoln. GTP/GDP-bound status of small G proteins cAMP, cGMP, NO, Zn 2+ Proteases such as caspases Ca 2+ : cytosol vs. ER

blaine
Télécharger la présentation

FRET assays with genetically targeted labels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FRET assays with genetically targeted labels • Protein-protein interactions • heterotrimeric G proteins, transcription factors… • GPCR conformational changes at ms time resoln. • GTP/GDP-bound status of small G proteins • cAMP, cGMP, NO, Zn2+ • Proteases such as caspases • Ca2+: cytosol vs. ER • Protein kinase/phosphatase activities • EGFR, Src, Abl, PKA, PKB, PKC • PIP2/IP3, DAG, other lipid-related signals Protein knockouts in seconds by CALI

  2. Cameleons: Ca2+ indicators based on CaM + GFP mutants Atsushi Miyawaki

  3. A generic design for indicators of kinase/phosphatase activity

  4. CKAR: C Kinase Activity Reporter High FRET cytosolic CKAR CKAR FRET Ratio YFP +PKC FHA2 FHA2 CFP -OH CFP YFP lex lem lex 60min, 450x Frame Rate Low FRET lem GGSGGRFRRFQTLKIKAKAGGSGG PM-anchored CKAR substrate sequence designed with help from http:/scansite.mit.edu Jon Violin, Alexandra Newton (UCSD)

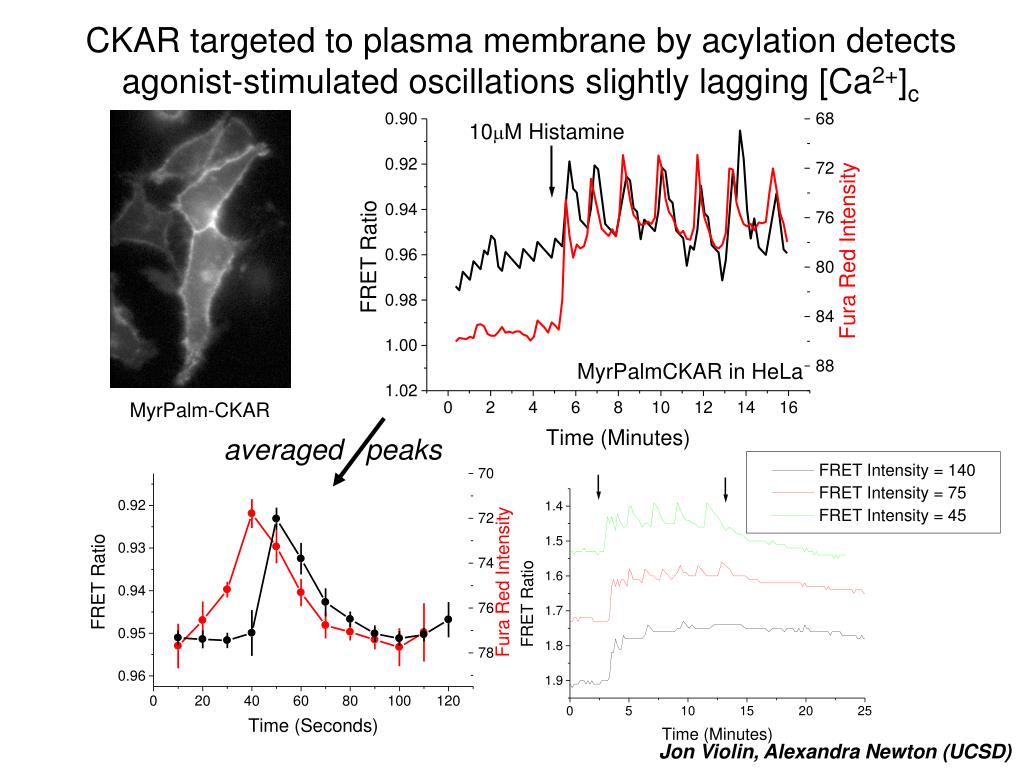

  5. CKAR targeted to plasma membrane by acylation detects agonist-stimulated oscillations slightly lagging [Ca2+]c MyrPalm-CKAR averaged peaks Jon Violin, Alexandra Newton (UCSD)

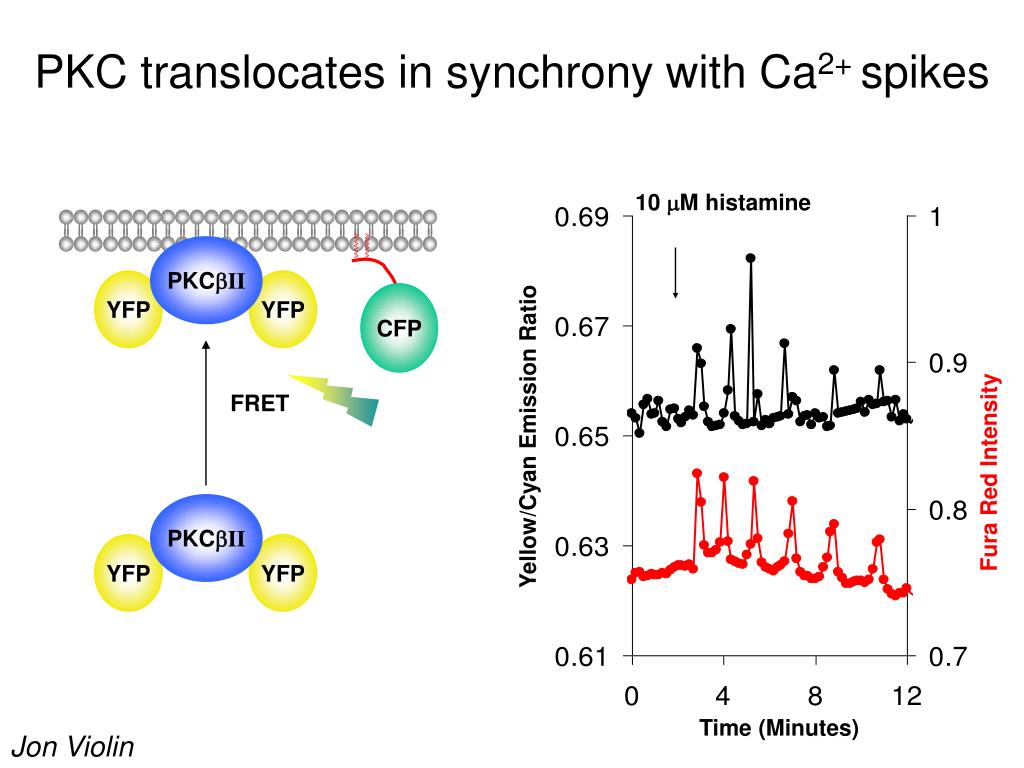

  6. PKC translocates in synchrony with Ca2+ spikes 10 mM histamine PKCbII YFP YFP CFP FRET Yellow/Cyan Emission Ratio Fura Red Intensity PKCbII YFP YFP Time (Minutes) Jon Violin

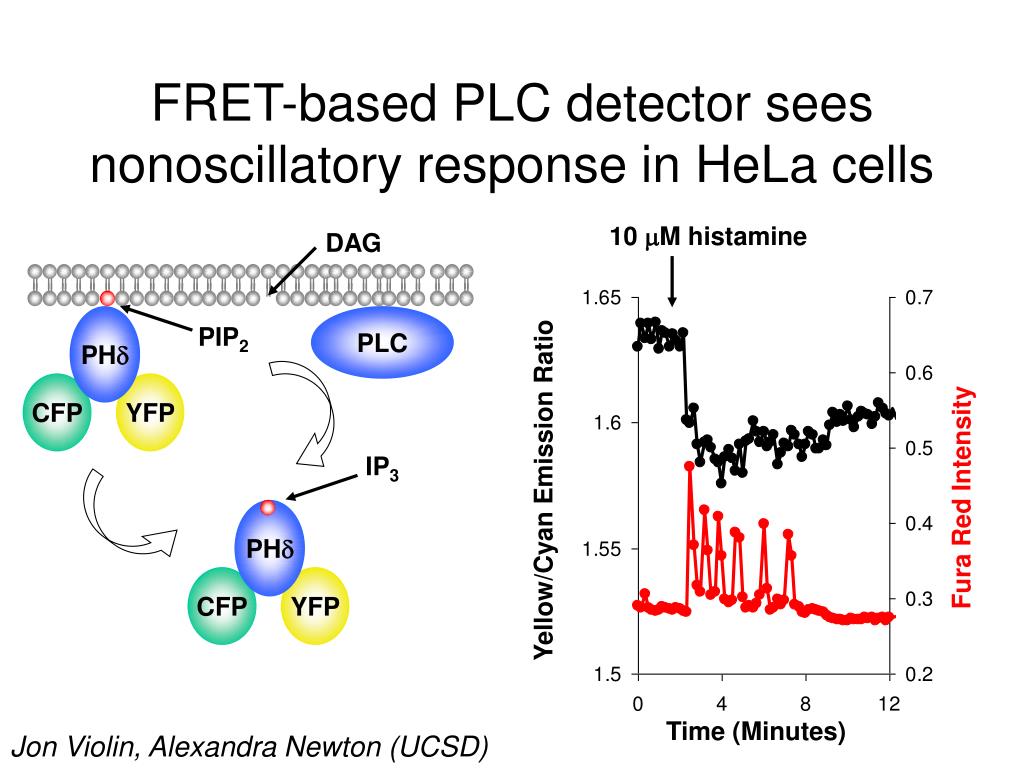

  7. PHd CFP YFP FRET-based PLC detector sees nonoscillatory response in HeLa cells 10 mM histamine DAG PHd PLC PIP2 CFP YFP IP3 Yellow/Cyan Emission Ratio Fura Red Intensity Time (Minutes) Jon Violin, Alexandra Newton (UCSD)

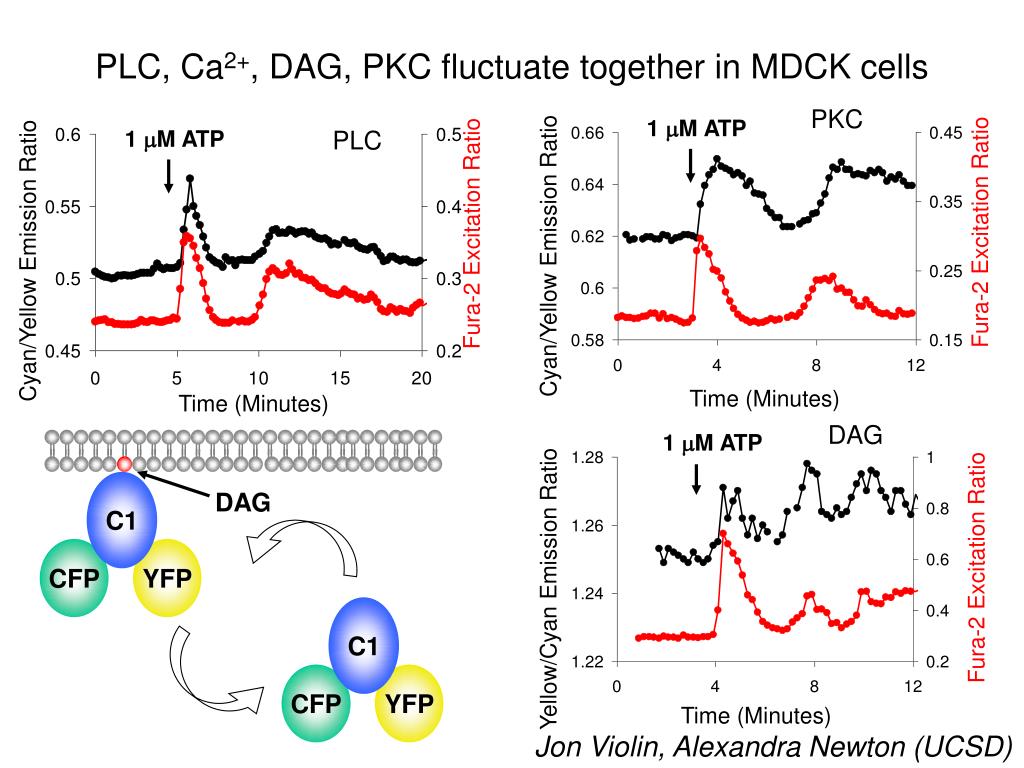

  8. C1 CFP YFP PLC, Ca2+, DAG, PKC fluctuate together in MDCK cells PKC 1 mM ATP PLC 1 mM ATP Fura-2 Excitation Ratio Fura-2 Excitation Ratio Cyan/Yellow Emission Ratio Cyan/Yellow Emission Ratio Time (Minutes) Time (Minutes) DAG 1 mM ATP C1 DAG CFP YFP Fura-2 Excitation Ratio Yellow/Cyan Emission Ratio Time (Minutes) Jon Violin, Alexandra Newton (UCSD)

  9. Strong illumination can inactivate ReAsH-stained connexins(= genetically targeted, chromophore-assisted light inactivation) 17 W/cm2 light ~1.7 W/cm2 Electrical coupling ratio ReAsH fluorescence Transmitted light Oded Tour

  10. ReAsH-mediated photoinactivation of L-type Ca2+ channels Raw date example 2 of CALI of a1C-(MPCCPGCC)2 2.5 mM ReAsH for 2 h in DMEM; 250 mM EDT wash for 30 minutes in DMEM 3 repeats of 10 second excitation • 200 • 0 • -200 • -400 • -600 • -800 • -1000 (pA) • -1200 • -1400 • -1600 • -1800 • -2000 • -2200 • -2400 • 0 • 200 • 400 • 600 Time (ms) • Sw 3/19 Cl- channels in the membrane were simultaneously unaffected Oded Tour; channel cDNA and cell line from R.W. Tsien

  11. Acute CALI reveals importance of synaptotagmin in endocytosis Endocytosis assayed with FM4-64 559-563

  12. Tetracysteine-biarsenical CALI • Compared to traditional CALI, eliminates need to raise innocuous Abs, label with dye, microinject just the right amount • Compared with noncovalent small molecule inhibitors, avoids need for custom drug development/med chem, allows isoform specificity • Compared with gene knockout/RNAi: much higher temporal/spatial resolution, less chance for compensation or avalanche of effects • But only eliminates exogenous tagged copies. Ultimately, one would knock out endogenous copies, replace by tagged copies, show function is normal until CALI suddenly initiated
