Biotechnology and Recombinant DNA

1. Biotechnology and Recombinant DNA

2. What is Biotechnology • Biotechnology • Use of microorganisms, cells or cell components to make a product • Recombinant DNA technology (rDNA) • Genetic engineering • Insertion of genes into cells that makes the cells into “factories” to make products

3. Recombinant DNA • Putting a gene from one organism into another • Examples: • Human insulin gene into a bacteria to make insulin • Hepatitis B gene into a yeast to make the hepatitis B vaccine

4. How to make rDNA • Gene of interest is inserted into a VECTOR • Vector is usually a plasmid that must be self-replicating • Cells containing the vector with the gene of interest then divide to from a CLONE of identical cells • These clones can then be used to harvest the gene or produce a product

7. Restriction enzymes • DNA cutting enzymes that are a key to the development of rDNA technology • Discovered in the early 1970’s • Nobel Prize in 1978 to Arber, Nathans and Smith for the discovery of these enzymes • Restriction enzymes cut DNA at specific sites and allow for DNA to be “inserted” into a cloning vector • “Sticky ends” are generated?

8. Restriction Enzymes

9. Vectors • DNA molecules that can be used as transfer vehicles to insert DNA into cells • Must be self-replicating and small enough to work with outside the cell • Plasmids are common vectors • Often contain antibiotic resistance gene • Viral DNA is also used as a vector • Retroviruses, Adenoviruses, Herpesviruses • Larger amounts of DNA can be inserted

10. Cloning plasmid

11. Invented the technique of polymerase chain reaction in the early 1980 Nobel Prize in 1993 Key technique used to make large quantities of DNA Kary Mullis

12. Polymerase chain reaction

13. Inserting DNA into cells • 1. Transformation • 2. Electroporation • Electric current make pores in the cell so DNA can enter • 3. Protoplast fusion • Cells with no cell wall can be fused and natural recombination may occur • 4. Microinjection

14. Protoplast fusion

15. How are genes isolated? • 1. Gene libraries • Digestion of entire genome with restriction enzymes • Insert fragments into vectors and put the vectors into bacterial cells • 2. Complementary DNA (cDNA) • Eukaryotic gene derived from mRNA made with reverse transcriptase • Lacks introns only exons

16. Gene Library

17. Complementary DNA

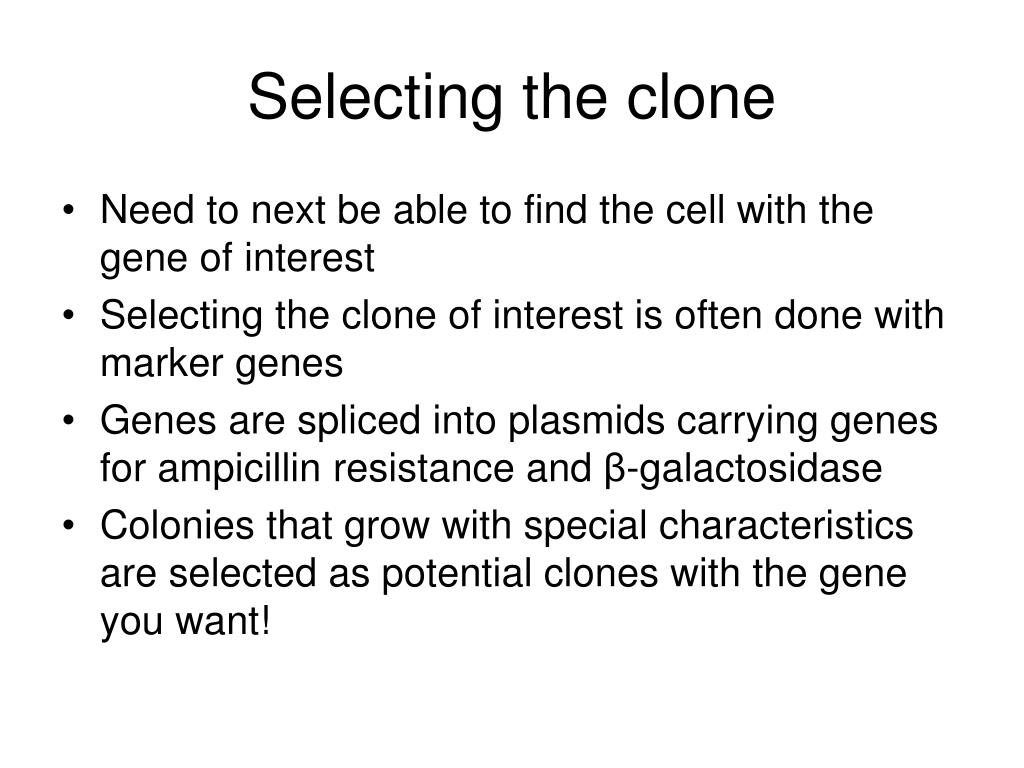

18. Selecting the clone • Need to next be able to find the cell with the gene of interest • Selecting the clone of interest is often done with marker genes • Genes are spliced into plasmids carrying genes for ampicillin resistance and β-galactosidase • Colonies that grow with special characteristics are selected as potential clones with the gene you want!

19. Selecting recombinant bacteria

20. Selecting the clone • After candidate colonies are identified the one with the gene of interest must be selected • DNA probes • Pieces of single stranded DNA complementary to the desired gene are made and labeled with a radioactive element • Helps identify the target gene

21. DNA Probes

22. Making a gene product • Put the gene into a bacteria like E. coli and get the product made • Toxic by-products from Gram- cell wall • Usually no secretion of product by Gram - cells • Yeast cells • Better secretion of product • Mammalian cells • Good source for protein products • Little risk of toxins and allergy

23. Products of genetic engineering

24. Products of genetic engineering
