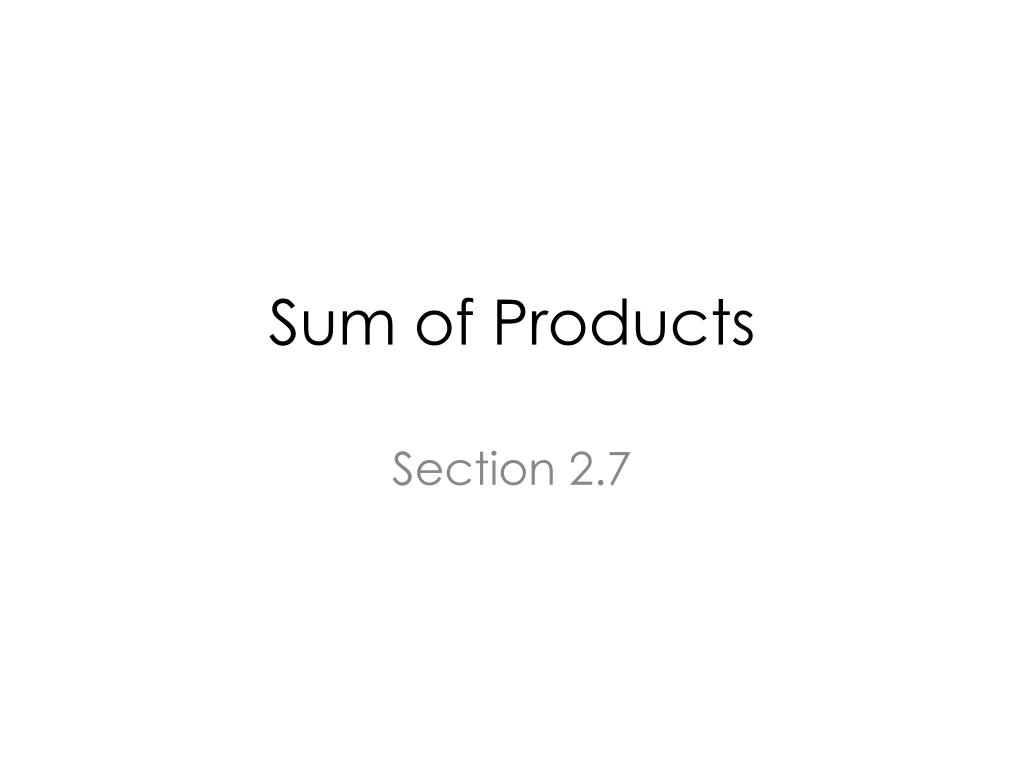

  1. Sum of Products Section 2.7

  2. Home Alarm Example (Truth Table) (Boolean Algebra)

  3. Truth Table Definition: Alarm Response (AR) Sound Alarm→AR=1 Else: AR=0 (Truth Table)

  4. Determine a Boolean Function from a Truth Table When is AR=1? What about these terms?

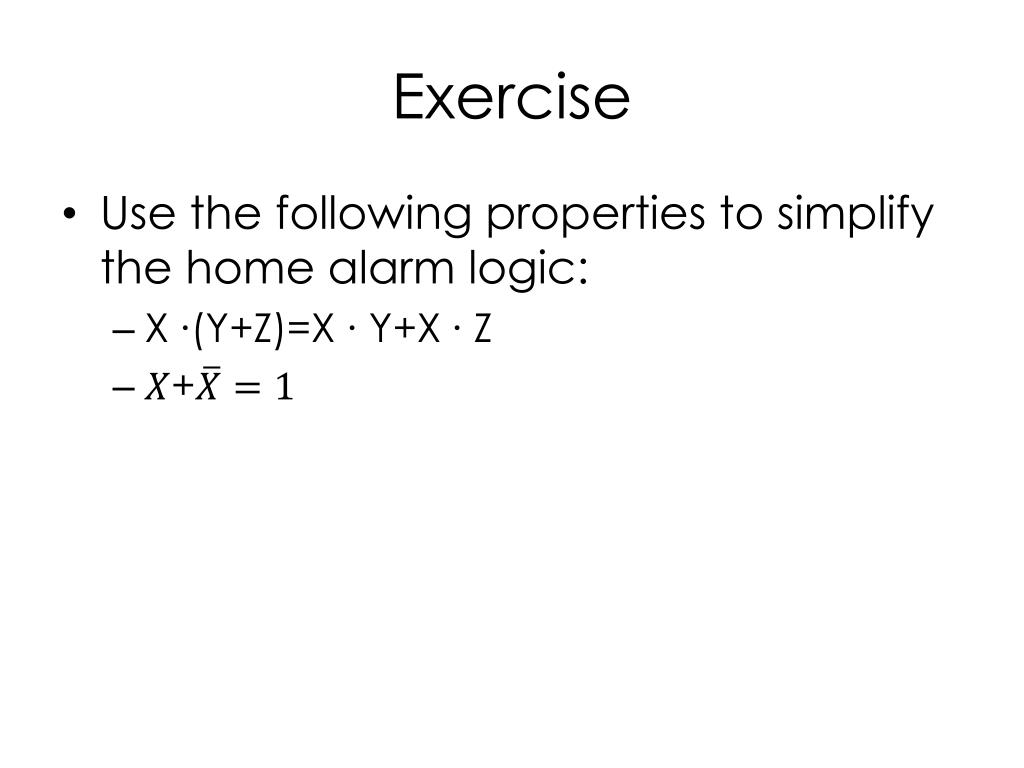

  5. Exercise • Use the following properties to simplify the home alarm logic: • X ∙(Y+Z)=X ∙ Y+X ∙ Z • +

  6. W1=0V, P=W2=5V

  7. P=W1=5V, W2=0 V

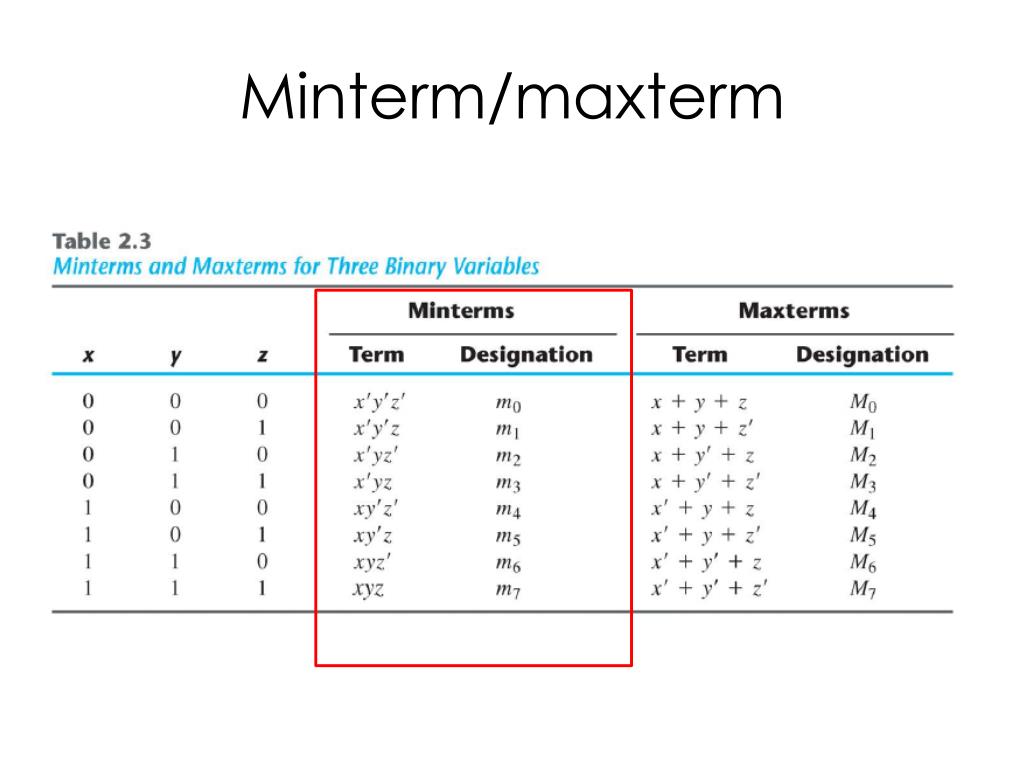

  8. Minterm/maxterm

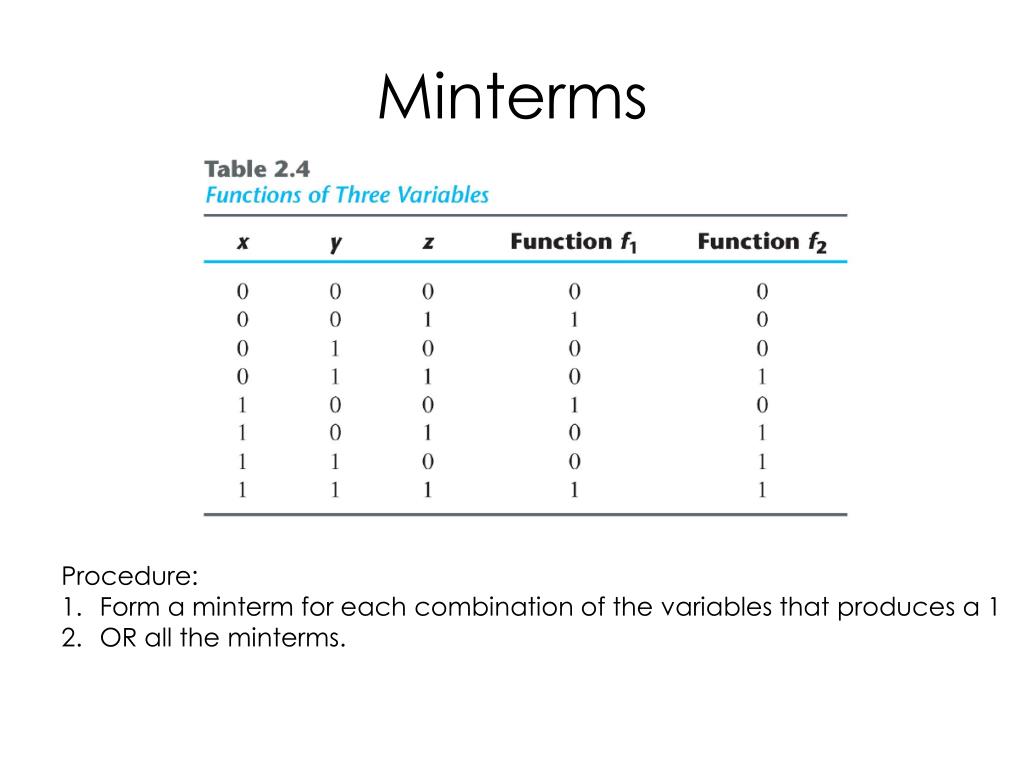

  9. Minterms Procedure: Form a minterm for each combination of the variables that produces a 1 OR all the minterms.

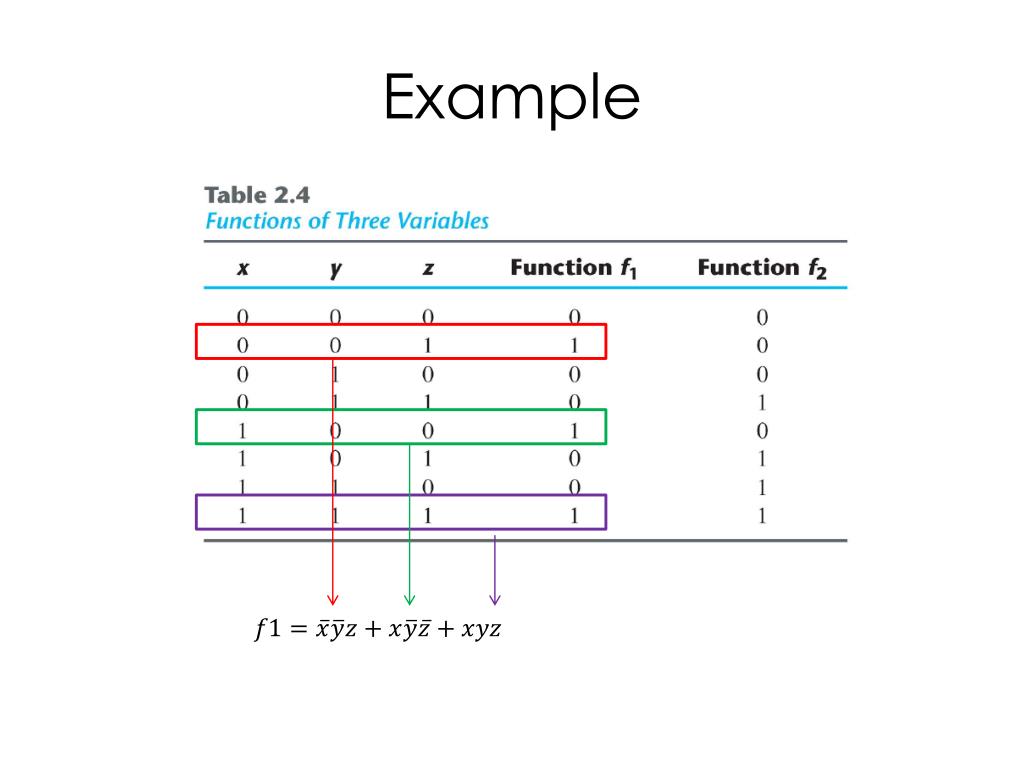

  10. Example

  11. f1 Form a maxterm for each term that produces a 0 AND all of those terms Interpretation: Each maxterm can zero out f1

  12. Standard Forms • The minterm representation leads to Sum of Products implementation • The maxterm representation leads to Products of Sums implementation

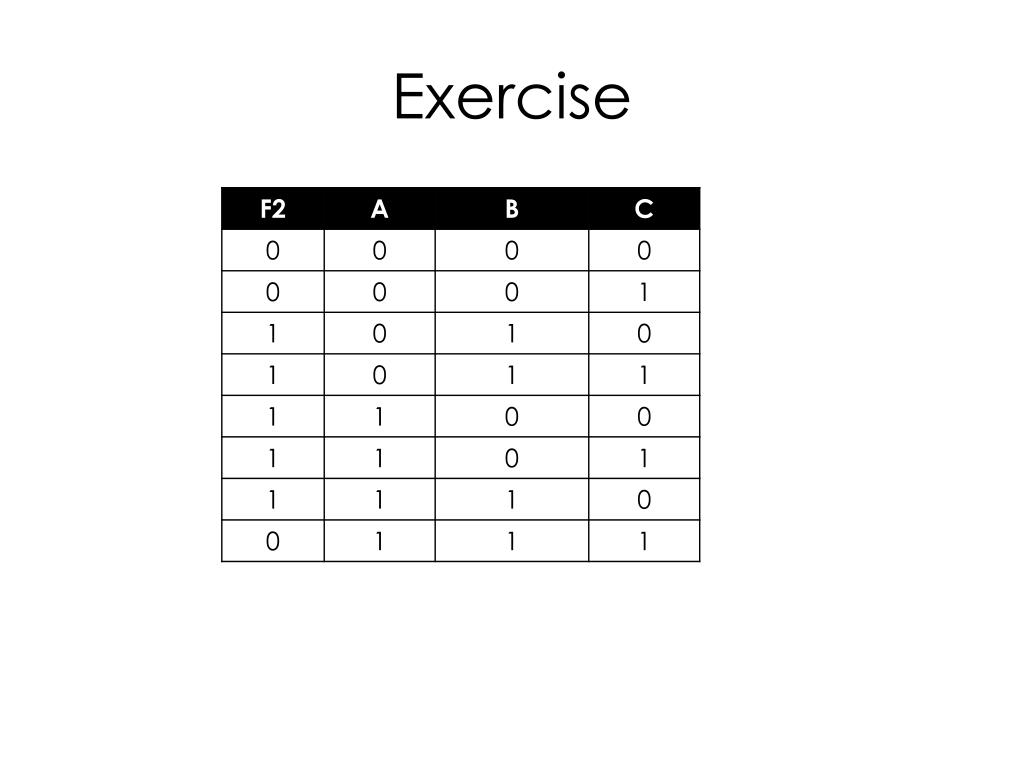

  13. Exercise
