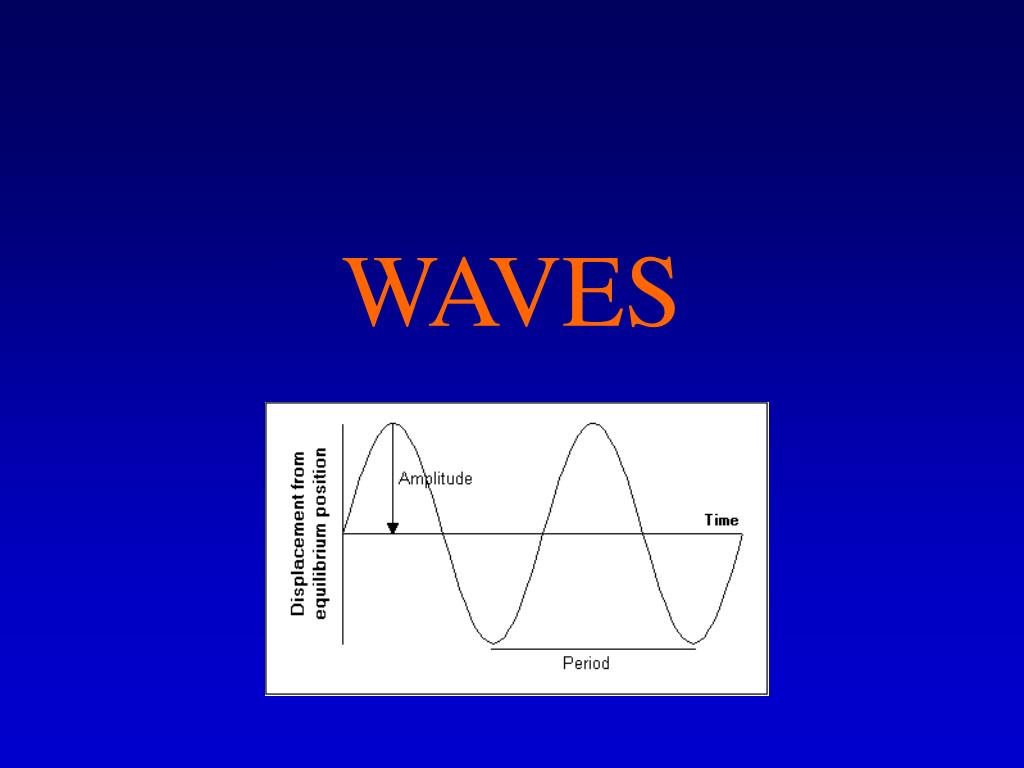

  1. WAVES

  2. Waves • A wave is any disturbance that transmits ENERGY through matter and space. • Waves carry energy NOT matter. SIM

  3. Kinds of Waves • Longitudinal Wave • The material that the wave is in vibrates back and forth along the path that the wave travels. SIM

  4. Kinds of Waves • Transverse Wave • The material that the wave is in moves perpendicular (at right angles) to the direction that the wave is traveling. SIM

  5. Longitudinal Waves • Compression • Section of a longitudinal wave where the particles are crowded together • Rarefaction • Section of a longitudinal wave where the particles are less crowded than normal

  6. SIM

  7. Transverse Waves SIM • Crests • The highest point in a transverse wave. • Troughs • The lowest point in a transverse wave.

  8. Crest and Trough

  9. Amplitude • Amplitude • Maximum distance the wave vibrates from its rest position SIM

  10. Which one of these waves has a larger amplitude?

  11. Wavelength • Wavelength (λ) • The distance from any point on one wave to that same point on the next wave λ SIM SIM2 λ

  12. The wavelength of a longitudinal wave can be measured as the distance between the center of two compressions or rarefactions.

  13. Which one of these waves has a larger wavelength (λ)?

  14. Frequency • Frequency • The number of waves (or cycles) produced in a given amount of time SIM

  15. Which one of these waves has a higher frequency?

  16. Review

  17. Reflection • Reflection • When a wave bounces back after striking a barrier SIM SIM2

  18. Refraction • Refraction • The bending of a wave as it passes at an angle from one material (medium) to another. SIM

  19. Diffraction • Diffraction • The bending of waves around a barrier or through an opening. SIM SIM2

  20. Interference • Interference is the result of two or more waves overlapping. • Constructive Interference • Occurs when the crests of one wave overlap the crests of another wave OR the troughs of the waves overlap

  21. Interference • Destructive Interference • Occurs when the crests of one wave and the troughs of another wave overlap

  22. Interference SIM

  23. Standing Waves • Standing wave SIM • A wave that forms a stationary pattern. • Portions of the wave do not move and other portions have a large amplitude • At rest= total destructive interference • Large amplitude=constructive interference.

  24. (SIM1) (SIM2) Sound waves are reflected at a boundary.

  25. Sound waves are refracted at a boundary.

  26. Interference. • Constructive interference • Destructive interference

  27. Here’s what is occurring. (SIM1) (SIM2) SIM - Interference

  28. Changing separation distance. Multiple sound sources interfere (SIM)

  29. Changing source frequency. Multiple sound sources interfere.

  30. What is a Medium? • A substance through which a wave can travel • Water • People • Air • Coiled wire

  31. What is a Mechanical Wave? • A wave that requires a medium • Examples: • Sound • Water

  32. Resonance • Objects have resonant frequencies • An object vibrating at the resonant frequency of a second object causes the second object to vibrate too! SIM - Resonance

  33. Speed of Sound SIM • Lightening/Thunder

  34. What Effects The Speed of Sound? • Medium

  35. What Effects The Speed of Sound? SIM • Temperature • As the temperature rises, the sound travels faster!

  36. Pitch • How high or low you perceive a sound to be • Determined by the frequency High Pitch Low Pitch

  37. Ultrasonic • Sounds with frequencies that are higher than 20,000 Hz • Infrasonic- • Sounds with frequencies that are lower than 20 Hz

  38. Volume • Decibel (dB) - unit to express volume • Exposure to sounds above 85 dB causes hearing loss SIM SIM - dB

  39. What is an Ultrasound? Ultrasound Simulation

  40. Beat Frequency • Two waves with similar frequencies alternate constructive/destructive interference • Causes sound to alternate loud and soft SIM

  41. Beating Frequency (SIM1) (SIM2)

  42. Beating Frequency Applet 2 Beating Frequency Applet 3

  43. Sound from: A stationary object A moving object SIM – Doppler Effect Labeled SIM – Hear Doppler SIM – Doppler/hear police siren SIM – Doppler/see police siren (SIM1) (SIM2)

  44. Final Note: Mechanical waves and Electromagnetic Waves are different!

  45. Sources:Bloomfield, How Things Work.Krauskopf & Beiser, The Physical Universe. 10th ed. Tillery, Physical Science.www.physicsclassroom.com
