  1. Our experience with NoSQL and MapReduce technologies Fabio Souto IT Monitoring Working Group, 19th September 2011

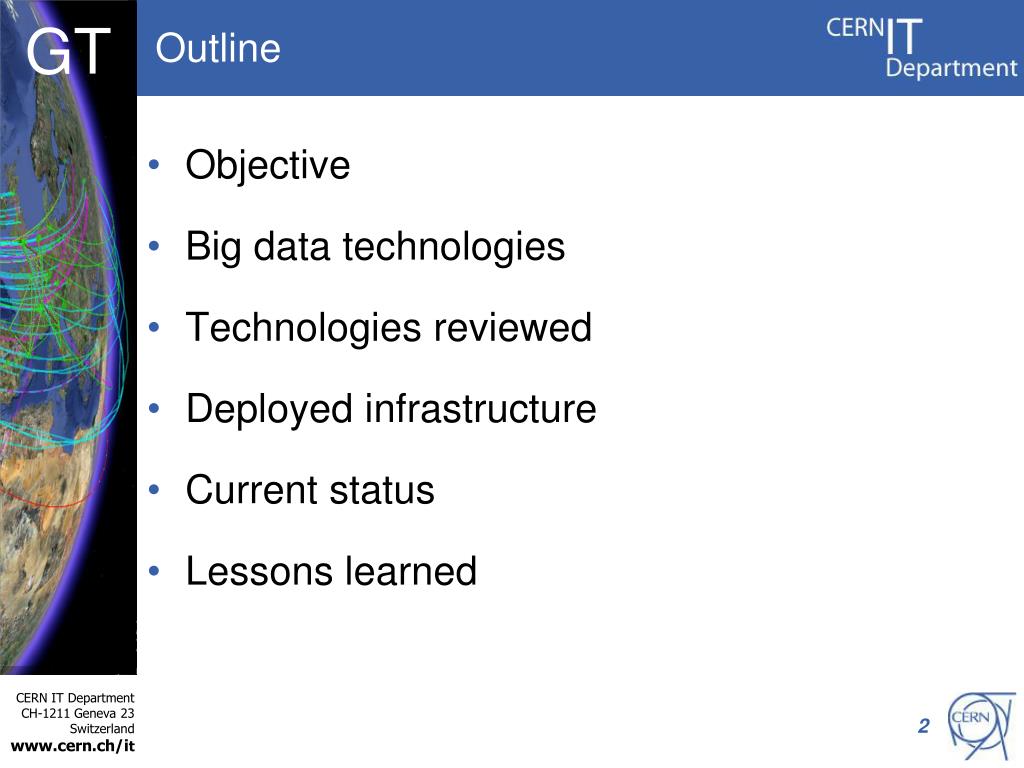

  2. Outline • Objective • Big data technologies • Technologies reviewed • Deployed infrastructure • Current status • Lessons learned 2

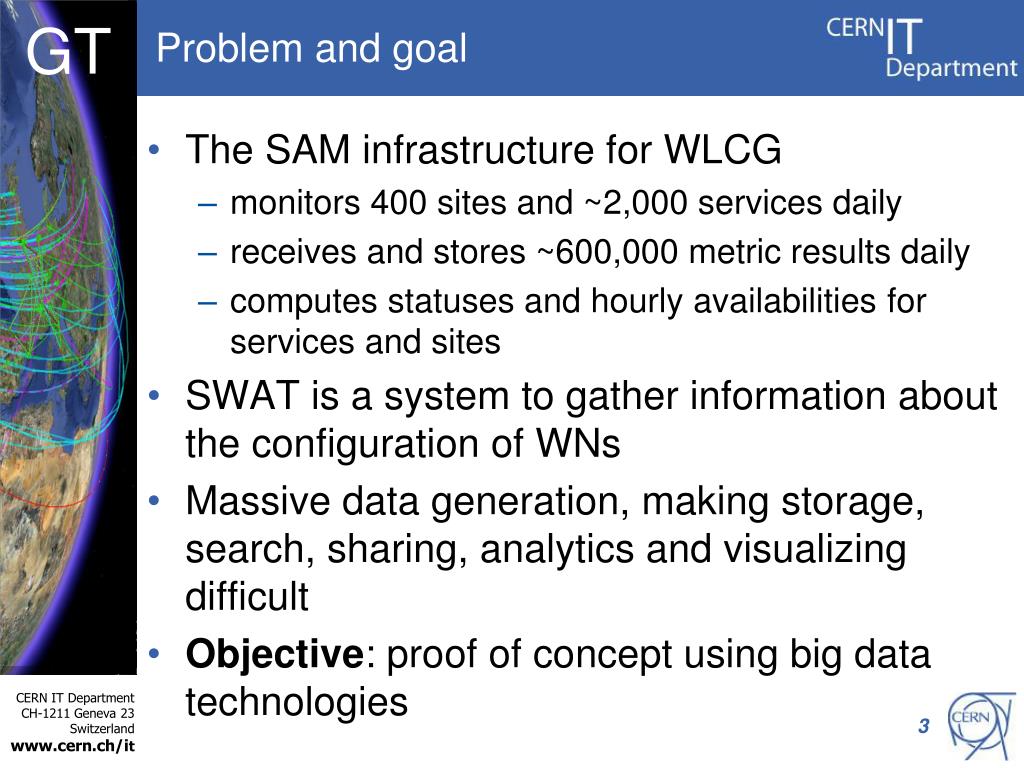

  3. Problem and goal • The SAM infrastructure for WLCG • monitors 400 sites and ~2,000 services daily • receives and stores ~600,000 metric results daily • computesstatuses and hourly availabilities for services and sites • SWAT is a system to gather information about the configuration of WNs • Massive data generation, making storage, search, sharing, analytics and visualizing difficult • Objective: proof of concept using big data technologies 3

  4. Big Data Technologies • NoSQLdatabases • Not relational. Schema free. • Distributed • High availability • MapReduce • Framework for processing huge datasets on clusters of computers • Takes advantage of data locality: • Move computation is more efficient than moving data 4

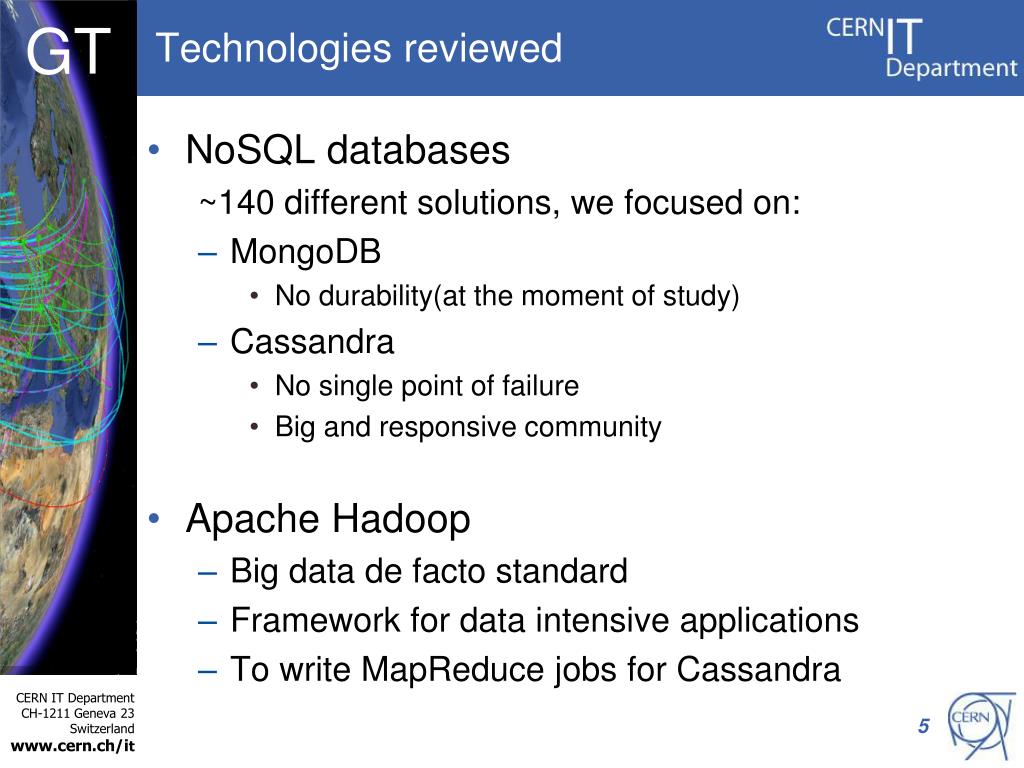

  5. Technologies reviewed • NoSQL databases ~140 different solutions, we focused on: • MongoDB • No durability(at the moment of study) • Cassandra • No single point of failure • Big and responsive community • Apache Hadoop • Big data de facto standard • Framework for data intensive applications • To write MapReduce jobs for Cassandra 5

  6. Technologies reviewed II • Hive and Pig • ease the complexity of writing MapReduce • Initially not considered • Less efficient than pure Hadoop • Independent from the data source • We can change to HBase easily • Hive: SQL-like syntax • Pig: data flow language • Is not turing complete (no loops, if-else…) • But can be embebed into python code • It’s possible to write custom functions in python/java 6

  7. Technologies reviewed III • Hue • Set of Django apps to interact with Hadoop • OpenTSDB • Open source time series database • Lack of flexibility • Oozie • Job scheduler and workflow engine for Hadoop 7

  8. Other Tools • Msg-consume2db inserter: • WLCG Messaging infrastructure -> NoSQL • sql2nosql-sync • SAM Oracle DB -> NoSQL 8

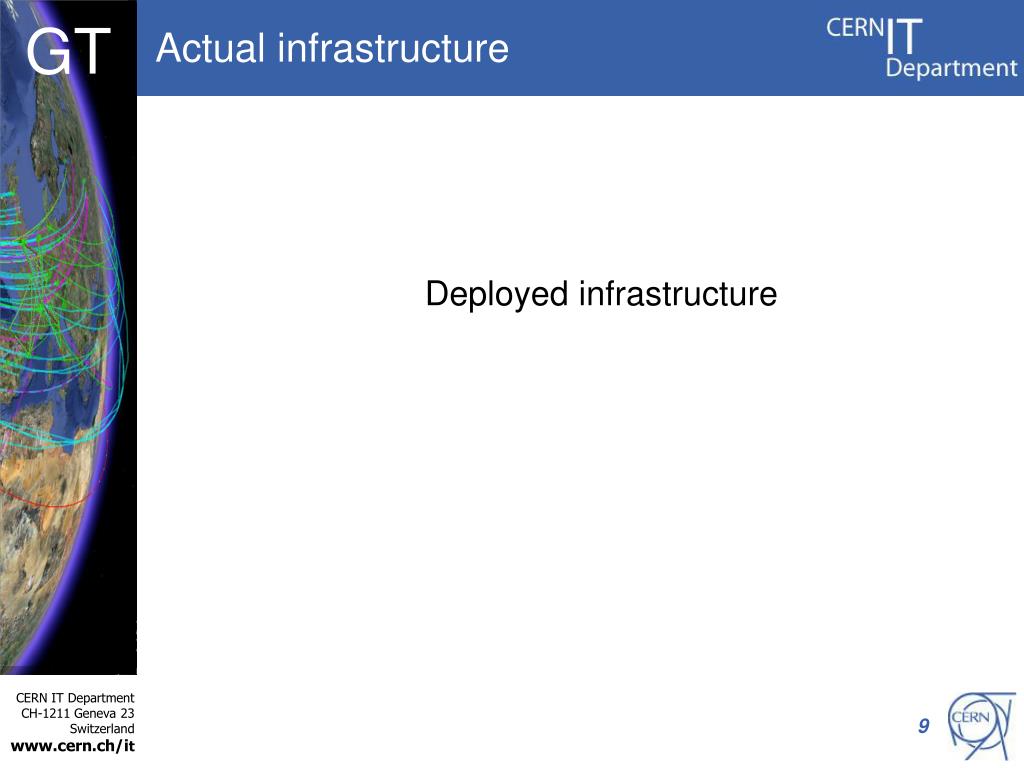

  9. Actual infrastructure Deployed infrastructure 9

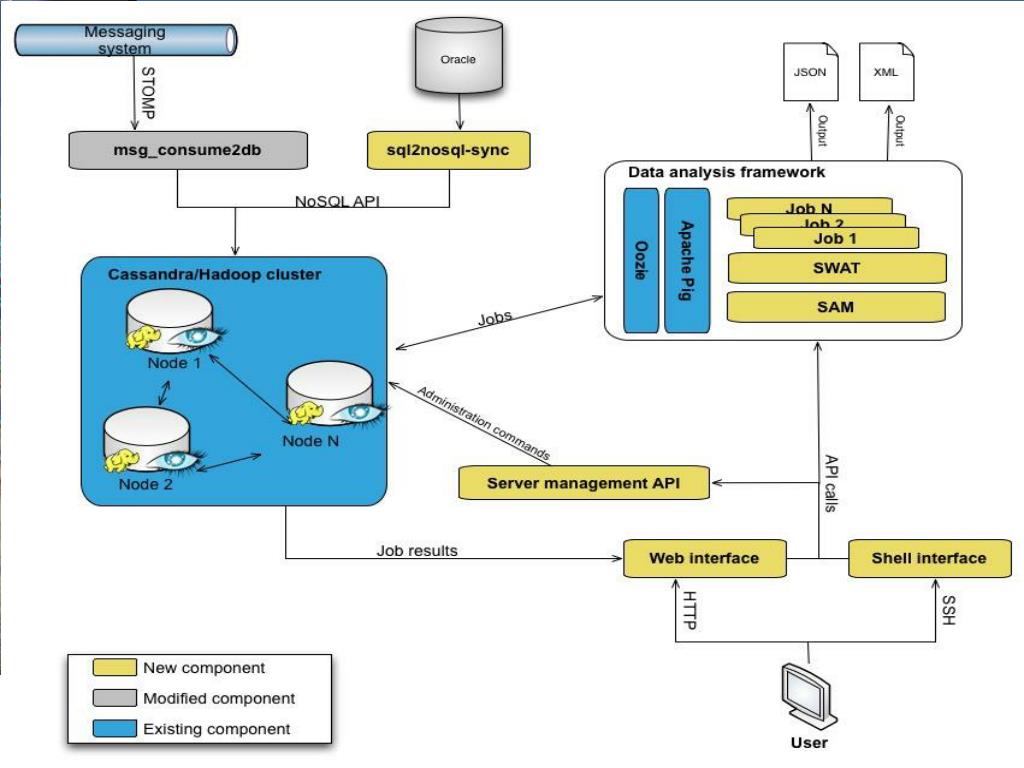

  10. Actual infrastructure 10

  11. Current status • SAM • DONE: running infrastructure reading messaging and SAM data and launch pig jobs to calculate availability. • TODO: • Results tuning • Web interface to visualize the results • JSON/XML API to extract results • Unit testing • SWAT • Early stage of development (~6 days) • Data collection 11

  12. Lessons learned • Use abstraction layer on top of Hadoop • Write pure MapReduce Hadoop apps is difficult and time-consuming • Choose a solution with a responsive community: • Technology in early state(unresolved bugs, undocumented functions), you will need to get in touch with developers/users • Big data needs big platform 12

  13. Lessons learned • Must keep up to date. New companies, technologies and tools are emerging • Twitter real time hadoop about to be released • Cascalog, hadoop data mining language • Bigdata distributions: Cloudera, Datastax, Mapr… 13

  14. Questions? 14
