  1. WORD FORMATTING WITH SPECIAL FEATURES Section 4

  2. Skills • Create and modify WordArt text • Create a drop cap • Insert a text box and draw a text box • Insert and modify shapes • Use SmartArt to create organizational charts and diagrams • Create, format, and modify tables

  3. Skills • Insert one file into another • Insert a continuous section break • Create and modify columns • Save a document as a single file Web page • Insert a hyperlink • Merge letters and envelopes

  4. Creating and Modifying WordArt Text ACTIVITY 4.1 • Open FCTHASpecials.docx then save as WordS4-01. • Complete a spelling and grammar check. • To apply a theme click Page Layout, Themes, then select Flow.

  5. Creating and Modifying WordArt Text ACTIVITY 4.1 • Delete HAWAIIAN SPECIALS. • Position insertion point at beginning of document then click Insert tab. • To insert WordArt, click WordArt, then click fourth option from left in third row (WordArt style 16). • In Edit WordArt Textbox, type HawaiianSpecials thenclick OK.

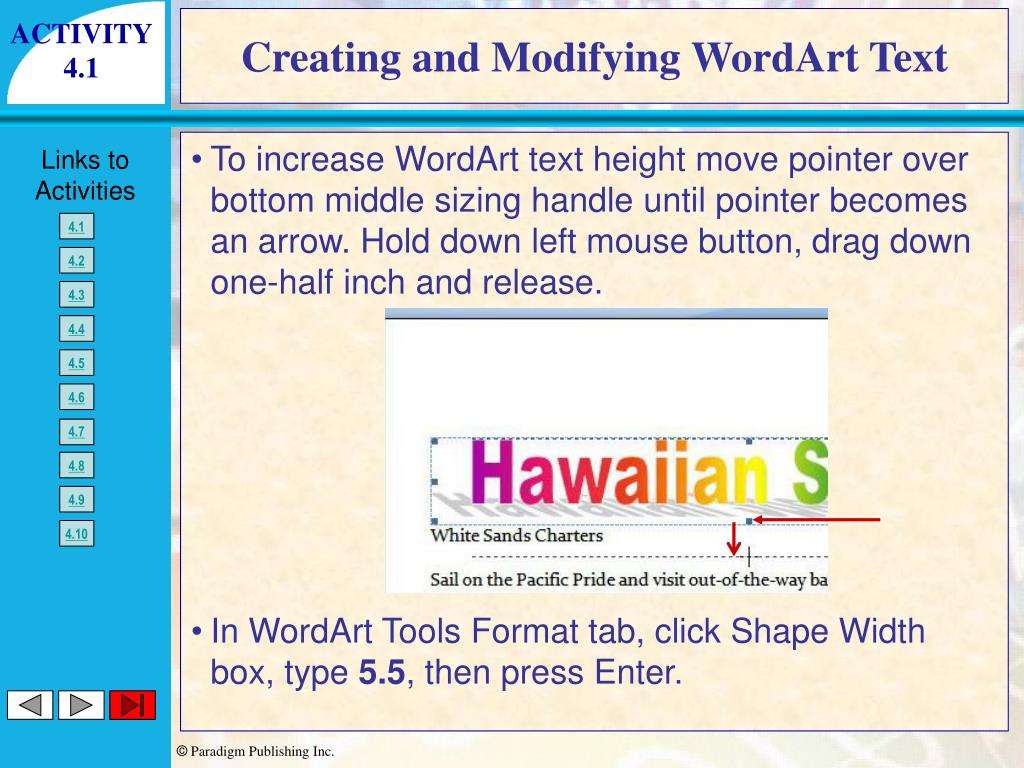

  6. Creating and Modifying WordArt Text ACTIVITY 4.1 • To increase WordArt text height move pointer over bottom middle sizing handle until pointer becomes an arrow. Hold down left mouse button, drag down one-half inch and release. • In WordArt Tools Format tab, click Shape Width box, type 5.5, then press Enter.

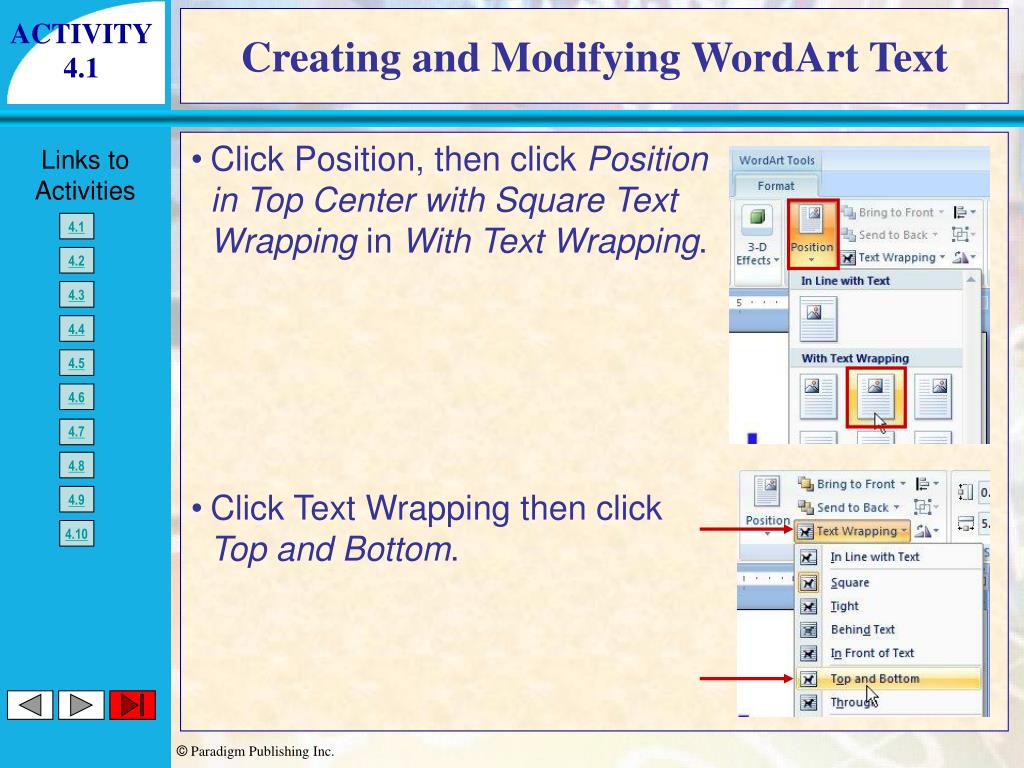

  7. Creating and Modifying WordArt Text ACTIVITY 4.1 • Click Position, then click Positionin Top Center with Square TextWrapping in With Text Wrapping. • Click Text Wrapping then clickTop and Bottom.

  8. Creating and Modifying WordArt Text ACTIVITY 4.1 • In WordArt Tools Format tab, click Shape Outline arrow, then click yellow color. • Click Shadow Effects inShadow Effects group thenclick Shadow Style 20. • Click outside WordArt areato deselect.

  9. Creating and Modifying WordArt Text ACTIVITY 4.1 • Apply Heading 2 style to the following heads: White Sands Charters, Air Adventures, Deep Sea Submarines, Snorkeling Fantasies, and Bicycle Safari. • Press Ctrl + A toselect entiredocument then tochange font colorto blue click Hometab, Font Color,and blue. • Save WordS4-01.docx.

  10. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Open WordS4-01.docx, positioninsertion point in White SandsCharters, click Border arrow inHome tab, then click Bordersand Shading. • Select single line in Style section,click down-pointing arrow in Colorbox and select blue.

  11. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Click bottom of diagram in Preview section. • Click OK to close Borders and Shading box. • Use Repeat command (F4) to apply same border to remaining heads.

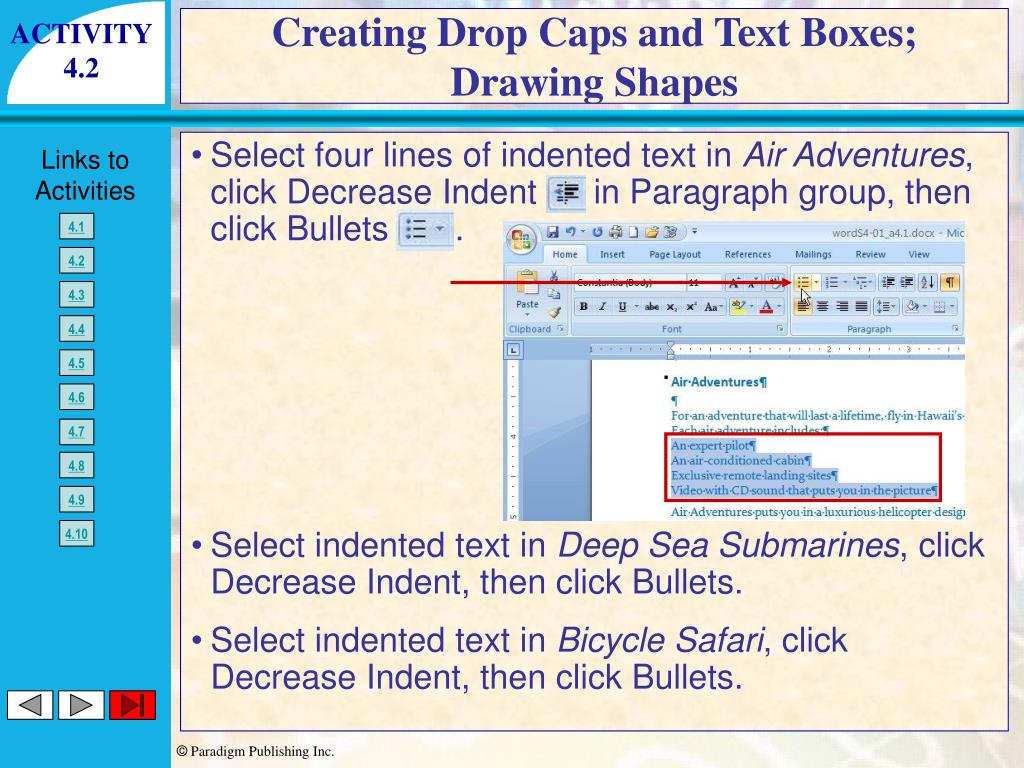

  12. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Select four lines of indented text in Air Adventures, click Decrease Indent in Paragraph group, then click Bullets . • Select indented text in Deep Sea Submarines, click Decrease Indent, then click Bullets. • Select indented text in Bicycle Safari, click Decrease Indent, then click Bullets.

  13. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Move insertion point to beginning of Sail below White Sands Charters then click Insert tab. • Click Drop Cap button in Text group then click Dropped. • Click anywhere on first page to deselect S.

  14. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • To insert a text box onfirst page, click TextBox button in InsertTab, then clickCubicles Quote. • In text box type: Sign up today for your Hawaiian adventure and enjoy spectacular beaches, fly over untouched areas, journey through Hawaii’s natural undersea world, and snorkel in beautiful, out-of-the-way bays.

  15. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Select text, click Home tab, then change font size to 10 and color to purple. • Select text box to position and size box as shown.

  16. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Press Ctrl + End to move insertion point to end of document then press Enter twice. • Click Insert tab then click Shapes. • Click Bevel shape in Basic Shapes.

  17. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Position pointer below text at 0.5-inch mark on ruler, hold down left mouse button, drag down and right until banner is 5 inches wide and 1.5 inches tall, then release mouse button.

  18. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • To apply a shape style click Morein Shape Styles in Drawing ToolsFormat tab then click DiagonalGradient - Access 1. • Select measurement in height box,type 1.5, then press Enter. • Select measurement in width box,type 5, then press Enter.

  19. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • To draw a text box inside shape click Insert tab, Text Box button, and Draw Text Box in drop-down list. • Position crosshairs inside banner then drag to create a text box.

  20. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Click Shape Fill in Text Box Stylesgroup, then click No Fill. • Click Shape Outline button, then clickNo Outline.

  21. Creating Drop Caps and Text Boxes; Drawing Shapes ACTIVITY 4.2 • Click Home tab, change font size to 14 and color to purple. Click Bold, click Italic, click Center then type Sign up today for your Hawaiian adventure! • Press Ctrl + Home to move insertion point to beginning of document. • Save, print, and close WordS4-01.docx.

  22. Using SmartArt to Create an Organizational Chart ACTIVITY 4.3 • Open FCTStructure.docx and save asWordS4-02. • Move insertion point a double space below ORGANIZATIONAL CHART then create chart shown.

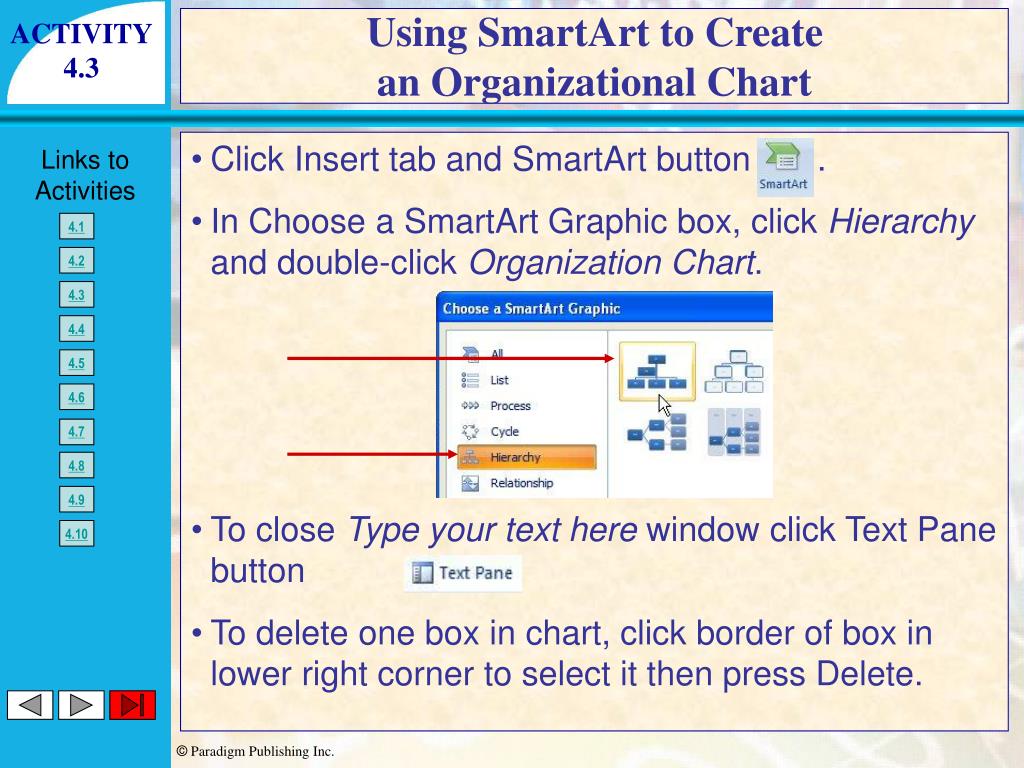

  23. Using SmartArt to Create an Organizational Chart ACTIVITY 4.3 • Click Insert tab and SmartArt button . • In Choose a SmartArt Graphic box, click Hierarchy and double-click Organization Chart. • To close Type your text here window click Text Pane button . • To delete one box in chart, click border of box in lower right corner to select it then press Delete.

  24. Using SmartArt to Create an Organizational Chart ACTIVITY 4.3 • Select bottom right box, click AddShape arrow then click Add ShapeBelow. • Click [Text] in top box, type TerryBlessing, press Enter, then typePresident. Type remaining textas shown.

  25. Using SmartArt to Create an Organizational Chart ACTIVITY 4.3 • Click More button in SmartArtStyles group then click Inset. • Click Change Colors, then clickColorful Range - Accent Colors 3 to 4.

  26. Using SmartArt to Create an Organizational Chart ACTIVITY 4.3 • Click SmartArt Tools Formattab. • Click tab at left side ofdiagram border, then usemouse to select text inType your text here. • Click Change Shape thenclick rounded rectangleshape in Rectanglessection.

  27. Using SmartArt to Create an Organizational Chart ACTIVITY 4.3 • Click Shape Outline, then click dark blue color. • Click Size button, then click up arrow to change Height to 4" and Width to 6.5". • Click outside chart to deselect it. • Save WordS4-02.docx.

  28. Using SmartArt to Create a Diagram ACTIVITY 4.4 • Open WordS4-02.docx, press Ctrl + End to move insertion point below TRAVEL SERVICES on second page. • Click Insert tab then click SmartArt. • In Choose a SmartArt Graphic box, click Cycle, then double-click Radial Cycle diagram.

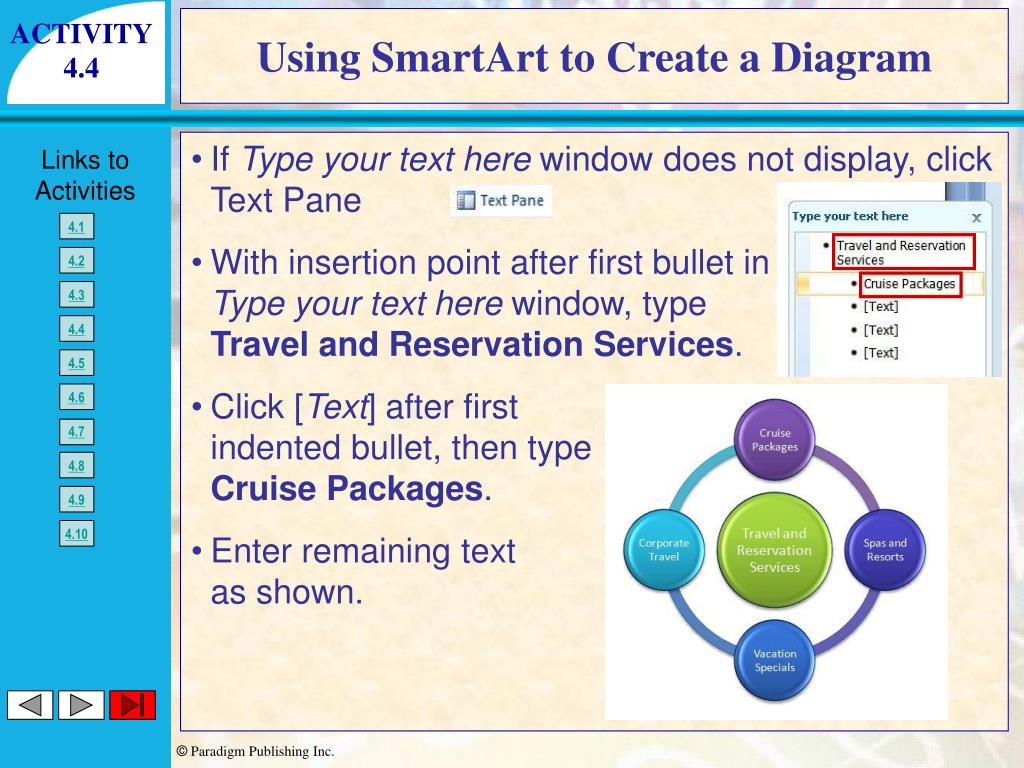

  29. Using SmartArt to Create a Diagram ACTIVITY 4.4 • If Type your text here window does not display, click Text Pane . • With insertion point after first bullet inType your text here window, typeTravel and Reservation Services. • Click [Text] after firstindented bullet, then typeCruise Packages. • Enter remaining textas shown.

  30. Using SmartArt to Create a Diagram ACTIVITY 4.4 • Click More button in SmartArt Styles group, then click Inset in 3-D section. • Click Change Colors, then click Colorful Range -Accent Colors 4 to 5.

  31. Using SmartArt to Create a Diagram ACTIVITY 4.4 • Click SmartArt Tools Format tab. • Use mouse to select text in Typeyour text here window. • Click once on Larger button inShapes group to increase size ofdiagram circles. • Click Shape Outline arrow inShape Styles group thenclick dark blue.

  32. Using SmartArt to Create a Diagram ACTIVITY 4.4 • Click Size then click up arrow to change Height to 4" and Width to 6.5". • Click outside chart to deselect it. • Save, print, then close WordS4-02.docx.

  33. Creating and Modifying a Table ACTIVITY 4.5 • Open FCTIslandFlights.docx then save as WordS4-03. • Press Ctrl + End to move insertion point to end of document. • Click Insert tab then click Tablebutton. • Drag mouse pointer down untilnumber above grid is 3 ´ 6 thenclick mouse button.

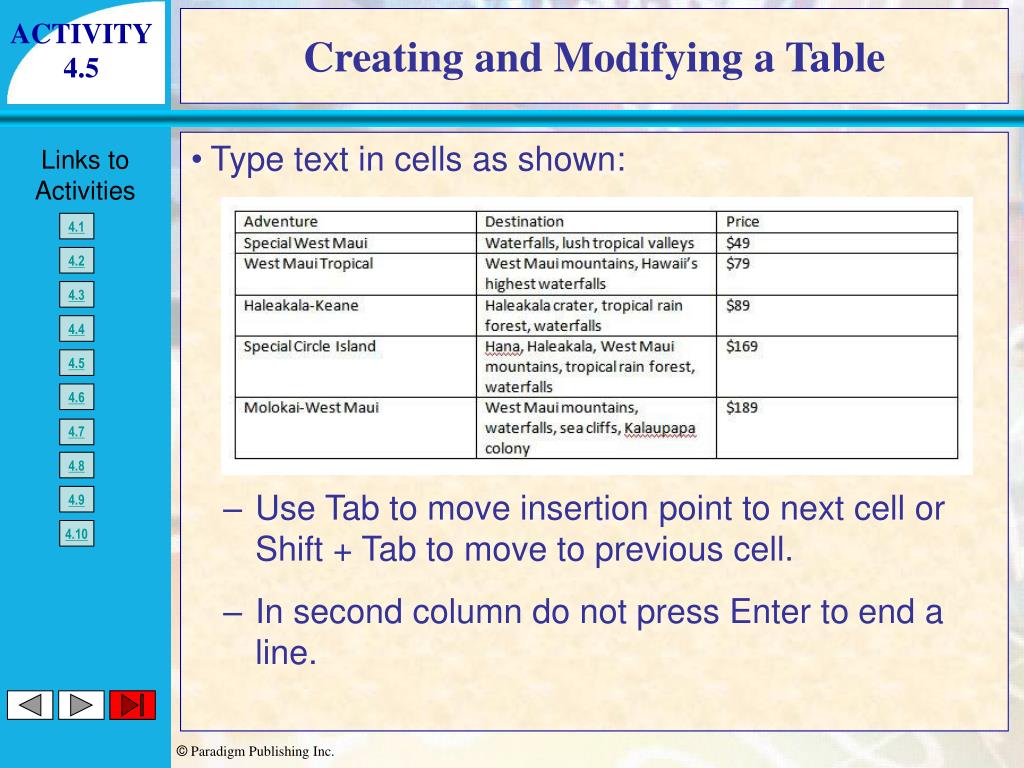

  34. Creating and Modifying a Table ACTIVITY 4.5 • Type text in cells as shown: • Use Tab to move insertion point to next cell or Shift + Tab to move to previous cell. • In second column do not press Enter to end a line.

  35. Creating and Modifying a Table ACTIVITY 4.5 • Do not press Tab after typing in last cell. • To move insertion point to different cells in table, use mouse to click on desired cell. • Press Shift + Tab to select incorrect text in cell, then type correct text.

  36. Creating and Modifying a Table ACTIVITY 4.5 • To add First Choice Travel discount prices to table, position insertion point in Price cell, click Table Tools Layout tab, then click Insert Right button. • Click in top cell of new column,type FCT then press Down Arrowkey. • Type money amounts in remainingcells as shown.

  37. Creating and Modifying a Table ACTIVITY 4.5 • To delete Special Circle Island row, click anywhere in Special Circle Island, click Table Tools Layout tab, click Delete in Rows & Columns group, then click Delete Rows . • To insert a row above Adventure, click anywhere in Adventure, then click Insert Above button in Rows & Columns group. • With new top row selected, to merge cells click Merge Cells button.

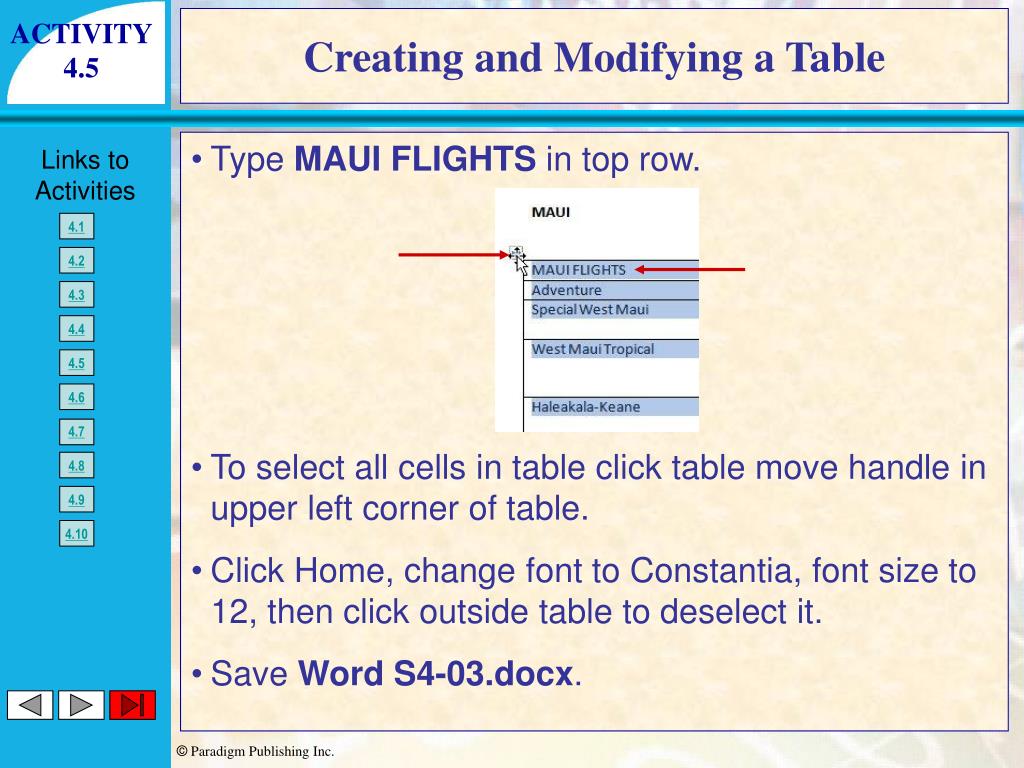

  38. Creating and Modifying a Table ACTIVITY 4.5 • Type MAUI FLIGHTS in top row. • To select all cells in table click table move handle in upper left corner of table. • Click Home, change font to Constantia, font size to 12, then click outside table to deselect it. • Save Word S4-03.docx.

  39. Changing the Table Layout ACTIVITY 4.6 • Open Word S4-03.docx, click in top cell containing MAUI FLIGHTS, click Table Tools Layout tab, then click up-pointing arrow at right of Table Row Height box until 0.4" displays. • Click Insert Left inTable Tools Layout tab. • With cells in newcolumn selected, clickMerge Cells.

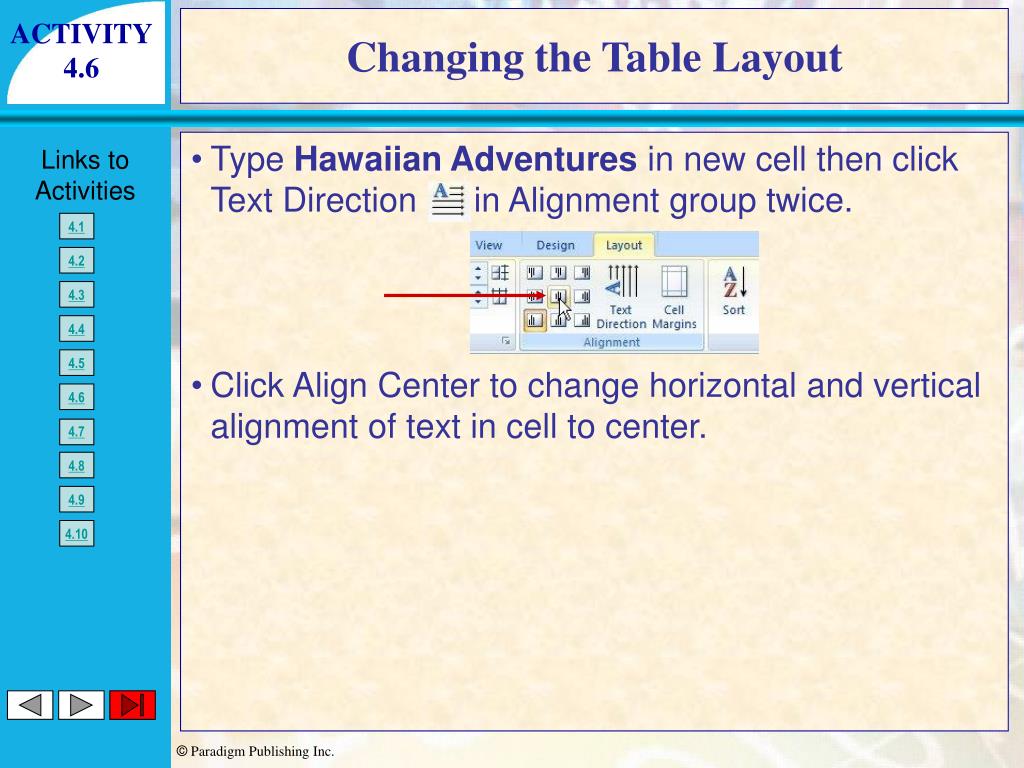

  40. Changing the Table Layout ACTIVITY 4.6 • Type Hawaiian Adventures in new cell then click Text Direction in Alignment group twice. • Click Align Center to change horizontal and vertical alignment of text in cell to center.

  41. Changing the Table Layout ACTIVITY 4.6 • Position mouse pointer on gridline between first and second columns until pointer turns into double-headed arrow. • Hold down left mouse button, drag left until table column marker displays at 0.5-inch mark on ruler, then release mouse.

  42. Changing the Table Layout ACTIVITY 4.6 • Position mouse pointer on gridline between fourth and fifth columns until pointer turns into double-headed arrow. • Drag left until table columnmarker displays at 5.5-inch mark on ruler. • Drag gridline between third and fourth columns to left until table column marker displays at 4.5-inch mark on ruler. • Drag gridline between second and third columns right until table column marker displays at 2.25-inch mark on ruler.

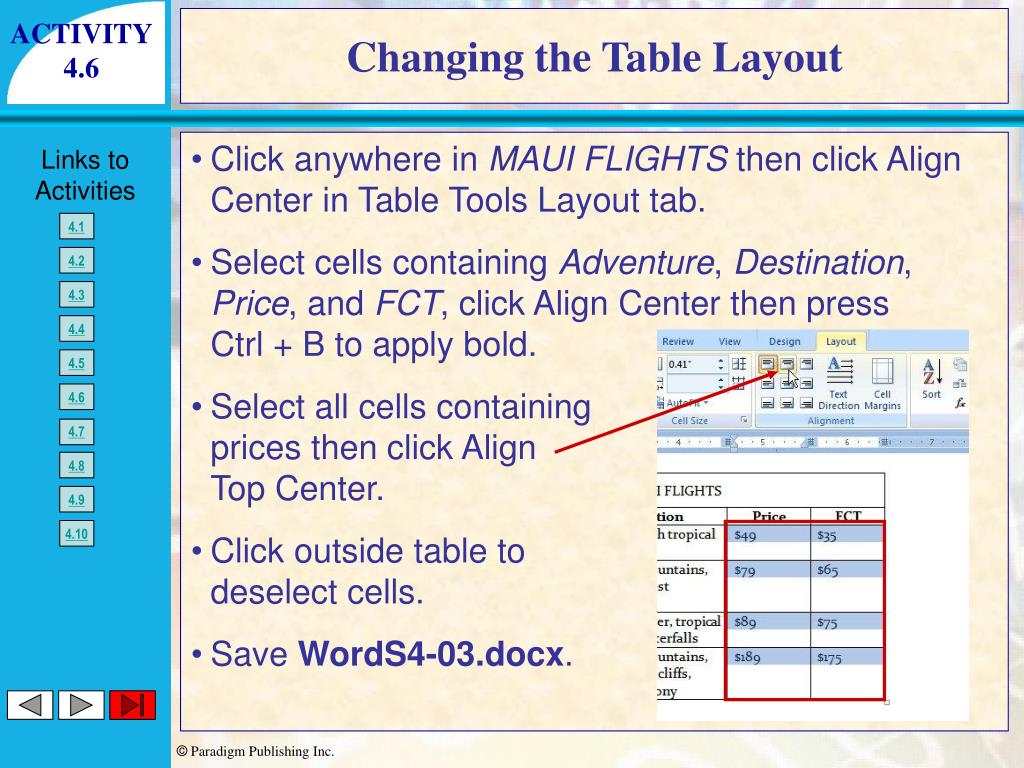

  43. Changing the Table Layout ACTIVITY 4.6 • Click anywhere in MAUI FLIGHTS then click Align Center in Table Tools Layout tab. • Select cells containing Adventure, Destination, Price, and FCT, click Align Center then press Ctrl + B to apply bold. • Select all cells containingprices then click AlignTop Center. • Click outside table todeselect cells. • Save WordS4-03.docx.

  44. Selecting Cells with the Keyboard • Tab to select next cell’s contents • Shift + tab to select preceding cell’s content • Alt + 5 (on keypad with Num Lock off) to select entire table • Hold Shift key then press an arrow key to select adjacent cells. • Position insertion point in top cell of column, hold down shift key, and press Down Arrow key until column is selected.

  45. Changing the Table Design ACTIVITY 4.7 • Open WordS4-03.docx, select MAUI FLIGHTS, click Home tab then change font size to 16 and bold. • Select Hawaiian Adventures, change font size to 14, then make bold and italic.

  46. Changing the Table Design ACTIVITY 4.7 • Click in table then click Table Tools Design. • Click More button then clickMedium Shading 1 - Accent 5. • To experiment with anotherstyle, click More in TableStyles group then clickMedium Shading 1 - Accent 1.

  47. Changing the Table Design ACTIVITY 4.7 • To change format, click Banded Rows in Table Style Options to remove check mark, click Banded Columns to add check mark, click Header Row and First Column to remove check marks. • Save and print WordS4-03.docx.

  48. Changing the Table Design ACTIVITY 4.7 • Select Table Tools Design tab and click in a table cell, then click Header Row and First Column to insert check marks. • Click Banded Columns to remove check mark and click Banded Rows to insertcheck mark. • Click More in Table Styles group,click Colorful List - Accent 3. • Save, print, and closeWordS4-03.docx.

  49. Inserting a File and Section Break;Creating and Modifying Newspaper Columns ACTIVITY 4.8 • Open FCTPA03.docx and save as WordS4-04. • Press Ctrl + End then click Insert tab. • Insert a document byclicking Object arrowthen Text from File. • At Insert File box, navigateto WordS4 folder anddouble-click FCTPAActivities.docx. • Select inserted text and change font to Constantia.

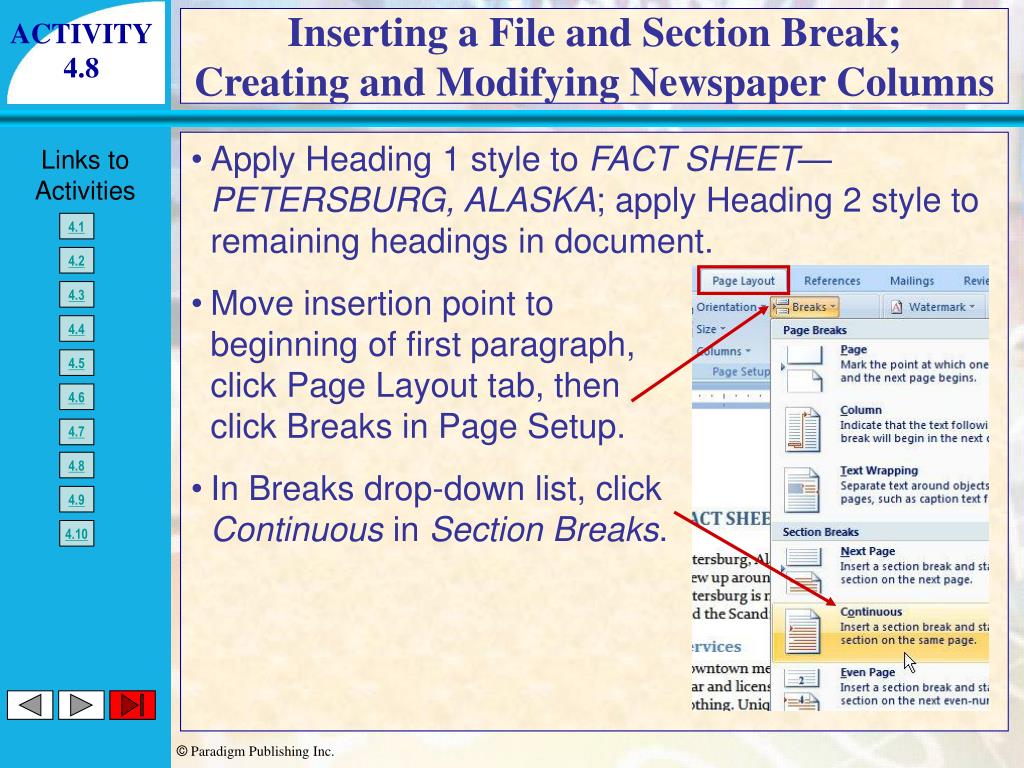

  50. Inserting a File and Section Break;Creating and Modifying Newspaper Columns ACTIVITY 4.8 • Apply Heading 1 style to FACT SHEET—PETERSBURG, ALASKA; apply Heading 2 style to remaining headings in document. • Move insertion point tobeginning of first paragraph,click Page Layout tab, thenclick Breaks in Page Setup. • In Breaks drop-down list, clickContinuous in Section Breaks.
