  1. 8 Introduction to Humdrum Mus 253/CS 275A Stanford University Winter Quarter

  2. Encoding systems: Goals, Means, Syntax • Binary; time-ordered;var-length; score Types 0, 1] • MIDI: Sound • Event-based 2009 Eleanor Selfridge-Field

  3. Encoding systems: Goals, Means, Syntax • Binary; time-ordered;var-length; score Types 0, 1] • ASCII; score/spatially- ordered; var. no fields • MIDI: Sound • SCORE: Graphics • Event-based • Object-based 2009 Eleanor Selfridge-Field

  4. Encoding systems: Goals, Means, Syntax • Binary; time-ordered;var-length; score Types 0, 1] • ASCII; score/spatially- ordered; var. no fields • ASCII; fixed/expandable; part-ordered [=MIDI Type 1] • MIDI: Sound • SCORE: Graphics • MuseData: Core rep. • Event-based • Object-based • Event-based 2009 Eleanor Selfridge-Field

  5. Encoding systems: Goals, Means, Syntax • Binary; time-ordered;var-length; score Types 0, 1] • ASCII; score/spatially- ordered; var. no fields • ASCII; fixed/expandable; part-ordered [=MIDI Type 1] • ASCII; fixed/expandable; time- or score-ordered • MIDI: Sound • SCORE: Graphics • MuseData: Core rep. • MusicXML: interchange • Event-based • Object-based • Event-based • Attribute-based 2009 Eleanor Selfridge-Field

  6. Encoding systems: Goals, Means, Syntax • Binary; time-ordered;var-length; score Types 0, 1] • ASCII; score/spatially- ordered; var. no fields • ASCII; fixed/expandable; part-ordered [=MIDI Type 1] • ASCII; fixed/expandable; time- or score-ordered • ASCII; score-ordered but no spatial information [=MIDI Type 0]; selective attribute encoding permitted • MIDI: Sound • SCORE: Graphics • MuseData: Core rep. • MusicXML: interchange • **kern: Analysis data • Event-based • Object-based • Event-based • Attribute-based • Event-based 2009 Eleanor Selfridge-Field

  7. Humdrum: Goal and History Goal: encoding for analysis Inventor: David Huron Orientation: Context-free grammar • Adaptable to many repertories • Features and representations can be extended • Features can be minimized • Data content sometimes unpredictable 2009 Eleanor Selfridge-Field

  8. A Humdrum File • !!!OTL: Frere Jacques • !!!YEC: ESF 1999 • **kern **text • *M4/4 • *k[ ] * • !soprano !lyrics • !!First phrase • =1 =1 • 4c Fre- • 4d re • 4e Jac- • 4c ques, • =2 =2 • 4c Fre- • 4d re • 4e Jac- • 4c ques, . …………. Spines !!Fourth phrase =7 =7 4c Din, 4G don, 2c din. =8 =8 4c Din, 4G don, 2c din. =9 =9 *- *- 2009 Eleanor Selfridge-Field

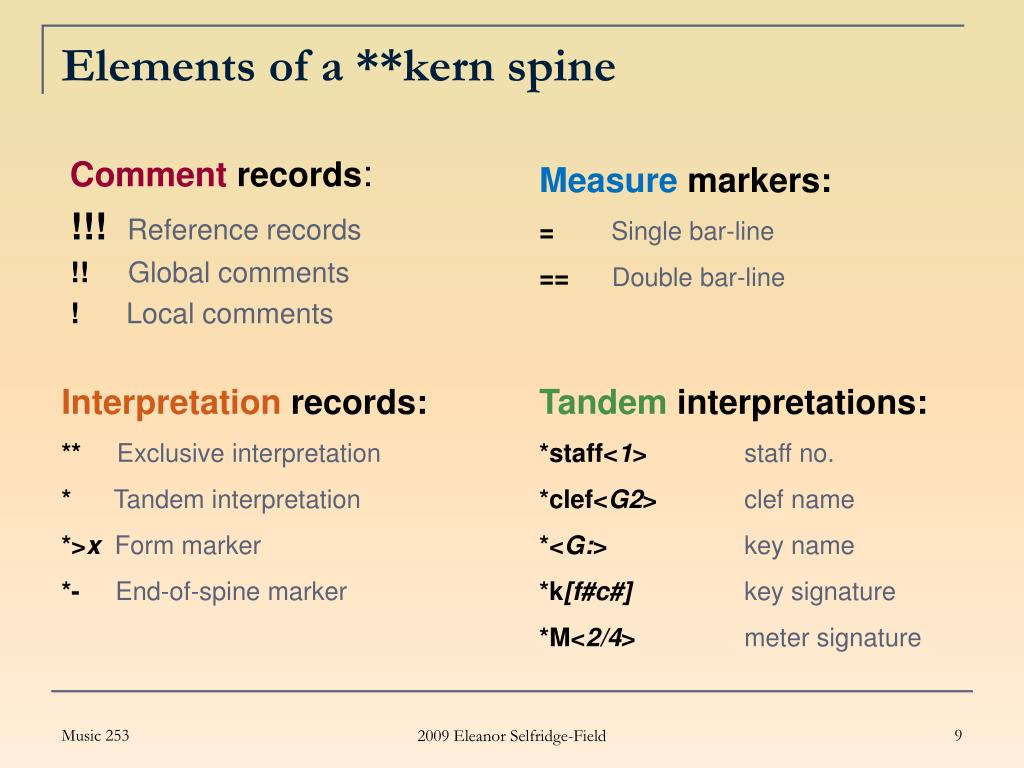

  9. Elements of a **kern spine Measure markers: =Single bar-line ==Double bar-line Comment records: !!!Reference records !! Global comments ! Local comments Interpretation records: **Exclusive interpretation *Tandem interpretation *>xForm marker *-End-of-spine marker Tandem interpretations: *staff<1> staff no. *clef<G2> clef name *<G:> key name *k[f#c#]key signature *M<2/4> meter signature 2009 Eleanor Selfridge-Field

  10. Singer's Humdrum Explorer (Win) 2009 Eleanor Selfridge-Field

  11. Uses of Humdrum Bret Aarden (2000): GPS-based localization of musical features Jane Singer (2000): Melodic analysis 2009 Eleanor Selfridge-Field

  12. Uses…. Veltman (2002) Accent in Palestrina 2009 Eleanor Selfridge-Field

  13. Humdrum Operations Unix-based Unix regular expressions (grep) Humdrum-specific File-manipulation commands (assemble, yank) Sound-management tools (record, perform) Pitch re-identification tools (frequency, cents) Duration and accent tools (beat, accent pos.) Melody tools (e.g. melodic intervals) Harmony tools (e.g. harmonic intervals) 2009 Eleanor Selfridge-Field

  14. Kornstaedt: scr2hdm [Score to Humdrum] **kern **layout *Icor *SCORE *Itrd4c7 * =1 =1 *clefG2 * *M4/4 * 4G 1 14 13.3602 2 10 0 1| 16 14 13.6785 17 1 1 0 0 0 0 0 13 13.2094 dolcissimo| 5 14 14.4385 10.5 ... 4c 1 14 19.5083 5 10 0 1 4c 1 14 25.654 5 10 0 1|5 14 27.0518 8 10 32.0118 1.348 -1 4e 1 14 31.7996 7 10 0 1|14 14 37.9542 1 =2 =2 ... ... 2009 Eleanor Selfridge-Field
