Using `dlmread` for ASCII Delimited Data Import in MATLAB

The `dlmread` function in MATLAB is essential for reading ASCII-delimited numeric data files into matrices. It automatically infers delimiters based on the file's formatting, ensuring organized rows and columns without gaps. Syntax options allow for various configurations, such as specifying delimiters, rows, and columns. With practical examples like analyzing NACA airfoil data and sales figures, `dlmread` simplifies data extraction and processing in aerospace and business contexts. Understand when and how to use `dlmread` effectively for your data analysis needs.

bono
Télécharger la présentation

Using `dlmread` for ASCII Delimited Data Import in MATLAB

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ArraysNumerical Data Files dlmread()

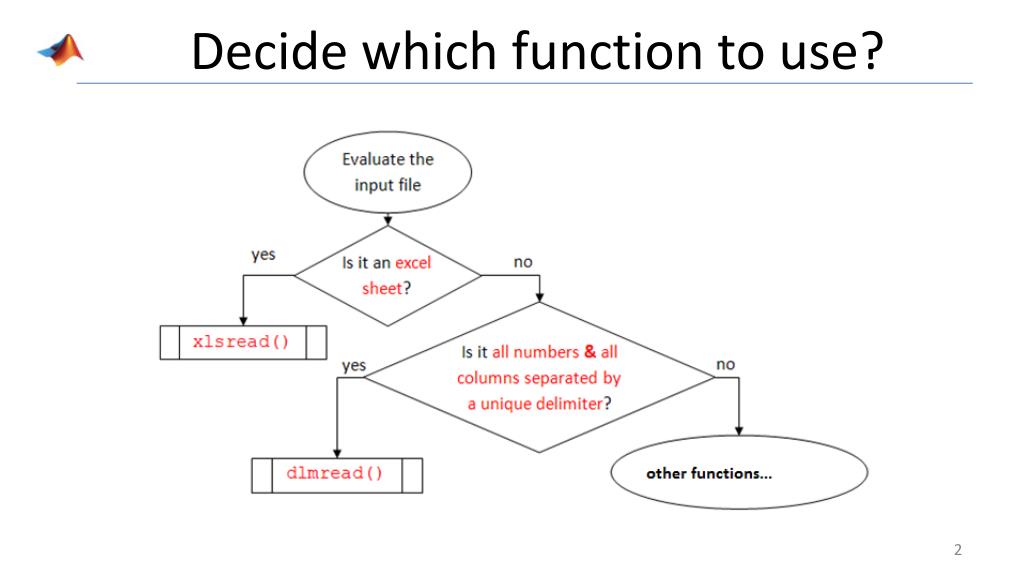

  2. Decide which function to use?

  3. “Unique Delimiter” • “Neatly Organized” • Rows and Columns are “identifiable” • No “holes” anywhere • Always the same patterns per line • There is no mixes of delimiters (commas, spaces, tabs, dash.. )

  4. dlmread() ok?

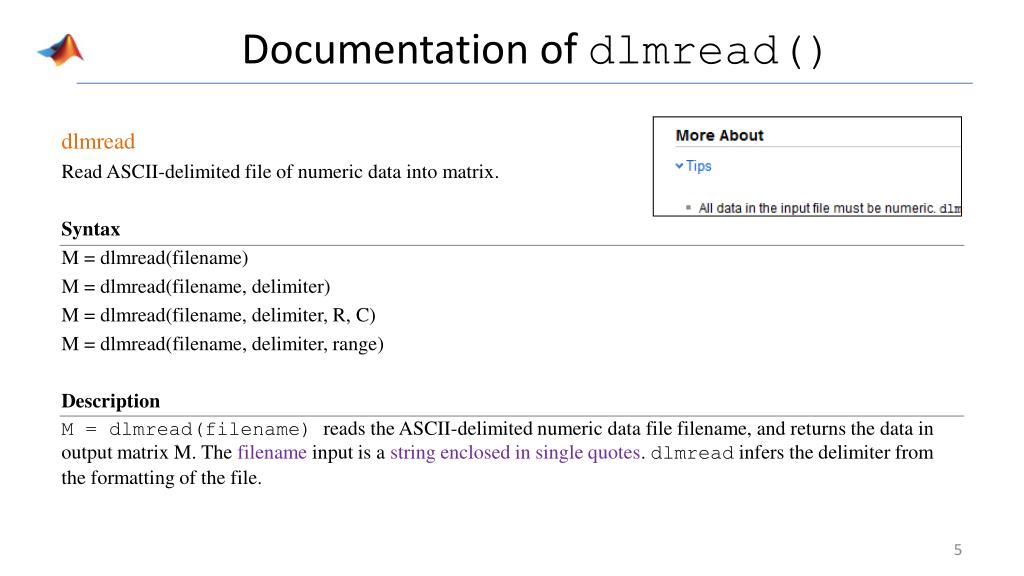

  5. Documentation of dlmread() dlmread Read ASCII-delimited file of numeric data into matrix. Syntax M = dlmread(filename) M = dlmread(filename, delimiter) M = dlmread(filename, delimiter, R, C) M = dlmread(filename, delimiter, range) Description M = dlmread(filename) reads the ASCII-delimited numeric data file filename, and returns the data in output matrix M. The filename input is a string enclosed in single quotes. dlmread infers the delimiter from the formatting of the file.

  6. Example 1 Airfoils & Plotting

  7. Example Aerospace NACA Airfoils The NACA airfoils are airfoils shapes for aircraft wings developed by the National Advisory Committee for Aeronautics (NACA). (Wikipedia) http://en.wikipedia.org/wiki/NACA_airfoil http://www.ae.illinois.edu/m-selig/ads/coord_database.html#N

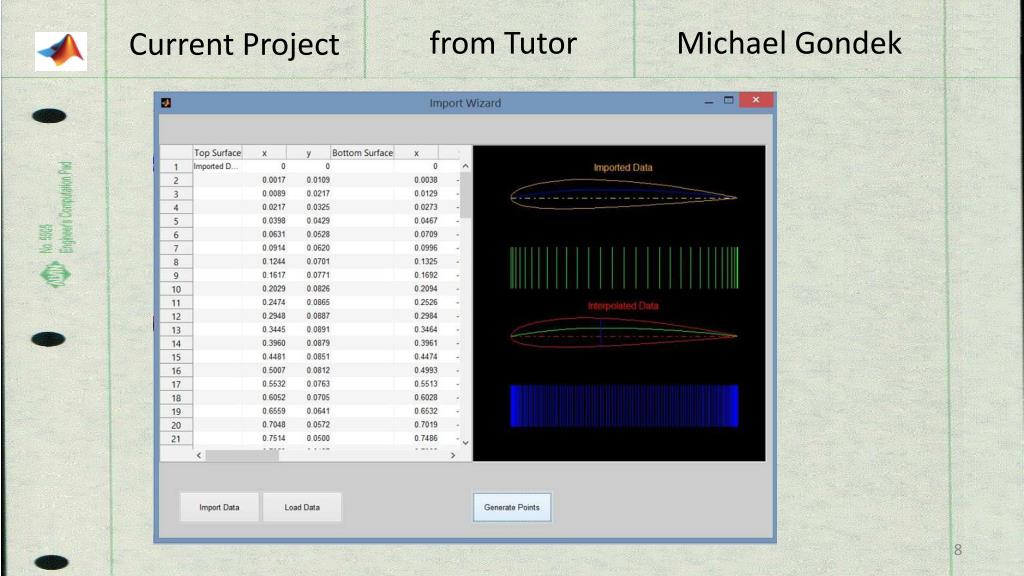

  8. Current Project from Tutor Michael Gondek

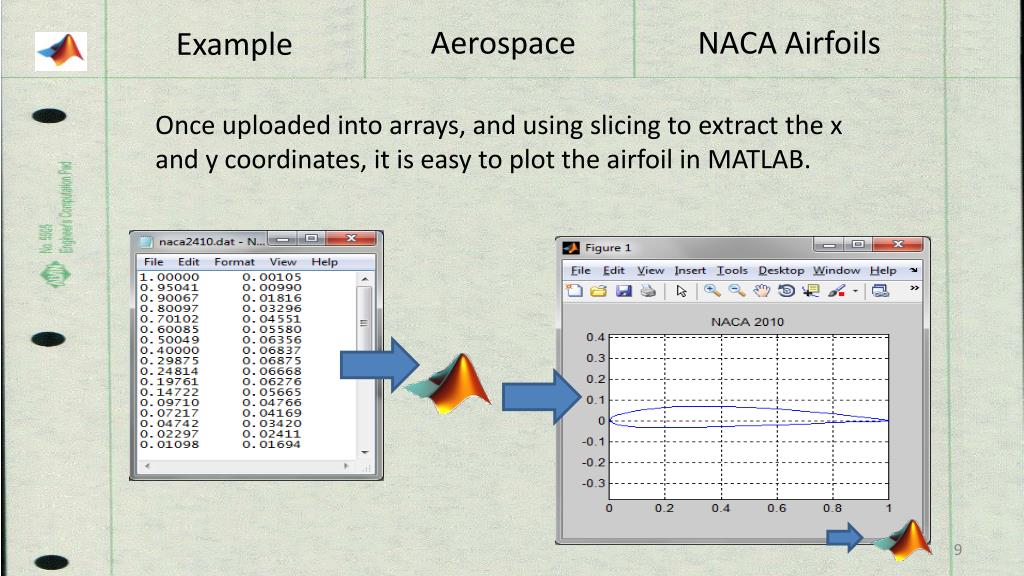

  9. Example Aerospace NACA Airfoils Once uploaded into arrays, and using slicing to extract the x and y coordinates, it is easy to plot the airfoil in MATLAB.

  10. Example 2 Analyzing Sales

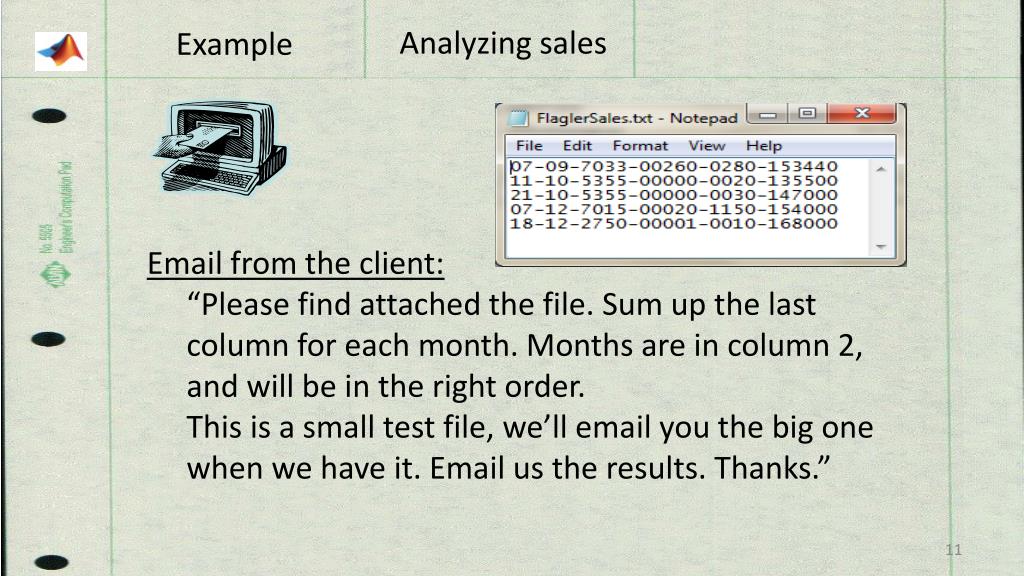

  11. Example Analyzing sales Email from the client: “Please find attached the file. Sum up the last column for each month. Months are in column 2, and will be in the right order. This is a small test file, we’ll email you the big one when we have it. Email us the results. Thanks.”

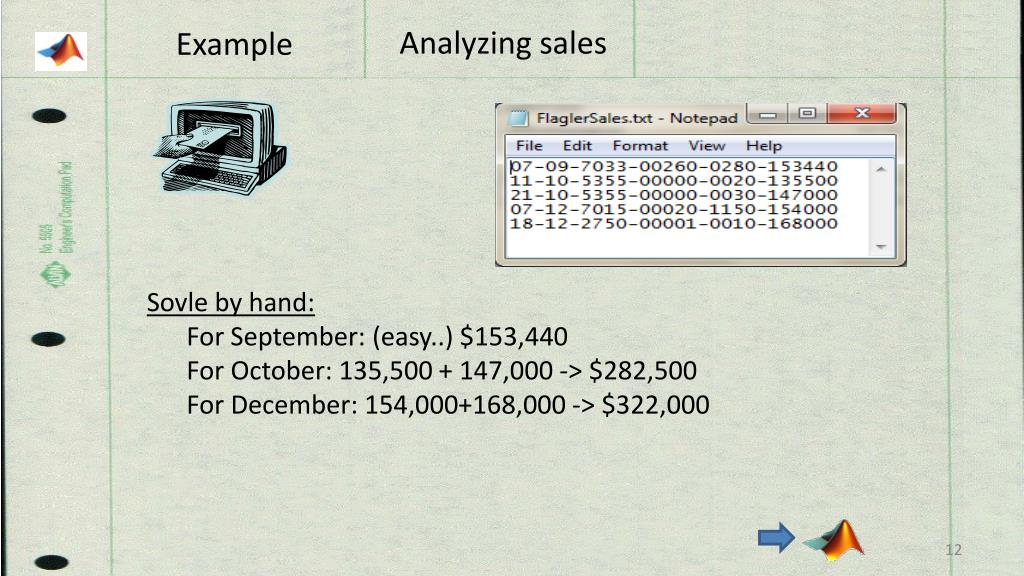

  12. Example Analyzing sales Sovle by hand: For September: (easy..) $153,440 For October: 135,500 + 147,000 -> $282,500 For December: 154,000+168,000 -> $322,000

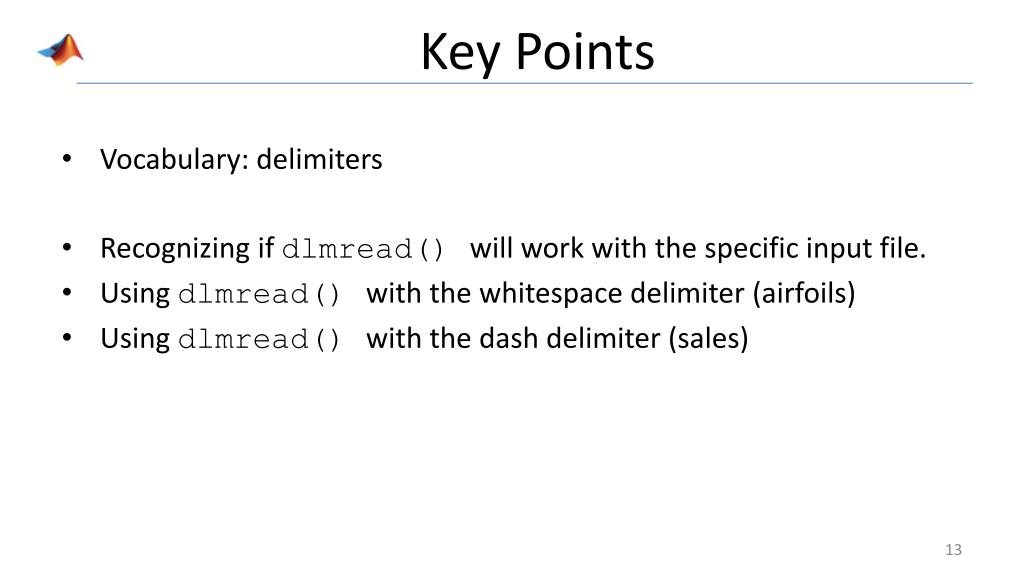

  13. Key Points • Vocabulary: delimiters • Recognizing if dlmread() will work with the specific input file. • Using dlmread() with the whitespace delimiter (airfoils) • Using dlmread() with the dash delimiter (sales)
