Operating system security

1. Operating system security Aalto University, autumn 2012

2. Outline Access control models in operating systems: • Unix • Windows Acknowledgements: This lecture material is based on a joint course with Dieter Gollmann

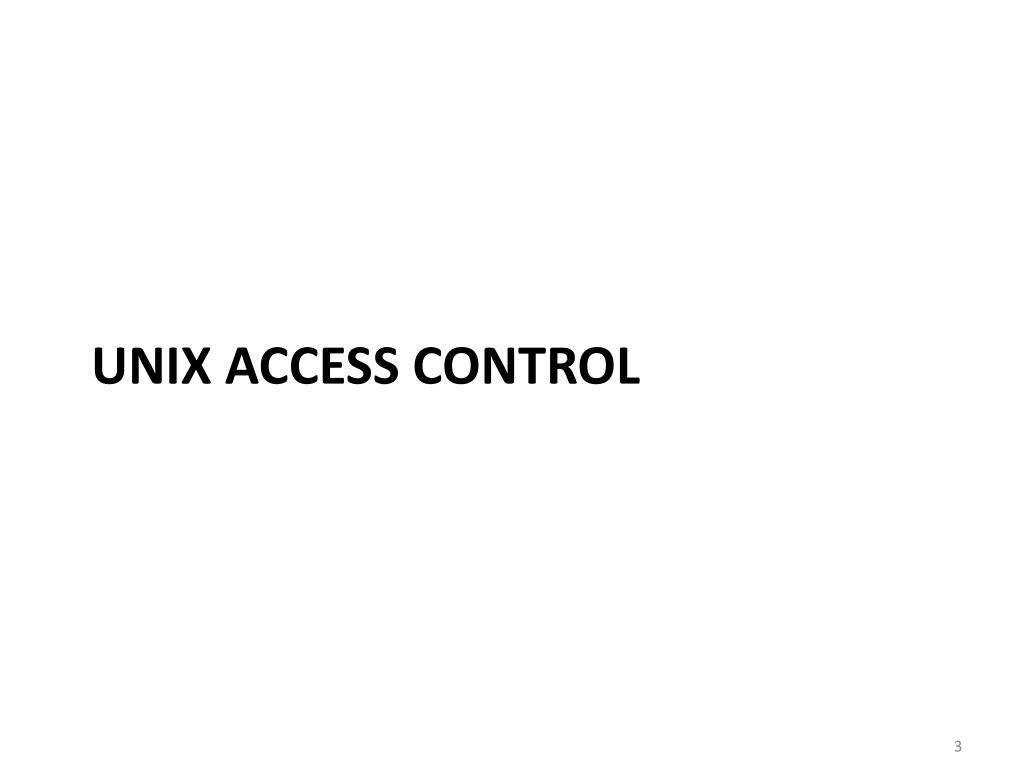

3. Unix accesscontrol

4. Principals • Users and groups are the principals • Users have username and user identifier (UID) • Groups have group name, group identifier (GID) • UID and GID are usually 16-bit numbers 0 = root 19057 = aura 100 = users • Both names and identifiers are permanent; difficult to change once selected • UID values often differ from system to system

5. User accounts • User accounts are stored in /etc/passwd • User account format: username:password:UID:GID:name:homedir:shell • Example: root:7kSSI2k.Df:0:0:root:/root:/bin/bash mail:x:8:12:mail:/var/spool/mail: news:x:9:13:news:/var/spool/news: ace:69geDfelkw:500:103:Alice:/home/ace:/bin/bash carol:7fkKdefh3d:501:102:Carol:/home/carol:/bin/nologin tuomas:*:502:102:Tuomas Aura:/home/tuomas:/bin/tcsh al::503:102::/home/al:/bin/bash dieter:RT.QsZEEsxT92:10026:53:Dieter Gollmann:/home/staff/dieter:/bin/bash

6. Superuser • The superuseris a special privileged principal with UID zero and usually the user name root • There are few restrictions on the superuser • All security checks are turned off for the superuser • The superuser can become any other user • Examples: • The superuser cannot write to a read-only file system but can remount it as writeable • The superuser cannot decrypt passwords (because they are hash values) but can reset them

7. Groups • Users belong to one or more groups • The file /etc/group contains a list of all groups; file entry format: groupname:password:GID:list of users • Example: infosecwww:*:209:carol,al • Every user belongs to a primary group; the group ID (GID) of the primary group is stored in /etc/passwd • Depending on the Unix OS, user can belong to only one or many groups at the same time • Usually only superuser can add groups and members • Use the groupscommand to see your groups

8. Subjects • The subjectsin Unix are processes; a process has a process ID (PID) • Processes can create new processes • Processes have a real UID and an effective UID (similarly for GID) • Real UID/GID: inherited from the parent; typically UID/GID of the user logged in • Effective UID/GID: inherited from the parent process or from the file being executed

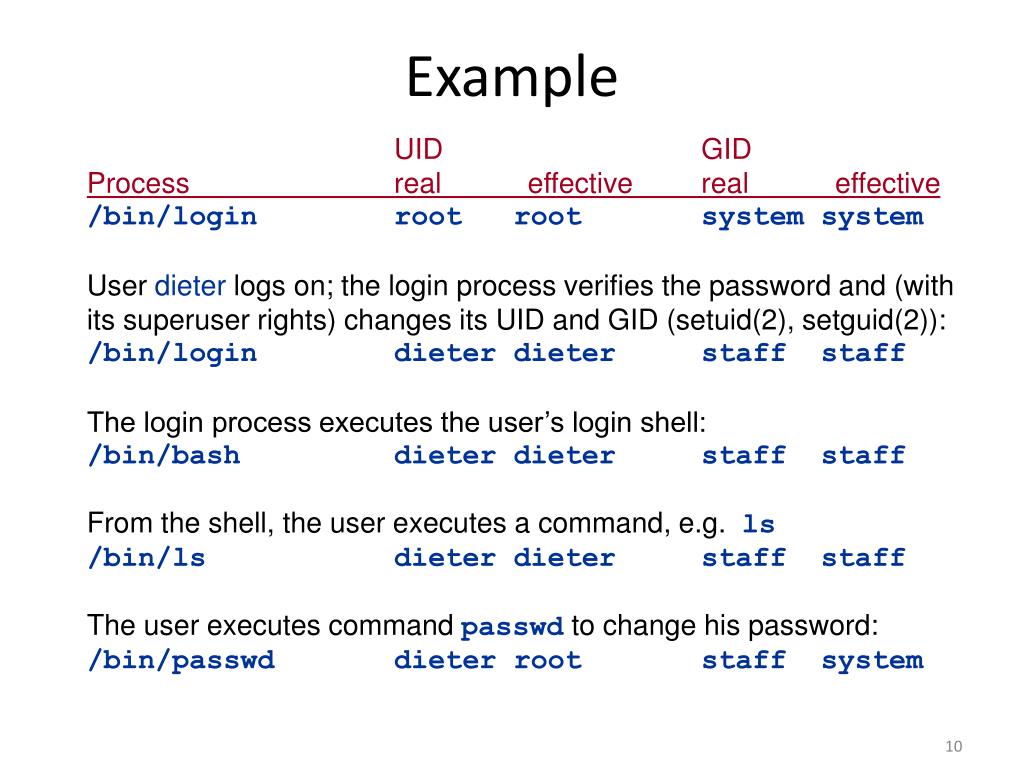

9. Example UID GID Process real effective real effective /bin/login root root system system User dieter logs on; the login process verifies the password and (with its superuser rights) changes its UID and GID (setuid(2), setguid(2)): /bin/login dieter dieter staff staff The login process executes the user’s login shell: /bin/bash dieter dieter staff staff From the shell, the user executes a command, e.g. ls /bin/ls dieter dieter staff staff The user executes command passwd to change his password: /bin/passwd dieter root staff system

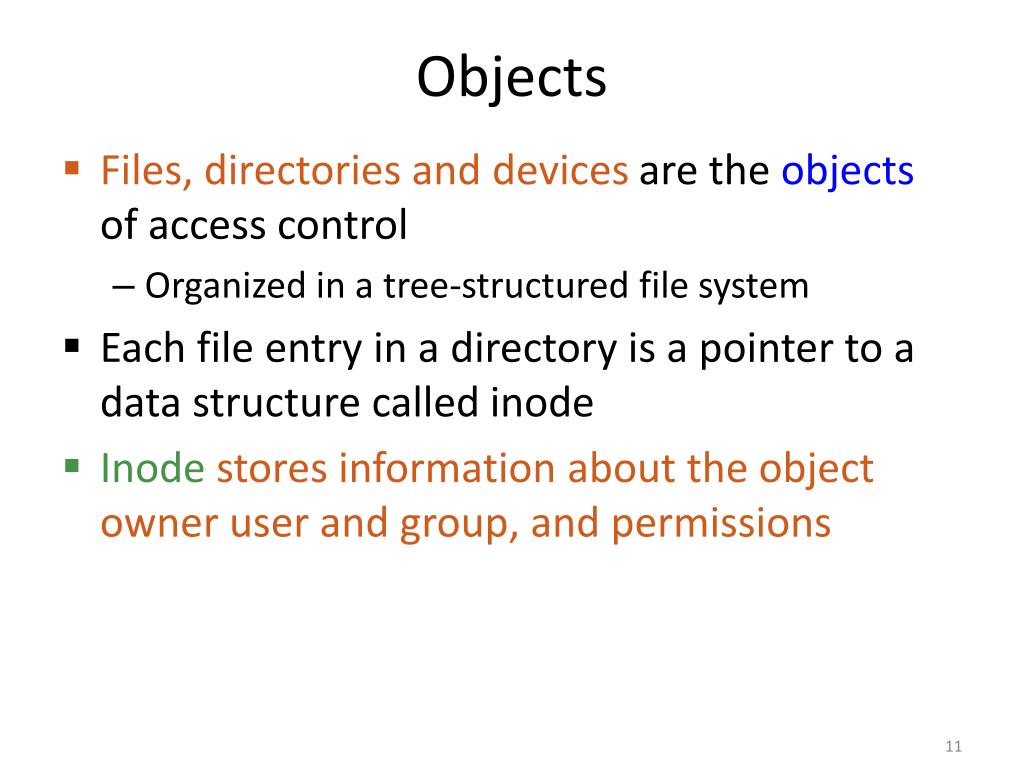

10. Objects • Files, directories and devices are the objectsof access control • Organized in a tree-structured file system • Each file entry in a directory is a pointer to a data structure called inode • Inodestores information about the object owner user and group, and permissions

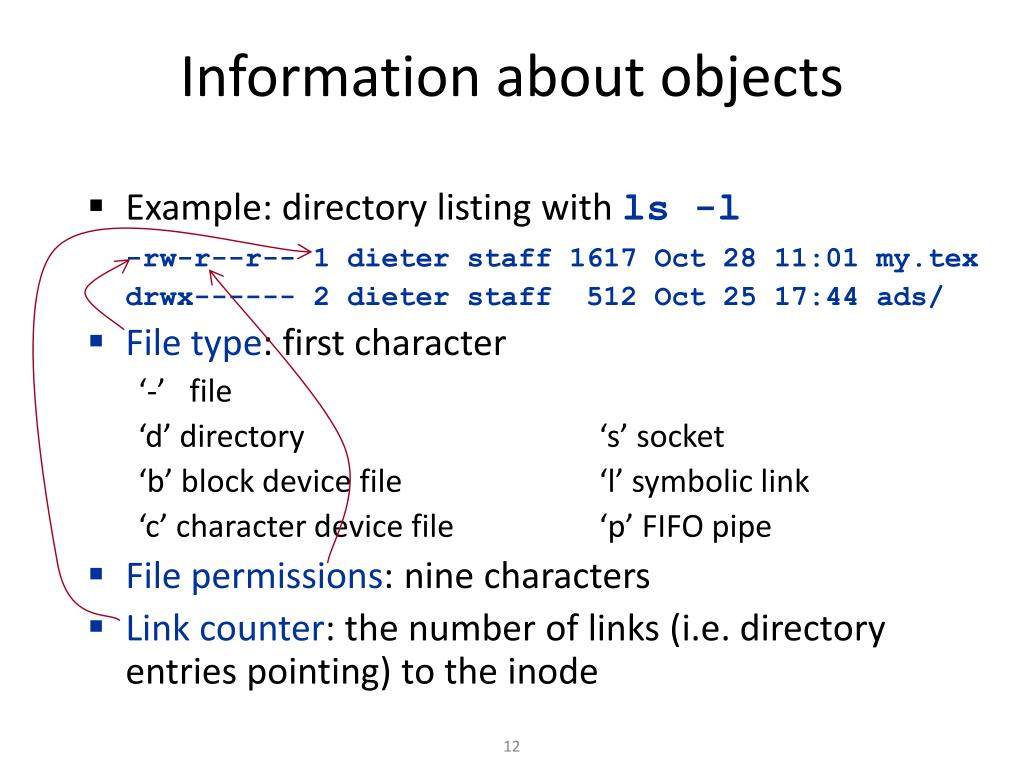

11. Information about objects • Example: directory listing with ls -l -rw-r--r-- 1 dieter staff 1617 Oct 28 11:01 my.tex drwx------ 2 dieter staff 512 Oct 25 17:44 ads/ • File type: first character ‘-’ file ‘d’ directory ‘s’ socket ‘b’ block device file ‘l’ symbolic link ‘c’ character device file ‘p’ FIFO pipe • File permissions: nine characters • Link counter: the number of links (i.e. directory entries pointing) to the inode

12. Information about objects -rw-r--r-- 1 dieter staff 1617 Oct 28 11:01 my.tex drwx------ 2 dieter staff 512 Oct 25 17:44 ads/ • Username of the owner: usually the user that has created the file • Group: a newly created file usually belongs to its creator’s primary group • File size, modification time, filename • Owner and root can change permissions (chmod); root can change the file owner and group (chown) • User can change the file group to of its own groups • Filename is stored in the directory, not in inode

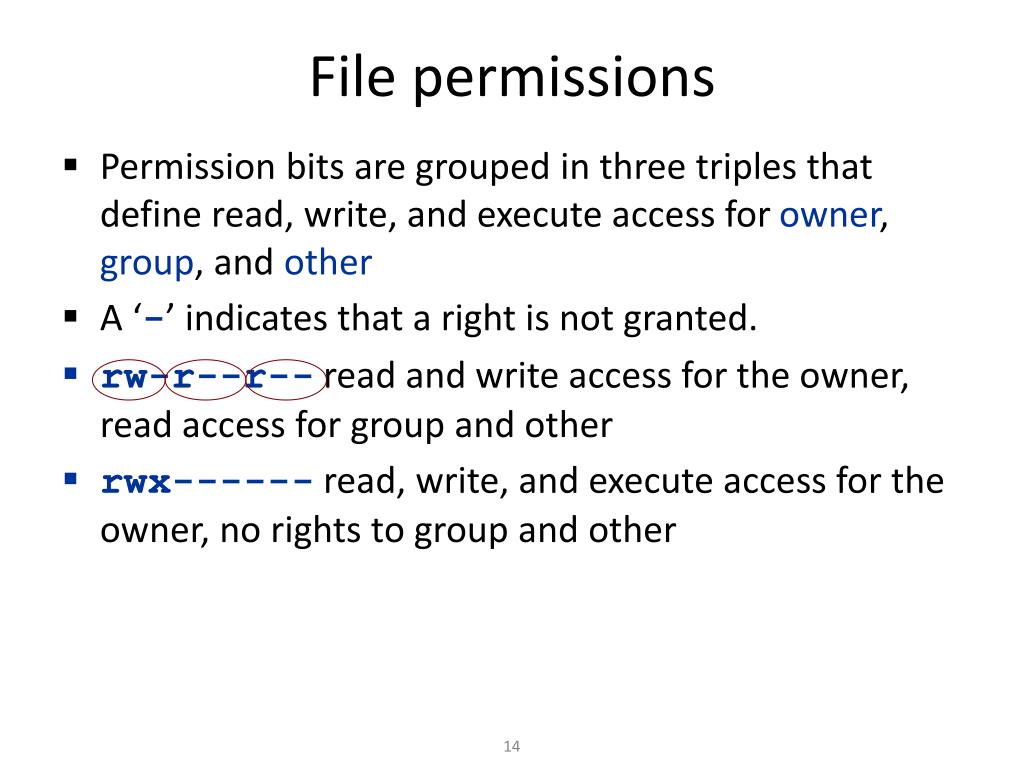

13. File permissions • Permission bits are grouped in three triples that define read, write, and execute access for owner, group, and other • A ‘-’ indicates that a right is not granted. • rw-r--r-- read and write access for the owner, read access for group and other • rwx------ read, write, and execute access for the owner, no rights to group and other

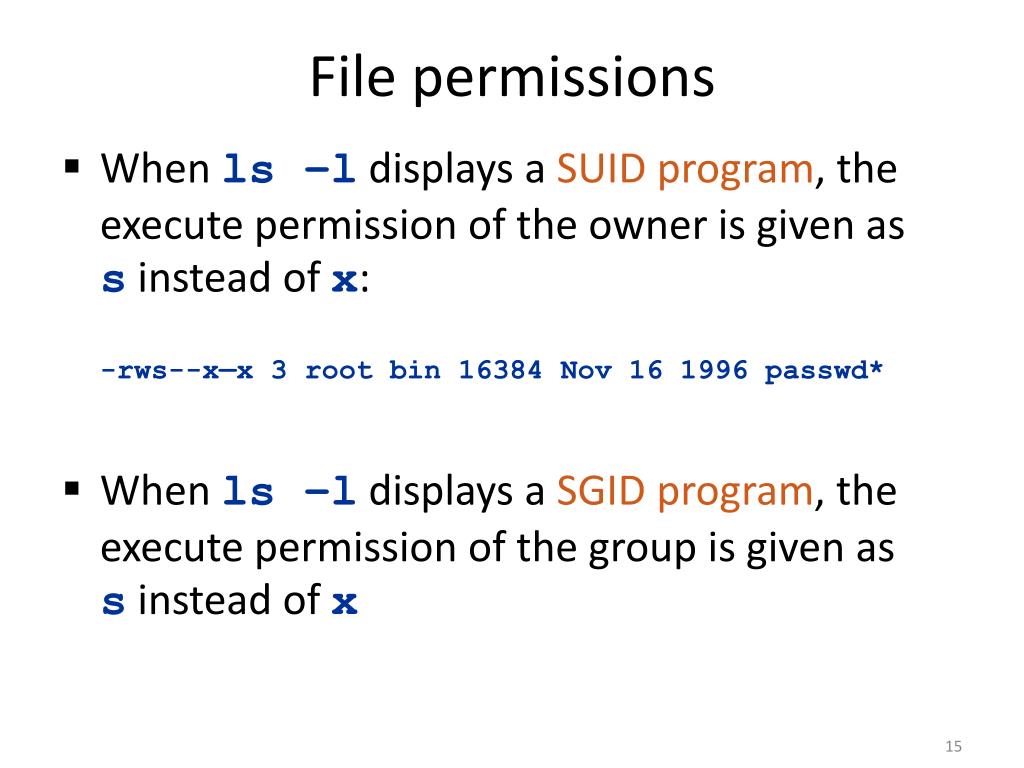

14. File permissions • When ls –l displays a SUID program, the execute permission of the owner is given ass instead of x: -rws--x—x 3 root bin 16384 Nov 16 1996 passwd* • When ls –l displays a SGID program, the execute permission of the group is given ass instead of x

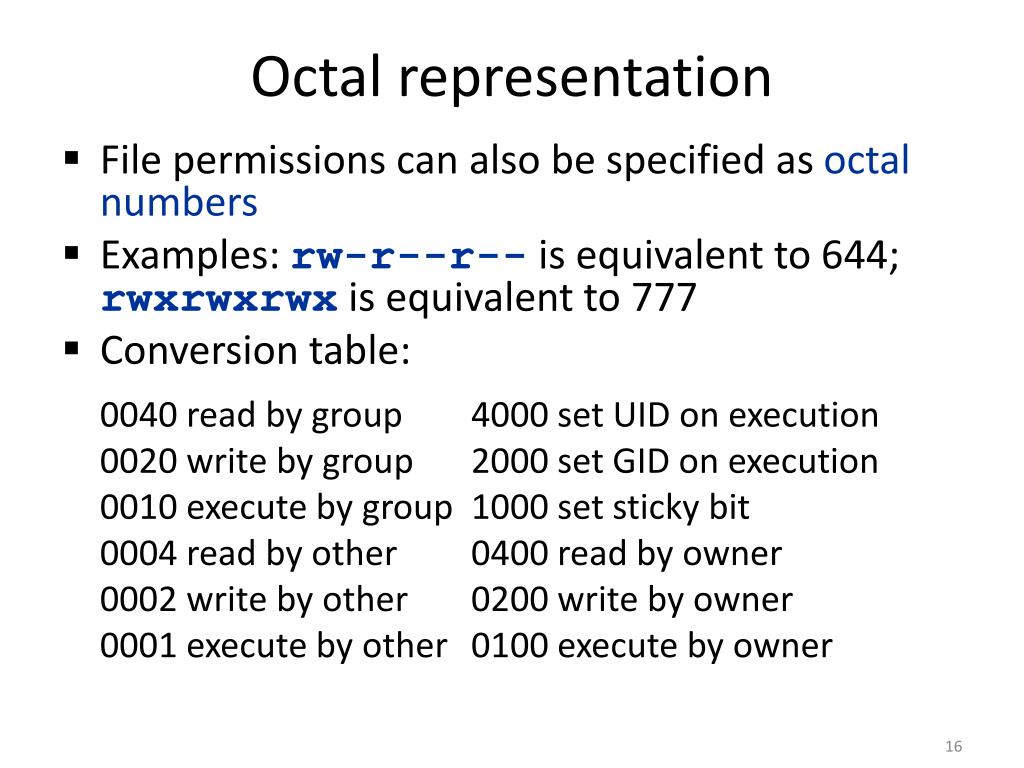

15. Octal representation • File permissions can also be specified as octal numbers • Examples: rw-r--r-- is equivalent to 644; rwxrwxrwx is equivalent to 777 • Conversion table: 0040 read by group 4000 set UID on execution 0020 write by group 2000 set GID on execution 0010 execute by group 1000 set sticky bit 0004 read by other 0400 read by owner 0002 write by other 0200 write by owner 0001 execute by other 0100 execute by owner

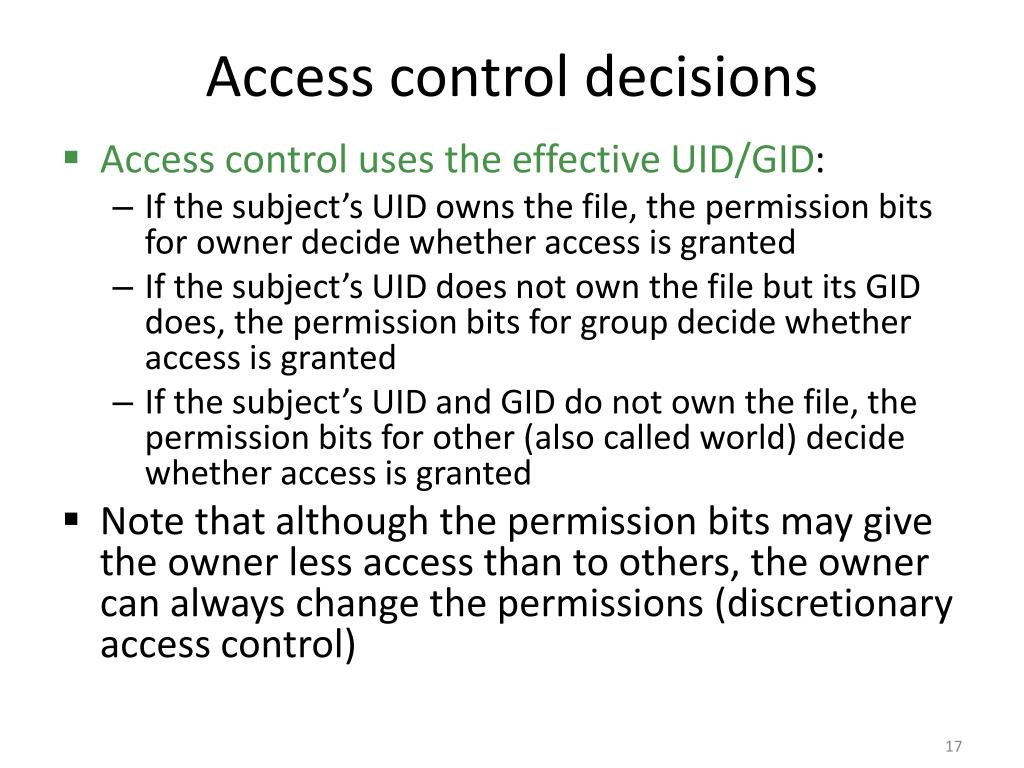

16. Access control decisions • Access control uses the effective UID/GID: • If the subject’s UID owns the file, the permission bits for owner decide whether access is granted • If the subject’s UID does not own the file but its GID does, the permission bits for group decide whether access is granted • If the subject’s UID and GID do not own the file, the permission bits for other (also called world) decide whether access is granted • Note that although the permission bits may give the owner less access than to others, the owner can always change the permissions (discretionary access control)

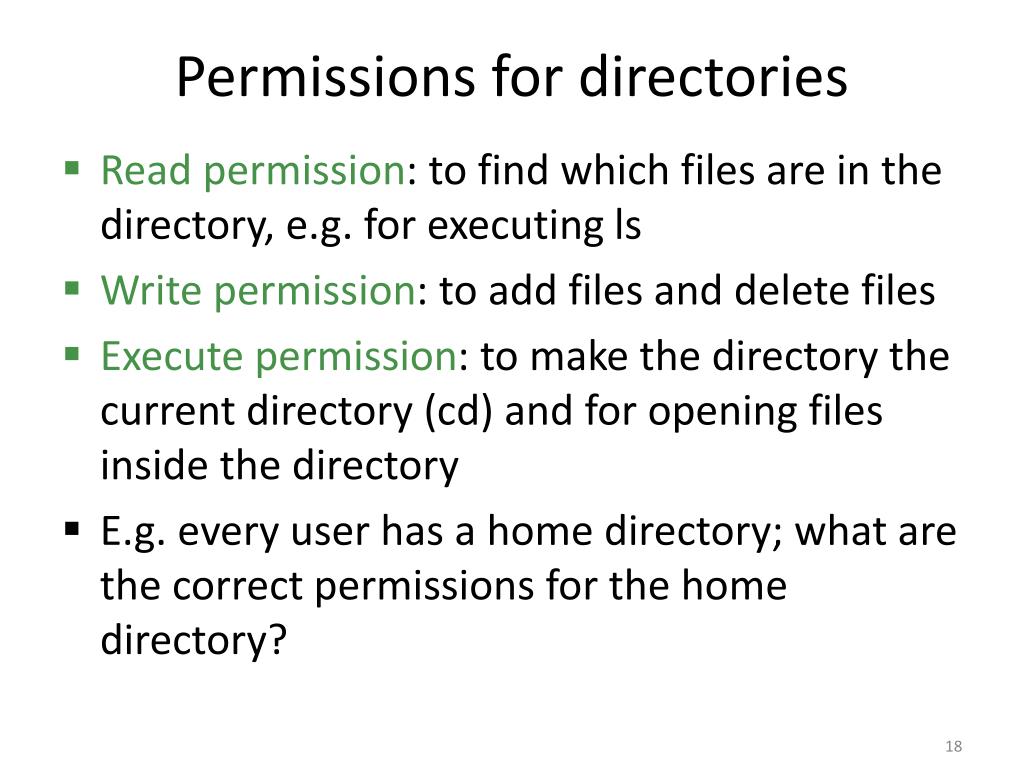

17. Permissions for directories • Read permission: to find which files are in the directory, e.g. for executing ls • Write permission: to add files and delete files • Execute permission: to make the directory the current directory (cd) and for opening files inside the directory • E.g. every user has a home directory; what are the correct permissions for the home directory?

18. Special modes for a directory • Sticky bit on an executable file originally indicated that a process should not be swapped to disk • Sticky bit on a directory restricts the deletion of files in that directory only to the file owners (and the superuser) • Job queues for printing etc., are often implemented as a world-writable directories; anyone can add a file but not delete the files of others • SGID bit on a directory means that new files inherit their group from the directory, not from the user who creates the file • Create a special group for the print daemon process and print queue directory (no need to run the print daemon as root) • Minor problem: files in the print queue need to be readable to everyone

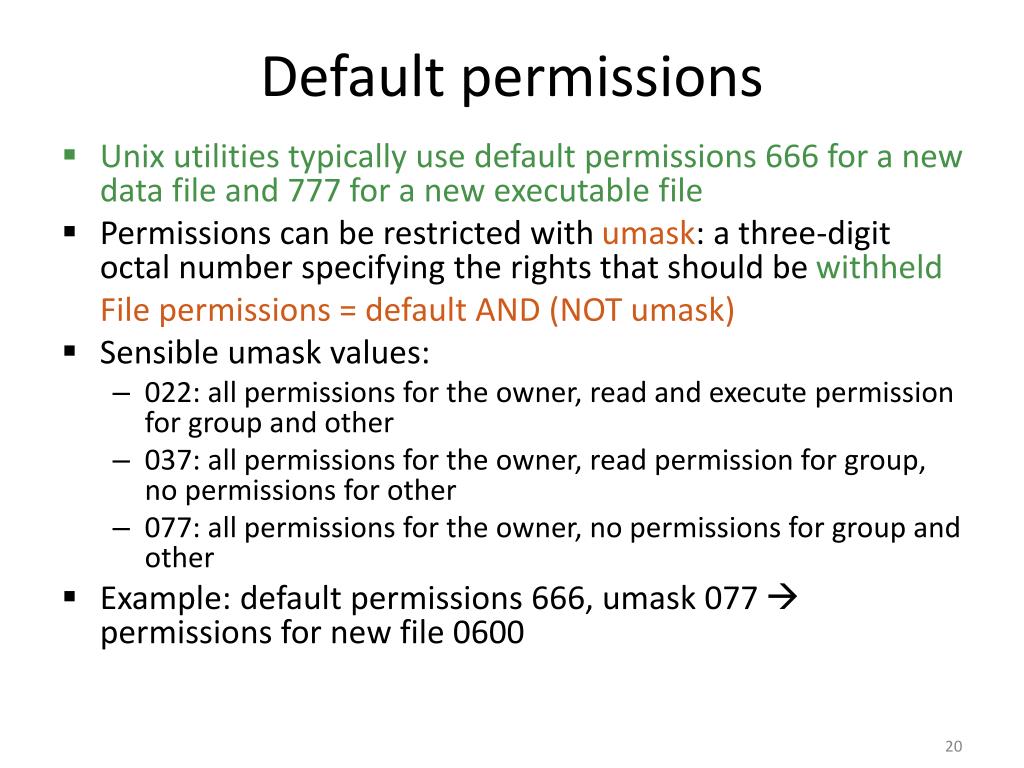

19. Default permissions • Unix utilities typically use default permissions 666 for a new data file and 777 for a new executable file • Permissions can be restricted with umask: a three-digit octal number specifying the rights that should be withheld File permissions = default AND (NOT umask) • Sensible umask values: • 022: all permissions for the owner, read and execute permission for group and other • 037: all permissions for the owner, read permission for group, no permissions for other • 077: all permissions for the owner, no permissions for group and other • Example: default permissions 666, umask 077  permissions for new file 0600

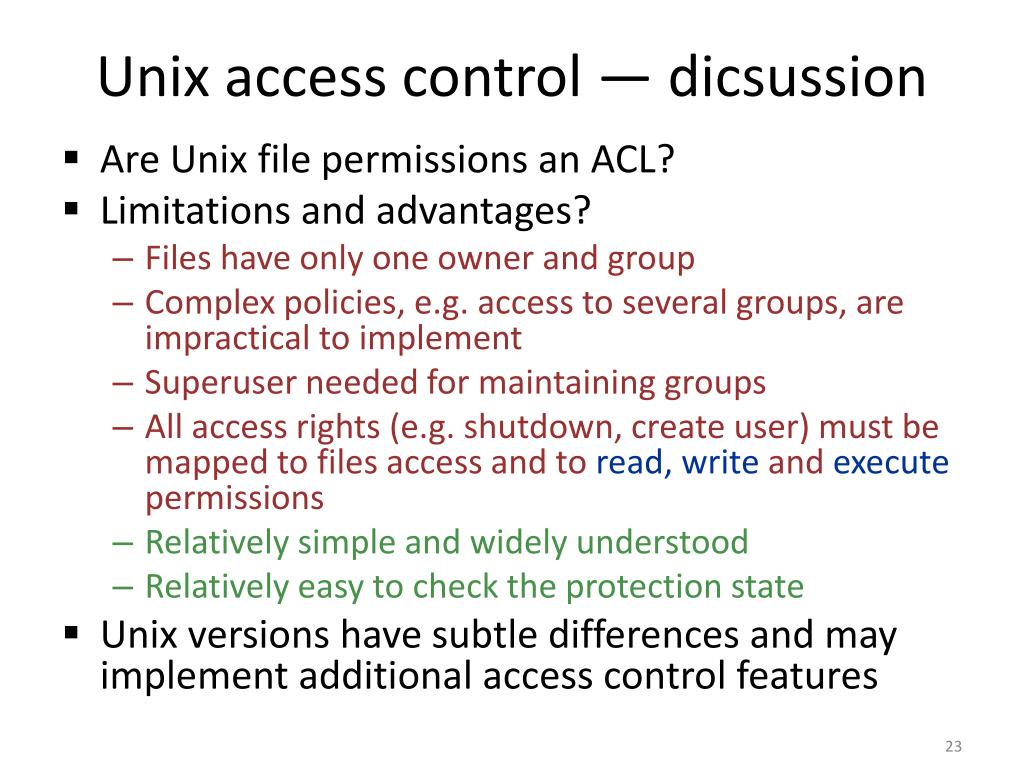

20. Unix access control — dicsussion • Are Unix file permissions an ACL? • Limitations and advantages? • Files have only one owner and group • Complex policies, e.g. access to several groups, are impractical to implement • Superuser needed for maintaininggroups • All access rights (e.g. shutdown, create user) must be mapped to files access and to read, write and executepermissions • Relatively simple and widely understood • Relatively easy to check the protection state • Unix versions have subtle differences and may implement additional access control features

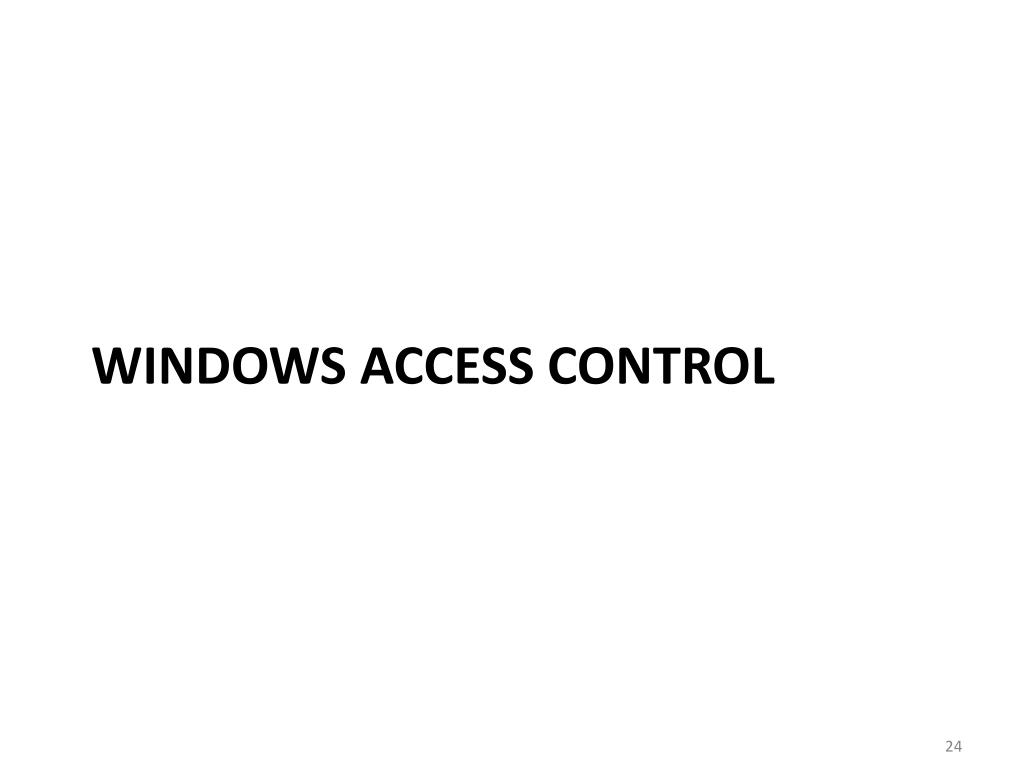

21. Windows access control

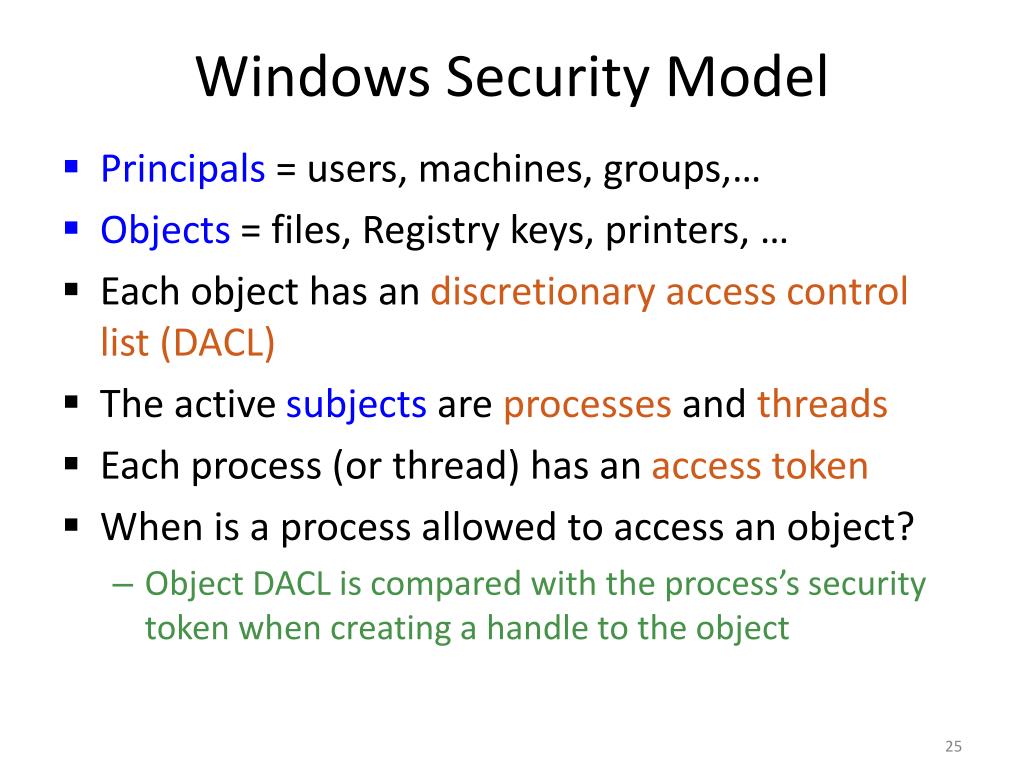

22. Windows Security Model • Principals = users, machines, groups,… • Objects = files, Registry keys, printers, … • Each object has an discretionary access control list (DACL) • The active subjectsare processes and threads • Each process (or thread) has an access token • When is a process allowed to access an object? • Object DACL is compared with the process’s security token when creating a handle to the object

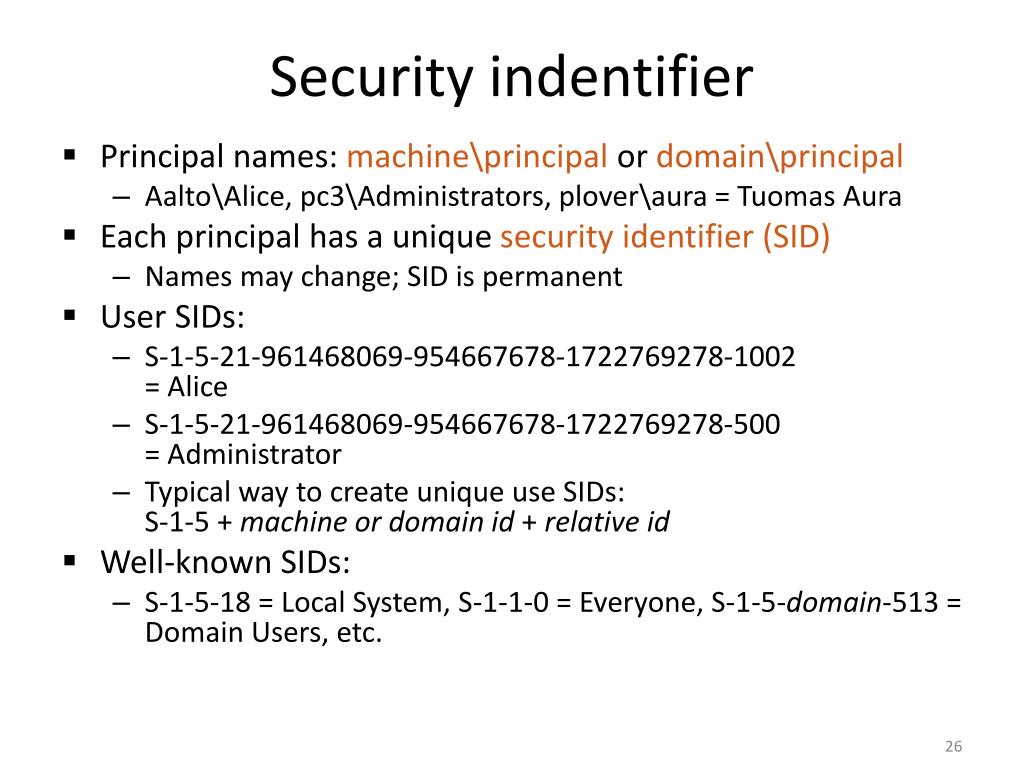

23. Security indentifier • Principal names: machine\principal or domain\principal • Aalto\Alice, pc3\Administrators, plover\aura = Tuomas Aura • Each principal has a unique security identifier (SID) • Names may change; SID is permanent • User SIDs: • S-1-5-21-961468069-954667678-1722769278-1002 = Alice • S-1-5-21-961468069-954667678-1722769278-500 = Administrator • Typical way to create unique use SIDs:S-1-5 + machine or domain id + relative id • Well-known SIDs: • S-1-5-18 = Local System, S-1-1-0 = Everyone, S-1-5-domain-513 = Domain Users, etc.

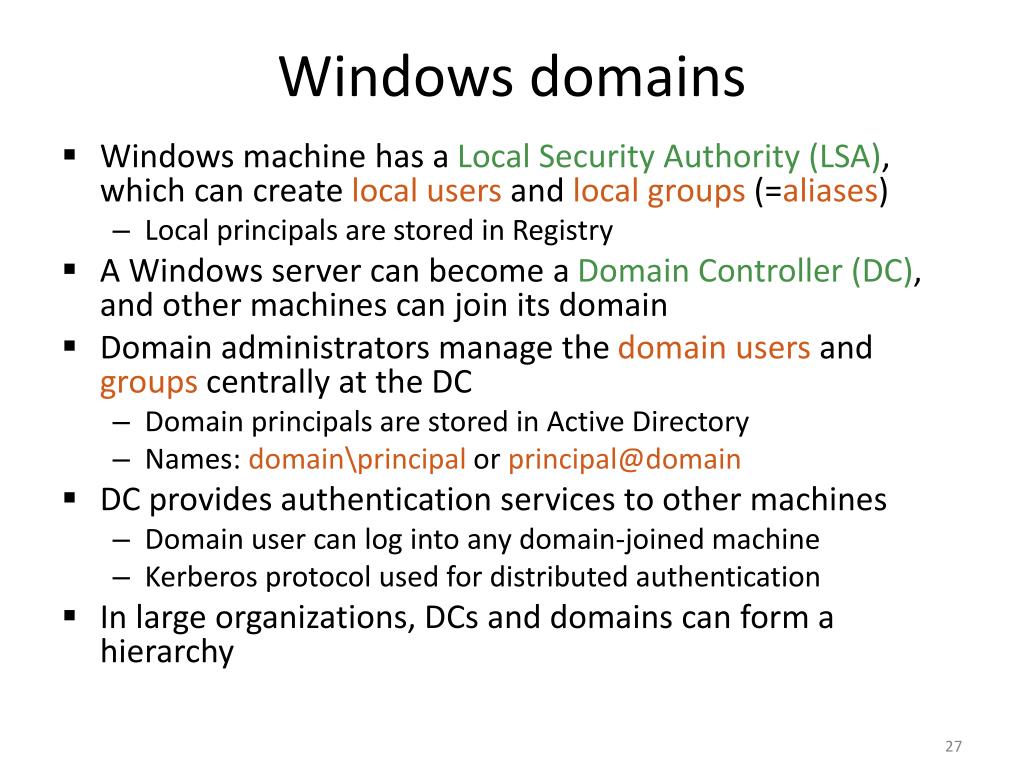

24. Windows domains • Windows machine has a Local Security Authority (LSA), which can create local users and local groups (=aliases) • Local principals are stored in Registry • A Windows server can become a Domain Controller (DC), and other machines can join its domain • Domain administrators manage the domain users and groups centrally at the DC • Domain principals are stored in Active Directory • Names: domain\principal or principal@domain • DC provides authentication services to other machines • Domain user can log into any domain-joined machine • Kerberos protocol used for distributed authentication • In large organizations, DCs and domains can form a hierarchy

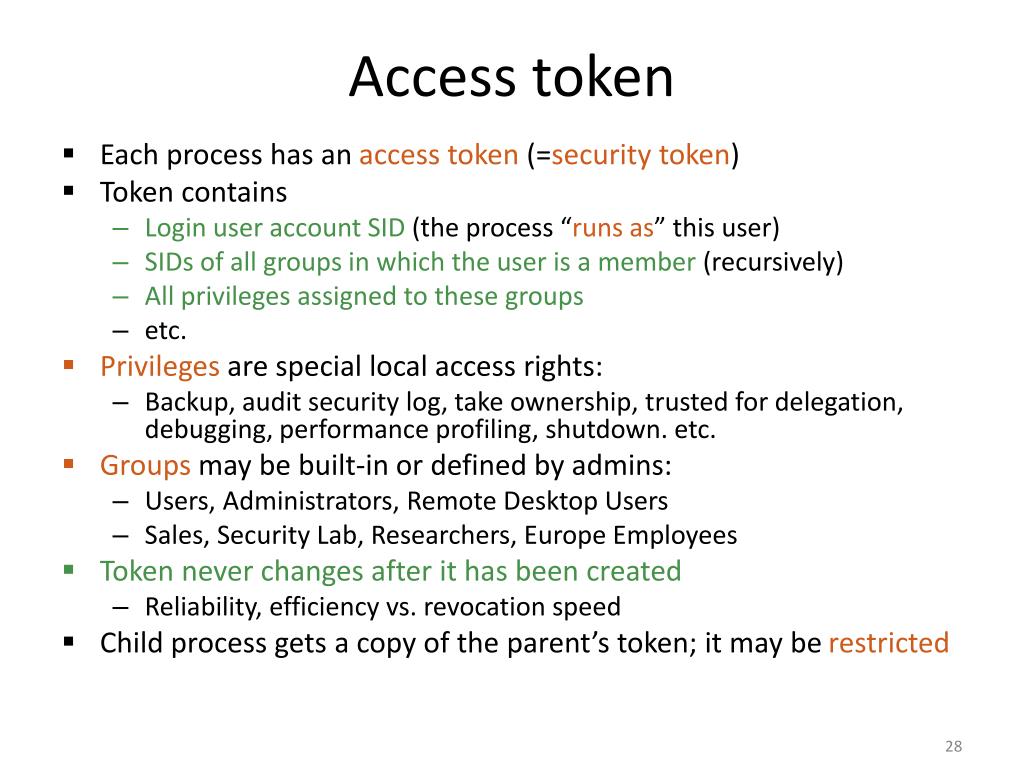

25. Access token • Each process has an access token (=security token) • Token contains • Login user account SID (the process “runs as” this user) • SIDs of all groups in which the user is a member (recursively) • All privileges assigned to these groups • etc. • Privileges are special local access rights: • Backup, audit security log, take ownership, trusted for delegation, debugging, performance profiling, shutdown. etc. • Groupsmay be built-in or defined by admins: • Users, Administrators, Remote Desktop Users • Sales, Security Lab, Researchers, Europe Employees • Token never changes after it has been created • Reliability, efficiency vs. revocation speed • Child process gets a copy of the parent’s token; it may be restricted

26. Objects • Objects: files, folder, Registry and AD objects, printers, processes... • Objects can be containers for other objects  container hierarchy • Securable objects have a security descriptor, which contains the DACL • Object also has an owner (identified by SID), who has the implicit right to read and write the DACL (discretionary access control)

27. Permissions • Permissions are actions that apply to each object class • Some generic permissions are defined for all objects: read, write, execute, all, delete, etc. • Specific permissions are defined for each class: Append, AddSubDir, CreateThread,etc. • Permissions are encoded as a 32-bit mask • Object DACL specifies which principals (SIDs) have which permissions

28. DACL example • This ACL grants read access but no write access to the user Tuomaura • Negative accesscontrolentries (ACEs) areplacedbeforepositiveones

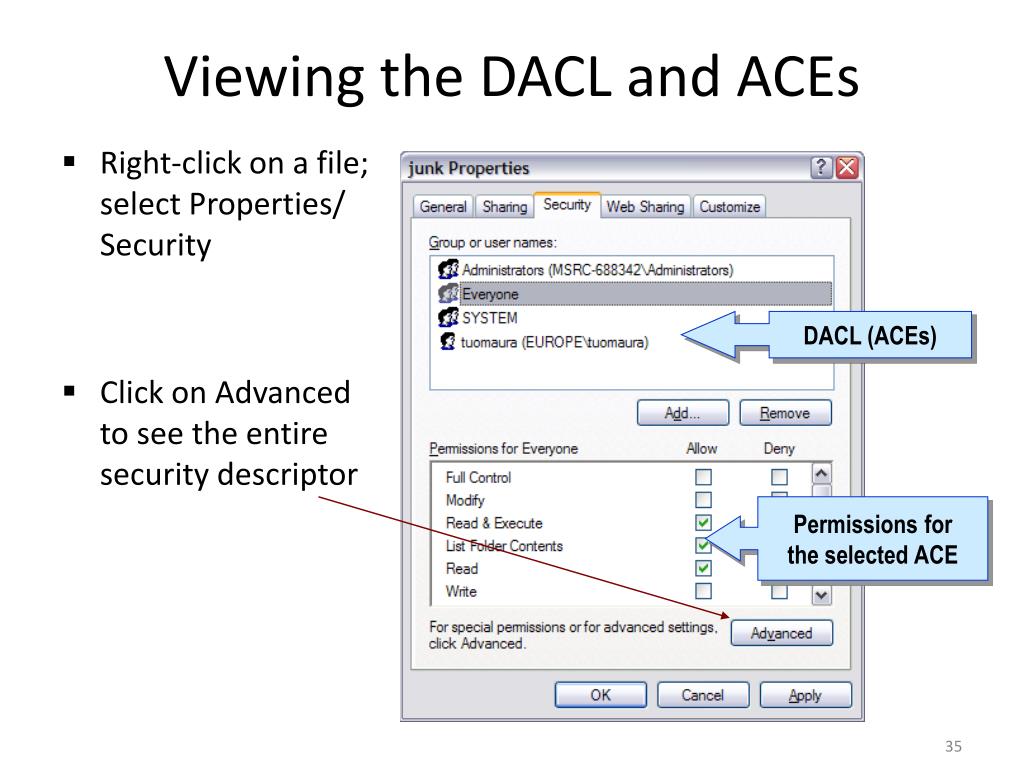

29. Viewing the DACL and ACEs • Right-click on a file; select Properties/Security • Click on Advanced to see the entire security descriptor DACL (ACEs) Permissions for the selected ACE

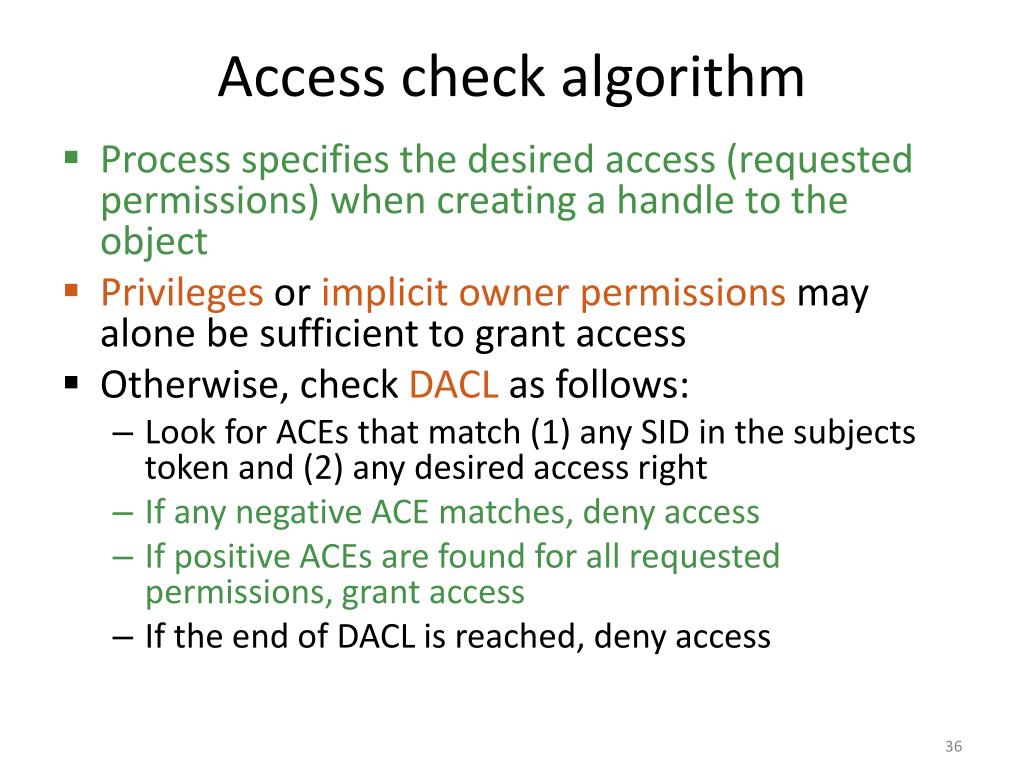

30. Access check algorithm • Process specifies the desired access (requested permissions) when creating a handle to the object • Privileges or implicit owner permissions may alone be sufficient to grant access • Otherwise, check DACL as follows: • Look for ACEs that match (1) any SID in the subjects token and (2) any desired access right • If any negative ACE matches, deny access • If positive ACEs are found for all requested permissions, grant access • If the end of DACL is reached, deny access

31. Performance and reliability • Access rights are determined at login time • User’s group SIDs are cached in the token of the login process, and sub-processes get a copy • Token will not change even if a membership or privilege is revoked from a SID • Desired access is compared against the token and DACL when creating a handle to the object – not at access time • Changing file DACL does not affect open file handles • Consequences: • Fewer checks  better performance • Better reliability because a process knows in advance whether it has sufficient access rights for a task • No immediate revocation of access rights

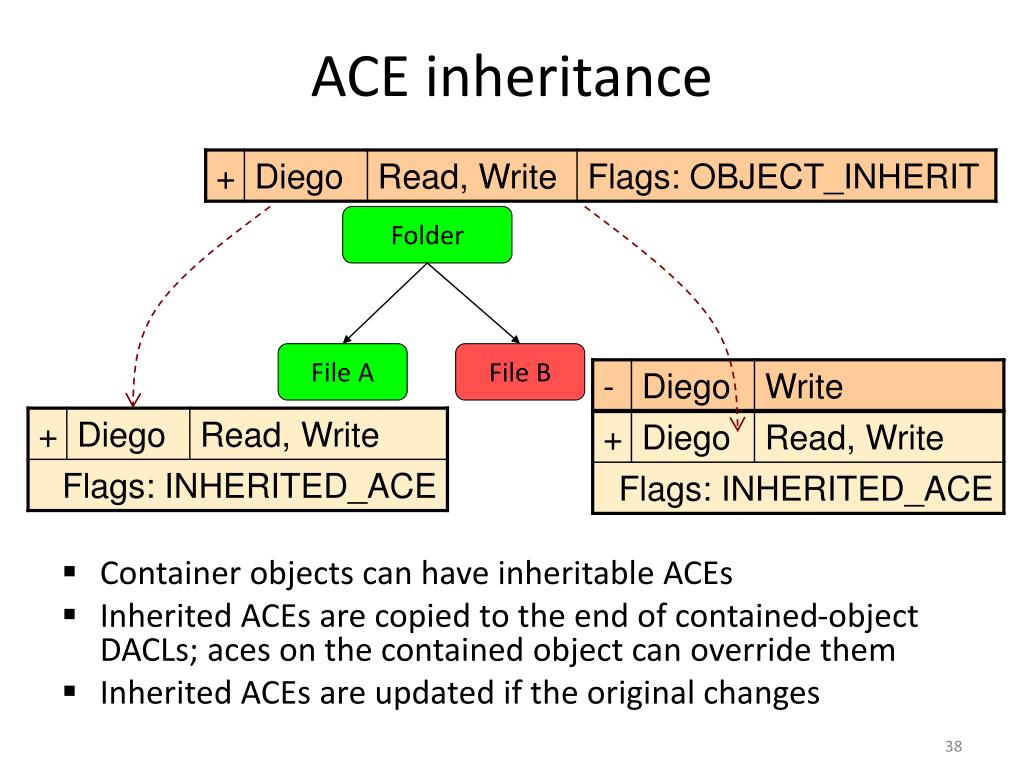

32. ACE inheritance • Container objects can have inheritable ACEs • Inherited ACEs are copied to the end of contained-object DACLs; aces on the contained object can override them • Inherited ACEs are updated if the original changes Folder File A File B

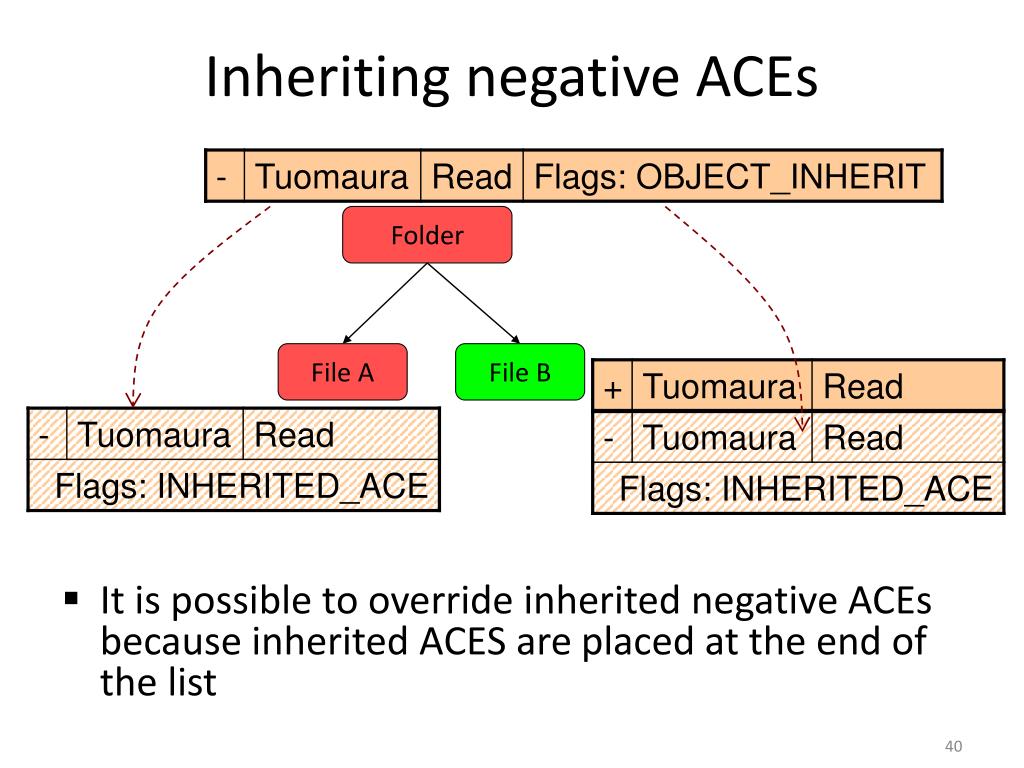

33. Inheriting negative ACEs • It is possible to override inherited negative ACEs because inherited ACES are placed at the end of the list Folder File A File B

34. Blocking inheritance Folder X Folder Y Folder Z DACL_ PROTECTED File A File B

35. Advanced inheritance • Object hierarchies with inheritance:NTFS, Registry, Active Directory, … • Inheritable ACEs can apply to only leaf objects or only to containers • Similarly, inheritable ACEs can apply to all objects or only to a specific object type • Special CREATOR_OWNER SID in an ACE indicates that the ACE matches to the owner of the object • Inheritance simplifies system administration but very few people understand or use it • Performance: • Inherited ACEs are cached in sub-object DACLs to make access control decisions faster • Changing permissions on the top levels of a deep object hierarchy is a slow process; done rarely in applications

36. Restricted tokens • A process might not always need or want all the rights given by the token • Process may create a restricted token • remove privileges • disable groups: change SIDs to deny-only groups, which are not deleted but marked as USE_FOR_DENY_ONLY • add restricted SIDs; a second list of SIDs that is also compared against DACLs • Process can assign restricted tokens to its child processes or threads (= impersonation)

37. Example: implementing the principle of leastprivilege

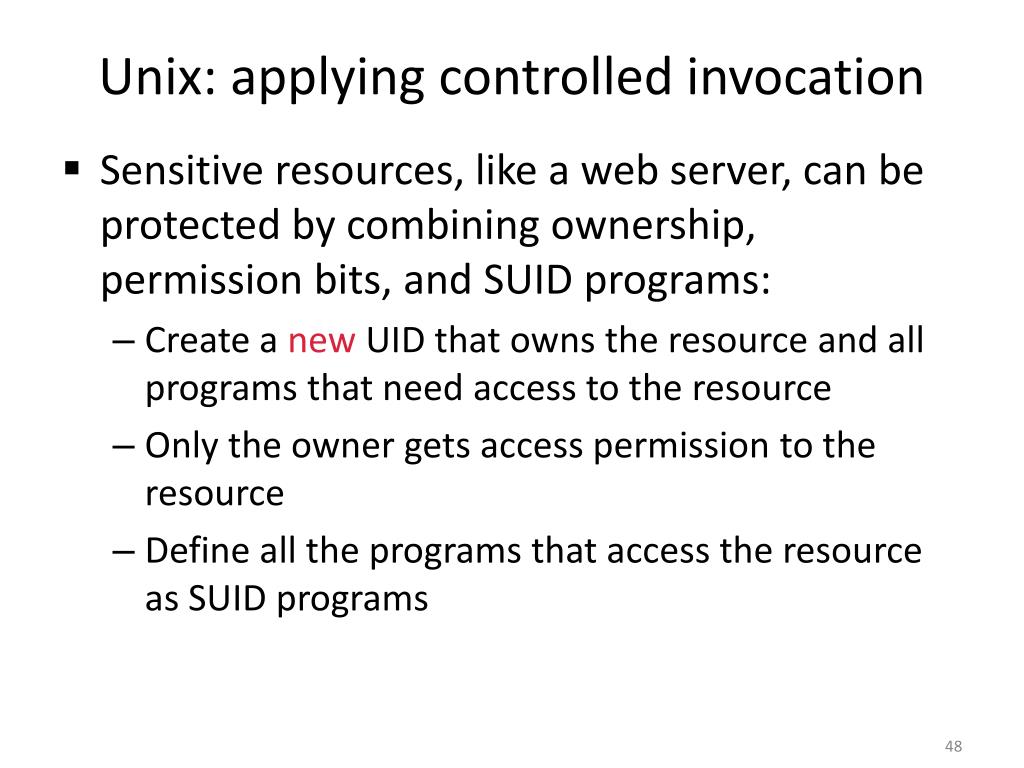

38. Unix: applying controlled invocation • Sensitive resources, like a web server, can be protected by combining ownership, permission bits, and SUID programs: • Create a new UID that owns the resource and all programs that need access to the resource • Only the owner gets access permission to the resource • Define all the programs that access the resource as SUID programs

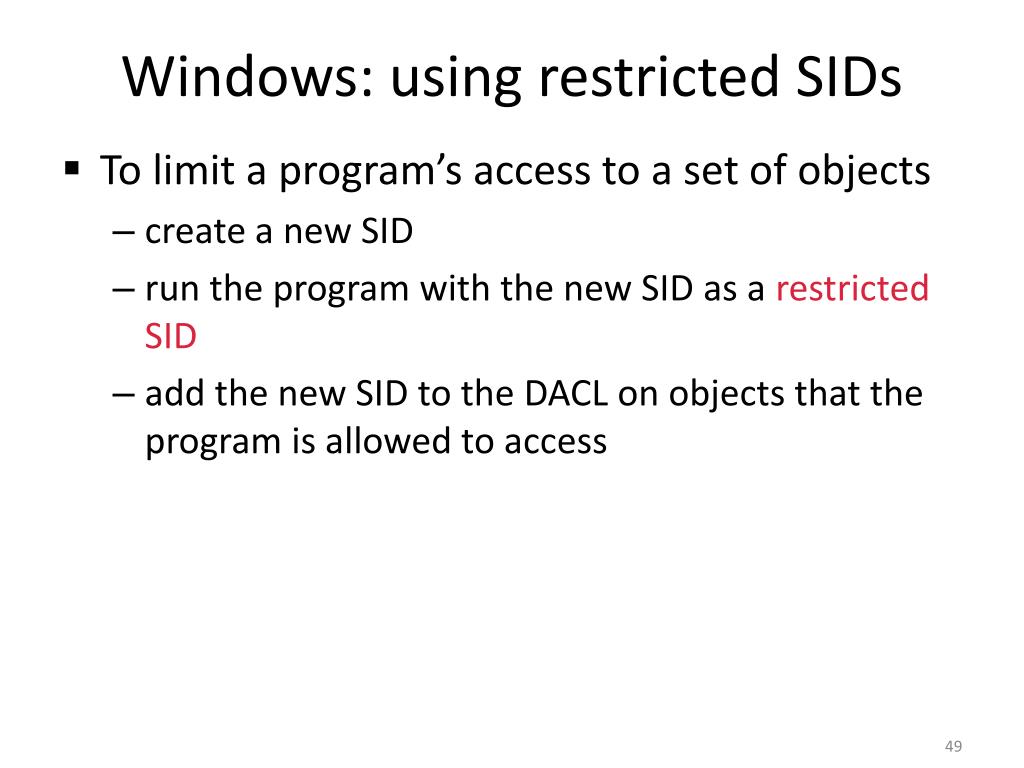

39. Windows: using restricted SIDs • To limit a program’s access to a set of objects • create a new SID • run the program with the new SID as a restricted SID • add the new SID to the DACL on objects that the program is allowed to access

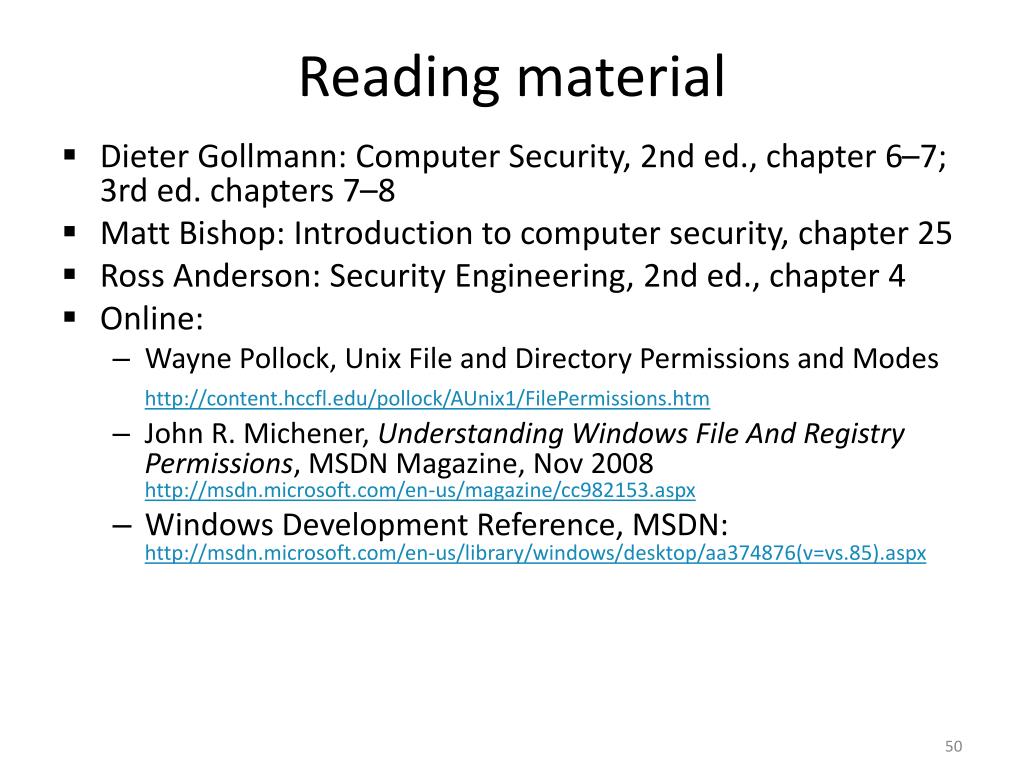

40. Reading material • Dieter Gollmann: Computer Security, 2nd ed., chapter 6–7; 3rd ed. chapters 7–8 • Matt Bishop: Introduction to computer security, chapter 25 • Ross Anderson: Security Engineering, 2nd ed., chapter 4 • Online: • Wayne Pollock, Unix File and Directory Permissions and Modes http://content.hccfl.edu/pollock/AUnix1/FilePermissions.htm • John R. Michener, Understanding Windows File And Registry Permissions, MSDN Magazine, Nov 2008http://msdn.microsoft.com/en-us/magazine/cc982153.aspx • Windows Development Reference, MSDN: http://msdn.microsoft.com/en-us/library/windows/desktop/aa374876(v=vs.85).aspx

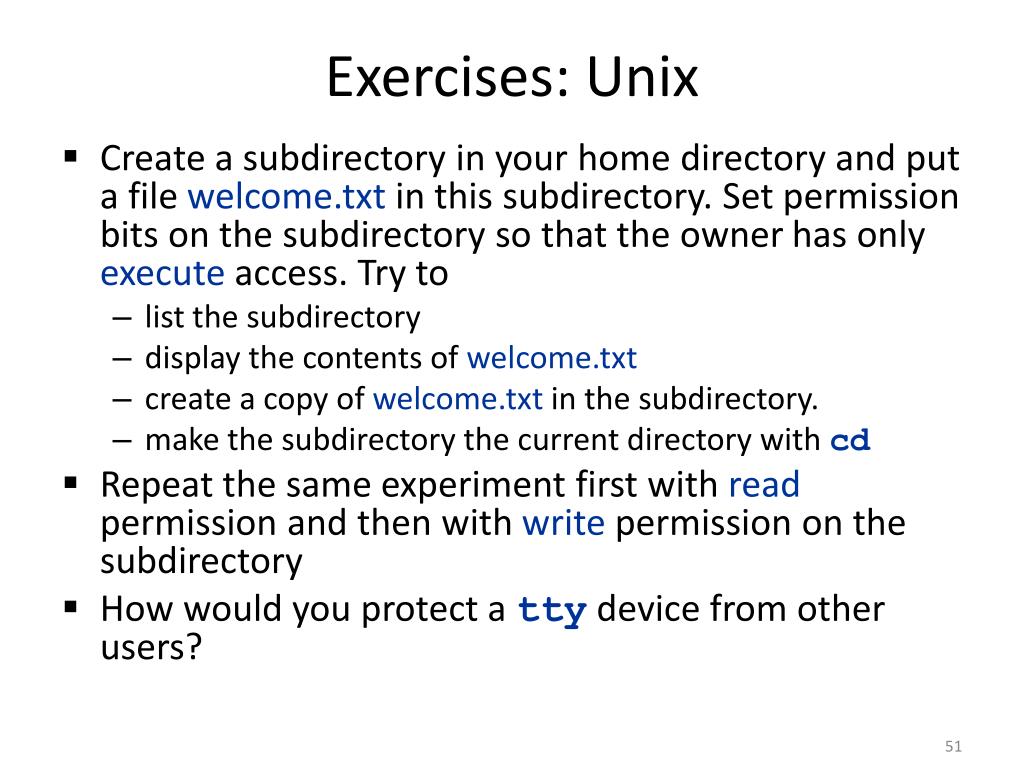

41. Exercises: Unix • Create a subdirectory in your home directory and put a file welcome.txt in this subdirectory. Set permission bits on the subdirectory so that the owner has only execute access. Try to • list the subdirectory • display the contents of welcome.txt • create a copy of welcome.txt in the subdirectory. • make the subdirectory the current directory with cd • Repeat the same experiment first with read permission and then with write permission on the subdirectory • How would you protect a tty device from other users?

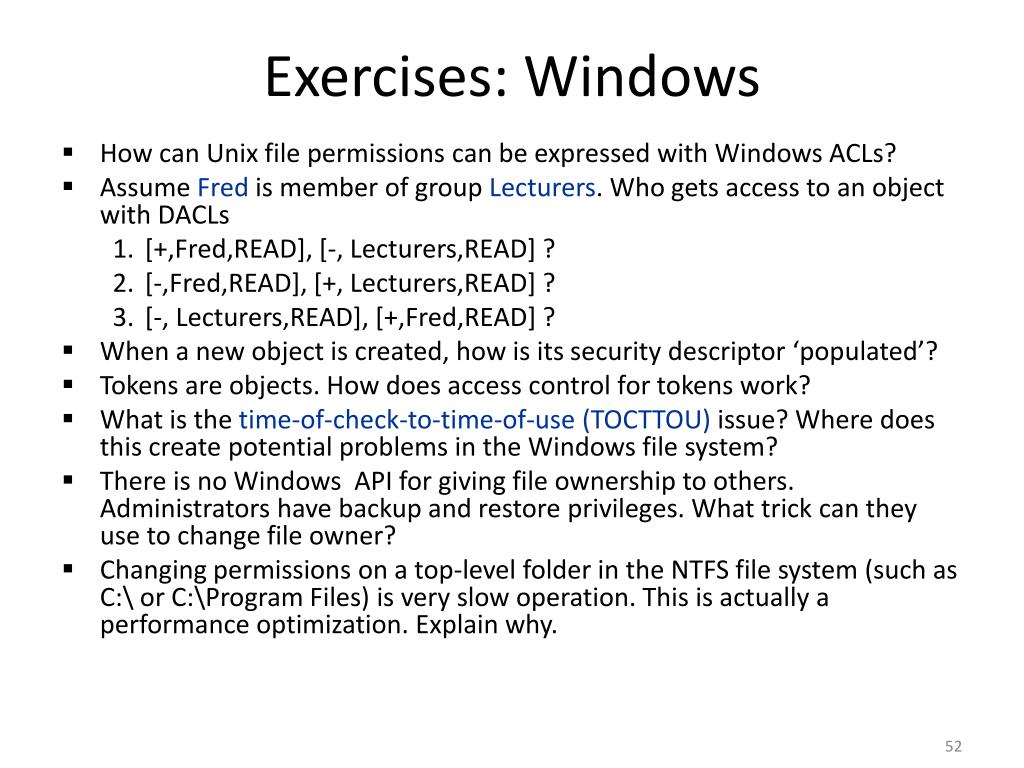

42. Exercises: Windows • How can Unix file permissions can be expressed with Windows ACLs? • Assume Fred is member of group Lecturers. Who gets access to an object with DACLs • [+,Fred,READ], [-, Lecturers,READ] ? • [-,Fred,READ], [+, Lecturers,READ] ? • [-, Lecturers,READ], [+,Fred,READ] ? • When a new object is created, how is its security descriptor ‘populated’? • Tokens are objects. How does access control for tokens work? • What is the time-of-check-to-time-of-use (TOCTTOU) issue? Where does this create potential problems in the Windows file system? • There is no Windows API for giving file ownership to others. Administrators have backup and restore privileges. What trick can they use to change file owner? • Changing permissions on a top-level folder in the NTFS file system (such as C:\ or C:\Program Files) is very slow operation. This is actually a performance optimization. Explain why.
