Efficient Virtualization on Embedded Power Architecture Platforms

1. Efficient Virtualization on Embedded Power Architecture Platforms Aashish Mittal, Dushyant Bansal, Sorav Bansal Indian Institute of Technology Delhi Varun Sethi Freescale Semiconductor

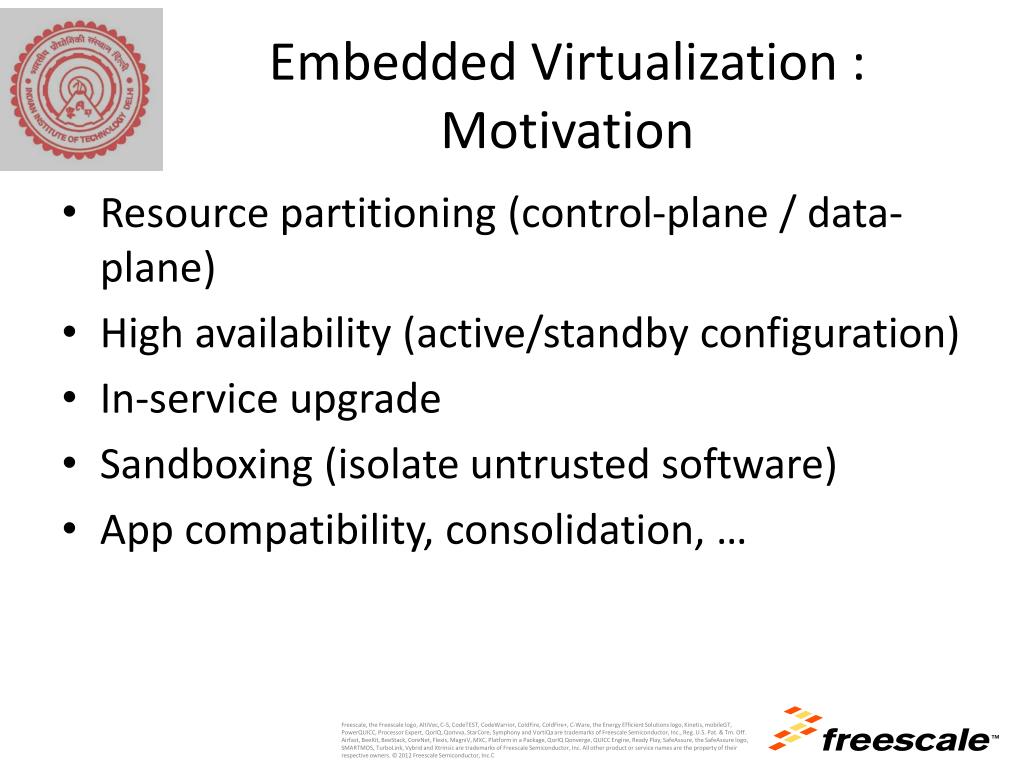

2. Embedded Virtualization : Motivation • Resource partitioning (control-plane / data-plane) • High availability (active/standby configuration) • In-service upgrade • Sandboxing (isolate untrusted software) • App compatibility, consolidation, …

3. Our Contribution 2-6x faster performance improvement Efficient Software virtualization on Embedded Power architecture

4. Embedded Power Architecture

5. Embedded Power Architecture • Satisfies Popek-and-Goldberg virtualization requirements • 4 byte fixed length word aligned instructions • Software managed small TLB • 16 variable sized (4KB - 4GB) and 512 fixed size (4KB) entries • S-byte alignment constraint for a page of size S • Orthogonal rwxpage permission bits for user/kernel • No segmentation support • Branching • Direct branch restricted to 26 bit offset • Indirect branches through registers only

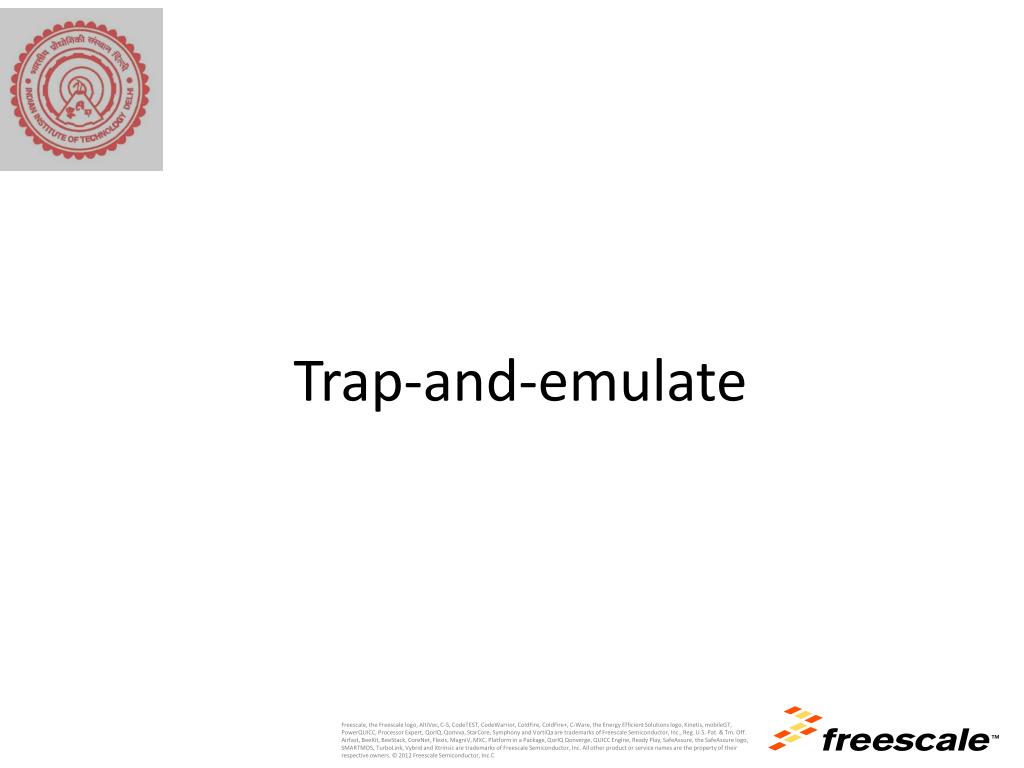

6. Trap-and-emulate

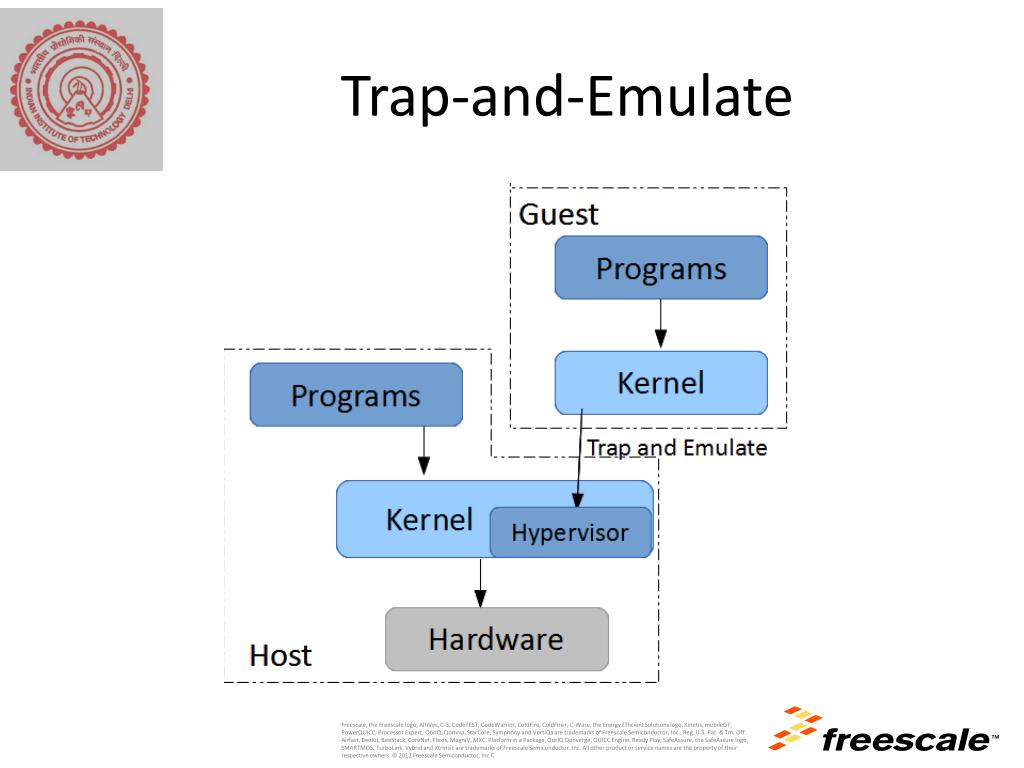

7. Trap-and-Emulate

8. Performance overhead of Trap-and-Emulate

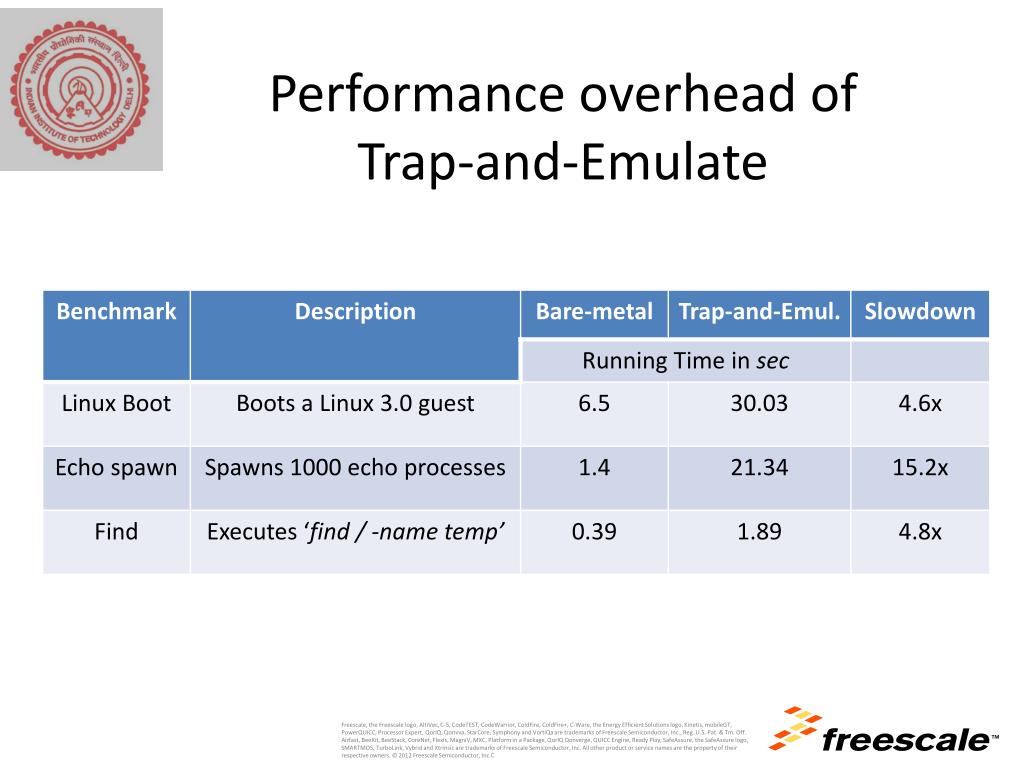

9. Performance overhead of Trap-and-Emulate 4-16x slower than Bare-metal

10. Binary Translation

11. Full Binary Translation x86 based solution : Full Binary Translation (Full BT) [VMware] Translation Cache Kernel Code Guest Virtual Address Space

12. In-place Binary Translation Our solution on Embedded Power : In-place Binary Translation (In-place BT) Kernel Code Privileged instruction Translated instruction Guest Virtual Address Space

13. Full BT vs. In-place BT : Architectural Implications

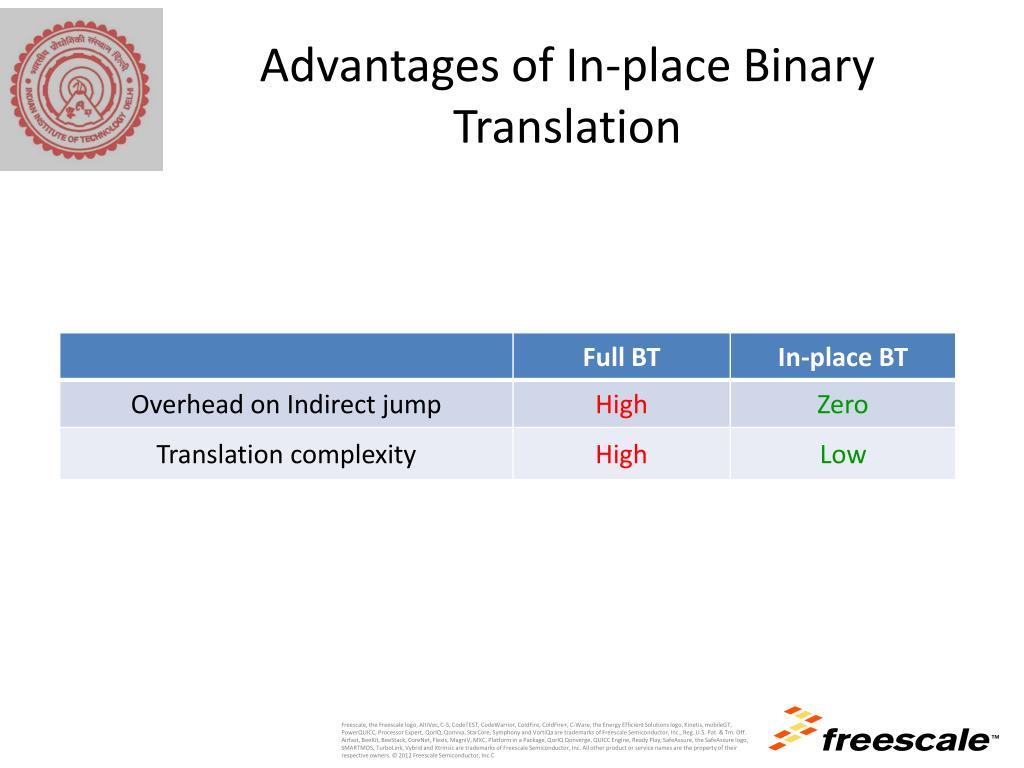

14. Advantages of In-place Binary Translation

15. In-Place Binary Translation

16. In-Place Binary Translation Kernel Code Privileged instruction Guest Virtual Address Space

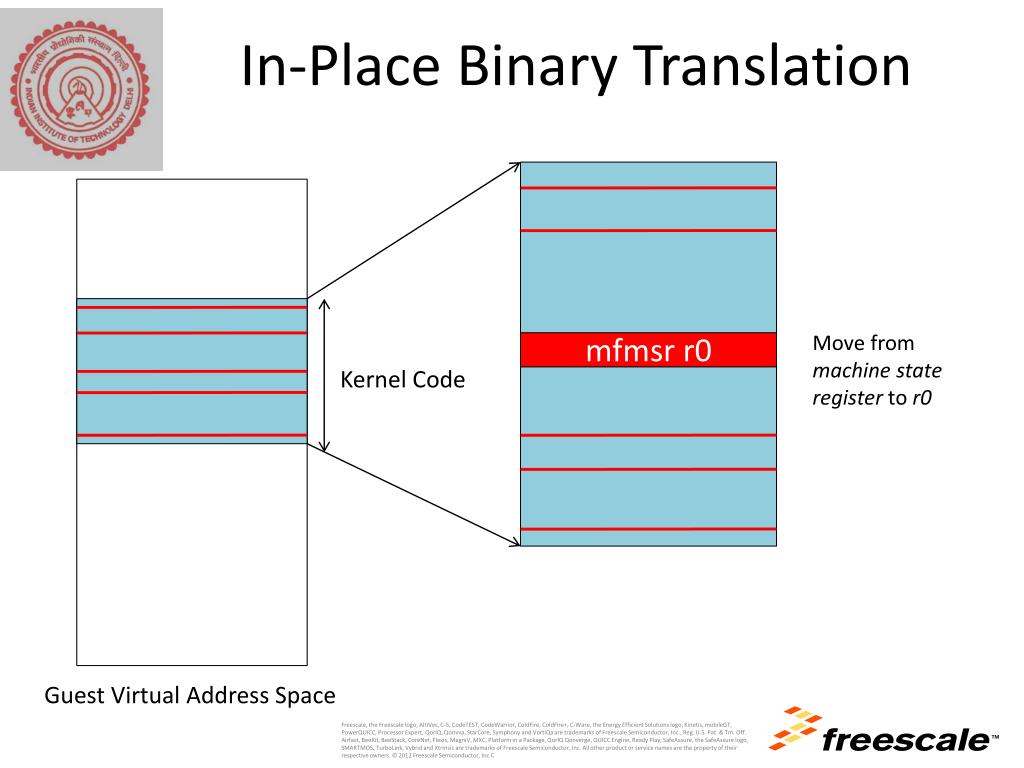

17. In-Place Binary Translation Move from machine state register to r0 mfmsr r0 Kernel Code Guest Virtual Address Space

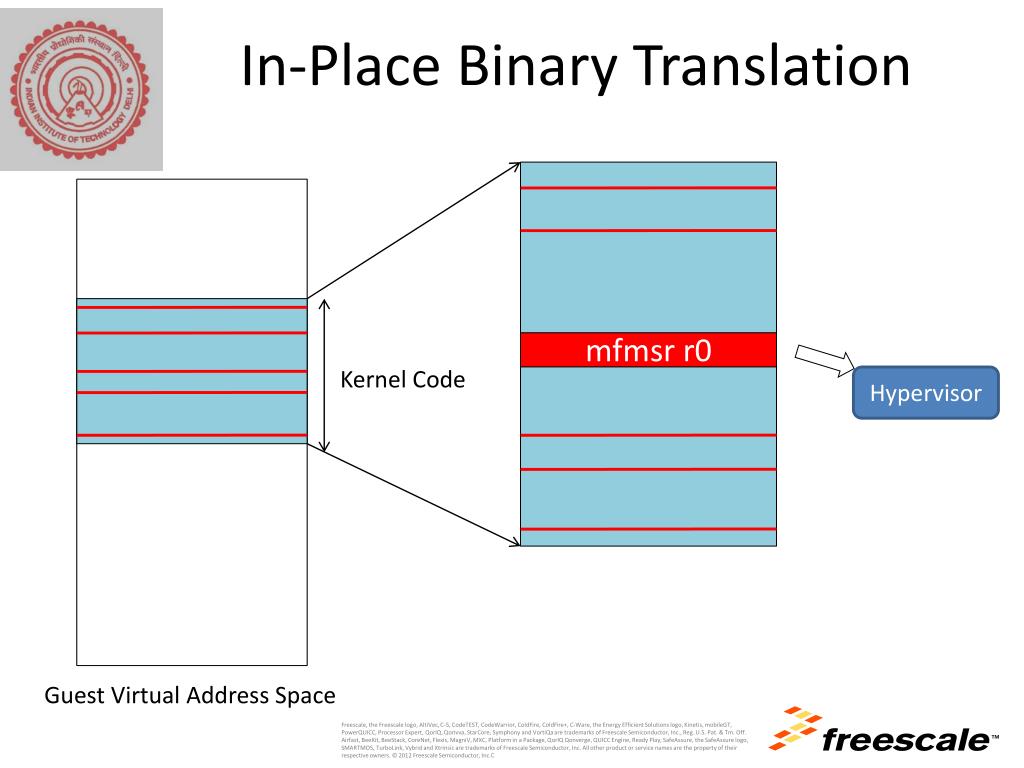

18. In-Place Binary Translation mfmsr r0 Kernel Code Hypervisor Guest Virtual Address Space

19. In-Place Binary Translation mfmsr r0 Kernel Code Hypervisor Guest Virtual Address Space

20. In-Place Binary Translation addr Shared Space Kernel Code Kernel Code Load msrfrom ‘shared space’ into r0 mfmsr r0 lwz r0, addr Translated instruction Privileged instruction Guest Virtual Address Space

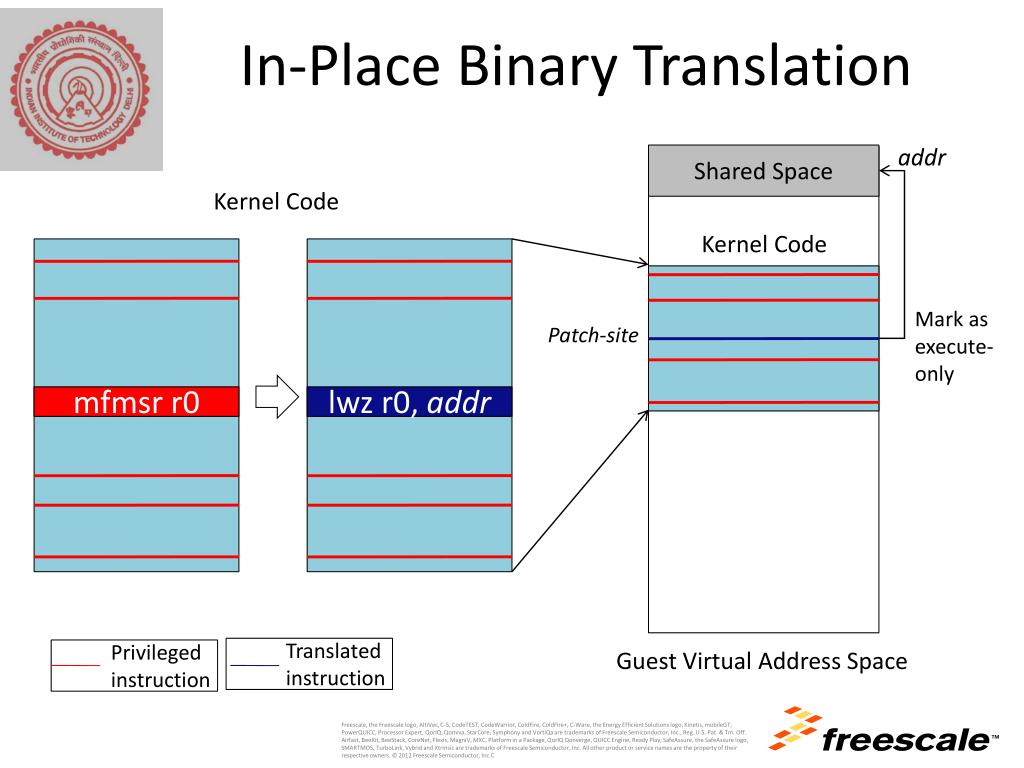

21. In-Place Binary Translation addr Shared Space Kernel Code Kernel Code Mark as execute-only Patch-site mfmsr r0 lwz r0, addr Translated instruction Privileged instruction Guest Virtual Address Space

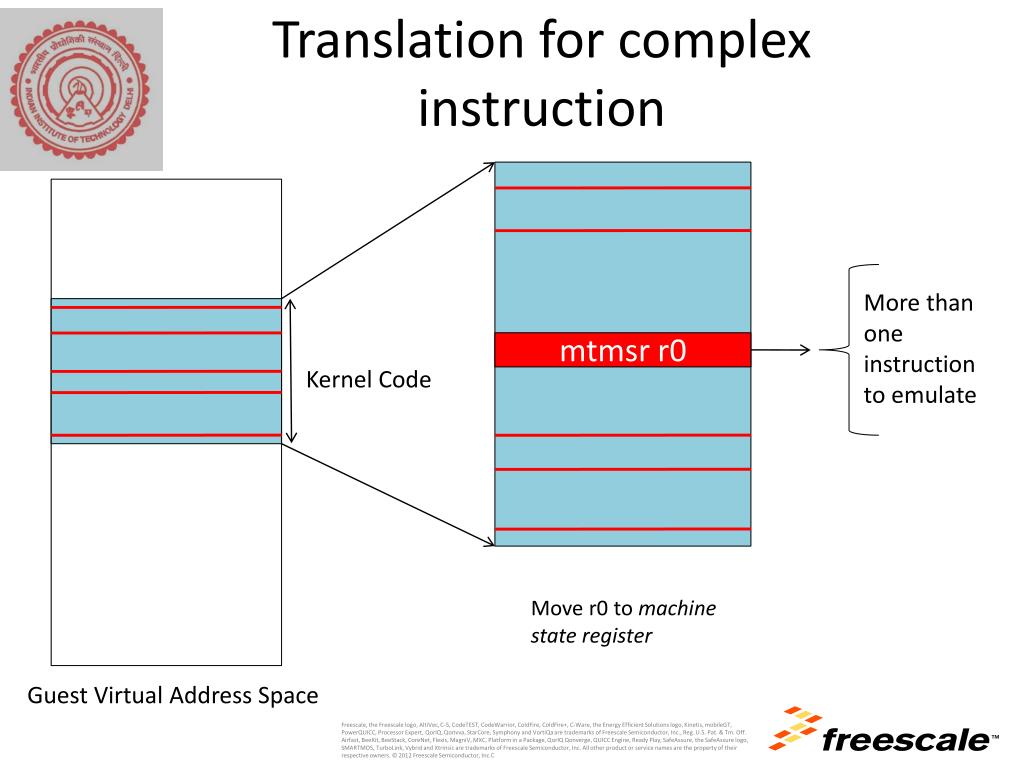

22. Translation for complex instruction More than one instruction to emulate mtmsr r0 Kernel Code Move r0 to machine state register Guest Virtual Address Space

23. Translation for complex instruction Translation Cache Translation Cache Kernel Code Emulation Code Branch back mtmsr r0 branch

24. Translation for complex instruction Translation Cache Translation Cache 26 Kernel Code Emulation Code Branch back 26 mtmsr r0 branch

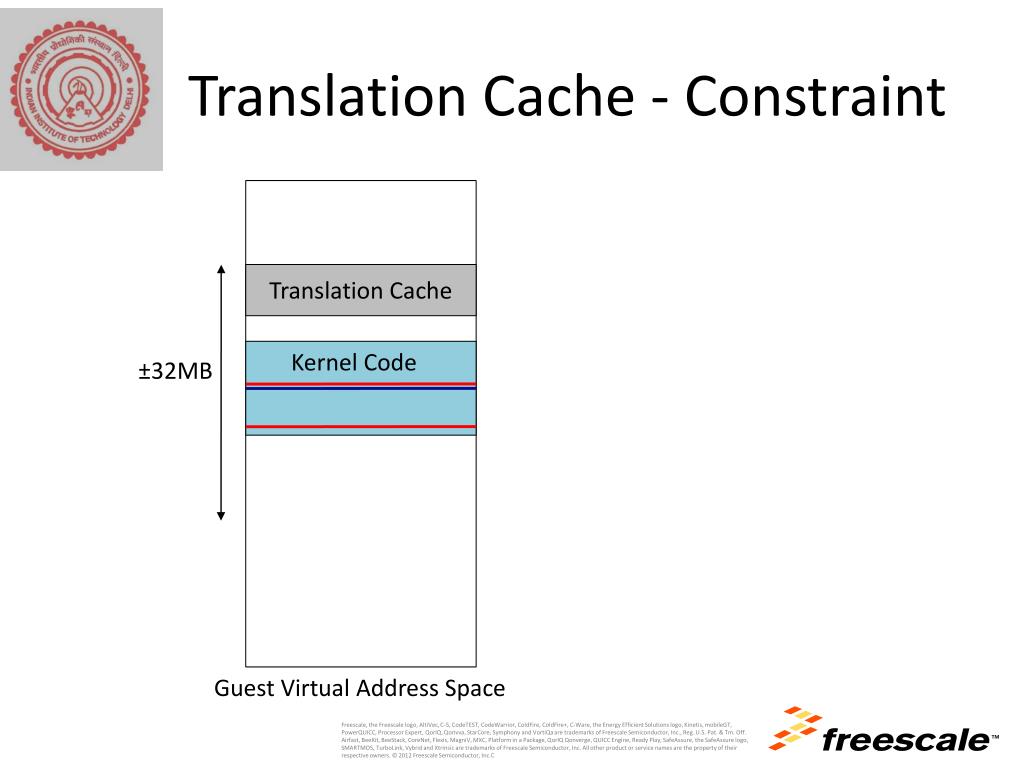

25. Translation Cache - Constraint Translation Cache Kernel Code ±32MB Guest Virtual Address Space

26. Placement Constraints Shared Space • Unused by Guest • Placement constraints on translation cache Translation Cache Kernel Code ±32MB Guest Virtual Address Space

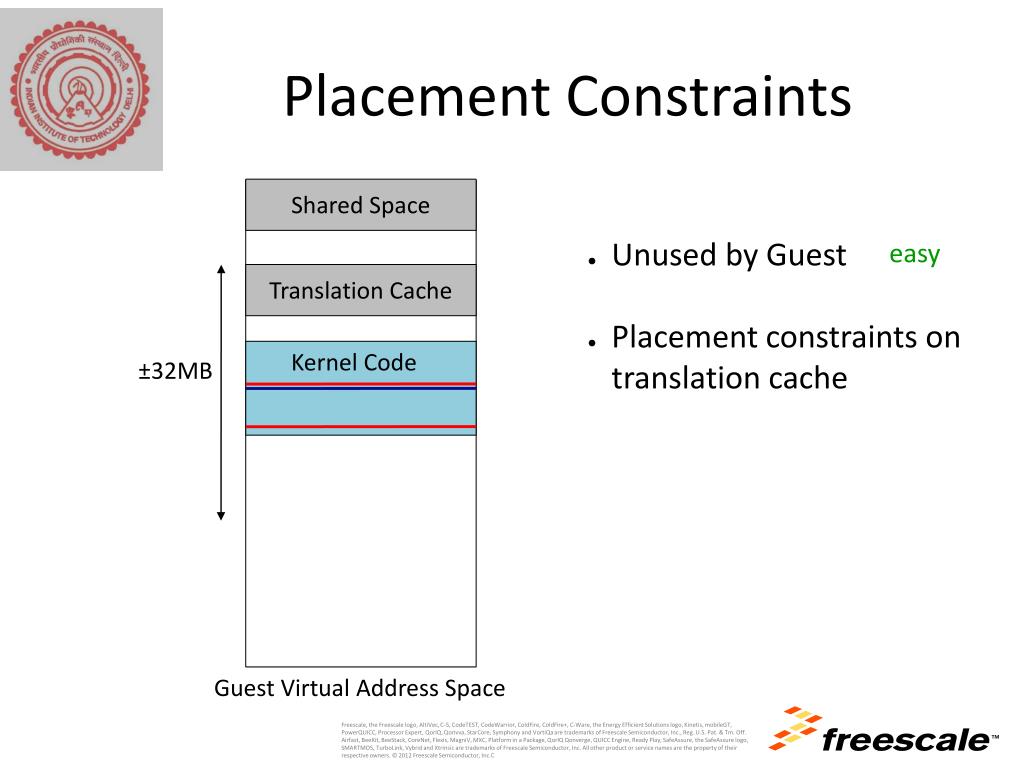

27. Placement Constraints Shared Space • Unused by Guest • Placement constraints on translation cache easy Translation Cache Kernel Code ±32MB Guest Virtual Address Space

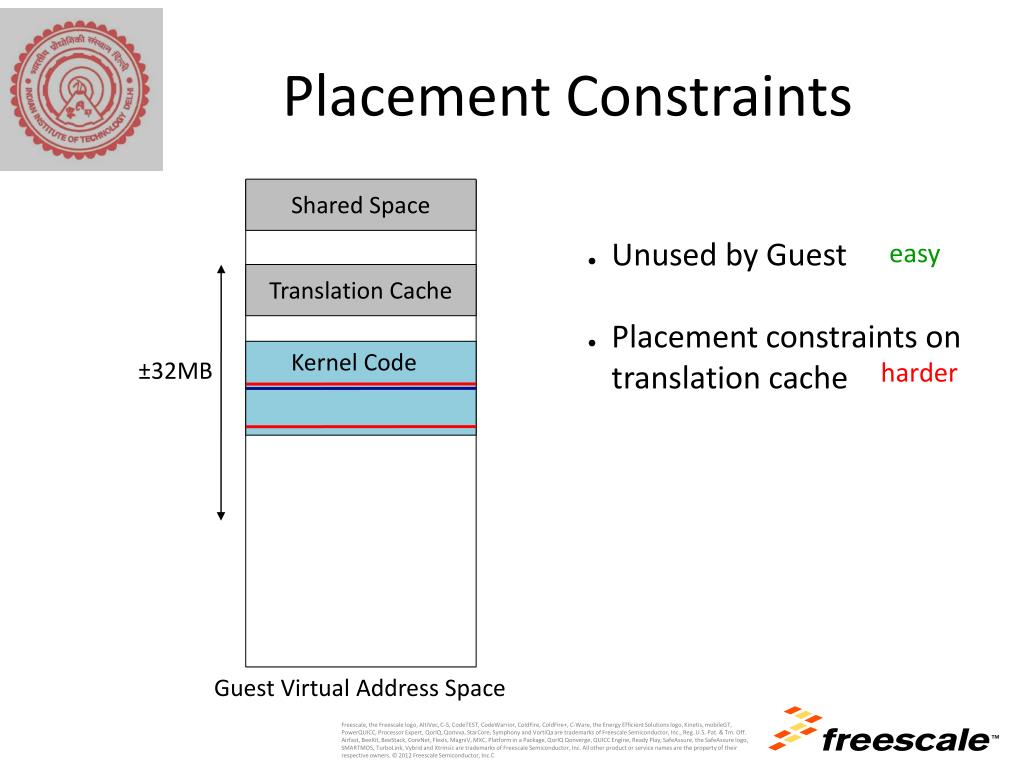

28. Placement Constraints Shared Space • Unused by Guest • Placement constraints on translation cache easy Translation Cache Kernel Code ±32MB harder Guest Virtual Address Space

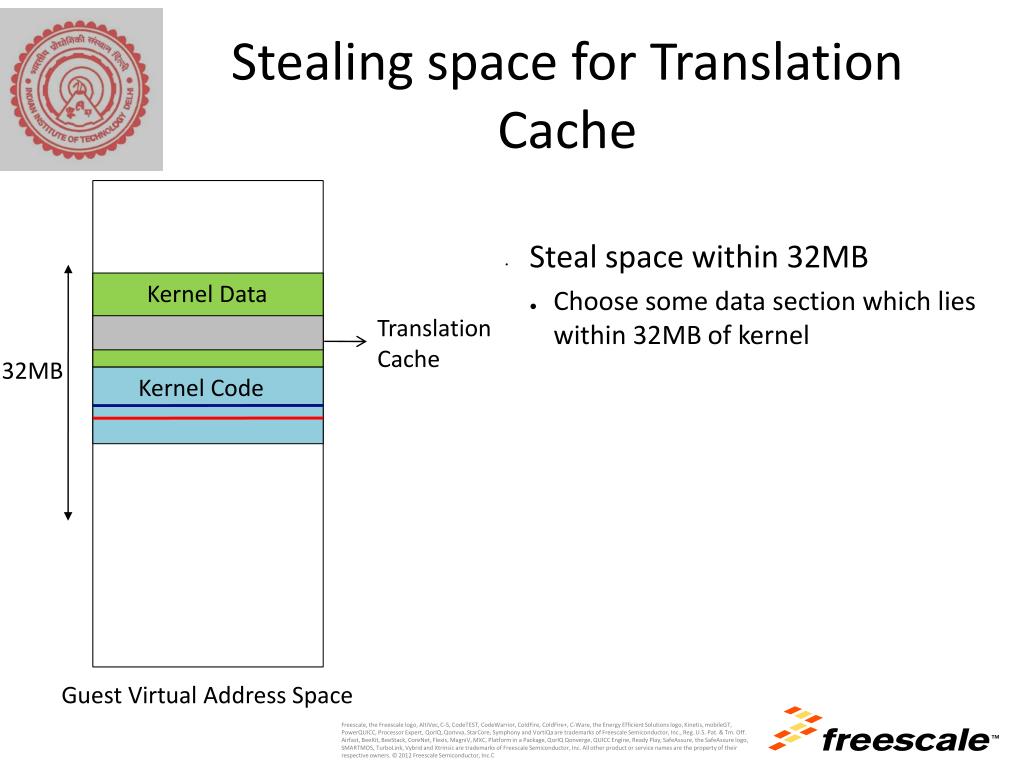

29. Stealing space for Translation Cache Kernel Data Translation Cache 32MB Kernel Code Guest Virtual Address Space • Steal space within 32MB • Choose some data section which lies within 32MB of kernel

30. Stealing space for Translation Cache Kernel Data Execute-only Translation Cache 32MB Kernel Code • Mark space as execute-only • All R/W accesses to this region trap into hypervisor Guest Virtual Address Space • Steal space within 32MB • Choose some data section which lies within 32MB of kernel

31. Read/Write Tracing

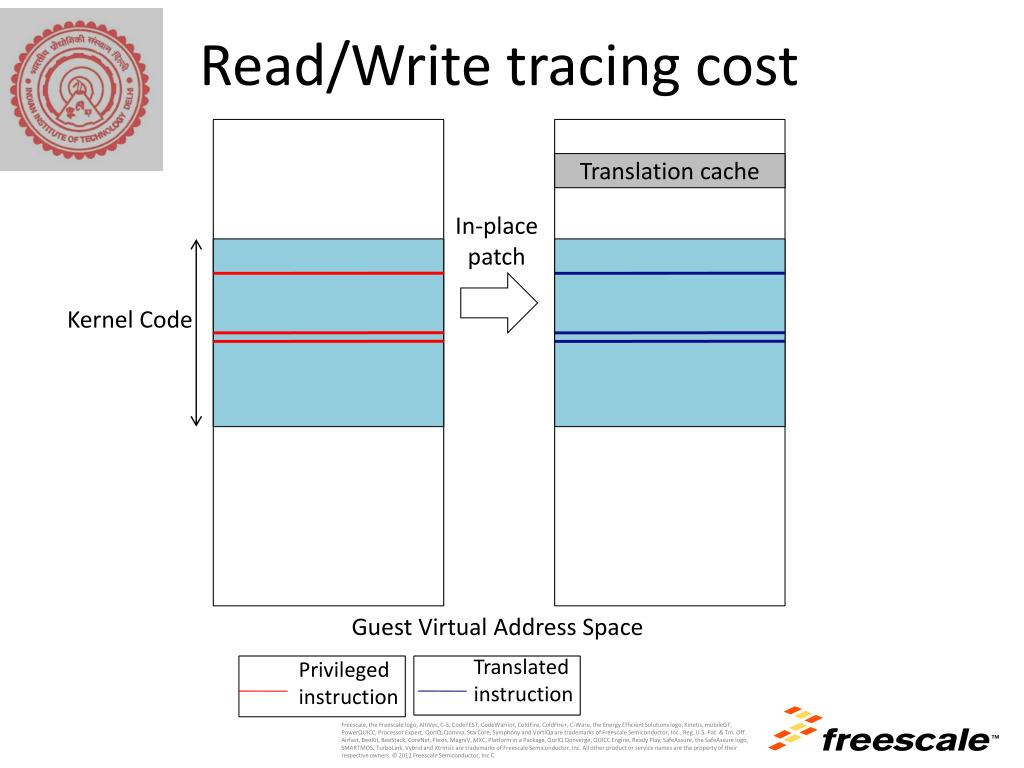

32. Read/Write tracing cost Translation cache In-place patch Kernel Code Guest Virtual Address Space Translated instruction Privileged instruction

33. Read/Write tracing cost Translation cache In-place patch Kernel Code Read/Write access by Guest Guest Virtual Address Space Translated instruction Traced region access Privileged instruction

34. Read/Write tracing cost Translation cache In-place patch Kernel Code R/W traced region Read/Write access by Guest Guest Virtual Address Space Translated instruction Traced region access Privileged instruction

35. Read/Write tracing cost Translation cache In-place patch Kernel Code R/W traced region Read/Write access by Guest Guest Virtual Address Space Translated instruction Traced region access Privileged instruction

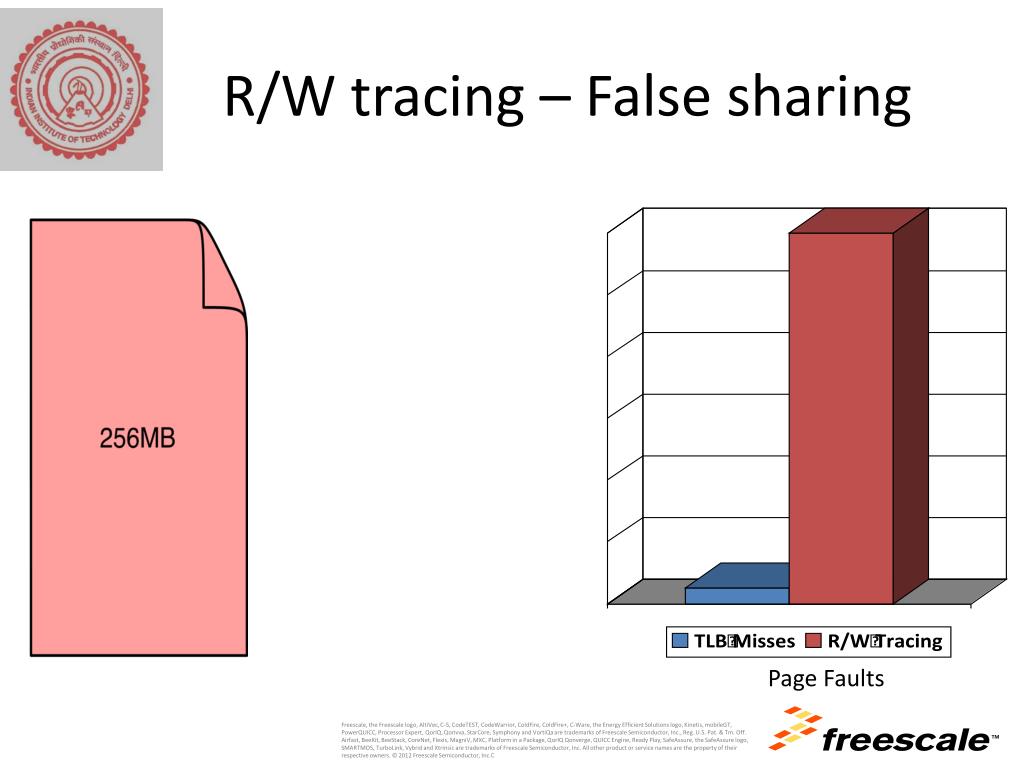

36. R/W tracing – False sharing Page Faults

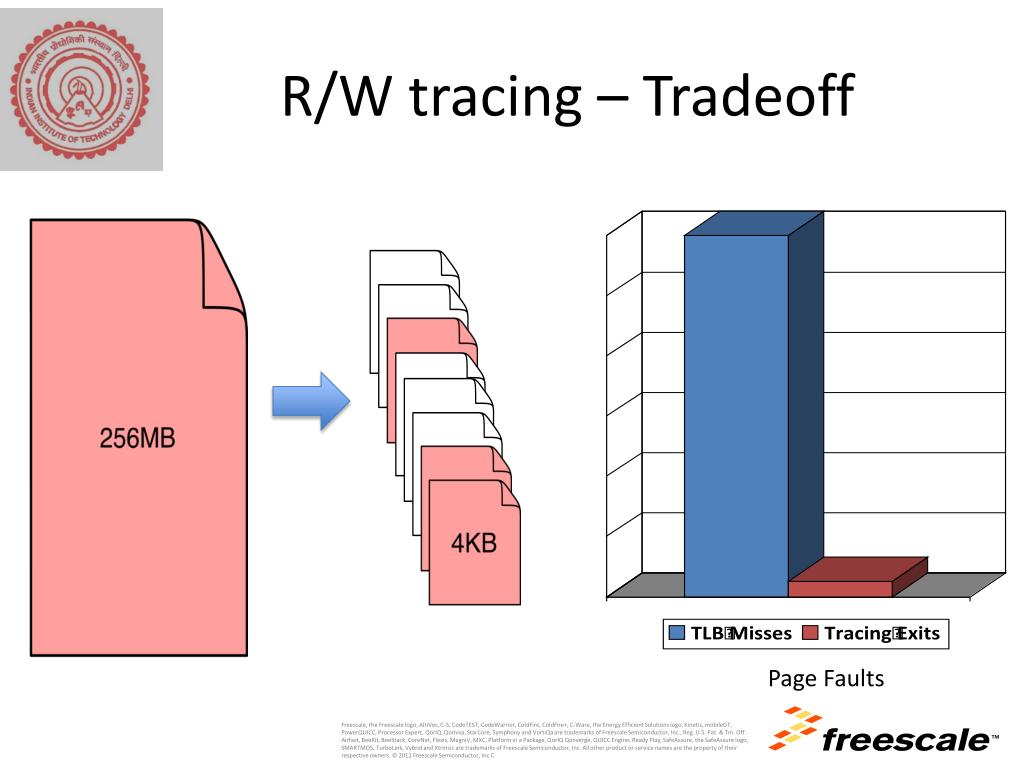

37. R/W tracing – Tradeoff Page Faults

38. R/W tracing – Tradeoff Page Faults

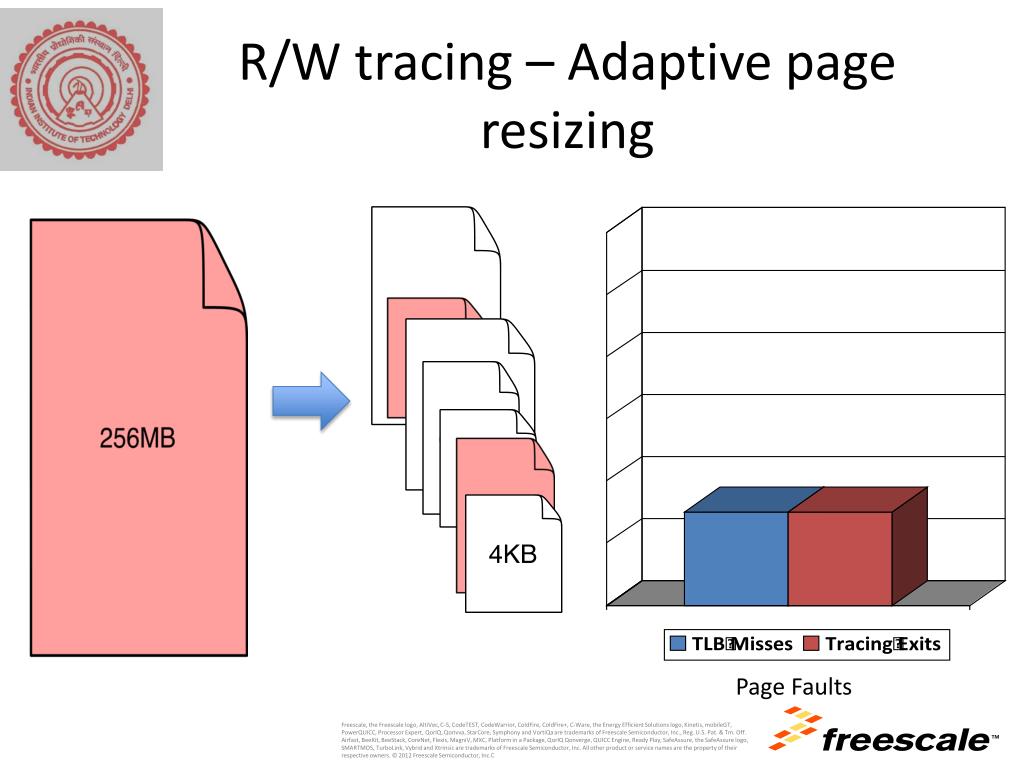

39. R/W tracing – Adaptive page resizing Page Faults

40. Adaptive Page Resizing : Optimizing Tradeoff • Fragmentation of large page. Based on workload type: • Burst - page is broken such that all patch-sites on that page belong to the “shortest” page • Scan - page is broken into two halves and the half with larger number of tracing page faults is untraced • Remove patch and re-instate Read/Write privileges • High number of tracing page faults • Opportunistic merging • Periodically merge neighboring pages to reduce TLB pressure

41. Adaptive Page Resizing Performance 1.5-2.4x faster than trap-and-emulate

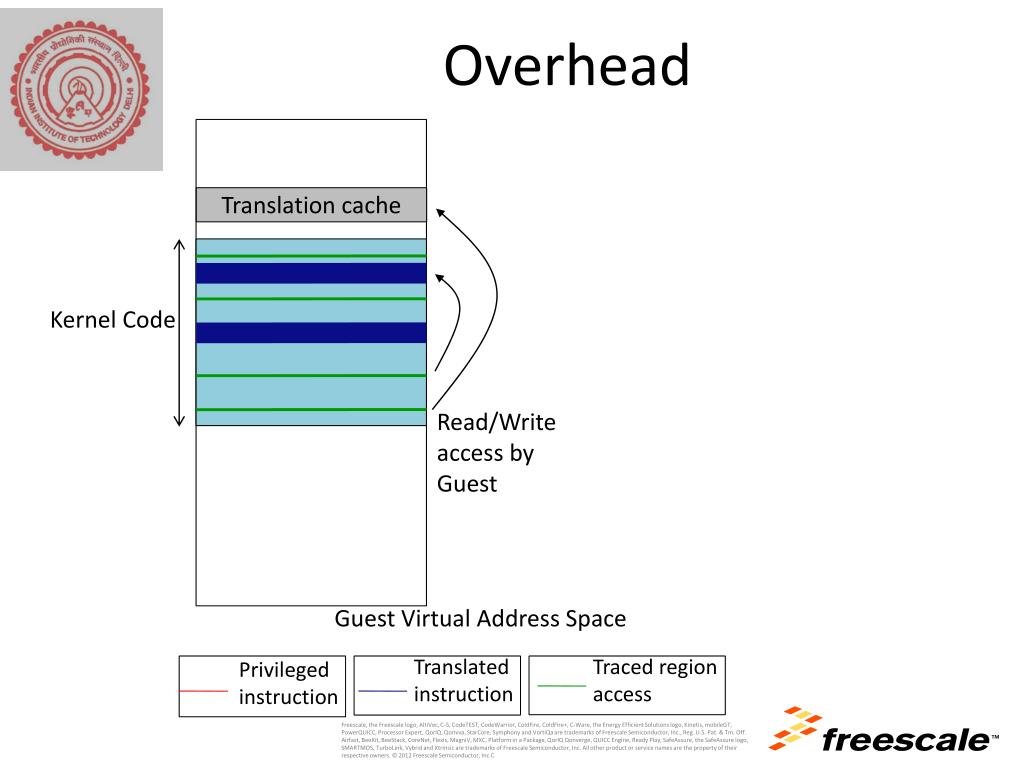

42. Overhead Translation cache Kernel Code Read/Write access by Guest Guest Virtual Address Space Translated instruction Traced region access Privileged instruction

43. Overhead Translation cache Translation cache Kernel Code Read/Write access by Guest to mirrored data Read/Write access by Guest Guest Virtual Address Space Translated instruction Traced region access Privileged instruction

44. Adaptive-Data Mirroring Instructions accessing data on pages protected by R/W tracing Mirror the accessed data on shared space In-place translation

45. Adaptive Data Mirroring Performance 2.2-3.1x faster than trap-and-emulate

46. Comparison with Bare Metal 1.9-4.9x slower than bare metal

47. More results in paper • Comparisons on lmbench and unixbench • Comparing adaptive page resizingwith statically configured page resizing • Three-way tradeoff between • Privileged Instruction Exits • Read/Write Tracing Page Faults • TLB Miss Page Faults

48. Correlation between Architecture& Hypervisor Design • RISC vs CISC architecture • In-place vs Full Binary Translation • Orthogonal RWX bits vs RW/NX bits (x86) • Software managed TLBs (with page size flexibility) vs Segmentation

49. Conclusions Improved virtualization performance of unmodified guests on embedded Power Architecture(2-6x) Insight into implications of subtle architectural design decisions on VMM design

50. Questions ?
